Dacor Preference PGM304-1 Manuel technique

PLANNING

GUIDE

Web: http://www.Dacor.com

Corporate Phone: 800-793-0093

Specifications are subject to change without notice.

See installation instructions for additional details. 4.7

30”, 36”, 46” Wide,

Preference™ Gas Cooktops

PGM304-1, PGM365-1

1/2

30"

(762mm)

21"

(533mm)

4" (102mm)

Chassis height

1/4" (6mm) Min.

to combustibles

below chassis

27 1/2"

(699mm)

19 7/8" (505mm)

3 1/8"

(79mm)

7 1/2" (191mm) Min.

to combustible

side wall above

the cooktop

(both sides)

Vertical

combustible

surface

Rear

wall

(51mm) Min.

25" (635mm)

Minimum

Cutout Dimensions for the PGM304-1

36"

(914mm)

21"

(533mm)

19 7/8"

(505mm)

33 3/4"

(857mm)

4" (102mm)

Chassis height

3 1/8"

(79mm)

1/4" (6mm) Min.

to combustibles

below chassis

7 1/2" (191mm) Min.

to combustible

side wall above

the cooktop

(both sides)

Vertical

combustible

surface

Rear

wall

(51mm) Min.

25" (635mm)

Minimum

Cutout Dimensions for the PGM365-1

Axis2Axis2

Revised

06/24/08

PLANNING

GUIDE

Web: http://www.Dacor.com

Corporate Phone: 800-793-0093

Specifications are subject to change without notice.

See installation instructions for additional details. 4.8

30”, 36”, 46” Wide,

Preference™ Gas Cooktops

PGM304-1, PGM365-1

Model No.

Dedicated

Circuit

Required

Total

Connected

Load

Gas Supply

Requirements

Approximate

Shipping

Weight

PGM304-1 120 Vac,

60 Hz,

15 Amp

(Breaker)

0.03 kW

(0.25 Amp)

1/2” (13 mm)

Regulator -

Natural Gas

Standard

53 lbs.

PGM365-1

3/4” (19 mm)

Regulator -

Natural Gas

Standard

67 lbs.

NOTES:

1. Factory installed propane (LP) special ordered.

2. Cooktop is supplied with a 40” (1016 mm) power

cord, with a three-prong grounded plug.

3. Utilities connections are located on the bottm of

the chassis at the right rear corner of the cooktop.

4. See the Combination Installation (CI) section if

installing with a downdraft, wall oven, or warming

oven.

2/2

13" Max.

(330 mm)

3 1/8" Min.

(79 mm)

18" Min.

(457 mm)

30" Min.

(762 mm)

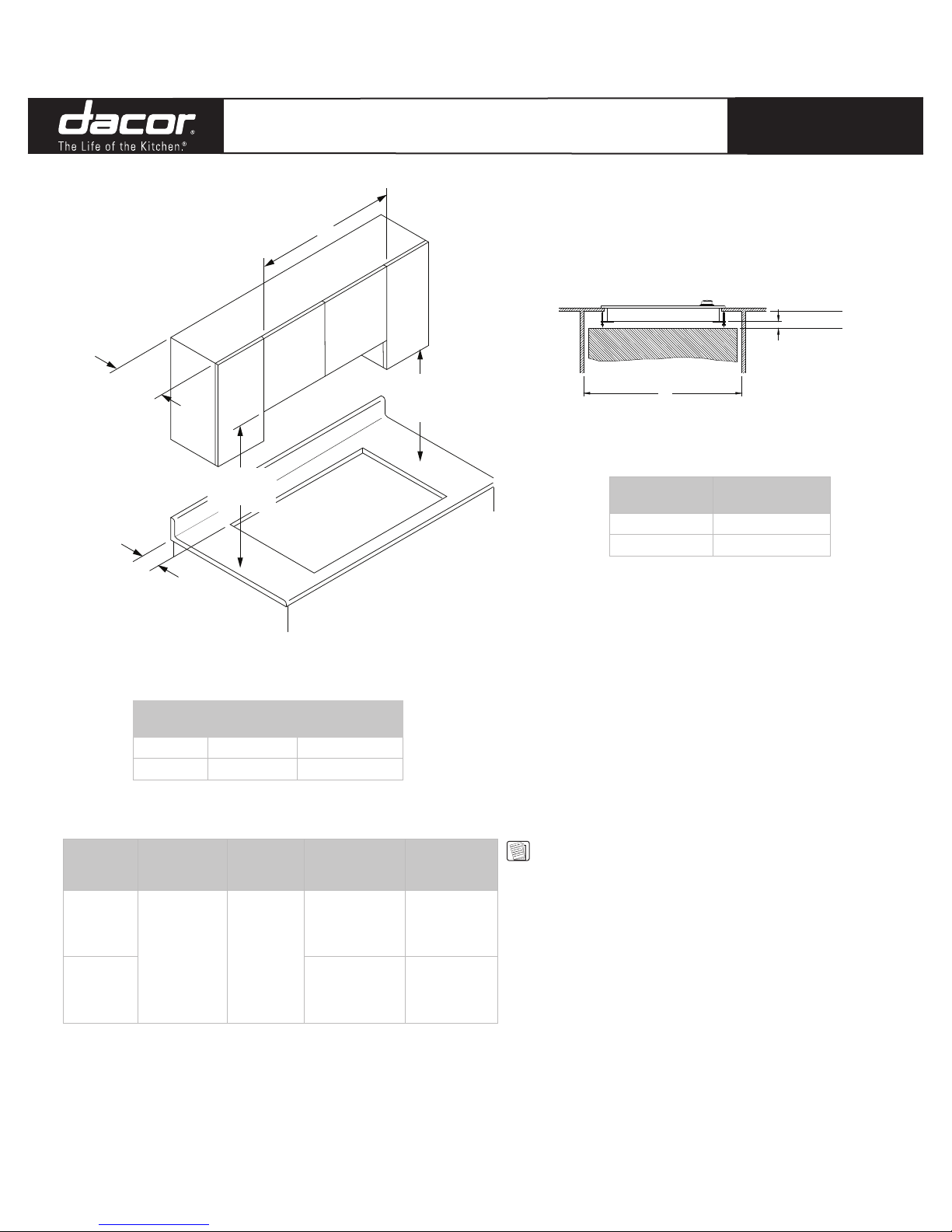

Clearances to Combustibles

Model

“A”

Minimum

“A”

Recommended

PGM304-1 30” (762 mm) 36” (914 mm)

PGM365-1 36” (914 mm) 42” (1067 mm)

Model

“B”

Minimum

PGM304-1 29” (737 mm)

PGM365-1 35 1/4” (895 mm)

1/4” (6 mm)

Mimimum clearance

to combustible

surfaces

Under Cabinet Clearances

(Front View)

Revised

06/24/08

All tolerances +1/16” -0 (+1.6 mm, 0) unless otherwise noted.
