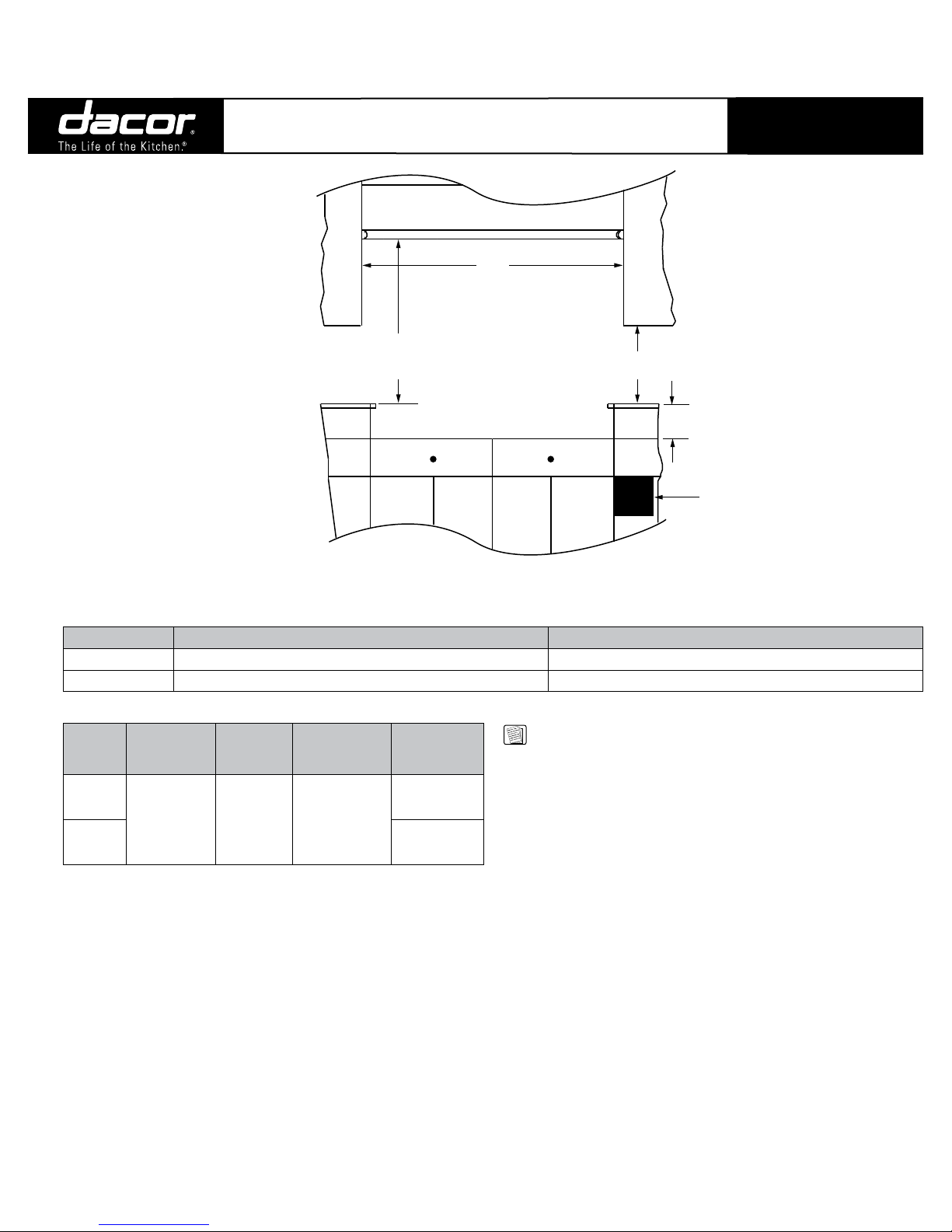

Dacor Epicure ESG366 Manuel technique

PLANNING

GUIDE

Web: http://www.Dacor.com

Corporate Phone: 800-793-0093

Specifications are subject to change without notice.

See installation instructions for additional details. 4.1

36”, 48” Wide,

Epicure™ Gas Cooktops

ESG366, ESG486

1/2091605

5/8”

(16mm)

25 1/2”

(648mm)

“A”

3 1/2”

(89mm)

Model No. “A” Cooktop Width “B” Cooktop Cutout

Width

“C” Mounting Holes Set

Back

“D” Distance Between

Mounting Holes

“E” Distance from

Countertop

ESG366 36” (914mm) 34 3/4” (883mm) 11 1/4” (286mm) 33 1/4” (845mm) 1 3/8” (35mm)

ESG486 48” (1219mm) 46” (1168mm) 41 5/16” (1049mm) 3 15/16” (100mm)

OVERALL DIMENSIONS

(ESG486 Shown)

“A”

“B”

6”

(152mm)

25” (635mm)

Typical Counter

3” (76mm)

22”

(559mm)

Vertical Non-Combustible

Surface Rear Wall

10”

(254mm)

Min. to Combustible

side wall (both sides)

6”

(152mm)

Utility Cutout

Location

3/4” Support

Platform

1/2” (13mm)

Mounting Holes

“C”

“E”

“D”

CUTOUT DIMENSIONS

Combustible

rear wall

material

26 1/2" (673mm)

27" (686mm)

7 3/4"

(197mm)

Top of

finished

counter

3/4” (19mm) Min.

Cooktop

platform

2 1/2" (64mm)

to combustible surface

1 1/2" (38mm) Min.

Combustible

Rear Wall

Material

Optional Stainless Steel

Dacor Backsplash

(AEB3609 or AEB3612)

3/4” (19mm) Min.

Cooktop

Platform

SIDE VIEW SIDE VIEW WITH BACKSPLASH

PLANNING

GUIDE

Web: http://www.Dacor.com

Corporate Phone: 800-793-0093

Specifications are subject to change without notice.

See installation instructions for additional details. 4.2

36”, 48” Wide,

Epicure™ Gas Cooktops

ESG366, ESG486

2/2062805

Model

No.

Dedicated

Circuit

Required

Total

Connected

Load

Gas Supply

Requirements

Approximate

Shipping

Weight

ESG366 120VAC,

60Hz, 15A

(Breaker)

0.03kW

(0.25A)

3/4” (19mm)

Regulator -

Natural Gas

Standard

128 lbs.

ESG486 149 lbs.

Model No. “C” Min. Hood Width “C” Recommended Hood Width

ESG366 36” (914mm) 42” (1067mm)

ESG486 48” (1219mm) 54” (1372mm)

Recommended

Utility Location

30" (762mm) Minimum from

finished countertop to combustible/

non-combustible surfaces

"C"

18” (457mm) Min.

Both Sides

7 3/4” (197mm)

UPPER CABINET DIMENSIONS

(Upper Cabinets 13” (330mm) Maximum Depth)

NOTES:

1. Factory installed liquid propane (LP) special

ordered.

2. Cooktop is supplied with a 48” (1219mm) power

cord, with a three prong grounded plug.

3. Utilities are located in the right rear corner of the

cooktop.

4. Utlities may be located in the right rear corner of

the cabinet below the cooktop. (Recommended)

5. See the Combination Installation (CI) Section if

installing with a downdraft, or warming oven.
