The

Instruction Book for

DIRECTOR ELECTROL®

PRE-INSTALLATION

INSTALLATION

1. Install screen by raising unit into position between joists at one end only. Install lag screws in mounting bracket or

hang from 3/8" rods.

2. Level unit lengthwise with a carpenter’s level and plumb level. Secure opposite end.

CAUTION! Do not secure access door or seal in until screen has been secured in position and properly tested for satisfactory

operation.

3. Remove screw at each end of roller access door (Fig. 1).

4. Remove junction box cover plate.

If your screen has the built in SCB-100 or SCB-200, please refer to separate instructions.

5. Install electric hook up that applies to your unit. Make sure to review your electrical installation checklist and wiring

diagram (included) for either 120 volt switch, 220/240 volt switch, or DRC low voltage control.

NOTE: Screen has been internally wired at Da-Lite. Wiring designated “external” is completed by installer conforming to local

and national codes.

CAUTION! DO NOT CUT TAPE ON FABRIC WITH A KNIFE OR ANY SHARP TOOL. REMOVE BY HAND.

1. Carefully unpack screen and remove outer wrapping from case.

2. Make sure to recheck measurements of screen location before installation.

▲

FABRIC DOOR ACCESS

DOOR

SCREW FOR

SECURING ROLLER

ACCESS DOOR

FIGURE 1

IMPORTANT SAFETY INSTRUCTIONS

When using your video equipment, basic safety precautions should always be followed, including the

following:

1. Read and understand all instructions before using.

2. Position the cord so that it will not be tripped over, pulled, or contact hot surfaces.

3. If an extension cord is necessary, a cord with a current rating at least equal to that of the appliance

should be used. Cords rated for less amperage than the appliance may overheat.

4. To reduce the risk of electric shock, do not disassemble this appliance. Contact an authorized

service dealer when repair work is required. Incorrect reassembly can cause electric shock when

the appliance is used subsequently.

5. The use of an accessory attachment not recommended by the manufacturer may cause a risk of

fire, electric shock, or injury to persons.

SAVE THESE INSTRUCTIONS

▲

1. Run picture surface downward until picture surface door fully opens.

2. Install junction box cover plate.

3. Close access door.

4. Install screws at each end of access door.

ACCESS DOOR INSTALLATION

SCREEN ADJUSTMENT

Surface travel is stopped automatically in the fully opened and closed positions by limit switches that are properly

adjusted at Da-Lite. Should it be necessary to adjust for more or less drop of picture, proceed in the following manner:

NOTE: Use a screw driver or 5/32" Allen wrench to make adjustments.

DOOR MOTOR

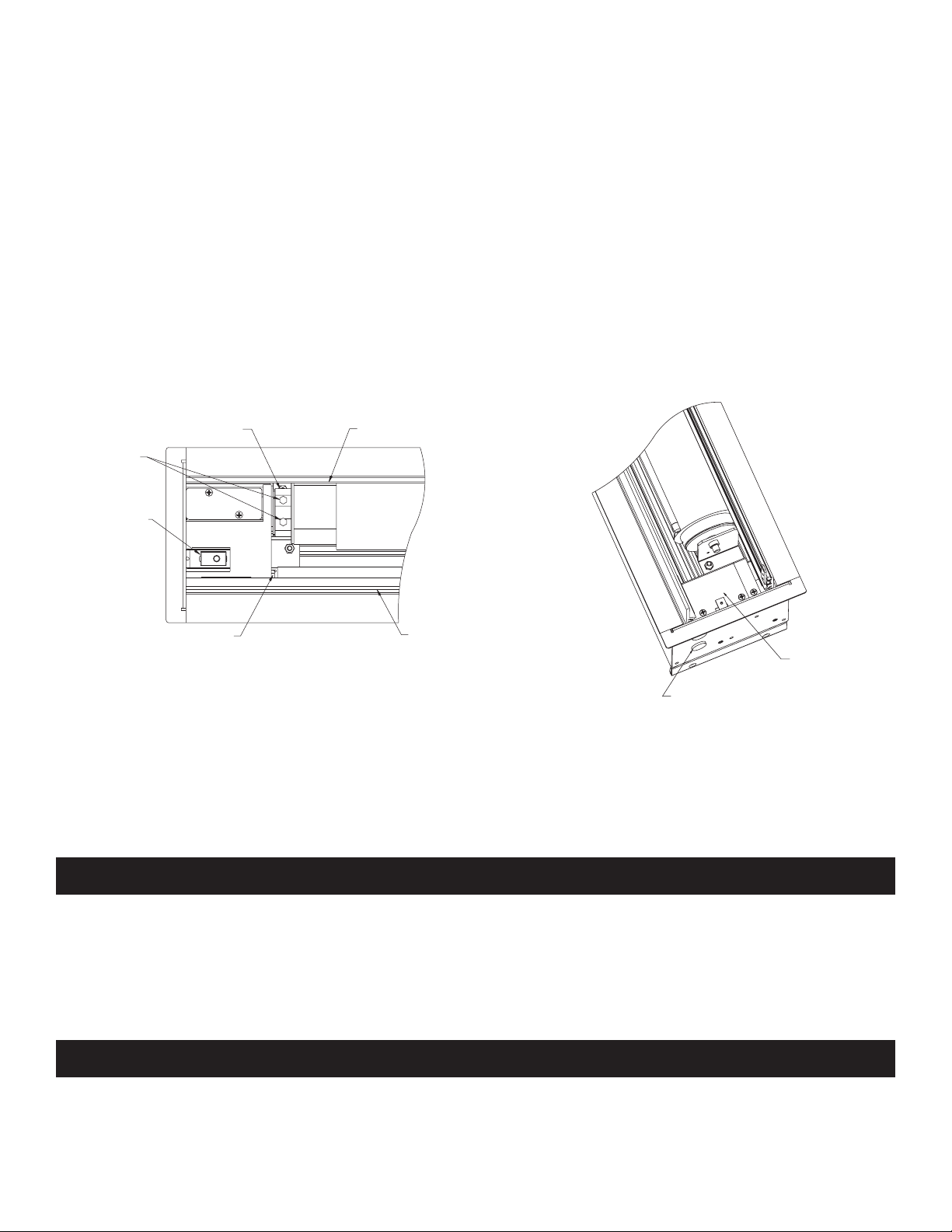

FIGURE 2

6. Carefully remove tape strips securing picture surface around roller. Slat should move freely (Fig. 2).

7. Test installation by carefully running picture surface up and down several times. Be prepared to stop screen.

NOTE: When rolled down, the picture surface should wrap fully around the roller. No part of the roller should be exposed.

Picture surface will automatically stop in the down position.

8. Run the picture surface upward. The surface door will automatically close when the picture surface rolls into the

case. A second motor pulls the door closed. When the door closes, a limit switch is tripped and the motor shuts

off.

9. Check for satisfactory condition by operating screen a few times.

CAUTION! Excessive continuous operation may cause overheating. If this happens, the motor will shut off until it cools to

normal operating temperature

▲

KNOCKOUTS FOR

CONDUIT INSTALLATION

FIGURE 3

SCB-100/SCB-200

ACCESS COVER

DOOR

MICROSWITCH

LIMIT SWITCH

ADJUSTMENT

KNOBS

ACCESS DOOR

SCREEN MOTOR

FABRIC DOOR

MORE SCREEN DROP

1. Place operating switch in “down” position.

2. When the screen stops, turn the white “down” limit knob (Fig. 2) one-quarter turn counterclockwise. Test by raising

picture surface approximately two feet, then lower again. Repeat until desired picture surface position is attained.

CAUTION: Do not adjust for more drop than what was ordered. At least 1-1/2 wraps of fabric must remain on the roller. This

screen comes standard with 0" or 2" black at the top. See the specification data sheet for details.

LESS SCREEN DROP

1. Raise picture surface approximately two feet above desired level.

2. Place operating switch in “off”position.

3. Turn the white “down” limit switch (Fig. 2) one-quarter turn clockwise. Test by raising picture surface

approximately two feet, then lower again. Repeat until desired picture surface position is attained.

DIRECTOR ELECTROL®INSTRUCTIONS

220 / 240V WIRING DIAGRAM

WITH ONBOARD LVC

120V WIRING DIAGRAM

WITH ONBOARD LVC

BLACK

WHITE

RED (UP)

GRAY

BLACK (DOWN)

GREEN

DOOR SWITCH

SCREEN MOTOR

BLACK

WHITE

BLACK AND YELLOW

LOW-VOLTAGE

WALL SWITCH

BLACK

WHITE

RED

OPTIONAL RF OR IR

REMOTE CONNECTOR

LVC BOARD

WHITE (COMMON)

BLACK (DOWN)

RED (UP)

INPUT

GROUND

BLACK (HOT)

WHITE (COMMON)

120VAC 60HZ

INPUT

DOOR MOTOR

BLACK (CLOSE)

WHITE

RED (OPEN)

GREEN

DOWN

STOP

BROWN

BLACK

BLUE

BLACK (UP)

GRAY

BROWN (DOWN)

GREEN

DOOR SWITCH

SCREEN MOTOR

BROWN

BROWN AND

YELLOW

LOW-VOLTAGE

WALL SWITCH

AUX EYE

LVC BOARD

INPUT

GROUND

BLACK BROWN (HOT)

BLUE

BLACK

BROWN (DOWN)

BLACK (UP)

220/240VAC 50/60HZ

INPUT

DOOR MOTOR

BROWN (CLOSE)

BLUE

BLACK(OPEN)

GREEN

DOWN

STOP

RED

NOTE: Electrical connections on left end of

case.

NOTE: Electrical connections on left end of

case.

BLACK

WHITE

RED

EYE AUX

OPTIONAL RF OR IR

REMOTE CONNECTOR

▲

DIRECTOR ELECTROL®INSTRUCTIONS

RED

BLACK

WHITE

BLACK &

YELLOW

BLACK

GREEN

RED (UP)

BLACK (DOWN)

WHITE

GRAY

WHITE

RED

RED (UP)

BLACK (DOWN)

WHITE (COMMON)

AC (COMMON)

AC HOT

TO JUNCTION BOX MOUNTED IN SCREEN

CASE, IN WHICH INTERNAL WIRING TERMI-

NATES IN WHITE, RED AND BLACK LEADS.

BLACK

(DOWN)

BLACK WITH

YELLOW

RED

(UP)

OFF

DOWN

OPERATING SWITCH,

SWITCH BOX, AND

PLATE FURNISHED

WITH SCREEN. (SPDT

WITH CENTER OFF)

SIDE VIEW OF

SWITCH & BOX

THIS SWITCH CANNOT BE USED WITH L.V.C.

NOTE: A SINGLE SWITCH CANNOT BE USED TO OPERATE MORE THAN ONE

SCREEN. CONTACT THE FACTORY FOR FURTHER INFORMATION.

IN MULTIPLE CONTROL INSTALLATIONS

THE SWITCH IS REPLACED BY THE LOW

VOLTAGE CONTROL, OPERATED FROM

PUSH BUTTON STATIONS.

115V. AC 60HZ.

1 AMP. MAX

DOOR SWITCH

BLACK

BLACK (CLOSE)

WHITE

RED (OPEN)

GREEN

SCREEN MOTOR

DOOR MOTOR

BLACK

BROWN

BLUE

BROWN &

YELLOW

BROWN

BROWN (DOWN)

BLACK (UP)

BLUE

GRAY

GREEN

BLUE

BLACK

TO JUNCTION BOX MOUNTED IN SCREEN

CASE, IN WHICH INTERNAL WIRING TERMI-

NATES IN BLUE, BROWN AND BLACK LEADS.

OPERATING SWITCH,

SWITCH BOX, AND PLATE

FURNISHED WITH

SCREEN. (SPDT WITH

CENTER OFF)

NOTE: A SINGLE SWITCH CANNOT BE USED TO OPERATE MORE THAN ONE

SCREEN. CONTACT THE FACTORY FOR FURTHER INFORMATION.

IN MULTIPLE CONTROL INSTALLATIONS

THE SWITCH IS REPLACED BY THE LOW

VOLTAGE CONTROL, OPERATED FROM

PUSH BUTTON STATIONS.

DOOR SWITCH

BROWN

BROWN (CLOSE)

BLUE

BLACK (OPEN)

SCREEN MOTOR

DOOR MOTOR

GREEN

NOTE:

MUST BE WIRED TO CONFORM TO

LOCAL WIRING CODE. THIS SWITCH

CANNOT BE USED WITH L.V.C.

220/240V. AC 50HZ.

2 AMP. MAX

POWER SOURCE

BLACK TO MOTOR

220 / 240V

WIRING DIAGRAM

120V WIRING DIAGRAM

NOTE: Electrical connections on left end of case.

BROWN TO MOTOR

BLUE TO MOTOR

BROWN (HOT)

YELLOW/GREEN (GROUND)

BLUE (COMMON)

DIRECTOR ELECTROL®INSTALLATION

9-1/4"

(SUGGESTED) 3/8"

THREADED ROD (NOT

INCLUDED)

ATTACHED TO

MOUNTING BRACKET

FINISHED

CEILING

SELF-TRIMMING

FLANGE

7-1/4"

8-3/4"

CASE LENGTH

VARIABLE POSITION

MOUNTING BRACKETS

7-1/4"

6-1/8"

MOTOR END

6-1/8"

ELECTRICAL

JUNCTION BOX

SEE DETAIL A

(SUGGESTED) 3/8"

THREADED ROD

(NOT INCLUDED)

4.59"

7.21"

8.75"

DETAIL A

8.74"

HANGER BRACKET

FLAT BRACKET MOUNTING METHOD

FORMED BRACKET

MOUNTING METHOD

TROUBLESHOOTING

SYMPTOM

1. Screen will not operate or will not go

“down”.

Motor does not hum.

Motor hums.

2. Screen will not move upward.

Motor does not hum.

Motor hums.

3. Door will not open.

CAUSE

(a) Incorrect line voltage.

(b) Blown facility fuse.

(d) No power to operating switch or

junction box.

Power at junction box.

(e) Thermal overload tripped.

(f) Broken wire in the “down” position.

(g) Defective motor, limit switch or

capacitor.

(h) Capacitor burned out.

(a) Incorrect line voltage.

(b) Blown facility fuse.

(d) No power to operating switch or

junction box.

(e) Open door limit switch.

Power at junction box

(f) Thermal overload tripped.

(g) Broken wire in the “up” position.

(h) Defective motor, limit switch or

capacitor.

(i) Capacitor burned out.

(a) Hinge is bound or has a foreign

substance on it which does not allow

it to open by gravity.

(b) No power.

SOLUTION

(a) Verify 115-125V (or 220-240V). If

insufficient voltage, rewire incoming

electric line.

(b) Replace facility fuse.

(d) Check above. Tighten all loose wire

connections. Recheck wiring. See

installation instructions.

“Down” Position

Check for power across black and white

leads.

(e) Let motor cool down for 15 minutes.

Try again.

(f) Check for continuity.

(g) Replace motor assembly.

NOTE: Motor is a sealed assembly.

(h) Replace motor assembly.

(a) Verify 115-125V (or 220-240V). If

insufficient voltage, rewire incoming

electric line.

(b) Replace facility fuse.

(d) Check above. Tighten all loose wire

connections. See above.

“Up” Position

Check for power across red and

white leads.

(e) Replace switch.

(f) Let motor cool down for 15 minutes.

Try again.

(g) Check for continuity.

(h) Replace motor assembly.

NOTE: Motor is a sealed assembly.

(i) Replace motor assembly.

(a) Check installation to free door. Clear

any foreign substance; i.e., paint or

plaster from hinge.

(b) See above.

Printed in U.S.A. 79298 Rev. 7/08

TROUBLESHOOTING

SYMPTOM

4. Door does not close.

5. “Down” limit switch incorrect.

6. Noise.

NOTE: Screen will operate with a low-

pitched hum.

7. Coasting.

8. Roller displaced from mounting

bracket.

9. Fabric hangs crooked.

10. Door closes before screen is all the

way up.

11. Door opens but screen does not

operate.

CAUSE

(a) Open door limit switch.

(b) No power from screen motor.

(a) “Down” limit switch out of

adjustment.

(a) Buzzing noise.

(b) Gear noise.

(a) Defective brake.

(a) Pin end slipped out of nylon bearing.

(a) Screen not installed properly.

(b) Fabric is damaged.

(a) Screen “up” limit out of adjustment.

(a) Loose wire.

SOLUTION

(a) Replace switch.

(b) Replace screen motor.

(a) See installation instructions.

(a) Adjust door limit switch (too far

down).

(b) Replace motor assembly.

(a) Replace motor assembly.

(a) Realign pin end bracket.

(a) Check for level and plumb.

(b) Replace fabric.

(a) Adjust “up” limit (call factory for

instructions).

(a) Check all wiring and connections.

Table des matières

Autres manuels Da-Lite Écran de projection

Da-Lite

Da-Lite PERM WALL FRAME Manuel utilisateur

Da-Lite

Da-Lite Contour Electrol Manuel utilisateur

Da-Lite

Da-Lite IDEA Thin Manuel utilisateur

Da-Lite

Da-Lite Tensioned Advantage Deluxe Electrol Manuel utilisateur

Da-Lite

Da-Lite Horizon Electrol Manuel utilisateur

Da-Lite

Da-Lite LARGE ADVANTAGE DELUXE ELECTROL Manuel utilisateur

Da-Lite

Da-Lite Senior Electrol Manuel utilisateur

Da-Lite

Da-Lite electrol Manuel utilisateur

Da-Lite

Da-Lite Designer Contour® Manuel utilisateur

Da-Lite

Da-Lite CINEMA CONTOUR SCREEN Manuel utilisateur

Da-Lite

Da-Lite TENSIONED ADVANTAGE ELECTROL Manuel utilisateur

Da-Lite

Da-Lite Curved Multi Format Imager Manuel utilisateur

Da-Lite

Da-Lite Floor Model C Manuel utilisateur

Da-Lite

Da-Lite IDEA Screen Manuel utilisateur

Da-Lite

Da-Lite Whiteboard Mount Manuel utilisateur

Da-Lite

Da-Lite Model B Manuel utilisateur

Da-Lite

Da-Lite ExecutiveElectrol Manuel utilisateur

Da-Lite

Da-Lite IDEA Panoramic Manuel utilisateur

Da-Lite

Da-Lite TENSIONED LARGE COSMOPOLITAN ELECTROL Manuel utilisateur

Da-Lite

Da-Lite Cinema Contour Screen Manuel utilisateur

Da-Lite

Da-Lite Contour Electrol Manuel utilisateur

Da-Lite

Da-Lite ViewShare Advantage Electrol Retrofit Manuel utilisateur

Da-Lite

Da-Lite Tensioned Advantage Deluxe Electrol Manuel utilisateur

Da-Lite

Da-Lite TENSIONED EXECUTIVE ELECTROL Manuel utilisateur

Manuels Écran de projection populaires d'autres marques

FART PRODUKT

FART PRODUKT Standard SCREEN Manuel utilisateur

Draper

Draper E Series Manuel

Elite Screens

Elite Screens Elite Tripod Series Manuel utilisateur

Laarhoven

Laarhoven Companion II Manuel utilisateur

Renogy

Renogy RMS-LFPS-US Manuel utilisateur

Samsung

Samsung S*H65* Manuel utilisateur

FONESTAR

FONESTAR PPTR-43100-FA Manuel utilisateur

Slide Clear

Slide Clear Varro XL Manuel utilisateur

Elite Screens

Elite Screens M85XWS1-SRM Manuel utilisateur

OS РХ-090Н Manuel utilisateur

Niko

Niko 10-845 Manuel utilisateur

Speaka Professional

Speaka Professional 2357532 Manuel d'utilisation

Sima

Sima XL-72 Manuel utilisateur

Jasic

Jasic EVO 2.0 ET-200P Manuel utilisateur

Elite Screens

Elite Screens Starling 2 Series Manuel utilisateur

InFocus

InFocus SC-WALL GRY-92H Manuel

Barco

Barco OverView MVL-615 Manuel utilisateur

Draper

Draper Envoy Manuel
