Instruction Book for

ADVANTAGE® DELUXE ELECTROL®

The Da-Lite Difference.

PRE-INSTALLATION

CASE INSTALLATION

1. The case provides multiple attachment points for bolts, cables, or threaded rod. Page 7 shows threaded rod

installed. The variable position-mounting bracket may be located anywhere along the length of the case. It is

recommended to keep the brackets spaced evenly enough to distribute the weight of the screen.

The case has a self-trimming flange around the bottom. Ceiling tiles or drywall may be placed on top of this flange

to provide a finished appearance.

2. After securing the case in the ceiling check that the case is level and plumb.

3. Install electrical connections that apply to your unit. Refer to the following diagrams for proper installation. The

diagrams on page 4 are for standard controls; the diagrams on page 5 are for SCB100 controls and page 6 for

SCB200 controls. The terminal block for the wall switch connections is located under the metal housing

surrounding the junction box. Remove two screws for access.

1. Carefully unpack screen and remove outer wrapping from case.

2. Make sure to recheck measurements of screen location before installation.

IMPORTANT SAFETY INSTRUCTIONS

When using your video equipment, basic safety precautions should always be followed, including the

following:

1. Read and understand all instructions before using.

2. Position the cord so that it will not be tripped over, pulled, or contact hot surfaces.

3. If an extension cord is necessary, a cord with a current rating at least equal to that of the appliance

should be used. Cords rated for less amperage than the appliance may overheat.

4. To reduce the risk of electric shock, do not disassemble this appliance. Contact an authorized

service dealer when repair work is required. Incorrect reassembly can cause electric shock when

the appliance is used subsequently.

5. The use of an accessory attachment not recommended by the manufacturer may cause a risk of

fire, electric shock, or injury to persons.

SAVE THESE INSTRUCTIONS

FABRIC DOOR

ACCESS

DOOR

SCREW FOR

SECURING ROLLER

ACCESS DOOR

FIGURE 1

If your screen was shipped with the motor and roller already installed proceed to step 6.

1. Remove the screw from each end of the access door (front door) and open the door. See figure 1.

2. Carefully unpack screen and roller assembly. Leave packing paper on the roller.

3. Place the roller assembly into the case with the motor on the left side. The limit switches should be facing down.

Line up the square pin on the motor with the square hole in the bracket.

4. Lift the pin end (right end) of the roller into position and slide the bracket onto the roller pin. Tighten two nuts to

secure the bracket.

5. Complete electrical hook-up by snapping motor wire connector into case connector.

CAUTION! DO NOT CUT TAPE ON FABRIC WITH A KNIFE OR ANY SHARP TOOL. REMOVE BY HAND.

6. Carefully remove tape strips securing picture surface around roller. Slat should move freely (Fig. 2). (Only if the

roller assembly is preinstalled.)

7. Test installation by operating the screen several times. Be prepared to stop the screen. Standard Duty Cycle: 1

MIN. ON/3 MIN. OFF. The fabric door (rear door) will not close until the wall switch is placed in the up position and

when the screen motor stops at its limit switch in the up direction.

NOTE: Excessive continuous operation may cause the motor to overheat. If this happens the motor will shut off until it cools to

a normal operating temperature.

8. Run the screen down enough to open the fabric door. Close the access door and reinstall the screws to secure the

door.

SCREEN AND ROLLER ASSEMBLY INSTALLATION

screen motor

FIGURE 2

WHITE

ADJUSTMENT

KNOB "DOWN"

DOOR

MICROSWITCH

FABRIC

DOOR

KNOCKOUTS FOR

CONDUIT INSTALLATION

FIGURE 3

SCB-100/SCB-200

ACCESS COVER

ACCESS DOOR

door motor

BLACK

ADJUSTMENT

KNOB "UP"

NOTE: Use a screw driver or 5/32" Allen wrench to make adjustments.

MORE SCREEN DROP

1. Place operating switch in “down” position.

2. When the screen stops, turn the white “down” limit knob (Fig. 2) one-quarter turn counterclockwise. Test by raising

picture surface approximately two feet, then lower again. Repeat until desired picture surface position is attained.

CAUTION: Do not adjust for more drop than what was ordered. At least 1-1/2 wraps of fabric must remain on the roller. This

screen comes standard with 0" or 2" black at the top. See the specification data sheet for details.

3. Recalibrate according to above instructions. Press "up" button to close door after recalibration.

LESS SCREEN DROP

1. Raise picture surface approximately two feet above desired level.

2. Place operating switch in “off”position.

3. Turn the white “down” limit switch (Fig. 2) one-quarter turn clockwise. Test by raising picture surface approximately

two feet, then lower again. Repeat until desired picture surface position is attained.

4. Recalibrate according to above instructions. Press "up" button to close door after recalibration.

CONTACT DA-LITE AT 800-622-3737 IF DOOR MOTOR NEEDS ADJUSTMENT.

SCREEN ADJUSTMENT

RECALIBRATION

The screen controller (standard control, not SCB100 or SCB200) is factory calibrated to control the screen and door

sequence timing. If the line voltage varies 10% or more from the factory setting, the door will not close properly and the

unit will need to be recalibrated. The steps are:

1. The screen surface must be all the way up

2. Press and hold the stop button for 10 seconds

The screen will then run through a whole cycle and be recalibrated upon completion. Press "up" button to close door after

recalibration.

If the screen limit switch setting is changed in the up direction, the unit must be recalibrated. Surface travel is stopped

automatically in the fully opened and closed positions by limit switches that are factory set at Da-Lite. Should it be

necessary to adjust for more or less drop of picture, proceed in the following manner:

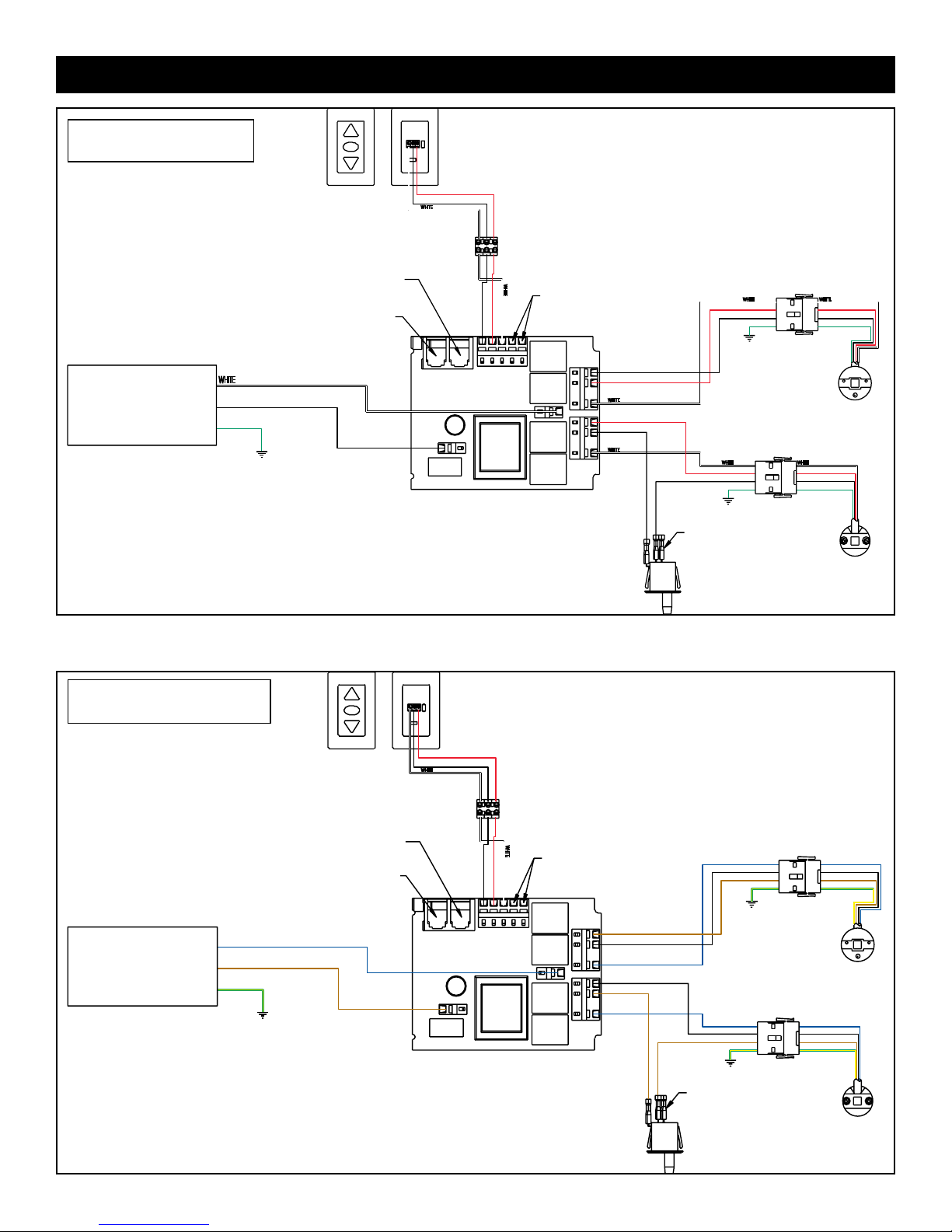

ADVANTAGE® DELUXE ELECTROL® INSTRUCTIONS FOR STANDARD CONTROL

220/240V WIRING DIAGRAM

120V WIRING DIAGRAM

SCREEN MOTOR

BLACK (UP)

RED (UP)

OPTIONAL RF OR IR

REMOTE CONNECTOR

WHITE (COMMON)

POWER INPUT

120VAC/60HZ

DOOR MOTOR

DOWN

STOP

NOTE: Electrical connections

on left end of case.

AUX EYE

OPTIONAL RF OR IR

REMOTE CONNECTOR

NOT USED

WHITE (COMMON)

NOT USED

WHITE (COMMON)

NOTE: 20-24AWG WIRE RECOMMENDED

FOR CONNECTING WALL SWITCH TO THE

DUAL MOTOR CONTROLLER

POWER INPUT

240VAC/50HZ

NOT USED

DOOR MICROSWITCH

NOTE: 20-24AWG WIRE RECOMMENDED

FOR CONNECTING WALL SWITCH TO THE

DUAL MOTOR CONTROLLER

FRONT OF

WALL SWITCH

BACK OF

WALL SWITCH

BLACK (HOT)

GREEN (GROUND)

BLACK (DOWN)

WHITE (COMMON)

RED (UP)

BLACK (DOWN)

WHITE (COMMON)

RED (UP)

RED (DOWN)

WHITE (COMMON)

RED (UP)

BLACK (DOWN)

GREEN (GROUND)

WHITE (COMMON)

RED (UP)

BLACK (DOWN)

GREEN (GROUND)

WHITE (COMMON)

RED (DOWN)

BLACK (UP)

GREEN (GROUND)

WHITE (COMMON)

RED (DOWN)

BLACK (UP)

GREEN (GROUND)

NOTE: Electrical connections

on left end of case.

AUX EYE

FRONT OF

WALL SWITCH

BACK OF

WALL SWITCH

SCREEN MOTOR

DOOR MOTOR

BLUE (COMMON)

BROWN (HOT)

GREEN/YELLOW (GROUND)

DOWN

STOP

RED (UP)

BLACK (DOWN)

WHITE (COMMON)

RED (UP)

BLACK (DOWN)

BROWN (UP)

BROWN (DOWN)

BLUE (COMMON)

BLACK (UP)

BLACK (DOWN)

BLUE (COMMON)

BLACK (UP)

BROWN (DOWN)

GREEN/YELLOW (GROUND)

BLUE (COMMON)

BLACK (UP)

BROWN (DOWN)

GREEN/YELLOW (GROUND)

BLUE (COMMON)

BLACK (DOWN)

BROWN (UP)

GREEN/YELLOW (GROUND)

BLUE (COMMON)

BLACK (DOWN)

BROWN (UP)

GREEN/YELLOW (GROUND)

POWER INPUT AND CONTROL

BOARD ARE LOCATED ON RIGHT

SIDE OF SCREEN HOUSING.

BROWN (HOT)

GREEN/YELLOW (GROUND)

BLUE (COMMON)

POWER INPUT

240VAC/50HZ

DOWN

STOP

NOT USED

BACK OF FRONT OF

WALL SWITCH WALL SWITCH

SCREEN MOTOR

DOOR MOTOR

TERMINAL BLOCK

TX - DATA OUT

G - GROUND

RX - DATA IN

TX - DATA OUT

G - GROUND

RX - DATA IN

WHITE (COMMON)

BLACK (DOWN)

RED (UP)

- 12VDC OUT

+ 12VDC OUT

SCREEN AND DOOR MOTOR, MICROSWITCH

AND TIMER RELAY ARE LOCATED ON LEFT

SIDE OF SCREEN HOUSING. DOOR MICROSWITCH

BLUE

(COMMON)

BROWN (UP)

BLUE (COMMON)

BLACK (DOWN)

BROWN (UP)

GREEN/YELLOW (GROUND)

BROWN (DOWN)

BLUE (COMMON)

BLACK (UP)

GRAY (DOOR)

BROWN (DOWN)

GREEN/YELLOW (GROUND)

BLUE (COMMON)

BLACK (UP)

GRAY (DOOR)

BROWN (DOWN)

GREEN/YELLOW (GROUND)

BROWN/

YELLOW

BLACK (DOWN)

BLUE (COMMON)

BROWN (DOWN)

BLACK (UP)

BROWN (HOT)

GREEN/YELLOW (GROUND)

BLUE (COMMON)

NOTE: 20-24AWG WIRE RECOMMENDED

FOR CONNECTING WALL SWITCH TO THE

DUAL MOTOR CONTROLLER

ADVANTAGE® DELUXE ELECTROL® INSTRUCTIONS SCB-100 CONTROL

POWER INPUT AND CONTROL

BOARD ARE LOCATED ON RIGHT

SIDE OF SCREEN HOUSING.

220 / 240V

WIRING DIAGRAM

120V WIRING DIAGRAM

NOTE: Electrical connections on right side of case.

BLACK (HOT)

GREEN (GROUND)

WHITE (COMMON)

POWER INPUT

120VAC/60HZ

DOWN

STOP

NOT USED

BACK OF FRONT OF

WALL SWITCH WALL SWITCH

SCREEN MOTOR

DOOR MOTOR

TERMINAL BLOCK

TX - DATA OUT

G - GROUND

RX - DATA IN

TX - DATA OUT

G - GROUND

RX - DATA IN

WHITE (COMMON)

BLACK (DOWN)

RED (UP)

- 12VDC OUT

+ 12VDC OUT

SCREEN AND DOOR MOTOR, MICROSWITCH

AND TIMER RELAY ARE LOCATED ON LEFT

SIDE OF SCREEN HOUSING. DOOR MICROSWITCH

WHITE

(COMMON)

BLACK (UP)

WHITE (COMMON)

RED (DOWN)

BLACK (UP)

GREEN (GROUND)

BLACK (DOWN)

WHITE (COMMON)

RED (UP)

GRAY (DOOR)

BLACK (DOWN)

GREEN (GROUND)

WHITE (COMMON)

RED (UP)

GRAY (DOOR)

BLACK (DOWN)

GREEN (GROUND)

BLACK/

YELLOW

RED (DOWN)

WHITE (COMMON)

BLACK (DOWN)

RED (UP)

BLACK (HOT)

GREEN (GROUND)

WHITE (COMMON)

NOTE: 20-24AWG WIRE RECOMMENDED

FOR CONNECTING WALL SWITCH TO THE

DUAL MOTOR CONTROLLER

POWER INPUT AND CONTROL

BOARD ARE LOCATED ON RIGHT

SIDE OF SCREEN HOUSING.

BROWN (HOT)

GREEN/YELLOW (GROUND)

BLUE (COMMON)

POWER INPUT

240VAC/50HZ

NOT USED

ENCODER

5V A B GND

SCREEN MOTOR

DOOR MOTOR

SCREEN AND DOOR MOTOR, MICROSWITCH

AND TIMER RELAY ARE LOCATED ON LEFT

SIDE OF SCREEN HOUSING. DOOR MICROSWITCH

BLUE

(COMMON)

BROWN (UP)

WHITE (COMMON)

RED (DOWN)

BLACK (UP)

GREEN (GROUND)

BROWN (DOWN)

BLUE (COMMON)

BLACK (UP)

GRAY (DOOR)

BROWN (DOWN)

GREEN/YELLOW (GROUND)

BLUE (COMMON)

BLACK (UP)

GRAY (DOOR)

BROWN (DOWN)

GREEN/YELLOW (GROUND)

BROWN/

YELLOW

BLACK (DOWN)

BLUE (COMMON)

BROWN (DOWN)

BLACK (UP)

BROWN (HOT)

GREEN/YELLOW (GROUND)

BLUE (COMMON)

BLACK (UP)

BROWN (DOWN)

BLUE (COMMON)

B + A -

ADVANTAGE® DELUXE ELECTROL® INSTRUCTIONS SCB-200 CONTROL

POWER INPUT AND CONTROL

BOARD ARE LOCATED ON RIGHT

SIDE OF SCREEN HOUSING.

220 / 240V

WIRING DIAGRAM

120V WIRING DIAGRAM

NOTE: Electrical connections on right side of case.

BLACK (HOT)

GREEN (GROUND)

WHITE (COMMON)

POWER INPUT

120VAC/60HZ

NOT USED

ENCODER

5V A B GND

SCREEN MOTOR

DOOR MOTOR

SCREEN AND DOOR MOTOR, MICROSWITCH

AND TIMER RELAY ARE LOCATED ON LEFT

SIDE OF SCREEN HOUSING. DOOR MICROSWITCH

WHITE

(COMMON)

BLACK (UP)

WHITE (COMMON)

RED (DOWN)

BLACK (UP)

GREEN (GROUND)

BLACK (DOWN)

WHITE (COMMON)

RED (UP)

GRAY (DOOR)

BLACK (DOWN)

GREEN (GROUND)

WHITE (COMMON)

RED (UP)

GRAY (DOOR)

BLACK (DOWN)

GREEN (GROUND)

BLACK/

YELLOW

RED (DOWN)

WHITE (COMMON)

BLACK (DOWN)

RED (UP)

BLACK (HOT)

GREEN (GROUND)

WHITE (COMMON)

RED (UP)

BLACK (DOWN)

WHITE (COMMON)

B + A -

ADVANTAGE® DELUXE ELECTROL® INSTALLATION

9-1/4"

(SUGGESTED) 3/8"

THREADED ROD (NOT

INCLUDED) ATTACHED

TO MOUNTING

BRACKET

FINISHED

CEILING

SELF-TRIMMING

FLANGE

7-1/4"

8-3/4"

CASE LENGTH

VARIABLE POSITION

MOUNTING BRACKETS

7-1/4"

6-1/8"

MOTOR END

6-1/8"

ELECTRICAL

JUNCTION BOX

SEE DETAIL A

(SUGGESTED) 3/8"

THREADED ROD

(NOT INCLUDED)

4.59"

7.21"

8.75"

DETAIL A

8.74"

HANGER BRACKET

7-1/4"

FLAT BAR MOUNTING METHOD

FORMED BRACKET

MOUNTING METHOD

TROUBLESHOOTING

SYMPTOM

If screen is not responding properly and

SCB100 or SCB200 controls are used,

contact the factory for troubleshooting

assistance.

1. Screen will not operate or will not go

“down”.

Motor does not hum.

Motor hums.

2. Screen will not move upward.

Motor does not hum.

Motor hums.

CAUSE

(a) Incorrect line voltage.

(b) Blown facility fuse.

(d) No power to operating switch or

junction box.

Power at junction box.

(e) Thermal overload tripped.

(f) Broken wire in the “down” position.

(g) Defective motor, limit switch or

capacitor.

(h) Capacitor burned out.

(a) Incorrect line voltage.

(b) Blown facility fuse.

(d) No power to operating switch or

junction box.

(e) Open door limit switch.

Power at junction box

(f) Thermal overload tripped.

(g) Broken wire in the “up” position.

(h) Defective motor, limit switch or

capacitor.

(i) Capacitor burned out.

SOLUTION

(a) Verify 115-125V (or 220-240V). If

insufficient voltage, rewire incoming

electric line.

(b) Replace facility fuse.

(d) Check above. Tighten all loose wire

connections. Recheck wiring. See

installation instructions.

“Down” Position

Check for power across black and white

leads.

(e) Let motor cool down for 15 minutes.

Try again.

(f) Check for continuity.

(g) Replace motor assembly.

NOTE: Motor is a sealed assembly.

(h) Replace motor assembly.

(a) Verify 115-125V (or 220-240V). If

insufficient voltage, rewire incoming

electric line.

(b) Replace facility fuse.

(d) Check above. Tighten all loose wire

connections. See above.

“Up” Position

Check for power across red and

white leads.

(e) Replace switch.

(f) Let motor cool down for 15 minutes.

Try again.

(g) Check for continuity.

(h) Replace motor assembly.

NOTE: Motor is a sealed assembly.

(i) Replace motor assembly.

TROUBLESHOOTING

SYMPTOM

3. Door will not open.

4. Door does not close.

5. “Down” limit switch incorrect.

6. Noise.

NOTE: Screen will operate with a low-

pitched hum.

7. Coasting.

8. Roller displaced from mounting

bracket.

9. Fabric hangs crooked.

10. Door closes before screen is all the

way up.

11. Door opens but screen does not

operate.

CAUSE

(a) Hinge is bound or has a foreign

substance on it which does not allow

it to open by gravity.

(b) No power.

(a) Open door limit switch.

(b) No power from screen motor.

(a) “Down” limit switch out of

adjustment.

(a) Buzzing noise.

(b) Gear noise.

(a) Defective brake.

(a) Pin end slipped out of nylon bearing.

(a) Screen not installed properly.

(b) Fabric is damaged.

(a) Screen “up” limit out of adjustment.

(a) Loose wire.

SOLUTION

(a) Check installation to free door. Clear

any foreign substance; i.e., paint or

plaster from hinge.

(b) See above.

(a) Replace switch.

(b) Replace screen motor.

(a) See installation instructions.

(a) Adjust door limit switch (too far

down).

(b) Replace motor assembly.

(a) Replace motor assembly.

(a) Realign pin end bracket.

(a) Check for level and plumb.

(b) Replace fabric.

(a) Adjust “up” limit (call factory for

instructions).

(a) Check all wiring and connections.

Autres manuels pour ADVANTAGE DELUXE ELECTROL

Table des matières

Autres manuels Da-Lite Écran de projection

Da-Lite

Da-Lite Da-Snap 74610 Manuel utilisateur

Da-Lite

Da-Lite Model B Manuel utilisateur

Da-Lite

Da-Lite C with CSR Manuel utilisateur

Da-Lite

Da-Lite Tensioned Advantage Deluxe Electrol Manuel utilisateur

Da-Lite

Da-Lite TENSIONED LARGE COSMOPOLITAN ELECTROL Manuel utilisateur

Da-Lite

Da-Lite Curved Multi Format Imager Manuel utilisateur

Da-Lite

Da-Lite Designer Manual Manuel utilisateur

Da-Lite

Da-Lite DESIGNER DA-TAB ELECTROL Manuel utilisateur

Da-Lite

Da-Lite TENSIONED EXECUTIVE ELECTROL Manuel utilisateur

Da-Lite

Da-Lite LARGE ADVANTAGE DELUXE ELECTROL Manuel utilisateur

Da-Lite

Da-Lite Tensioned Conference Electrol Manuel utilisateur

Da-Lite

Da-Lite Tensioned Advantage Deluxe Electrol Manuel utilisateur

Da-Lite

Da-Lite IDEA Screen Manuel utilisateur

Da-Lite

Da-Lite Cosmopolitan Electrol Manuel utilisateur

Da-Lite

Da-Lite Model C Manuel utilisateur

Da-Lite

Da-Lite DESIGNER MANUAL SCREEN Manuel utilisateur

Da-Lite

Da-Lite Boardroom ElEctrol Manuel utilisateur

Da-Lite

Da-Lite ADVANTAGE DELUXE ELECTROL Manuel utilisateur

Da-Lite

Da-Lite Da-Snap Wrap Around Screen Manuel utilisateur

Da-Lite

Da-Lite 27971T Manuel utilisateur

Da-Lite

Da-Lite EXECUTIVE ELECTROL Manuel utilisateur

Da-Lite

Da-Lite TENSIONED LARGE COSMOPOLITAN ELECTROL Manuel utilisateur

Da-Lite

Da-Lite Perm Wall Frame Manuel utilisateur

Da-Lite

Da-Lite Designer Electrol Manuel utilisateur

Manuels Écran de projection populaires d'autres marques

FART PRODUKT

FART PRODUKT Standard SCREEN Manuel utilisateur

Draper

Draper E Series Manuel

Elite Screens

Elite Screens Elite Tripod Series Manuel utilisateur

Laarhoven

Laarhoven Companion II Manuel utilisateur

Renogy

Renogy RMS-LFPS-US Manuel utilisateur

Samsung

Samsung S*H65* Manuel utilisateur

FONESTAR

FONESTAR PPTR-43100-FA Manuel utilisateur

Slide Clear

Slide Clear Varro XL Manuel utilisateur

Elite Screens

Elite Screens M85XWS1-SRM Manuel utilisateur

OS РХ-090Н Manuel utilisateur

Niko

Niko 10-845 Manuel utilisateur

Speaka Professional

Speaka Professional 2357532 Manuel d'utilisation

Sima

Sima XL-72 Manuel utilisateur

Jasic

Jasic EVO 2.0 ET-200P Manuel utilisateur

Elite Screens

Elite Screens Starling 2 Series Manuel utilisateur

InFocus

InFocus SC-WALL GRY-92H Manuel

Barco

Barco OverView MVL-615 Manuel utilisateur

Draper

Draper Envoy Manuel
