D-Link Verizon DSL-2750B Manuel utilisateur

WIRELESS N300 ADSL2+ MODEM ROUTER + USB

DSL-2750B

QUICK SETUP GUIDE

* PPPoE

* PPPoA

* BRIDGE MODE

* ETHERNET WAN

MANUAL INSTALLATION,

WEB INTERFACE ONLY

DSL-2750B

ENGLISH

1. ACCESSING THE WEB UI

To access the Web UI of the DSL-2750B, connect your computer to the DSL-2750B using the

ethernet cable provided. Then connect the power cable to the DSL-2750B. The power light will

display as solid green.

Then simply open a browser window and enter the IP address in the browser address eld:

Please jump to the below section for your Internet Connection type:

2. PPPoE (Australian Users)

3. PPPoA (New Zealand Users)

4. Bridge Mode (If you want to use this Router as a Modem only)

5. Ethernet WAN Mode (NBN / UFB Customers)

IP ADDRESS: http://192.168.1.1

USERNAME: admin

PASSWORD: admin

WEB UI

DSL-2750B 3

ENGLISH

2. SETUP PPPoE CONNECTION

Once you have successfully accessed the Web UI of the DSL-2750B you will need to go to the

following location to congure your PPPoE settings.

SETUP > WIZARD

Click on the Setup Wizard button to start the wizard, below we will go through the required settings

to setup a PPPoE connection.

Click on Next to start the Setup Wizard.

It is recommeded to setup a new password for your DSL-2750B. Please enter the current password

"admin" and then enter a new password below. Once you have entered your new passwords click on

Next.

PPP over Ethernet (Australia)

DSL-2750B

ENGLISH

It is recommended to congure the Time Settings to synchronise with the Internet Time Servers.

Please enable the check box and select your Time Zone, then click Next.

In this example we will be conguring the Internet connection as PPPoE which is the most common

for Australian users.

2. Cont...

PPP over Ethernet (Australia)

DSL-2750B 5

ENGLISH

Ensure the WAN Services type is set as DSL. Select Australia from the Country selection dropdown,

then select your Internet Service Provider (ISP) from the list. Once you have selected these two

entries, you will notice the majority of the elds are completed for you. Lastly enter your Username

and Passwords that have been provided by your ISP. Click on Next when you have entered your

information.

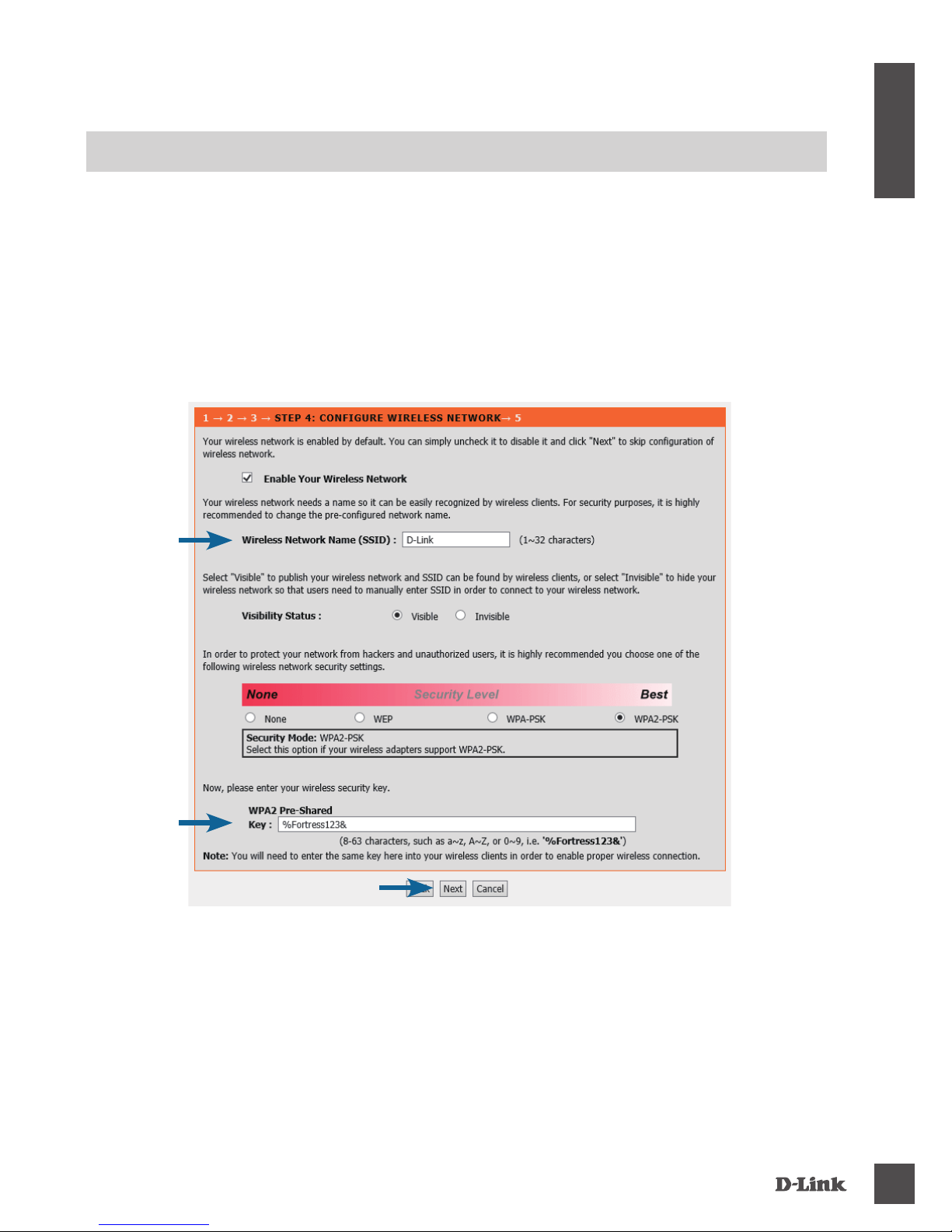

If you wish to use Wireless on your router you will now be able to congure it below. It is

recommended to change the Wireless Network Name and also use WPA2-PSK for security.

Once you have made the required changes click on Next.

2. Cont...

PPP over Ethernet (Australia)

DSL-2750B

ENGLISH

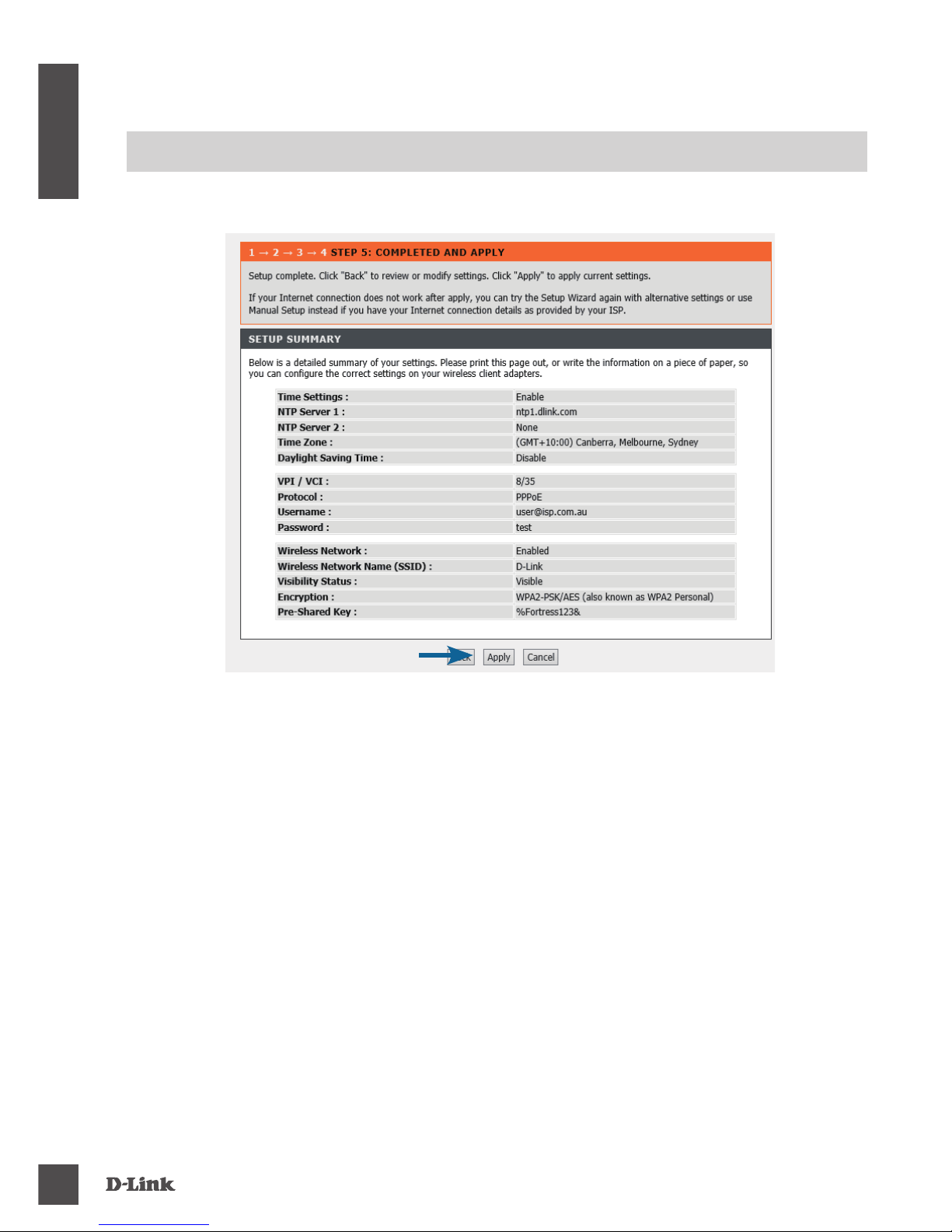

Please review the details to ensure they are correct. Click on Apply to make the changes effective

immediately.

You should now have an active Internet Connection.

2. Cont...

PPP over Ethernet (Australia)

DSL-2750B 7

ENGLISH

3. SETUP PPPoA CONNECTION

PPP over ATM (New Zealand)

Once you have successfully accessed the Web UI of the DSL-2750B you will need to go to the

following location to congure your PPPoA settings.

SETUP > WIZARD

Click on the Setup Wizard button to start the wizard, below we will go through the required settings

to setup a PPPoA connection.

Click on Next to start the Setup Wizard.

It is recommeded to setup a new password for your DSL-2750B. Please enter the current password

"admin" and then enter a new password below. Once you have entered your new passwords click on

Next.

DSL-2750B

ENGLISH

3. Cont...

PPP over ATM (New Zealand)

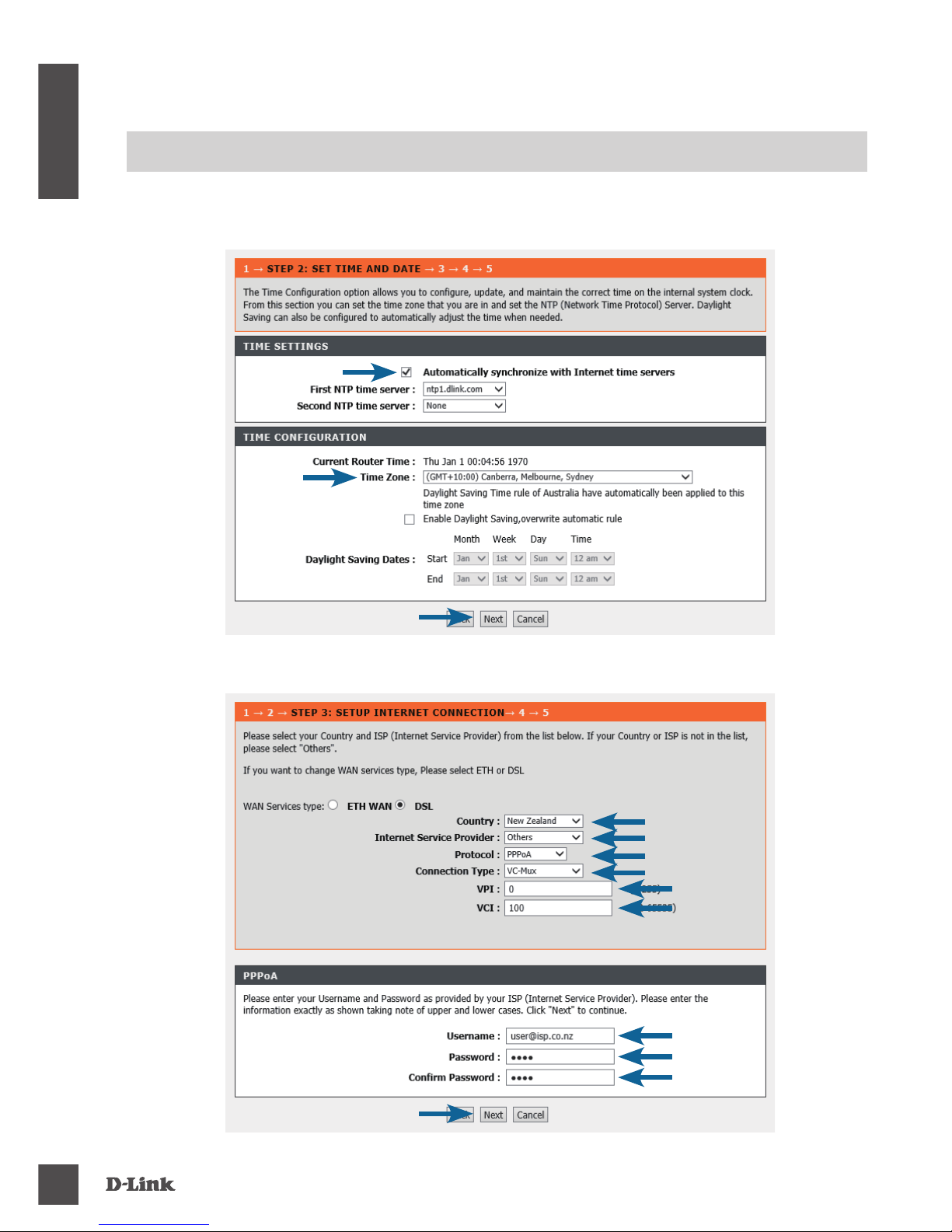

It is recommended to congure the Time Settings to synchronise with the Internet Time Servers.

Please enable the check box and select your Time Zone, then click Next.

In this example we will be conguring the Internet connection as PPPoA which is the most common

for New Zealand users.

DSL-2750B 9

ENGLISH

3. Cont...

PPP over ATM (New Zealand)

Ensure the WAN Services type is set as DSL. Select New Zealand from the Country selection

dropdown, then select your Internet Service Provider (ISP) from the list. Once you have selected

these two entries, you will notice the majority of the elds are completed for you. Lastly enter your

Username and Passwords that have been provided by your ISP. Click on Next when you have

entered your information.

If you wish to use Wireless on your router you will now be able to congure it below. It is

recommended to change the Wireless Network Name and also use WPA2-PSK for security.

Once you have made the required changes click on Next.

DSL-2750B

ENGLISH

3. Cont...

PPP over ATM (New Zealand)

Please review the details to ensure they are correct. Click on Apply to make the changes effective

immediately.

You should now have an active Internet Connection.
