D-Link Express EtherNetwork DI-604+ Manuel utilisateur

1. If you purchased this router to share your high-speed Internet connection with other

computers, you must have either an Ethernet-based Cable or a DSL modem with

an established Internet account from an Internet Service Provider (ISP).

2. It’s best to use the same computer that is connected to your modem for configuring

the DI-604+ router. The DI-604+ Broadband Router acts as a DHCP server and

will assign all the necessary IP address information on your network. See

Appendix at the end of this Quick Installation Guide or the Manual on the

CD-ROM for setting each network adapter to automatically obtain an IP

address.

Check Your Package Contents

These are the items included with your DI-604+ purchase:

If any of the above items are missing, please contact your reseller.

holders. Software and specifications subject to change without notice.

This product can be set up using any current

web browser, i.e., Internet Explorer 6x,

Netscape Navigator 7x.

DI-604+

Express EtherNetwork™

Broadband Router

• DI-604+ Broadband Router

• CD-ROM (containing Manual and Warranty)

• Ethernet (CAT5 UTP/Straight-Through) Cable

• 5V DC, 1.2 A Power Adapter

Using a powe

supply with a

different voltage rating

will damage and void

the warranty for this

product.

Before You Begin

Connecting The DI-604+ Broadband

Router To Your Network

A. First, connect the power adapter to the receptor at the back panel of the DI-

604+ and then plug the other end of the power adapter to a wall outlet or power

strip. The Power LED will turn ON to indicate proper operation.

B. Insert one end of an Ethernet cable to the WAN port on the back panel of the

DI-604+ and the other end to the Ethernet port located on your Cable or DSL

modem. The WAN LED light will illuminate to indicate proper connection.

C. Insert one end of an Ethernet cable to LAN port 1 on the back panel of the DI-

604+ and the other end to an available Ethernet port on the network adapter in the

computer you will use to configure the DI-604+. The LED light for LAN Port 1 will

illuminate to indicate proper connection. (Note: Some computers already have

network adapters pre-installed.)

Restart Your Computer

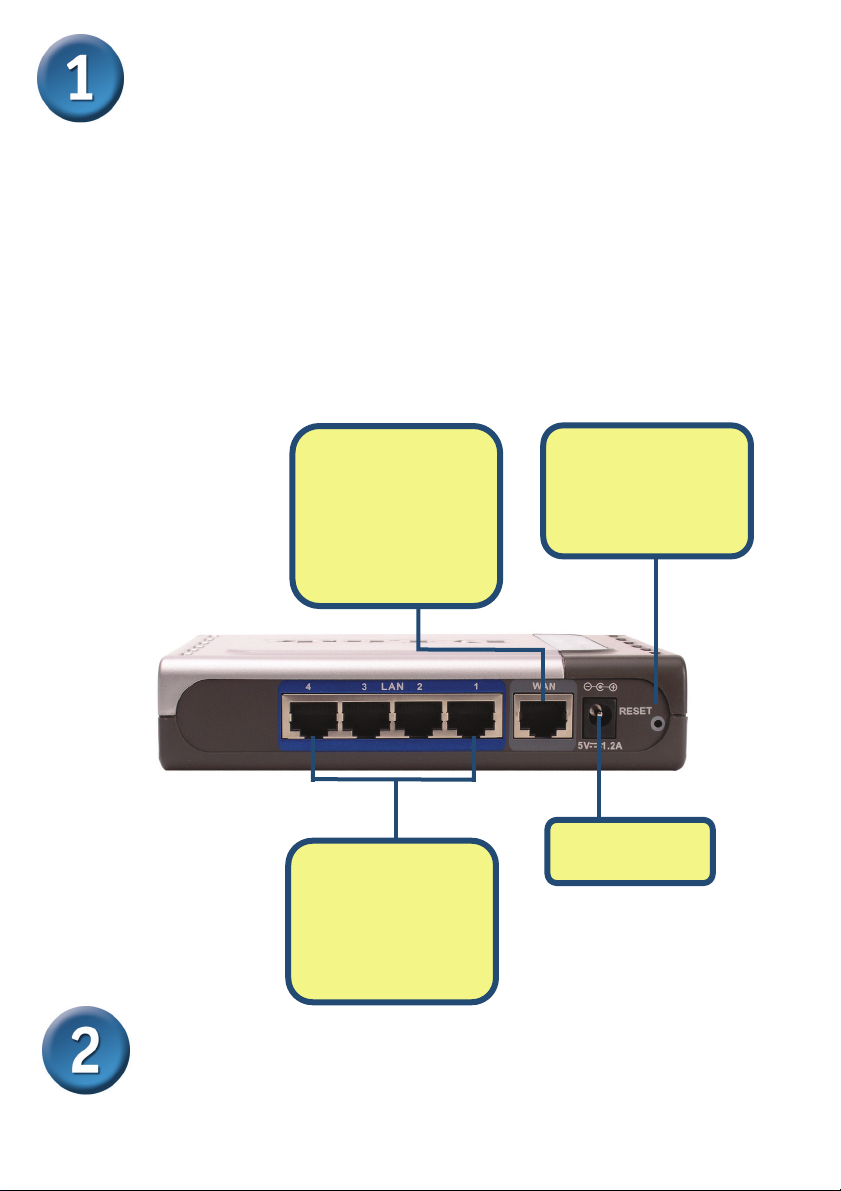

B. WAN Port

This is the

connection for the

Ethernet Cable to

Ethernet Port on the

Cable or DSL

Modem.

A.Receptor for

Power Ada

Reset Button

Pressing this button

restores the router

to its original factory

default settings.

C.LAN Ports

These are the

connections for

Ethernet cables to

your Ethernet-

enabled com

uters

Connecting Additional Devices to the

DI-604+ Broadband Router

Using additional Ethernet (CAT5 UTP/Straight-Through) cables, connect your

Ethernet-equipped computer(s) to one of the 3 remaining Ethernet LAN ports on

the back panel of the DI-604+.

When you have completed the steps in this Quick Installation Guide, your

connected network should look similar to this:

LAN Port LEDs.

Each of the LAN ports on the back

of the DI-604+ have a corresponding

LED light on the front panel of the

unit. When a proper connection has

been made to a computer that is ON,

the LED on the front panel should

illuminate.

DI-604+

Broadband Router

Computers connected

to the LAN Ports

Cable or DSL

Modem connected

to the WAN

ort.

Using the DWizard

The DI-604+ offers two easy-to-use methods to set up and manage the Router. The

first, the D-Link Click’n Connect DWizard, is a stand-alone configuration utility located

on the CD-ROM that came with your DI-604+. This method is described briefly below.

The second method uses a Setup Wizard that is part of the Router firmware. Please

see section 5 for detailed instructions on how to use this wizard.

To launch the DWizard, simply place the CD-ROM that came with the DI-604+ in your

computer’s CD drive. The following window will open:

Now, click on the Quick Installation Start icon located in the lower right side of the

window. The following window will open:

Click Next on the window above and follow the on-screen prompts to Connect the

device to the computer, Connect the device to the Internet, Check device connectivity,

Set your ISP, Set wireless configuration, Check your Internet connection status, ISP

configuration, etc.

When you have completed the Router configuration, click the Exit button on the final

Congratulations window displayed below.

For additional information on how to set up and manage the Router, please see the

Appendix at the end of this QIG or consult your DI-604+ User’s Guide.

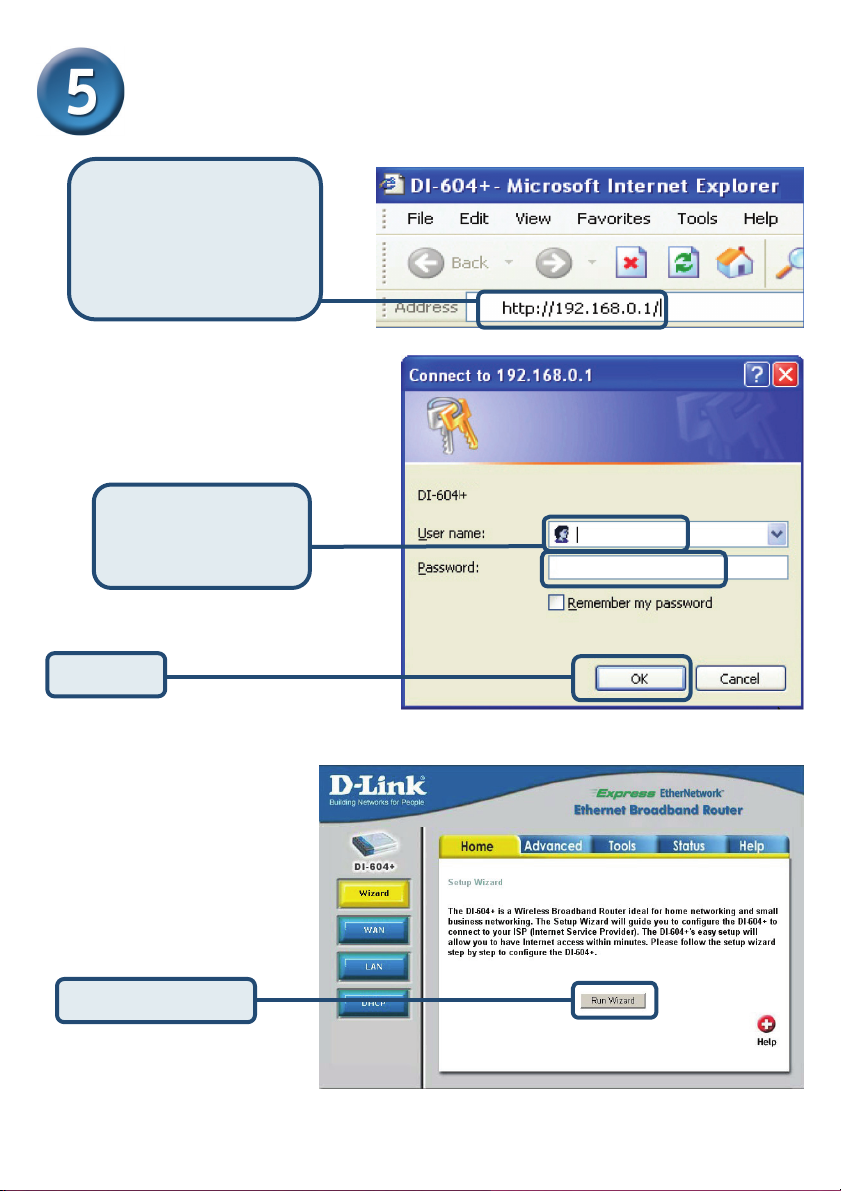

Using The Setup Wizard

The logon pop-up screen will appear.

Once you have logged in, the Home screen will appear.

Open your Web

browser and type

“http://192.168.0.1” into

the URL address box.

Then press the Enter or

Return key.

Click OK

Click Run Wizard

Type “admin” for

the username and

leave the password

field blank.

You will see the following screens.

Step 1 - Set up your new password.You have the option to establish a password.

Step 2 - Choose your time zone.

Click Next

The Setup Wizard (continued)

Select the type of Internet connection for your router.

If you selected Dynamic IP Address, this screen will appear:

Click Next

If you are unsure of which setting to

select, please contact your Internet

Service Provider.

What is a MAC address? Each

network adapter has a discrete

Media Access Control (MAC)

address. Note that some computers

and peripherals may already include

built-in network adapters.

Click Next

“Clone MAC Address”

button to automatically

copy the MAC address

of the network adapter in

your computer. You can

also manually type in the

MAC address.

Select one of

these settings

If your ISP requires a Static IP Address, and this option is selected, then this screen

will appear:

If your ISP uses PPPoE (Point-to-Point Protocol over Ethernet) and this option is

selected, then this screen will appear:

Click Next

Please be sure to remove any

existing PPPoE client software

installed on your computers.

Enter the IP address

information originally

provided to you by your

ISP. You will need to

complete all the required

fields.

Enter in the username

and password provided

to you by your ISP and

retype that same

password to verify it.

Click Next

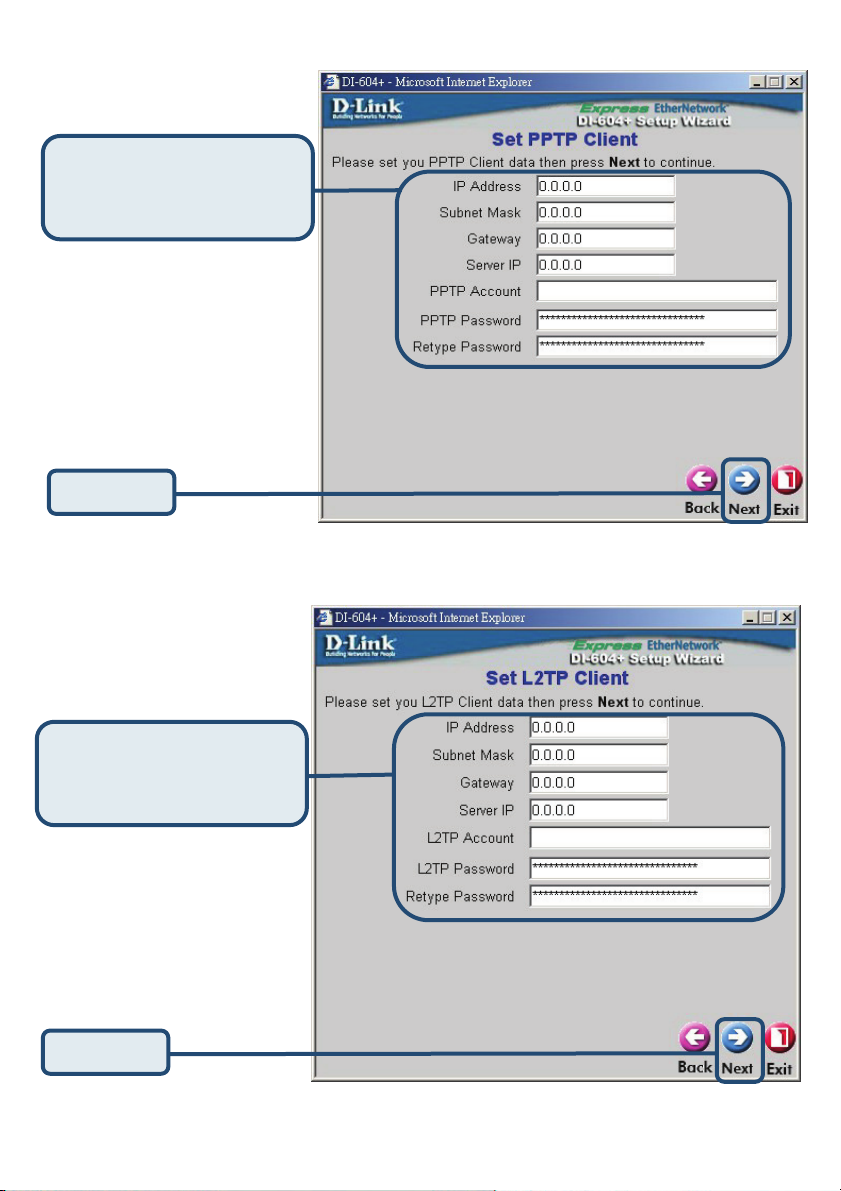

If your ISP uses PPTP and this option is selected, then this screen will appear.

If your ISP uses L2PT and this option is selected, then this screen will appear.

Enter the IP address

information originally

provided to you by your

ISP.

Click Next

Enter the IP address

information originally

provided to you by your

ISP.

Click Next
