Quick Installation Guide

DVG-N5402SP

VoIP Router

Check Your Package Contents

User Manual can be found at http://www.dlink.com.sg/support/

DVG-N5402SP

VoIP Router Ether (CAT5 UTP)

Cable 12VDC, 2A Power

Adapter

Using a power

adapter with a

different voltage rating

will damage this

product and void the

warranty.

Front Panel Power: A steady green

light indicates a proper

connection to a power

source. A red light

indicates the power-on

self test fails or the

device is malfunction.

Prov/Alm: A blinking

light indicates the VoIP

Router can not register

with SIP Server or can

not get the IP address.

A blinking light also

indicates the VoIP

Router is attempting to

connect with the

Provisioning server.

Once the service

connects, the LED will

turn off. The LED will

light solid red if the

self-test or boot-up

fails.

when the VoIP Router is connected to a VoIP service provider. The

LED will flash if not connected to a service provider.

WLAN: A steady light indicates a wireless connection. A blinking

light indicates that the VoIP Router is receiving or transmitting from

or to the wireless network.

WAN: When a connection is established the LED will light up solid.

The LED will blink to indicate the activity. If the LED does not light

Hardware Overview

up when a cable is connected, verify the cable connections and

ensure that your devices are powered on.

LAN: When a connection is established the LED will light up solid

on the appropriate port. The LEDs will blink to indicate the activity.

If the LED does not light up when a cable is connected, verify the

cable connections and ensure that your devices are powered on.

USB: When a connection is established the LED will light up solid.

The LED will blink to indicate the activity. If the LED does not light

up when a USB device is connected, verify the USB connection

and ensure that the devices are powered on.

Phone: This LED displays the VoIP status and hook or ringing

activity on the phone port that is used to connect your normal

telephone(s). If a phone connected to a phone port is off the hook

or in use, this LED will light solid. When a phone is ringing, the

indicator will blink.

Line: Light on means the line is in use (off-hook), and vice versa.

WPS: When a WPS negotiation is established the LED will light up

solid. The LED will blink to indicate the activity. If the LED does not

light up when the WPS negotiation is failed or is not established.

Rear Panel

1. Antenna: Connect to a wireless network.

2. Phone Port (1-2): Connect to your phones using standard phone

cabling (RJ-11).

3. USB: USB host 2.0 port, for connecting to another USB device to

supply some value-added application.

4. LAN: Connect to your Ethernet enabled computers using Ethernet

cabling.

5. WAN: Connect to your broadband modem using an Ethernet cable.

6. Power Receptor: Receptor for the provided power adapter.

Hardware Overview

(continued)

A. Insert one end of the Ethernet cable into the Ethernet (LAN) port on

the back panel of the DVG-N5402SP and the other end of the cable

to an Ethernet Adapter or available Ethernet port on your computer.

B. Insert one end of the Ethernet cable into the WAN port on the back of

the DVG-N5402SP and the specify port of the ONT or the LAN port

of your router.

C. Insert a telephone cable into the Phone port, and then connect the

cable to your telephone.

Installing the Hardware

D. Connect the power adapter to the power input at the back panel of

the DVG-N5402SP and then plug the other end of the power adapter

to a wall outlet or power strip. On the front of the device, the Power

LED will turn On to indicate proper operation.

E. Check the LED display on the front of the VoIP Wireless Router to

confirm that the connections have been made.

Installing the Hardware (continued)

After the installations are completed, your network should look similar to

the diagram below.

Hardware configuration is complete! If your VoIP service is already activated, you

can make phone calls now.

Installing the Hardware (continued)

ONT

Configuration

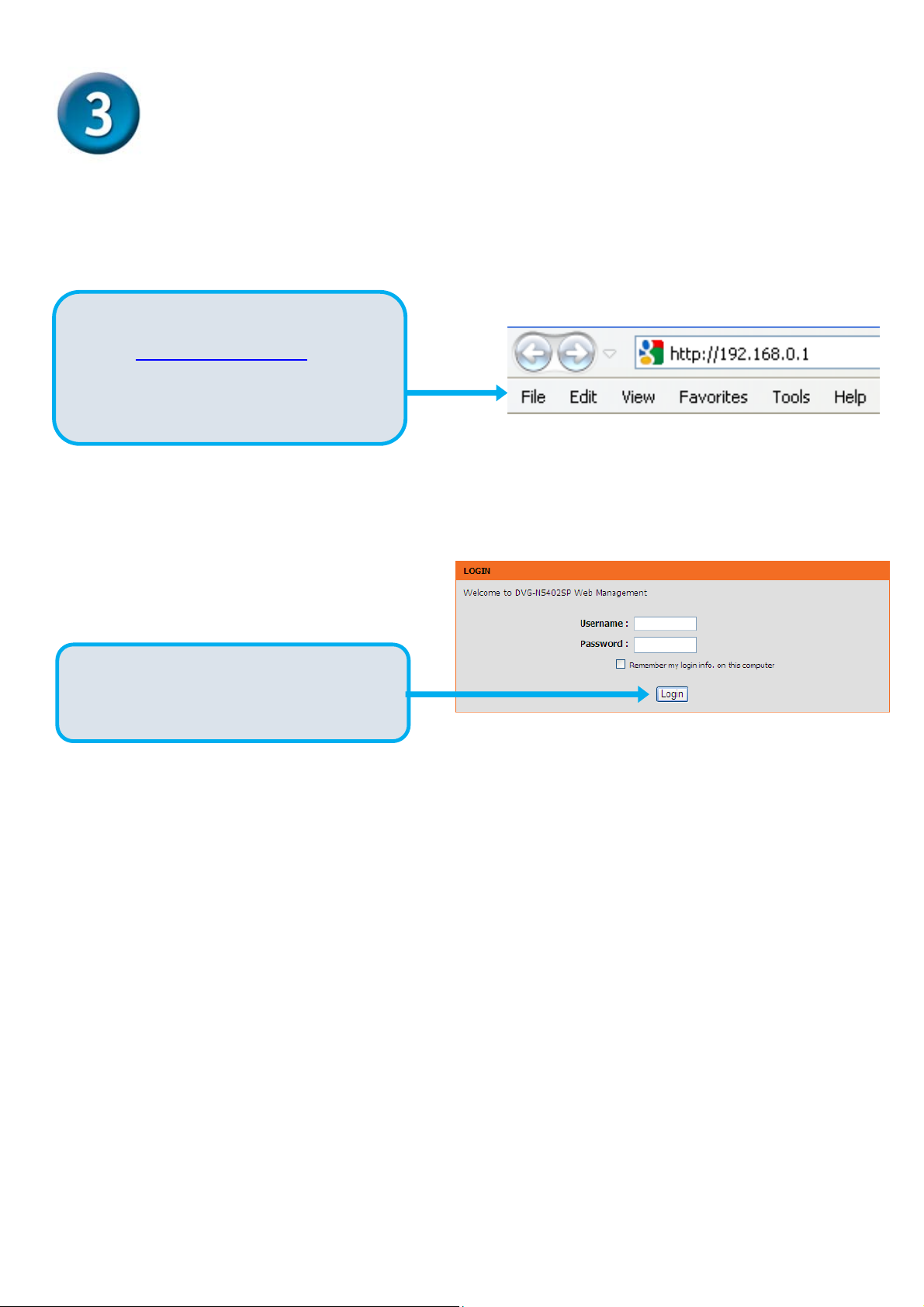

To access the web-based configuration utility, open a web browser such

as Internet Explorer and enter the IP address of the DVG-N5402SP.

Open your Web browser and

type http://192.168.0.1 into the

URL address box. Press the

Enter or Return Key.

Click Login to enter Web Site.

The default username and

password: admin/password

Configuration (continued)

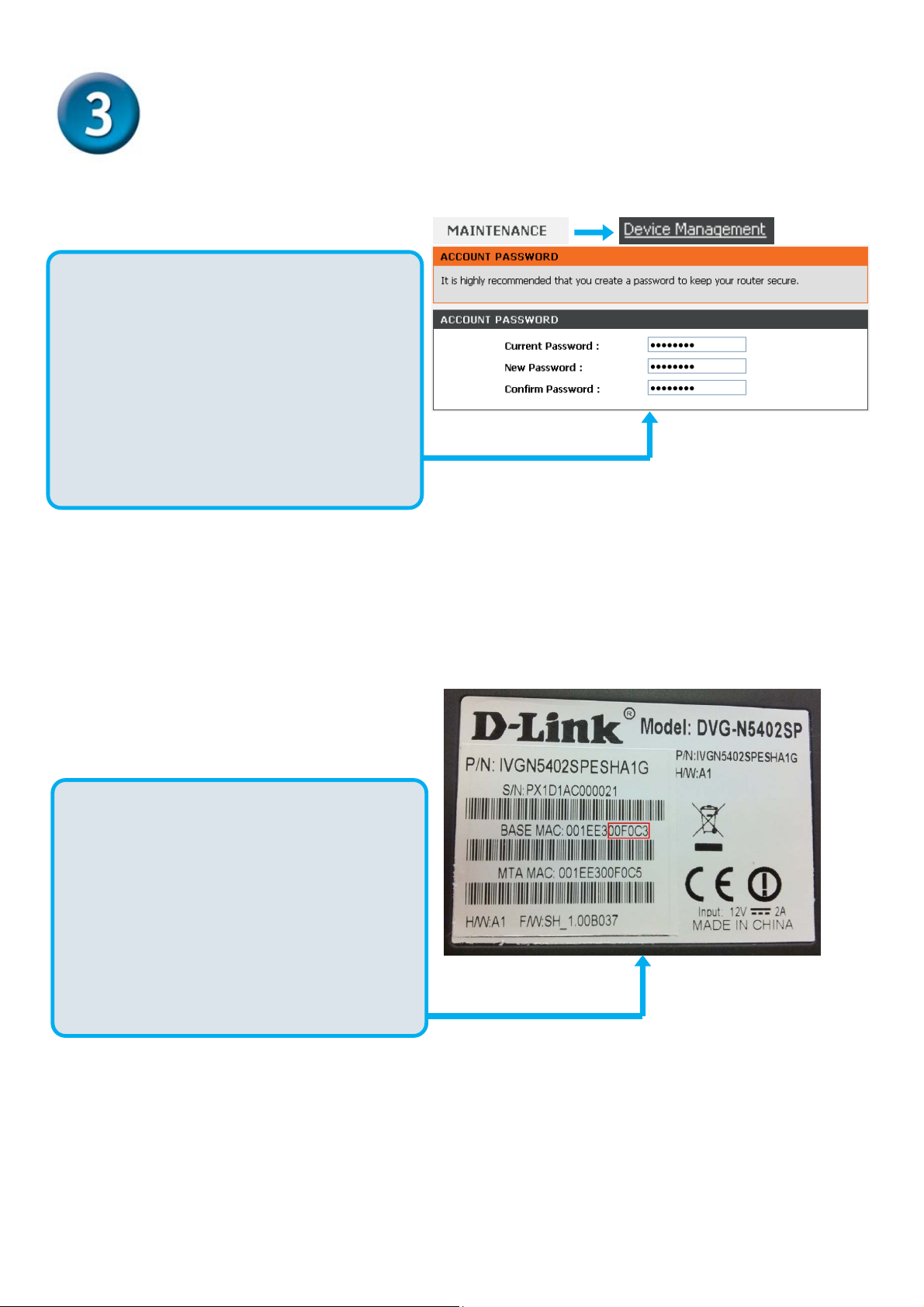

The username of ADMIN and USE

have been defined and locked b

default. It is highly recommended to

create a login password to keep

your router secure.

Click Apply.

By Default, the wireless SSID will be

“DVG-N5402SP-XXXXXX”

And “XXXXXX” will be the last 6

digits of your MAC address located

below the device.

Configuration (continued)

Enter the SSID to name your own

wireless network. All devices must

have the same SSID to

communicate on the wireless

network. Select a wireless channel.

Select the 802.11 Mode of your

network which can work in different

speed of wireless connection.

Click Apply.

Select your wireless security modes:

None, WEP, WPA only, WPA2

only or WPA/WPA2 Mixed for your

wireless network.

Click Apply

By default, there are no wireless

securities but by changing to

WPA/WPA2 Mixed, the Pre-

Shared Key will be the serial

number of your router.
