Connecting the Router to your

Computer

1. First, connect the power adapter to the power socket on the

back panel of the DSL-2740B and then plug the other end of

the power adapter to a wall outlet or power strip. Depress the

Power Button to turn ON the device. On the front of the device,

the Power LED will turn ON to indicate proper operation.

2. Insert one end of the Ethernet cable into an Ethernet port on

the back panel of the DSL-2740B and the other end of the

cable to an Ethernet Adapter or available Ethernet port on your

computer.

3. Insert the telephone cable included with the Router into the

ADSL port, and then connect the cable to your telephone line.

(Line must be activated for ADSL use)

4. Check the LED display on the front of the Router to confirm

that the connections have been made. (This will be shown with

solid lights for the corresponding port)

Configuring the Router via the

D-Link Click’n Connect Utility

Insert the CD-ROM into your PCs CD Drive. The Click’n Connect utility should

appear automatically. If it does not appear, explore your CD-ROM drive within

Windows, and double-click on the file “dslutility.exe” to start the utility

manually.

You can select one of five options:

1. View Manual: This option will open up the DSL-2740B user manual.

You will need Adobe Acrobat Reader installed to view the manual.

2. View QIG: This option will show you a software-based version of this

Quick Install Guide.

3. Install Acrobat Reader: Selecting this option will install Adobe Acrobat

Reader onto your PC.

4. Technical Support: Selecting this option will link you to D-Link

Australia/New Zealand Technical Support online.

5. Start Installation: This will commence the installation of the DSL-

2740B.

Configuring the Router via the

D-Link Click’n Connect Utility

The Click’n Connect utility will guide you through the installation process step-

by-step. Follow the on-screen instructions, then proceed to the next step.

Step 1 - Power Up the Device

Connect the Power Adapter from the wall socket to the DSL-2740B. Wait for the

Power LED to appear before proceeding onto the next step.

Follow the

on-screen

instructions,

then Click

Next to

continue

Configuring the Router via the

D-Link Click’n Connect Utility

The Click’n Connect utility will guide you through the installation process step-

by-step. Follow the on-screen instructions, then proceed to the next step.

Step 2 – Connect the Device to your Computer

Connect the Ethernet cable from the computer to one of the LAN ports

(numbered 1 to 4) on the DSL-2740. Wait for the LAN Link LED for the

corresponding LAN port number to flash, before proceeding onto the next step.

Follow the

on-screen

instructions,

then Click

Next to

continue

Configuring the Router via the

D-Link Click’n Connect Utility

The Click’n Connect utility will guide you through the installation process step-

by-step. Follow the on-screen instructions, then proceed to the next step.

Step 3 – Connect the Device to the ADSL Line

Connect your ADSL telephone line from the wall socket to the DSL-2740B

ADSL socket. Please note that if you are using an ADSL Splitter/Filter, you will

need to connect the telephone line from the DSL socket on the filter to the

DSL-2740B ADSL socket.

Once you have completed this, wait for the ADSL LED to light up, before

proceeding onto the next step.

Follow the

on-screen

instructions,

then Click

Next to

continue

Configuring the Router via the

D-Link Click’n Connect Utility

The Click’n Connect utility will guide you through the installation process step-

by-step. Follow the on-screen instructions, then proceed to the next step.

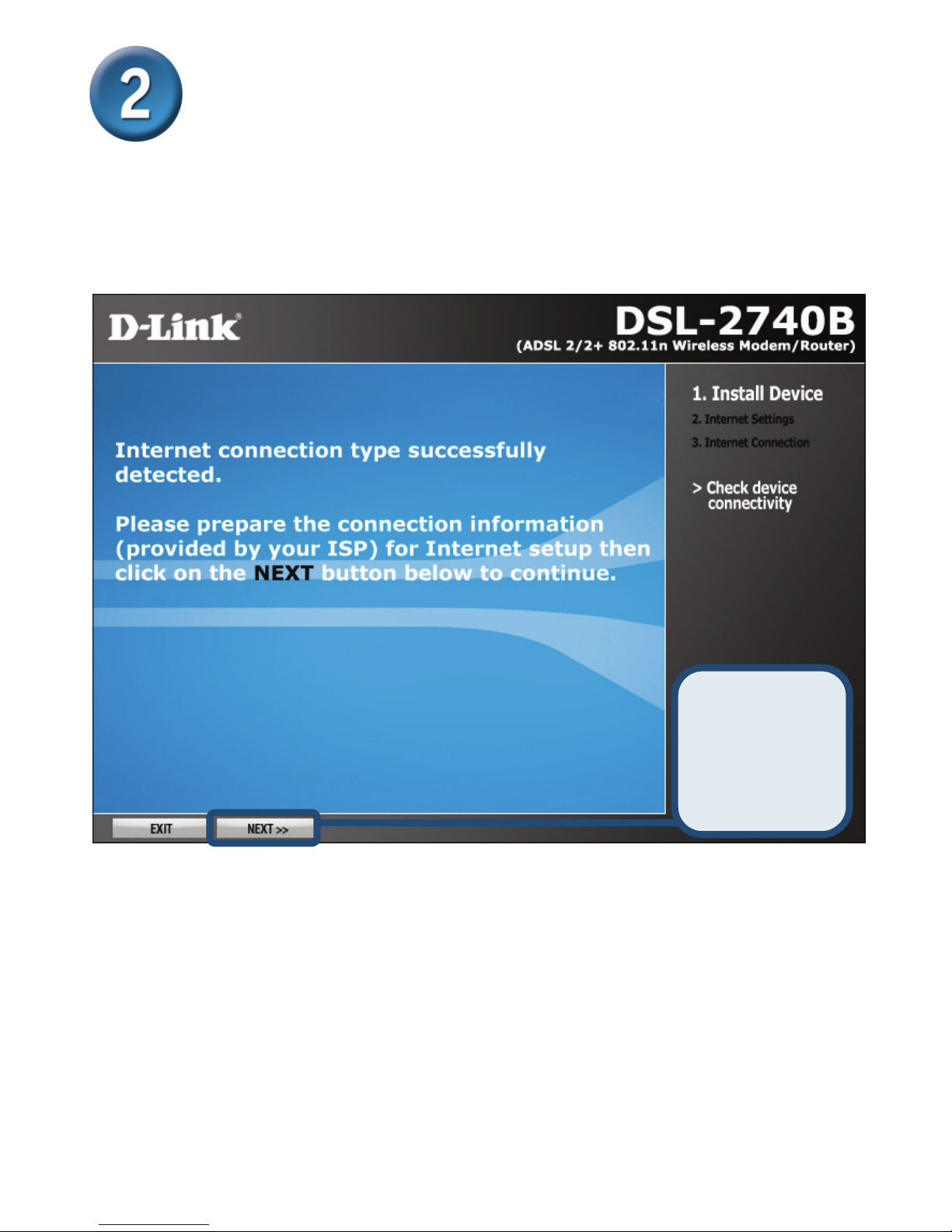

Step 4 – Detecting Internet Connection Type

The Click’n Connect utility will now check the DSL-2740B to make sure it has

been connected correctly. Once it has successfully detected your modem, it will

try to detect your Internet connection type.

At this point, you may want to prepare your ADSL account information that is

provided to you by your Internet Service Provider (ISP) as you will require it

shortly.

Follow the

on-screen

instructions,

then Click

Next to

continue

Configuring the Router via the

D-Link Click’n Connect Utility

The Click’n Connect utility will guide you through the installation process step-

by-step. Follow the on-screen instructions, then proceed to the next step.

Step 5 – ISP Configuration

You will now be prompted to select your Country as well as your Internet

Service Provider (ISP). If your ISP is not listed for your country, select Other

and enter the details that are relevant to your ISP.

Please ensure you have entered the correct information before proceeding onto

the next step.

Select your

ISP

Select your

Country

Follow the

on-screen

instructions,

then Click

Next to

continue

Configuring the Router via the

D-Link Click’n Connect Utility

The Click’n Connect utility will guide you through the installation process step-

by-step. Follow the on-screen instructions, then proceed to the next step.

Step 6 – Account Configuration

At this step, you will be required to enter your ADSL account Username and

Password, as provided by your ISP.

Please note, different ISP’s use different Usernames. Some use the first part of

your email address while some ISP’s use part or all of your email address. If

you are unsure as to which one your ISP uses, please confirm this with your

ISP.

Once you have completed the above you may proceed onto the next step.

Enter your ISP Username

Enter your ISP Password

Follow the

on-screen

instructions,

then Click

Next to

continue

Configuring the Router via the

D-Link Click’n Connect Utility

The Click’n Connect utility will guide you through the installation process step-

by-step. Follow the on-screen instructions, then proceed to the next step.

Step 7 – Set Wireless Connection

You will now be asked to set security for your wireless network. Type in your

desired Wireless Network Name, select a Channel, and set your preferred

Network Authentication settings for your wireless network. Please refer to

your User Manual for more information.

Important Note: You are strongly advised to enable Network

Authentication on your wireless network, as this will deter hackers

from gaining access to your network.

Enter your

Wireless Network

Name Name

Select your Channel

Select your

Network Authentication

Preferences

Follow the

on-screen

instructions,

then Click

Next to

continue
