D-Link DIR-320 Manuel utilisateur

WIRELESS G ROUTER

DIR-320

Quick Installation Guide+

This product can be set up using

any current web browser:

Internet Explorer 6 or Netscape

Navigator 7

DIR-320

Wireless G Router

5V 2A DC Power Adapter

holders. Software and specications subject to change without notice.

Before You Begin

1. If you purchased this router to share your high-speed Internet connection with

other computers, you must have either an Ethernet-based Cable or DSL modem

with an established Internet account from an Internet Service Provider (ISP).

2. It’s best to use the same computer that is connected to your modem for conguring

the DIR-320 Wireless G Router. The DIR-320 acts as a DHCP server and will

assign all the necessary IP address information on your network. See Appendix at

the end of this Quick Installation Guide for setting each network adapter to

automatically obtain an IP address.

Check Your Package Contents

DIR-320 Wireless G Router

Ethernet (CAT5 UTP/Straight Through) Cable

Using a power

supply with a different

voltage rating will

damage and void the

warranty of this product.

If any of the above items are missing, please contact your reseller.

Connecting The DIR-320 Wireless

Router To Your Network

A. Receptor for

Power Adapter.

Reset Button

Pressing this button restores the Router to its original

factory default settings.

First, connect the power adapter to the receptor at the back panel of the

DIR-320 and then plug the other end of the power adapter to a wall outlet or power

strip. The Power LED lights up indicating proper operation.

B. 1. Power off your Cable or DSL modem; devices that do not have a on/off switch and

will require you to unplug the power adapter. Now, the DIR-320 should be powered on

and the Cable / DSL modem should be turned off.

Cable / DSL modem (Power Off) – DIR-320 (Power On)

2. Connect an Ethernet cable to the Ethernet jack located on the Cable / DSL modem.

After the Ethernet cable is securely connected, power on the Cable / DSL modem by

turning on the unit or plugging in the power adapter.

Cable / DSL modem (Power On) – DIR-320 (Power On)

3. Insert the other end of the Ethernet cable to the WAN PORT on the back panel of

the DIR-320. The WAN LED light will illuminate to indicate proper connection. If the

WAN LED is not illuminated, please go back to step B1 and repeat the steps.

C. Insert an Ethernet cable to LAN Port 1 on the back panel of the DIR-320 and an

available Ethernet port on the network adapter in the computer you are using to

congure the DIR-320. The LED light for LAN Port 1 illuminates to indicate proper

connection. (Note: The LAN Ports on the DIR-320 are Auto-MDI/MDI-X. Meaning you

can use a straight-through or crossover-Ethernet cable in the LAN Ports.)

D. Computers equipped with 802.11g wireless adapters will be able to connect to the

DIR-320.

B. WAN PORT

This is for the connection

of an Ethernet cable to the

Cable or DSL modem.

D. Antenna

Used to wirelessly

connect to 802.11g

or 802.11b

adapters.

C. LAN PORTS

These are the

connections for Ethernet

cables to Ethernet

enabled computers.

USB PORT

Restart Your Computer

Connecting Additional Computers

To The DIR-320

LOCAL NETWORK LEDs – a

solid light on the port indicates

a connection to an Ethernet

enabled computer on ports 1-4.

This LED blinks during data

transmission.

Power LED – a solid

light indicates a proper

connection to the power

supply.

Status LED – a blinking light

indicates that the DIR-320 is

functioning properly.

When you have completed the steps in this Quick Installation Guide, your connected

network should look similar to this:

Using additional Ethernet (CAT5 UTP) cables, connect your Ethernet-equipped

computers to the remaining Ethernet LAN ports on the back panel of the DIR-320.

Internet LED – a solid

light indicates connection

on the WAN port. This

LED blinks during data

transmission.

WLAN LED – a solid light

indicates that the wireless

segment is ready. This

LED blinks during wireless

data transmission.

USB LED – a solid light

indicates connection to

an USB printer device.

Using The Internt Connection

Setup Wizard

The logon pop-up screen will appear.

Open your Web browser and

type “http://192.168.0.1” into the

URL address box. Then press the

Enter or Return key.

Type “admin” for the username and

leave the password eld blank.

Click Log In

Click Internet Connection

Setup Wizard

Once you have logged in, the Setup screen will appear.

The Internet Connection Setup

Wizard (Continued)

You will see the following screens:

Set up your new password.

You have the option to establish

a password.

Click Next

Choose your time zone from

the drop down list.

Click Next

If you selected Dynamic IP Address, this

screen will appear: (Used mainly for Cable

Internet service.)

Click the “Clone MAC Address”

button to automatically copy the

MAC address of the network

adapter in your computer. You

can also manually type in the

MAC address.

The Internet Connection Setup

Wizard (Continued)

Select your Internet

Connection. You

will be prompted to

select the type of

Internet connection

for your router.

If you are unsure

of which setting

to select, please

contact your Internet

Service Provider.

Click Next

This setup should be done on

the computer that is registered

on the ISP’s network.

Otherwise, you will see the following screen:

The Internet Connection Setup

Wizard (Continued)

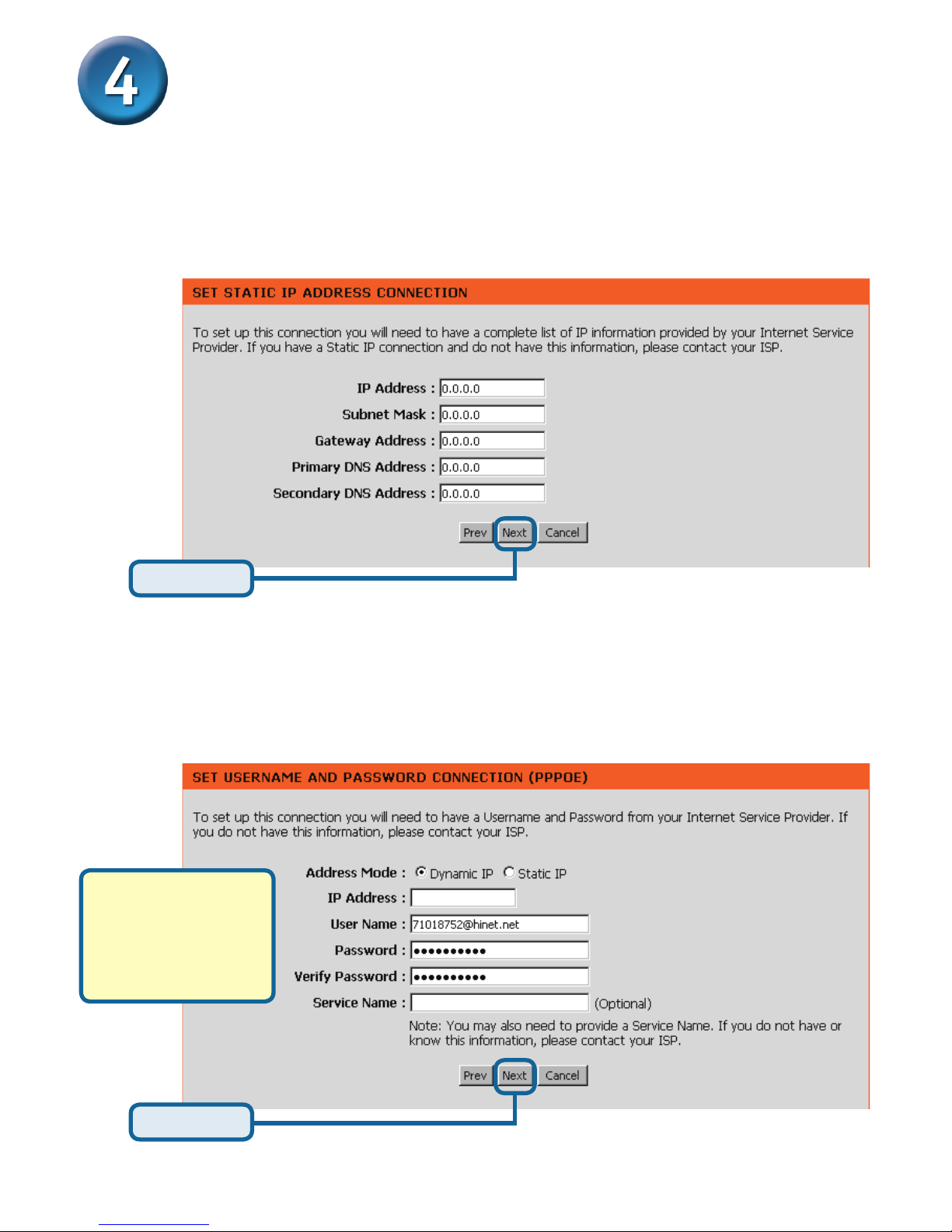

If your ISP requires a Static IP Address, and this option is selected, then this screen

will appear:

Enter the IP address information originally provided to you by your ISP. You will need

to complete all the required elds.

Click Next

If your ISP uses PPPoE (Point-to-Point Protocol over Ethernet), and this option is

selected, then this screen will appear: (Used mainly for DSL Internet service.)

Please be sure to

remove any existing

PPPoE client

software installed on

your computers.

Enter in the username and password provided to you by your ISP.

Click Next

Click Connect

The Internet Connection Setup

Wizard (Continued)

Using The Wireless Connection

Setup Wizard

In the wireless connection section, you can start the wireless setting in the wireless

conncetion setup wizard.

You will see the following screens:

Click Next

Click Wireless Connection

Setup Wizard
