D-Link Des-1010g Manuel utilisateur

DES-1010G

8-Port 10/100Mbps +

2-Port 10/100/1000Mbps

Gigabit Ethernet Switch

User’s Guide

RECYCLABLE

Rev.1.00

1907GSW08026000

ABLE OF

ONTENTS

About This Guide ......................................................................1

URPOSE

..........................................................................................1

ERMS

SAGE

.................................................................................1

VERVIEW OF THIS

ANUAL

.........................................................1

Introduction ...............................................................................2

IGABIT

THERNET

ECHNOLOGY

...............................................2

AST

THERNET

ECHNOLOGY

.....................................................2

WITCHING

ECHNOLOGY

.............................................................4

EATURES

........................................................................................5

Unpacking and Setup................................................................6

NPACKING

.....................................................................................6

ETUP

...............................................................................................6

ESKTOP

NSTALLATION

................................................................7

ACK

NSTALLATION

(

OPTIONAL

).................................................8

ONNECTING

ETWORK

ABLE

....................................................9

OWER

.......................................................................................9

Identifying External Components..........................................10

RONT

ANEL

................................................................................10

EAR

ANEL

..................................................................................10

LED I

NDICATORS

..........................................................................11

Technical Specifications..........................................................12

BOUT

HIS

UIDE

Congratulations on your purchase of the DES-1010G 8-port

10/100Mbps plus 2-port 10/100/1000Mbps Gigabit Ethernet Switch.

Purpose

This manual discusses how to install your DES-1010G.

Terms/Usage

In this manual, the term “Switch” (first letter upper case) refers to your

DES-1010G 8-port 10/100Mbps plus 2-port 10/100/1000Mbps Gigabit

Ethernet Switch, and “switch” (first letter lower case) refers to other Ethernet

switches.

Overview of this Manual

Introduction. Describes the Switch and its features.

Unpacking and Setup.Helps you get started with the basic installation of the

Switch.

Identifying External Components. Describes the front panel, rear panel and

LED indicators of the Switch.

Connecting the Switch. Tells you how you can connect the Switch to your

Ethernet network.

Technical Specifications. Lists the technical (general, physical and

environmental, and performance) specifications of the Switch.

NTRODUCTION

This chapter describes the features of the DES-1010G and some background

information about Gigabit Ethernet/Fast Ethernet switching technology.

Gigabit Ethernet Technology

Gigabit Ethernet is an extension of IEEE 802.3 Ethernet, utilizing the same

packet structure, format, and support for CSMA/CD protocol, full duplex,

flow control, and management objects, but with a tenfold increase in

theoretical throughput over 100Mbps Fast Ethernet and a one hundred-fold

increase over 10Mbps Ethernet. Since it is compatible with all 10Mbps and

100Mbps Ethernet environments, Gigabit Ethernet provides a straightforward

upgrade without wasting a company’s existing investment in hardware,

software, and trained personnel.

The increased speed and extra bandwidth offered by Gigabit Ethernet is

essential to coping with the network bottlenecks that frequently develop as

computers and their buses get faster and more users use applications that

generate more traffic. Upgrading key components, such as your backbone

and servers to Gigabit Ethernet can greatly improve network response times

as well as significantly speed up the traffic between your subnetworks.

Gigabit Ethernet enables fast optical fiber connections to support video

conferencing, complex imaging, and similar data-intensive applications.

Likewise, since data transfers occur 10 times faster than Fast Ethernet,

servers outfitted with Gigabit Ethernet NIC’s are able to perform 10 times the

number of operations in the same amount of time.

In addition, the increased bandwidth delivered by Gigabit Ethernet is the

most cost-effective method to take advantage of today and tomorrow’s

rapidly improving switching and routing internetworking technologies.

Fast Ethernet Technology

Ethernet, along with its speedier counterpart Fast Ethernet, is the most

popular networking standard in use today. 100BaseT Fast Ethernet is an

extension of the 10BaseT Ethernet standard, designed to raise the data

transmission capacity of 10BaseT from 10Mbits/sec to 100Mbits/sec. An

important strategy incorporated by 100BaseT is its use of the Carrier Sense

Multiple Access with Collision Detection (CSMA/CD) protocol - which is

the same protocol that 10BaseT uses - because of its ability to work with

several different types of cable, including basic twisted-pair wiring. Both of

these features play an important role in network considerations, and they

make 100BaseT an attractive migration path for those networks based on

10BaseT. Since the 100Mbps Fast Ethernet is compatible with all other

10Mbps Ethernet environments, it provides a straightforward upgrade and

takes advantage of the existing investment in hardware, software, and

personnel training.

Switching Technology

Another key development pushing the limits of Ethernet technology is in the

field of switching technology. A switch bridges Ethernet packets at the MAC

address level of the Ethernet protocol transmitting among connected Ethernet

or fast Ethernet LAN segments.

Switching is a cost-effective way of increasing the total network capacity

available to users on a LAN (local area network). A switch increases capacity

and decreases network loading by making it possible for a LAN to be divided

into different segments which don’t compete with each other for network

transmission capacity, giving a decreased load on each.

The switch acts as a high-speed selective bridge between the individual

segments. Traffic that needs to go from one segment to another (from one

port to another) is automatically forwarded by the switch, without interfering

with any other segments (ports). This allows the total network capacity to be

multiplied, while still maintaining the same network cabling and adapter

cards.

For Fast Ethernet or Gigabit Ethernet networks, a switch is an effective way

of eliminating problems of chaining hubs beyond the “two-repeater limit.” A

switch can be used to split parts of the network into different collision

domains, for example, making it possible to expand your Fast Ethernet

network beyond the 205-meter network diameter limit for 100BASE-TX

networks. Switches supporting both traditional 10Mbps Ethernet and

100Mbps Fast Ethernet are also ideal for bridging between existing 10Mbps

networks and new 100Mbps networks.

Switching LAN technology is a marked improvement over the previous

generation of network bridges, which were characterized by higher latencies.

Routers have also been used to segment local area networks, but the cost of a

router and the setup and maintenance required make routers relatively

impractical. Today’s switches are an ideal solution to most kinds of local area

network congestion problems.

Features

The DES-1010G 8-port 10/100Mbps plus 2-port 10/100/1000Mbps Gigabit

Ethernet Switch was designed for easy installation and high performance in

an environment where traffic on the network and the number of users

increase continuously.

Switch features include:



Two 10/100/1000Mbps Gigabit Ethernet ports (ports 9 ~ 10).



Eight 10/100Mbps Fast Ethernet ports (ports 1 ~ 8).



Store-and-forward switching scheme capability to support rate

adaptation and protocol conversion.



Full-duplex to allow two communicating stations to transmit and

receive at the same time.



Wire-speed data forwarding rate for each port.



Wire-speed data filtering rate for each port.



6K active MAC address entry table per device with automatic

learning and aging.



256Kbytes packet buffer per device.



Supports broadcast storm rate filtering.



NPACKING AND

ETUP

Unpacking

Open the shipping carton of the Switch and carefully unpack its contents. The

carton should contain the following items:



One DES-1010G 8-port 10/100Mbps plus 2-port

10/100/1000Mbps Gigabit Ethernet Switch



Four rubber feet with adhesive backing



Screws and two mounting brackets



One AC power cord



This manual



Quick Installation Guide

If any item is missing or damaged, please contact your local reseller for

replacement.

Setup

The setup of the Switch can be performed by using the following steps:



The surface must support at least 11 lbs (5 kg).



The power outlet should be within 6 feet (1.82 meters) of the

device.



Visually inspect the power cord and see that it is secured fully to

the AC power outlet on the Switch.



Make sure that there is proper heat dissipation from and adequate

ventilation around the Switch. Leave at least 10 cm (4 inches) of

space at the front and rear of the switch for ventilation.



Do not place heavy objects on the Switch.

Desktop Installation

When installing the Switch on a desktop or shelf, the rubber feet included

with the device should be attached first, to minimize scratching or scarring of

the surface on which the Switch is placed. Attach these cushioning feet on the

bottom at each corner of the device. Allow enough ventilation space between

the device and the objects around it.

DES-1010G Gigabit Ethernet Switch installedona Desktop or Shelf

Rack Installation (optional)

The DES-1010G Gigabit Ethernet Switch can be mounted in an EIA

standard-size 19-inch rack, in a wiring closet with other equipment. Attach

the mounting brackets on each side of the Switch’s front panel (as shown in

the illustration below), and secure them with the screws provided.

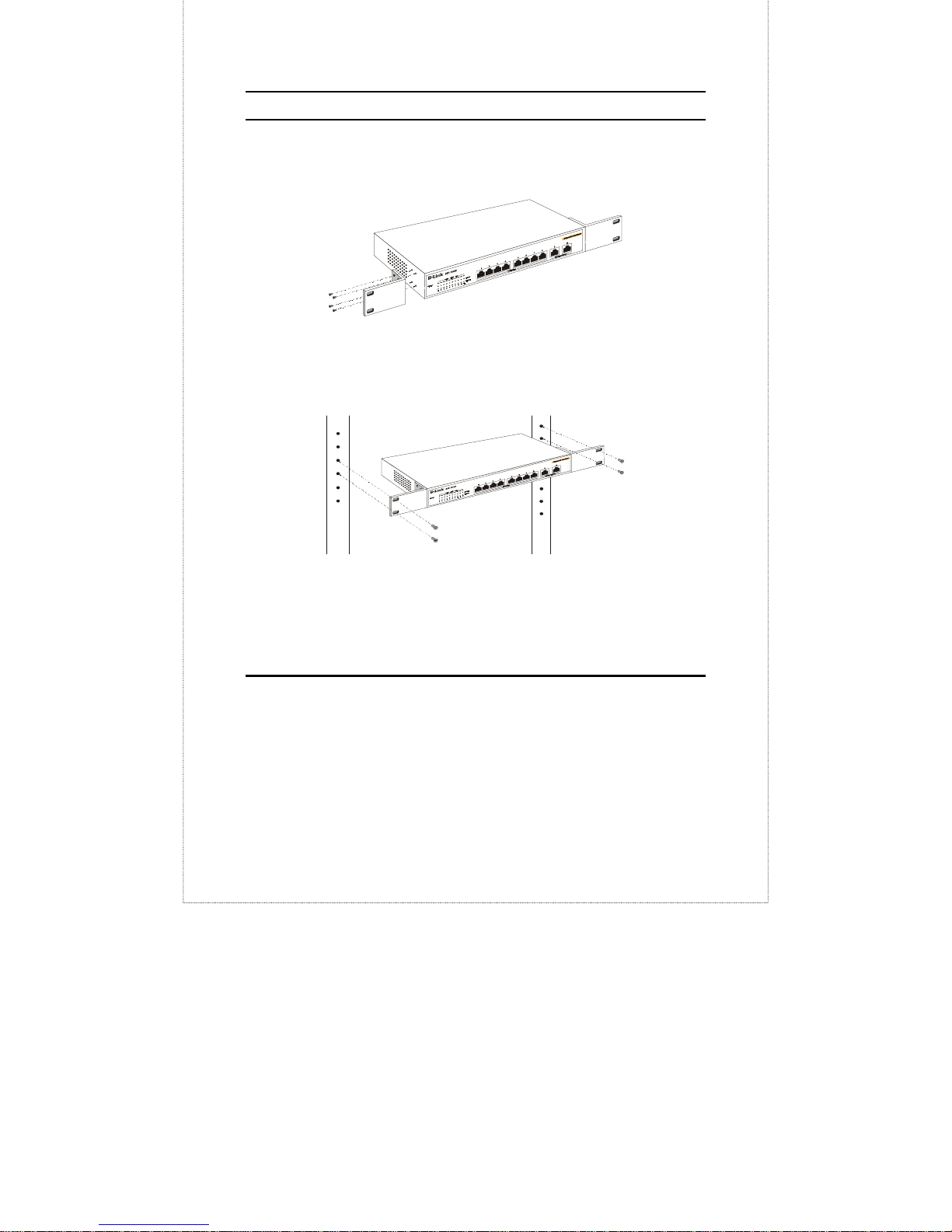

Attaching the mounting brackets to the Switch

Then, use the screws provided with the equipment rack to mount the Switch

in the rack.

Installing the Switch in an equipment rack

Table des matières

Autres manuels D-Link Changer

D-Link

D-Link DES-6300 Manuel utilisateur

D-Link

D-Link DGS-3000-28LP Manuel utilisateur

D-Link

D-Link DGS-1100-10MP Manuel utilisateur

D-Link

D-Link DGS-1100-08V2 Manuel utilisateur

D-Link

D-Link DES-1026G Manuel utilisateur

D-Link

D-Link DUB-H4 - Hub - USB Manuel utilisateur

D-Link

D-Link DGS-1210-52/FL Manuel utilisateur

D-Link

D-Link DGS-1510-28XMP Manuel utilisateur

D-Link

D-Link DES-3528 - xStack Switch - Stackable Manuel utilisateur

D-Link

D-Link DKVM-222 Manuel utilisateur

D-Link

D-Link DGS-1250-52XMP Manuel utilisateur

D-Link

D-Link DES-1018P Manuel utilisateur

D-Link

D-Link DGS-1005D - Switch Manuel utilisateur

D-Link

D-Link DUB-1341 Manuel utilisateur

D-Link

D-Link DGS-3120-24PC-SI Manuel

D-Link

D-Link 48-Port 10/100Mbps Web-Smart Switch with 4-Port 10/100/1000Base-T and 2-Port Combo SFP... Manuel utilisateur

D-Link

D-Link DES-3028 Manuel utilisateur

D-Link

D-Link DES-3528 - xStack Switch - Stackable Mode d’emploi

D-Link

D-Link Web Smart DES-1210-52 Manuel utilisateur

D-Link

D-Link DHP-342 Manuel utilisateur

D-Link

D-Link DGS-1100-26MP Manuel utilisateur

D-Link

D-Link DGS-1005D - Switch Manuel utilisateur

D-Link

D-Link DGS-1210/ME series Manuel

D-Link

D-Link DES-1005P Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur

Cabletron Systems

Cabletron Systems GIGAswitch GSR-16 Manuel utilisateur

D-Link des-1010g Manuel utilisateur

Manuels Changer populaires d'autres marques
