D-Link MyDlink DCS-8515LH Manuel utilisateur
DCS-8515LH
User Manual
HD Pan & Tilt Wi-Fi Camera
Hardware: A1
Manual Version: 1.00
2018/10/25
iD-Link DCS-8515LH User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization
of such revisions or changes. Information in this document may become obsolete as our services and websites develop and change. Please refer to the
www.mydlink.com website for the most current information.
Manual Revisions
Revision Date Description
1.0 2018/10/01 Initial release
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright © 2018 D-Link Corporation.
All rights reserved. is publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation.
Manual Overview
iiD-Link DCS-8515LH User Manual
Table of Contents
Product Overview......................................................................... 1
Package Contents................................................................. 1
Introduction............................................................................ 2
System Requirements .........................................................2
Hardware Overview.............................................................3
Front ...................................................................................... 3
Back View.............................................................................4
LED Behavior ......................................................................5
Safety ........................................................................................9
Wireless Installation Considerations............................10
Setting up the Camera Through mydlink™ App..............11
Using the mydlinkTM App .........................................................13
Controlling Your Device ...........................................................13
Camera Options ..........................................................................14
Device .....................................................................................15
Firmware Upgrade..........................................................17
Troubleshooting .........................................................................18
Technical Specications...........................................................19
Regulatory Information............................................................21
1D-Link DCS-8515LH User Manual
Section 1: Product Overview
Product Overview
If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a dierent voltage than the one included
with your product will cause damage and void the warranty for this product.
DCS-8515LH
HD Pan & Tilt Wi-Fi Camera
Power adapter
Quick Installation Guide
Mounting bracket
Screws and plastic anchors
Package Contents
2D-Link DCS-8515LH User Manual
Section 1: Product Overview
Introduction
Congratulations on your purchase of the DCS-8515LH HD Pan & Tilt Wi-Fi Camera. The DCS-8515LH provides a range of features
to help you eectively monitor large areas of your home or small oce at all hours of the day. The pan/tilt function allows
the camera to patrol a wide area, while the built-in IR LEDs provide around the clock surveillance regardless of the lighting
conditions. Extra details are captured in 720p high-denition, 1 megapixel resolution and H.264 compression saves space
without sacricing performance. Wireless connectivity means there is no need for additional cabling.
System Requirements
Network Requirements
• 802.11n/g/b wireless network
• Broadband internet connection
• A router connected to your broadband modem
mydlink App Requirements
• iOS or Android smartphone or tablet (please refer to the mobile app store's
page to check whether your device is compatible) with Bluetooth 4.0 and
above
• Email account (for mydlink service registration)
Optional • A microSD memory card (required for recording to onboard storage). SDHC
class 6 or above is recommended.
3D-Link DCS-8515LH User Manual
Section 1: Product Overview
Front
Hardware Overview
1Light Sensor IR-Cut sensor that measures the lighting conditions
2Camera Lens Records video of the surrounding area.
3IR LEDs Infrared LED that encircles the camera lens for low-light video recording.
4Microphone Records audio of the surrounding area.
5microSD card slot Where a microSD card can be inserted.
Note: Please use the mydlink app to tilt the camera up to reveal the slot.
Front View (tilted up)
miroSD card slot
IR LED
Microphone
Camera Lens
Light Sensor
1
2
3
4
4D-Link DCS-8515LH User Manual
Section 1: Product Overview
Back View
1Reset Button
While the device is powered on, use a paperclip to press the recessed reset but-
ton down for at least 10 seconds. is will reset your camera to factory default
settings.
2micro-USB Power Connector is is where you plug in the supplied power adapter.
21
5D-Link DCS-8515LH User Manual
Section 1: Product Overview
LED Behavior
Green
Solid Wireless connected
Blinking Ready for setup
Blinking Data is being transferred
Red
Solid Powered on
Solid System booting
Blinking Not connected to wireless
Blinking Firmware updating
Blinking Factory Resetting
Status LED
6D-Link DCS-8515LH User Manual
Section 2: Installation
Getting Started

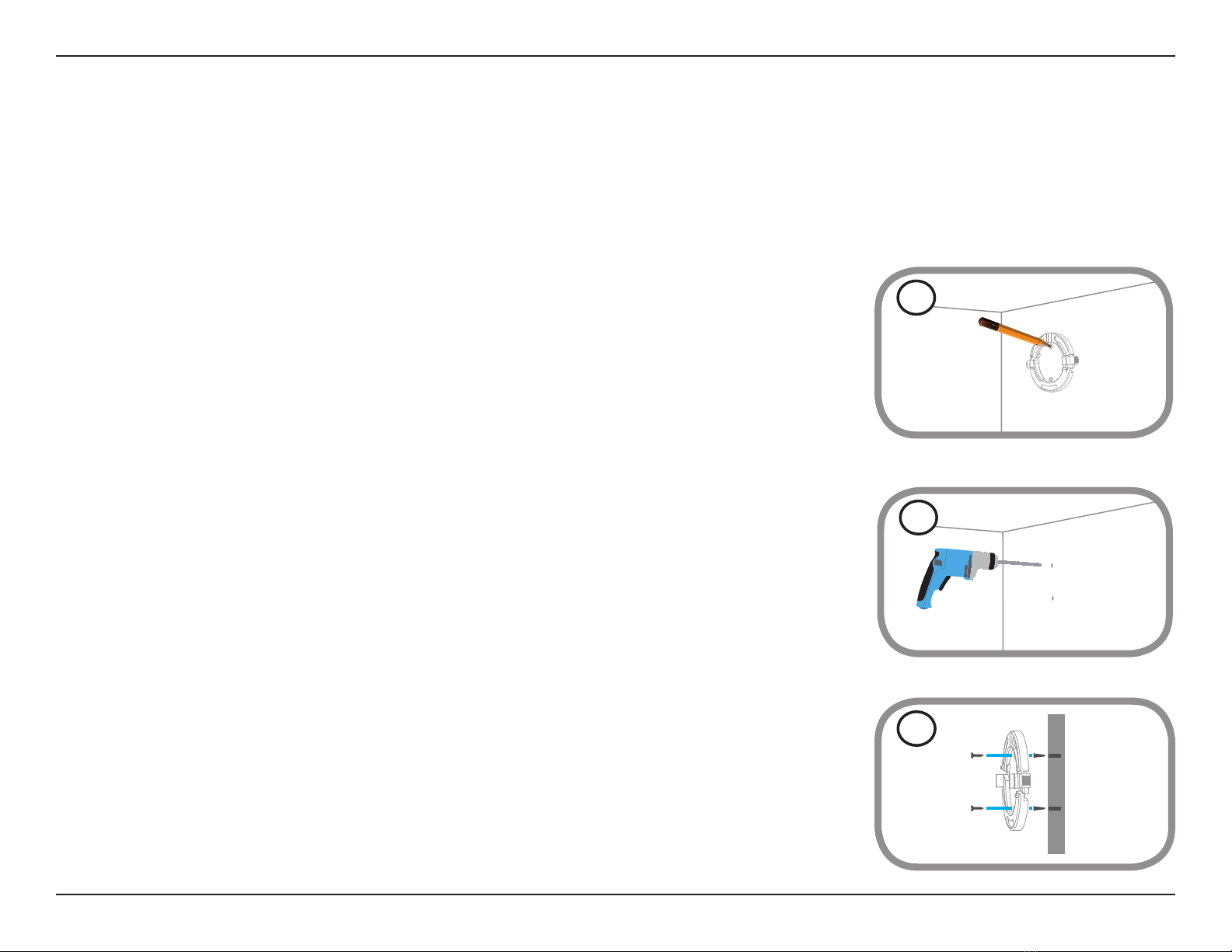

To mount your camera on a wall or ceiling, please follow the steps below. It is recommended that you congure the camera before mounting.
Step 1
Place the mount at the desired location, assuring that location of the power cord thread is also
at the desired location. Use a pencil to mark the holes.
Step 2
Using a 6 mm drill bit, drill two 25 mm deep holes over the pencil marks. For a plaster, drywall, or
concrete wall, insert the plastic anchors to support the screws rst.
Step 3
Place the mount over the holes that are in the wall. Make sure to align the mount holes with the
holes in the wall. Use the supplied screws to attach the mount to the surface of the wall.
1
2
3
Mounting the Camera
7D-Link DCS-8515LH User Manual
Section 2: Installation
Step 4
Align the bottom of the camera to the threads on the mount. Assure that the camera is securely
snapped into place.
4
