D-Link Mydlink DNR-312L Manuel utilisateur

MYDLINK NETWORK VIDEO RECORDER

WITH HDMI

DNR-312L

Краткое

руководство по

установке

Quick installation guide

DNR-312L

ENGLISH

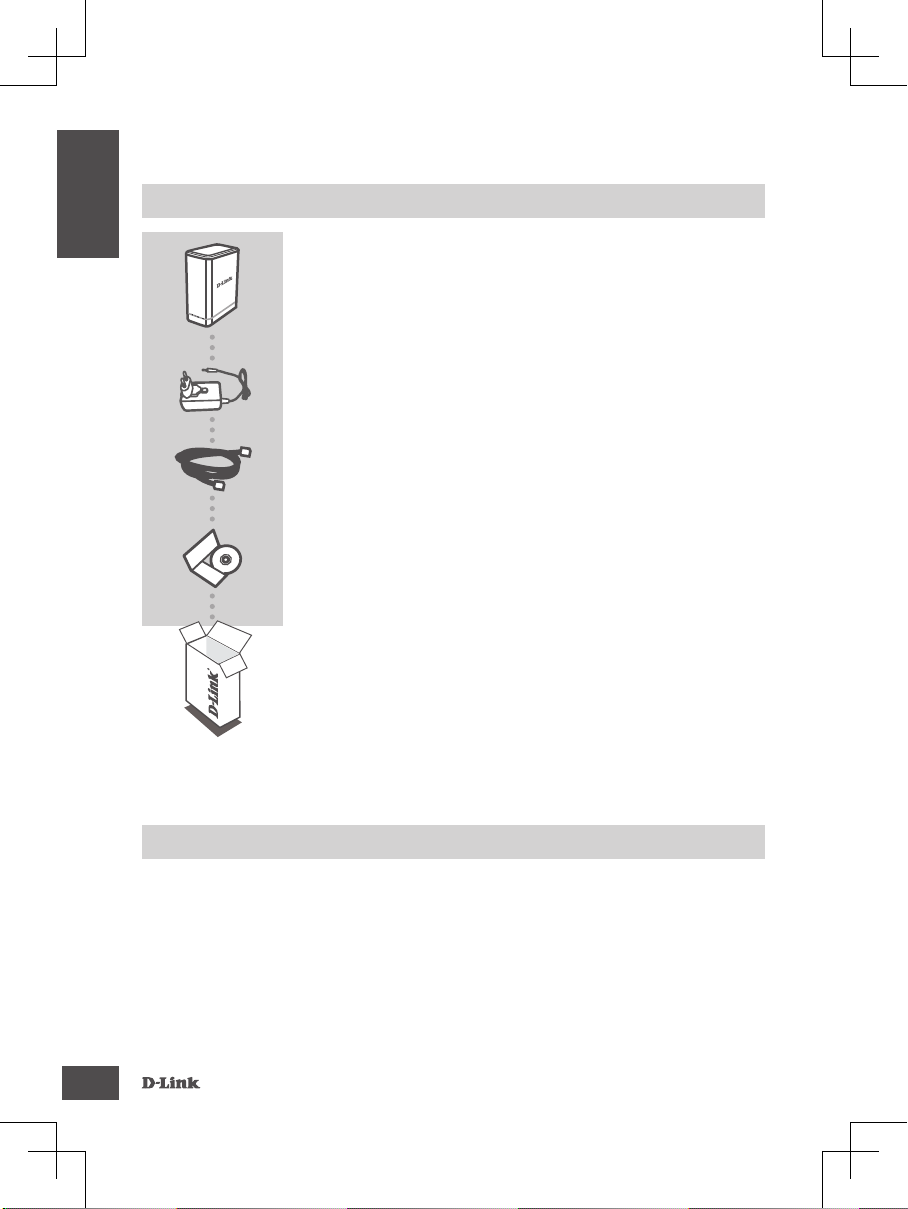

CONTENTS OF PACKAGING

• Computer with Microsoft Windows 8, 7, Vista, or XP (with Service Pack 3); Mac OS X

(10.7 or above)

• PC with Pentium 4 – 2.4 GHz or above; at least 512MB RAM

• Internet Explorer 7 or above, Firefox, Chrome, or Safari 4 or above

• Existing 10/100/1000 Ethernet-based network

MYDLINK NETWORK VIDEO RECORDER WITH HDMI

DNR-312L

POWER ADAPTER

If any of these items are missing from your packaging, contact your

reseller.

INSTALLATION CD

ETHERNET CABLE

SYSTEM REQUIREMENTS

QUICK INSTALLATION QUIDE

DNR-312L 3

ENGLISH

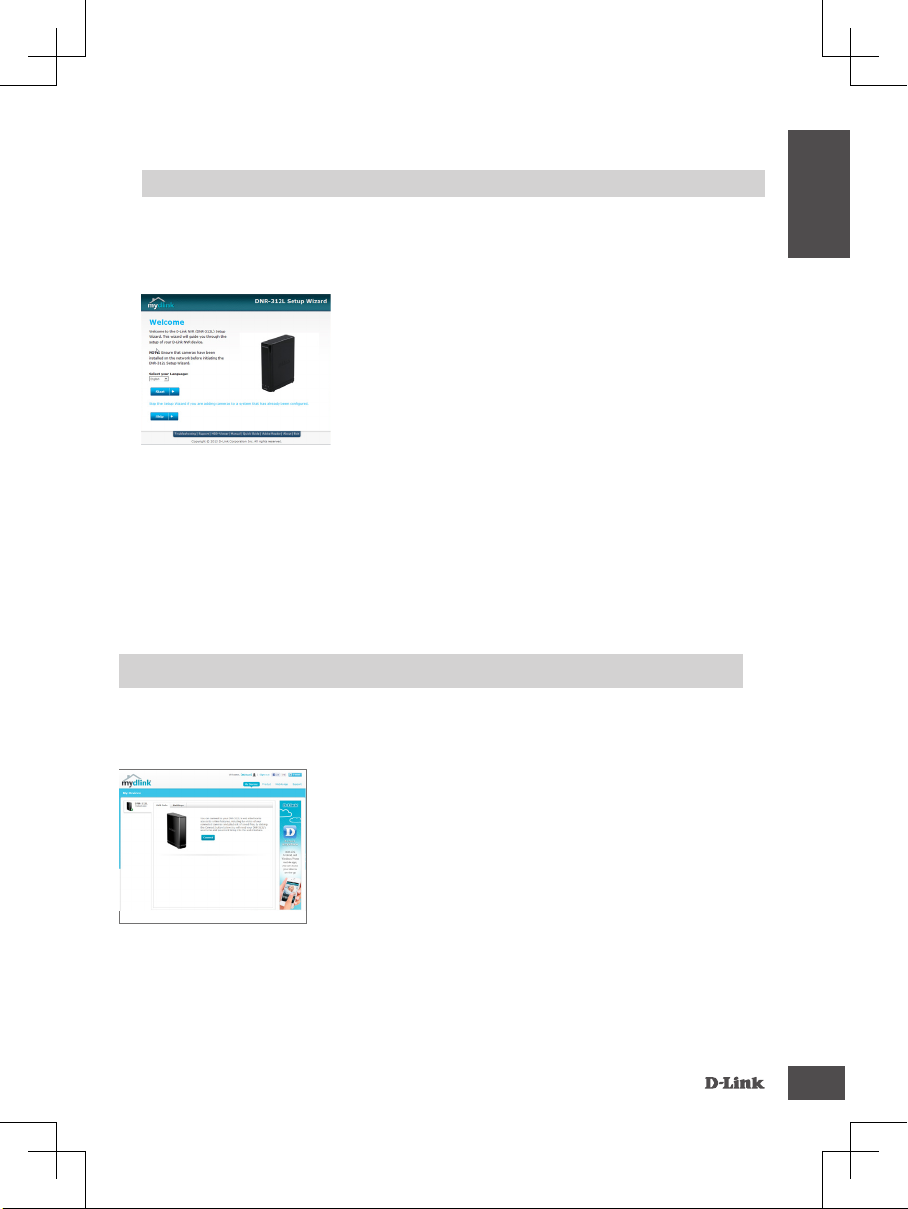

GETTING STARTED WITH mydlink

After registering your DNR-312L NVR with a mydlink account during the NVR Installation Wizard,

you will be able to remotely access your NVR from the www.mydlink.com website. After you have

logged in to your mydlink account, you will see a screen similar to the following:

Step 1:

• Open the web browser and go to http://www.mydlink.com, then

Step 2:

• The mydlink portal will detect your device. Click Connect and your

browser will then take you to your NVR’s Live View.

USING THE INSTALLATION WIZARD

You can use any Windows or Mac computer to go through the Installation Wizard from the CD,

which will guide you through the installation process from connecting your hardware, to conguring

your camera. If you do not have a CD-ROM drive, or the CD is missing, please download the Setup

Wizard from http://www.mydlink.com/support.

Step 1:

• Connect the included Ethernet cable to the Ethernet port located on

the rear panel of the DNR-312L and attach it to your network.

Step 2:

• Connect the power supply to the power connector located on the

rear panel of the DNR-312L and connect it to a wall outlet or power

strip. Power is conrmed when the green LED power indicator

located on the front panel is lit.

Step 3:

• Click the Start button to start the wizard and follow the instructions

to set up your NVR.

DNR-312L

ENGLISH

Step 1:

Connect the included Ethernet cable to the network cable connector located on the rear panel of the

DNR-312L and attach it to the network.

Step 2:

Attach the external power supply to the DC power input connector located on the rear panel of the

DNR‑312L and connect it to your wall outlet or power strip. Power is conrmed when the green

LED Power Indicator located on the front panel is lit.

Step 3:

Insert the DNR-312L installation CD in the CD-ROM drive. If the CD Autorun function does not

automatically start on your computer, go to Start > Run. In the run box type D:\autorun.exe (where D:

represents the drive letter of your CD-ROM drive) and click OK. When the autorun screen appears,

click Install and follow the on-screen instructions.

Step 4:

Click on the Start button to start the wizard, and follow the instructions from the Installation Wizard to

nish setting up your NVR.

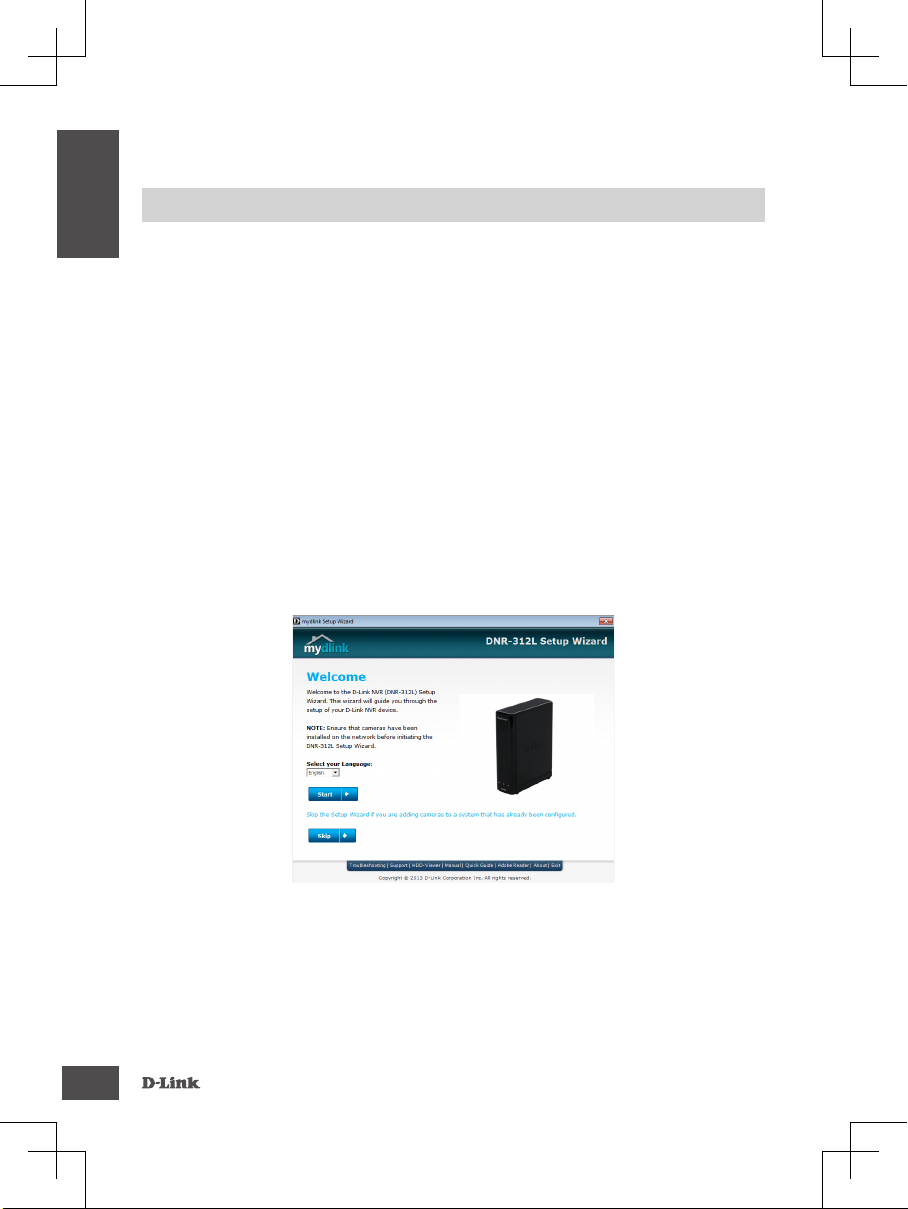

SETUP WIZARD - Windows

PRODUCT SETUP

DNR-312L 5

ENGLISH

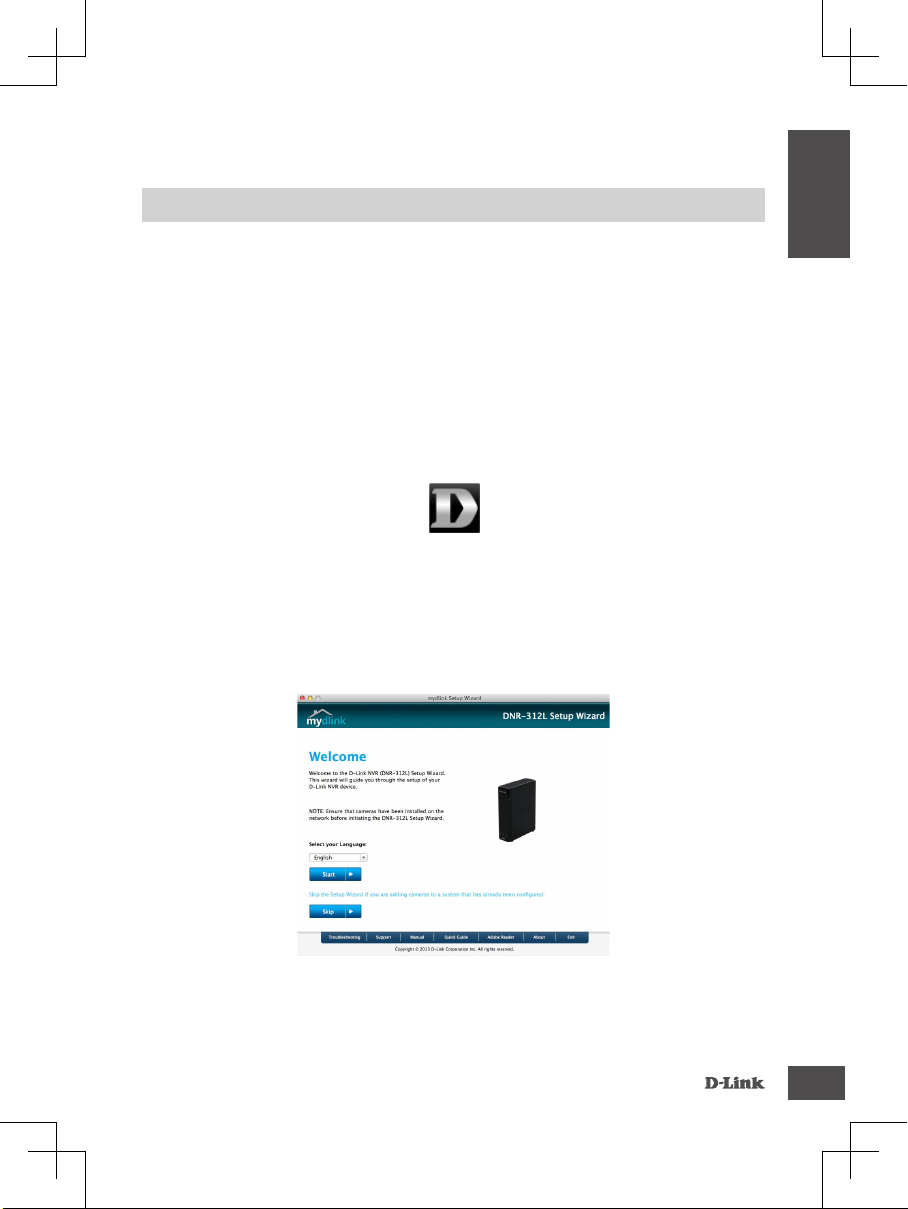

SETUP WIZARD - Mac

SetupWizard

Step 1:

Connect the included Ethernet cable to the network cable connector located on the rear panel of the

DNR-312L and attach it to the network.

Step 2:

Attach the external power supply to the DC power input connector located on the rear panel of the

DNR‑312L and connect it to your wall outlet or power strip. Power is conrmed when the green LED

Power Indicator located front panel is lit.

Step 3:

Insert the DNR-312L installation CD in the CD-ROM drive. After you have inserted the CD into your

computer, go to the CD drive directory, and double-click the Mac Utility folder to enter.

Step 4:

Double‑click the DNR‑312L Setup Wizard le to start the Setup Wizard. When the wizard appears,

click the Start button to begin the wizard, and follow the instructions from the Setup Wizard to nish

setting up your NVR.

PRODUCT SETUP

DNR-312L

ENGLISH

1. What kind of Cameras can connect to the NVR?

All D-Link network cameras can connect to the NVR. Please check the D-Link website for the detail

support information and version.

2. How do I connect Network Cameras to the NVR?

If your network supports DHCP:

Connect your network cameras to the network and power it on. (If your network doesn't

support DHCP, network cameras will be setup using a xed IP address.)

Insert the CD from the NVR package in your PC. Follow the instructions on the Setup Wizard

to setup your NVR.

Once connected to the NVR web page, it will automatically search and add any connected

network cameras. (If your network doesn't support DHCP, manually input the network camera's

IP address in the setup page.)

3. How can I check the disk status?

The disk status LEDs report the condition of the disk drives. These lights will be solid GREEN when

drives are connected but inactive. The lights will blink when the drives are being accessed, formatted

or synchronized. They will be red if the drive is installed but has failed.

4. How can I restore the default administrator's password?

If you forget the password, you can reset the password for "admin" to the default password: Press

and hold the reset button for 10 seconds. The Administrator password will now be blank.

TROUBLESHOOTING

SETUP AND CONFIGURATION PROBLEMS

DNR-312L 7

ENGLISH

TECHNICAL SUPPORT

Australia:

Tel: 1300-766-868

24/7 Technical Support

Web: http://www.dlink.com.au

E-mail: [email protected]

India:

Tel: +91-832-2856000

Toll Free 1800-233-0000

Web: www.dlink.co.in

E-Mail: [email protected]

Singapore, Thailand, Indonesia,

Malaysia, Philippines, Vietnam:

Singapore - www.dlink.com.sg

Thailand - www.dlink.co.th

Indonesia - www.dlink.co.id

Malaysia - www.dlink.com.my

Philippines - www.dlink.com.ph

Vietnam - www.dlink.com.vn

Korea:

Tel : +82-2-2028-1810

Monday to Friday 9:00am to 6:00pm

Web : http://d-link.co.kr

E-mail : [email protected]

New Zealand:

Tel: 0800-900-900

24/7 Technical Support

Web: http://www.dlink.co.nz

E-mail: [email protected]

South Africa and Sub Sahara

Region:

Tel: +27 12 661 2025

08600 DLINK (for South Africa only)

Monday to Friday 8:30am to 9:00pm South

Africa Time

Web: http://www.d-link.co.za

E-mail: [email protected]

Saudi Arabia (KSA):

Tel: +966 01 217 0008

Fax: +966 01 217 0009

Saturday to Wednesday 9.30AM to 6.30PM

Thursdays 9.30AM to 2.00 PM

E-mail: [email protected]

D-Link Middle East - Dubai, U.A.E.

Plot No. S31102,

Jebel Ali Free Zone South,

P.O.Box 18224, Dubai, U.A.E.

Tel: +971-4-8809022

Fax: +971-4-8809066 / 8809069

Technical Support: +971-4-8809033

General Inquiries: [email protected]

Tech Support: [email protected]

Egypt

1, Makram Ebeid Street - City Lights Building

Nasrcity - Cairo, Egypt

Floor 6, ofce C2

Tel.: +2 02 26718375 - +2 02 26717280

Technical Support: +2 02 26738470

General Inquiries: [email protected]

Tech Support: [email protected]

Kingdom of Saudi Arabia

Ofce # 84 ,

Al Khaleej Building ( Mujamathu Al-Khaleej)

Opp. King Fahd Road, Olaya

Riyadh - Saudi Arabia

Tel: +966 1 217 0008

Technical Support:

+966 1 2170009 / +966 2 6522951

General Inquiries: [email protected]

Tech Support: [email protected]

Pakistan

Islamabad Ofce:

61-A, Jinnah Avenue, Blue Area,

Suite # 11, EBC, Saudi Pak Tower,

Islamabad - Pakistan

Tel.: +92-51-2800397, 2800398

Fax: +92-51-2800399

Karachi Ofce:

D‑147/1, KDA Scheme # 1,

Opposite Mudassir Park, Karsaz Road,

Karachi – Pakistan

Phone: +92-21-34548158, 34326649

Fax: +92-21-4375727

Technical Support: +92-21-34548310, 34305069

General Inquiries: [email protected]

Tech Support: [email protected]

You can nd software updates and user documentation on the D‑Link website.

Tech Support for customers in

DNR-312L

ENGLISH

TECHNICAL SUPPORT

Iran

Unit 5, 5th Floor, No. 20, 17th Alley , Bokharest

St. , Argentine Sq. ,

Tehran IRAN

Postal Code : 1513833817

Tel: +98-21-88880918,19

+98-21-88706653,54

General Inquiries: [email protected]

Tech Support: [email protected]

Morocco

M.I.T.C

Route de Nouaceur angle RS et CT 1029

Bureau N° 312 ET 337

Casablanca , Maroc

Phone : +212 663 72 73 24

Email: [email protected]

Lebanon RMA center

Dbayeh/Lebanon

PO Box:901589

Tel: +961 4 54 49 71 Ext:14

Fax: +961 4 54 49 71 Ext:12

Email: [email protected]

Bahrain

Technical Support: +973 1 3332904

Kuwait:

Technical Support: + 965 22453939 / +965

22453949

Türkiye Merkez İrtibat Ofisi

Ayazağa Maslak yolu

Erdebil Cevahir İş Merkezi No: 5/A Ayazağa /

Maslak İstanbul

Tel: +90 212 2895659

Ücretsiz Müşteri Destek Hattı: 0 800 211 00 65

Web:www.dlink.com.tr

Teknik Destek: [email protected]

073-796-2797

DNR-312L 9

PYCCКИЙ

КОМПЛЕКТ ПОСТАВКИ

• Microsoft Windows 8, 7, Vista или XP (Service Pack 3); Mac OS X (10.7 или выше)

• ПК с Pentium 4 – 2,4 ГГц или выше; по крайне мере 512 МБ RAM

• Internet Explorer 7 или выше, Firefox, Chrome, Safari 4 или выше

• Существующая сеть Ethernet 10/100/1000

СЕТЕВОЙ ВИДЕОРЕГИСТРАТОР С РАЗЪЕМОМ HDMI И

ПОДДЕРЖКОЙ СЕРВИСА MYDLINK

DNR-312L

АДАПТЕР ПИТАНИЯ

Если что‑либо из перечисленного отсутствует, обратитесь к

поставщику.

ETHERNET-КАБЕЛЬ

СИСТЕМНЫЕ ТРЕБОВАНИЯ

КРАТКОЕ РУКОВОДСТВО ПО УСТАНОВКЕ

УСТАНОВОЧНЫЙ КОМПАКТ-ДИСК

DNR-312L

PYCCКИЙ

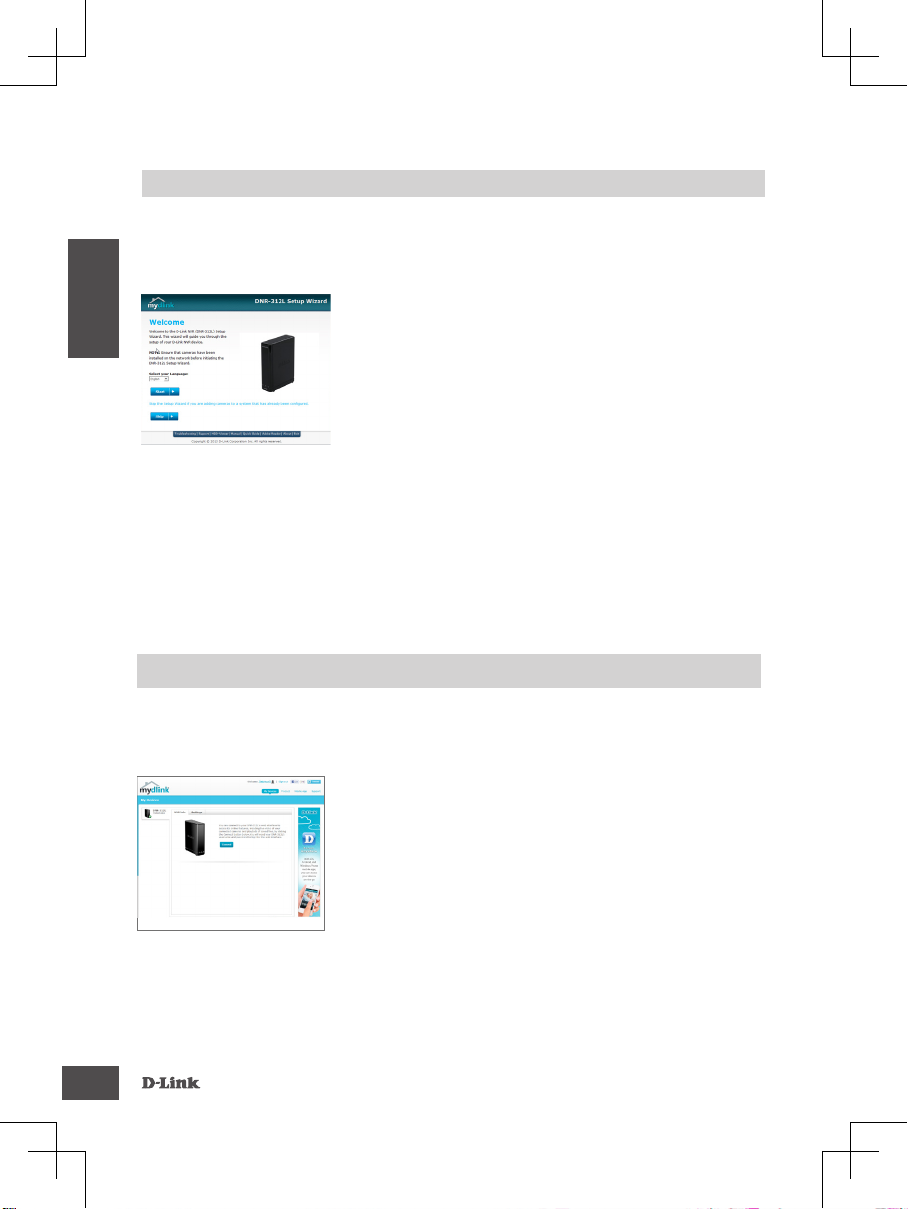

НАЧАЛО РАБОТЫ С mydlink

После регистрации DNR‑312L на портале mydlink с помощью Мастера установки NVR, Вам будет

предоставлена возможность удаленного доступа к сетевому видеорегистратору на Web‑сайте www.

mydlink.com. Когда будет осуществлен вход под учетной записью mydlink, появится следующее

окно:

Шаг 1:

• Откройте Web‑браузер и перейдите на http://www.mydlink.com,

затем авторизуйтесь, используя Вашу учетную запись mydlink.

Шаг 2:

• На сайте mydlink будет отображено Ваше устройство. Нажмите

Connect (Подключить), и в Web‑браузере откроется окно Live

View (Видеотрансляция).

ПРИ ИСПОЛЬЗОВАНИИ МАСТЕРА УСТАНОВКИ

Можно использовать любой компьютер с Windows или Mac для того, чтобы выполнить с

помощью Мастера установки, находящегося на компакт‑диске, процесс установки. Если у

Вас нет дисковода CD‑ROM, или компакт‑диск отсутствует, пожалуйста, загрузите Мастер

установки с http://www.mydlink.com/support.

Шаг 1:

• Подключите входящий в комплект поставки Ethernet‑кабель к

Ethernet‑порту, расположенному на задней панели DNR‑312L, и

к локальной сети.

Шаг 2:

• Подключите источник питания к разъему питания,

расположенному на задней панели DNR‑312L, и к розетке

питания. Индикатор питания, расположенный на передней

панели устройства, должен загореться зеленым цветом.

Шаг 3:

• Нажмите кнопку Start (Пуск), чтобы запустить Мастер

установки, и следуйте инструкциям по настройке сетевого

видеорегистратора.

Autres manuels pour mydlink DNR-312L

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels D-Link Matériel réseau

D-Link

D-Link DSL-2520U Manuel utilisateur

D-Link

D-Link DAS-3 Series Manuel utilisateur

D-Link

D-Link DAP-3760 Manuel utilisateur

D-Link

D-Link DNS-323 - Network Storage Enclosure NAS... Manuel utilisateur

D-Link

D-Link SharePort DIR-825 Manuel utilisateur

D-Link

D-Link mydlink DNR-312L Manuel utilisateur

D-Link

D-Link DSN-1100 Manuel utilisateur

D-Link

D-Link DNS-1560-04 Manuel utilisateur

D-Link

D-Link DKVM-2 Manuel de service

D-Link

D-Link ShareCenter DNS-315 Manuel utilisateur

D-Link

D-Link DNS-300 Manuel utilisateur

D-Link

D-Link ShareCenter DNS-327L Manuel utilisateur

D-Link

D-Link DLM-3500 Manuel utilisateur

D-Link

D-Link DNS-323 - Network Storage Enclosure NAS... Manuel utilisateur

D-Link

D-Link DSL-2750U Manuel

D-Link

D-Link ShareCenter Quattro DNS-345 Manuel utilisateur

D-Link

D-Link xtreme n duo dap-1522 Manuel utilisateur

D-Link

D-Link DSN-500 Guide de sécurité

D-Link

D-Link DNR-F4108-08P Manuel utilisateur

D-Link

D-Link DHP-W311AV Manuel utilisateur

D-Link

D-Link DNS-326 Manuel utilisateur

D-Link

D-Link DXS-3610-54S Manuel utilisateur

D-Link

D-Link ShareCenter DNS-320L Manuel utilisateur

D-Link

D-Link DLB-1200 Manuel utilisateur

Manuels Matériel réseau populaires d'autres marques

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuel utilisateur

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuel utilisateur

Yudor

Yudor YDS-16 Manuel utilisateur

Samsung

Samsung ES1642dc Instructions d'utilisation

Honeywell Home

Honeywell Home LTEM-PV Instructions de montage

evertz

evertz 7700 Series Manuel utilisateur

Asante

Asante AsanteBridge 1012 Manuel utilisateur

FireBrick

FireBrick FB2700 Manuel utilisateur

Audiovox Electronics

Audiovox Electronics ARWH2T Manuel utilisateur

ADC

ADC DSX-1 Manuel

NetComm

NetComm NF2 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 5620 Manuel utilisateur

Dell EMC

Dell EMC XC6420 Series Manuel utilisateur

Lanner

Lanner NCA-1020A Manuel utilisateur

Allied Telesis

Allied Telesis AT-TN121-A Manuel utilisateur

Arista

Arista CCA-ETM-Q12 Manuel utilisateur

Lanner

Lanner NCA-1525 Manuel utilisateur

Cantek

Cantek NR310-4 Manuel utilisateur
