D-Link DAP-1325 Manuel utilisateur

Quick Installation Guide

DAP-1325

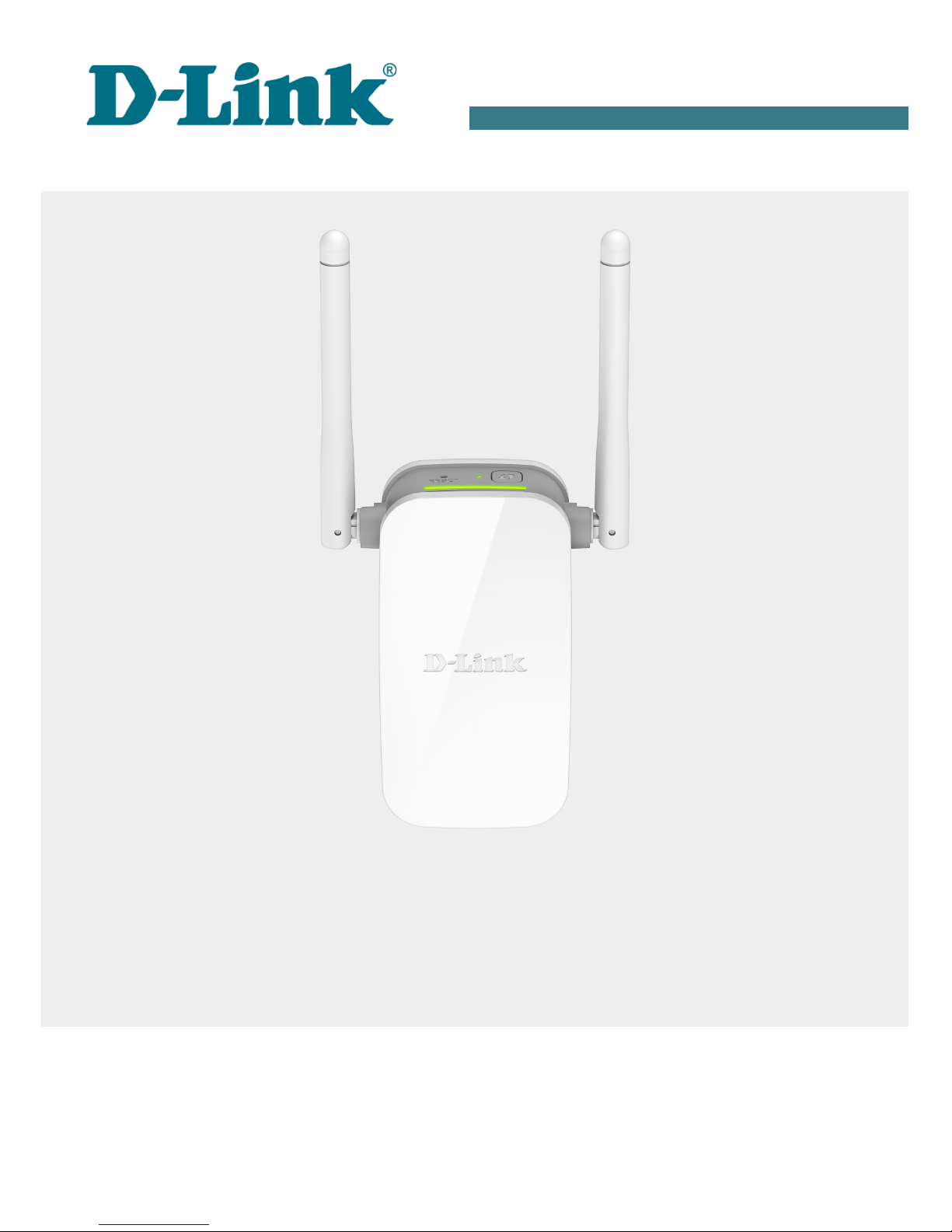

N300 Wi-Fi Range Extender

DAP-1325 Quick Installation Guide

BEFORE YOU BEGI

Delivery Package

•Extender DAP-1325

•“Quick Installation Guide” (brochure).

If any of the ite s are issing, please contact your reseller.

The “User Manual” and “Quick Installation Guide” docu ents are available

on D-Link website (see www.dlink.ru).

Default Settings

IP address of device 192.168.0.50

Username (login) admin

Password admin

ame of wireless network (SSID) DAP-1325

etwork key (PSK password)

see WPS PIN on the

barcode label on the

back panel of the

device

DAP-1325 Quick Installation Guide

System Requirements and Equipment

•A router enabled to access the Internet.

•A co puter with any operating syste that supports a web browser.

•A web browser to access the web-based interface of the device:

◦Apple Safari 8 and later

◦Google Chro e 48 and later

◦Microsoft Internet Explorer 10 and later

◦Microsoft Edge 20.10240 and later

◦Mozilla Firefox 44 and later

◦Opera 35 and later.

•A NIC (Ethernet or Wi-Fi adapter) to connect to the extender.

•An 802.11b, g, or n Wi-Fi adapter to create a wireless network.

DAP-1325 Quick Installation Guide

CO ECTI G TO PC

PC with Ethernet Adapter

1. Connect an Ethernet cable between the Ethernet port of the extender and

the Ethernet port of your PC.

2. Plug the device into an electrical outlet or power strip.

Now you need to configure an IP address for the Ethernet adapter of your PC.

Configuring IP Address in S Windows XP

1. Click the Start button and proceed to the Control Panel > etwork

and Internet Connections > etwork Connections window.

2. In the etwork Connections window, right-click the relevant Local

Area Connection icon and select the Properties line in the enu

displayed.

DAP-1325 Quick Installation Guide

3. In the Local Area Connection Properties window, on the General

tab, select the Internet Protocol (TCP/IP) line. Click the Properties

button.

4. Select the Use the following IP address radio button and enter the

value 198.168.0.51 in the IP address field. The Subnet mask

field will be filled in auto atically. Click the OK button.

5. Click the ОК button in the connection properties window.

Now you can connect to the web-based interface of DAP-1325 for configuring

all needed para eters. To gain access to an external network (to the Internet),

you also need to specify the default gateway and the addresses of DNS servers.

DAP-1325 Quick Installation Guide

Configuring IP Address in S Windows 7

1. Click the Start button and proceed to the Control Panel window.

2. Select the etwork and Sharing Center section. (If the Control Panel

has the category view (the Category value is selected fro the View by

drop-down list in the top right corner of the window), choose the View

network status and tasks line under the etwork and Internet

section.)

3. In the enu located on the left part of the window, select the Change

adapter settings line.

4. In the opened window, right-click the relevant Local Area Connection

icon and select the Properties line in the enu displayed.

5. In the Local Area Connection Properties window, on the

etworking tab, select the Internet Protocol Version 4 (TCP/IPv4)

line. Click the Properties button.

DAP-1325 Quick Installation Guide

6. Select the Use the following IP address radio button and enter the

value 198.168.0.51 in the IP address field. The Subnet mask

field will be filled in auto atically. Click the OK button.

7. Click the OK button in the connection properties window.

Now you can connect to the web-based interface of DAP-1325 for configuring all

needed para eters. To gain access to an external network (to the Internet), you

also need to specify the default gateway and the addresses of DNS servers.

DAP-1325 Quick Installation Guide

PC with Wi-Fi Adapter

1. Plug the device into an electrical outlet or power strip.

2. Turn on your Wi-Fi adapter. As a rule, odern notebooks with built-in

wireless NICs are equipped with a button or switch that turns on/off the

wireless adapter (refer to your PC docu ents). If your PC is equipped

with a pluggable wireless NIC, install the software provided with your

Wi-Fi adapter.

Now you should configure your Wi-Fi adapter.

DAP-1325 Quick Installation Guide

Configuring Wi-Fi Adapter in S Windows XP

1. Click the Start button and proceed to the Control Panel > etwork

and Internet Connections > etwork Connections window.

2. In the etwork Connections window, right-click the relevant

Wireless etwork Connection icon. Make sure that your Wi-Fi

adapter is on, then select the Properties line in the enu displayed.

3. In the Wireless etwork Connection Properties window, on the

General tab, select the Internet Protocol (TCP/IP) line. Click the

Properties button.

4. Select the Use the following IP address radio button and enter the

value 198.168.0.51 in the IP address field. The Subnet mask

field will be filled in auto atically. Click the OK button.

5. Click the ОК button in the connection properties window.

DAP-1325 Quick Installation Guide

6. Search for available wireless networks.

7. In the opened Wireless etwork Connection window, select the

wireless network DAP-1325 and click the Connect button.

8. In the opened window, enter the network key (see WPS PIN on the

barcode label on the back panel of the device) in the etwork key and

Confirm network key fields and click the Connect button.

After that the Wireless etwork Connection Status window appears.

Now you can connect to the web-based interface of DAP-1325 for configuring

all needed para eters. To gain access to an external network (to the Internet),

you also need to specify the default gateway and the addresses of DNS servers.

If you perfor initial configuration of the extender via Wi-Fi

connection, note that i ediately after changing the wireless default

settings of the extender you will need to reconfigure the wireless

connection using the newly specified settings.
