D-Link DSN-3200-20 - Xstack 8X1GBE Iscsi San Array 15 Bays... Manuel utilisateur

D-Link DSN-3200/3400 Installation Guide

Package Contents

DSN-3200/3400 xStack Storage

Area Network (SAN) Array CD-ROM with User Guide

If any of the above items are missing, please contact your reseller.

Keys

Power Cables

Rack mount Rails

Hardware and Screws

D-Link DSN-3200/3400 Installation Guide 3

System Requirements

Management Computer Requirements:

• Windows™XP or 2000

• Two (2) Ethernet Adapters*

• Internet Explorer version 5.0 or higher

• Java™Runtime Environment (JRE) Version 1.4.2_08

* One Ethernet adapter should be attached to the Internet in order to

automatically download Java version 1.4.2_08. The second Ethernet

adapter will be set to IP address 192.168.1.2. This will allow access to the

DSN-3000 series management port whick is pre-conﬁgured at 192.168.1.1.

The diagrams on pages 8 and 9 provide a visual overview of the ﬁnal

conﬁguration for the DSN-3200 and DSN-3400 respectively.

Note: The management port is not auto-MDI/MDX. You will need a

crossover cable if connecting directly to your computer.

File Server Requirements:

• Windows™XP or 2003

• Two (2) Ethernet Adapters

• One adapter must be 1GbE and set to IP address

192.168.2.2.

• The other adapter should be set to an IP address on

the same subnet as your LAN.

• Microsoft iSCSI initiator version 2.0 or higher (can be downloaded

from Microsoft’s website).

* One Ethernet adapter should be assigned 192.168.2.2 and connected to

the switch that supports the new SAN device, which is conﬁgured with an

IP address of 192.168.2.1.

The second Ethernet adapter will be used by the server to access your local

network (LAN). The diagrams on pages 8 and 9 provide a visual overview

of the ﬁnal conﬁguration for the DSN-3200 and DSN-3400 respectively.

D-Link DSN-3200/3400 Installation Guide

Before You Begin

A SAN or Storage Area Network allows you to create a dedicated network

that provides storage for your ﬁle server(s). The diagrams on pages 8 and 9

are basic diagrams of this concept. The LAN or Local Area Network shown in

the lower portion of the diagram is where the user’s PCs, print servers, etc.

are attached. This is the network you are familiar with. The demarcation point

between these two networks is typically the use of two network adapters

placed in a ﬁle server. One adapter serves the SAN and the other serves

the LAN.

In the upper portion of the diagram appears the SAN which allows ﬁle servers

to share a storage device(s) like the xStack Storage series of products. This

SAN can be composed of standard Ethernet cabling, switches, etc. As you

can see, a dedicated network allows the servers to access shared storage

devices with high data throughput that will not affect the LAN where user’s

PCs are located.

Another concept is that of iSCSI (IP Small Computer System Interface). This

protocol allows SCSI storage commands to be encapsulated in IP datagrams

that can then pass over a standard Ethernet network. This allows ﬁle servers

to send and receive storage commands with external storage devices like the

xStack Storage device.

In iSCSI, the xStack Storage device is known as the “target” and the ﬁle server

is the “initiator.” Speciﬁcally, the ﬁle server must have a piece of software

loaded that provides this initiator functionality. In the case of Microsoft, this

initiator software is free and downloadable from their Website. No matter

what operating system you are using, an initiator software of some kind must

be loaded on your ﬁle server.

The goal of this Installation Guide will be to get you up and going with a

simple SAN. The xStack Storage device has been preconﬁgured with IP

addresses that are identiﬁed in this guide. Once you have built conﬁdence

in your understanding of the DSN-3000 series device, the product manual

found on the accompanying CD provides details for allowing you to conﬁgure

the unit to your own speciﬁc needs.

D-Link DSN-3200/3400 Installation Guide 5

Front View - DSN-3200/3400

D-Link DSN-3200/3400 Installation Guide

Rear Panel - DSN-3200

D-Link DSN-3200/3400 Installation Guide 7

Rear Panel - DSN-3400

D-Link DSN-3200/3400 Installation Guide

DSN-3200 Network Diagram

D-Link DSN-3200/3400 Installation Guide 9

DSN-3400 Network Diagram

D-Link DSN-3200/3400 Installation Guide

Note: The eight host network connections on the DSN-3200 may be LAG’d

(Link Aggregate Group) together to form higher speed links. This capability

is also known as trunking.

The default conﬁguration of these ports is shown above. Host Network

Connections 0 through 3 all share IP address 192.168.2.1. Host Network

Ports 4 through 7 share IP address 192.168.3.1. In our example we will

only attach to the ﬁrst group.

IP Addresses

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels D-Link Système de disques

D-Link

D-Link DSN-3400-10 - xStack Storage Area Network Array Hard... Manuel utilisateur

D-Link

D-Link DSN-1100-10 - xStack Storage Area Network Array Hard... Manuel d'utilisation et d'entretien

D-Link

D-Link DSN-1100-10 - xStack Storage Area Network Array Hard... Manuel utilisateur

D-Link

D-Link DSN-2100-10 - xStack Storage Area Network Array Hard... Manuel utilisateur

D-Link

D-Link DSN-3400-10 - xStack Storage Area Network Array Hard... Manuel d'utilisation et d'entretien

D-Link

D-Link DSN-2100-10 - xStack Storage Area Network Array Hard... Manuel utilisateur

D-Link

D-Link DSN-2100-10 - xStack Storage Area Network Array Hard... Manuel d'utilisation et d'entretien

D-Link

D-Link DSN-3400-10 - xStack Storage Area Network Array Hard... Manuel utilisateur

D-Link

D-Link SHARECENTER PRO 1100 Manuel utilisateur

D-Link

D-Link DSN-610 Manuel utilisateur

D-Link

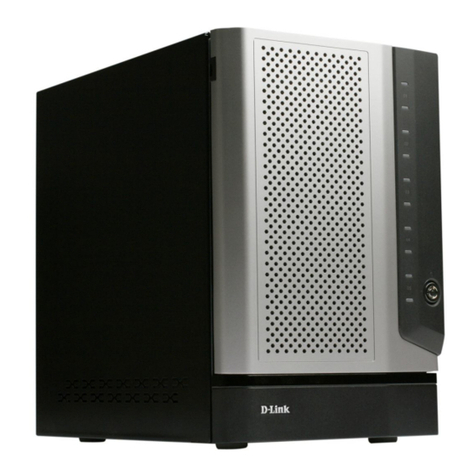

D-Link DSN-1100 xStack Storage Manuel d'utilisation et d'entretien
