D-Link AirPremier DWL-G680 Manuel utilisateur

DWL-AG700AP Install Guide

2 D-Link Systems, Inc.

DWL-G680 Install GuideSystem Requirements

System Requirements

Minimum System Requirements:

A laptop computer with an available 32-bit Cardbus slot

At least a 500MHz processor and 64MB of memory

An 802.11g or 802.11b Access Point (for Infrastructure

Mode) or another 802.11g or 802.11b wireless adapter

(for Ad-Hoc; Peer-to-Peer networking mode.)

Manual and Utility

on CD

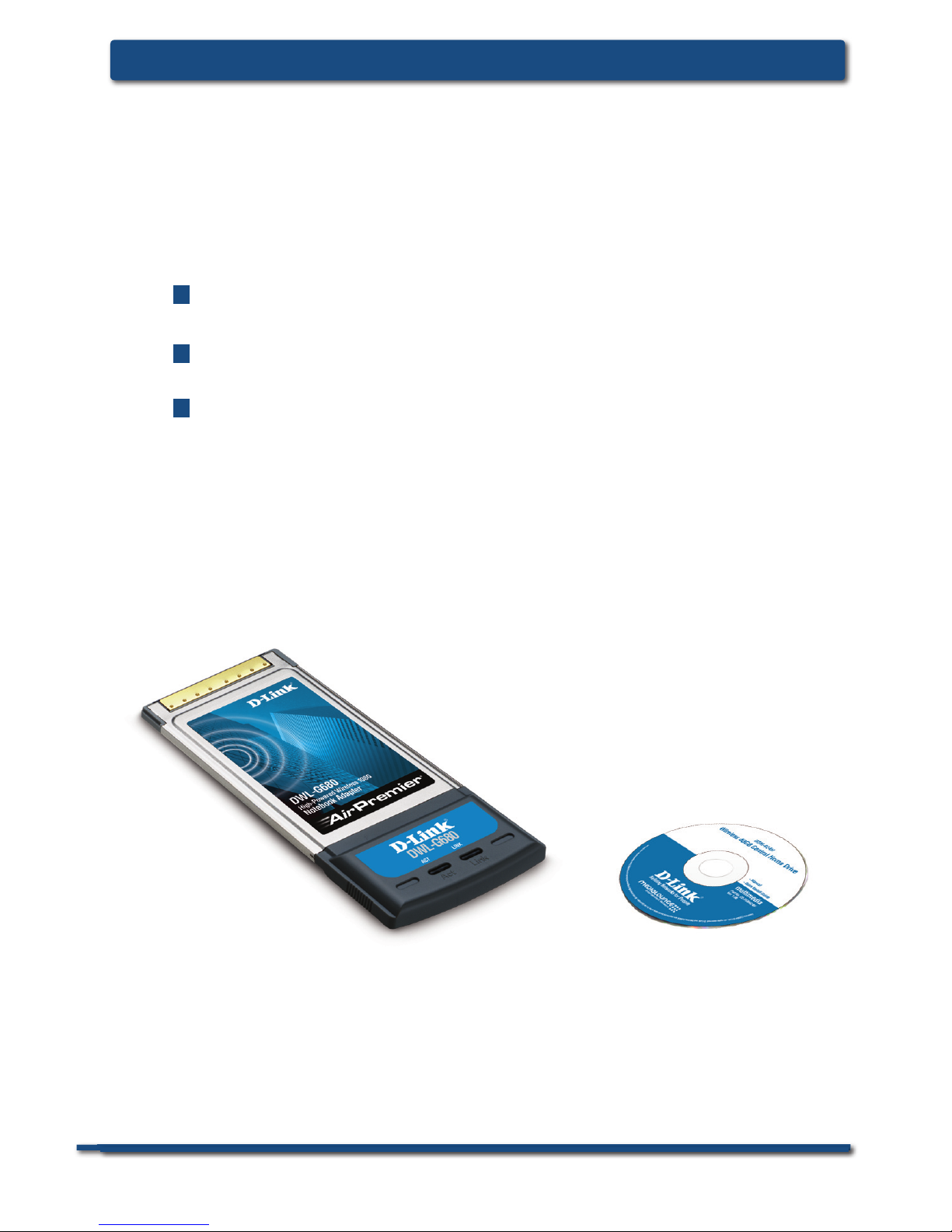

Package Contents

D-Link DWL-G680

High-Powered Wireless

108G Notebook Adapter

D-Link Systems, Inc. 3

DWL-G680 Install Guide Hardware Overview

Hardware Overview

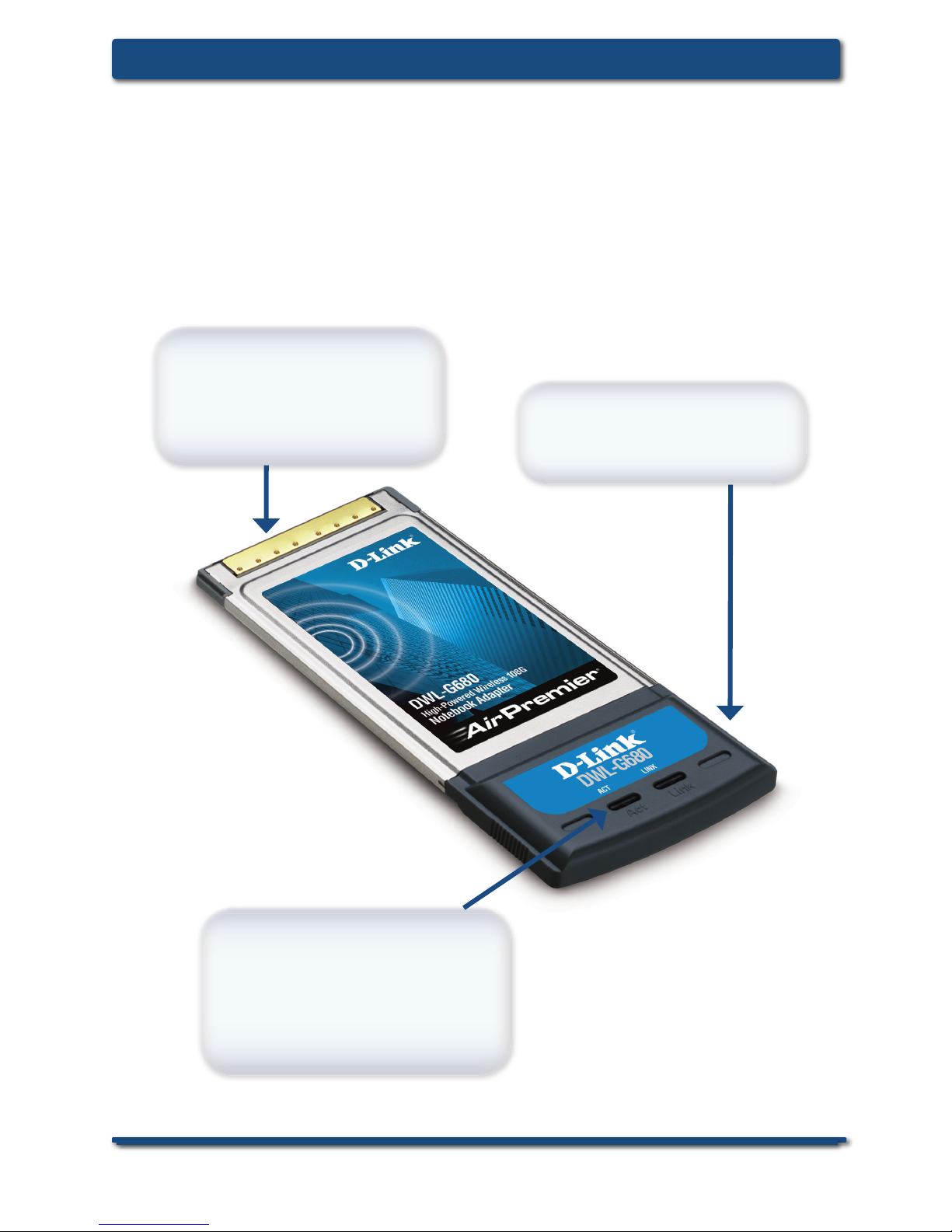

This is the connector that ﬁ ts

into the CardBus slot of your

computer.

32-bit connector

Indicates that the DWL-G680

is properly installed when the

computer is on and blinks

when data is being transmitted.

Link/Activity LEDs

Used to wirelessly connect

to WiFi networks.

Antenna

4D-Link Systems, Inc.

DWL-G680 Install GuideInstalling Drivers

Turn on the computer and insert the D-Link DWL-G680 Driver CD

in the CD-ROM drive. The installation Wizard will automatically

appear.

Installing the Drivers

The step-by-step instructions that follow are shown in Windows XP.

The steps and screens are similar for the other Windows operating

systems.

Installing the Drivers

Do NOT install the DWL-G680 Wireless Notebook Adapter into

your computer before installing the driver software from the D-Link

CD!

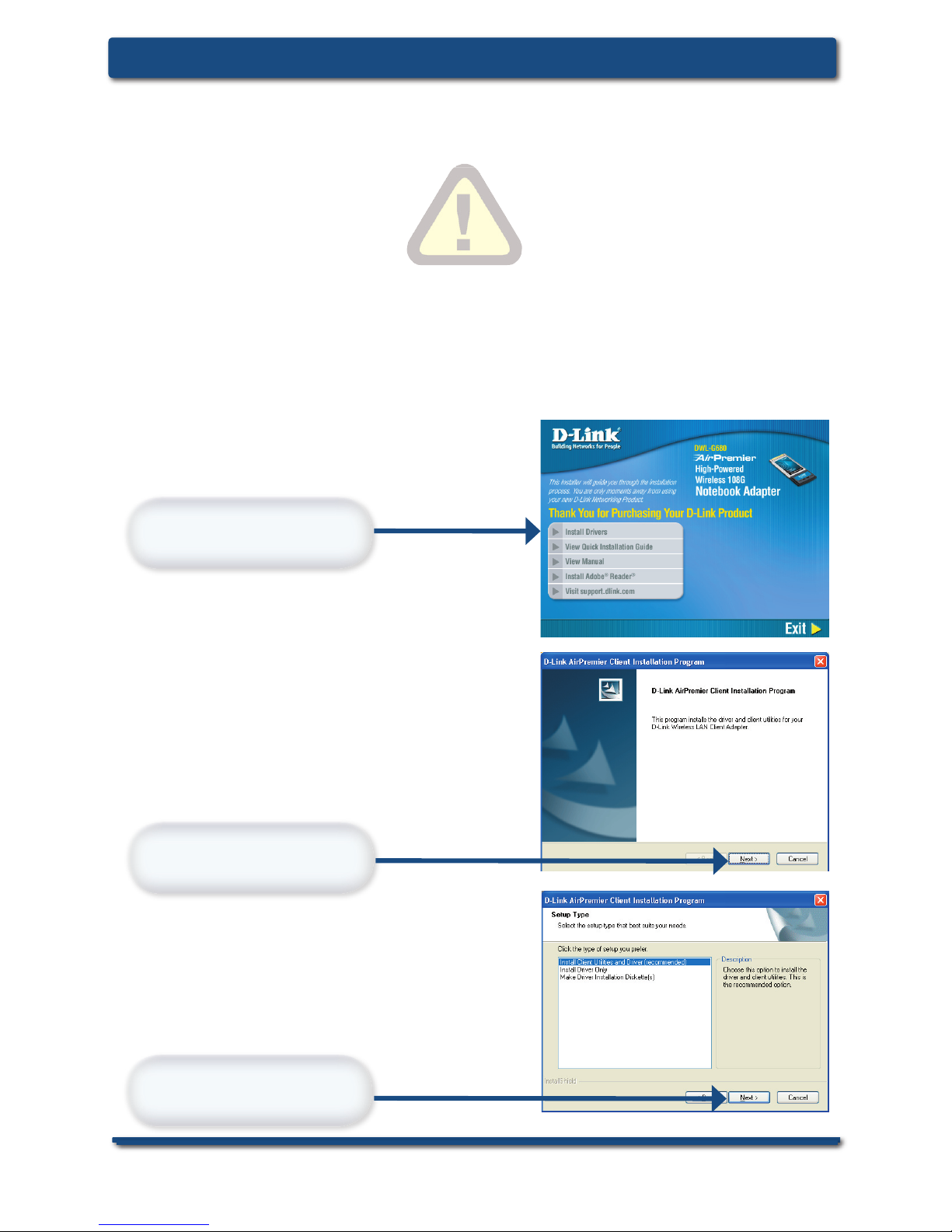

Click Install Drivers

Click Next

If the Installation Wizard

does not automatically start

on your computer, type

“D:\Drivers\setup.exe.” If the

Wizard does start, proceed

to the next screen.

If prompted to ‘Restart

system after completion

of operation’, click Yes to

continue.

D-Link Systems, Inc. 5

DWL-G680 Install Guide Installing Driver

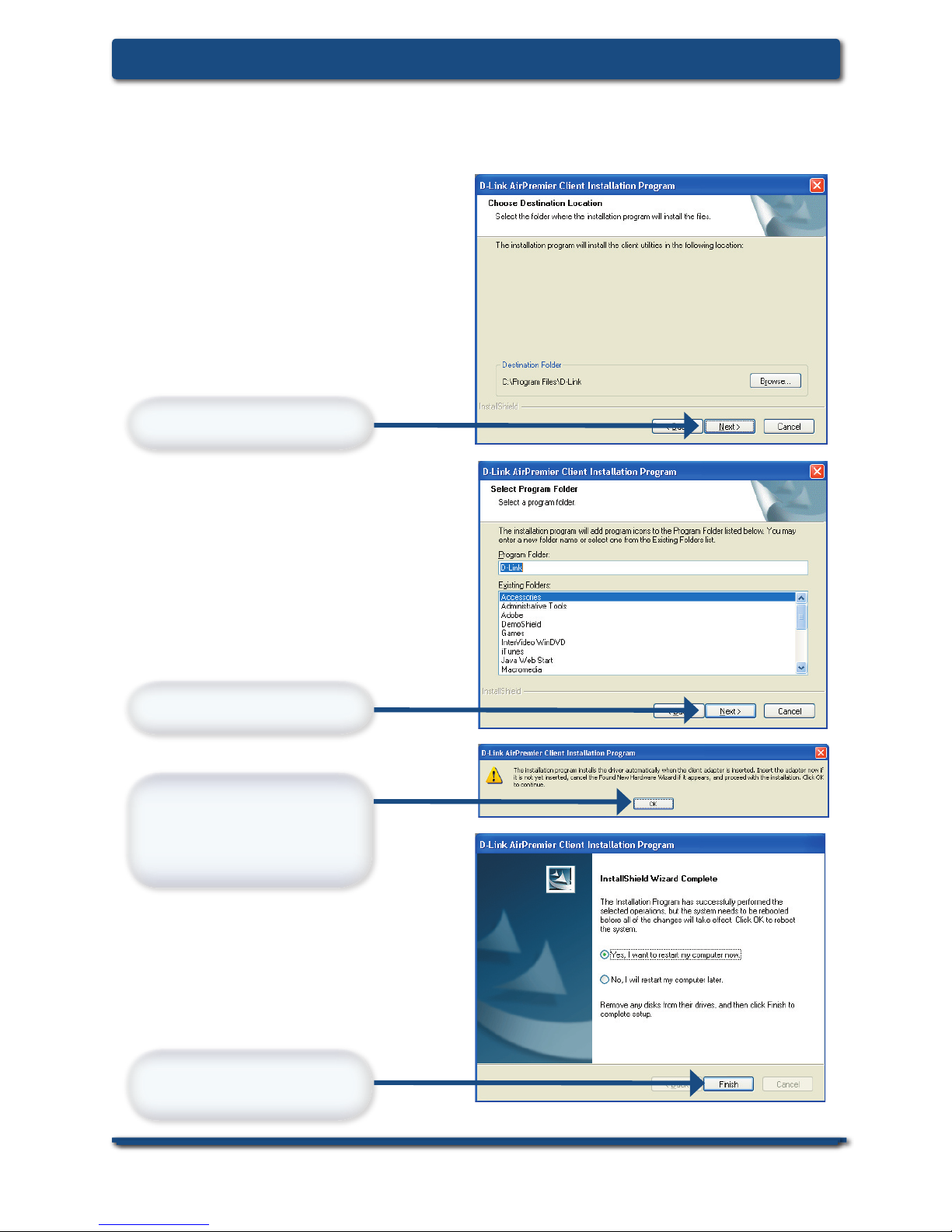

Installing the Drivers (continued)

Click Next

Click Finish

Click Next

Insert the DWL-G680

into your laptop and

Click OK

6D-Link Systems, Inc.

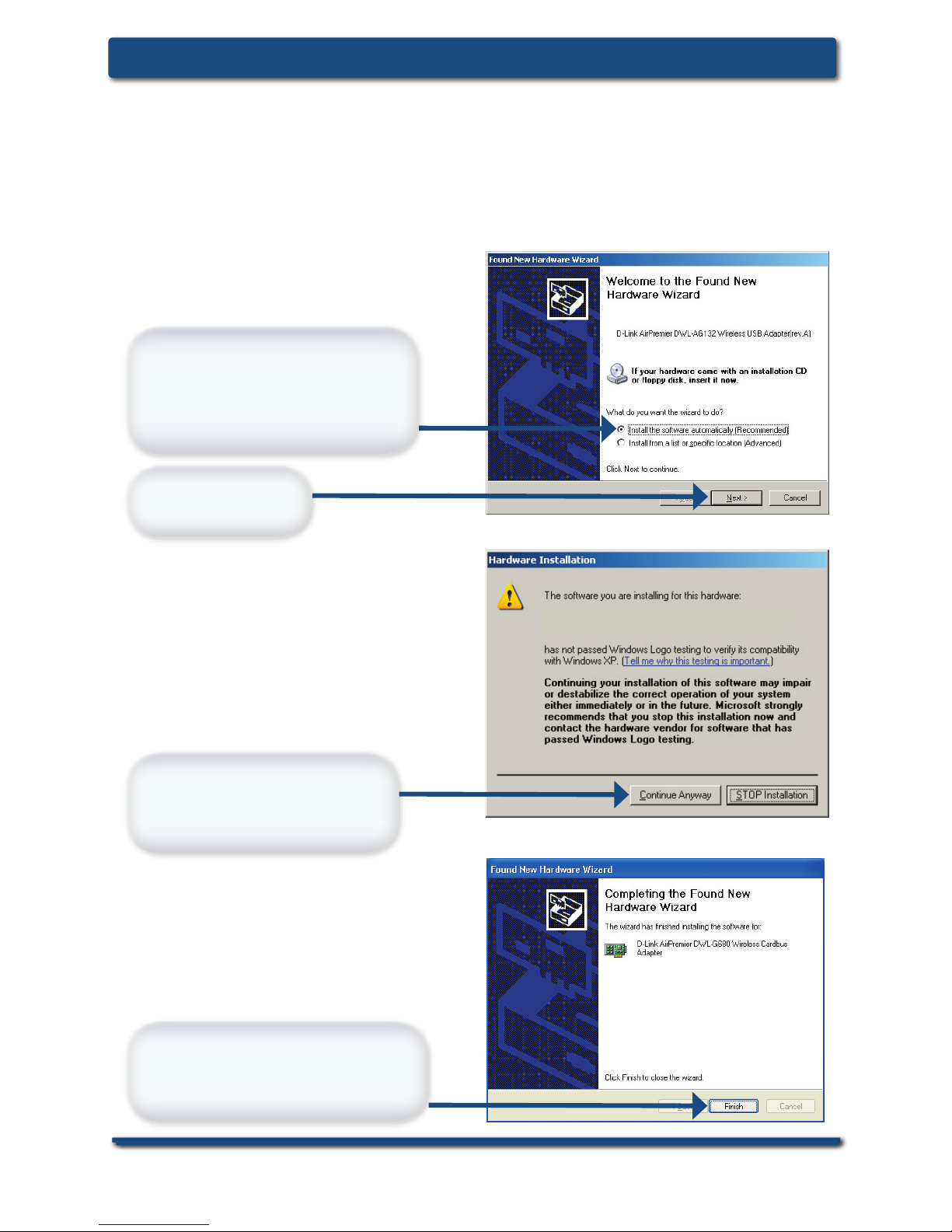

DWL-G680 Install GuideFound New Hardware Wizard

Click Next

Select Install the

software automatically

(Recommended).

Click Continue

Anyway.

Click Finish to complete

the installation.

D-Link DWL-G680

Restart your Computer

When you restart your computer this Found New Hardware Wizard

(Windows XP) screen will appear.

D-Link DWL-G680

D-Link Systems, Inc. 7

DWL-G680 Install Guide Your Installation is Complete!

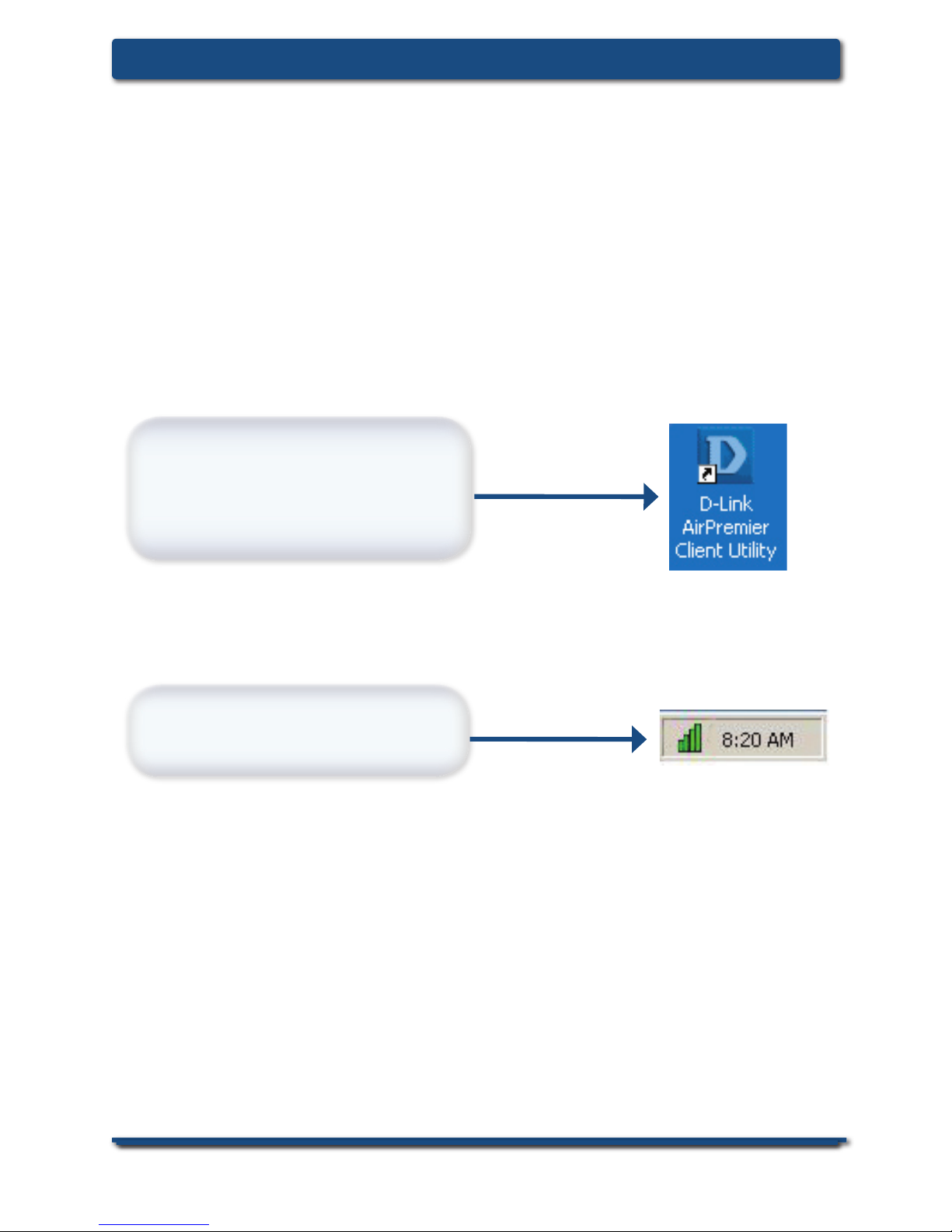

If the utility icon does not

appear, double-click the

shor tcut icon that has

appeared on your desktop.

After completing the Found New Hardware Wizard, the Conﬁ guration

Utility will automatically start and the utility icon will appear in the

bottom right hand corner of the desktop screen (system tray). If

this icon appears GREEN, then you have successfully installed the

DWL-G680, are connected to a wireless network, and are ready to

communicate!

Your Installation is Complete!

Double-click the utility icon to

use the conﬁ guration utility.

8D-Link Systems, Inc.

DWL-G680 Install GuideAppendix A

For Windows XP, if you wish to use the AirPremier utility, please do

the following:

Using the Utility in Windows XP

Click the XP networking

icon to use the Zero

Conﬁ guration Wireless

Settings.

Click Advanced.

Uncheck Use

Windows to

conﬁ gure my

wireless network

settings.

Click OK.

D-Link Systems, Inc. 9

DWL-G680 Install Guide Appendix B

To connect to a wireless network, launch the D-Link Client

Utility and click on Proﬁ le Management.

Right-click the utility icon

and select Open D-Link

AirPremier Client Utility.

Connect to Wireless Network

Proﬁ le Name: Displays the current proﬁ le being used.

Link Status: Displays the adapter’s connection to the

network.

Wireless Mode: Displays the wireless mode.

IP Address: Displays the IP address of the DWL-G680.

10 D-Link Systems, Inc.

DWL-G680 Install GuideAppendix B

Network Type: The factory setting is set to Infrastructure. Ad-Hoc

mode is used for peer-to-peer networking.

Current Channel: Displays the channel information. By default, the

channel is set to 6 and selection is automatically determined by the

DWL-G680.

Server based Authentication: Displays if using 802.1x.

Data Encryption: Displays the current encryption level.

Signal Strength: Represents the wireless signal between

the access point and the DWL-G680. The percentage coincides with

the graphical bar.

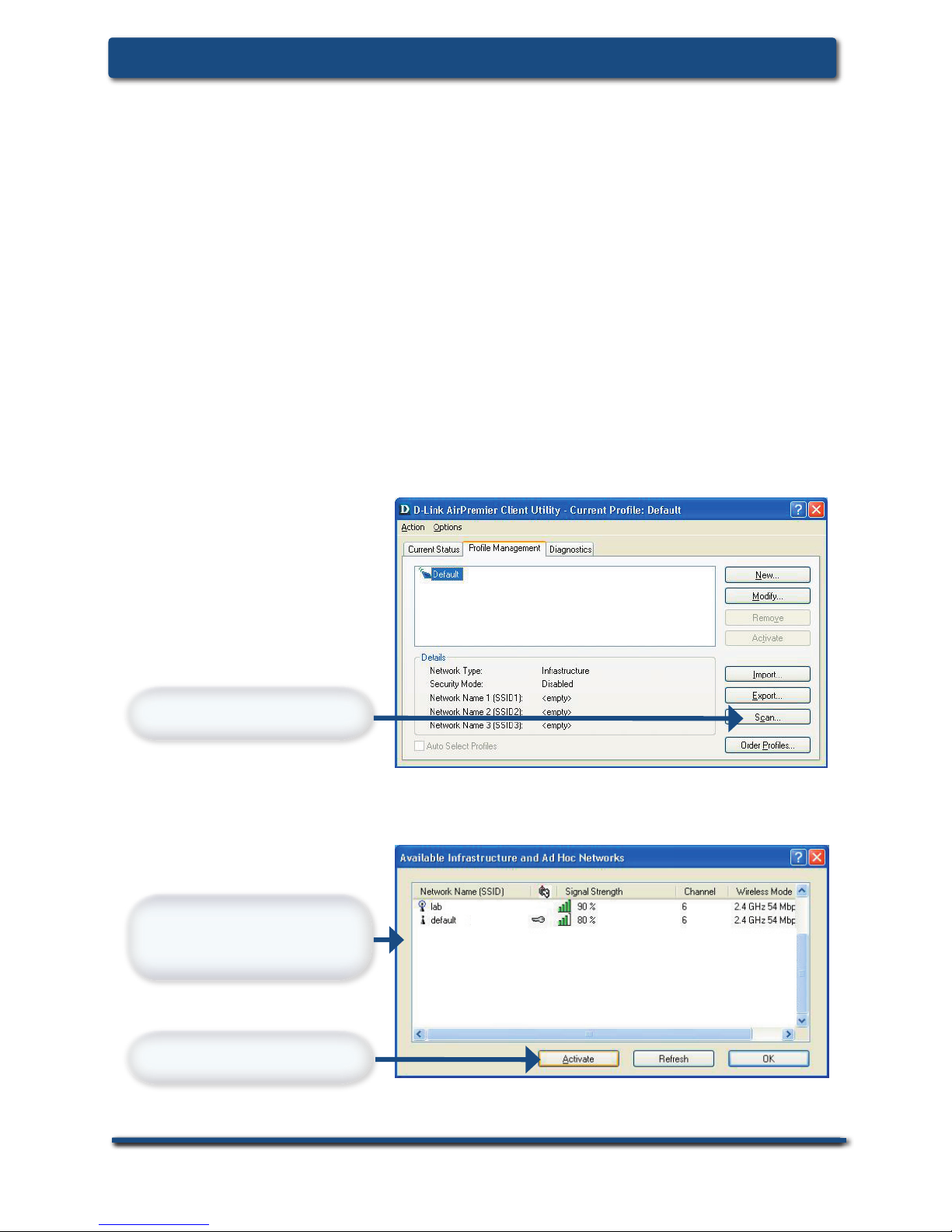

After clicking Proﬁ le Management, you will see the following

screen.

Click Scan

Click Activate

Select an available

wireless network
