D-CUT SC-620 Manuel utilisateur

OPERATION MANUAL

D-CUT Cement Siding Cutter SC-620

www.dcutproducts.com

SAFETY RULES FOR THE FLOORING CUTTER

1. READ AND UNDERSTAND THIS INSTRUCTION MANUAL BEFORE

OPERATING THE D-Cut CEMENT SIDING CUTTER.

2. If you are not thoroughly familiar with the operation of D-Cut Cement Siding

Cutter, obtain advice from a qualified instructor or call 630-916-9100 USA

3. Stay alert. Do not operate while under the influence of drugs, alcohol, or

medication.

4. Always wear safety approved eye protection with side shields(ANSI Z87.1)

5. Keep work area free of debris.

6. Keep children and unauthorized persons away from the D-Cut Cement

Siding Cutter and working area.

7. Make sure the tool is secure. Operate only on a firm substrate or solid stand.

8. Use the right tool. Do not force the D-Cut Cement Siding Cutter or use it for

a job for which it was not designed; use only on approved materials.

9. Keep the blade sharp. A dull blade will not perform properly.

10. Always keep hands away from blade while operating or carrying the cutter.

11. Do not alter or misuse this tool. The D-Cut Cement Siding Cutter is

precision built; modifications not specified in this manual may result in a

dangerous and unsafe environment.

12. Maintain the D-Cut Cement Siding Cutter with care. Keep Blade sharp and

clean. Follow instructions for changing accessories.

13. Use only recommended accessories. The use of improper accessories may be

hazardous and cause injuries.

14. Never leave the D-Cut Cement Siding Cutter unattended. Secure the handle

with the lock chain when not in use.

15.

CUTTING AND C

Assembly of the cutter (1)

Unfold the legs by press the

handles on each leg as shown.

Warning: Do not put your

fingers against the sharp edge

of the blade at any time.

Assembly of the cutter (3)

Insert the spin rod as shown from

the bottom of the supporting

plate and use provided spacer

and nut to lock the spin rod in

position.

Warning: Do not put your fingers

against the sharp edge of the

blade at any time.

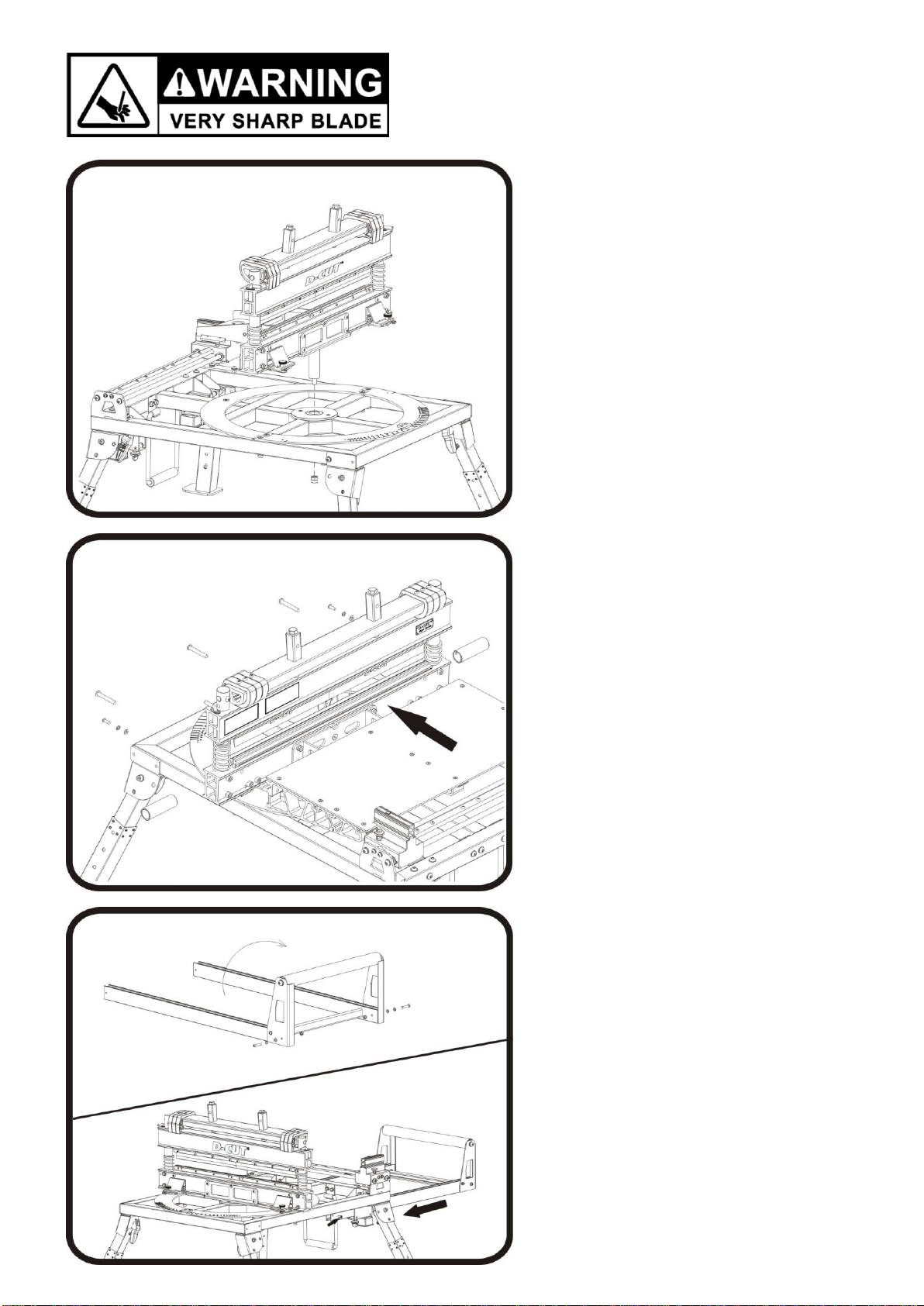

Assembly of the cutter (2)

Have the cutting head sit on

the supporting steel plate.

Note: the supporting plate

sticks out on the same side with

the D-Cut logo shown on the

blade holder. Insert 4 long

screws from other side the

cutting head and use 4 nuts to

tighten the supporting plate.

Warning: Do not put your

fingers against the sharp edge

of the blade at any time.

Assembly of the cutter (5)

Install the working table by

tightening 3 long screws. And

also use included screws to

install the handles on each side

of the cutter base.

Warning: Do not put your

fingers against the sharp edge

of the blade at any time.

Assembly of the cutter (6)

Swing the supporting roller to

form a 90 degree with the 2

guide bars and use included 2

screws to tighten the parts as

shown.

Insert the extension supporting

roller under the working surface as

shown. Please note 2 screws must

be put onto the end of the guide

bar as shown as the stoppers.

Warning: Do not put your

fingers against the sharp edge of

the blade at any time.

Assembly of the cutter (4)

Use provided spacer and nut to

tighten the cutting head and

supporting plate in position. But

do not over tighten it.

Warning: Do not put your

fingers against the sharp edge of

the blade at any time.

Assembly of the cutter (7)

Use provided spacer and nut to

tighten the cutting head and

supporting plate in position. But

do not over tighten it.

Warning: Do not put your

fingers against the sharp edge of

the blade at any time.

Assembly of the cutter (8)

Install the wheels with included

screws as shown.

Warning: Do not put your

fingers against the sharp edge of

the blade at any time.

Assembly of the cutter (9)

Install the cutting handle as

shown by pulling up the pin at

the end of the handle.

Warning: Do not put your

fingers against the sharp edge of

the blade at any time.

Angle Cutting (2)

Insert the siding between the

cutting blade and the base, pull

out the extension bracket, then lift

the supporting rollers as shown

and pull the base of the rollers out,

flush the siding with the guide bar,

hold the siding and press the

handle down to complete a cut.

Warning: Do not put your fingers

against the sharp edge of the

blade at any time.

Angle Cutting (1)

Insert the siding between the

cutting blade and the base, pull

out the extension bracket, then lift

the supporting rollers as shown

and pull the base of the rollers

out, flush the siding with the

guide bar, hold the siding and

press the handle down to

complete a cut.

Warning: Do not put your fingers

against the sharp edge of the

blade at any time.

Straight Cutting

Insert the siding between the

cutting blade and the base, pull

out the extension bracket, then

flush the siding with the guide bar

on one side of the rollers, hold the

siding and pull handle down to

complete a cut.

Note: the flat side of the blade

should face the supporting rollers.

Warning: Do not put your fingers

against the sharp edge of the

blade at any time.

Transport

Fold 4 legs as shown and

use the lock pins firmly locked

the cutting head, then carry the

handle as shown.

Changing the Blade

Use provided Allen wrench to

remove the eight screws, then

carefully move the blade out of

the small blade holder.

Note: the flat side of the blade

facing the table when installing

a new blade.

Warning: Do not put your

fingers against the sharp edge

of the blade at any time.

Changing the Nylon Bar

Use provided Allen wrench to

remove the nine screws, then

carefully move the nylon bar out

of the small blade holder.

Warning: Do not put your

fingers against the sharp edge of

the blade at any time.

PARTS LIST

Parts

Q’ty

Parts

Q’ty

Wheel Assembly

Main Handle

Cutter Base Assembly

Handle Lock Screw

Rotating Rail A

Extension Handle

Rotating Rail B

Nut M4

Rotating Liner Plate

ABS Left Handle Cover

Rotating Shaft for Cutter Head

Screw M4 ×30

Rotating Supporting Base

ABS Right Handle Cover

Cutter Base

Guide Bar Base

Nylon Pad

Guide Bar

Angle Lock Pin

Working Table Assembly

Handle A

Roller

Nylon Bar

Extension Bracket Assembly

Blade

Spring

Lock Pin

Rod

Shaft for Eccentric Bar

Handle D Base

Nylon Cam Ring

Extension Bracket Base

Handle Base

End Cap

Blade Holder

Lock Screw

Handle Lock Pin

Handle D

PARTS LIST
