General information
Z5458
AL Base plate Rigging manual
Version: 1.1 en, 10/2019, D2748.EN .01
Copyright © 2019 by d&b audiotechnik GmbH & Co. KG; all
rights reserved.
Keep this document with the product or in a safe place
so that it is available for future reference.
We recommend you to regularly check the d&b website for the
latest version of this document.
When reselling this product, hand over this document to the new
owner.
If you supply d&b products, please draw the attention of your
customers to this document. Enclose the relevant documents with
the systems. If you require additional documents for this purpose,
you can order them from d&b.
d&b audiotechnik GmbH & Co. KG
Eugen-Adolff-Straße 134, D-71522 Backnang, Germany
T +49-7191-9669-0, F +49-7191-95 00 00
[email protected], www.dbaudio.com
Contents
1 Z5458 AL Base plate........................................................... 4
1.1 Safety........................................................................................... 4
1.1.1 Intended use............................................................................ 4
1.1.2 General safety......................................................................... 4
1.1.3 Load safety information........................................................... 4
1.2 Scope of supply.......................................................................... 4
2 A-Series rigging components.......................................... 5
2.1 Locking pins................................................................................. 5
2.2 Ring cotter................................................................................... 6
2.3 Cabinet rigging mechanism....................................................... 7
2.3.1 Front link mechanism............................................................... 7
2.3.2 Splay link mechanism.............................................................. 7
2.3.3 Setting the splay angle(s)....................................................... 8
2.3.4 Splay link of the Base plate.................................................... 9
3 Rigging/derigging............................................................ 10
3.1 Preparing the setup.................................................................. 10
3.2 Order of assembly................................................................... 10
3.2.1 AL ground stack.................................................................... 10
3.2.2 Mixed ground stack.............................................................. 14
3.3 Derigging.................................................................................. 14
4 Care and maintenance.................................................... 15
4.1 Transport/storing...................................................................... 15
4.2 Visual and functional inspection.............................................. 15
5 Declarations......................................................................... 16
5.1 Manufacturer's declaration...................................................... 16
5.2 Disposal.................................................................................... 16
Contents
d&b Z5458
AL Base plate Rigging manual 1.1 en 3
Z5458 AL Base plate
1.1 Safety
1.1.1 Intended use
The Z5458 AL Base plate must only be used in conjunction with
the d&b A-Series AL60/AL90 and ALi60/ALi90 cabinets, as
described in this manual.
1.1.2 General safety
Installation and setup should only be carried out by qualified and
authorized personnel observing the valid national Rules for the
Prevention of Accidents (RPA).
Always carry out a visual and functional inspection of the items
before use. In case there is any doubt as to the proper functioning
and safety of the items, these must be withdrawn from use
immediately.
Please also refer to Þ Chapter 4 "Care and maintenance"
on page 15 .
1.1.3 Load safety information
NOTICE!
The Z5458 AL Base plate is designed to stack a total of 3 x AL60/
AL90 or ALi60/ALi90 cabinets either directly on the ground or on
top of applicable subwoofer.
1.2 Scope of supply
Please verify the shipment for completeness and proper condition
of the items.
Qty. d&b Code Description
1Z5458 d&b AL Base plate [1]
Including:
1 Hand bolt M20 x 25 [2]
1 Locking pin 5 x 35 mm [3]
1 AL Splay link [4]
All items are undetachably attached to the plate using steel wire
ropes.
1 D2748.EN .01 Z5458 Rigging manual
1 Z5458 AL Base plate
d&b Z5458
AL Base plate Rigging manual 1.1 en4
A-Series rigging components
2.1 Locking pins
WARNING!
Potential risk of personal injury and/or
damage to material!
The steel wires of the Locking pins are not intended to carry any
load. The cabinet's weight must only be carried by the Front and
Splay/Rear links in conjunction with the front and rear rigging
strands of the loudspeaker cabinets and the rigging components.
Ensure all Locking pins are fully inserted and securely locked
before lifting any load.
The A-Series loudspeaker cabinets and rigging components are
equipped with a Locking pin 5 x 35 mm.
Note: The Locking pins are undetachably attached to the
different rigging components on the cabinet using steel wires.
Throughout this manual these steel wires are not shown in the
corresponding illustrations.
Functionality (Quick lock mechanism)
Proceed as follows:
1. Press the button to release the locking mechanism ( [r]).
2. Remove the Locking pin through the respective link or socket.
3. Insert the Locking pin through the respective link or socket until
it is fixed in place.
4. Release the button to lock the pin ( [l]).
5. Recheck the Locking pin is securely locked by briefly pulling
the Locking pin towards you.
2 A-Series rigging components
d&b Z5458
AL Base plate Rigging manual 1.1 en 5
A-Series rigging components
2.2 Ring cotter
In connection with the A-Series rigging system, ring cotters are used
for the following items to prevent the respective item from
slackening and/or loosening:
▪ Fixing bolt of the base plate splay link.
▪ Fixing bolt of the cabinet's splay link.
Function of the ring cotter
By default, the ring cotters are "locked" to prevent them from
loosening.
For modification reasons such as altering the position of the
Frame's Rear link or exchanging a shackle, it may be necessary to
temporarily remove the ring cotter and reattach it afterwards.
For this purpose proceed as follows:
1. Unlock
Unlock the ring cotter by pushing up the front wire loop over
the straight wire shaft.
2. Release and remove
Push down the rear wire loop until the ring cotter snaps over
the edge of the bolt and remove the ring cotter.
3. Refit and lock
Refit the ring cotter by pushing the straight wire shaft through
the hole and pressing the front wire loop underneath the
straight wire shaft.
Ring cotter
Ring cotter locked
d&b Z5458
AL Base plate Rigging manual 1.1 en6
A-Series rigging components
2.3 Cabinet rigging mechanism
The cabinets are mechanically connected to the Flying frame and
subsequent loudspeakers using the Front links on both sides of the
cabinet front and the central Splay link on the rear rigging strand
of the cabinet.
All necessary rigging components are mounted to the cabinet and
slide out or fold out when needed.
2.3.1 Front link mechanism
To extend and/or park the Front link, proceed as follows:
1. Slide out the Front link [1] up to its stop position.
↳Once the Front link is fully extended, it will be automatically
fixed in place by the spring steel sheet [2].
2. To slide the Front link back into its park position, press the
spring steel sheet towards the front grill.
3. Slide the Front link back into its park position.
2.3.2 Splay link mechanism
The Splay link is fixed in its park position ( ) by a Locking pin.
1. Release the Locking pin and fold out the Splay link.
2. To park the Splay link, proceed in reverse order and ensure
the extension tube is fully pushed in and the head is aligned
correspondingly, as shown in the graphic opposite.
d&b Z5458
AL Base plate Rigging manual 1.1 en 7
A-Series rigging components
2.3.3 Setting the splay angle(s)
Splay angles between adjacent cabinets can be set in the range
from 20° to 40° in 5° increments resulting in a total coverage of
50° up to 70° for two cabinets, with a maximum total coverage of
150° for four cabinets.
Splay angles can also be set symmetrically or asymmetrically,
depending on the application.
For this purpose, the Splay link provides two different lengths:
Standard or Extended.
Together with the corresponding Hole grid on the rear rigging
strand, the desired splay angles can be set in the range from 20°
to 40° in 5° increments.
The Splay link is constructed as a cylindrical extender (we call it
the 'Trombone';).
The extension tube head can be turned counter clockwise by 90°
and back again.
To change between the Standard and Extended positions, proceed
as follows:
Standard length
1. Fold out the Splay link as previously described.
2. Turn the extension tube head counter clockwise by 90° to fix
the standard length of the Splay link.
Extended length
1. Fold out the Splay link as previously described.
2. Pull out the extension tube to its stop position.
3. Turn the extension tube head counter clockwise by 90° to fix
the extended length of the Splay link.
Standard | Extended | Hole grid
Splay link lengths and correlation to the hole grid on the rear rigging strand.
d&b Z5458
AL Base plate Rigging manual 1.1 en8
A-Series rigging components

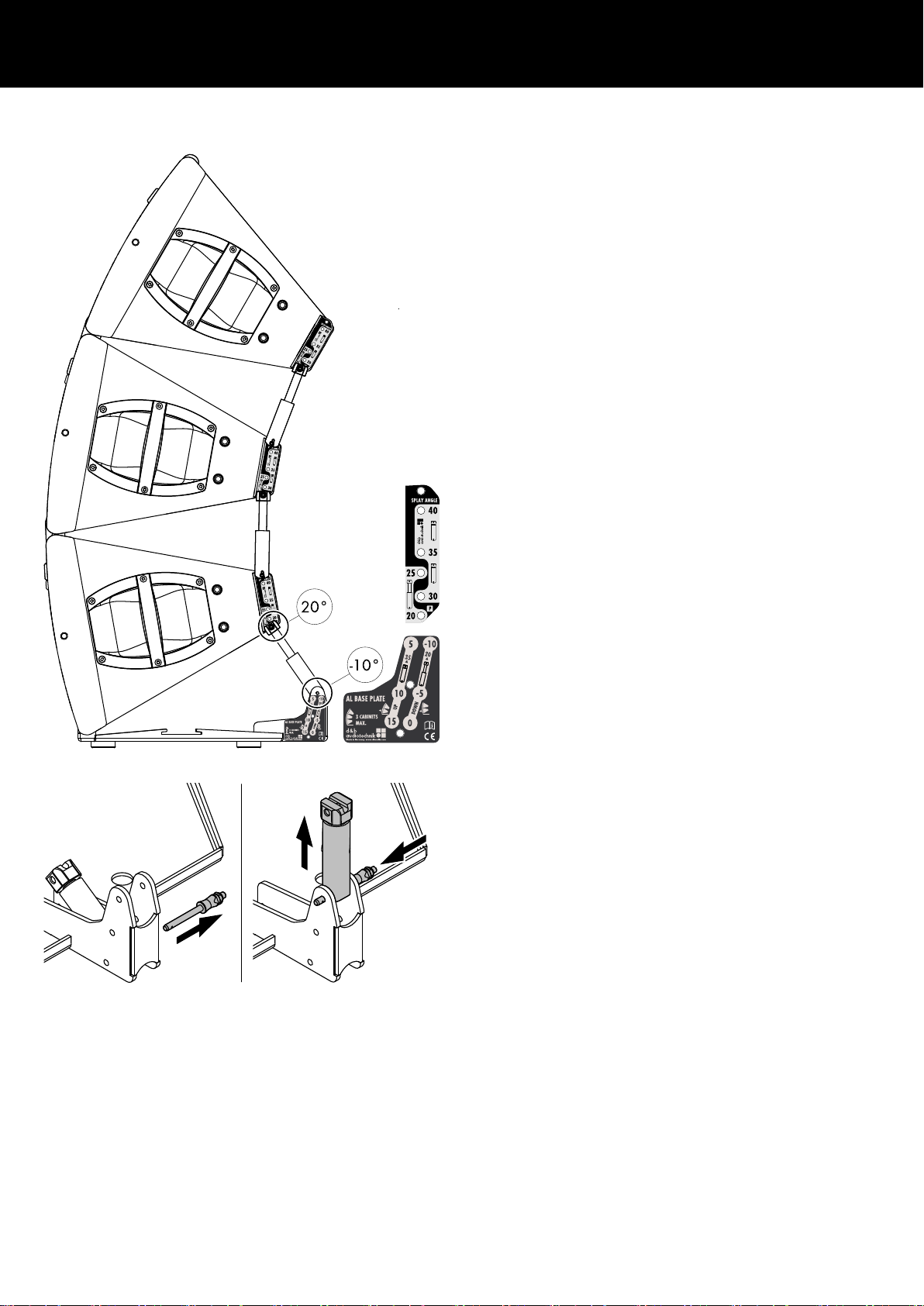

2.3.4 Splay link of the Base plate
The rear rigging slot of the Base plate is also equipped with a
Splay link. Depending on its position in the hole grid of the rigging
slot and on its set length (Standard or Extended), the Splay link
allows either an uptilt or a downtilt of the first cabinet.
Up In combination with the 35° hole on the rear rigging
strand of the first cabinet and with the Splay link set to
'Standard' length, the rigging slot of the Base plate
allows for uptilt angles of 5° (upper hole), 10° (center
hole) and 15° (bottom hole).
Down In combination with the 20° hole on the rear rigging
strand of the first cabinet and with the Splay link set to
'Extended' length, the rigging slot of the Base plate
allows for downtilt angles of –10° (upper hole), –5°
(center hole) and 00° (bottom hole), shown as an
example in the graphic opposite.
The splay angle(s) of the next (two) cabinet(s) is/are set in the
same manner as described in the previous sections.
Changing the Splay link position
To easily change the position of the Splay link of the Base plate, it
is fixed using the corresponding Locking pin.
To change the position of the Splay link, proceed as follows:
1. Release the Locking pin.
2. Move the Splay link to the desired hole position in the rigging
slot.
3. Insert the Locking pin and ensure the pin is fully inserted and
properly locked.
d&b Z5458
AL Base plate Rigging manual 1.1 en 9
Rigging/derigging
WARNING!
Potential risk of personal injury and/or
damage to material!
Always secure ground stacked setups against movement and
possible tipping over.
Observe the maximum number of cabinets permitted. This is
particularly important when setting up mixed ground stacks.
3.1 Preparing the setup
General
Check the acoustical and mechanical setup using ArrayCalc.
When on site first:
▪ Clear the working areas and ensure there is enough space to
set up the ground stack.
▪ Prepare the cables and link cables according to the number of
amplifier channels and cabinets used.
Inspections before setup
Before setting up the ground stack, carry out a visual inspection of
all system components for faults. This also includes the
loudspeakers and in particular the rigging parts of the cabinets
(Front and Splay/Rear links).
Damaged components must be withdrawn from use immediately.
Please also follow the instructions given in Þ Chapter 4 "Care and
maintenance" on page 15.
3.2 Order of assembly
3.2.1 AL ground stack
1. Prepare the Base plate
1. Fix the Splay link of the Base plate in the required hole
position.
2. Position the Base plate on the ground.
3 Rigging/derigging
d&b Z5458
AL Base plate Rigging manual 1.1 en10
Table des matières
Autres manuels d & b audiotechnik Support et étagère
d & b audiotechnik
d & b audiotechnik Z5378 Manuel utilisateur
d & b audiotechnik
d & b audiotechnik Z5408 8S Manuel utilisateur
d & b audiotechnik
d & b audiotechnik Z5043 Manuel utilisateur
d & b audiotechnik
d & b audiotechnik SL Series Guide de démarrage rapide
d & b audiotechnik
d & b audiotechnik Z5601.552 Manuel utilisateur
d & b audiotechnik
d & b audiotechnik Z5383 Manuel utilisateur
d & b audiotechnik
d & b audiotechnik Z5398 Manuel utilisateur
d & b audiotechnik
d & b audiotechnik Z5455 Guide de démarrage rapide
d & b audiotechnik
d & b audiotechnik SL Series Guide de démarrage rapide
d & b audiotechnik
d & b audiotechnik Z5786 Guide de démarrage rapide
d & b audiotechnik
d & b audiotechnik Z5409 Manuel utilisateur
d & b audiotechnik
d & b audiotechnik Z5410/12 Manuel utilisateur
d & b audiotechnik
d & b audiotechnik Z Series Manuel utilisateur
d & b audiotechnik
d & b audiotechnik Z5394 Guide de démarrage rapide
d & b audiotechnik
d & b audiotechnik Z5402 Manuel utilisateur
d & b audiotechnik
d & b audiotechnik Q Series Guide de démarrage rapide
d & b audiotechnik
d & b audiotechnik Z Series Manuel utilisateur
d & b audiotechnik
d & b audiotechnik Z Series Manuel utilisateur
d & b audiotechnik
d & b audiotechnik Z5399 Manuel utilisateur
d & b audiotechnik
d & b audiotechnik Z5557 Manuel utilisateur
Manuels Support et étagère populaires d'autres marques
Salamander
Salamander Acadia AC/W/L400/WH Manuel utilisateur
Fohhn
Fohhn VAT-09 Guide de l'utilisateur
ricoo
ricoo FS0522 Manuel utilisateur
AMSOIL
AMSOIL BMK-22 Guide rapide
Kargo Master
Kargo Master 48220 Manuel utilisateur
Milestone AV Technologies
Milestone AV Technologies SIMPLICITY SLF2 Manuel utilisateur
