CAC-TXA&RXA
Operation Manual
CAC-TXA&RXA
Active Connect
Multimedia
Transmitter and
Receiver Box
Revision History
Version No Date Summary of Change
V1 20080929 Preliminary Release
Precaution
Failure to follow the precautions described below may cause damage
to Active Connect Multimedia Transmitter and Receiver Box and void the
warranty.
DO NOT open the case. Doing so will void the warranty. If you find
problem with it, please return back to your retailer or seller who will
assist you or provide you with solution.
DO NOT use third-Party AC adapter or power cord. Doing so may
damage Active Connect Multimedia Transmitter and Receiver Box.
DO NOT bump, jar or drop contents of the products as it may
damage it and result in warranty void.
DO NOT set any liquids or beverages on the drive as they may
damage Active Connect Multimedia Transmitter and Receiver Box.
Active Connect Multimedia Transmitter and Receiver Box’s 5
BNC (Bayonet Nut Connector) cables need to be connected rightly
according to the instruction. Wrongly connection will cause burn
down.
Table of Contents
1
1
1
1
2
3
4
1. Introduction…………………………………………................................
2. Applications.............................…..………………………………………
3. PackageContents.............……………………………………………….
4. SystemRequirements..................………………………………………..
5. Features.............................………………………………………………..
6. OperationControlsandFunctions.....…………………….....………..
7. Specications......................................................................................
1. Introduction
Thank you for purchasing the Active Connect Multimedia Transmitter and
Receiver Box (ACMTRB). This product is ideally suited for long distance
transmission of your PS3/DVD or Blu Ray devices to an HDMI display. It
is operational within 100M at 1080p/8bit and supports HDMI V1.3. The
ACMTRB’s digital transmit format allows for no delay or loss of image quality.
ACMTRB includes no firmware so it is easy to install and operate. Please
follow this manual to begin enjoying the benefit of your ACMTRB. We suggest
keeping this manual in a safe place for future reference.
2. Applications
Designed to support long distance HDMI applications.
Enable high bandwidth communication over lossless media.
Also designed to equalize and restore signals receiver over 75Ωcoaxial
cable.
Simply connect the source to the Transmitter unit and over RGBHV
coaxial cable to the Receiver unit, then HDMI output to the display.
3. Package Contents
HDMI 5 COAX TX x 1
HDMI 5 COAX RX x 1
Power adaptor x 2
User Manual
4. System Requirements
HDMI input device, R/G/B*, Clock*, Power* cables, HDMI output device.
*Recommend cables:
Channel Master®
1
RG6 Type 75Ω coaxial cable (for cable TV) x 5
1080P/8bit →100M
1080P/12Bit→65M ± 10M
Or
Belden™ 7789A 23 solid AWG and solid 25AWG RGBHV Cable with 5 BNC.
AWG RESOLUTION DISTANCE
23 1080P-8bit 90±10 m
1080P-12bit 65±10 m
25 1080P-8bit 65±5 m
1080P-12bit 40±5 m
Or
Total Technologies, Ltd.© E193793 28 AWG RGBHV Cable with 5 BNC.
AWG RESOLUTION DISTANCE
28 1080P-8bit 45±5 m
1080P-12bit 15±5 m
5. Features
Compatible with HDMI 1.3 and DVI 1.1.
Improved color gamut (i.e. deep color xvYCC).
HD audio (8 channel audio support).
High Resolutions from PC (640~480) to WUXGA (1920 x 1200).
HDTV resolutions from 480I~1080P/12 bit.
Built in Consumer electronics control (CEC).
Supports Deep Color.
Gigabit digital transport needs:
HDMI 1.3(Category)/DVI(10.2Gb/s).
The RG6 type 75 Ω coaxial cables can operate up to 100m at 10.8Gb/s.
The receiver can operate under either AC power or through the connected
device.
Note: running off the connected device may result in a loss of performance.
Supports seamless for VESA DDC, CEC, Hot Plug Detect (HPD) and
xvYCC.
Easy to install and operate.
2
① Connect one of the power adaptors to the Transmitter Box and plug the
power cable into an AC outlet. You may also plug the other adaptor into
the Receiver Box.
② Switch the power selection on the Receiver Box to INT for power without
connecting the adaptor or EXT and connect the other adaptor to an AC
outlet (It is suggested to use an external power supply when operating over
a long distance).
③ Connect your HDMI input device (Blue-Ray DVD or PS3) to the Transmitter
Box with an HDMI cable (It is suggested to use an HDMI cable under 1M for
improved performance).
6. Operation Controls and Functions
Please follow the step-by-step instruction below to install your Active Connect
Multimedia Transmitter and Receiver Box.
1
LINK
HDMI INPUT
7 3
LINK
HDMI OUTPUT
POWER
EXT INT
17 6
2
RGBCLK PWR
4 5
④ Connect BNC-F connectors to both sides of the five coaxial cables.
⑤ Insert 75Ω RGB, Clock, and Power cables into the Transmitter and
Receiver Boxes. Please do this correctly as stated in this manual (It is
advised to not use cables measuring more than 100M’s for 1080P/8bit’s
resolution and cables 75M’s long for 1080P/12bit’s resolution)
⑥Connect the HDMI output device (LCD TV or HDMI monitor) to the
Receiver Box with an HDMI cable (It is recommended to use HDMI cables
under 1M for a better viewing experience).
⑦ The Link’s green LED will turn on when all the connections are established
and power is on.
3

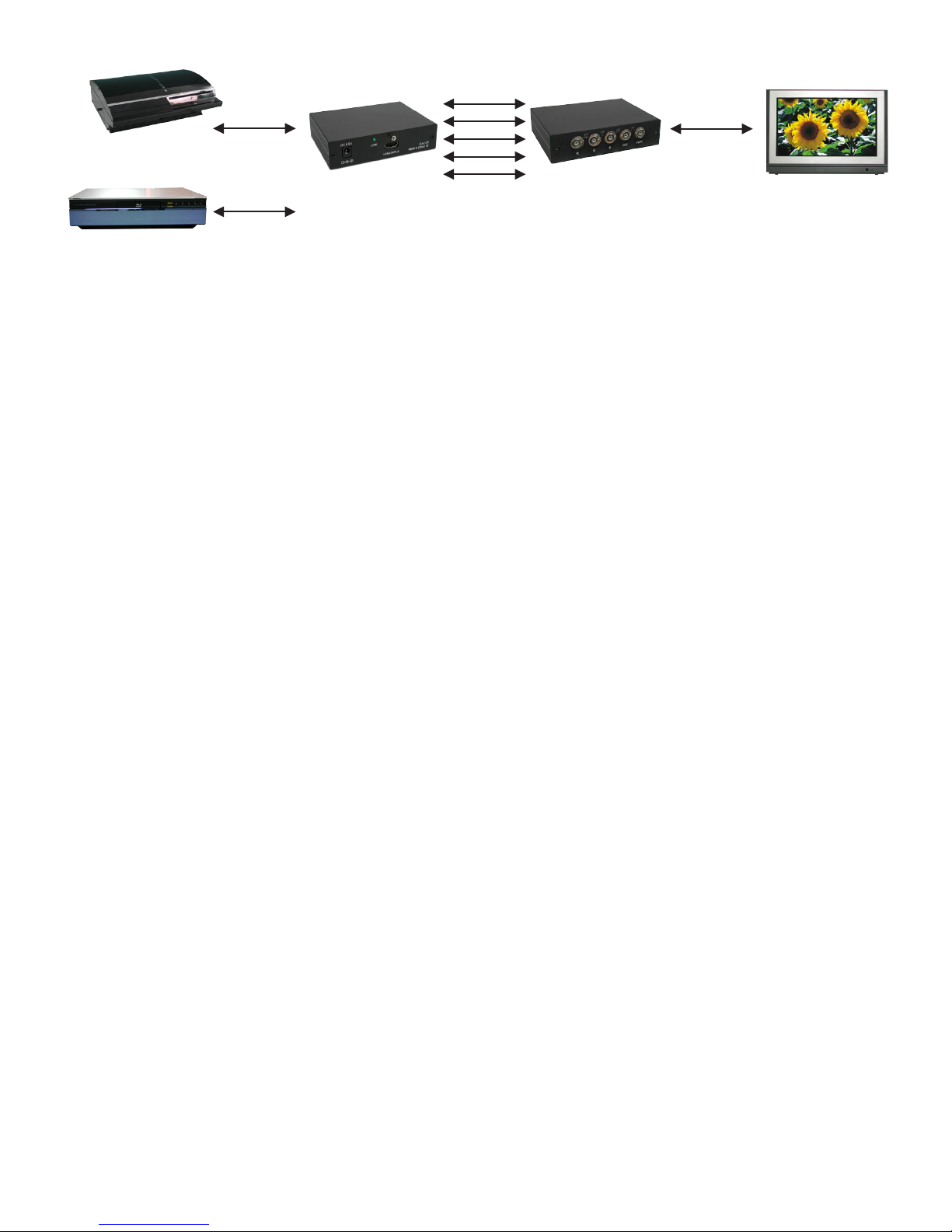

Blu-ray
PS3 HDMI-Cable
HDMI-Cable
OR
CoaxialX5
HDMI-Cable
Input Port 1 HDMI to 5 BNC connectors
Output Port 5 BNC connectors to 1 HDMI
HDMI Specification V 1.3
HDMI Resolution 480i~1080p 50/60, 1080p 24, VGA~WUXGA
CEC Function Bypass
HDMI Audio PCM2, PCM 5.1, PCM 7.1, Dolby 5.1, DD+, D-TruHD,
DTS-HD
Color Space RGB 24~36, Y444 24~36, Y422 16~24
Deep Color 1080P/12bit
HDMI Cable In 1080p/8bit up to 3M, 1080p/12bit up to 3M
HDMI Cable Out 1080p/8Bit up to 6M, 1080p/12bit up to 3M
Coaxial Cable 1080p/8bit up to 100M, 1080p/12bit up to 65M ± 10M
Power Supply 12V/1ADC (US/EU standards, CE/FCC/UL certified)
Dimensions (mm) 125mm x 110mm x 30mm/pc
Weight(g) 270g/pc
Chassis Material Aluminum
Silkscreen Color Black
Operating Temperature 0°C ~ 40°C
Power Consumption TX: 1.9W; RX:2.2W
7. Specications
4
20081013 MPM-CACRX&TX
Home page: http://www.cypress.com.tw
CYPRESSTECHNOLOGYCO.,LTD.
