1. Introduction
This Scaler Box is design to display your DVI images on the HDTV with better
viewing image. It can upscale DVI input sources to DVI output for wide-range
of HD resolutions; the resolution support XGA/UXGA/720p/1080p/
1366 x 768/1440 x 900/1400 x 1050. This unit allows user to with a variety of
output resolutions and adjust for the best picture quality. Move over, with
built-in hot-key OSD function and display it helps user to view and select the
desire resolution instantly.
2. Applications
Convert HD timing into PC timing
Convert PC timing into HD timing
3. Package Contents
DVI to DVI scaler box
5V DC power adaptor
Operation Manual
4. System Requirements
Input source equipment and output HD display with DVI connection cables.
5. Features
Output supports HDMI 1.2, HDCP 1.1 and DVI 1.0 compliant
HDCP compliant
Input supports HDMI v1.3 8/10/12-bit deep color mode
Support HD resolution input: VGA~WSXGA, WUXGA (Reduce Blanking)/
1366x768/1440x900/1400x1050/480p@60, 720p@60, 1080p@60
Fast switch hot key from 720p to 1080p/1280x800/1366x768/1920x1200(RB)
Auto –Detection and Hot plug
Interlaced to progressive conversion with various picture display supplement
1
6. Specications
TMDS Clock Frequency 225MHz
Input port 1 x DVI
Output port 1 x DVI
Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified)
Dimensions (mm) 114 (W) x 65 (D) x 26 (H)
Weight(g) 88
Chassis Material Plastic
Silkscreen Color Black
Power Consumption 2.7W
Operating Temperature 0°C~40°C / 32°F~104°F
Storage Temperature -20°C~60°C / -4°F~140°F
Relative Humidity 20~90% RH (non-condensing)
2
7. Hardware Description
The following sections describe the hardware components of the unit.

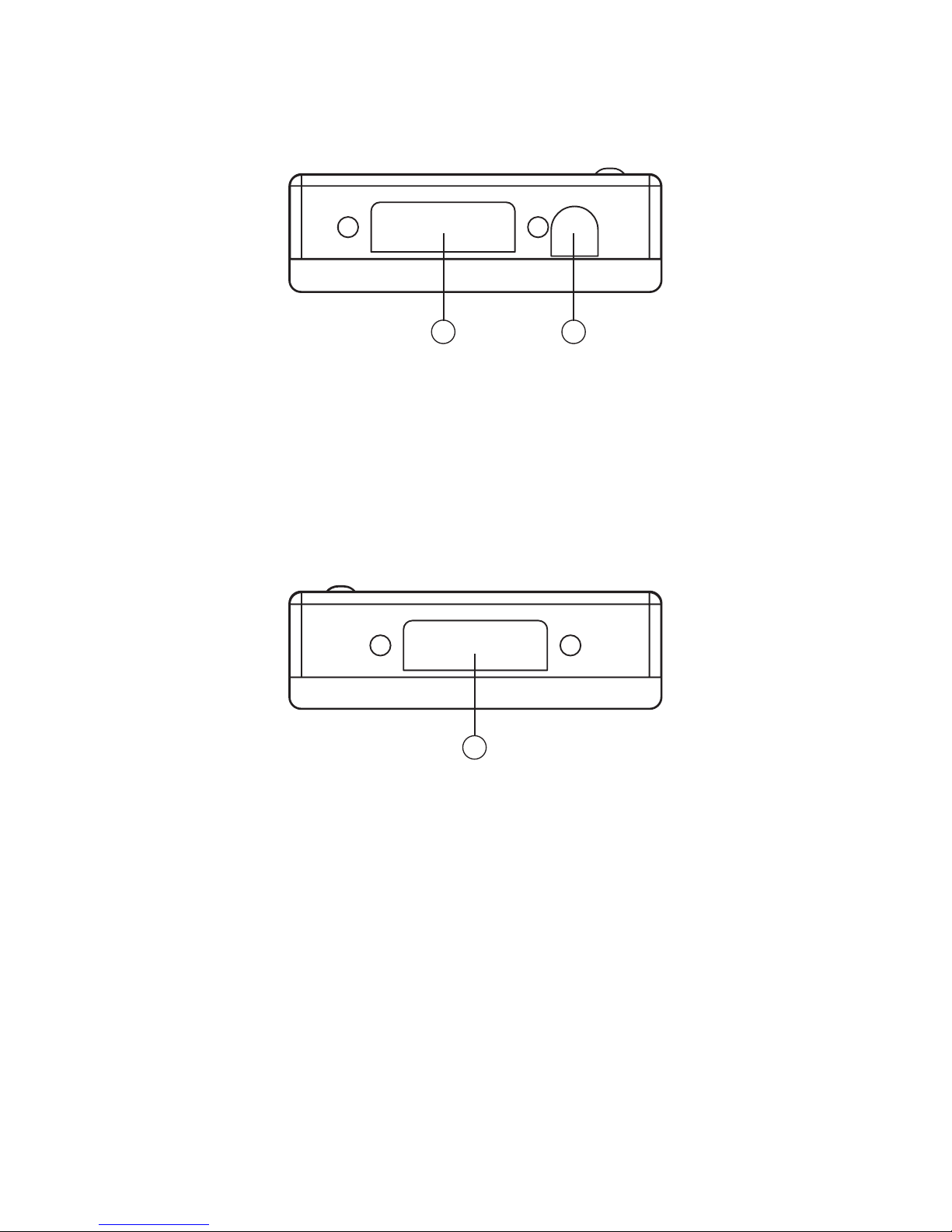

7.1 Front Panel
1 2
DVI INPUT
DC
5V
①DVI INPUT: This slot is where you plug your input source equipment with
DVI cable for source signal sending.
②DC 5V: This slot is where you plug the 5V DC power supply into the unit
and connect the adaptor to an AC wall outlet.
7.2 Rear panel
1
DVI OUTPUT
①DVI OUTPUT: This slot is where you connect to HDTV display with DVI cable
for source signal display.
3
7.3 Top Panel
1 2
①Timing button: Press this button once to show both input and output
display resolution and while OSD is still on press it again to select output
resolution from 720p to 1080p/1280x800/1366x768/1920x1200(RB).
②Power LED: This LED will illuminate when power is connected.
4
8. Connection and Installation
HDTV / LCD Monitor
5
Acronyms A
Acronym Complete Term
HDCP High-bandwidth Digital content protection
HDMI High-Definition Multimedia Interface
VGA Video Graphics Array
WUXGA Wide Ultra Extended Graphics Array
6
