MONROE TV MEDIA STAND
ASSEMBLY INSTRUCTIONS
MODEL # AXCMON-08
/212
DO NOT RETURN
FOR REPLACEMENT PARTS OR OTHER INQUIRIES
PLEASE CONTACT US AT:
1-800-667-8992
PLEASE ENSURE TO HAVE THE COLLECTION
NAME AND DESCRIPTION FROM THE
PACKAGING OR INSTRUCTION BOOKLET
/213
IMPORTANT : Please read this manual carefully before beginning
assembly of this product. Keep this manual for future reference.
WARNING Do not place toys, food, etc. on the top shelves or upper drawers.
Serious injury or death may occur when children climb on furniture. A remote
control or items placed on the furniture may encourage a child to climb on the
furniture and as a result make it top-heavy and cause it to tip over on the child.
WARNING Do not place a TV that exceeds the weight limits or size guidelines
shown in the instructions specified for the furniture. Do not overload shelves
or place heavy items on top shelves or drawers.
Improper use of furniture to support TVs may result in serious injury or death.
WARNING Do not relocate audio and/or video equipment to furniture not
specifically designed to support audio and/or video equipment. Do not move
furniture without shelves or drawers unloaded. Furniture can collapse or tip
over onto a child and cause physical injury or death.
This TV Stand does not come with legible instructions pertaining to the risk of
fire and electric shock that is associated with the use of electrical components
such as operation, user-maintenance, loading, storage and as applicable
electrical issues including grounding or double-insulation.
Any use of this item other than that recommended by the manufacturer in this
manual may cause fire, burns, electric shock and/or serious injuries or death.
WARNING
The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to
68.58 cm). For use with televisions weighing 220 lbs or less.
Using larger or heavier televisions may cause instability or tip over which can lead to
serious injury or even death.
The recommended maximum width of the television intended for use is 66 inch
(167.64 cm).
MAXIMUMLOAD220LBS MAXIMUMLOAD25LBS
/214
IMPORTANT : Please read this manual carefully before beginning
assembly of this product. Keep this manual for future reference.
CAUTION: Injuries and damage can occur from furniture tip over if product is
not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint
provided with the product. Consult our assembly instructions for help.
If the Furniture Anti-Tipping Restraint kit is not in the box, please contact our
customer service department in order to obtain another kit before using the
furniture.
Identify all the parts and hardware. Do not discard of the packaging until you
have checked that you have all of the parts and hardware required.
Hardware package may have spare parts.
WARNING: This item contains small parts which can be swallowed by
children and pets. Keep children and pets away during assembly. To avoid
danger of suffocation, always keep plastic bags away from children and pets.
We recommend that you assemble this unit on a carpeted floor to avoid
scratches. If using power tools, set the tool to low torque to avoid damage.
May require 2 people for ease of assembly.
SAFETY INFORMATION
/215
Wood Furniture Care
Perhaps the greatest environmental damage to wood furniture comes from wide swings in
relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity
rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and
contracts unequally along different grain directions. As humidity changes, the
components of wooden objects are continually pushing and pulling against each other. This
pressure often results in parts of furniture no longer fitting together closely or becoming
distorted or breaking from their own internal stresses.
The response to relative humidity changes begins with determining the annual average RH
for your particular space. Then try to keep the RH in the space where your furniture is as
close to that average as possible, generally within about 10% up or down. De-humidify in
the summer and humidify in the winter.
Be aware that raising the temperature lowers the humidity and vice versa. Thus, modern
heating systems, which can drive down interior RH in the winter, almost invariably cause
problems for furniture. To counteract their effect, you can either modify the RH by keeping
furniture containing spaces cooler in the winter or most importantly, have a good working
humidifier for your home. A humidistat automatically works to balance the humidity in
your home so it is constant. Dry indoor air can suck enough moisture from its surroundings
to do permanent damage to wood, causing it to crack or split.
Remember, that not all woods are created equal. Two factors that help determine how
rapidly a wood will lose moisture are pore size and surface hardness. A piece made from a
dense and hard wood will dry less rapidly than pieces made from softer woods.
Furniture that is sealed and lacquered will lose moisture more slowly than an unfinished
piece while pieces with veneer finishes are not only stronger, but lose moisture more
slowly than other finishes.
To help protect your wood furniture, take these steps:
·Use a humidifier, preferably one with an automatic control system that can sense
the humidity level and adjust itself accordingly. Don't over-humidify; that can
damage wood by causing it to expand and contract.
·Keep furniture out of direct sunlight, which can cause it to dry out, crack and warp.
·If you can avoid it, don't put furniture near heating vents. If you must, keep the piece
3 to 4 inches away from the wall, giving the heat and air space to circulate.
·Dust with soft dry cloth.
·Do not use liquid or aerosol products.
·To avoid marking, do not place rubber ON SURFACE (FOOT PADS, ETC)
·For soil build-up, wipe with damp cloth & dry.
·Do not use abrasive cleaner.
IMPORTANT : Keep this manual for future reference.
CARE and MAINTENANCE
PART DESCRIPTION
PRE-ASSEMBLY INFORMATION MODEL # AXCMON-08
/216
.A
Front /
Avant
.B.C
.D.E.F
.G.H.I
.J.K.L
LEFT SIDE
QTY 1 RIGHT SIDE
QTY 1 TOP
QTY 1
MIDDLE SHELF
QTY 1 BOTTOM SHELF
QTY 1
MIDDLE BACK PANEL
QTY 1
TOP DIVIDER
QTY 2 BOTTOM DIVIDER
QTY 1 BACK PANEL
QTY 1
LEG
QTY 4 LEG
QTY 1
DRAWER
QTY 1
Front /
Avant
Front /
Avant
Front /
Avant
NEED HELP? For help with assembly or if you are missing a part,
Please call customer service at 1-800-667-8992.
PRE-ASSEMBLY INFORMATION MODEL # AXCMON-08
/217
HARDWARE DESCRIPTION
.1.2.3
.4.5.6
.7
ALLEN KEY SCREW
M6 X 30mm
QTY 30 ALLEN KEY
QTY 1
PHILLIPS SCREW ROUND HEAD
M4 X 15mm
QTY 6
WOOD DOWEL
Ø8X30mm
QTY 18
PHILLIPS SCREW
M4 X 30mm
QTY 20
CAM LOCK PIN
CAM LOCK
QTY 4 SETS
Required -
Flathead screwdriver
Phillips screwdriver
Rubber mallet
Not Included
FURNITURE TIP OVER
RESTRAINT
QTY 1 SET
a. M4 X 25mm - QTY 2
( 1 is extra )
b. M4 X 15mm - QTY 1
c. M4 X 25mm - QTY 1
NEED HELP? For help with assembly or if you are missing a part,
Please call customer service at 1-800-667-8992.
COMPONENTS-KEY DIAGRAM MODEL # AXCMON-08
/218
A
B
C
D
E
F
G
G
HI
K
L
K
Front /
Avant
Front /
Avant
Front /
Avant
Front /
Avant
J
STEP-1
ASSEMBLY MODEL # AXCMON-08
/219
2
STEP-2
1. Insert two Dowels 2 into drilled holes on Divider H .
2. Use rubber mallet to tap Dowels 2 into bottom of holes securely. 1/2 length of
Dowels should be exposed.
1. Align Wood Dowels on Bottom Divider H with drilled holes on Bottom Shelf E .
2. Attach Divider H to Bottom Shelf E using three Allen Key Screws 1 .
3. Use Allen Key 3 to tighten screws. Do not over-tighten.
2
HH
E
E
H
H
H
E
13
1
Front /
Avant
Front /
Avant
Front /
Avant
Front /
Avant
Front /
Avant
Front /
Avant
ASSEMBLY MODEL # AXCMON-08
/2110

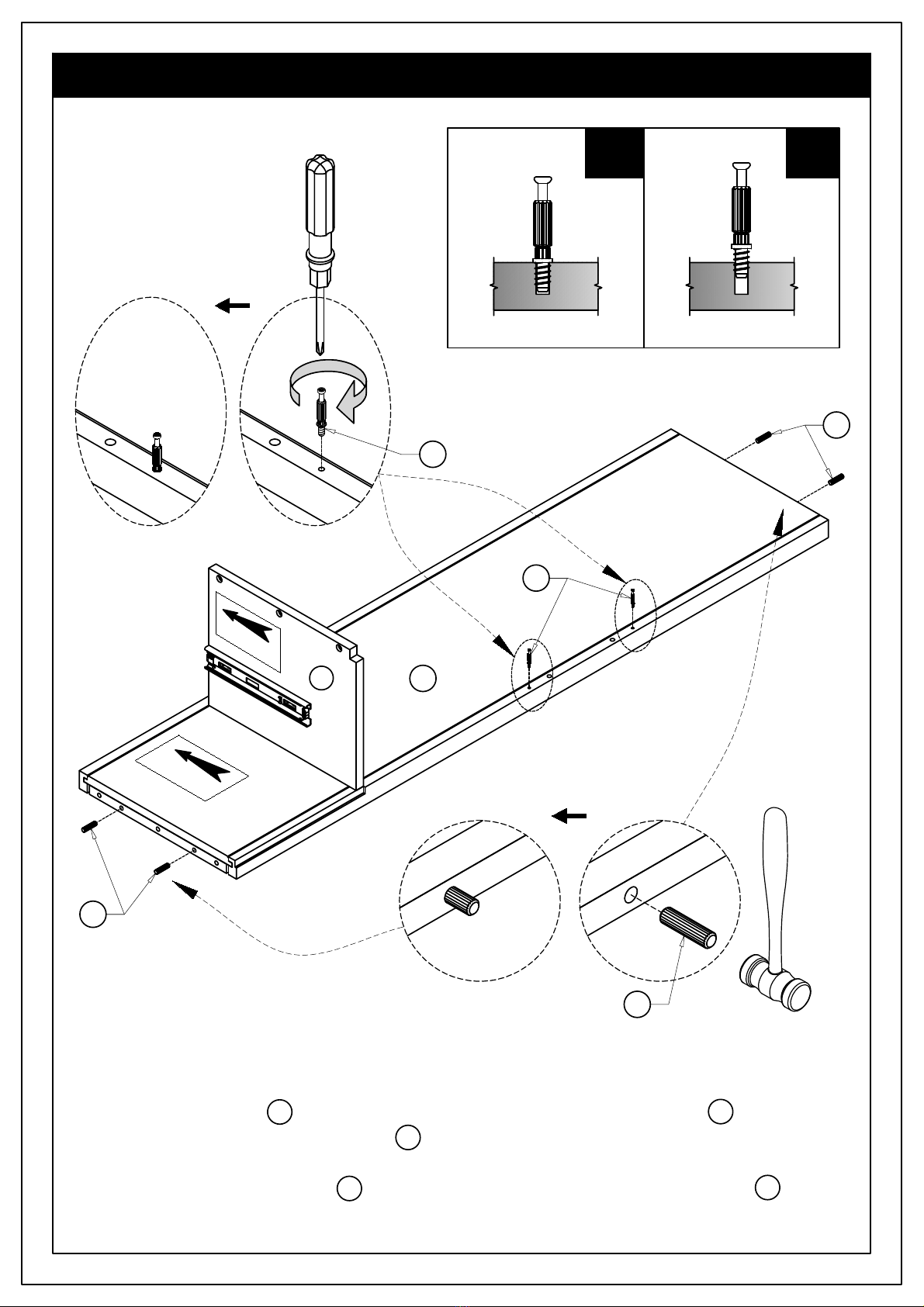

STEP-3
P
X
1. Insert two Dowels 2 into drilled holes on each side of Bottom Shelf E .
2. Use rubber mallet to tap Dowels 2 into bottom of holes securely. 1/2 length of
Dowels should be exposed.
3. Attach two Cam Lock Pins 6 to pre-drilled holes on back of Bottom Shelf E .
4. Use Phillips screwdriver secure Cam Lock Pins.
6
2
2
6
2
Front /
Avant
Front /
Avant
E
H
