CYP CMPRO-U4H4CVPL Manuel utilisateur

CMPRO-U4H4CVPL

4K2K 4×4 HDMI Matrix over CAT5e/6/7

Operation Manual

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

Version 1.0 April 2014

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE

RDV1 15/05/14 Preliminary Release

RDV2 18/09/14 Add RS-232 Command

CONTENTS

1. Introduction............................................ 1

2. Applications........................................... 1

3. Package Contents ................................ 1

4. System Requirements............................ 2

5. Features.................................................. 2

6. Operation Controls and Functions....... 3

6.1 Front Panel ........................................3

6.2 Rear Panel.........................................4

6.3 Remote Control................................5

6.4 IR Cable Pin Assignment..................5

6.5 RS-232 Pin Assignment .....................6

6.6 RS-232 and Telnet Commands .......7

6.7 Telnet Control ...................................9

6.8 Web GUI Control ............................11

7. Connection Diagram .......................... 12

8. Specications ...................................... 13

8.1 CAT5e/6/7 Cable Specication ...13

8.2 CAT5e/6/7 Cable Specication ...14

9. Acronyms ............................................. 15

1. INTRODUCTION

The 4K2K 4 by 4 HDMI Matrix over CAT5e/6/7 supports the transmission

of video (resolutions up to 4K2K Full HD), multi-channel digital audio

and control via IR, RS-232, Telnet or Web GUI from four high denition

sources to four outputs over a single CAT5e/6/7 cable (up to 60m) for

each output.

It supports high resolution digital audio formats such as LPCM 7.1CH,

Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as

3D content that can be displayed when connecting a 3D TV and 3D

source.

2. APPLICATIONS

• HDMI Matrix System

• Video/TV wall display and control

• Security surveillance and control

• Commercial advertising, display and control

• University lecture hall, display and control

• Retail sales and demonstration

3. PACKAGE CONTENTS

• 4K2K 4×4 HDMI Matrix over CAT5e/6/7

• 1×IR Extender

• 1×IR Blaster

• 1×24 V/3.75A DC Power Adaptor

• 1×Power Cord

• 1×IR Remote Control with battery

• 1x Right and Left Ear Rack Sets

• Operation Manual

4. SYSTEM REQUIREMENTS

• HDMI equipped source devices, connect with HDMI cables or DVI

equipped source, connect with DVI to HDMI cables

• HDMI equipped displays (TVs or monitors) or HDMI equipped AV

receivers, connect with HDMI cables

• Industry standard CAT5e/6/7 cables

• HDBaseT™ Receivers

5. FEATURES

• HDMI, HDCP1.1 and DVI compliant

• Supports HDMI 3D features

• Supports resolutions VGA~WUXGA and 4K2K @50/60(YUV_420)

dependent upon the output display’s EDID settings

• Supports distances up to 60 meters through CAT5e/6/7 cables

• Supports 3D signal display dependent upon the output display EDID

settings

• Supports HDMI input/output up to 10 meters at 8-bit/12-bit resolution

or 5 meters at 4K2K resolution

• Supports bi-directional IR from input and output locations or 5

meters at 4K2K resolution

• Supports RS-232, remote control, on-panel control and IP Control

(Telnet & Web GUI)

• 1U size design

• Supports external and internal EDID settings

• Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD

Master Audio transmission

Note:

Do not connect the LAN/CONTROL port to CAT outputs of this

device, doing so may tigger the device to shoot down.

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

4X4 HDMI MATRIX

OVER CAT5e/6/7

POWER LOCK MENU

A/1B/2 C/3D/4

OUT

61 2 3 4 5

1LCM: Displays the setting information of each input and output

setting.

2IR: IR Receiver window (accepts the remote control signal of this

device only).

3POWER: Press this button to power the device on/off. The LED will

illuminate green when the power is on, red when it is in 'Standby'

mode.

4LOCK: Press this button to lock all the buttons on the panel; press

again to unlock. The LED will illuminate when locked.

5MENU: Press this button to access the LCM menu system, from

here EDID settings can be managed and IP system settings are

displayed.

6A~D/1~4 and OUT/IN: Press the OUT or IN button to select the

output or input mode and then press the required number button

to make the selection accordingly.

For example, if outputs A~B need to be set to input 1 and outputs

C~D need to be set to input 2, then the following sequence of

button presses need to be performed:

Press: OUTABIN1MENU,

and then press: OUTCDIN2MENU.

Note: If the MENU button is not pressed the selection will not be

changed.

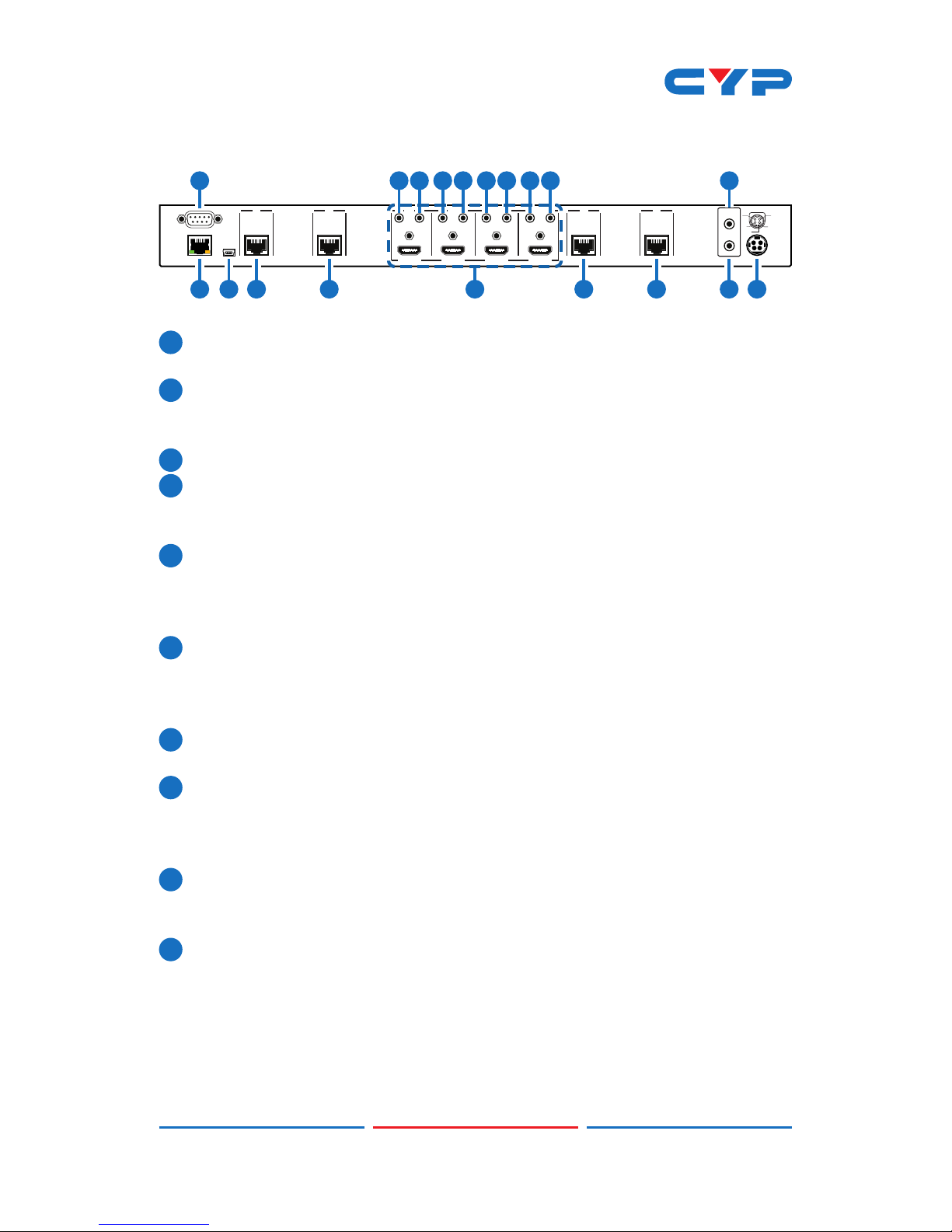

6.2 Rear Panel

IR OUT

IR IN

ALL

RS232

CONTROL

SERVICE

IR IN IR OUT

HDMI IN 1HDMI IN 2 HDMI IN 3 HDMI IN 4 DC 24V

V+

GND

GND GND

V+

CAT5e/6/7 OUT CAT5e/6/7 OUT CAT5e/6/7 OUT

CBA D

CAT5e/6/7 OUT

2 3 4 4 4 4 9 107

1 85 6 5 6 5 6 5 6

1RS-232: Connect to a PC or control system with D-Sub 9-pin cable

for the transmission of RS-232 commands.

2IP & CONTROL: This port is the link for Telnet or Web GUI controls,

connect to an active Ethernet link with an RJ45 terminated cable (for

further details, please refer to section 6.8 & 6.9).

3SERVICE: Manufacturer use only.

4CAT5e/6/7 OUT A~D: Connect from these CAT outputs to the CAT

input port of the receiver units with a single CAT5e/6/7 cable for HDMI

Audio/Video and IR/RS-232 control signal transmission.

5IR IN 1~4: Connect to the IR extenders for IR signal reception. Ensure

that the remote being used is within the direct line-of-sight of the IR

extender for it will send out the IR signal to the selected receiver's

IR OUT.

6IR OUT 1~4: Connect to the IR blasters for IR signal transmission.

Place the IR blaster in direct line-of-sight of the equipment to be

controlled for it will blaster out the IR signal received from the

receiver side choosen by input selection.

7HDMI IN 1~4: Connect to the HDMI input source devices such as a

DVD player or a Set-top Box with HDMI cable or DVI to HDMI cable.

8ALL IR OUT: Connect to the IR blaster for IR signal transmission to

the source side. Place the IR blaster in direct line-of-sight of the

equipment to be controlled for it will blaster out all signal received

from the IR IN at the receiver sides.

9ALL IR IN: Connect to the IR extender for IR signal reception. Ensure

that remote being used is within the direct line-of-sight of the IR

extender for it will send out the signal to all receiver's IR OUT.

10 DC 24V: Plug the 24 V DC power supply into the unit and connect the

adaptor to an AC outlet.

Warning: Please do not connect the CAT5e/6/7 cable into the

receiver's LAN port.

6.3 Remote Control

POWER: Press this button to switch

on the device or set it to standby

mode.

IN: Input ports selection 1~4.

OUT: Output ports selection A~D.

6.4 IR Cable Pin Assignment

Power

IR Blaster Signal

IR Signal

Power

Grounding

IR Extender

IR Blaster

CR-121

IN OUT
