CycleSafe OCTO-RACK Mode d’emploi
CycleSafe, Inc.
www.cyclesafe.com
PH: 616.954.9977
TF: 888.950.6531
INSTALLATION & ASSEMBLY INSTRUCTIONS
OCTO-RACK High-Capacity Bicycle Parking
Table of Contents
Description Page
3
3
4
Configuration Layout 5
Front Frame Assembly 6
7
8
Wheel Guide Assemblies 9
10
WHEN ASSEMBLING THIS PRODUCT. ALWAYS WEAR SAFETY GLASSES
ALWAYS OBSERVE POSTED SAFETY GUIDELINES
Rear Frame Assembly
Introduction
Tools Required
Parts List
Main Frame Assembly
Rack Assembly
Comments in BLACK are
Instructions
Comments in BLUE are helpful
suggestions Comments in RED are warnings
Octo-Rack Assembly Instructions.xlsx
Printed: 9/20/2021
CONTROLLED DOCUMENT
Sheet 2 of 10
Introduction
Tools Required

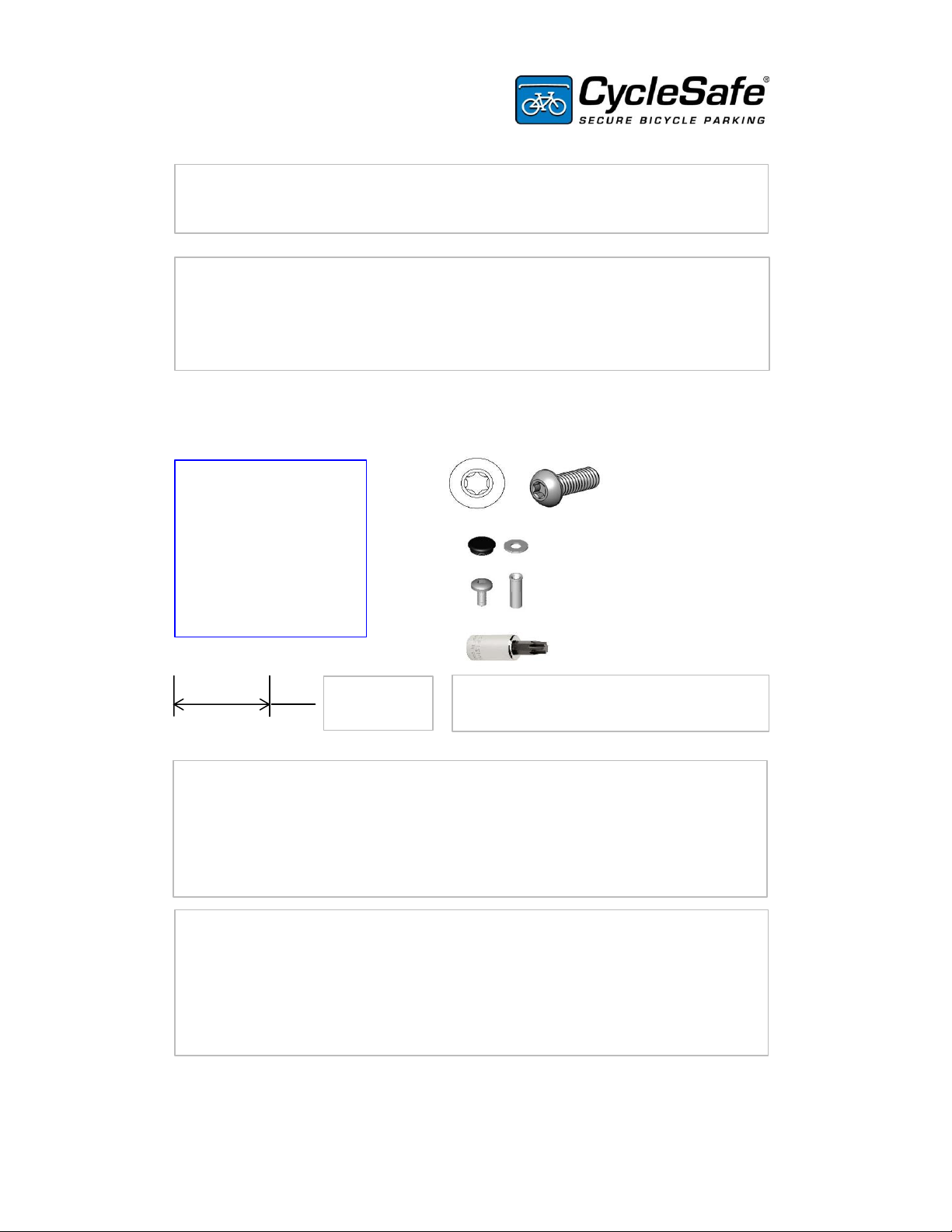

Fasteners Used Supplied by CycleSafe
Torx Screw x 1" Lg.
1" Dia. Black Hole Plug
3/8" Wide Flat Washer
3/8-16 x 1-1/4 Torx PHCS
3/8-16 Lag Housing
T45 Torx Driver
3/8-16NC Button Head
ALWAYS OBSERVE POSTED SAFETY GUIDELINES
WHEN ASSEMBLING THIS PRODUCT. ALWAYS WEAR SAFETY GLASSES
This Installation & Assembly Instruction will detail the tools required, fasteners and
components furnished, and assembly steps to successfully install the CycleSafe Octo
Rack High Density Bicycle Parking System.
Please read the instructions completely before
beginning.
Identify & inventory all parts using the packing list furnished with the shipment and the
parts list in this Installation Instruction. Any damage to the product must be immediately
reported to the shipping company. Be sure to keep the hardware bags & contents
If you have difficulties or require further installation discussion, please contact our
Customer Service Experts
Call - 616.954.9977
Toll Free - 888.950.6531
Digital Copies of this Installation & Assembly Instruction may be found on our website:
www.cyclesafe.com
Power Drill Motor w/ Clutch
Carpenter's Square
Carpenter's Level
Hex Drive Bit Set
3/8" Ratchet & 12" Extension
3/8" Drive Deep Well Sockets
3/8" Drive T45 Torx Driver
DIM
[Inches]
Reference dimensions in this manual are
shown in both Standard Inch and [Metric].
Carpentry or Assembly skills are strongly
suggested
You will need skills at using powered hand tools, climbing ladders, and squaring the
assembled components. The recommended time budget for each Octo Rack is 1to 2
man-hours. NOTE: The heaviest part is 70lbs (31.8kg).
Octo-Rack Assembly Instructions.xlsx
Printed: 9/20/2021
CONTROLLED DOCUMENT
Sheet 3 of 10
Parts List
Item Qty Description Part Number
1 1 18301
2 1 18302
3 2 CROSS BRACE WELDMENT 18303
4 4 UPPER WHEEL GUIDE ASSEMBLY 18304
5 4 LOWER WHEEL GUIDE ASSEMBLY 18305
624 3/8-16NC Xx 1" LG. TORX BHCS 12724
7 4 3/8-16NC LAG HOUSING 17015
8 4 3/8" WIDE FLAT EASHER 17016
9 4 17590
10 4 1" DIA. BLACK HOLE PLUG 18314
ALWAYS OBSERVE POSTED SAFETY GUIDELINES
WHEN ASSEMBLING THIS PRODUCT. ALWAYS WEAR SAFETY GLASSES
FRONT SUB-FRAME ASSEMBLY
BACK SUB-FRAME ASSMBLY
3/8-16NC x 1-1/4" LG. TORX BHCS
#2 BACK FRAME
ASSEMBLY
This Installation & Assembly Instruction will detail the tools required, fasteners and
components furnished, and assembly steps to successfully install the CycleSafe Octo
Rack High Density Bicycle Parking System.
#4 UPPER WHEEL
GUIDE ASSEMBLY
#5 LOWER WHEEL
GUIDE ASSEMBLY
#6 3/8-16NC
{TORX} BHCS
#7-10 LAG-BOLT
ASSEMBLY
#1 FRONT FRAME
ASSEMBLY
#5 LOWER WHEEL
GUIDE ASSEMBLY
#4 UPPER WHEEL
GUIDE ASSEMBLY
#3 CROSS
BRACE
#6 3/8-16NC
{TORX} BHCS
Octo-Rack Assembly Instructions.xlsx
Printed: 9/20/2021
CONTROLLED DOCUMENT
Sheet 4 of 10
ALWAYS OBSERVE POSTED SAFETY GUIDELINES
WHEN ASSEMBLING THIS PRODUCT. ALWAYS WEAR SAFETY GLASSES
Octo-Rack Assembly Instructions.xlsx
Printed: 9/20/2021
CONTROLLED DOCUMENT
Sheet 5 of 10
Item Qty Description Part Number
1 1 LOWER FRAME RUNNER ASSEMBLY 18308
2 1 UPPER FRAME RUNNER ASSEMBLY 18307
3 2 FRAME UPRIGHT ASSEMBLY 18309
4 8 3/8-16NC x 1" LG. {TORX} S/S BHCS 12724
ALWAYS OBSERVE POSTED SAFETY GUIDELINES
WHEN ASSEMBLING THIS PRODUCT. ALWAYS WEAR SAFETY GLASSES
Front Frame Assembly
1. Remove these components from
the skid and setup in-place.
2. Place Lower Frame Runner Assy.
(18308) on floor and attached (2)
Frame Upright Assemblies with
Nutsert towards the Rear (18309)
with (4) 3/8-16NC {S/S} Torx BHCS x
1" Lg. and tighten (12724).
3. Place the Upper Frame Runner (18307)
into the saddles of the Frame Uprights
(18309) as shown and insert (4) 3/8-16NC
{S/S} Torx BHCS x 1' Lg. (17274) and square
up Front Frame Assembly (18301) and then
tighten as above.
1
2
3
4
4
3
Octo-Rack Assembly Instructions.xlsx
Printed: 9/20/2021
CONTROLLED DOCUMENT
Sheet 6 of 10
Item Qty Description Part Number
1 1 LOWER FRAME RUNNER ASSEMBLY 18308
2 1 UPPER FRAME RUNNER ASSEMBLY 18307
3 2 FRAME UPRIGHT ASSEMBLY 18309
4 8 3/8-16NC x 1" LG. {TORX} S/S BHCS 12724
ALWAYS OBSERVE POSTED SAFETY GUIDELINES
WHEN ASSEMBLING THIS PRODUCT. ALWAYS WEAR SAFETY GLASSES
Rear Frame Assembly
4. Remove these components from
the skid and setup in-place.
5. Place Lower Frame Runner Assy.
(18308) on floor and attached (2)
Frame Upright Assemblies with
NutSerts towards the Front (18309)
with (4) 3/8-16NC {S/S} Torx BHCS x
1" Lg. and tighten (12724).
6. Place the Upper Frame Runner (18307)
into the saddles of the Frame Uprights
(18309) as shown and insert (4) 3/8-16NC
{S/S} Torx BHCS x 1' Lg. (17274) and square
up Back Frame Assembly (18302) and then
tighten as above.
2
3
3
4
1
4
Octo-Rack Assembly Instructions.xlsx
Printed: 9/20/2021
CONTROLLED DOCUMENT
Sheet 7 of 10
Item Qty Description Part Number
1 1 18301
2 1 18302
3 2 18303
4 8 12724
ALWAYS OBSERVE POSTED SAFETY GUIDELINES
WHEN ASSEMBLING THIS PRODUCT. ALWAYS WEAR SAFETY GLASSES
main frame Assembly
FRONT SUB-FRAME ASSEMBLY
BACK SUB-FRAME ASSEMBLY
FRAME X-BRACE WELDMENT
3/8-16NC x 1" LG. {TORX} S/S BHCS
1
2
3
3
4
4
7. Remove these components from
the skid and setup in-place.
8. Place Front Frame Asssembly
(18301) on floor as shown and
attach (2) Frame X-Brace Weldments
on Uprights that have Nutsert
towards the Rear (18303) with (4)
3/8-16NC {S/S} Torx BHCS x 1" Lg.
and tighten (12724).
9. Then place Rear Frame Asssembly
(18302) into Saddles of the (2) Frame
X-Brace Weldments on Uprights that
have Nutsert (18303) towards the
Front with (4) 3/8-16NC {S/S} Torx
BHCS x 1" Lg. (12724) square up and
tighten Bolts.
Octo-Rack Assembly Instructions.xlsx
Printed: 9/20/2021
CONTROLLED DOCUMENT
Sheet 8 of 10
Item Qty Description Part Number
1 1 18304
2 1 18305
ALWAYS OBSERVE POSTED SAFETY GUIDELINES
WHEN ASSEMBLING THIS PRODUCT. ALWAYS WEAR SAFETY GLASSES
GUIDE RAILS
UPPER WHEEL GUIDE ASSEMBLY
LOWER WHEEL GUIDE ASSEMBLY
2
1
Octo-Rack Assembly Instructions.xlsx
Printed: 9/20/2021
CONTROLLED DOCUMENT Sheet 9 of 10
Item Qty Description Part Number
1 1
2 4 18304
3 4 18305
416 3/8-16NC Xx 1" LG. TORX BHCS 12724
5 4 3/8-16NC LAG HOUSING 17015
6 4 17016
7 4 17590
8 4 1" DIA. BLACK HOLE PLUG 18314
3/8" WIDE FLAT WASHER
UPPER WHEEL GUIDE ASSEMBLY
LOWER WHEEL GUIDE ASSEEMBLY
RACK ASSEMBLY
MAIN FRAME ASSEMBLY
WHEN ASSEMBLING THIS PRODUCT. ALWAYS WEAR SAFETY GLASSES
ALWAYS OBSERVE POSTED SAFETY GUIDELINES
3/8-16NC x 1-1/4" LG. TORX PHCS
10. Align Upper Guide Assembly with NutSerts in frame with 3" offsets & insert (2)
3/8-16NC {Torx} BHCS x 1" Lg. (12724) and tighten, next align Lower Guide
Assembly with NutSerts in runner & insert (2) 3/8-16NC {Torx} BHCS x 1" Lg.
(12724) and tighten, then repeat for the remainimng (6) Guide Rails alternating as
shown till completion.
3
1
2
2
3
2
3
5-8
4
2
3
1
Octo-Rack Assembly Instructions.xlsx
Printed: 9/20/2021
CONTROLLED DOCUMENT
Sheet 10 of 10
