CyberPower PR750ELCD Manuel utilisateur

K01-0000224-00

PR750ELCD

User’s Manual

IMPORTANT SAFETY INSTRUCTIONS

This manual contains important safety instructions. Please read and follow all instructions carefully

during installation and operation of the unit. Read this manual thoroughly before attempting to unpack,

install, or operate your UPS.

CAUTION! The UPS must be connected to a grounded AC power outlet with fuse or circuit breaker

protection. DO NOT plug the UPS into an outlet that is not grounded. If you need to de-energize this

equipment, turn off and unplug the UPS.

CAUTION! DO NOT USE FOR MEDICAL OR LIFE SUPPORT EQUIPMENT! CyberPower Systems

does not sell products for life support or medical applications. DO NOT use in any circumstance that

would affect the operation and safety of life support equipment, medical applications, or patient care.

CAUTION! Hazardous live parts inside can be energized by the battery even when the AC input power

is disconnected.

CAUTION! To prevent the risk of fire or electric shock, install in a temperature and humidity controlled

indoor area, free of conductive contaminants. (Please see specifications for acceptable temperature

and humidity range).

CAUTION! To reduce the risk of electric shock, do not remove the cover, except to service the battery.

There are no user serviceable parts inside, except for the battery.

CAUTION! To avoid electrical shock, turn off the unit and unplug it from the AC power source before

servicing the battery or installing a computer component.

CAUTION! DO NOT USE WITH OR NEAR AQUARIUMS! To reduce the risk of fire, do not use with or

near aquariums. Condensation from the aquarium can come in contact with metal electrical contacts

and cause the machine to short out.

INSTALLING YOUR UPS SYSTEM

UNPACKING

The box should contain the following:

(1) UPS Unit x 1; (2) Emergency Power Off Cable (gray) x 1; (3) Serial Cable x 1; (4) USB Cable x 1 (5)

User Manual x 1; (6) Management software Disk x 1; (7) Function Setup Guide x 1; (8) IEC to IEC

Power cord x1

OVERVIEW

The PR750ELCD provides automatic voltage regulation for inconsistent utility power. The PR750ELCD

features 405 Joules of surge protection, and provides battery backup during power outages. The

PR750ELCD ensures consistent power to your computer system and its included software will

automatically save your open files and shut down your computer system during a utility power loss.

HOW TO DETERMINE THE POWER REQUIREMENTS OF YOUR

EQUIPMENT

1.Make sure that the total Volt-Amp (VA) requirements of your computer, monitor, and

peripheral equipment does not exceed 750VA.

2.Ensure that the equipment plugged into the battery power-supplied/surge outlets does

not exceed the UPS unit's rated capacity (750VA/675W for PR750ELCD). If the rated unit capacities

are exceeded, an overload condition may occur and cause the UPS unit to shut down or the circuit

breaker to trip.

BASIC OPERATION

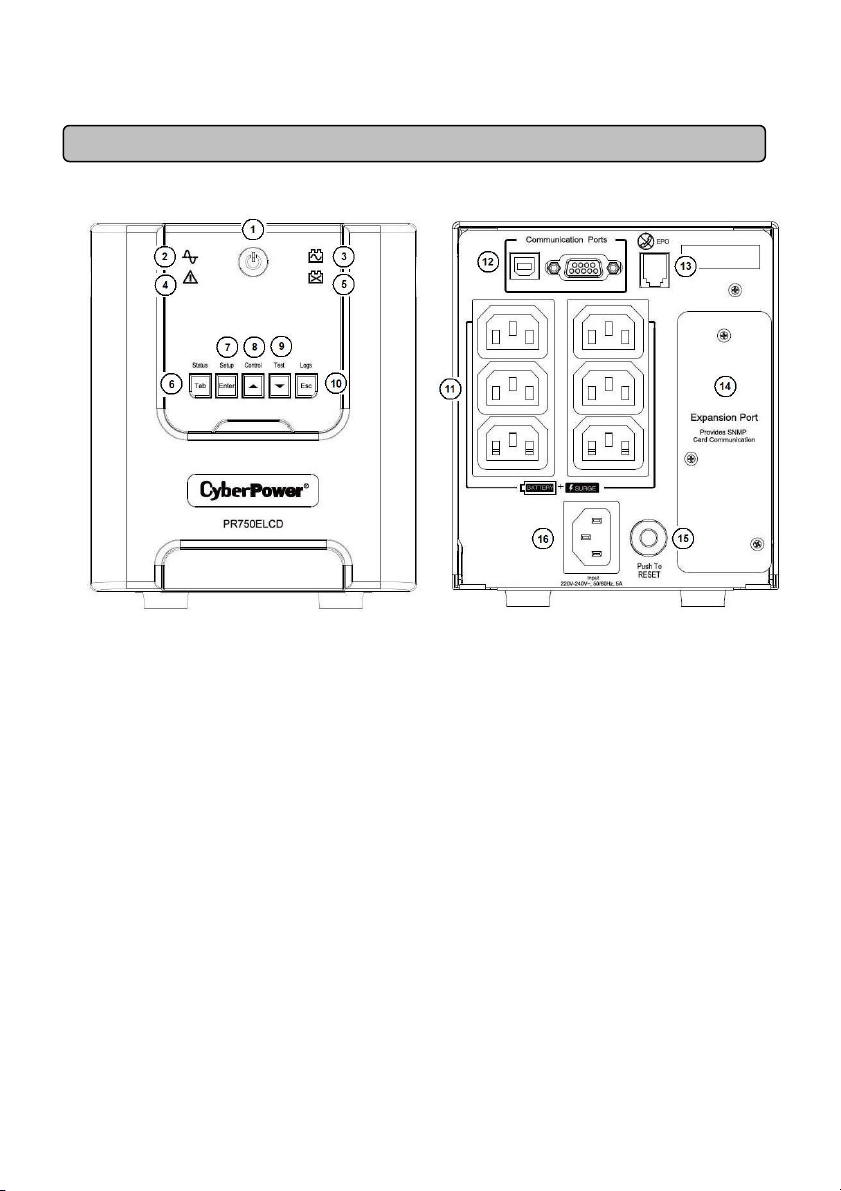

DESCRIPTION

1. Power Switch / Power On Indicator

Used as the master on/off switch for equipment connected to the battery power supplied outlets.

2. Online Indicator

This LED is illuminated when the utility power is normal and the UPS outlets are providing power,

free of surges and spikes.

3. On Battery Indicator

During a severe brownout or blackout, this LED is illuminated and an alarm sounds (two short

beeps followed by a pause) to indicate the UPS is operating from its internal batteries.

4. Fault

This LED is illuminated if there is a problem with the UPS.

5. Replace Battery Indicator

This LED is illuminated to remind users to replace the battery.

6. Tab / Status Button

For UPS status information, press the button for 1 second. For additional information including the

use of the button as a Tab, please refer to the Function Setup Guide.

7. Enter / Setup Button

Press the Setup button for 1 second to enter setup menu and then select the functions for

configuration. For more information about the Setup/Enter button, please refer to the Function

Setup Guide.

8. Up / Control Button

Press the Control button for 1 second to enter control menu and then select the functions for
