CyberData 011588 Manuel

Dimensions

Tap Settings and Voltage Selection

Dimensions are in Inches [Millimeters]

9.93 [252.2]

5.74 [145.7]

8.66 [220]

Power Tap Settings

Voltage 1.25W 3.75W 10W 30W

25V 88.6 93.1 96.8 100.7

70V 89.3 93.7 97.4 101.9

Tap Settings Voltage Selection

To access the Voltage Selection switch and the Tap

Settings, remove the magnetically attached speaker grill.

Analog Ceiling Speaker db Output Levels*

* dBC @ 1M and 1kHz

Features

• Supports 25V, 70V or traditional 8 Ohm power input

• Multiple power tap settings for desired dB output

• Designed for good speech intelligibility

• Suitable for background music

• High efficiency speaker driver

• Easy installation

• Seismic tether bracket for additional stability

Getting Started

• This product ships in 70V mode with the power tap setting value of 1 (1.25W) selected.

• Create a plan for the locations of your speakers.

• WARNING: Do not use the 8 Ohm setting in a constant voltage application.

• WARNING: This product must be set to the appropriate voltage depending on the settings of the amplifier. Using a speaker set

to 25V in a 70V system will cause damage.

• WARNING: This enclosure is not rated for any AC voltages!

Parts

Contacting CyberData

(1) Template for Speaker*(1) Speaker Assembly

* See the last page of this document

Sales: 831-373-2601 ext. 334

Support: 831-373-2601 ext. 333

Support Website: https://support.cyberdata.net/

RMA Department Contact and Status: https://support.cyberdata.net/

Warranty Information: https://support.cyberdata.net/

Corporate Headquarters

CyberData Corporation

3 Justin Court

Monterey, CA 93940, USA

Phone: 831-373-2601

Fax: 831-373-4193

https://www.cyberdata.net/

The IP Endpoint Company

Installation Quick Reference

Analog Ceiling Speaker

25V/70V/8 Ohm

011588

Ø8.858 [Ø225]

Dimensions are in Inches [Millimeters]

Tools Required for Installation:

• (1) Sheetrock Saw or Drywall Cutter

• (1) #2 Phillips Screw Driver or Powered

Screw Driver with #2 Phillips Hex Bit

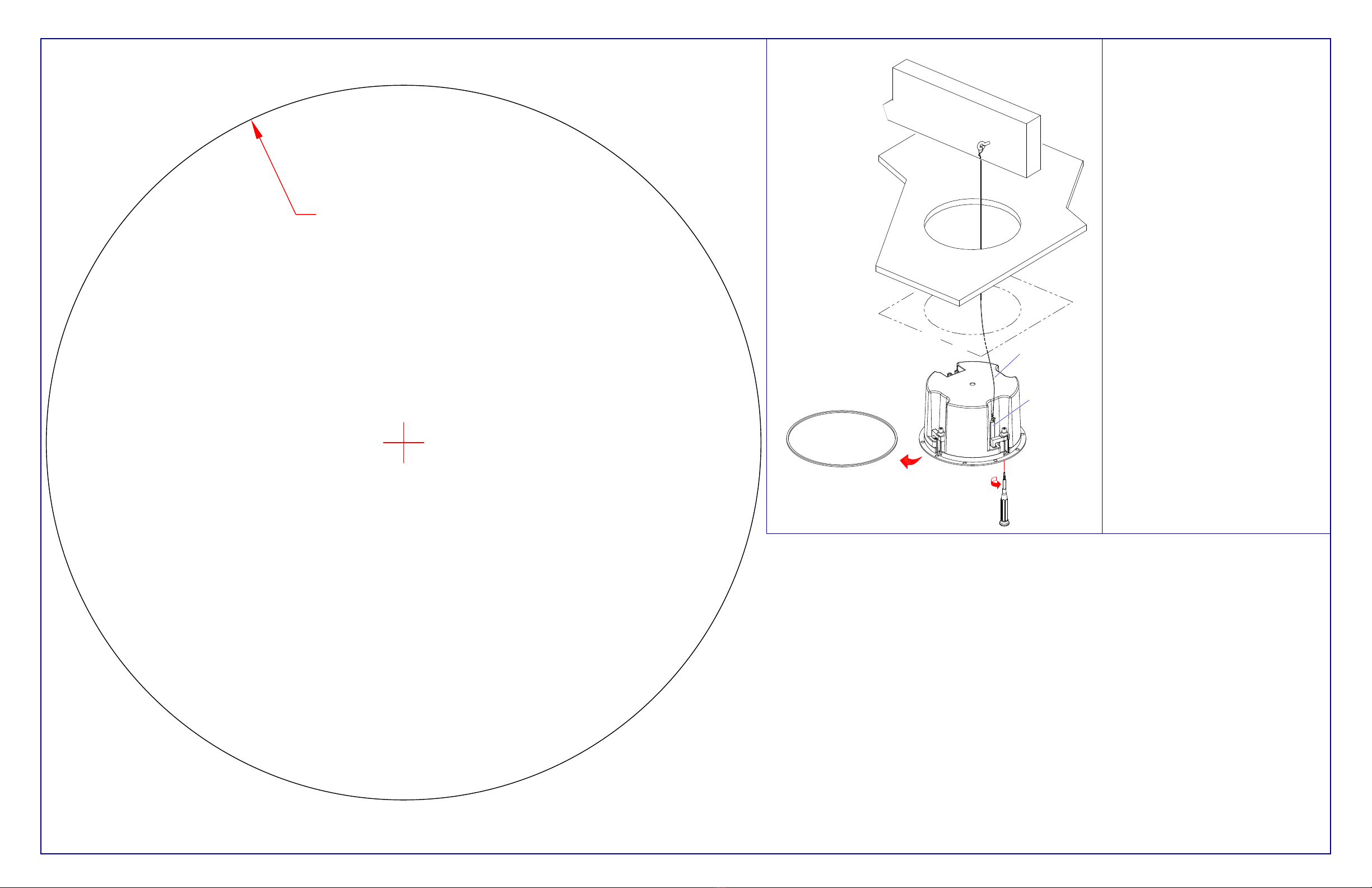

To mount the speaker:

1. Loosen the Four (4) flag nuts with a #2

Phillip Screw Driver or Powered Screw

Driver.

2. Use the TEMPLATE on the back of this

document to cut a hole in the wall* or

ceiling.

*Skip the seismic tether mounting when

mounting it to the wall.

3. Tighten the Four (4) flag nuts with a #2

Phillip Screw Driver or Powered Screw

Driver.

4. Replace the speaker grill to the speaker

housing.

Joist

Eyebolt

Ceiling Tile

Use Template or

Speaker

Seismic Tether Bracket

Assembly

Steel Wire

(Pre-Installed)

Speaker Grill

Remove Speaker Grill to

Access Flagnut Screws

Make Hole Size:

8.875 inches [225 millimeters]

on the Ceiling Tile

Phillip Drive

Screwdriver

Mounting Template Mounting Instructions
