Custom Audio Electronics TPT60H Manuel utilisateur

WWW.CUSTOM.IT TPT60H-TPT112H

TPT60H-TPT112H

computer processes, is strictly prohibited. Custom Engineering s.r.l. and the resource teams employed in the making of this manual will not be

held responsible for any problems arising as a result of improper use of this manual, as they guarantee that the information contained in it has

been subjected to careful inspection.

Any suggestions regarding errors in its contents or possible improvements will be greatly appreciated. The products are continuously checked

and improved. For this reason Custom Engineering s.r.l. reserves the right to modify the information contained in this manual without prior notice.

COD. DOME – TPTH REV. 1.21

Custom Engineering

Str. Berettine 2 - 43010 Fontevivo (PARMA) - Italy

Tel. : +39 0521-680111 - Fax : +39 0521-610701

http: www.custom.it Email : support@custom.it

TPT60H-TPT112H

Declaration of Conformity “CE”

According to ISO/IEC Guide 22 and EN 45014 N°: DC0211198

Manufacture’s Name: Custom Engineering s.r.l.

Manufacture’s Address: Strada Berettine 2

Fontevivo (Parma)

Italy

Declare the product:

Product name: Ticket dispenser

Product type: TPT

Model: TPT60H, TPT112H

Conform to the following directives:

Electromagnetic Compatibility

Directive

89/336/EEC; 92/31/EEC; 93/68/EEC

In accordance with following standards:

EN 55022 Class B Limits and methods of measurement of radio disturbance

characteristics of information technology equipment

1994

EN 50082-1 Electromagnetic Compatibility – Generic Immunity Standard. Part 1:

Residential Commercial and Light Industry.

1992

EN 61000-4-2 Electrostatic discharge requirements

4KV contact discharge, 8KV air discharge

1995

EN 61000-4-4 Electrical fast transient/burst requirements

Signal line 0.5KV, AC mains 1KV

1995

ENV 50140 Radiated radio-frequency electromagnetic field – Immunity test

3V/m, 80MHz-1000MHz, 80% 1KHz AM

1993

March 1998

SAFETY PRECAUTIONS

TPT60H-TPT112H

SAFETY PRECAUTIONS

Read and keep the following instructions.

•Observe all warnings and follow all instructions attached to the

printer.

•Before cleaning the printer, disconnect the feed cable.

•Clean the printer with a damp cloth. Do not use liquid or spray

products.

•Do not operate the printer near to water.

•Do not place the printer on unsteady surfaces. It could fall and

get seriously damaged.

•Do not place the printer on soft surfaces or in poorly ventilated

environments.

•Position the printer in such a way as to ensure that the cables

connected to it will not be damaged.

•Use the type of electricity supply marked on the printer label. In

the event of uncertainty, contact the seller.

•Ensure that the printer’s electricity supply is grounded and that it

is protected by a differential switch.

•Do not obstruct the vents.

•Do not put objects of any kind inside the printer as they could

cause a short circuit or damage parts which could affect its

performance.

•Do not spill liquids on the printer.

•Do not carry out technical operations on the printer with the

exception of the scheduled maintenance operations specifically

indicated in the user’s manual.

•Disconnect the printer from the electricity supply and have it

repaired by a specialized technician should any of the following

conditions occur:

A. The feed connector has been damaged.

B. liquid has penetrated to the inside of the printer;

C. The printer has been exposed to rain or water;

D. The printer is not operating normally despite the instructions in the

user’s manual having been followed.

E. The printer has been dropped and its case damaged.

F. The performance of the printer is poor.

G. The printer does not work.

CONTENTS

TPT60H-TPT112H

CHAPTER 1 DESCRIPTION

1.1 INTRODUCTION

1.2 GENERAL FEATURES

1.3 FRONT PANEL

1.4 EXADECIMAL DUMP

1.5 CHARACTER SET

1.6 CHANGING THE PAPER ROLL

1.7 INTERFACES – RS232 SERIAL AND CENTRONICS PARALLEL

CHAPTER 2 CUSTOM TPTHx EMULATION COMMAND DESCRIPTION

CHAPTER 3 ESC/POS COMMAND DESCRIPTION

1. DESCRIPTION

1 - 1 TPT60H-TPT112H

1.1 INTRODUCTION

The TPTH series (60/112) has a wide range of uses in addition to the standard printing

ones :

•High printing speed : !55mm/sec, "50 mm/sec.

•ESC/POSand CUSTOM TPT emulation.

•Bar code UPC-A. UPC-E, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93,

CODE128 and CODE32.

•6 standard and international characters fonts.

•Font completely or partly programmable.

•Double width-height, quadruple width-height, emphasized, script, inched 90°, 180° and

270°.

•Reception buffer 16Kbytes.

•Definition of macro function for automatic repetition of the operations.

•Internal programmable counter.

•Image mode.

•Print density.

•3 programmable logo !( 448 x 585 dots ) or "(832 x 314 dots).

•Paper cutting.

Options :

•WindowsDriver.

•Ejector.

1.2 GENERAL FEATURES :

Power supply

24Vdc

Absorption

Medium current 1.25A

Peak Current 3.5A

Current on Stand 60mA

Environmental conditions

Operating temperature 0°C - 50°C

Operating humidity count 35% - 85%

Storage temperature /Humidity -35°C + 65°C / 10% - 90%

Resolution 200 dpi (8 dots/mm)

Paper width 60 mm

Print method Termal state

Interface Serial or parallel

Reception buffer 16 Kbytes

Print speed (dotline/sec) !440 "400 (Speed/Quality =

Normal)

ESC/POS



emulation:

Column number !32 "58 !42 "80 !56 "104

Print speed :

Characters/sec !586 "967 !770 "1336 !1026 "1736

Lines/sec !18,3 "16,7 !18,3 "16,7 !18,3 "16,7

Character

Normal 1,7 x 3 1,2 x 3 1x3

Double height 3,4 x 3 2,4 x 3 2x3

Double width 1,7 x 6 1,2 x 6 1x6

Double height and width 3,4 x 6 2,4 x 6 2x6

Quadruple height 6,8 x 3 4,8 x 3 4x3

Quadruple width 1,7 x 12 1,7 x 12 1x12

Quadruple height and

width 6,8 x 12 4,8 x 12 4x12

Print direction 0°, 90°, 180°, 360°

Character Set 3

Custom TPT Emulation:

Column number !18 "34 !28 "52 !56 "104

Print speed :

Characters/sec !248 "425 !513 "868 !1540 "2600

Lines/sec !13,7 "12,5 !18,3 "16,7 !27,5 "25

Character

Normal 3 x 4 2 x 3 1 x 2

Double height 6 x 4 4 x 3 2 x 2

Double width 3 x 8 2 x 6 1 x 4

Double height and

width : 6 x 8 4 x 6 2 x 4

Quadruple height 12 x 4 8 x 3 4 x 2

Quadruple width 3 x 16 2 x 12 1 x 8

Quadruple height and

width 12 x 16 8 x 12 4 x 8

Print direction 0°, 90°, 180°, 360°

Character’s Set 3

1.3 FRONT PANEL

The FORM FEED and LINE FEED keys and a three leds are on the front panel.

•When the LINE FEED key is pressed, the printer carries out a paper feed which can be used

to insert paper in the printing mechanism. During the switch on phase, if you hold the LINE

FEED key down the printer performs the FONT TEST.

•If the FORM FEED key is enabled, pressing this key the printer feeds forward the paper for

the number of steps programmed in the Eeprom,

If in the other hand the FORM FEED key is disabled, the printer transmits on the serial line

RS232 the 12 (HEX 0C) code. This function can be modified by the software command ESC

=. (See software commands paragraph).

1. DESCRIPTION

1 - 2 TPT60H-TPT112H

•During the switch on phase, if you hold down both keys, the printer goes into Print Setup.

After the printer setup report, the printer waits for a button to be pressed, or for characters

from serial port ; every 10 chars, prints hex values and ASCII codes (if characters are

underlined, the receiving buffer is in the full state), see Hexadecimal Dump.

With the LINE FEED button, the printer skips setup mode and terminates the Hexadecimal

Dump function.

With the FORM FEED button, the printer goes into the parameter setting mode. The

variables are:

•Printer emulation : ESC/POS, CUSTOM TPT.

•Baud Rate : 38400, 19200, 9600, 4800, 2400, 1200.

•Data length : 7, 8 bits/char.

•Parity : None, even or odd.

•Handshaking : XON/XOFF or Hardware.

•Autofeed : CR disabled or CR enabled.

•Panel Key: Enabled or Disabled.

•Print mode : Normal or Reverse.

•Height mode : x1, x2 or x4.

•Width mode : x1, x2 or x4.

•Justification : Left, Center or Right.

If ESC/POS:

•Chars/line : !A=32 / B=42 cols. or A=42 / B=56 cols.

"A=58 / B=82 cols. or A=82 / B=104 cols.

If CUSTOM TPT:

•Font Dimension :

18 col. 28 col. 56 col. 18 col. 28 col. 56 col.

24x32 16x24 8x16 24x32 16x24 8x16

•Speed/Quality : Normal, Draft or High Quality.

•Red Printing : Disabled or Enabled.

•Paper Autoload : Enabled or Disabled.

•Reception buffer reset : No, At Paper End.

•Print Density : Normal, Light, Very light, Dark, Very dark, Double Copy.

•The GREEN LED indicates that the printer is on.

•The RED LED indicates that the paper is nearly finished.

•The YELLOW LED indicates the hardware error state of the printer. Check is performed

"on line", indicates, in cases of malfunctioning the led will start to flash in accordance with

the following table:

LED state Description

Always off Printer fault

Always on Printer ON - no faults

Slow flash (long on) Paper out message

Slow flash (short on) Head up

Fast flash Over temperature

1. DESCRIPTION

1 - 3 TPT60H-TPT112H

1.4 HEXADECIMAL DUMP

This function prints the data transmitted from the host computer in hexadecimal numbers

and in their corresponding ASCII characters.

1.5 CHARACTER SET

The printer has six fonts of 224 characters ( two fonts for each emulation).

ESC/POS



Emulation ( PC437 USA, Standard Europe)

FONT 14X24 FONT 10X24 FONT 8X24

Custom TPT Emulation

FONT 16X24 FONT 24X32 FONT 8X16

1. DESCRIPTION

1 - 4 TPT60H-TPT112H

1.6 CHANGING PAPER

Pull up the printing head with the white lever. Feed paper into paper mouth passing through

printing head then put down the head.

N.B. Buffer will be erased at each paper loading.

1.7 INTERFACES

RS232 SERIAL (TPT60/112HS)

The signals on the rectangular female 9-pin connector are shown in the following table :

PIN Signal Direction To Description

1DCD OUT DCD Data Carrier Detect. Printer On

2TXD OUT RXD Receive Data. Serial output ( from Host )

3RXD IN TXD Transmit Data. Serial data input ( towards Host )

4- - - Not connected

5GND - GND Signal ground

6DSR OUT DSR Data Set Ready. Printer on and operating

7- - - Not connected

8RTS OUT CTS Clear To Send. Ready to receive data

9- - - Not connected

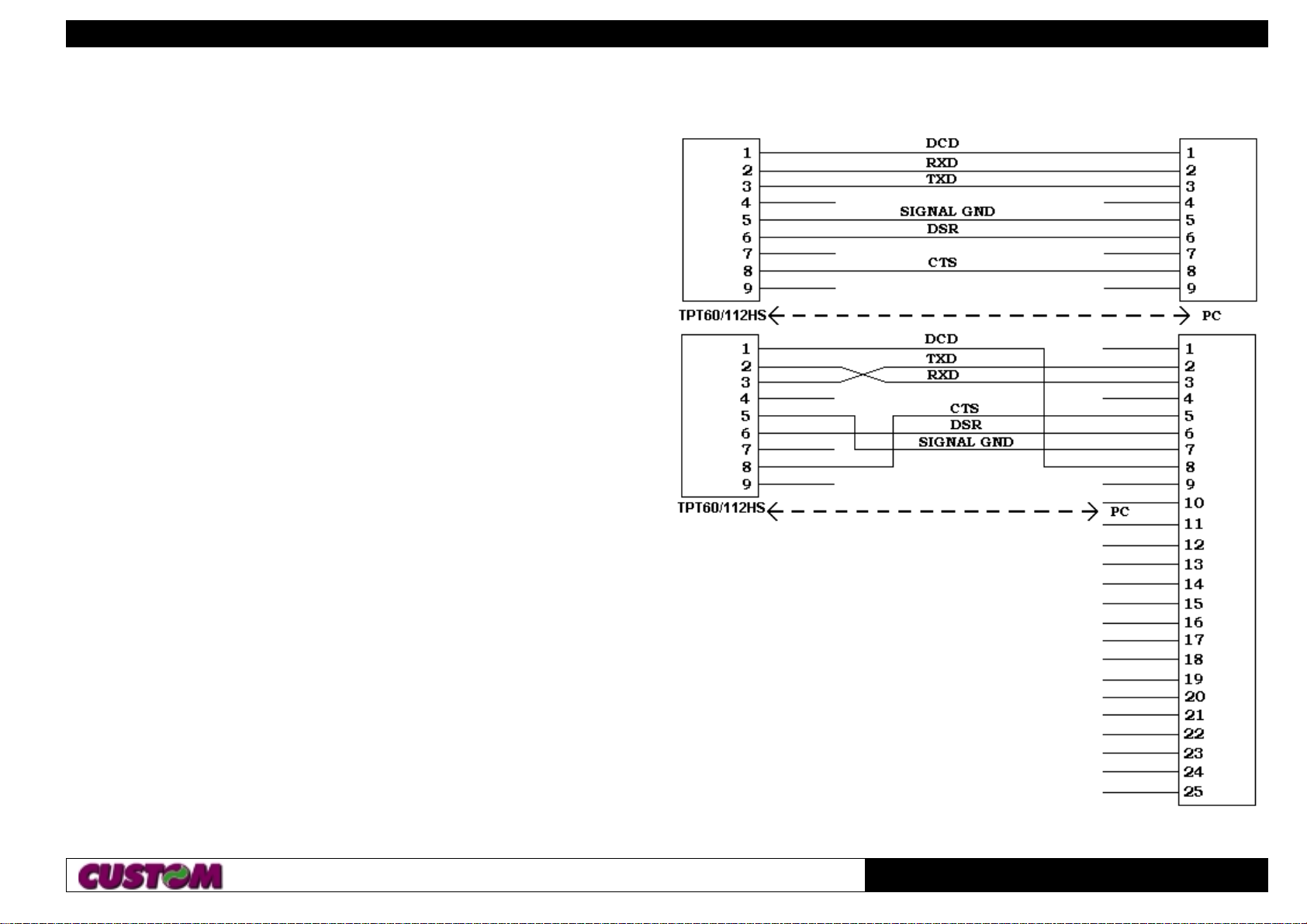

The following diagrams illustrate some connection examples between printer and Personal

Computer, with 9 and 25-pin connectors respectively.

1. DESCRIPTION

1 - 5 TPT60H-TPT112H

PARALLEL PORT (TPT60/112HP)

The signals on the rectangular female 25-pin connector are shown in the following table :

NO. SIGNAL FUNCTION

1STROBE Strobe input

2D0 Data input bit 0

3D1 Data input bit 1

4D2 Data input bit 2

5D3 Data input bit 3

6D4 Data input bit 4

7D5 Data input bit 5

8D6 Data input bit 6

9D7 Data input bit 7

10 ACK Acknowledge

11 BUSY Busy

12 PE Paper End

13 VCC VCC

15 VCC VCC

16 RESET Printer reset

17 GND GND

19 GND GND

20 GND GND

21 GND GND

22 GND GND

23 GND GND

24 GND GND

25 GND GND

For the parallel connector, the connection between printer and Personal Computer, must be

made with a 25-pin-to-pin connector.

J5 POWER SUPPLY

NO. SIGNAL FUNCTION

1GND GND

2VCC Power 24 Vcc

J1 HEAD CONNECTOR

NO. SIGNAL FUNCTION NO. SIGNAL FUNCTION

1COM Thermal head common 2COM Thermal head common

3COM Thermal head common 4GND GND

5GND GND 6GND GND

7SI Serial data input 8SO Serial data input

9CLOCK Synchronous data clock 10 GND GND

11 LATCH Data latch 12 GND GND

13 STR5 Strobe 5 14 VDD Thermal head power (+5v)

15 STR3 Strobe 3 16 STR4 Strobe 4

17 STR1 Strobe 1 18 STR2 Strobe 2

19 TM Thermistor 20 TM Thermistor

21 GND GND 22 GND GND

23 GND GND 24 COM Thermal head common

25 COM Thermal head common 26 COM Thermal head common

J2 MOTOR CONNECTOR

NO. SIGNAL FUNCTION COLOUR

1Φ1Phase 1 Black

2Φ2 Phase 2 Yellow

3Φ3 Phase 3 Brown

4Φ4 Phase 4 Orange

5COM Common Red

6COM Common Red

Ce manuel convient aux modèles suivants

Autres manuels Custom Audio Electronics Imprimante

Custom Audio Electronics

Custom Audio Electronics K-80 Instructions d'installation

Custom Audio Electronics

Custom Audio Electronics s'print DPT100-S Manuel utilisateur

Custom Audio Electronics

Custom Audio Electronics VKP80III Manuel utilisateur

Custom Audio Electronics

Custom Audio Electronics KPM150H Manuel utilisateur

Custom Audio Electronics

Custom Audio Electronics KPM302III Manuel utilisateur

Custom Audio Electronics

Custom Audio Electronics Q3X Manuel utilisateur

Custom Audio Electronics

Custom Audio Electronics Kube II Supplément

Custom Audio Electronics

Custom Audio Electronics Kube II Manuel utilisateur

Custom Audio Electronics

Custom Audio Electronics TPTCM60IIIL Manuel utilisateur

Custom Audio Electronics

Custom Audio Electronics MY PRINTER X Manuel utilisateur

Custom Audio Electronics

Custom Audio Electronics S16SB Manuel utilisateur

Custom Audio Electronics

Custom Audio Electronics MT2460 Manuel utilisateur

Custom Audio Electronics

Custom Audio Electronics STIMARE STIMA-SML Manuel utilisateur

Custom Audio Electronics

Custom Audio Electronics TPTCM60-SC Manuel utilisateur

Custom Audio Electronics

Custom Audio Electronics BIGII Touch PC Manuel utilisateur

Custom Audio Electronics

Custom Audio Electronics TK203 Manuel utilisateur

Custom Audio Electronics

Custom Audio Electronics FUSION PC IOT Supplément

Custom Audio Electronics

Custom Audio Electronics TG2480HIII Manuel utilisateur

Custom Audio Electronics

Custom Audio Electronics TPT 60 Manuel utilisateur

Custom Audio Electronics

Custom Audio Electronics K3 Manuel utilisateur

Custom Audio Electronics

Custom Audio Electronics MT558 Manuel utilisateur

Custom Audio Electronics

Custom Audio Electronics VKP80III Manuel utilisateur

Custom Audio Electronics

Custom Audio Electronics PLUS2 Manuel utilisateur

Custom Audio Electronics

Custom Audio Electronics Custom Manuel utilisateur

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Canon

Canon i70 Series Manuel utilisateur

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Canon

Canon LASER SHOT LBP-1210 Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Canon

Canon PIXMA PRO-1 Series Manuel utilisateur

Canon

Canon PIXMA G3560 Guide de configuration

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Canon

Canon CLBR 460ps Manuel utilisateur

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

Canon

Canon imagePASS-A2 Manuel utilisateur

Canon

Canon S820D Manuel utilisateur
