INSTRUCTION AND

RECIPE BOOKLET

Smart Stick®Hand Blender

For your safety and continued enjoyment of this product,

always read the instruction book carefully before using.

CSB-77

Important SaFEGUarDS

When using an electrical appliance, basic safety precautions should

always be followed including the following:

1. READ ALL INSTRUCTIONS.

2. To protect against electrical shock, do not put the motor body,

cord or electrical plug of this hand blender in water or other liquid.

The detachable blending shaft of this appliance has been

designed for immersion into water or other liquids. Never

submerge any other portion of this unit. If hand blender falls into

liquid, remove immediately. Do not reach into the liquid without

unplugging the unit first.

3. This appliance should not be used by children. To avoid possible

accidental injury, close supervision is necessary when any

appliance is used by or near children.

4. Unplug from outlet when not in use, before putting on or

taking off parts, and before cleaning. To unplug, grasp plug

and pull from electrical outlet. Never pull cord.

5. Avoid contacting with moving parts.

6. During operation keep hands, hair, clothing, as well as spatulas

and other utensils away from attachments and any mixing

container, to reduce risk of injury to persons, and/or damage

to the appliance. A spatula may be used, but must be used only

when the unit is not operating.

7. Do not operate any appliance with a damaged cord or plug,

or after the appliance has malfunctioned or has been dropped

or damaged in any way or is not operating properly. Return the

appliance to the nearest Cuisinart Repair Center for examination,

repair, or mechanical or electrical adjustment.

8. Remove detachable shaft from the blender before washing the

blades or shaft.

Blades are SHARP. Handle carefully when removing, inserting

or cleaning. Exercise the same care when removing, inserting

or reversing the cutting blade for the chopper attachment.

10. When mixing liquids, especially hot liquids, use a tall container

or make small quantities at a time to reduce spillage, splattering

and possibility of injury from burning.

11. To reduce the risk of injury, never place chopper/grinder

attachment cutting blade on base without first putting prep bowl

properly in place.

12. Be certain the chopper/grinder attachment cover is securely

locked in place before operating appliance. Do not attempt to

remove cover until blade has stopped rotating.

13. Check prep bowl for presence of foreign objects before using.

14. The use of attachments or accessories not recommended by

Cuisinart may cause fire, electrical shock, or risk of injury.

15. Do not use outdoors, or use for other than intended use.

16. Do not let any cord hang over the edge of the table or counter.

Do not let cord contact hot surfaces, including stovetop.

17. Make sure the appliance is off, the motor has stopped

completely, and the appliance is unplugged from outlet before

putting on or taking off attachments, and before cleaning.

18. To reduce the risk of fire or electrical shock, do not operate any

heating appliance beneath the mounting unit.

19. Maximum rating of 200W is based on the chopper/grinder

attachment that draws the greatest power.

20.

Do not operate your appliance in an appliance garage or under a wall

cabinet. When storing in an appliance garage always unplug the

unit from the electrical outlet. Not doing so could create a risk of

fire, especially if the appliance touches the walls of the garage or the

door touches the unit as it closes.

SaVE tHESE InStrUCtIonS

For HoUSEHoLD USE onLY

NOTICE

This appliance has a polarized plug (one blade is wider than the

other). As a safety feature, this plug will fit in a polarized outlet only

one way. If the plug does not fit fully in the outlet, reverse the plug.

If it still does not fit, contact a qualified electrician. Do not attempt

to defeat this safety feature.

CONTENTS

Important Safeguards ....................................2

Unpacking Instructions ...................................4

Features and Benefits ....................................4

Whisk Tips.............................................5

Diagram ...............................................6

Assembly..............................................7

Blending Attachment................................7

Chopper/Grinder Attachment .........................7

Reversible Blade ...................................8

Whisk Attachment .................................10

Operation.............................................11

Blending & Mixing .................................11

Whisking ........................................11

Chopping/Grinding ................................12

Cleaning and Maintenance ...............................12

Tips and Hints .........................................14

Frequent Uses for Chopper/Grinder Chart ...................15

Recipes ..............................................16

Warranty .............................................28

UNPACKING INSTRUCTIONS

Place the package containing the Cuisinart®Smart Stick®Hand

Blender on a sturdy surface. Unpack the Smart Stick®Hand Blender

from its box by removing the upper protective insert. Gently slide the

unit from the box. Remove all support materials from the box and

replace the upper insert. Save packaging for possible repacking of

the unit.

Note: The blending blade is extremely sharp. Use caution when

removing and unpacking the storage stand.

Before using the Cuisinart®Smart Stick®Hand Blender for the first

time, we recommend that you wipe the unit with a clean, damp cloth

to remove any dirt or dust. Dry it thoroughly with a soft absorbent

cloth. Handle carefully; wash each individual blade assembly, mixing

container and detachable shaft by hand or in the dishwasher.

Dry thoroughly before use. Read all instructions completely for

detailed operating procedures.

FEATURES AND BENEFITS

One-Touch On/Off Button:

Allows you to activate the hand

blender at the touch of a button. Simply press and hold down on

the toggle switch to blend or pulse. Once the button is released,

blending will stop.

Comfort Handle:

The handle allows you to control the hand

blender with ease.

Motor Body Housing

Detachable Shaft:

Pressing the release button on the back of the

unit will detach the shaft for easy cleaning.

Blending Attachment with Stainless Steel Blade and Blade Guard:

This attachment easily snaps into the motor body housing.

The permanently mounted stainless blade is partially covered

by a stainless housing that keeps splashing to a minimum.

Whisk Attachment:

Whisk attachment snaps into the motor body

housing. This attachment is great for whipping cream, egg whites

and other delectable treats.

Chopper/Grinder Attachment with reversible blade:

Chop, mince

and grind with the Cuisinart®Chopper/Grinder attachment.

Chopper/Grinder attaches to the blender motor body in place of

the blender shaft or whisk attachment.

Mixing Beaker:

2-cup mixing beaker is microwave - and

dishwasher safe. Use this container to blend drinks, shakes,

salad dressings and more. Designed for easy gripping and

drip-free pouring.

WHISK TIPS

Use the whisk attachment for beating heavy cream or egg whites.

It may also be used for whisking eggs for scrambled eggs or

fluffy omelets.

BEATING EGG WHITES

When beating egg whites use a very clean metal or glass bowl, never

plastic. Plastic can contain hidden oils and fats that can ruin the

delicate egg white foam. To help stabilize the egg whites add 1/8

teaspoon of cream of tartar per egg white prior to beating them. (If

using a copper bowl omit the cream of tartar.) Beat the egg whites

until soft peaks form that do not droop. Beating the egg whites longer

causes them to dry out and become even less stable. When adding

sugar to beaten egg whites add it slowly when soft peaks just begin

to form and then continue beating to form soft peaks that don’t droop.

BEATING HEAVY CREAM

When beating heavy cream, if possible and if time allows, use a chilled

bowl, and chill the whisk attachment. The best shaped bowl for

whipping cream is one that is deep with a rounded bottom. The cream

should come out of the refrigerator just before whipping. Hold the

whisk attachment so that it is just skimming the surface, and whip

until the cream begins to thicken and develop some body; then

immerse the whisk totally into the cream. Whipped cream may be

used at either soft or firm peaks depending on preference. It may be

flavored as desired. For best results, whip cream just before using.

If it must be whipped ahead, add a whipped cream stabilizer such as

Oetker®Whip It™.

Oetker®is a registered trademark owned by Dr. August Oetker Nahrungsmittel, KG, LP.

Motor

Body

Housing

Detachable

Blending Shaft

Blade

Guard

Stainless

Steel

Blending

Blade

Chopper/Grinder

Attachment

Cord

Wrap

On/Off

Button

Comfort

Handle

Whisk Attachment

Detachable

Gearbox

Reversible

Blade

ASSEMBLY

BLENDING ATTACHMENT

1. Align the motor body with the blending attachment and slide the

pieces together until you hear and feel the pieces click together.

It may be helpful to press the release button when assembling.

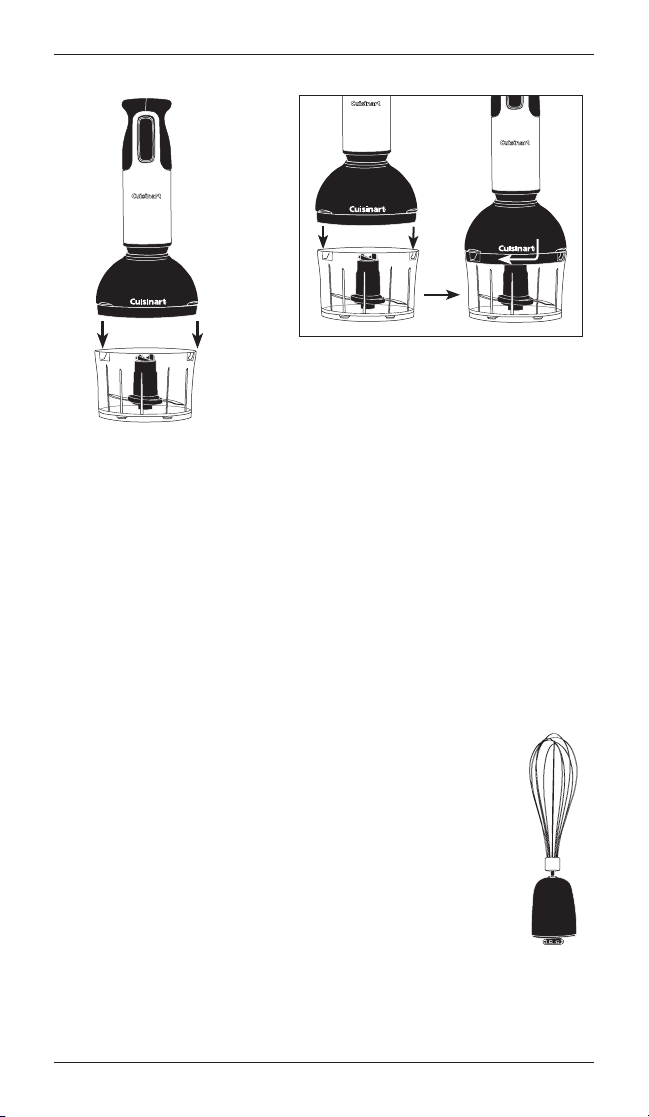

CHOPPER/GRINDER ATTACHMENT

A. Chopper/Grinder

Prep Bowl

B. Cover Slots (3)

for Attaching

Cover

C. Metal Blade

Assembly Shaft

D. Rubber Feet

E. Blade Assembly

F. Blade Ring with

Reversible Blade

G. Plastic Blade

Sheath

H. Chopper/Grinder Cover

I. Lift Tabs

J. Chopper/Grinder Spline

REVERSIBLE BLADE

The Cuisinart®Smart Stick®Hand Blender chopper/grinder attachment

is equipped with a reversible blade. This blade is sharp on one side

and blunt on the other. The blade is attached to a plastic ring which

slides over the plastic blade sheath, so it can be easily turned over to

select the appropriate blade. To reverse the blade: see detailed

instructions below. Frequent Uses for Chopper/Grinder (page 15).

Before you process any food, assemble the blender parts.

1. Put the prep bowl on a flat, dry,

stable surface. It should be close

to an electrical outlet of the same

voltage as stated on the rating

plate on the Smart Stick®Hand

Blender.

2. The metal blade assembly shaft

the prep bowl. If not already in

place, slide the fully assembled

blade assembly

(E)

over the top of

the metal blade assembly shaft.

2a. Putting together the blade

assembly: Connect the blade ring

(F) to the plastic blade sheath (G).

Line up the blade ring opening

with the plastic sheath. Let the

blade ring slide to the bottom of

the plastic sheath. HOLD THE

BLADE RING BY THE CENTRAL HUB HOLDING RIBS (grips) (K)

ONLY. DO NOT TOUCH THE RAZOR-SHARP BLADES.

Note these important features of the blade ring. The blade ring

can be placed over the plastic blade sheath in two different ways:

If you hold it this way (A), you will see the word “Sharp” on the

blade. Assemble the blade this side up to use the sharp edge.

(See the section on processing food for information about when

to use the sharp edge.)

If you hold it this way (B), you will see no writing on the blade.

Assemble the blade this side up to use the blunt edge. (See the

section on processing food, for information about when to use

the blunt edge.)

There are notches (C) on opposite sides of the interior of the hub.

These fit over ridges on the sides of the plastic blade sheath.

K-NOTCH

SHARP SIDE

BLUNT SIDE UP

Pick up the blade ring by its hub holding ribs (grips) and turn it

very slightly clockwise. This locks it in place on the plastic blade

sheath and prevents it from sliding up during processing.

3. Connect the Smart Stick®Hand Blender motor body to the top of

the chopper/grinder attachment cover. Align the spline in the

chopper/grinder cover’s drive shaft with the ribbed opening on

the underside of the motor body. When aligned properly, slide

the two pieces together until they mate. You will feel and hear a

slight click. It may be helpful to press the

rubber release button when sliding

these pieces together.

4. With the hand blender in place,

locate the chopper/grinder cover

and put it on top of the prep bowl.

4a. Be sure that the 3 ridges

(cover slots) at the top of the

prep bowl line up with the

3- knotches in the underside

of the chopper/grinder cover,

and that the cover is seated

all around the top of the

prep bowl.

4b. Rotate cover clockwise to

secure it to the prep bowl.

Motor

Body Bottom and

Chopper/Grinder

Cover Top View

5. Plug the power cord of the Smart Stick®Hand Blender into an

electrical outlet.

6. Put one hand on the cover of the chopper/grinder attachment,

while gripping the Smart Stick®Hand Blender motor body handle

with the other. Press the High or Low button with your fingers to

start the motor and run the chopper/grinder.

To turn the unit off, remove your fingers from the selected button.

7. WHEN THE BLADE STOPS MOVING, unplug the Smart Stick®

Hand Blender, remove the motor body from the chopper/grinder

cover, and remove the cover from the prep bowl.

WHISK ATTACHMENT

1. Align the end of the whisk (A) with the small opening

of the whisk gearbox (B).

2. Push end into opening until it locks into position (C).

3. Align the motor body with the assembled whisk

attachment and slide the pieces together until

you hear and feel the pieces click together.

It may be helpful to press the release button

when assembling.

4a. 4b.

Autres manuels pour Smart Stick CSB-77

Table des matières

Autres manuels Cuisinart Mixer

Cuisinart

Cuisinart SMART POWER BASICS CB-18 Series Manuel de service

Cuisinart

Cuisinart CPB-300P1 Manuel utilisateur

Cuisinart

Cuisinart PowerEdge 09CE13231 Manuel de service

Cuisinart

Cuisinart Mini Prep Pro ECH4 Series Manuel utilisateur

Cuisinart

Cuisinart CBT-500 SERIES Manuel d'exploitation

Cuisinart

Cuisinart Smart Stick CSB-175C Series Manuel utilisateur

Cuisinart

Cuisinart SmartPower SPB-7 Series Manuel de service

Cuisinart

Cuisinart CSB-78 - Cordless Rechargeable Hand Blender Manuel de service

Cuisinart

Cuisinart BFP-650 Manuel de service

Cuisinart

Cuisinart RPB-100XA Manuel d'exploitation

Cuisinart

Cuisinart SPB-7CHCN Series Manuel utilisateur

Cuisinart

Cuisinart CBT700E Manuel utilisateur

Cuisinart

Cuisinart Quick Prep CSB-33C Series Manuel d'exploitation

Cuisinart

Cuisinart ReMix7.5 Manuel de service

Cuisinart

Cuisinart EVOLUTIONX RPB 100 Manuel d'exploitation

Cuisinart

Cuisinart Velocity Ultra 1 HP Manuel utilisateur

Cuisinart

Cuisinart Smart Stick CSB-79 Manuel de service

Cuisinart

Cuisinart VELOCITY Manuel utilisateur

Cuisinart

Cuisinart PowerBlend 600 Manuel utilisateur

Cuisinart

Cuisinart SmartPower Classic SPB-6C Manuel de service

Cuisinart

Cuisinart SmartPower Bar Basics CB-18BKSS Manuel de service

Cuisinart

Cuisinart CSB801E Manuel utilisateur

Cuisinart

Cuisinart SSB I U Manuel utilisateur

Cuisinart

Cuisinart Hurricane CSB-750H Manuel de service

Manuels Mixer populaires d'autres marques

ROTOR

ROTOR 1125.201 Manuel utilisateur

Braun

Braun Multiquick 5 Vario series Manuel utilisateur

ARENDO

ARENDO MIRA 305424 Manuel utilisateur

CHEF-BUILT

CHEF-BUILT CCB-3500 Manuel utilisateur

Viconte

Viconte VC-4406 Manuel utilisateur

Oster

Oster BLSTAB-CB0 Manuel utilisateur

HOFFEN

HOFFEN MC-3005 Manuel utilisateur

Black & Decker

Black & Decker BLC18750DM Manuel utilisateur

Sunbeam

Sunbeam 4182 Manuel utilisateur

Bialetti

Bialetti FMX35 Manuel utilisateur

Black & Decker

Black & Decker BL8000 Manuel utilisateur

Duronic

Duronic BL530 Manuel utilisateur

Exquisit

Exquisit MS 3002 wes Manuel utilisateur

Lumme

Lumme LU-KP1891A Manuel utilisateur

Binatone

Binatone HB-735 Manuel utilisateur

Moulinex

Moulinex LM936E10 Manuel utilisateur

Oster

Oster VERSA Manuel d'installation et d'exploitation

Ninja

Ninja NN210Q Manuel utilisateur
