C190POS
Configuration
Guide
FEBRUARY 2020
C190POS Configuration Guide |© 2020 ParcelTools Pty Ltd PAGE 1
Introduction
This guide contains all configuration barcodes needed to setup and customise the C190POS Scanner -
Dimensioner for Revenue Protection, Shipping and Master Data applications in US and Metric jurisdictions.
The Guide is divided into the following sections:
• User Shortcuts
• System Settings
• Bluetooth Settings
• International Keyboard Settings
• Send Options
• Data Format
• Dimensioning
• Units and Precision
• Calibration and Reverse Tare
• Numerics
It does not include the symbology programming barcodes which are available separately in the
SE965 Parameter Programming Guide. A short description is included alongside each of the
barcodes in the guide.
Factory default settings are:
Setting Factory Default
Bluetooth HID Mode
Keyboard English
Send Option 1DIM
Data Format TAB
Source Prefix Off
Units Inches
Precision Nearest Whole
Reverse Tare Value 112
C190POS Configuration Guide |© 2020 ParcelTools Pty Ltd PAGE 2

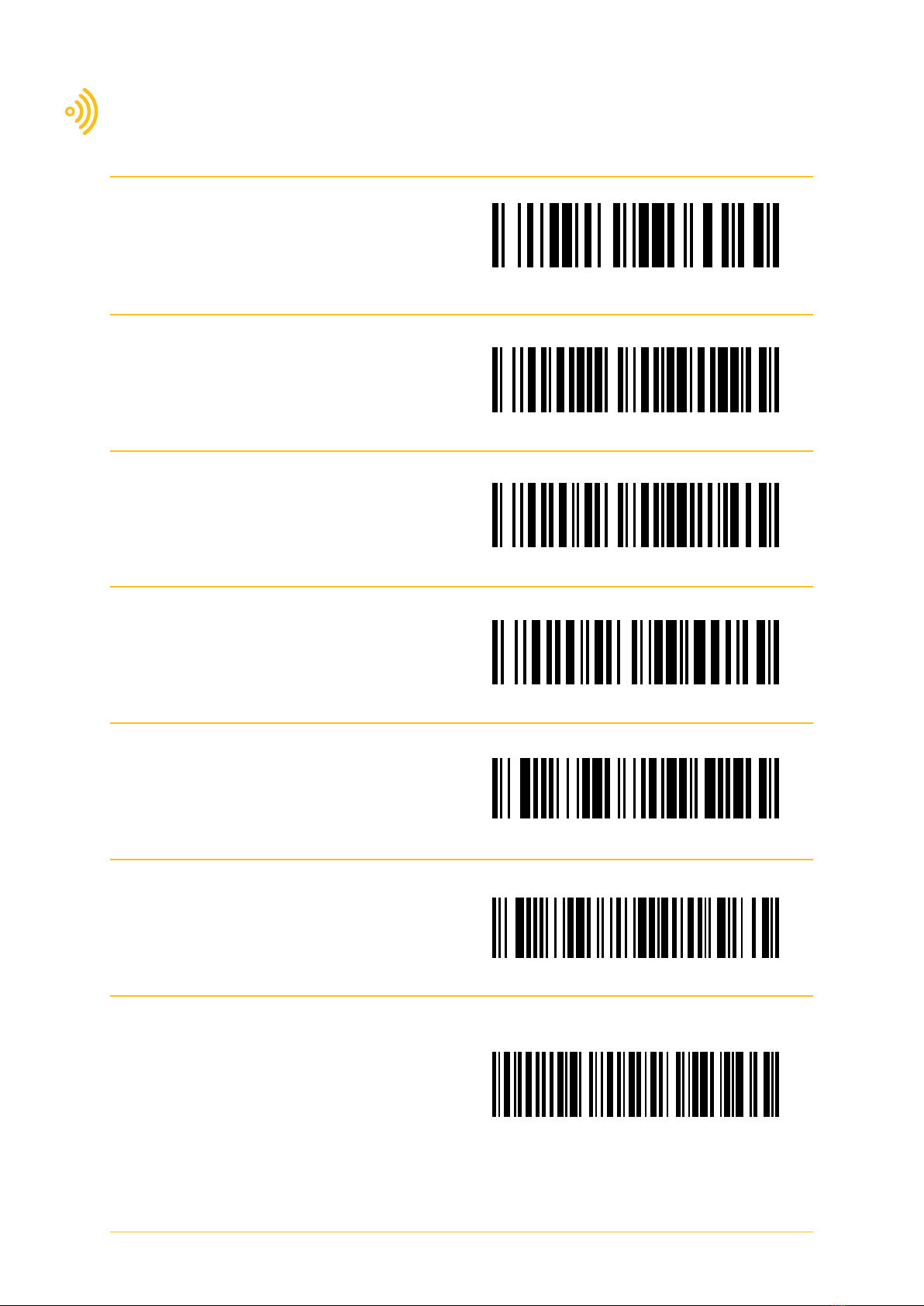

User Shortcuts
Insert US Pallet 48 x 40
US Pallet 48 x 40
Insert CHEP Pallet 117 x 117
CHEP Pallet 117 x 117
Insert UK Pallet 120 x 100
UK Pallet 120 x 100
Insert EURO Pallet 120 x 80
EURO Pallet 120 x 80
Add next 2 Measurements (max 19.6 feet)
Add
Reverse Tare ON for next Measure
Reverse Tare ON
Create custom shortcuts by encoding values
and format characters to suit the application.
For example, to create a shortcut to insert 3
values “1200, 100, 50” into 3 adjacent fields
in a speadsheet, create and print a Code 128
symbology barcode with the following data:
“1200<TAB>100<TAB>50
Custom 1200 x 100 x 50
C190POS Configuration Guide |© 2020 ParcelTools Pty Ltd PAGE 3
System Settings
Return C190POS Settings to Factory Defaults
Default Factory Setting
Return Scan Engine to C190POS Defaults
Default Engine Setting
Output to USB Virtual COM Port
USB-VCP Output Mode
Output to USB HID
USB-HID Output Mode
Output Firmware Version
Read Firmware Version
Output Device ID
Read Device ID
Output Battery Level
Read Battery Level
To update C190POS firmware, select USB-VCP
out-put, Scan DFU MODE whilst holding Measure
for 5 seconds. Connect to PC using USB Cable
and run ST Micro Firmware Update Routine
DFU Mode
C190POS Configuration Guide |© 2020 ParcelTools Pty Ltd PAGE 4
Bluetooth Settings
For pairing with host in keyboard
emulation mode (HID Connection).
Bluetooth LED has fast steady flash.
Bluetooth HID Mode
For pairing with host in serial mode
(SPP Connection).
Bluetooth LED has slow steady flash.
Bluetooth SPP Mode
For pairing with Cradle using scan to
pair barcode.
Bluetooth LED has 5 fast flashes with
a long pause.
Cradle Pairing Mode
For automatic connection to adjacent
serial slave device.
Bluetooth LED has 5 fast flashes with
a long pause.
Bluetooth Master Auto Mode
To Remove Active Connections and Reset
Bluetooth Reset
C190POS Configuration Guide |© 2020 ParcelTools Pty Ltd PAGE 5
International Keyboard Settings
used in Bluetooth HID Mode
Uses English Keyboard Layout in HID
English Keyboard Layout
Uses French Keyboard Layout in HID
French Keyboard Layout
Uses German Keyboard Layout in HID
German Keyboard Layout
Uses Spanish Keyboard Layout in HID
Spanish Keyboard Layout
Uses Italian Keyboard Layout in HID
Italian Keyboard Layout
Uses Japanese Keyboard Layout in HID
Japanese Keyboard Layout
C190POS Configuration Guide |© 2020 ParcelTools Pty Ltd PAGE 6
Send Options
Send Single Dimension at a Time
1DIM
Send Set of Three Dimensions at a Time
3DIM
Separator = x
Separator x
Separator = X
Separator X
Separator = TAB
Separator TAB
Separator = CR
Separator CR
C190POS can be setup to send dimensions one at a time or in sets of three. These options are called
1DIM and 3DIM. 3DIM must be used with some shipping applications, and can be used anytime
as a user preference.
3DIM also allows configuration of the separator (‘X’ in the following 3DIM example string): 48X40X36
3DIM also enables use of the RESEND feature, which resends the last 3 dim set.
C190POS Configuration Guide |© 2020 ParcelTools Pty Ltd PAGE 7
Data Format
Disable Suffix
Disable Suffix
Enable Suffix
Enable Suffix
Suffix = TAB
Suffix = TAB
Suffix = LF
Suffix = LF
Suffix = CR
Suffix = CR
Suffix = CRLF
Suffix = CRLF
Suffix = Space
Suffix = SP
Suffix = TABTAB
Suffix = TABTAB
C190POS Configuration Guide |© 2020 ParcelTools Pty Ltd PAGE 8
Data Format
Source Prefix ON
Inserts Prefix ~ for Dimensional Data and
Prefix ^ for General Data
Prefix Dim & Gen ON
Dim Prefix ON
Inserts Prefix ~ for Dimensional Data
Prefix Dim ON
Gen Prefix ON
Inserts Prefix ^ for General Data
Prefix Gen ON
Source Prefix OFF
Prefix Dim & Gen OFF
The source prefix is used in some applications to identify whether data is dimensional or general.
Using the prefix can help application developers identify and process data received from the device.
C190POS Configuration Guide |© 2020 ParcelTools Pty Ltd PAGE 9
Imperial/Inch Dimensioning Units and Precision
with C190T-U Universal Tape
Units = Inches
Inches-U
Precision = Nearest 1/10"
Tenths
Precision = Nearest 1/4"
Quarters
Precision = Nearest 1/2"
Halves
Precision = Nearest 1"
Nearest Whole
Precision = Next 1"
Next Whole
Scan a unit barcode (inches, metres, centimetres, or millimetres) followed by a precision barcode
(tenths, quarters, halves, nearest/next whole) to set dimensional output.
