CUBETAPE C200 Series Manuel utilisateur
Wireless DefaultsScanner Defaults V2
DEFAULTS AND FACTORY RESET
Factory default settings are:
Connect to Windows host using dongle.
Sleep time 10 minutes.
Units = inches
Output = nearest inch
Sufx DIM = TAB
Sufx GEN = TAB
REFERENCES AND RESOURCES
Return to factory settings anytime by scanning
Scanner Defaults V2 and Wireless Defaults.
Charge Cradle also contains the Shortcuts Code
on base.
For Scan to Pair and NFC pairing options go to
Conguration Guide.
For full manual go to www.cubetape.com /support
ScanStik
User Guide
Shortcuts
SET SUFFIX
Select preferred sufx for use with
Dimensional (DIM) and General (GEN) items.
Additional sufxes and prexes available at
www.cubetape.com /support
SET UNITS AND OUTPUTS
Select preferred units and outputs.
Units=mm and Output 0.1 for model C200S only.
Unit inUnit mm
Output 0.1 Output 0.25 Output 0.5
Unit cm
Output Nearest 1
Sufx Dim CR
Sufx Gen CR
Output Next 1
Sufx Dim TAB
Sufx Gen TAB
C200 Series
Quickstart Guide
Scan Registration QR code or visit
www.cubetape.com /register to register your device.
IN THE BOX
Quickstart Guide ScanStik
C200
RF DongleUSB Cable
Bigfoot
Silicone Tip
Charge Cradle
(if selected)
C200 Series
Quickstart Guide
Scan Registration QR code or visit
www.cubetape.com/register to register your device
IN THE BOX
Quickstart Guide ScanStik
C200
RF DongleUSB Cable
Bigfoot
Silicone Tip
Charge Cradle
(if selected)
HOW TO MEASURE
CHARGE BATTERY:
Insert USB cable in port under ap by the Scan
button and connect to adaptor or if using charge
cradle, connect USB cable and insert C200.
Red LED is ON when charging.
POWER ON C200:
Press the Scan button to power on.
REGISTRATION:
Scan Registration QR code or visit
www.cubetape.com/register
to register your device.

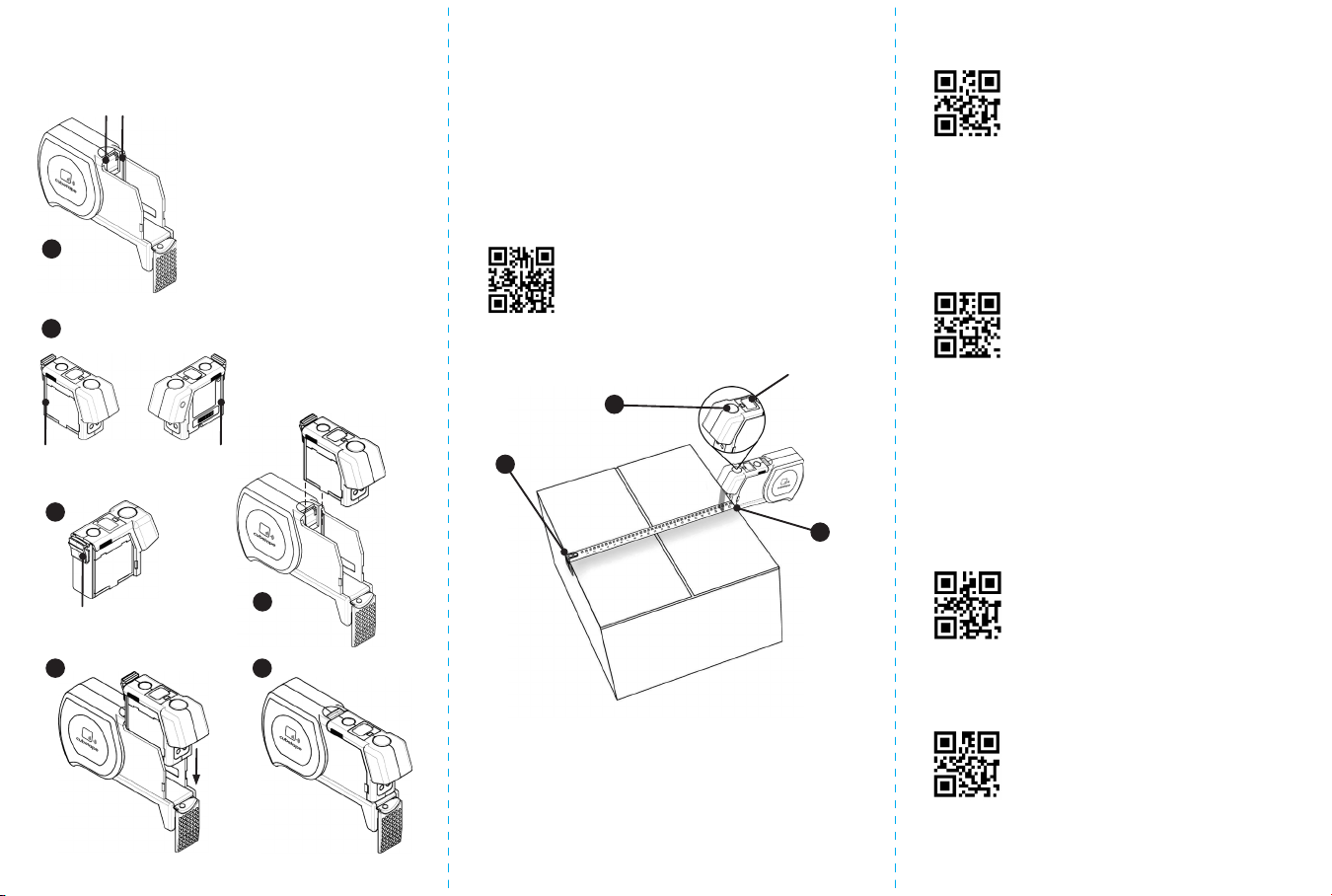

1. The tape cassette has
guide rails on both sides.
2. The C200 Pod has guide
grooves on both sides.
3. Spring latch locks into
the tape cassette.
4. Align grooves and rails.
5. C200 Pod slides down
into the tape cassette.
6. The latch in the C200
Pod locks into the tape
cassette.
ASSEMBLY
Grooves Grooves
Spring Latch
Guide Rails
4
1
3
2
CONNECTING TO HOST
OPTION 1:
Connect to Windows using
RF dongle.
•Scan Pair, LED will ash green.
• Insert dongle in spare Windows
USB port, LED will turn blue
when connected.
• Dimensions and barcodes
will now be sent to the active
Windows app.
OPTION 2:
Connect to Android or Windows
using Bluetooth Direct Mode (HID).
•Scan BT Direct (HID).
•Scan Pair to enter pairing mode.
LED will ash alternately blue and
green. (To cancel pairing mode
press Scan twice).
• Connect Cubetape from Android
or Windows connection menu.
LED will turn blue when connected.
• Dimensions and barcodes will
now be sent to the active app.
OPTION 3:
Connect to 3rd Party Android or
Windows app using Bluetooth
Application Mode (SPP).
• Scan BT App (SPP).
• Refer to 3rd Party Application
Guide.
OPTION 4:
Connect to Android or iOS using
Bluetooth Low Energy (BLE)
• Scan BT BLE.
• Refer to 3rd Party Application
Guide.
USB Port
1
3
2
Scan Button
56
Registration
Pair
BT Direct (HID)
BT App (SPP)
BT BLE
1. Hook the tape end over the far edge of
the package.
2. Align the tape exit point to the near edge
of the package.
3. Press the Scan button to record and transmit
the measurement.
