CUBETAPE C190POS Manuel utilisateur
Quick Start Guide for C190SHP,
C190POS, C190DSK – Page 1
C190SHP, C190 POS, C190 DSK User Guide Page 1
Cubetape
C190 POS
C190DSK
Cradle
C190CRC
USB Cable
www.cubetape.com
Quickstart
Guide
Contents of C190SHP:
Powering On/Off and Bluetooth Pairing:
•Power on Cubetape by pressing and holding m button for 3 seconds
Power off Cubetape by pressing and holding m button for 6 seconds
•To pair with cradle, scan the pairing barcode on the front of the cradle
•Connection is successful when the Blue LED indicators on Cubetape and
the cradle are permanently ON. If the Blue LED indicators continue to
flash, re-scan the Bluetooth pairing barcode on the cradle.
•Cubetape will remain ON while it has an active Bluetooth connection,
otherwise it will power OFF after around 3 minutes
P
airing
barcode
Operaons and Measuring:
√
CORRECT
INCORRECT
x
Extend the tape, press the
‘m’ buon
to scan the barcode
measurement on the tape
•Blue LED indicators are on permanently when
connected
•To scan a barcode ID, press ‘m’
DIP switches beneath cradle:
USB
Cable
PC
Cradle
Installaon:
OFF ON DEFAULT
5(6(59('
COMMS MODE
RESERVED
RESERVED
USB-VPC
--
--
USB-HID
--
--
2))
ON
OFF
OFF
# 2018001
Quick Start Guide for C190SHP,
C190POS, C190DSK – Page 2
www.cubetape.com
Baery Tape
Cassee
Tape
Compartment

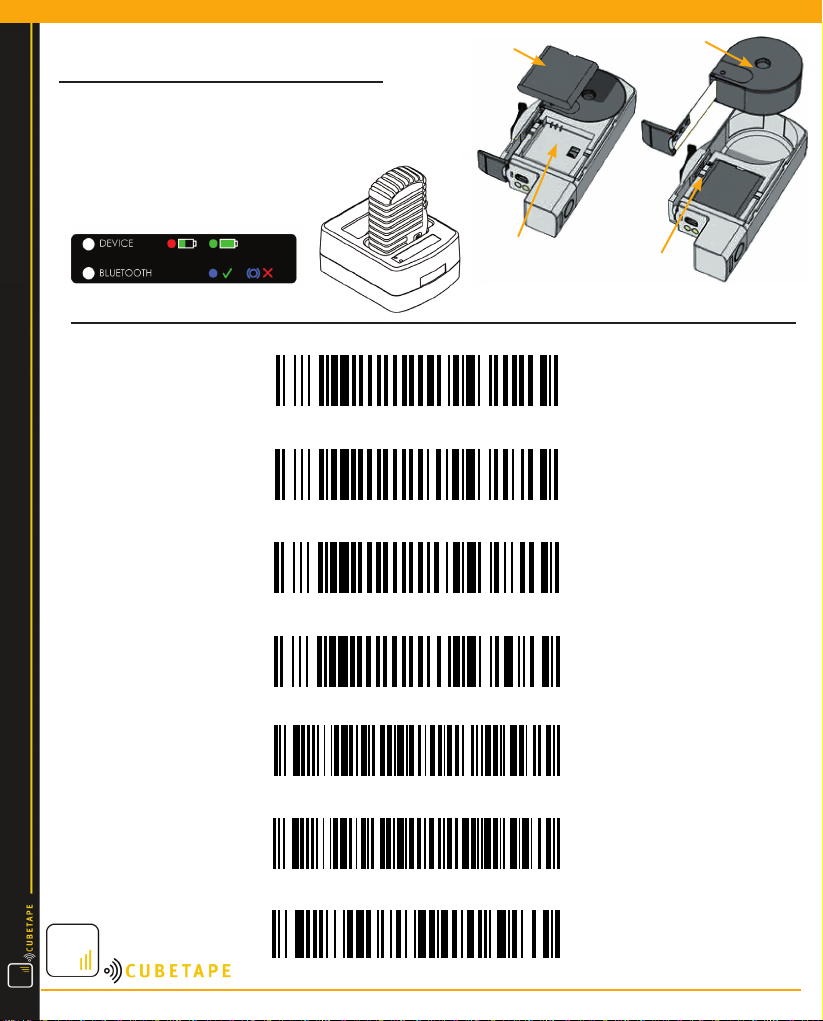

C190POS General Sengs
Sux TAB (Default)
Sux CR
O oor or Inside Measure ON
{G2043/1/ }
Bluetooth Cradle Mode (Default)
Bluetooth SPP Mode
Bluetooth HID Mode
Bluetooth Reset
00000058
00000008
00000038
00000007
www.cubetape.com/documents/C190POS-user guide
C190SHP, C190 POS, C190 DSK User Guide Page 2
Place device in the cradle
Low baery warning will signal with ĂŵďĞƌ
>ĨůĂƐŚ and ĂŵďĞƌ LED on cubetape will be
solid when charging
Charging:
Device LED
RED KE- CUBETAPE charging
ZK&&ͲhdWĐŚĂƌŐĞĚ
Baery
Compartment
FCC STATEMENT :
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Warning: Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving an tenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
-English: "
This device complies with Industry Canada licence-exempt RSS standard(
s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that
may cause undesired operation of the device."
-French:"
Le présent appareil est conforme aux CNR d'Industrie Canada applicables
aux appareils radio exempts de licence. L'exploitation est autorisée
aux deux conditions suivantes :
(1) l'appareil nedoit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement."
