IMPORTANT:

READ SAFETY RULES AND INSTRUCTIONS CAREFULLY

CUB CADET LLC P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 [www.cubcadet.com]

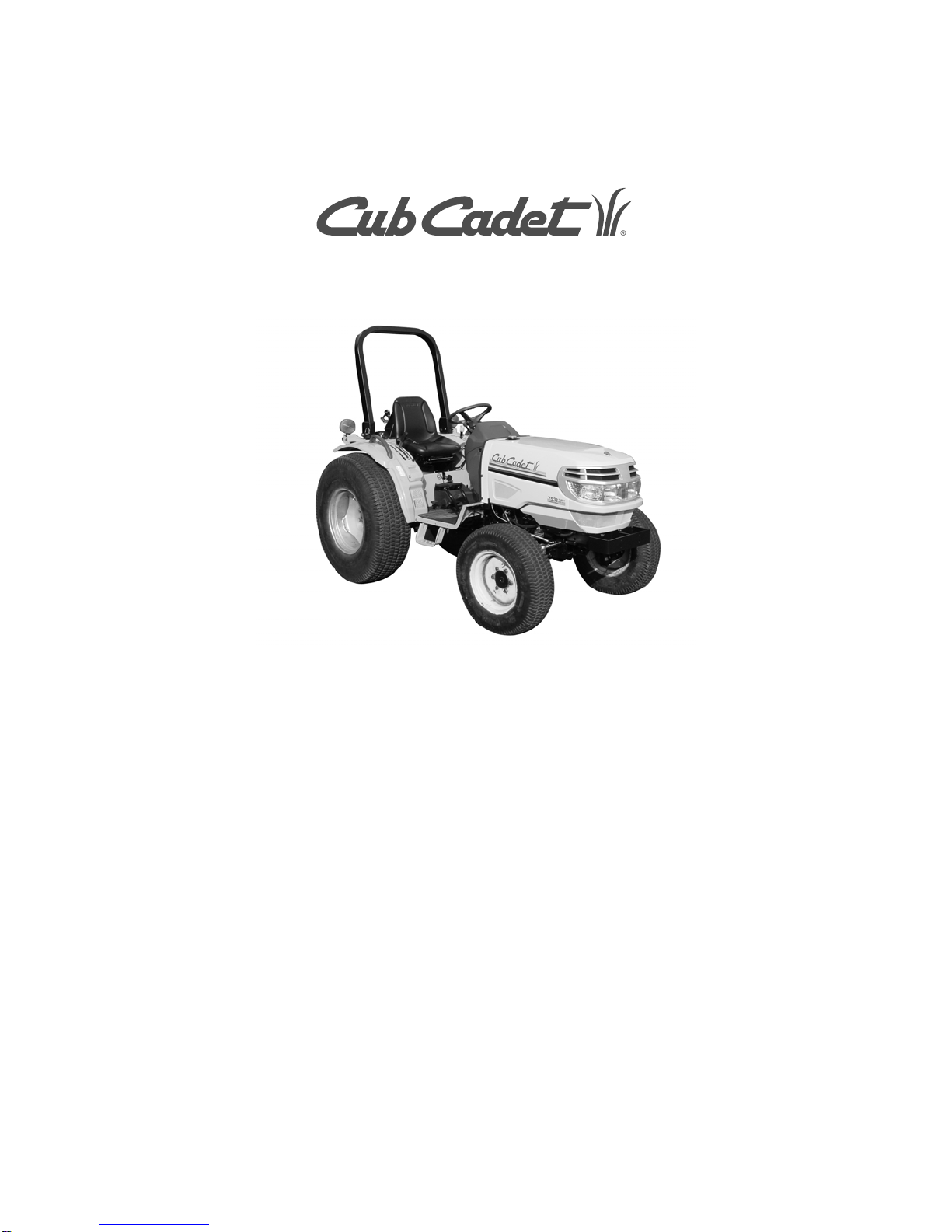

OPERATOR’S MANUAL

COMPACT TRACTOR

Model Numbers

SERIES 7000

7530

7532

PRINTED IN U.S.A. FORM NO. 769-01060

(1/04)

Emission Related System Defect Warranty

Manufacturer Statement

Manufacturer Statem

Mitsubishi Heavy Industries, ltd. (MHI) will give a warranty condition, required by the

U.S. Environmental Protection Agency(EPA) and the California Air Resource

Board(CA RB) to Original Equipment Manufacturers (OEMs) for small off-road engines

purchased in 1997 and later which are used in U.S.A.

It is the OEMs responsibility to give the following warranty to the end-users for small

off-road engines purchased in 1997 and later which are used in U.S.A.

The manufacturer of MHI small off-road engines has authorized equipment

manufacturers to be th e direct cont act for all warranty and service related questions

and/or repairs. All inquiries should be di rect ed to equipment manufacturers only.

Em issio

issio

nCo

ntrol Warranty Statement

ntr

Applicable only to engines purchased in U.S.A. in 1997 and thereafter which are used

in U.S.A. .

EPA emission control defects warranty statement – Your ( Customer) defects warranty

rights and obligations:

EPA and Mitsubishi Heavy Industries, Ltd. are pleased to explain the emission control

system warranty on your 1997 and later small off-road engine. In U.S.A., new small

off-road engines must be designed, built and equipped to meet the EP A stringent

anti-smog s tandards. Mitsubishi Heavy Industries, Ltd. must warrant the emission

control system on your small off-road engine for the periods of time listed below,

pr ovided there has be en no abuse, neglect or imp r oper maintenance of your small

off-road engine.

Where a warrantable condition exists, the (OEMs) will repair your small off-road

engine at no cost to you i ncluding diagnosis, parts and labor.

Off-Road Diesel Engine

Emission Control SystemWarranty Statement

Manufacturer

Manufacture

’s Emission Control Warranty Coverage

Applicable only to engines purchased in U.S.A. in 1997 and thereafter which are used

in U.S.A.

Emission control systems warranty coverage.

The small off-road engines are warranted as to emission control parts defects for a

period, which is prescribed by US EPA CFR Part 89, subject to provisions as set forth

hereafter . If any covered part on your engine is defective, the part will be repaired by

(OEMs).

Owner ’s warran

s warra

ty responsibility

As the sma ll off-road engine owner , you ar e responsible for the performance of the

required maintenance listed in your owner ’s manual. (OEMs) recommends that you

retain all receipts covering maintenance on your small off-road engine. But (OEMs)

cannot deny warranty solely for the lack of receipts or for your failure to ensure t he

performance of all scheduled maintenance.

As the small off-road engine owner, you should be aware, howe ver, that OEMs may

deny you warranty coverage if your small off-road engine or a part has failed due to

abuse, neglect, improper maintenance or unappr oved modifications.

You are responsible for pr esenting y our small off-road engine to an authorized service

dealer (authorized by OEMs) of small off-road engines as soon as a problem exists. The

undisputed warranty repairs should be completed in a reasonable amount of time, not

to exceed 30 days. If you have any questi on regarding your warranty rights and

responsibilities, you should contact (CUB CADET) at 1-330-273-4550. The emissi on

warranty is a defects warranty. Defects are jud ged on nor mal engine perf ormance.

The warranty is not rela ted to an in-use emission test.

Specific W

ecific W

arranty Provisions

The following are specific provisions relative to your emissions control systems

warranty coverage.

Warr

anted Parts

Coverage under this warranty extends only to the parts listed below (the emission

control systems parts) to the extent these parts w ere present on the engine purchased.

Fuel injection system

Fuel injection pump

Fuel inj ectors

Inlet system

Intake manifold

Exhaust system

Exhaust manifold

Turbocharger system

Turbocharger (it equipped)

Miscellaneous items used in above systems

Cylinder Head Gasket

Valve Stem Seal

Length of Coverage

MHI warrants to the initial owner and each subsequent purchaser that the warranted

parts shall be free from defects in materials and workmanship which cause the failure

of the warranted part(s) for a period, which is prescribed by US EP A CFR Part 89,

from the date the engin e is delivered to a retail purchaser.

For all engines rated under 19kW and for constant speed engines rated under 37kW

with rated speeds greater than or equal to 3,000 rp m, the warranty period is

3,000 hours or 5 years of use, whichever first occurs.

For all other engines rated at or above 19kW, the warranty period is 5,000 hours or 7

years of use, whichever f irst occurs.

No Charge

Repair or replacement of any warranted part will be performed at no charge to the

owner, including diagnostic labor which leads to the determination that a warranted

part is defective, if the diagnostic work is perfor med at an authorized service d ealer of

small off-road engines to whom OEM s would sell engines.

Claims an

dCoverage Exclus

Coverage Exclus

ions

Warranty claims shall be filled in accordance with the provisions of the OEMs engine

warranty policy . Warrant y coverage shall be excluded for failures of warr anted parts

which are not or iginal OEMs parts or because of abuse, neglect or i mpr oper

maintenance as s et forth in the OEMs engi ne warranty policy . OEMs is not liable to

cover failures of warranted parts caused by the use of add-on, non-original, or modified

parts.

Maintenance

Any warranted part which is not scheduled for rep lacement as required maintenance

or which is scheduled only for r egular inspection to the effect of “repair or replace as

necessary” shall be warranted as to defects for the warranty period. Any warranted

part which is scheduled for replacement as required maintenance shall be warranted

as to defects only of the period of time up to t he first scheduled replacement for that

part. Any replacement part that is equivalent in performance and durability may be

used in the performance of any maintenance or repairs. The owner is responsible for

the p erformance of all required mai ntenance, as defined in t he MHI owner ’s manual.

Conse

quential Coverage

uential Coverage

Coverage hereunder sha ll extend to the failure of any engine components caused by

the failure of any warranted part still under warranty.

INTRODUCTION

This instruction manual contains information on the operation, lubrication

and maintenance of your tractor. The information contained is

comprehensive and essential, and is designed to assist you, even if

unexperienced, in utilizing your tractor.

How well your tractor continues to give satisfactory performance depends

greatly upon the manner in which it is operated. It is, therefore, requested

that this manual be read carefully and kept ready for use so that the

operation and maintenance service will properly be carried out in order to

keep the tractor in top mechanical condition at all times.

Should any information as to your tractor be required, consult your local

dealer or distributor stating the machine and engine serial numbers of the

tractor concerned. We are sure you will be happy with your tractor.

NOTE: Expressions such as LEFT, RIGHT, FRONT, or REAR used in this

manual should be understood in accordance with following rules:

FRONT means the front grill end while REAR means the lifting arm end of

the tractor. LEFT or RIGHT means the left or right hand side of the tractor

looking forward from operator’s seat.

REAR

RIGHT

LEFT

FRONT

TURN RIGHT TURN LEFT

SERIAL NUMBERS

Write your machine Model Name and Serial Numbers of major components

on the lines provided. If needed, give these numbers to your dealer when

you need parts or information for your machine.

1. TRACTOR MODEL NAME

2. TRACTOR SERIAL NUMBER

3. ENGINE SERIAL NUMBER

4. ROPS SERIAL NUMBER

SERIAL NUMBER LOCATIONS

ROPS SERIAL NUMBER PLATETRACTOR MODEL NUMBER AND

SERIAL NUMBER PLATE

ENGINE SERIAL NUMBER

III

GENERAL TABLE OF CONTENTS

Safety/Decals 1~13

Specifications 14~18

Instruments/Controls 19~35

Operating Instructions 36~54

Field Operation 55~64

Tires/Wheels/Ballast 65~75

Lubrication/Filters/Fluids 76~103

Maintenance/Adjustments 104~109

Electrical System 110~116

Storage 117~118

SAFETY/DECALS

SAFETY PRECAUTIONS

Improper handling of the tractor could cause an accident. Prior to the

operation of the tractor, be sure to read this Manual carefully and have

a thorough understanding of all of the contents. In particular, the instructions

given in this section entitled “Safety Precautions” must be strictly followed.

REMEMBER: “SAFETY” IS ONLY A WORD UNTIL IT IS PUT INTO

PRACTICE

A. GENERAL OPERATING

SAFETY PRECAUTION

1. Observe all the safety

precautions in this manual

when operating the tractor.

2. Operate the tractor while

wearing tight clothing that

allows easy movement.

Avoid loose jackets, mufflers, ties,

scarves, or loose shirt

sleeves to prevent from being

caught by moving parts.

3. Always work when you are in

good physical condition by

taking sufficient rest to avoid

overwork.

4. Do not allow children or adults

having no knowledge of the

tractor or tractor operation,

to operate the tractor.

B. BASIC SAFETY REQUIREMENTS

FOR MAINTENANCE

Always follow these maintenance

instructions before operating

the tractor:

1. Immediately repair the head

lights and work lamps required

to conform to traffic regulations

where the tractor is operated.

2. Keep tractor steps clean to

avoid accidents due to

slippage.

5. Never allows riders on the

tractor, linkage drawbar or

attachment while traveling

and operating them.

SAFETY/DECALS

3. Cover the PTO shaft with a guard

when not using.

4. Be sure to engage the brake and

lower any attachment or implement

before disassembling any part.

5. Never adjust or service the tractor

when it is in motion or while the

engine is running. Always adjust

the brake or clutch properly in

accordance with the adjusting

procedure in the instruction book.

7. Hydraulic oil or fuel escaping

under pressure can penetrate

the skin, causing serious injury.

Before disconnecting oil or fuel

lines, be sure to relieve all pressure.

Before restoring pressure after

repair, be sure all connections are

tight and all hydraulic components

are in normal condition. If injured

by leaked fluid, see a doctor

immediately for proper treatment.

6. Do not remove the radiator cap

while the engine is running.

Shut down the engine and wait

until it cools sufficiently. For

removal, turn the cap to the first

stop to relieve pressure.

To replace the coolant, use the

coolant recovery tank.

8. When refueling, be particularly

careful first to stop the engine

completely to prevent the fuel

from igniting. Never refuel in the

presence of an open flame or

while smoking.

Autres manuels pour 7530

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Cub Cadet Tracteur

Cub Cadet

Cub Cadet 2166 Manuel utilisateur

Cub Cadet

Cub Cadet 3225 Manuel utilisateur

Cub Cadet

Cub Cadet GT 2544 Manuel utilisateur

Cub Cadet

Cub Cadet RZT 50 (w/50" Mower Deck) Manuel utilisateur

Cub Cadet

Cub Cadet 14W-3GEC010 Manuel utilisateur

Cub Cadet

Cub Cadet Yanmar Ex32002 Fiche technique

Cub Cadet

Cub Cadet 2146 Manuel utilisateur

Cub Cadet

Cub Cadet Yanmar SC2400 Manuel utilisateur

Cub Cadet

Cub Cadet Pro Z Series 900 Lapbar Manuel utilisateur

Cub Cadet

Cub Cadet 33 27JD Series Manuel utilisateur

Cub Cadet

Cub Cadet Domestic Series 5000 Manuel utilisateur

Cub Cadet

Cub Cadet Yanmar Sx3100 Fiche technique

Cub Cadet

Cub Cadet Ultima ZT Series Manuel utilisateur

Cub Cadet

Cub Cadet 108 Manuel utilisateur

Cub Cadet

Cub Cadet GT 2554 Manuel utilisateur

Cub Cadet

Cub Cadet GT 2000 Manuel utilisateur

Cub Cadet

Cub Cadet 17WI2ACK056 Manuel utilisateur

Cub Cadet

Cub Cadet 2130 Manuel utilisateur

Cub Cadet

Cub Cadet GT 2550 Manuel utilisateur

Cub Cadet

Cub Cadet 2166 Manuel utilisateur

Cub Cadet

Cub Cadet Domestic Series 7000 Manuel utilisateur

Cub Cadet

Cub Cadet 7252 Manuel utilisateur

Cub Cadet

Cub Cadet 1572 Manuel utilisateur

Cub Cadet

Cub Cadet 2072 Manuel utilisateur

Manuels Tracteur populaires d'autres marques

Ariens

Ariens 936051 Manuel utilisateur

MacDon

MacDon M150 Manuel utilisateur

Belarus

Belarus 3522.5 Manuel utilisateur

CARRARO

CARRARO Vigneto Manuel utilisateur

GREMO

GREMO 1250F Manuel d'instructions

HATTAT

HATTAT A90 Manuel utilisateur

Kubota

Kubota WSM STV32 Manuel d'instructions

Kubota

Kubota M108DC Manuel utilisateur

Case

Case 385 Diesel Guide d'installation

AL-KO

AL-KO Heritage RS 14/82 Manuel utilisateur

Webb

Webb WE1742SD Manuel utilisateur

MacDon

MacDon 9250 Manuel utilisateur

Toro

Toro 03200 Reelmaster 3100-D Manuel utilisateur

MASSEY FERGUSON

MASSEY FERGUSON 5400 Series Manuel utilisateur

Kubota

Kubota T1880 Manuel utilisateur

Case

Case JX 90 Manuel utilisateur

Iseki

Iseki TXG23 Manuel utilisateur

Toro

Toro 25429 Manuel utilisateur
