CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019

PRINTED IN U.S.A.

PARTS MANUAL

i1046 & i1050/Series i1000 SECTION HM12

Zero Turn Riding Mower

Models

i1046

i1050

769-02740

12/2006

i1046 & i1050/Series i1000 SECTION HM12

25 15

19 34

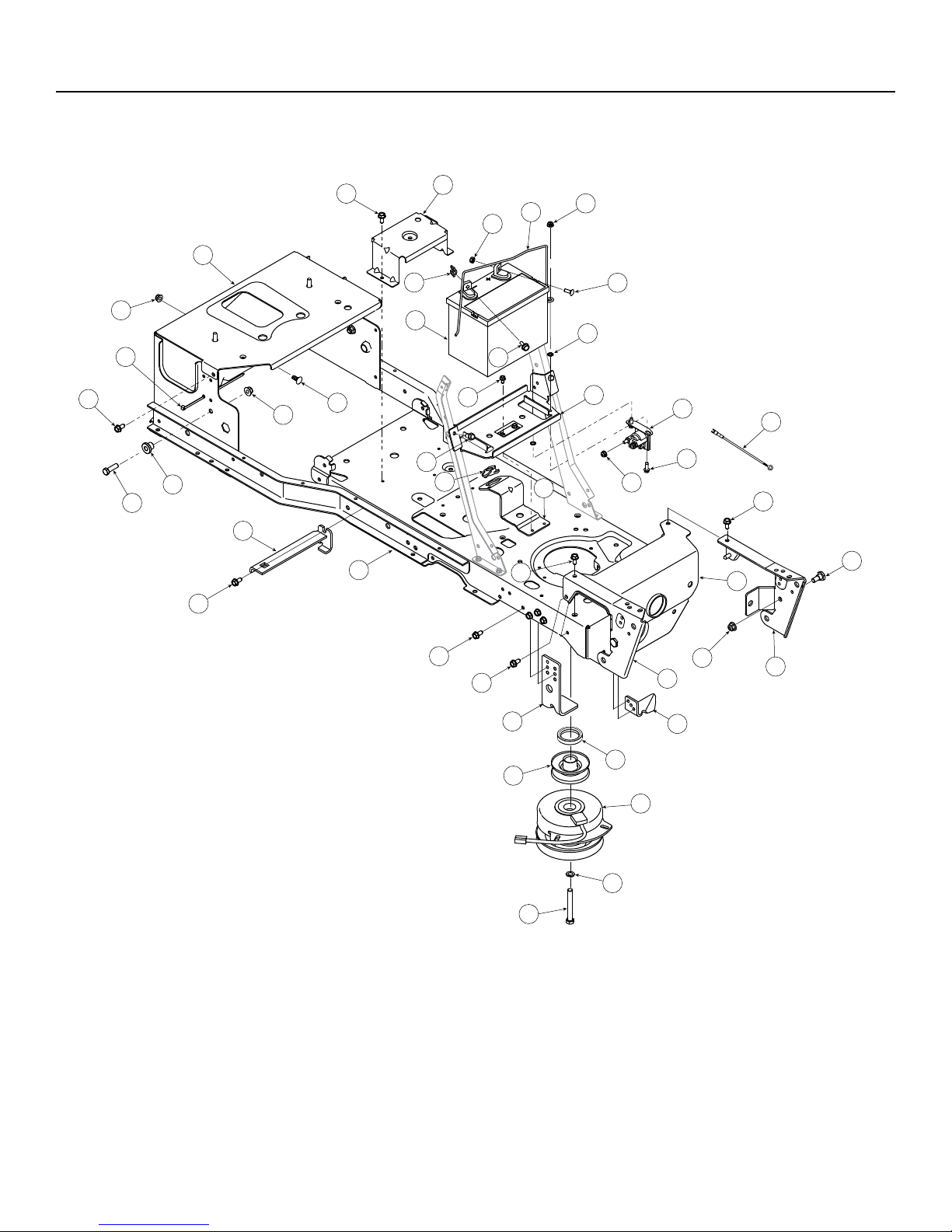

Frame, PTO & Battery

i1046 & i1050/Series i1000 SECTION HM12

Ref.

No.

Part No. Description

1 683-04305 Frame Assembly

2 683-04333 Frame Assembly, Seat

3 683-04351 Bracket, Running Board Support

4 710-0451 Screw, Carriage, 5/16-18 x .75 Gr.1

5 710-0599 Screw, Hex Wash. Hd. Tapp, 1/4-20 x .5

6 710-04666 Screw, Hex Flange Hd. , 1/4-20 x .75 Gr5

7 710-0726 Screw, Hex Wash. Hd. Tapp, 5/16-12 x .75

8 710-0642 Screw, Hex Wash. Hd. Tapp, 1/4-20 x .75

9 710-04379A Screw, Hex Cap Lock, 7/16-20 x 3.5 Gr5

10 710-1260A Screw, Hex Wash. Hd. Tapp, 5/16-18 x .75

11 710-3005 Screw, Hex Cap, 3/8-16 x 1.25 Gr5

12 712-0271 Nut, Hex Sems, 1/4-20

13 712-3087 Nut, Wing, 1/4-20

14 712-04063 Nut, Hex Flange Insert Lock, 5/16-18

15 712-04064 Nut, Hex Flange Insert Lock, 1/4-20 GrF

16 712-04065 Nut, Hex Flange Insert Lock, 3/8-16 GrF

17 717-04174A Clutch, Electric PTO

18 725-04439 Solenoid, Start

19 731-05659 Bushing, Steering Shaft

20 736-0171 Washer, Lock, 7/16

Ref.

No.

Part No. Description

21 736-0222 Washer, External Lock, 1/4

22 738-0143 Bolt, Shoulder, .496 x .336:3/8-16

23 738-1132 Screw, Shoulder, .25 x .15:1/4-20

24 738-04058 Screw, Shoulder, .38 x 1.0 x .7

25 747-04215 Strap, Battery

26 750-04763 Spacer, 1.37 x 1.00 x .25

27 756-0978B Pulley, Engine

28 783-1447C Bracket, Battery Support

29 783-04419B Bracket, Clutch

30 783-04467 Bracket, Deck Up Stop

31 783-04806 Bracket, Pivot Bar

32 783-04844 Bracket, Pivot Support RH

33 783-04845 Bracket, Pivot Support LH

34 783-4868 Bracket, Steering Support

35 783-04910 Bracket, Support Fender

36 925-1707D Battery - Dry

37 725-04513 Wire, Ground Jumper

38 725-0157 Cable Tie

725-04375A Harness, Main Wire

Frame, PTO & Battery

i1046 & i1050/Series i1000 SECTION HM12

21 3

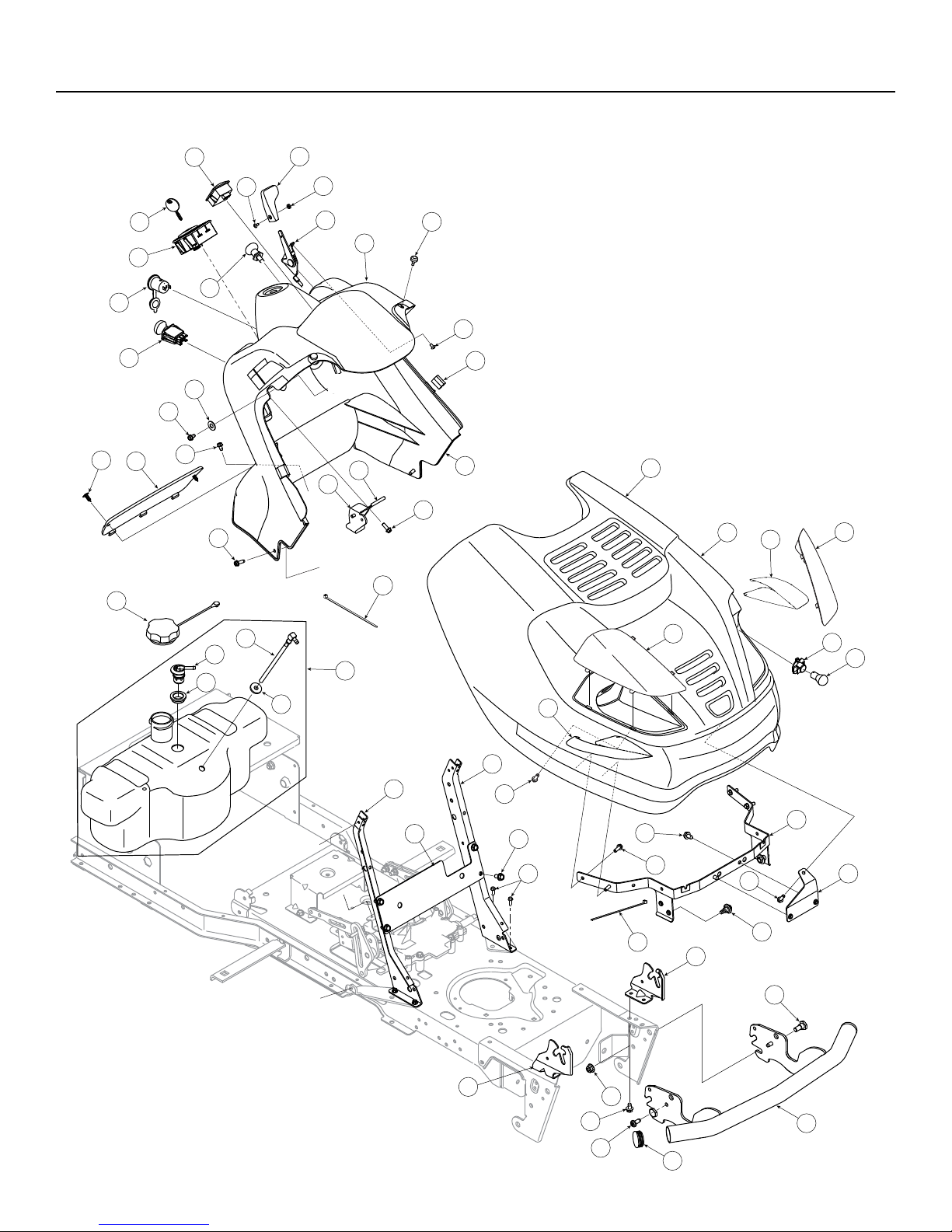

Hood, Dash Panel & Fuel Tank

i1046 & i1050/Series i1000 SECTION HM12

Ref.

No.

Part No. Description

1 683-04219A Bumper Assembly

2 710-0192 Screw, Truss Hd. Mach., 10-24 x .375

3 710-0599 Screw, Hex Wash Hd. Tapp, 1/4-20 x .5

4 710-0604A Screw, Hex Wash Hd. Tapp, 5/16-18 x .625

5 710-0607 Screw, Hex Wash Hd. Tapp, 5/16-18 x .5

6 710-0642 Screw, Hex Wash Hd. Tapp, 1/4-20 x .75

7 710-0726 Screw, Hex Wash Hd. Tapp, 5/16-12 x .75

8 710-0895 Screw, Hex Wash Hd. Tapp, 1/4-15 x .75

9 710-1611B Screw, Pan Hd. Tapp, 5/16-18 x .75

10 710-3217 Screw, Truss Hd. Mach., #8-32 x .375

11 712-0142 Nut, Hex, 8-32

12 712-04065 Nut, Hex Flange Insert Lock, 3/8-16 GrF

13 725-0157 Tie, Cable

14 725-0963 Bulb, 12V Light

15 725-01649 Receptacle, Light

16 725-2003 Receptacle, 12V Power

17 725-2054 Key, Ignition Switch

18 725-04022B Meter, Indicator/Service Monitor

19 725-04258 Switch, PTO

20 725-04227 Switch, Ingition/Module

21 726-3046 Clip, Ratchet

22 731-04213 Lever, Dash Brake

23 731-05368 Cap, Bumper

24 731-05406 Panel, Dash

25 731-05434 Hood

26 731-05435 Plenum, Hood

27 731-05525 Lense, Head Light LH

Ref.

No.

Part No. Description

28 731-05526 Lense, Head Light RH

29 731-3161A Knob, Throttle Control

30 735-0271A Bumper

31 735-04075 Deﬂector, Rubber Hood

32 735-04076 Net, Storage

33 736-0463 Washer, Flat, .25 x .63 x .0515

34 738-01434 Bolt, Shoulder, .496 x .336:3/8-16

35 738-04091 Screw, Shoulder, .43 x .29:TT5/16-18

36 746-1100 Cable, Throttle Control

37 746-04120 Cable, Choke Control

38 747-1155 Rod, Brake Lock Pivot

39 777X42426 Label, Reﬂector

40 777X42427 Label, Reﬂector

41 783-04285D Support, Dash, R.H.

42 783-04323D Support, Dash, L.H.

43 783-04506A Plate, Dash Support

44 783-04606B Bracket, Hood Pivot

45 783-04840 Bracket, Hood Pivot RH

46 783-04841 Bracket, Hood Pivot LH

47 783-05162 Bracket, Hood Support

48 651-04174 Tank Assembly, Fuel

49 735-0149 Bushing, Fuel Tank

50 735-04081 Grommet, Rubber

51 751-10441 Valve, Rollover

52 751-10442 Fitting, Fuel Pick Up

53 751-10447 Cap, Fuel Tank

Hood, Dash Panel & Fuel Tank

i1046 & i1050/Series i1000 SECTION HM12

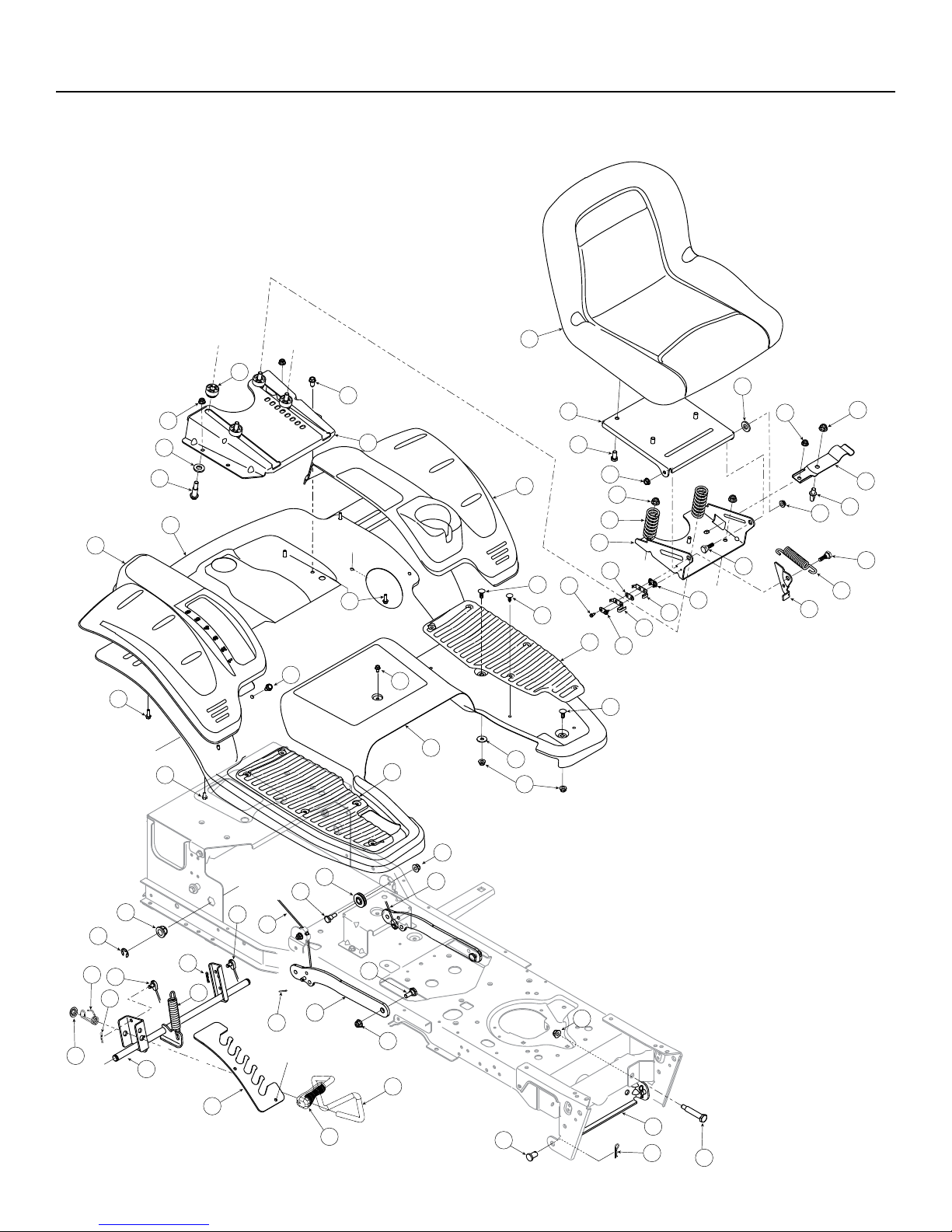

Seat, Fender & Deck Lift

12 11

i1046 & i1050/Series i1000 SECTION HM12

Ref.

No.

Part No. Description

1 17239D Bracket, Seat Switch

2 647-04095 Shaft, Lift

3 683-04313 Seat Slide

4 710-04482 Screw, Hex Flange, 3/8-16 x .875 Gr5

5 710-1260A Screw, Hex Wash Hd. Tapp, 5/16-18 x .75

6 710-0451 Screw, Carriage, 5/16-18 x 75

7 710-0599 Screw, Hex Wash Hd. Tapp, 1/4-20 x .5

8 710-0726 Screw, Hex Wash Hd. Tapp, 5/16-12 x .75

9 710-0895 Screw, Hex Wash Hd. Tapp, 1/4-15 x .75

10 711-0332 Pin, Clevis, .5 x .78

11 711-04626 Pin, Seat Index

12 712-04063 Nut, Hex Flange Insert Lock, 5/16-18 GrF

13 712-04065 Nut, Hex Flange Insert Lock, 3/8-16 GrF

14 710-04187 Screw, Hex Wash Hd. H/L, 1/4-15 x .5

15 714-0104 Pin, Internal Cotter

16 714-0111 Pin, Cotter, 3/32 x 1.0

17 714-04023 Pin, Internal Cotter

18 716-0106A E-ring, .625 Shaft

19 720-0311 Grip, Handle

20 726-3046 Clip, Ratchet

21 731-04074 Spacer, Seat Adjustment

22 731-05477 Cover, Rear Fender RH

23 731-05518 Cover, Rear Fender LH

24 732-04074 Spring, Compression

25 732-04386 Spring, Seat Adjust

26 732-04442 Spring, Lift Torsion

27 732-0826A Spring, Extension, .865 x 4.68

28 732-1184 Spring, Extension, .84 x 4.6

Ref.

No.

Part No. Description

29 735-04078 Pad, Foot RH

30 735-04079 Pad, Foot LH

31 726-0221 Nut, Speed, .5

32 736-0272 Washer, Flat, .51 x 1.0 x .06

34 736-0192 Washer, Flat, .535 x .93 x .09

35 736-3078 Washer, Flat, .344 x 1.0 x .063 HT

36 738-0138A Bolt, Shoulder, .496 x 2.5:3/8-16

37 738-0380 Bolt, Shoulder, .5 x .27:3/8-16

38 738-0966A Bolt, Shoulder, .5 x .925:3/8-16

39 738-1011A Bolt, Shoulder, .5 x 2.23:3/8-16

40 738-0296 Bolt, Shoulder, .447 x .268:5/16-18

41 741-0225 Bearing, Hex Flange,

42 746-04369 Cable, Lift, 16.16 Lg

43 746-0968 Cable, Lift, 16.16 Lg

44 747-04613 Handle, Lift

45 756-1154 Pulley, Roller

46 757-04053 Seat, High Back

47 783-0678B Link, Deck Lift

48 783-0720C Bracket, Front Deck Adjust

49 783-04901 Fender, Rear

50 783-04977A Plate, Deck Lift

51 783-05307 Pedesta, Seat

52 783-05272 Plate, Seat Pivot

53 710-0227 Screw, Hex Wash Hd.Tapp, #8-18 x .5

54 726-0279 Plate, Insulator

55 725-1303 Switch, Outer Seat Spring

56 725-1439 Switch, Inner Seat Spring

57 726-0278 Plate, Insulator Boss

Seat, Fender & Deck Lift

i1046 & i1050/Series i1000 SECTION HM12

1313

70 51

47 30

44 59

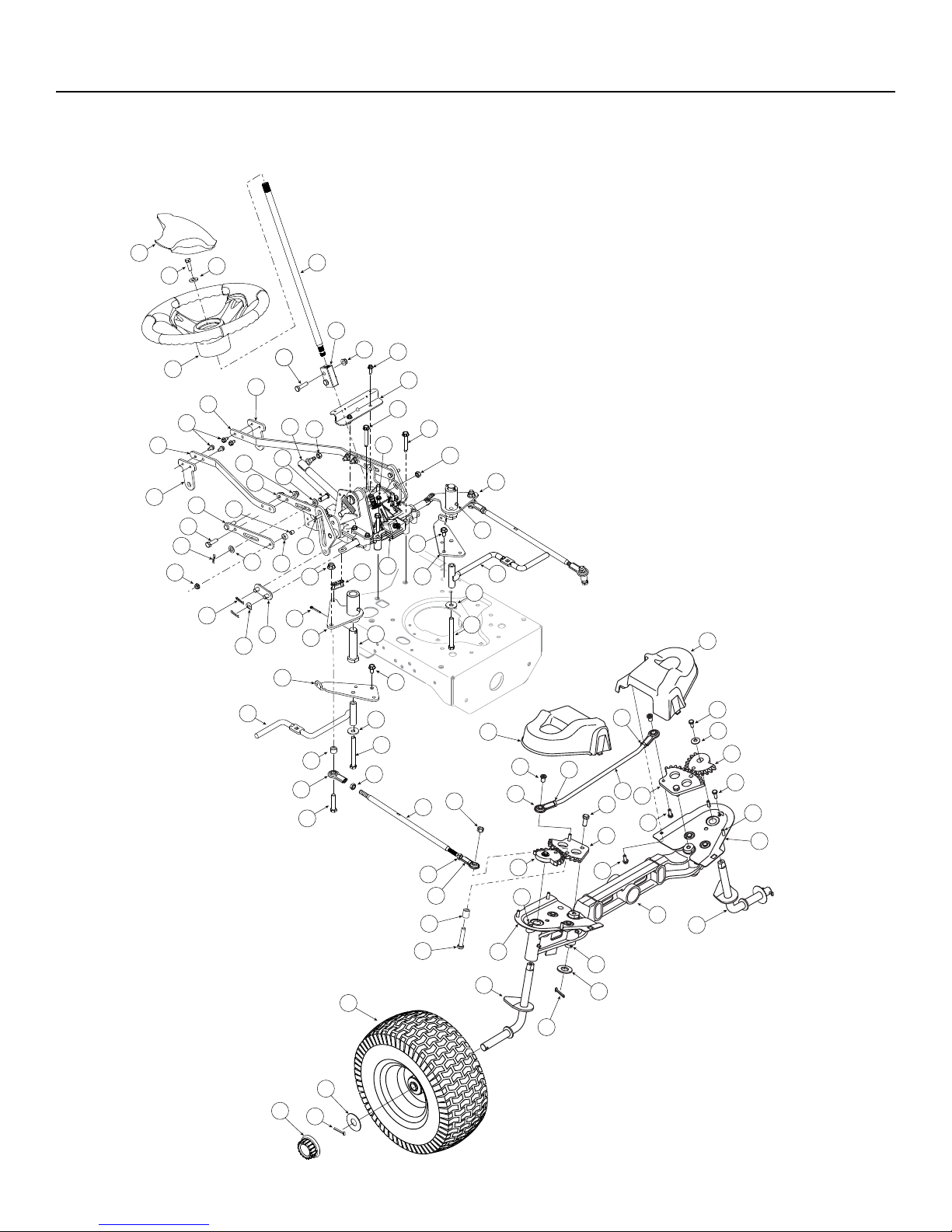

Steering Controls & Front Axle

i1046 & i1050/Series i1000 SECTION HM12

Ref.

No.

Part No. Description

1 618-04430 Steering Assembly, Steering/Hydro

2 631-04008A Wheel Assembly, Steering

3 634-04165

734-1731

737-0224

941-04137

934-0255

Wheel Assembly

Tire, 15 x 6 x 6

Grease Fitting

Bearing, Ball

Valve, Tubeless Air

4 647-04062 Axle Assembly, LH

5 647-04063 Axle Assembly, RH

6 647-04080A Rod, Fender Support

7 710-0599 Screw, Hex Wash Hd. Tapp, 1/4-20 x .5

8 683-04282A Arm, Steering, RH

9 683-04284A Arm, Steering, LH

10 683-04332 Link, Steering Box/Hydro

11 710-0597 Screw, Hex Cap, 1/4-20 x 1.0 Gr5

12 710-0195 Screw, Hex Cap, 1/4-28 x .625 Gr5

13 710-0528 Screw, Hex Cap, 5/16-18 x 1.25 Gr5

14 710-0642 Screw, Hex Wash Hd.Tapp, 1/4-20 x .75

15 710-0650 Screw, Hex Wash Hd.Tapp, 5/16-18 x .875

16 710-04187 Screw, Hex Wash Hd. Hi/Lo, 1/4-15 x .5

17 710-3015 Screw, Hex Cap, 1/4-20 x .75 Gr5

18 710-0520 Screw, Hex Cap, 3/8-16 x 1.5 Gr5

19 710-3085 Screw, Hex Cap, 3/8-16 x 3.5 Gr5

20 710-3119 Screw, Hex Cap Lock, 3/8-16 x .75 Gr5

21 710-3144 Screw, Hex Cap, 3/8-16 x 2.0 Gr5

22 710-3296 Screw, Hex Cap Lock, 1/4-20 x .75 Gr5

23 710-04006 Screw, Hex Wash Hd. Tapp, 5/16-18 x 2.0

24 710-04389 Screw, Hex Wash Hd. Tapp, 5/16-18 x 2.25

25 710-1260A Screw, Hex Wash Hd.Tapp, 5/16-18 x .75

26 711-04722 Pin, Clevis, .375 x .969 HT

27 711-04472 Link, Drag

28 711-04562 Shaft, Steering Pivot Gear

29 712-0312A Nut, Jam, 3/8-24 LH Thrd

30 712-0365 Nut, Hex Lock, M8 x 1.25 Gr9

31 712-0375 Nut, Hex Lock, 3/8-16

32 712-04063 Nut, Hex Insert Flange Lock, 5/16-18 GrF

33 712-04064 Nut, Hex Insert Flange Lock, 1/4-20 GrF

34 712-04065 Nut, Hex Insert Flange Lock, 3/16-16 GrF

35 712-3001 Nut, Hex Jam, 3/8-24 Gr2

Ref.

No.

Part No. Description

36 713-04037 Link, Connnecting

37 714-0104 Pin, Internal Cotter

38 736-0286 Washer, Sping, .39 x .75 x .010

39 714-04039 Pin, Cotter, 5/32 x 1.25

40 717-04274 Gear, Spur, 12T

41 717-04275 Gear, Spur, RH 13T

42 717-04282 Gear, Spur, LH 13T

43 719-04170 Axle, Pivot Bar

44 723-04035 End, Ball Joint Rod

45 723-04036 End, Ball Joint Rod, LH Thrd.

46 737-3000 Fitting, Grease

47 727-0626A Cylinder, Damper

48 731-04532 Cover, Steering Wheel

49 731-05476 Cover, Steering Gear, RH

50 731-05618 Cover, Steering Gear, LH

51 736-0185 Washer, Flat, .375 x .738.063

52 736-0270 Washer, Bell, .265 x .75 x .062

53 736-0315 Washer, Flat, .76 x 1.5 x .12

54 736-0866 Washer, Flat, .755 x 1.92 x .060

55 736-0452 Washer, Bell, .396 x 1.14 x .095

56 736-3004 Washer, Flat, .406 x .875 x .105

57 738-04189 Shaft, Steering, .625 x 17.281

58 738-04240 Nut, Shoulder, .375 x .5

59 747-04496 Rod, 3/8-24 x 14.4 Lg

60 748-04139 Block, Steering Shaft

61 750-04676 Spacer, .385 x .63 x .75

62 750-04776 Spacer, .380 x .625 x .265

63 750-04777 Spacer, .26 x .372 x .33

64 783-04798 Bracket, Steering Support, LH

65 783-04799 Bracket, Steering Support, Upper

66 783-05140 Bracket, Steering Support, RH

67 783-05184 Plate, Base Cover, RH

68 783-05185 Plate, Base Cover, LH

69 783-05380 Link, Steering/Hydro RH

70 783-05381 Bracket, Hydro/Steering Adjustment

71 783-05404 Link, Steering/Hydro LH

72 783-05446 Bracket, Steering Link

73 731-3020 Hub Cap

Steering Controls & Front Axle

i1046 & i1050/Series i1000 SECTION HM12

42 56

Transmission Drive & Controls

Autres manuels pour i1046

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Cub Cadet Tondeuse à gazon

Cub Cadet

Cub Cadet 1863 Manuel de référence

Cub Cadet

Cub Cadet Z-Force 54-KH Manuel utilisateur

Cub Cadet

Cub Cadet 2160 Manuel utilisateur

Cub Cadet

Cub Cadet 379 Manuel utilisateur

Cub Cadet

Cub Cadet 1430 Manuel utilisateur

Cub Cadet

Cub Cadet 394 50" MOWER DECK Manuel utilisateur

Cub Cadet

Cub Cadet 7232 D Manuel utilisateur

Cub Cadet

Cub Cadet S979 Manuel utilisateur

Cub Cadet

Cub Cadet 1525 Manuel utilisateur

Cub Cadet

Cub Cadet SRA 621 Manuel utilisateur

Cub Cadet

Cub Cadet RZT 54 (w/54" Mower Deck) Manuel utilisateur

Cub Cadet

Cub Cadet GT1554 Manuel utilisateur

Cub Cadet

Cub Cadet CC 500 BAT Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1040 Manuel utilisateur

Cub Cadet

Cub Cadet 19HP Enforcer 44, 21HP Enforce Manuel d'utilisation

Cub Cadet

Cub Cadet LT1040 Manuel utilisateur

Cub Cadet

Cub Cadet GT1554 Manuel utilisateur

Cub Cadet

Cub Cadet 1860 Manuel utilisateur

Cub Cadet

Cub Cadet 1415 Manuel utilisateur

Cub Cadet

Cub Cadet LT1042 Manuel utilisateur

Cub Cadet

Cub Cadet 997 Manuel utilisateur

Cub Cadet

Cub Cadet 98M7 Manuel utilisateur

Cub Cadet

Cub Cadet 1200 Manuel utilisateur

Cub Cadet

Cub Cadet Z-Force 48 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur

Yard-Man

Yard-Man 3700-0 Manuel utilisateur

Cub Cadet i1046 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques
