Cub Cadet GT1554 Manuel utilisateur

Parts Manual

Hydrostatic Garden Tractor

Model GT1554

Series 1500

CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019

PRINTED IN U.S.A. FORM NO. 769-01669

(1/05)

-2-

DESCRIPTION PAGE

Axle, Front ....................................................... 6

Battery ............................................................. 16

Brake Pedal ..................................................... 12

Head Lamp ...................................................... 18

Mower Deck, 54-inch........................................ 22

Pedal Controls ................................................. 12

Dash Panel ...................................................... 16

Drive System ................................................... 4

Electrical Sysytem ........................................... 26

Engine Accessories ......................................... 15

Fender ............................................................. 10

Frame .............................................................. 8

Fuel Tank ......................................................... 10

Grille ................................................................ 18

Hood ................................................................ 18

Deck Lift Handle/Linkage ................................. 11

Muffler .............................................................. 15

PTO Clutch ...................................................... 20

Seat ................................................................. 14

Steering ........................................................... 6

Transmission, Hydrostatic ............................... 24

Wheels, Front & Rear ...................................... 3

DESCRIPTION PAGE

MODELS GT1554

TABLE OF CONTENTS

NOTE, For painted parts, please refer

to the list of color codes below. Please

add the applicable color code, wherever

needed, to the part number to order a

replacement part. For instance, if a part,

numbered 700-xxxx, is painted Cub

Yellow, the part number to order would

be 700-xxxx-0716.

Cub Yellow: 0716

Cub Beige: 0499

Powder Black: 0637

-3-

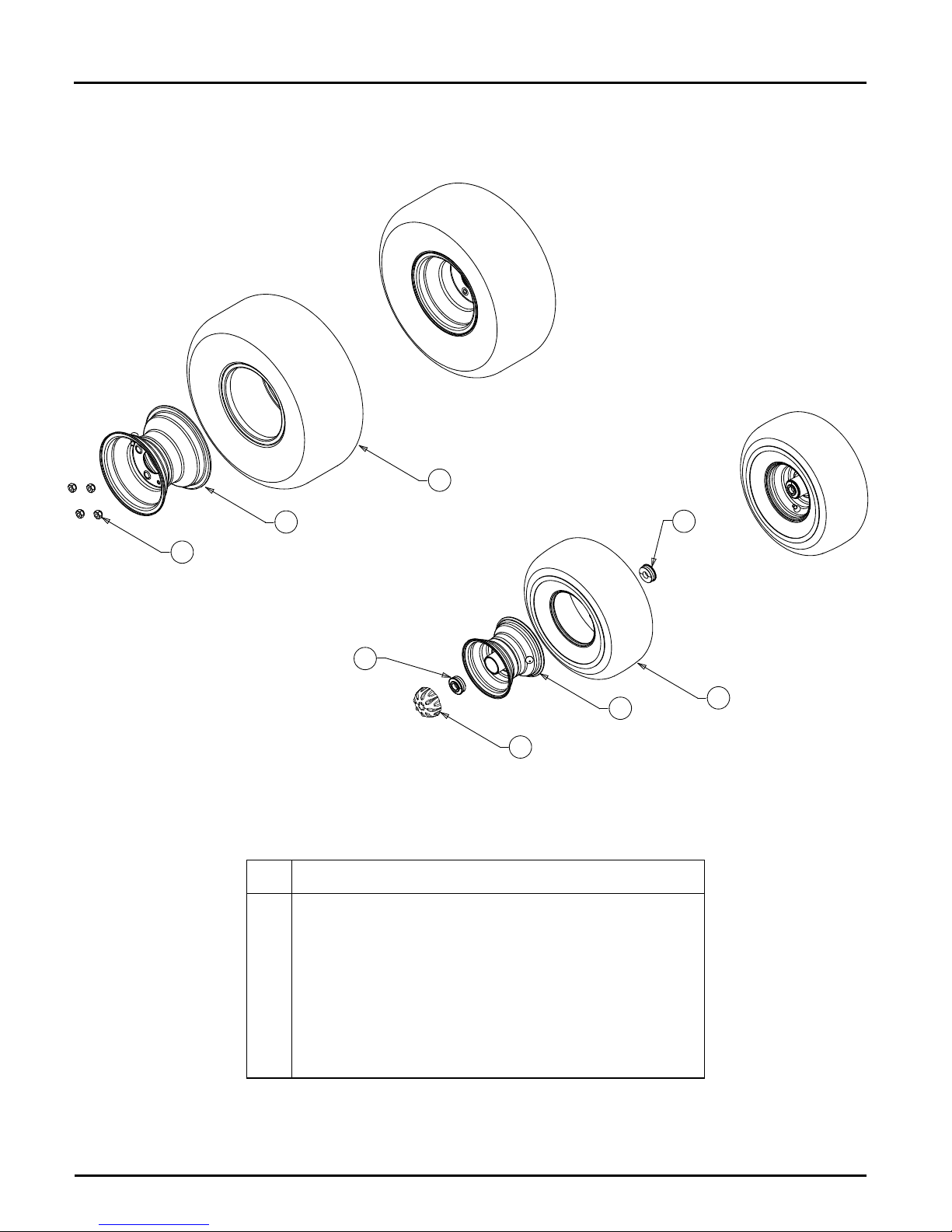

WHEELS

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 734-04147 Tire, Turf, Cub Cadet 23 x 10.5 x 12 2

2 634-3178 Rim Assembly, 12.0 x 7.0 (4-Lug) 2

3 712-3050 Lug Nut, 7/16-14 8

4 741-04137 Bearing, Ball, .75 ID x 1.75 OD 4

5 634-04090A Rim Assembly, Bead Lock, 8 x 5.38

Includes 734-0255 & 741-04137 (2)

6 731-2290A Hub Cap 2

7 734-04148 Tire, Turf, Cub Cadet 16 x 7.5 x 8 2

— 737-0224 Gease Fitting 2

— 734-0255 Valve, Tubeless Air 4

-4-

DRIVE SYSTEM

15 14

-5-

DRIVE SYSTEM

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 618-0379 Transmission, Hydro 1

2 629-04143

629-0949A

Harness, Rev 14AK13CK710

Harness, Rev 14AK13CK709

3 710-0176 Screw, Hex Cap, 5/16-18 x 2.75 GR5 4

4 710-0216 Screw, Hex Cap, 3/8-16 x .75 GR5 2

5 710-0227 Screw, Hex Wash Hd Tapp, #8-18 x .5 2

6 710-0344 Hex Cap Screw, 3/8-16 x 1.5, GR5 1

7 710-0599 Screw, Hx Wash Hd Tapp, 1/4-20 x .5 1

8 710-0726 Screw, Hx Wash Hd Tapp, 5/16-12 x .75 6

9 710-1007 Screw, Hx Wash Hd Sems Tapp

3/8-16 x 1.5

10 710-3011 Hex Cap Screw, 3/8-16 x 2.25, Gr5 1

11 711-0832 Ferrule, 3/8-24 x .375 Dia 1

12 712-04063 Nut, Flange Insert Lock, 5/16-18 GrF 4

13 712-04065 Nut, Flange Insert Lock, 3/8-16 GrF 3

14 712-3017 Nut, Hex, 3/8-16, GR5 2

15 714-0104 Pin, Cotter, .072 Dia. x 1.13 Lg 2

16 714-0111 Pin, Cotter, 3/32, 1.0 2

17 725-0157 Cable, Tie, 3/16 x .05 x 7.4 2

18 725-1644 Switch, Spring, Short 1

19 726-0154 Tie, Cable, Push Mount 7.5 Lg 1

20 726-0320 Plate, Insulator Nut 1

21 732-0429A Spring, Extension, .50 Dia x 3.97 Lg 1

22 732-0716 Spring, Extension, .59 OD x 4.00 Lg 1

23 732-3118 Spring, Extension, 3/8 OD x 1.44 Lg 1

24 736-0169 Washer, Lock, 3/8 , Regular Duty 1

25 736-0320 Washer, Flat, .38 x 1.38 x .125 1

26 736-3010 Washer, Flat, .407 x .812 x .135 Hdn 1

27 738-0372B Spacer, Shoulder, 1.00 x .38 x .38 1

28 747-04140 Rod, Brake, LT 1

29 747-1119 Rod, Hydro Control 1

30 747-1121 Rod, Hydro Disengage 1

31 750-0535 Spacer, .376 ID x .625 OD x .22 1

32 754-0349 Belt, V Type A, 79.10 Lg 1

33 756-0116A Pulley, Idler, V Type x 3.06 Dia 2

34 756-0981B Pulley, Idler, Flat 2.75 OD 1

35 783-04442 Bracket, Idler 1

36 783-0667B Bracket, Transmission Torq 1

37 783-0745 Bracket, Speed Control 1

38 783-0782 Bracket, Actuator 1

-6-

STEERING

20 25

-7-

STEERING

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 710-04095 Screw, Spec. Hex Cap, 3/8-16 x 1.0 GR5 1

2 710-0514 Hex Cap Screw, 3/8-16, 1.00, Gr5, Std 1

3 710-01260A Screw, Hex Wash Hd. Tapp, 5/16-18 x .75 1

4 711-1408 Link, Drag, RH 1

5 711-1409A Link, Drag, LH 1

6 712-0214 Nut, Hex Lock, 3/8-24 GRB 2

7 712-0240 Nut, Jam, 7/16-20, Gr2 2

8 712-04065 Nut, Flange Insert Lock, 3/8-16 4

9 712-0459 Nut, Flange Lock, 7/16-20 1

10 712-3004A Nut, Flange Lock, 5/16-18 2

11 717-1550E

737-3007

Gear, Steering, 11/90 Ratio

Grease, Alvania Ep 2

12 717-1554 Gear, Pinion, Steering 1

13 723-0448A Ball Joint, 7/16-20 Lock 2

14 736-3004 Washer, Flat, .406 x .875 x .105 1

15 736-3084 Washer, Flat, .510 x 1.120 x .060 HT 1

16 738-04075 Shaft, Steering, .625 OD x 25.00 Lg 1

17 738-04154 Spacer, Shoulder, .38 x 1.00 x .31 2

18 741-0475 Bushing, Plastic, .380 ID 2

19 741-0656A Bearing, Hex Flange 1

20 683-04101 Axle Assembly, LH .750 Dia 1

21 683-04102 Axle Assembly, RH .750 Dia 1

22 712-0417A Nut, Hex, Flange, 5/8-18 2

23 714-04039 Pin, Cot, 5/32, 1.25 2

24 719-04105 Axle, Pivot, Cast 1

25 736-0866 Washer, Flat, .755 x 1.92 x.060 2

26 731-04514 Wheel, Steering, Soft Grip, Three Spoke 1

27 731-3210 Cover, Steering Wheel 1

28 738-1011A Screw, Shoulder, .500 x 2.230, 3/8-16 2

-8-

FRAME

Ground Wire (Ref. Only)

-9-

FRAME

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 683-004173

777I22240

Frame Assembly, Lower

Graphic, Bypass Rod

2 710-0607 Screw, Hex Wash. Hd. Tapp, 5/16-18 x .5 5

3 710-0642 Screw, Hex Wash. Hd. Tapp, 1/4-20 x .75 1

4 710-0726 Screw, Hex Wash. Hd. Tapp, 5/16-12 x .75 13

5 710-3005 Screw, Hex Cap, 3/8-16 x 1.25 GR5 2

6 712-04064 Nut, Flange Insert Lock, 1/4-20 GRF 1

7 712-04065 Nut, Flange Insert Lock, 3/8-16 GRF 4

8 732-04035 Spring, Compression, 1.28 OD x 3.125 Lg 2

9 736-0222 Washer, Lock, Ext 1/4 1

10 738-0143 Shoulder Screw, 3/8-16 2

11 738-04058 Spacer, Shoulder, .38 x 1.0 x .70 2

12 747-04121A Rod, Battery Holddown 1

13 783-04329A Bracket, Seat Frame 1

14 783-04710

777I22241

Frame, Upper

Graphic, Fuel

15 783-0693 Bracket, Axle 1

16 783-0726D Bracket, Pivot, Support RH 1

17 783-0727C Bracket, Pivot, Support LH 1

18 783-0728 Bracket, Pivot, Bar 1

-10-

FENDER & FUEL TANK

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 710-0451 Bolt, Carriage, 5/16-18 x .75 Lg 2

2 710-0599 Screw, Hex Wash Hd Tap, 1/4-20 x .5 2

3 710-0726 Screw, Hex Wash Hd Tap, 5/16-12, 0.75 8

4 710-0895 Screw, 1/4-15, 0.750 6

5 712-04063 Nut, Flange Insert Lock, 5/16-18 GRF 2

6 731-2616A Cover, Fender, RH 1

7 731-2617 Cover, Fender, LH 1

8 736-0607 Washer, External Tooth Lock, 5/16 1

9 736-3078 Washer, Flat, .349 x 1.00 x .063 2

10 783-04398A

777D08309

777S32484

Fender

Graphic, Rear of Fender

Graphic, Warning/Instruction

11 783-0677 Bracket, Lift, Adjustment 1

12 783-1489A Bracket, Seat, Mount 2

13 726-3046 Clip, Ratchet, .250 Dia 12

14 735-0697 Pad, Foot, LH 1

15 735-0698A Pad, Foot, RH 1

16 751-0819B Tank, Fuel 1

15 751-3124B Cap, Fuel 1

11 1
