Quick Installation Guide

sales@ctcu.com

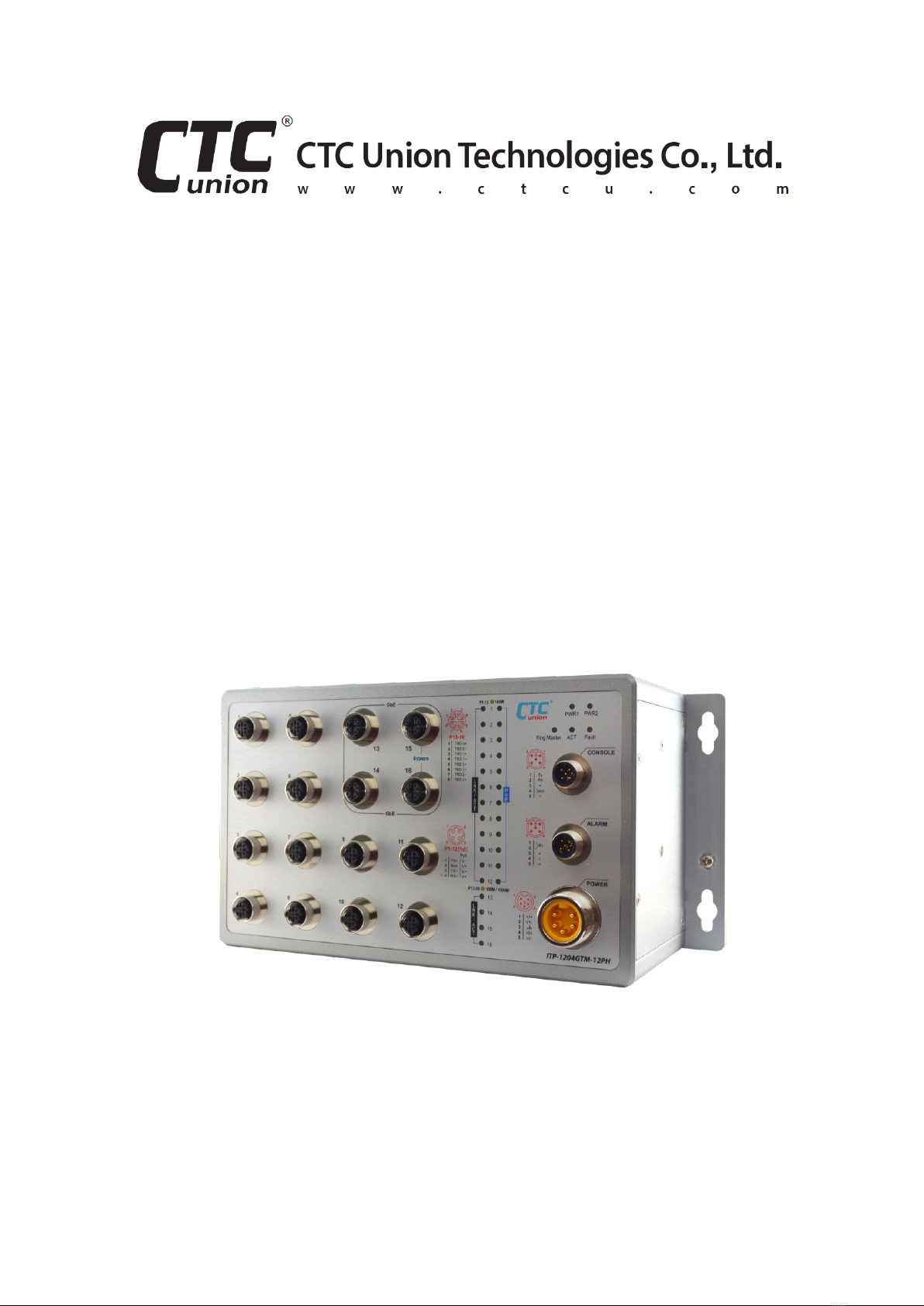

ITP-1204GTM-12PHE

ITP-1204GTM-12PHE-BP

12 x 10/100Base-TX M12 + 4 x GbE M12 with 12 x PoE (120W,

24/48/72/110VDC)

12 x 10/100Base-TX M12 + 4 x GbE M12 with 12 x PoE & Built-

in Bypass Function (120W, 24/48/72/110VDC)

Version 1.0 February, 2020

T +886-2-26591021

F +886-2-26590237

E[email protected]m

Hwww.ctcu.com

2020 CTC Union Technologies Co., LTD.

All trademarks are the property of their respective owners.

Technical information in this document is subject to change without notice.

CTC Union Technologies Co.,Ltd.

Far Eastern Vienna Technology Center

(Neihu Technology Park)

8F, No. 60 Zhouzi St.,

Neihu, Taipei 114, Taiwan

Table of Contents

Introduction..................................................................................4

Package List.................................................................................4

Features........................................................................................4

Access to Command Line Interface (CLI)...................................5

CONSOLE CONNECTION .......................................................................................... 5

TELNET/SSH CONNECTION ..................................................................................... 6

Access to Web-Based Management Interface............................7

Specifications...............................................................................8

INTERFACE .......................................................................................................... 8

SWITCH ............................................................................................................. 8

POWER OVER ETHERNET......................................................................................... 8

POWER.............................................................................................................. 8

MECHANICAL ...................................................................................................... 9

ENVIRONMENTAL ................................................................................................. 9

CERTIFICATIONS ................................................................................................... 9

MTBF (MIL-HDBK-217) ..................................................................................... 9

Panels .........................................................................................10

ITP-1204GTM-12PH ........................................................................................10

ITP-1204GTM-12PH-BP ...................................................................................11

PIN Assignment..........................................................................12

M12 FAST ETHERNET PORT (D-CODE) .....................................................................12

M12 GIGABIT ETHERNET PORT (X-CODE) .................................................................12

M12 CONSOLE PORT ...........................................................................................13

M12 ALARM PORT..............................................................................................13

M23 POWER INPUT PORT .....................................................................................13

M12 Cable Connector Installation.............................................14

Earth Ground Connection..........................................................16

LED Indicators............................................................................17

Wall-Mounting Installation.........................................................18

Application..................................................................................19

Introduction

The ITP-1204GTM-12PH & ITP-1204GTM-12PH-BP are managed

Industrial Grade Ethernet PoE+ switches that provide 12 x 10/100Base-

TX Fast Ethernet UTP plus 4 x 10/100/1000Base-T with 12 PoE ports. ITP-

1204GTM-12PH & ITP-1204GTM-12PH-BP switches equipped with PoE

(Power over Ethernet) function utilize M12 connectors to ensure tight

and robust connections as well as to guarantee reliable operation

against environmental disturbances such as vibration and shock.

Housed in rugged and wall mountable housing, these Ethernet

switches are able to protect against dust and water submersion. Besides,

these switches comply with EN50155 standard that covers strict

demands on operating temperature, power input voltage, surge, ESD,

vibration, and shock, thus making them suitable for industrial

applications such as vehicle, rolling stock and railway.

Package List

One switch device

Protective caps for UTP, console and alarm ports

Console cable (M12 to DB9)

Features

Use M12/M23 anti-vibration and anti-shock connector

M12 X-Code for Gigabit ports

PoE output power budget 120W (max.)

Support Cable diagnostics function and identify opens/shorts distance

Support STP, RSTP, MSTP, ITU-T G.8032 (ERPS) and proprietary μ-Ring

for redundant cabling protection

μ-Ring for Redundant Cabling, recovery time <10ms in 250 devices

(max.)

Support TTDP for train application

Support IEEE 1588 PTP V2 for precise time synchronization function

Provide SmartConfig for quick and easy mass configuration

Support SmartView for centralized management

CE, FCC, EN50155, EN45545-2, EN50121-4, EN60950-1 certified

Industrial grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified

Access to Command Line Interface (CLI)

The ITP-1204GTM-12PH & ITP-1204GTM-12PH-BP are managed

Ethernet PoE+ switches for industrial uses. Initial configurations can be

accomplished via the M12 CONSOLE port and a PC or laptop running

terminal emulation software or via the M12 Ethernet port running

Telnet or SSH.

Accessing the switch via CONSOLE or Ethernet port allows the user

to use Command Line Interface (CLI) to manage and configure the device.

This management method is relatively useful when you lose the network

connection to the device. In most configuration scenarios, the console

will only be used to initially configure the IP address, so that the device

may be accessed via the other methods which require working TCP/IP.

See below for useful information for accessing the device via console

and Telnet/SSH connection.

Console Connection

Use the provided accessory cable to connect the "CONSOLE" port

to the PC terminal communications port (DB9). Run any terminal

emulation program (HyperTerminal, PuTTY, TeraTerm Pro, etc.) and

configure the communication parameters as follows:

Speed:

115,200

Data:

8 bits

Parity:

None

Stop Bits:

Flow Control:

None

From a cold start, the following screen will be displayed. At the

"Username" prompt, enter “admin”with no password.

To change the default IP address to your desired one (for example,

192.168.0.10/24), issue the following commands:

For complete CLI operation, please refer to the operation manual.

# config terminal

(config)# interface vlan 1

(config-if-vlan)# ip address 192.168.0.10 255.255.255.0

Press ENTER to get started

Username: admin

Password:

Telnet/SSH Connection

To use Command Line Interface (CLI), you can also choose

to access the device through a Telnet/SSH connection via TCP/IP

network over Ethernet ports. For initial operation, use the default TCP/IP

settings (10.1.1.1) to login to the device.

Default TCP/IP settings:

IP Address:

10.1.1.1

Subnet Mask:

255.255.255.0

Username:

admin

Password:

No password (Press "Enter"

key)

To change the default IP address to your desired one (for example,

192.168.0.10/24), issue the following commands:

Once the desired IP address has been configured, a web browser

can be accessed and used to configure the device through a more easy-

to-use GUI (graphical user interface). For complete CLI operation, please

refer to the operation manual.

# config terminal

(config)# interface vlan 1

(config-if-vlan)# ip address 192.168.0.10 255.255.255.0

Access to Web-Based Management Interface

To enter the web-based management interface for the first time

or after returning the device back to factory defaults, input the default IP

address “10.1.1.1”in your web browser. Then, a standard login prompt

will appear depending on the type of browser used. The example below

is with Firefox browser.

Enter the factory default username “admin”with no password.

After successfully entering the web based management, the Port State

page will appear. For complete Web GUI operation, please refer to the

operation manual.

Specifications

Interface

12 x 10/100Base-TX UTP(M12, 4-Pin, D-Code Female) +

4 x 10/100/1000Base-T UTP (M12, 8-Pin, X-Code Female)

Port 15 & 16 support bypass function (ITP-1204GTM-12PH-BP Series

only)

Support Auto MDI/MDI-X

Support Full/Half Duplex

IEEE 802.3x Flow Control for full duplex; Back pressure for half duplex

mode

Store & Forward mode

Switch

MAC Address Table: 8K

Packet Buffer Size: 512KB

Jumbo Frame: 9.6KB

Switching Fabric: 12.4Gbps

Power over Ethernet

12 x PoE enabled ports, M12 (4-Pin) D-Code female connector

End-Span Alternative A Mode

Supports IEEE802.3af 15.4watts PoE per port

Supports IEEE802.3at 30watts PoE+ per port

Maximum PoE output power budget 120W (30W per port)

Regulated PoE voltage at 52VDC

Pin Assignments: 2 & 4 pins (V+); 1 & 3 pins (V-); 1, 2, 3, 4 (Data)

Power

M23 (5-Pin) male power connector

Support redundant dual 24/48/72/96/110VDC (16.8~137.5VDC) input

power

Support power input reverse polarity protection

Support overload current protection

Consumption:

Items

Input Voltage

Total Power

Consumption

Device Power

Consumption

PoE Budget

24VDC

141.4W

13W

120W

48VDC

137.9W

14W

120W

110VDC

136.4W

16.5W

120W

Mechanical

Housing: IP54 grade rugged metal housing protection

Fanless design

Dimensions: 113 mm (D) x 260 mm (W) x 132 mm (H)

Installation Method: Wall-mounting

Weight: 2.8kg

Environmental

Operating Temperature: -40°C~75°C

Storage Temperature: -40°C~85°C

Humidity: 5%~95% (Non-condensing)

Certifications

EMC: CE (EN55024, EN55032)

EMI (Electromagnetic Interference): FCC Part 15 Subpart B Class A, CE

Railway Traffic: EN50155, EN50121-4

Fire Protection of Railway Vehicle: EN45545-2

Immunity for Heavy Industrial Environment: EN61000-6-2

Emission for Heavy Industrial Environment: EN61000-6-4

EMS (Electromagnetic Susceptibility) Protection Level:

EN61000-4-2 (ESD) Level 3, Criteria B

EN61000-4-3 (RS) Level 3, Criteria A

EN61000-4-4 (Burst) Level 3, Criteria A

EN61000-4-5 (Surge) Level 3, Criteria B

EN61000-4-6 (CS) Level 3, Criteria A

EN61000-4-8 (PFMF, Magnetic Field) Field Strength: 300A/m,

Criteria A

Safety: EN60950-1

4KV Surge Protection: PoE and UTP ports

Shock: IEC 61373

Freefall: IEC 60068-2-32

Vibration: IEC 61373

MTBF (MIL-HDBK-217)

238,600 Hours

Panels

ITP-1204GTM-12PH

Index No.

Description

M12 D-Code Fast Ethernet Port 1~12

M12 X-Code Gigabit Ethernet Port 13~16

M12 Console Port

M12 Alarm Port

M23 Power Input Port

Power 1 & 2, Fault, ACT, Ring LED Indicators

Link/ACT & PoE LED Indicators for M12 Fast

Ethernet Port 1~12

Link/ACT LED Indicators for M12 Gigabit Ethernet

Port 13~16

Pin Assignment Tables for Console, Alarm & Power

Input Port

Pin Assignment Tables for Port 1~12 & 13~16

Wall Mounting Holes

Earth Grounding

Figure 1. ITP-1204GTM-12PH Front Panel

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels CTC Union Changer

CTC Union

CTC Union IGS?401F?4PH24 Manuel utilisateur

CTC Union

CTC Union JB110 Series Manuel utilisateur

CTC Union

CTC Union ITP-800A Manuel utilisateur

CTC Union

CTC Union ITP-500 Manuel utilisateur

CTC Union

CTC Union JB320 Series Manuel utilisateur

CTC Union

CTC Union IGS-803SM-8PH24 Manuel utilisateur

CTC Union

CTC Union ITP-800-8PH24 Manuel utilisateur

CTC Union

CTC Union IFS?500 Manuel utilisateur

CTC Union

CTC Union SB152 Series Manuel utilisateur

CTC Union

CTC Union IGS-803SM-8PH24 Manuel utilisateur

CTC Union

CTC Union IGS-804SM-SE-8PHE Manuel utilisateur

CTC Union

CTC Union SB102 Series Manuel utilisateur

CTC Union

CTC Union IFS-402GSM-4PH24 Manuel utilisateur

CTC Union

CTC Union FRM220A-1000EAS/X Manuel utilisateur

CTC Union

CTC Union SB262 Series Manuel utilisateur

CTC Union

CTC Union IFS-803GSM Manuel utilisateur

CTC Union

CTC Union IGS-404SM Manuel utilisateur

CTC Union

CTC Union SB142 Manuel utilisateur

CTC Union

CTC Union IFS-402GSM Manuel utilisateur

CTC Union

CTC Union GSW-1005MS Manuel utilisateur

CTC Union

CTC Union FS-802GS-8PH Manuel utilisateur

CTC Union

CTC Union IFS-802GS-8PH Manuel utilisateur

CTC Union

CTC Union IGS-803SM Manuel utilisateur

CTC Union

CTC Union JB230 Series Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
