CSL CS108-2 Manuel utilisateur
CS108-2 EPC Class 1 Gen 2 RFID Sled
Handheld Reader User’s Manual
Version 5.0
CSL: The One-Stop-Shop for RFID
Solutions
CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER
USER'S MANUAL, VERSION 5.0
Copyright © Convergence Systems Limited, All Rights Reserved
2
1 Content
1CONTENT................................................................................................................................................... 2
2FCC AND IC STATEMENT............................................................................................................................. 4
3INTRODUCTION ......................................................................................................................................... 5
3.1 CS108-2 RFID SLED HANDHELD RFID READER ................................................................................................5
3.2 PRODUCT PACKAGE ......................................................................................................................................8
3.2.1 Basic Package Content........................................................................................................................8
3.3 PRODUCT SPECIFICATION ...............................................................................................................................9
4INTRODUCTION ....................................................................................................................................... 11
4.1 BASIC HARDWARE ......................................................................................................................................11
4.2 POWER UP SEQUENCE ................................................................................................................................15
4.3 BLUETOOTH TURN ON FOR DISCOVERY SEQUENCE............................................................................................16
4.4 CHARGING THE CS108................................................................................................................................17
4.5 SOFTWARE ON SMART PHONES.....................................................................................................................18
4.5.1 SOFTWARE ON ANDROID PHONE...................................................................................................................18
4.5.1.1 INSTALLING THE ANDROID SOFTWARE........................................................................................................18
4.5.1.2 STARTING THE ANDROID SOFTWARE..........................................................................................................20
4.5.1.3 SEARCHING AND CONNECTING TO (PAIRING WITH)CS108 ............................................................................22
4.5.1.4 RFID INVENTORY ..................................................................................................................................26
4.5.1.5 BARCODE INVENTORY.............................................................................................................................29
4.5.1.6 RFID READ AND WRITE MEMORY BANKS ...................................................................................................31
4.5.1.7 GEIGER SEARCH ....................................................................................................................................34
4.5.1.8 SETUP .................................................................................................................................................38
4.5.1.9 FILTER:PRE FILTER.................................................................................................................................44
4.5.1.10 FILTER:POST FILTER ...............................................................................................................................47
4.5.1.11 SECURITY .............................................................................................................................................50
4.5.1.12 REGISTER TAGS .....................................................................................................................................54
4.5.1.13 SPECIAL FUNCTIONS...............................................................................................................................55
4.5.1.14 EXITING THE SOFTWARE..........................................................................................................................56
4.5.1.15 TRULY EXITING THE SOFTWARE.................................................................................................................57
4.5.1.16 SOURCE CODES .....................................................................................................................................58
4.5.2 SOFTWARE ON IPHONE................................................................................................................................59
4.5.2.1 INSTALLING THE IPHONE SOFTWARE ..........................................................................................................59
4.5.2.2 STARTING THE IPHONE SOFTWARE ............................................................................................................61
CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER
USER'S MANUAL, VERSION 5.0
Copyright © Convergence Systems Limited, All Rights Reserved
3
4.5.2.3 SEARCHING AND CONNECTING TO (PAIRING WITH)CS108 ............................................................................62
4.5.2.4 RFID INVENTORY ..................................................................................................................................65
4.5.2.5 BARCODE INVENTORY.............................................................................................................................67
4.5.2.6 RFID READ AND WRITE MEMORY BANKS ...................................................................................................69
4.5.2.7 GEIGER SEARCH ....................................................................................................................................70
4.5.2.8 SETUP .................................................................................................................................................72
4.5.2.9 FILTER:PRE FILTER.................................................................................................................................76
4.5.2.10 FILTER:POST FILTER ...............................................................................................................................77
4.5.2.11 SECURITY .............................................................................................................................................78
4.5.2.12 REGISTER TAGS .....................................................................................................................................79
4.5.2.13 SPECIAL FUNCTIONS...............................................................................................................................80
4.5.2.14 EXITING THE SOFTWARE..........................................................................................................................81
4.5.2.15 TRULY EXITING THE SOFTWARE.................................................................................................................82
4.5.2.16 SOURCE CODES .....................................................................................................................................83
4.6 SOFTWARE ON PC......................................................................................................................................84
APPENDIX A. FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE ................................................... 85
APPENDIX B. LINK PROFILES OF CS108 RFID READING................................................................................ 86
CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER
USER'S MANUAL, VERSION 5.0
Copyright © Convergence Systems Limited, All Rights Reserved
4
2 FCC and IC Statement
FCC NOTICE:
To comply with FCC Parts 15 rules in the United States, the system must be professionally
installed to ensure compliance with the Parts 15 certification. It is the responsibility of the
operator and professional installer to ensure that only certified systems are deployed in the
United States. The use of the system in any other combination (such as co-located antennas
transmitting the same information) is expressly forbidden.
IC Notice (Industry Canada):
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER
USER'S MANUAL, VERSION 5.0
Copyright © Convergence Systems Limited, All Rights Reserved
5
3 Introduction
3.1 CS108-2 RFID Sled Handheld RFID Reader
The CS108-2 Sled handheld RFID reader is a reader designed to work with an off-the-shelf
smart phone (such as iPhone or Android phone) via Bluetooth connection, where the
application on the smart phone would control the CS108-2 reader to perform RFID tag reading
or barcode reading.

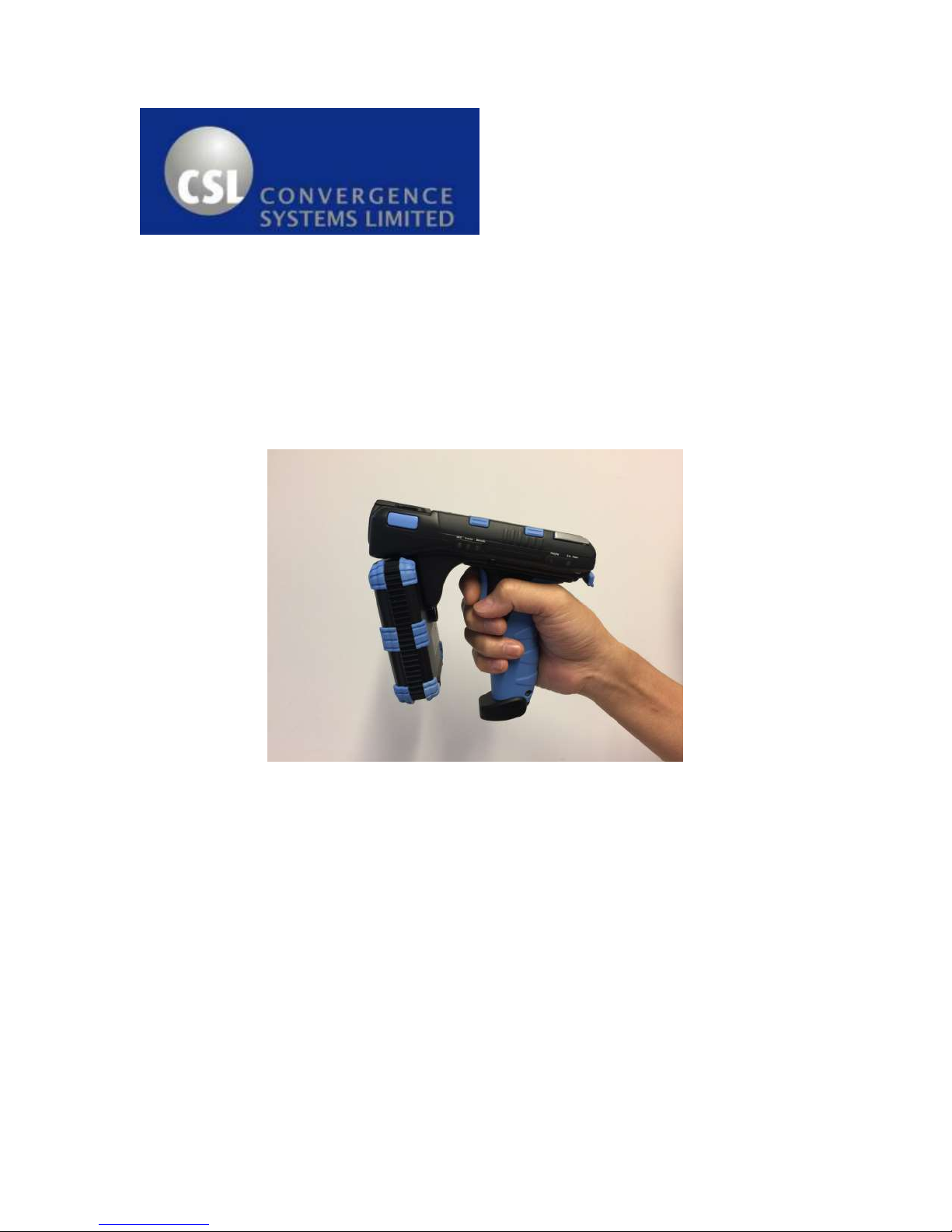

Below photo shows the smart phone separately handled by the user during operation:
Note: Smart phone and CS108 can only be paired via the App provided. They DO NOT pair
via the normal Bluetooth Device connection page of the OS. Therefore, install the App first
and pair the CS108 from inside the App.
CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER
USER'S MANUAL, VERSION 5.0
Copyright © Convergence Systems Limited, All Rights Reserved
6

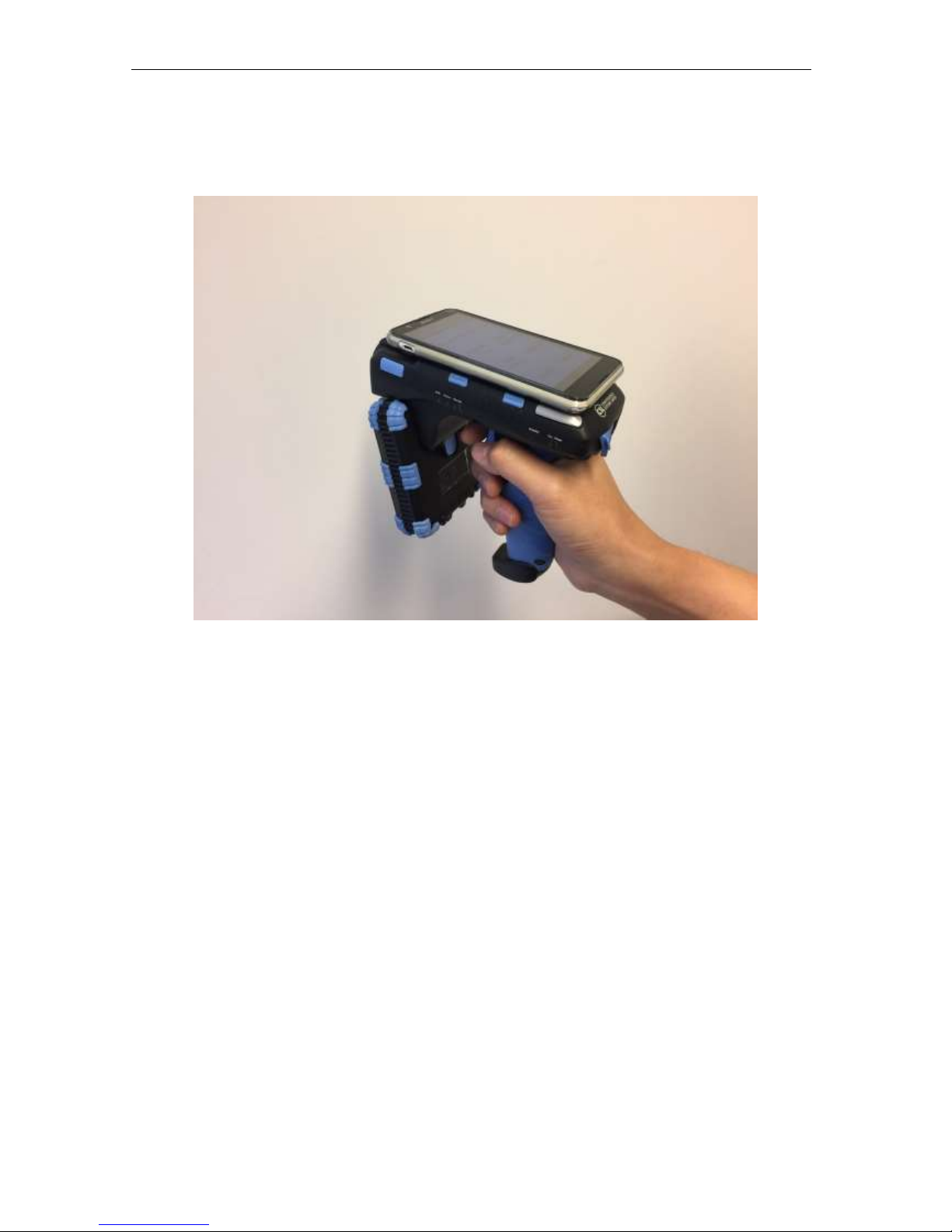

Below photo shows the smart phone mounted (detachable) on top of the CS108-2 reader during
operation:
CS108-2 can also be controlled via the USB connection by a PC. In this case, the Bluetooth
connection is not used. The control commands enter via the USB cable. The application is
on a PC.
Below photo show the CS108-2 handheld reader connected via USB cable to (and controlled
by) a PC.
CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER
USER'S MANUAL, VERSION 5.0
Copyright © Convergence Systems Limited, All Rights Reserved
7
CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER
USER'S MANUAL, VERSION 5.0
Copyright © Convergence Systems Limited, All Rights Reserved
8
3.2 Product Package
3.2.1 Basic Package Content
The reader package contains:
•Handheld reader
•USB cable
•Battery –1 piece, inside the reader
CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER
USER'S MANUAL, VERSION 5.0
Copyright © Convergence Systems Limited, All Rights Reserved
9
3.3 Product Specification
Figure 3-1 CS108-2 Reader
Features:
ISO 18000-6C and EPCglobal Class 1 Gen 2 UHF RFID protocol compliant including
dense reader mode
Ultra long read range –peak at more than 18 meters for Monza R6 Dogbone tag
Sophisticated data handling for efficient management of large streams of tag data.
Highly configurable buffering and tag filtering modes to eliminate the redundant tag data
so as to reduce wireless LAN traffic and server loading
Robust performance in dense-reader environments
Excellent in transmit and receive mode –generates a different combination of unique
reader-to-tag command rate, tag-to-reader backscatter rate, modulation format, and
backscatter type
Configurable parameters offer maximum throughput and optimal performance
Supports all Gen 2 commands, including write, lock and kill
CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER
USER'S MANUAL, VERSION 5.0
Copyright © Convergence Systems Limited, All Rights Reserved
10
Specifications:
Physical Characteristics:
Length: 16.1 cm; Width: 9.0 cm; Height: 16.1 cm;
Weight: 595 grams
Environment:
Operating Temp: -200C to 500C
Storage Temp: -400C to 850C
Humidity: 5% to 95% non-condensing
Enclosure: IP-54
Antenna:
2.7 dBi Gain internal patch antenna
RF Power:
Internal conducted power 30 dBm
EIRPPower:
32.7 dBm
RFID Frequency Ranges:
902-928 MHz band
Interfaces
Bluetooth 4.0
USB
Accessories:
USB cable
Order Code:
CS108-2
Restrictions on Use:
Approvals, features and parameters may vary
depending on country legislation and may change
without notice
