Crystal Vision DDAA132 Manuel utilisateur

Crystal Vision Ltd., Lion Technology Park, Station Road East, Whittlesford, Cambridge, CB22 4WL, England.

E-mail: [email protected] Website: www.crystalvision.tv Tel: +44(0) 1223 497049 Fax: +44(0) 1223 497059

DDAA132

SDI to composite or Y/C monitoring

encoder with distribution amplifier

Crystal Vision DDAA132 User Manual R7.2

113/01/05

Contents

1Introduction 3

2Hardware installation 5

2.1 Universal rear connectors 5

Rear module connections with RM01 5

Rear module connections with RM18 6

Rear module connections with RM02 6

2.2 General Purpose Interface 8

4U frame GPI connections 9

2U frame GPI connections 10

1U frame GPI connections 10

DTB-AV GPI connections 11

Indigo DT desk top box GPI connections 11

2.3 Configuration 11

Changing the standard selection mode 12

Changing output signal formats 12

3Card edge operation 14

4Problem solving 16

5Specification 17

Crystal Vision DDAA132 User Manual R7.2

213/01/05

Crystal Vision Introduction

13/01/05 3DDAA132 User Manual R7.2

1Introduction

The DDAA132 is an 8 bit serial digital to analogue composite converter with reclocked

serial and up to four selectable composite or Y/C analogue outputs.

The universal connection system allows a mixture of Crystal Vision modules in the frame.

The modules plug in the front, and the rear connectors plug in at the back. Depending on

frame design, a hinged or removable front panel reveals LED indication of input and PSU

status when opened.

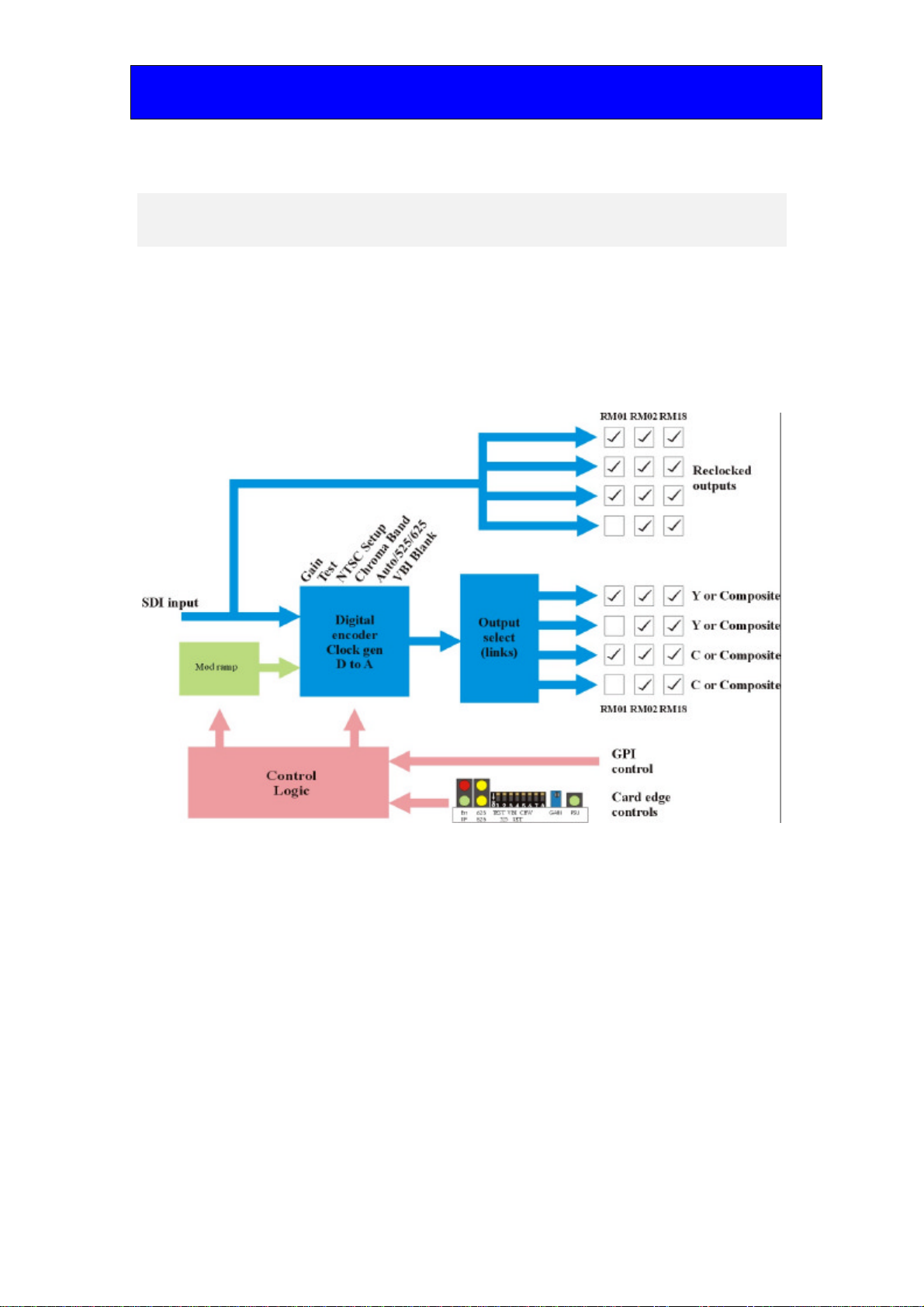

DDAA132 serial digital to analogue converter

The DDAA132 may be used with the RM01 single slot rear connector, the RM02

quadruple slot rear connector and the RM18 double slot rear connectors. The RM01

allows the highest frame packing density, with reduced output connections, whilst the

RM02 and RM18 provide access to all outputs but with reduced packing density.

The RM01 allows 24 modules in a 4U frame, 12 modules in 2U, six in 1U and two in a

desk top box. The RM02 allows 18 modules to fit in a 4U frame, 9 modules in 2U frame

and the RM18 allows 12 modules in a 4U frame, six modules in 2U frame, three in 1U

and one in a desk top box.

The analogue outputs can be switched between input video and an internal test pattern

under local or remote (GPI) control. DDAA132 accepts either 625 or 525 line input, with

automatic detection.

To produce the internal Luma/Chroma test pattern, the DDAA132 requires a valid SDI

input signal from which to extract clocking information.

Crystal Vision Introduction

13/01/05 4DDAA132 User Manual R7.2

The available test pattern is:

•Luma/Chroma Ramp

The main features are:

•8 bit serial digital to analogue composite converter

•Variable gain

•Automatic equalisation for up to 200 metres of coaxial cable

•Up to four reclocked SDI outputs and four composite or two Y/C outputs

•GPI/LED input presence indication

•Auto or manual PAL 625/NTSC 525 line selection

•VBI blanked or unblanked

•Modulated ramp test pattern or serial input

•NTSC setup on/off and chroma bandwidth select

•Card edge control

Note: This manual covers the DDAA132. The DDAA132P with a greater range of internal test

patterns, including PLUGE is also available, along with a dedicated manual.

Crystal Vision Hardware installation

13/01/05 5DDAA132 User Manual R7.2

2Hardware installation

The DDAA132 serial digital to analogue composite converter fits into all Crystal Vision

frames. All modules can be plugged in and removed while the frame is powered without

damage.

2.1 Universal rear connectors

When used with a single height rear connector, the 4U Indigo frame will house up to 24

modules and up to three power supplies, the 2U Indigo frame will house up to 12 modules

and dual power supplies, the 1U Indigo frame will house 6 modules and a single power

supply. The desk top box has a built-in power supply and will house up to two modules

with a single height rear connector.

The 4U, 2U and 1U frames have hinged front panels which give access to the PSU and all

modules. The desk top box has a removable front. The universal frame wiring system

allows any of the interface range of modules to be fitted in any position with the use of

removable rear modules.

The DDAA132 may be used with the RM01 single slot rear connector, the RM02

quadruple slot rear connector and the RM18 double slot rear connector.

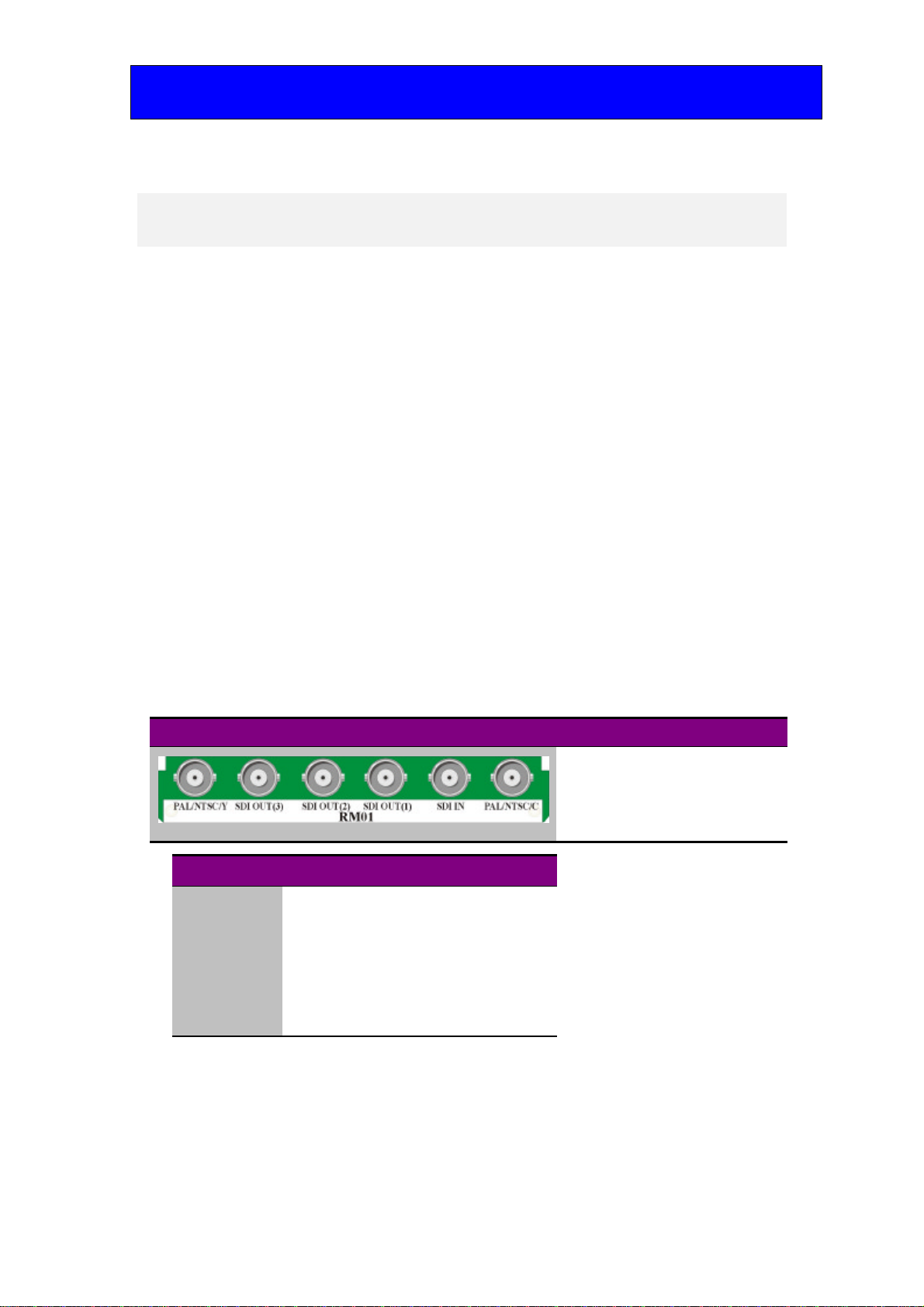

Rear module connections with RM01

RM01 fits in all frames Description

RM01

•24 modules in 4U,12

modules in 2U, 6 in 1U & 2

in a desk top box

•All frame slots can be used

BNC Connection

SDI IN Serial digital input

SDI OUT(1) Reclocked serial digital output

SDI OUT(2) Reclocked serial digital output

SDI OUT(3) Reclocked serial digital output

PAL/NTSC/Y Composite video or Y plus sync (set by PL5)

PAL/NTSC/C Composite video or C (set by PL4)

Crystal Vision Hardware installation

13/01/05 6DDAA132 User Manual R7.2

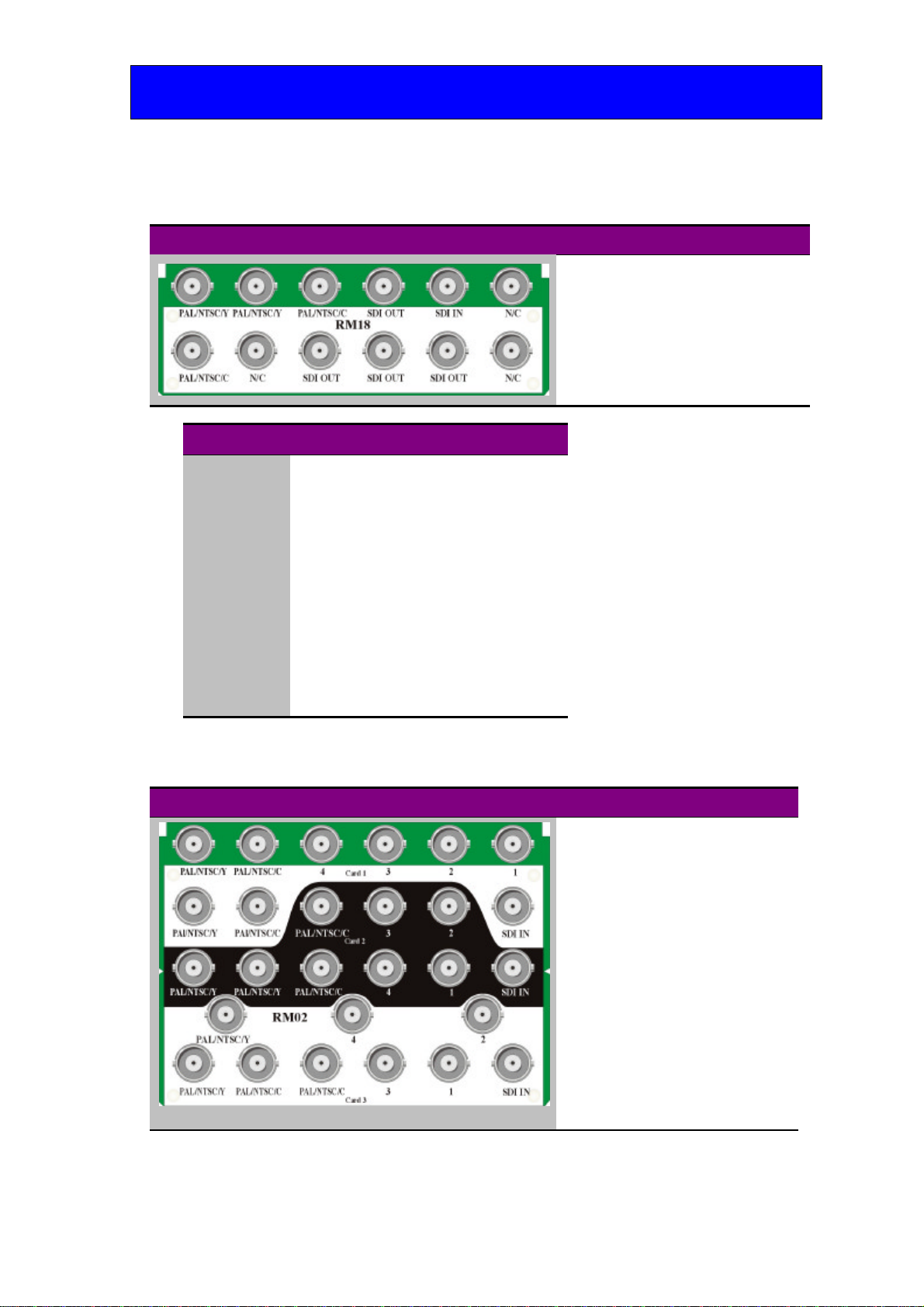

Rear module connections with RM18

RM18 fits in all frames Description

RM18

•12 modules in 4U, six modules

in 2U , three in 1U, one in a desk

top box

•One module per rear connector

•Nine connections available

•Card fits in upper slot

•No card fits in lower slot

BNC Connection

N/C No connection

SDI IN Serial digital input

SDI OUT Reclocked serial digital output

PAL/NTSC/C Composite video or C (set by PL2)

PAL/NTSC/Y Composite video or Y plus sync (set by PL5)

PAL/NTSC/Y Composite video or Y plus sync (set by PL3)

N/C No connection

SDI OUT Reclocked serial digital output

N/C No connection

PAL/NTSC/C Composite video or C (set by PL4)

Rear module connections with RM02

RM02 fits in 4U, 2U Indigo or FR2AV frame Description

RM02

•18 modules per 4U frame, nine

modules per 2U frame

•Three modules per rear

connector

•Nine connections available

•Card 1 fits in slots 1, 5 and 9

(1,5, 9, 13, 17 and 21 in 4U)

•Card 2 fits in slots 2, 6 and 10

(2, 6, 10, 14, 18 and 22 in 4U)

•Card 3 fits in slots 4, 8 and 12

(4, 8, 12, 16, 20 and 24 for 4U)

•No card fits in 3, 7 or 11 (3, 7,

11, 15, 19 and 23 for 4U)

Crystal Vision Hardware installation

13/01/05 7DDAA132 User Manual R7.2

BNC Single channel configuration

SDI IN Serial digital input

1Reclocked serial digital output

2Reclocked serial digital output

3Reclocked serial digital output

4Reclocked serial digital output

PAL/NTSC/Y Composite video or Y plus sync

PAL/NTSC/C Composite video or C

PAL/NTSC/Y Composite video or Y plus sync

PAL/NTSC/C Composite video or C

PL3 PL2

PL5 PL4 PL4

PL3 PL5 PL2

PL5

PL3 PL2 PL4

RM02 output configuration showing link settings.

For detailed link information see board configuration.

Crystal Vision Hardware installation

13/01/05 8DDAA132 User Manual R7.2

2.2 General Purpose Interface

The external GPI control lines 'a' to 'f' at the frame remote connectors may be used to

control the DDAA132 remotely with (say) remote switches emulating some of the front

panel switches. The GPI lines are normally pulled up on-board to +5V via 10kΩ and will

withstand up to +35V.

GPI connections

Open Connect to ground

‘a’ No setup Adds 7.5 IRE of setup to Y & reduces Y

gain as required. Only affects 525 line

output.

‘b’ 625 line if manual standard selected on

jumper PL8 525 line if manual standard selected on

jumper PL8

‘c’ Blank PAL lines 7 to 22 & 320 to 335,

NTSC lines 10 to 20 & 273 to 282. Unblank PAL lines 7 to 22 & 320 to 335,

NTSC lines 10 to 20 & 273 to 282.

‘d’ See table below See table below

‘e’ See table below See table below

‘f’ See table below See table below

GPI test pattern select

Composite output ‘d’ ‘e’ ‘f’

SDI input Open Open Open

SDI input Open Open Closed

SDI input Open Closed Open

SDI input Open Closed Closed

Closed Open Open

Closed Open Closed

Luma/chroma ramp Closed Closed Open

Closed Closed Closed

Crystal Vision Hardware installation

13/01/05 9DDAA132 User Manual R7.2

The following tables show the pinout for each frame.

4U frame GPI connections

GPI lines ‘a’ to ‘f’ of each card connect to one of eight rear remote connectors as follows:

Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin

18 (1) 9 (1) 18 (1) 26 (1) 19 (2) 20 (2)

27 (1) 16 (1) 17 (1) 25 (1) 10 (2) 11 (2)

38 (3) 9 (3) 18 (3) 26 (3) 19 (4) 20 (4)

47 (3) 16 (3) 17 (3) 25 (3) 10 (4) 11 (4)

55 (1) 6 (1) 15 (1) 24 (1) 1 (2) 2 (2)

64 (1) 14 (1) 13 (1) 23 (1) 3 (2) 4 (2)

75 (3) 6 (3) 15 (3) 24 (3) 1 (4) 2 (4)

84 (3) 14 (3) 13 (3) 23 (3) 3 (4) 4 (4)

93 (1) 12 (1) 22 (1) 21 (1) 12 (2) 13 (2)

10 10 (1) 11 (1) 19 (1) 20 (1) 21 (2) 22 (2)

11 3 (3) 12 (3) 22 (3) 21 (3) 12 (4) 13 (4)

12 10 (3) 11 (3) 19 (3) 20 (3) 21 (4) 22 (4)

Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin

18 (5) 9 (5) 18 (5) 26 (5) 19 (6) 20 (6)

27 (5) 16 (5) 17 (5) 25 (5) 10 (6) 11 (6)

38 (7) 9 (7) 18 (7) 26 (7) 19 (8) 20 (8)

47 (7) 16 (7) 17 (7) 25 (7) 10 (8) 11 (8)

55 (5) 6 (5) 15 (5) 24 (5) 1 (6) 2 (6)

64 (5) 14 (5) 13 (5) 23 (5) 3 (6) 4 (6)

75 (7) 6 (7) 15 (7) 24 (7) 1 (8) 2 (8)

84 (7) 14 (7) 13 (7) 23 (7) 3 (8) 4 (8)

93 (5) 12 (5) 22 (5) 21 (5) 12 (6) 13 (6)

10 10 (5) 11 (5) 19 (5) 20 (5) 21 (6) 22 (6)

11 3 (7) 12 (7) 22 (7) 21 (7) 12 (8) 13 (8)

12 10 (7) 11 (7) 19 (7) 20 (7) 21 (8) 22 (8)

Table shows pin number (remote number)

Note: Remote 1, Remote 3, Remote 5 and Remote 7 are 26-way high-density D-Type female

sockets and frame ground is pin 2 and +5V @500mA is pin 1 in each case.

Remote 2 and Remote 4 are 26-way high-density D-Type male plugs and frame ground is

pin 6 and +5V @500mA is pin 15 in each case.

UpperLower
