Crystal Image Technologies Cat5-IP08 Manuel utilisateur
Cat5-08 / 16 / 32
Cat5-IP08 / 16 / 32
dedicated KVM switch and rackmount screen technology
Combo Cat6 KVM
Cat5-08R / 16R/ 32R
Combo Cat6
2-console KVM
UM-CV-UKVM-Q411V3 www.austin-hughes.com
4.1 KVM Button
4.2 Password
4.3 KVM OSD
4.4 KVM Hotkey & Remote Console Hotkey
4.5 DC power 12V, 24V, 48V Input
Contents
< Part 1 > Combo Cat6 2-console KVM
Cat5-IP08 /-IP16 /-IP32
1.1 Package contents
1.2 KVM port & Cat6 dongle connection
1.3 IP & Local console connection
1.4 IP console setting
1.5 KVM Cascade
1.6 IP Multi-port connection to remote PDU
1.7 Specifications
< Part 2 > Combo Cat6 2-console KVM
Cat5-08R / -16R / -32R
2.1 Package contents
2.2 KVM port & Cat6 dongle connection
2.3 Remote & Local console connection
2.4 KVM Cascade
2.5 Specifications
P. 1
P. 2
P. 3
P. 4
P. 5
P.6 - 7
P. 8
P. 9
P.10 - 11
P.12 - 13
P.14
P.15
P.20
P.21
P.22
P.23
P.24
< Part 4 > Usage
< Part 3 > Combo Cat6 KVM
Cat5-08 / -16 / -32
3.1 Package contents
3.2 KVM port & Cat6 dongle connection
3.3 KVM Cascade
3.4 Specifications
P
.16
P.17
P.18
P.19
UM-CV-UKVM-Q411V3 www.austin-hughes.com
Combo Cat6 2-console KVM

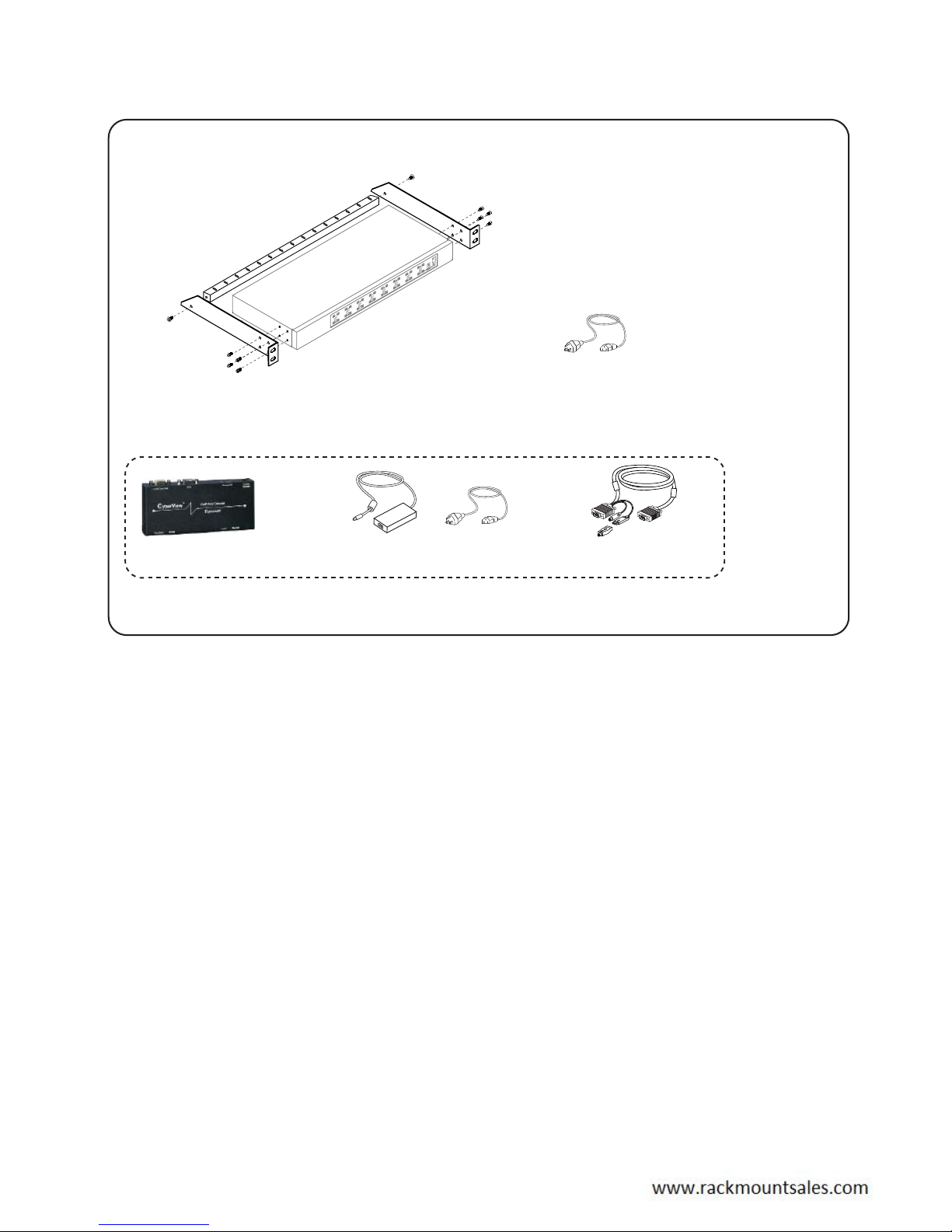

< 2.1 > Package Content
P. 9
Part 2. Combo Cat6 2-console KVM
C
e
b
y r
V
ei w
KVM unit
• Combo KVM unit x 1
• Mounting set w/ bracket & screws x 1
• Power cord ( for KVM ) x 1
U-802 / U-1602 / U-3202
Receiver box
for remote console
Receiver’s power adapter
w/ power cord
CE-6 KVM cable
for receiver box
++
X 1 set
UM-CV-UKVM-Q411V3 www.austin-hughes.com
P.10
Cat5-16R
Cascade
Cat5-08R
Local
Console
Local console x 1
Remote console x 1
Cat5-32R
2468 1357
246810121416 13579111315
2468
10121416
1357
9111315
18202224
26283032
17192123
25272931
Remote Cascade
Local
Console
Remote
Cascade
Local
Console
Remote
Combo Cat6 2-console KVM
UM-CV-UKVM-Q411V3 www.austin-hughes.com
Combo Cat6 2-console KVM
Cat5 Dongle PS/2
■To connect DB-15 connector to the computer’s video card
■To connect PS/2 keyboard connector to the computer’s keyboard port
■To connect PS/2 mouse connector to the computer’s mouse port
Cat5 Dongle USB
■To connect DB-15 connector to the computer’s video card
■To connect USB connector to the computer’s USB port
Cat5 Dongle USB/DVI
■To connect DVI-D connector to the computer’s video card
■To connect USB connector to the computer’s USB port
< 2.2 > KVM port & Cat6 dongle connection
P. 11
PS/2
VGA
VGA-PS/2 dongle
USB Servers
PS/2 Servers USB Servers
CAT 5 / 6 cable
max. 40 meters
Cat6 KVM port
USB
DVI-D
DVI-USB dongle
USB
VGA
VGA-USB dongle
CAT 5 / 6 cable
max. 40 meters
2468
10121416
1357
9111315
18202224
26283032
17192123
25272931
UM-CV-UKVM-Q411V3 www.austin-hughes.com
P.12
< 2.3 > Remote & Local console connection
2468
10121416
1357
9111315
18202224
26283032
17192123
25272931
Remote
USB console
Local
USB
console
Remote
Cat6
Console
CAT 5 / 6 cable
max. 150m
Receiver
Combo Cat6 2-console KVM
UM-CV-UKVM-Q411V3 www.austin-hughes.com
Combo Cat6 2-console KVM
How to use a receiver to connect a remote console
Receiver
K/B Mouse Local Remote
Local
Computer Monitor
Power
USB
Remote I/O
Monitor
Combo
KVM cable
Cat6 cable
up to 150m
12V DC Power
Adapter
Local computer
( Optional setup )
VGA
cable
Remote
Console
Button
to
PC
Button
to
KVM switch
P.13
2468
10121416
1357
9111315
18202224
26283032
17192123
25272931
The receiver provides a hotkey function for remote console. Please refer to P.23
Front
Rear
Front
Rear
UM-CV-UKVM-Q411V3 www.austin-hughes.com
2468
10121416
1357
9111315
18202224
26283032
17192123
25272931
2468
10121416 1357
9111315
2468
10121416 1357
9111315
2468
10121416 1357
9111315
2468
10121416 1357
9111315
Cascade
2468
10121416
1357
9111315
18202224
26283032
17192123
25272931
2468
10121416
1357
9111315
18202224
26283032
17192123
25272931
2468
10121416
1357
9111315
18202224
26283032
17192123
25272931
P.14
■Cascade up to 8 levels, 256 servers
■Cascading multiple KVM with CBC-6 cascade cable.
< 2.4 > KVM Cascade
Cat5-16
Cat5-16
Cat5-16
Cat5-16
Cat5-32
Cat5-32
Cat5-32
Cascaded KVMs from level 2 to 8 must be the models of Cat5-08 / -16 / -32
When multiple combo Cat6 KVMs cascade together, the master KVM at level 1 will take all control of
other slave KVM switches (e.g. level 2 to 8).
Master KVM
Slave KVM
level 2
Slave KVM
level 8
Slave KVM
level 7
Slave KVM
level 6
Slave KVM
level 5
Slave KVM
level 4
Slave KVM
level 3
Cascade Cat5/USB
■6ft Combo KVM cascade cable
To console VGA port
Combo Cat6 2-console KVM
UM-CV-UKVM-Q411V3 www.austin-hughes.com
Combo Cat6 2-console KVM
P.15
< 2.5 > Specifications
-08R-16R-32R
▀KVM Port
Number of ports: 8, 16 or 32
Connector: RJ-45
Connectivity: DVI-D / VGA connector dongle up to 40 meters (132 feet) via
Cat6 / Cat5 cable
▀Local Console
Graphic connector: 1 x DB-15 VGA
Resolution: Up to 1600 x 1200
Input device: 2 x USB type A for keyboard & mouse
▀Remote Console
Connector: 1 x DB 15-pin, VGA
Resolution: Up to 1600 x 1200 (500 feet), Up to 1024 x 768 (1000 feet)
Input device: 2 x USB type A for keyboard & mouse
Remote I/O: RJ45 via Cat5 / Cat5e / Cat6 cable up to 500 feet
Compensation: Auto adjust for cable length
▀Expansion: Up to 256 servers by 8-level cascade
▀Compatibility
Multi-platform: Mix PCs, SUNs, IBMs, HPs, DELLs Server
Support: Windows Vista / 2003 / XP / 2000, Linux, Netware, Unix, DOS
▀Power
Input: 100 or 240V AC at 50 or 60 Hz via IEC type cord OR
Option DC: 12V / 24V / 48V DC input
Consumption: Max. 48 Watt, Standby 5 Watt
▀Regulatory Approval: FCC, CE
▀Environmental
Operating: 0 to 50°C
Storage: -5 to 60°C
Relative humidity: 90%, non-condensing
Shock: 50G peak acceleration (11ms, half-sine wave)
Vibration: 58~100Hz / 0.98G (11ms / cycle)
▀Product Information
Dimension (W x D x H): 443 x 180 x 43.6 mm / 17.4 x 7.1 x 1.72 inch
Net weight: 3 kg / 6.5 lb
▀Packing Information
Dimension (W x D x H): 500 x 400 x 90 mm / 19.7 x 15.7 x 3.5 inch
Gross weight: 5 kg / 11 lb
UM-CV-UKVM-Q411V3 www.austin-hughes.com
4.1 KVM Button
P.20
Part 4. Usage
Power ON
■Turn off all servers and KVM switches
■Make sure all cables / connectors are properly connected
■Recommend Power ON sequence is monitor, KVM switch finally computer
Bank no. 7-Segment BANK LED indication
PC port LEDs Online : Blue LED on indicating a PC is connecting to the port
Active : Green LED on indicating a selected channel
Channel button Press to select channel from 01 to 32
Bank button Select the bank from 1 to 8
Front Panel - Port LED Indications
Bank no. PC port LEDs Channel
button
Bank
button
32 ports
8 ports
16 ports
Combo Cat6 KVM Usage
