CrustBuster 4600 Series Manuel utilisateur

4600 SERIES

ALL PLANT DRILL

P.O. Box 526 - Spearville, Kansas 67876 - (620) 227-7106

(2009) #605717

Identification

Your CrustBuster® drill is identified by a Serial Number and Model Number. Record these

numbers in the spaces provided in this manual and refer to them when ordering parts or requesting

service.

Serial Number Model Number

Warranty

WARRANTY: In addition to the implied warranties of fitness and of merchantability,

CrustBuster®/Speed King, Inc. warrants new products sold by it to be free from defects in

workmanship and material for a period of 12 months, from the date of delivery to the first user

customer. Warranty on purchased parts (cylinder, blades, bearings, shanks, etc.) will be the

same as that offered by the appropriate manufacturer of these parts.

EXCLUSIONS: No warranty of any kind is made by CrustBuster®/Speed King, Inc. with regard

to new products which have been subject to operation in excess of recommended capacities,

misuse, abuse, negligence, or accident, or have been altered or repaired in any manner not

authorized by CrustBuster®/Speed King, Inc. CrustBuster®/Speed King, Inc. is constantly

striving to improve its products. Changes in design and improvement will be made whenever

CrustBuster®/Speed King, Inc. believes the efficiency of its products will be improved thereby,

but without incurring any obligation to incorporate such improvements in any products which

have been shipped or are in service. No obligation exists for compensation of unauthorized

repairs or modifications without prior approval. And in no event will CrustBuster®/Speed King,

Inc. be liable for consequential damages, such as but not limited to: downtime, delayed or late

tillage or planting, etc.

WARRANTY REGISTRATION: This warranty is not valid unless registered with

CrustBuster®/Speed King, Inc. within 10 days from the date of purchase. It is the sole

responsibility of the selling retail dealer to fill out the registration forms and see that they are

properly filed with CrustBuster®/Speed King, Inc.

WARRANTY PROCEDURE: Should any part fail to conform with this warranty,

CrustBuster®/Speed King, Inc. will repair or replace the part or parts which do not conform.

If a part is defective, take it to your authorized CrustBuster® Farm Equipment Dealer

immediately, along with your warranty registration, and complete the proper forms requesting

a warranty adjustment. Our representative will pick up the part to be returned to the factory

for examination. If the customer (first user) requests that a new part be substituted for the old

part, a new part will be charged to the dealer who will in turn charge the customer. If the part

is found by us to be defective, a credit for the part will be given to the dealer to be passed on

to the customer. If the dealer or customer wishes to repair the part, this will be done only if

authorized by CrustBuster®/Speed King, Inc. This warranty procedure is in addition to all

remedies authorized by law.

CRUSTBUSTER®/SPEED KING, INC.

Box 526

Spearville, KS 67876

Specifications are subject to change without notice. ® is a registered trademark of CrustBuster/Speed King, Inc.

Table of Contents

Safety Instructions.. . . . . . . . . . . . . . . . 2-6

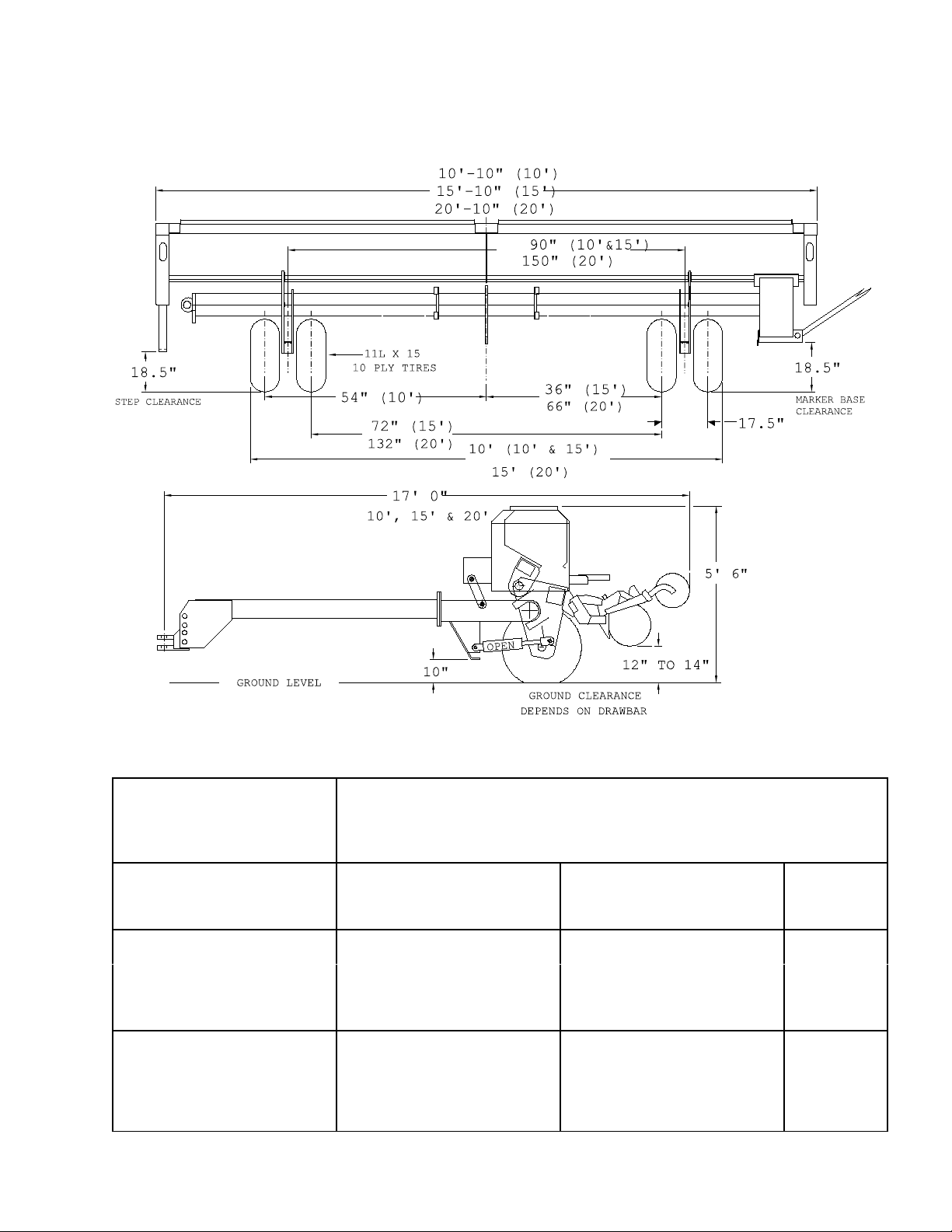

Dimensions & Specifications. . . . . . . . . . . 7

Field Operation:

Operating Speed. . . . . . . . . . . . . . . . . 8

Adjustment Procedure. . . . . . . . . . . . . 8

Leveling Drill. . . . . . . . . . . . . . . . . . . . 8

Toolbar Adjustment. . . . . . . . . . . . . . . 8

Setting Down Pressure. . . . . . . . . . 8-9

Setting Seed Depth. . . . . . . . . . . . . . . 9

Conventional Field Conditions. . . . . . 10

Minimum Tillage Conditions.. . . . . . . 10

No-Till Conditions.. . . . . . . . . . . . . . . 10

Calibration / Drilling Rates.. . . . . . . . . . . 11

Sprocket Box Operation. . . . . . . . . . . . . 11

Lubrication and Service.. . . . . . . . . . . . . 12

Scraper Adjustment.. . . . . . . . . . . . . . . . 13

Blade Gap Adjustment. . . . . . . . . . . . . . 13

Tandem Wheel Drive Clutch. . . . . . . . . . 13

Wobble Slot Seed Cup

Adjustments / Service. . . . . . . . . 14-15

Meter Man Acreage Counter. . . . . . . . . . 16

Sprocket Box Adjustments

& Locations. . . . . . . . . . . . . . . . . . . . 17

Seed Rate Charts. . . . . . . . . . . . . . . 18-25

Legume Box Charts. . . . . . . . . . . . . . 25

Small Seed Sprocket Locations. . . . . 26

Small Seed Charts. . . . . . . . . . . . . . . 27

Native Grass Sprocket Locations.. . . 28

Illustrations and Repair Parts:

Hitch.......................... 29

Main Frame. . . . . . . . . . . . . . . . . 30-32

Top Frame. . . . . . . . . . . . . . . . . . 32-33

Grain Box.. . . . . . . . . . . . . . . . . . 34-41

10' Drive.. . . . . . . . . . . . . . . . . . . . . . 42

13' Drive.. . . . . . . . . . . . . . . . . . . . . . 43

15' Drive.. . . . . . . . . . . . . . . . . . . 44-45

Clutch Assembly. . . . . . . . . . . . . . . . 45

20' Drive.. . . . . . . . . . . . . . . . . . . 46-47

Wheel Idler Assembly. . . . . . . . . . . . 47

All Plant Opener Assembly. . . . . 48-49

Gear Box Assembly. . . . . . . . . . . 50-55

Clutch Lever Assembly. . . . . . . . . . . 56

Drive Clutch Sprocket. . . . . . . . . 56-57

Hydraulic Layout. . . . . . . . . . . . . . . . 57

Spindle & Hub Assembly. . . . . . . . . . 58

6 Bolt Hub & 8 Bolt Hub. . . . . . . . . . . 58

Cover Shield Assembly. . . . . . . . . . . 59

Presswheel Arm Assemblies. . . . 60-61

Presswheel Assemblies. . . . . . . . 62-63

Feed Tube Assembly.. . . . . . . . . . . . 63

Marker..................... 64-65

Harrow..................... 66-70

10'-13'-15' Legume Box Assembly.72-73

10'-13'-15' Legume Box Drive. . . 74-75

15' Legume Box Assembly.. . . . . 76-77

20' Legume Box Assembly.. . . . . 78-79

Cylinders. ..................... 80

Lights......................... 81

Fertilizer

Settings, Cleaning, Storage. . . . . 84-85

Sprocket Locations. . . . . . . . . . . . . . 86

Delivery Rate Chart. . . . . . . . . . . . . . 87

Drive Assembly. . . . . . . . . . . . . . 88-89

GearBox................... 90-91

Box Bottom. . . . . . . . . . . . . . . . . 92-93

Drive Clutch. . . . . . . . . . . . . . . . . . . . 93

FeedTubes.................... 94

Troubleshooting. . . . . . . . . . . . . . . . . . . 95

BE A SAFE OPERATOR

BY THINKING BEFORE ACTING

AND

BY READING

YOUR OWNER'S MANUAL

Avoid Accidents

Most accidents, whether they occur in

industry, on the farm, at home, or on the

highway, are caused by the failure of some

individual to follow simple and fundamental

safety rules or precautions. For this reason

most accidents can be prevented by

recognizing the real cause and doing

something about it before the accident

occurs.

———————

Regardless of the care used in the design

and construction of any type of equipment,

there are many conditions that cannot be

completely safeguarded against without

interfering with reasonable accessibility and

efficient operation.

A CAREFUL OPERATOR

is the Best Insurance Against an

Accident.

The complete observance of one simple

rule would prevent many thousands

of serious injuries each year.

That rule is:

Never Attempt to

Clean, Oil, or Adjust

A Machine While It Is In Motion.

To Our Customers

The following pages and illustrations are

printed to help supply you with the knowledge

to better operate and service your new

CrustBuster equipment.

We are proud to have you as a customer

and feel you will be proud to be a

CrustBuster owner.

Any piece of equipment needs, and must

have, a certain amount of service and

maintenance to keep it in top running

condition. We have attempted to cover all

the adjustments required to fit most

conditions; however, there may be times

when special care must be taken to fit a

condition.

Study this owner's manual carefully and

become acquainted with all the adjustments

and operating procedures before attempting

to operate your new equipment. Remember,

it is a machine and has been designed and

tested to do an efficient job in most operating

conditions and will perform in relation to the

services it receives.

If special attention is required for some

condition, ask your CrustBuster dealer; he

will be glad to help and answer any questions

on operations and service of your new

machine.

TAKE TIME FOR SAFETY

Before Operating This Equipment

Read and understand this owner's manual.

Safety & Set-Up Instructions

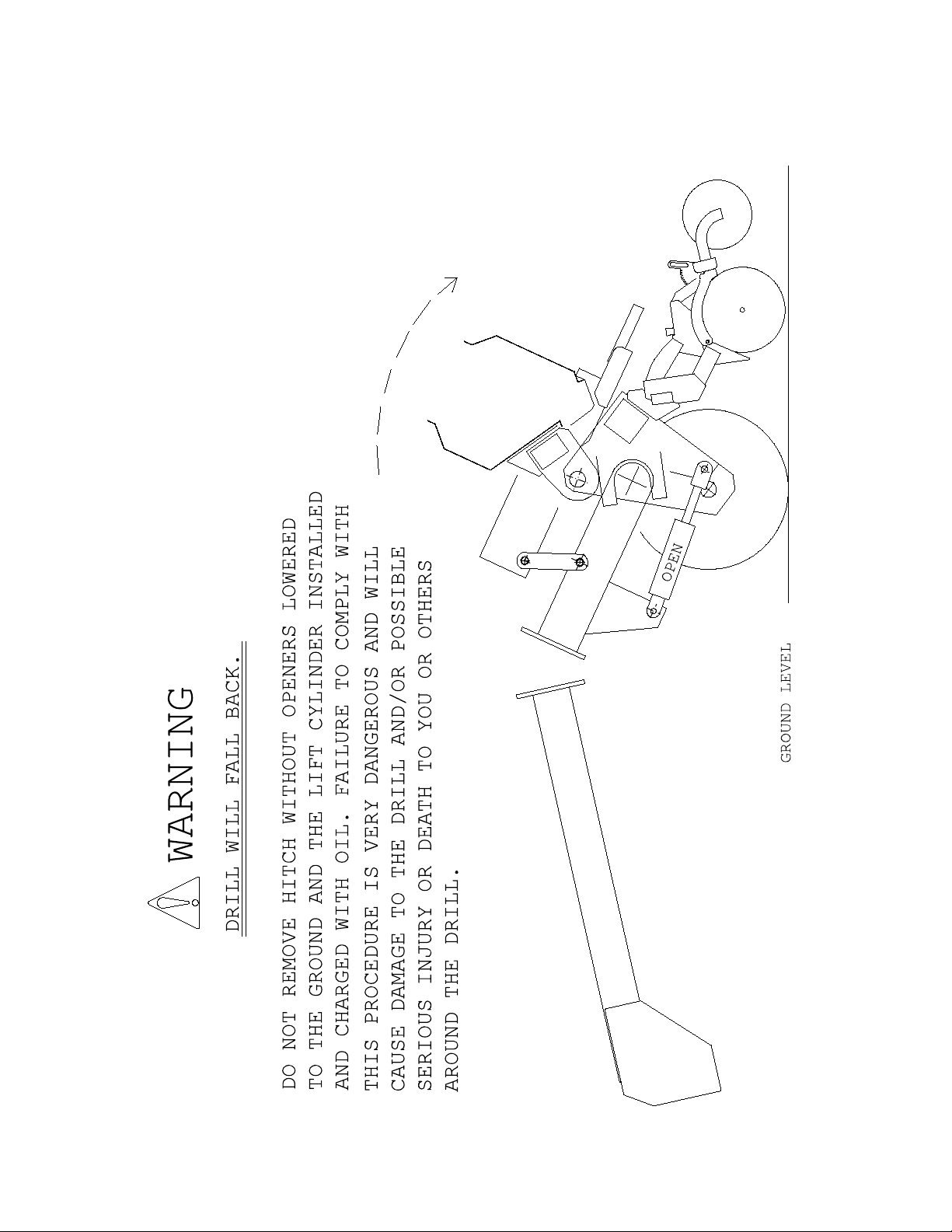

FIf your drill is delivered with a shipping bracket, DO NOT install hitch or operate

hydraulics until bracket is completely removed. Damage to drill will result.

FDealer Installation of Hitch - Be sure hitch bolts are torqued equally. DO NOT tighten

one side completely before the other. Failure to follow these instructions could cause

hitch to be off center and drill will not run straight.

FSecure implement to tractor drawbar using as large a hitch pin as will allow. A large

bolt with locking nut or castle nut is recommended. DO NOT use a hairpin or wire to

secure hitch pin. Residue may catch and remove these devices. ALWAYS SECURE

DRILL TO TRACTOR USING THE SUPPLIED SAFETY CHAIN.

FMake sure 3-point linkages are raised completely to clear hitch.

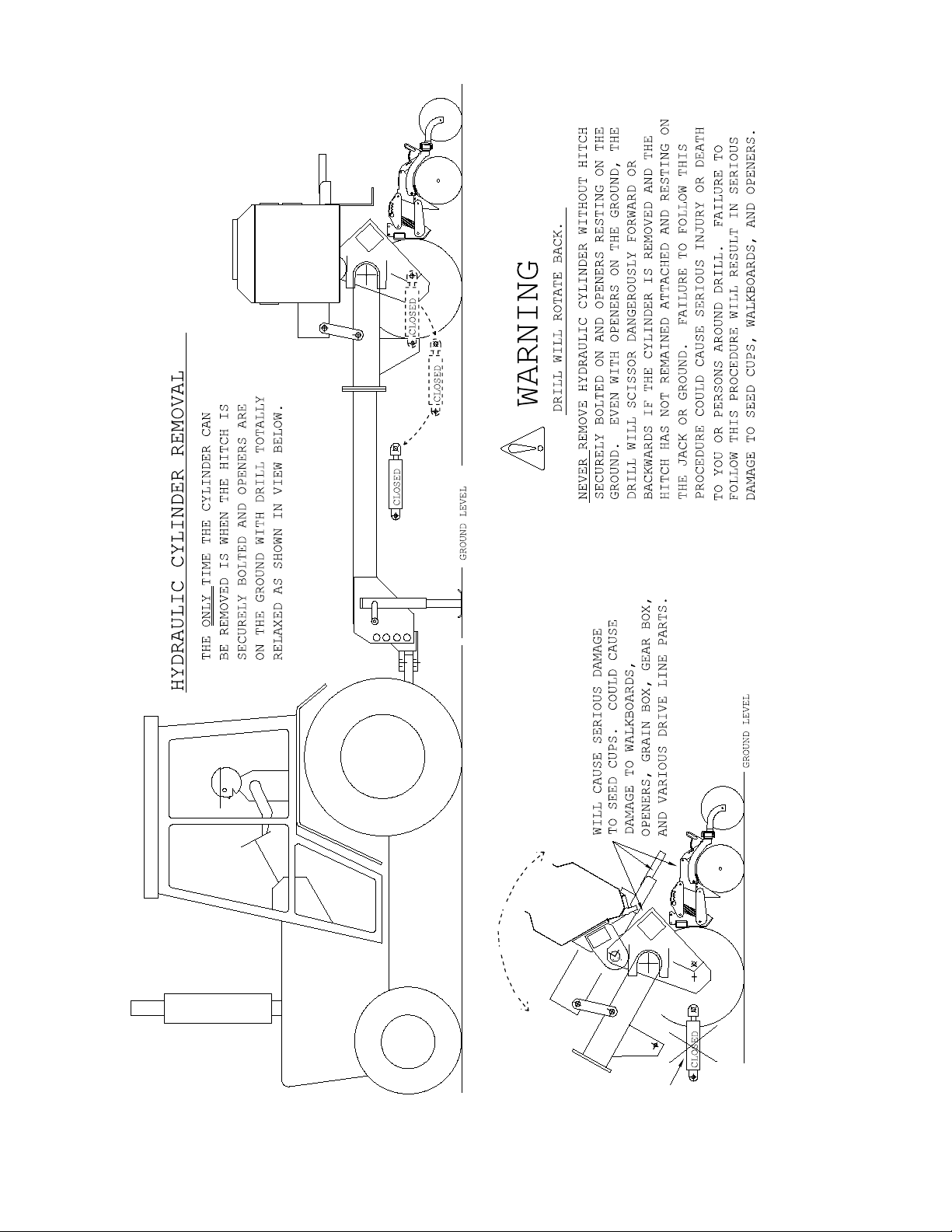

FDO NOT attempt to remove the hydraulic cylinder unless you have taken the

precautions described on page 4 of this manual. Serious injury or death could

occur if the correct procedure is not followed!

FIf your tractor does not already have a lighting receptacle, install one. Always plug in

the drill lighting system to a correctly wired tractor and USE for transport safety.

FYour drill may weigh more than the towing vehicle. The drill is not equipped with

brakes. EXERCISE EXTREME CAUTION ! Maximum allowable speed - 25 mph.

FIf your drill is equipped with hydraulic markers, always attach safety chains before

transporting.

FAlways install transport lock to hydraulic cylinder before transporting.

FRemove transport lock from lift cylinder before attempting field operation.

FNever have more than 391 lbs. per section on the walkboards without drill securely

attached to tractor or towing vehicle.

FCheck lug nuts or bolts. Torque to 100 ft. lbs. after approximately one mile and

periodically after.

FAfter approximately 10 hours, make sure tool bar bolts, wheel bolts, presswheel bolts,

etc. are tight. Check tool bar bolts every 10 to 15 hours. Tool bar bolts must stay

tight. Failure to comply could cause damage to tool bar and main frame in the form

of egg shaped holes.

FNEVER ALLOW ANYONE TO RIDE THE DRILL!

Safety Instructions

DANGER: Indicates an imminently hazardous situation

which, if not avoided, will result in death or serious injury.

WARNING: Indicates a hazardous situation which, if not

avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation

which, if not avoided, may result in minor or

moderate injury.

NOTICE: Used to address practices not related to

physical injury.

Field Operating Checklist

____ Inflate tires to recommended air pressure.

____ Lubrication as required.

____ Seed shafts turned manually to check for obstructions and improper chain alignment on drive

sprockets.

____ Correct sprocket selection and slot width for seed type and siz

____ Calibration as required for accuracy.

____ Drill adjusted at hitch for level field operation.

____ Cylinder stop set for proper toolbar rotation.

____ Down pressure set for soil conditions.

____ Acre meter reset.

____ Lower drill while moving forward to avoid plugging openers.

____ Check seed depth and adjust accordingly.

____ Allow no riders.

____ After approximately 10 hours, check tool bar bolts, wheel bolts, presswheel swivel bolts, etc..

Make sure they are tight.

Transport Instructions

FBefore attempting to operate the lift cylinder, remove transport lock. Store cylinder lock on the

holder attached to the front of the weight bar bracket. When traveling long distances, it is

recommended that the transport lock be installed, pressure relieved from the hydraulic hoses

and hoses hooked to the tractor. If trailing behind a towing vehicle, the hydraulic hoses should

be stored in the slotted storage in the tongue cover.

FNEVER use an unsecured pin in draw bar.

FDO NOT attempt to remove the cylinder at any time for transport or field operations.

FStow the adjustable jack on top of the tongue mounting stub to avoid interference with main

tractor wheels in tight turns and make sure 3-pt linkages are fully raised.

FConnect the 7 pin lighting plug to the tractor receptacle and use at all times. Confirm the

correct lights are operating if your tractor is not wired by industry standard code. Standard 7

pin receptacles are available through your dealer, local truck supply stores, and auto parts

facilities.

FAlways attach the safety chain to the tractor drawbar system.

FDisconnect drive chain and store on the "dummy" sprocket when traveling long distances.

FIf your drill is equipped with hydraulic markers, the safety chains should be attached to the

marker to avoid catastrophic injury to oncoming vehicles.

FMaximum allowable speed; 25 mph.

CAUTION! Your drill may weigh more than the towing vehicle. The drill is NOT

equipped with brakes. Exercise extreme caution!

TRANSPORT LENGTH

TRANSPORT WIDTH

A H

N E

S I

P G

O H

R T

Dimensions & Specifications

10', 15' & 20' Drill Weights

Presswheels

Size

Spacing

Number

Openers

Single

2 x 13

Flat

Single

2 x 13

Peaked

Single

3 x 13

Single

3 x 13

Center Rib

Single

3 x 14

V-Type

10' x 7½" 16 NA NA NA

10' x 10" 12 NA NA NA

15' x 7½" 24 7600 7672 7936

15' x 8" 22 7420 7486 7728

15' x 10" 18 6890 6950 7144

20' x 7½" 32 8690 8784 9200

20' x 8" 30 8515 8574 8964

20' x 10" 24 7920 7943 8255

Field Operation

Recommended Operating Speed

Operating speeds of 4-7 mph will provide

optimum results from your All Plant drill.

Conventional field conditions can warrant

speeds in the upper end of the range. High

levels of "tough" residue due to morning dew or

recent moisture, rough field conditions, rocky

fields, or hard ground may require lower

speeds for adequate performance.

Recommended Adjustment Procedure

Setting your All Plant drill requires adjustments

be made in a particular order to ensure the

opener will work properly. You will find it much

easier to set the drill if adjustments are made in

the following order:

1. Level the drill

2. Set toolbar rotation

3. Set down pressure

4. Set seed depth

Leveling the Drill

It is important to level the drill from front to back

first. The tongue and box should be as close to

level as you can get it by changing the drawbar

height on the tractor (on offset drawbars), or by

repositioning the clevis or mono hitch mounting.

Any time a different tractor is hooked to the drill

you should recheck level.

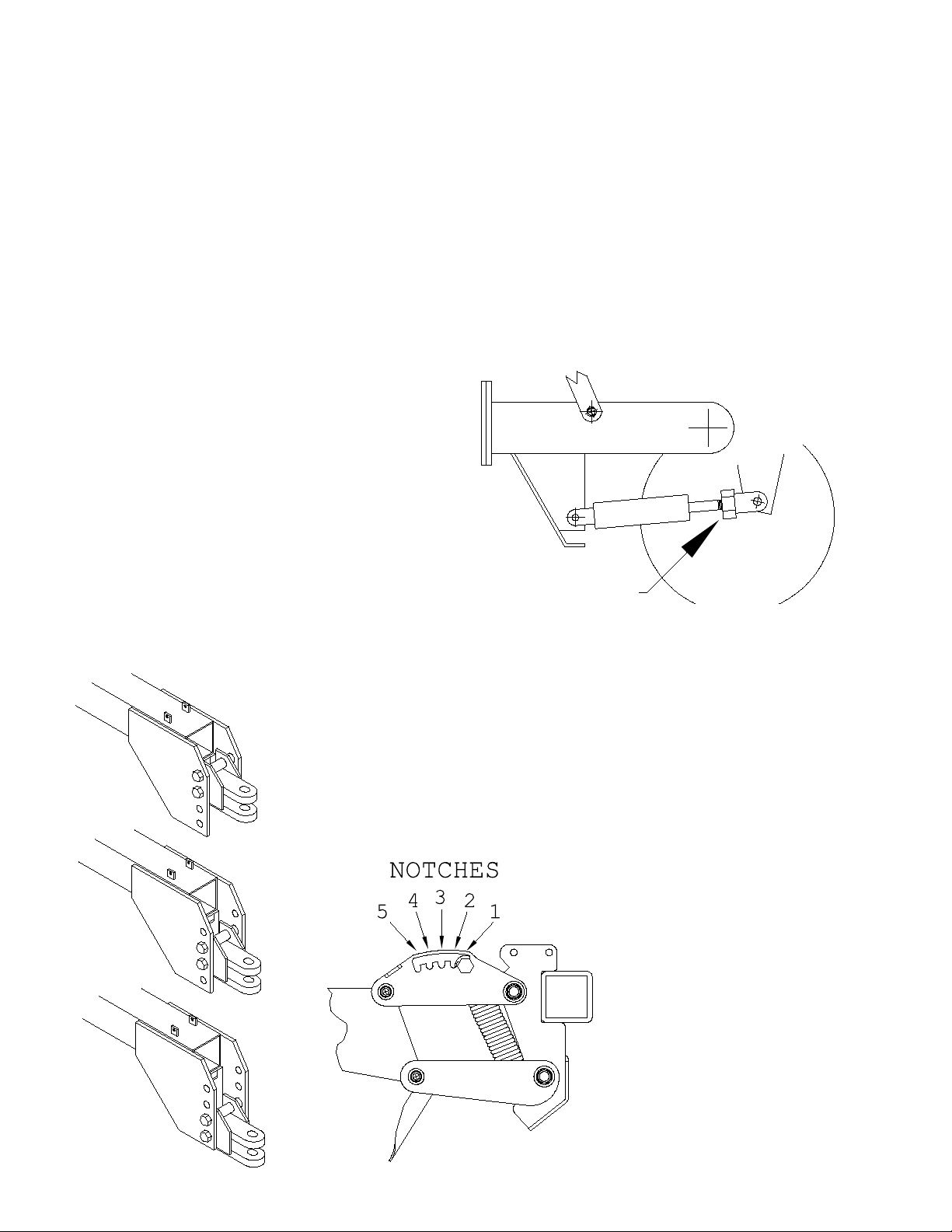

Clevis Positions

Toolbar Adjustment

After the drill is leveled, rotation of the toolbar

must be set. Using the screw adjustable stop

on the lift cylinder, adjust rotation of the toolbar

until the 2" x 4" tubing the openers are mounted

on is perpendicular to the ground. Adjustment

range of the presswheel depth quadrant will be

affected if the toolbar does not rotate far

enough or goes beyond perpendicular. If the

toolbar is not set correctly, the opener travel

range will not allow for penetration into low

areas or provide clearance when meeting

obstructions.

Setting Down Pressure

The parallel linkage opener design assures the

operator the opener blades and presswheel

operate on the same level throughout the range

of up and down travel. Due to the location of

the down pressure spring, the pressure applied

to the opener remains relatively constant in the

entire range of travel. Changing the spring

position from the first (top) notch to the last

(bottom) notch provides 5 different levels of

force. Each notch represents approximately

these amounts of down pressure:

1 2

Spring Springs

Notch 1 (top) 120# 200#

Notch 2 160# 260#

Notch 3 200# 330#

Notch 4 240# 400#

Notch 5 260# 500#

Autres manuels pour 4600 Series

Table des matières

Autres manuels CrustBuster Percer

CrustBuster

CrustBuster 4560 Manuel utilisateur

CrustBuster

CrustBuster 5020 Manuel utilisateur

CrustBuster

CrustBuster 5500 Manuel utilisateur

Manuels Percer populaires d'autres marques

Makita

Makita BDF456 Manuel utilisateur

Black & Decker

Black & Decker LDX220 Manuel utilisateur

Hitachi

Hitachi DH 40MA Manuel utilisateur

Challenge

Challenge JO Manuel de référence technique

Makita

Makita LXFD01 Manuel utilisateur

Festool

Festool T18+3 Manuel utilisateur

Milwaukee

Milwaukee M12 FPDX-202X Manuel utilisateur

EINHELL

EINHELL TE-RH 32 E Manuel utilisateur

Makita

Makita DHP484 Manuel utilisateur

Makita

Makita FD05 Manuel utilisateur

Bosch

Bosch PSB 530 RA Manuel utilisateur

Maximum

Maximum 054-1359-4 Manuel utilisateur

Makita

Makita HP332D Manuel utilisateur

Raider

Raider RDP-HD31H Manuel utilisateur

Bort

Bort BPM-1400x2 Manuel utilisateur

Black & Decker

Black & Decker 7266 Manuel utilisateur

KENT USA

KENT USA TRD1230 Manuel utilisateur

Bosch

Bosch GSB 19-2 RE Manuel utilisateur
