Crosswater Drift DR416FC Manuel utilisateur
Designed to comply with BS EN 817 for single lever mixers, for
water systems of type 2 general technical specifications
and to be used within systems designed to BS 6700. BS 6700
recommends the temperature of stored water should never
exceed 65°C.
meet all normal requirements and will minimise the build up
of lime scale in hard water areas. If the fitting is installed at
low pressure (tank fed), then the minimum distance from the
highest installed position of the outlet to the underside of the
cold tank should be at least 2 metres to ensure adequate
performance.
i
1
PRODUCT CODES:
All products manufactured and supplied by
Crosswater/Bathroom Brands are safe provided they are
installed, used correctly and receive regular maintenance in
accordance with these instructions. If you are in any doubt
about your ability to install this product safely you must
employ the services of an experienced qualified plumber.
These fittings need to be installed in accordance with, and
meet the requirements of the Water Supply (Water Fittings)
Regulations 1999 and Scottish Byelaws 2004.
Operating pressure range: Minimum 1 bar
, Maximum 5.0
bar. Maximum static pressure: 10.0 bar.
Note: Nominally equal (balanced) inlet supply pressures are
recommended for optimum performance with mixer taps.
DRIFT
Floor standing bath shower mixer
DR416FC/F/M
IMPORTANT INFORMATION BEFORE YOU START
A stored water temperature of 60°C is considered sufficient to
Please read carefully and keep this information for further reference.
V10323
2
IMPORTANT INFORMATION
Please read carefully and keep this information for further reference.
i

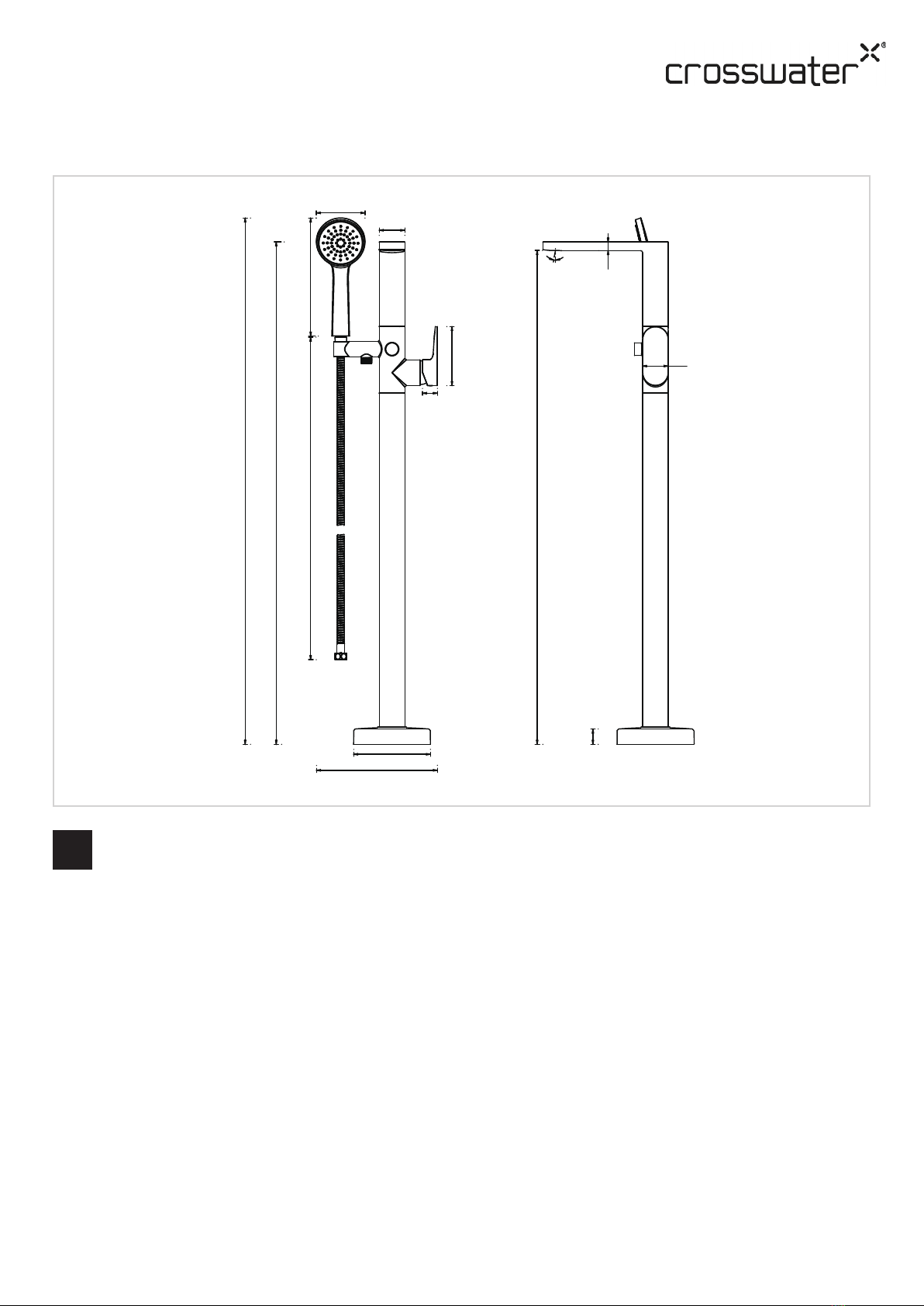

NOTE: ALL DIMENSIONS IN MILLIMETRES
DIMENSIONS
These taps and mixers should be installed in compliance with the Water Regulations.
Where the supplies are unbalanced, i.e. Hot water from cylinder tank / cold from the mains, approved check valves must be
fitted in the supply pipes.
For further details contact your Local Water Authority.
Ø150
236
50
115
29
981
1028
95
231
30
965
50
1500
8° 17
Remove all packaging and check the fitting for damage before starting installation.
Before starting any installation please consider the following: before drilling into walls, check that there are no
hidden electrical wires, cables or wate supply pipes. This can be checked with the aid of an electronic detector.
If power tools are used do not forget to: -
Wear eye protection
feeds is recommended for ease of maintenance.
Before installing the new fitting it is essential that you thoroughly flush through the pipework in order to remove any
remaining swarf, solder, etc. Failure to carry out this procedure could cause problems or damage to the workings of the fitting.
Take care when handling the ‘flexible connecting pipes’, do not bend, twist or crush them. Only tighten the pipes by hand. Do
not crush or kink the shower hose, this could damage the hose and cause leaks.
BEFORE YOU START
3
Important-Pre-Installation Notes
INSTALLATIONINSTALLATION
ATTENTION
Having first checked all new connections, turn on the mains
stop cock, close all taps except the new mixer and as the
system starts to refill check for leaks. Once you have
satisfied yourself that there are no leaks, switch on the
water heating.
KEY FOR
AERATOR
Connect to the hot and cold water supplies using suitable
plumbing joints. Turn on the hot, cold and mains water supply.
Check for leaks immediately. It is always advisable at this stage
to flush out the system. To do this, open both valves fully and
allow water to flow for approximately 1 minute. This will
remove any foreign matter within the installation.
4
HAND SHOWER
WASHER
HOSE
MIXER
FLEXIBLE
HOSE
STANDPIPE
FLANGE
SCREW
WALL
PLUG
WASHER
figure1 figure2
figure3 figure4
1. Drill a hole min 50mm diameter -max 60mm diameter in the
floor.
2. Place the flange on the standpipe and push it onto the
middle of the standpipe. (figure1)
3. Run the flexible hoses through the standpipe. Connect the
flexible hoses to the mixer, please note not to reverse the cold
and hot supply. Attach the mixer to the standpipe. (figure2)
4. Locate the assembly on the desired location with the
flexible hoses through the prepared hole and then slide the
flange down to the base and secure the standpipe.(figure3)
NOTE: If mounting into wooden floor, secure the standpipe
using screws only (wall plugs are not needed). If mounting into
solid floor, mark the position of holes first and then secure the
standpipe using wall plugs and screws. Where required ensure
correct plugs for your floor type are used. (figure3)
5. Connect the shower hose to the body and the hand shower.
Ensure a Washer is into each end for seal. (figure4)
6. Press diverter to operate shower, and it can be locked by.
Press and rotate the diverter until it is locked by when the
water pressure is lower than the mininum working pressure.
(figure4)
5
CARE & MAINTENANCE
CLEANING THE CARTRIDGE
CLEANING THE PRODUCT
The material we use in our taps is very durable, nevertheless
care should be taken when cleaning them. They should
be cleaned only with warm soapy water followed by rinsing
with clean water and drying with a so cloth. All finishes are
vulnerable to acid attack and some strong substances such
as household cleaners, disinfectants, denture cleaners,
hairdyes, wine making, and photographic chemicals can
cause the surface to go black or peel.
Note: Never use abrasive detergents or disinfectants or those
containing alcohol, hydrochloric acid or phosphoric acid.
CLEANING THE AERATOR
Part of the
Bathroom Brands Group
Rennie Drive, Dartford
Kent DA1 5FU
United Kingdom
0345 873 8840
AREATOR
KEY
NOZZLE
i
HANDLE
GRUB SCREW
COVER CAP
ALLEN KEY:2.5
SCREW
CARTRIDGE
COVER CUP
RETAINING NUT
The concealed cartridge should give trouble free service, but
in the event of any problems, servicing is straight forward.
To remove the cartridge:
Pull off the cover cap and with an allen key loosen the
screw, but do not remove it. Pull off the handle and unscrew
the cover. Using the correct size spanner unscrew and
remove the retaining nut. Pull out the cartridge taking note
of its orientation. Wash the cartridge with clean running water
and make sure that any trapped debris has been removed.
Dry and lightly grease the seal (only use silicone grease) and
replace the cartridge followed by the nut, cover and handle.
HEX.31
Before use: Unscrew the aerator and allow the water to run
freely until all debris is removed. Screw the aerator back into
the spout once all impurities have been flushed from the
water supply.
Periodically: Using the key provided in the box, unscrew the
aerator from the spout and rinse with clean running water.
Once all loose debris and dirt has been cleared, replace the
aerator into the spout and tighten with the key provided.
