Instruction Manual

Model 2116-116

Block Downconverter

June 2010 Rev 0

MODEL 2116

CROSS TECHNOLOGIES INC.

POWER

EXT

10MHZ ALARM

DOWNCONVERTER

Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc.,

but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc.

for purposes of operating the equipment.

When ordering parts from Cross Technologies, Inc., be sure to include the equipment

model number, equipment serial number, and a description of the part.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

INSTRUCTION MANUAL

MODEL 2116-116 Block Downconverter

TABLE OF CONTENTS PAGE

Warranty 2

1.0 General 3

1.1 Equipment Description 3

1.2 Technical Characteristics 4

2.0 Installation 5

2.1 Mechanical 5

2.2 Rear Inputs and Outputs 6

2.3 Front Panel Indicators 6

2.4 Operation 7

3.0 Environmental Use Information 8

WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.

All Cross Technologies, Inc. products are warranted against defective materials and

workmanship for a period of one year after shipment to customer. Cross Technologies,

Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s

option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall

not be liable for any special, indirect, or consequential damages. This warranty does not

cover parts or equipment which have been subject to misuse, negligence, or accident by the

customer during use. All shipping costs for warranty repairs will be prepaid by the

customer. There are not other warranties, express or implied, except as stated herein.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

2116-116 Manual Page 2 06/231/10

MODEL 2116-116 Block Downconverter

1.0 General

1.1 Equipment Description

The 2116-116 Block Downconverter converts 11.7 - 12.2 GHz to 0.95 - 1.45 GHz with a local oscillator at

10.75 GHz. Front panel LEDs provide indication of DC Power, External 10 MHz, and PLL Alarm. The gain is

+35 dB. Connectors are SMA female for the RF and BNC female for the L-Band and external reference input

and reference output. A three-way switch controls which 10 MHz reference is being used. In the INT position,

the internal reference is used, in the EXT position, the external reference is used, and in the AUTO position, the

internal reference is used unless a 3 dBm ± 3 dB, 10MHz reference signal is connected to the external reference

input. The 2116 is powered by a 100-240 ±10% VAC power supply, and mounted in a 1 3/4” X 19” X 14” rack

mount chassis.

MODEL 2116

CROSS TECHNOLOGIES INC.

POWER

EXT

10MHZ ALARM

DOWNCONVERTER

FRONT PANEL

GND

EXT 10MHZ RF INPUT

INPUT 10MHZ REF

OUTPUT

INT EXT

AUTO

S1 J1

L-BAND

OUTPUT

J101

J11

ALARM

15 234 6

REAR PANEL

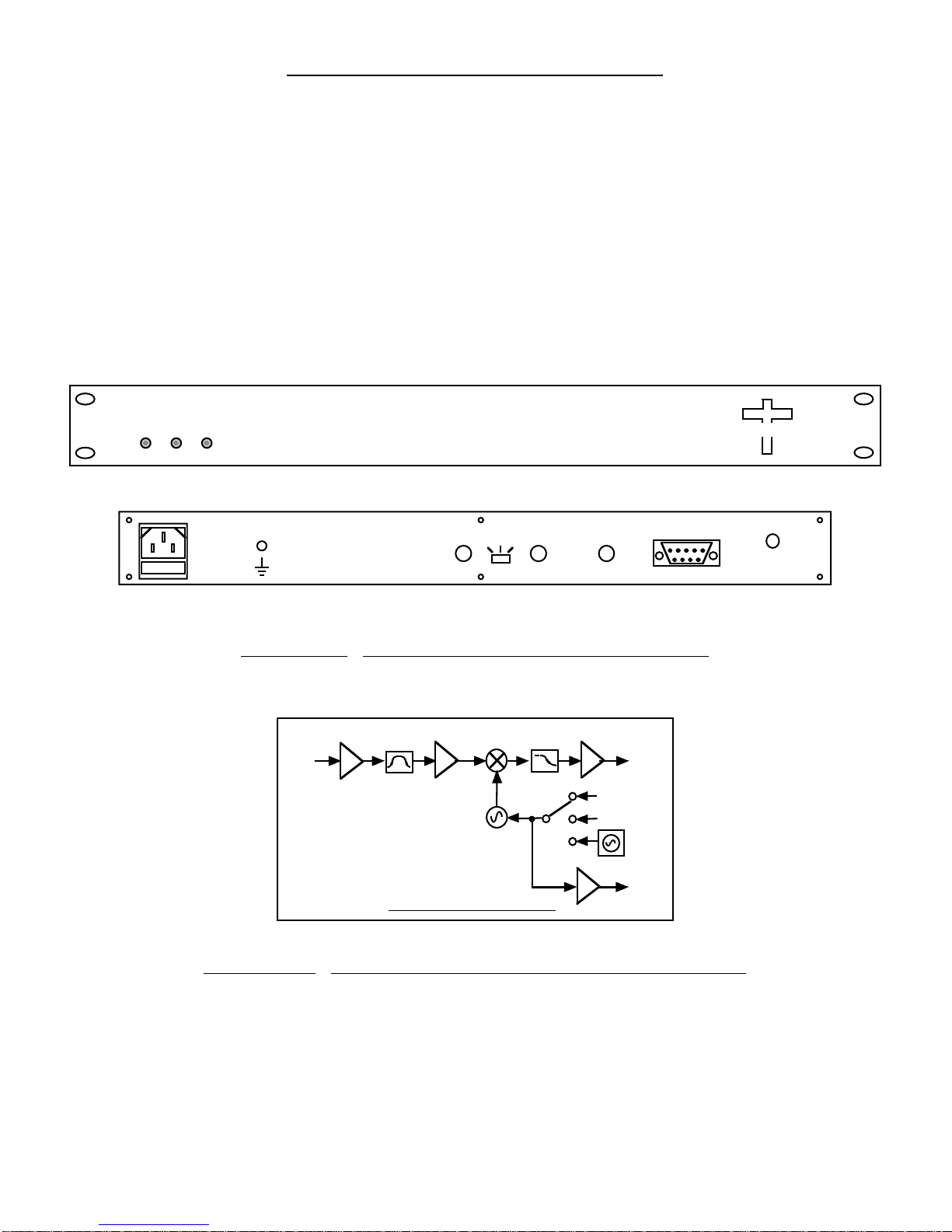

FIGURE 1.1 Model 2116-116 Front and Rear Panels

0.95

1.45

GHz

OUT

11.7

12.2

GHz

11.7 to 12.2 GHz

10.75

GHz

EXT

10MHz

INT

10MHz

2 GHz

MHz

MON

AUTO

2116-116 Block Diagram

FIGURE 1.2 Model 2116-116 Downconverter Block Diagram

2116-116 Manual Page 3 06/231/10

1.2 Technical Characteristics

TABLE 1.0 2116-116 Downconverter Specifications*

Input Characteristics

Impedance/Return Loss 50/14 dB (see TABLE 2.2 for connector options)

Frequency 11.7 to 12.2 GHz

Noise Figure, max. 20 dB, max gain

Input Level -55 to -35 dBm

Input 1dB Compression -25 dBm

Output Characteristics

Impedance/Return Loss 50/14 dB (see TABLE 2.2 for connector options)

Frequency 0.95 to 1.45 GHz

Output Level Range -20 to 0 dBm

Output 1dB Compression +10 dBm

Channel Characteristics

Gain +35 dB ± 2 dB

Image Rejection >60 dB, min.

Spurious, In Band SIGNAL RELATED <-60 dBC in band, 0 dBm out

SIGNAL INDEPENDENT, <-60 dBm

Spurious, Out of Band <-50 dBm

Intermodulation <-55 dBC for two carriers each at -10 dBm out

Frequency Response ±1.5 dB, 0.95 to 1.45 GHz out; ± 0.5 dB, 40 MHz BW

Frequency Sense Non-inverting

LO Characteristics

LO Frequency 10.75 GHz

Frequency Accuracy ± 0.01 ppm max over temp internal reference; ext. ref. input

-110-100-85-80-70

1MHz100kHz10kHz1kHz100 Hz

dBC/Hz

Phase Noise

Fre

10 MHz In/Out Level +3 dBm ± 3 dB, 75 ohms, External In or Monitor Out

Controls, Indicators

Ext 10 MHz Yellow LED, Indicates Ext 10 MHz reference selected

PLL Alarm Red LED, External contact closure

Power Green LED

Other

RF Connector SMA (female), 50

L-Band Connector BNC (female), 50

10 MHz connectors BNC (female), 75connector;Works for 50/75

Alarm Connector DB9 - NO or NC contact closure on Alarm

Size 19” standard chassis, 1.75” high X 14.0” deep

Power 100-240 ±10% VAC, 47 - 63 Hz, 25 watts max.

Options

Connector options See TABLE 2.2

*+10˚C to +40˚C; Specifications subject to change without notice.

2116-116 Manual Page 4 06/231/10

2.0 Installation

2.1 Mechanical

The 2116-116 consists of a PCB and an RF assembly housed in a 1 RU (1 3/4 inch high) by 12 inch deep

chassis. A switching, ± 12, +24, +5 VDC power supply provides power for the assemblies. The 2116-116 can

be secured to a rack using the 4 holes on the front panel. Figure 2.0 shows how the 2116-116 is assembled.

PS IN

PIN 1, +12 VDC

PIN 2, +5 VDC

PIN 3, +5 VDC

PIN 4, GROUND

PIN 5, GROUND

PIN 6, -12 VDC

PIN 7, +24 VDC

PIN 8, +24 VDC

POWER

SUPPLY

J10

J101 - Panel Mount

SMA Connector

PLL

VCO

MIXER

AMP

BP FILTER

ISO

FIGURE 2.0 2116-116 Mechanical Assembly

2116-116 Manual Page 5 06/231/10

2.2 Rear Panel Input/Output Signals

Figure 2.1 shows the input and output connectors on the rear panel.

15 234

GND

EXT 10MHZ RF INPUT

INPUT 10MHZ REF

OUTPUT

INT EXT

AUTO

S1 J1

L-BAND

OUTPUT

J101

J11

ALARM

AC INPUT

100-240 ±10%VAC, 47-63 HZ

Uses 2 amp Slow Blo,

5mm fuse

S1 - 10MHZ SWITCH

3-position switch. INT selects internal 10MHz ref.

AUTO selects internal 10MHz ref, unless a 3dBm

±3dB 10MHz signal is inserted on J2.

EXT selects external 10MHz ref from J2.

J101 - RF INPUT

SMA (female) 50 

11.7 to 12.2 GHz

-35 dBm max input signal

See Table 2.2 for other

connector options.

J8 - 10MHZ REF OUTPUT

BNC (female) 75 . Outputs currently

selected 10MHz ref signal (3 dBm ±3 dB).

J1 - L-BAND OUTPUT

BNC (female) 50 . 0.95 to 2.00 GHz,

0 dBm max input signal. See Table 2.2

for other connector options.

J2 - EXT 10MHZ INPUT

BNC (female) 75 . Insert external

10MHz reference here (3 dBm ± 3 dB).

J11 - ALARM

DB9 (female) connector.

See Table 2.1.

FIGURE 2.1 2116-116 Rear Panel I/Os

TABLE 2.1 JJ11

TABLE 2.1 J11 Pinouts (DB9)

Pin Function

1NotUsed

2NotUsed

3NotUsed

4NotUsed

5GND

6 Alarm Relay: Common

7 Alarm Relay: Normally Open

8NotUsed

9 Alarm Relay: Normally Closed

TABLE 2.2

Connector Optio

Options

Option RF L-Band

STD SMA, 50BNC, 50

Type N, 50BNC, 50

Type N, 50BNC, 75

Type N, 50Type F, 75

Type N, 50Type N, 50

SMA, 50BNC, 75

SMA, 50Type F, 75

SMA, 50Type N, 50

SMA, 50SMA, 50

2.3 Front Panel Indicators

Figure 2.2 shows the front panel indicators.

DS2 - ALARM LED

Lights RED when PLL

comes out of lock.

DS1 - POWER LED A

Lights GREEN when DC voltage is

present from AC power supply.

DS3 - EXT 10MHZ LED

Lights YELLOW when external

10MHz reference is active.

POWER

EXT

10MHZ ALARM

FIGURE 2.2 2116-116 Front Panel Controls and Indicators

2116-116 Manual Page 6 06/231/10

2.4 Installation / Operation

2.4.1 Installing and Operating the 2116-116 Downconverter

1. Connect a -55 dBm to -35 dBm signal RF INPUT, J101 (Figure 2.1).

2. Connect the L-BAND OUTPUT, J1, to the external equipment.

3. Connect 100-240 ±10% VAC, 47 - 63 Hz to AC connector on the back panel.

4. Be sure DS1 (green, DC Power) is on and DS2 (red, Alarm) is off (Figure 2.2).

5. Select either INT (for internal 10MHz ref), AUTO (for internal 10MHz ref UNLESS an external

10MHz, 3 dBm signal is connected to J2), or EXT (for external 10MHz, 3 dBm ref that is inserted

at J2) on rear panel switch S1 (Figure 2.1).

6. If EXT is selected or AUTO is selected and there is a 10MHz, 3 dBm signal at J2, check that DS3

(yellow, Ext 10MHZ) is on (Figure 2.2).

7. Check that a 10MHz, 3 dBm ±3 dB signal is present at the 10MHZ REF OUTPUT (J8) (Figure 2.1).

8. AC Fuse - The fuse is a 5 mm X 20 mm, 2 amp slow blow (Type T) and is inserted in the far slot in

the drawer below the AC input as shown in Figure 2.3. There is a spare fuse in the near slot. If a fuse

continues to open, the power supply is most likely defective.

FUSE DRAWER

SPARE FUSE DRAWER

AC Fuse - 2 amp slow blow (Type T 2A GDC),

5 mm X 20 mm

INPUT

100-240± 10%VAC

47-63 Hz

2A MAX

FUSE

TYPE T 2A GDC

250 VOLT

FOR 100 - 240 V~

FIGURE 2.3 Fuse Location and Spare Fuse

2116-116 Manual Page 7 06/231/10

3.0 Environmental Use Information

A.Rack-Mounting - To mount this equipment in a rack, please refer to the installation instructions

located in the user manual furnished by the manufacturer of your equipment rack.

B. Mechanical Loading - Mounting of equipment in a rack should be such that a hazardous condition

does not exist due to uneven weight distribution.

C.Elevated Operating Ambient Temperature - If installed in a closed or multi-unit rack assembly,

the operating ambient temperature of the rack may be greater than room ambient temperature.

Therefore, consideration should be given to Tmra.

D. Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow

required for safe operation of the equipment is not compromised. Additional space between unit

may be required.

E. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply

circuit and the effect that overloading of circuits could have on over current protection and supply wiring.

Appropriate consideration of equipment name plate rating should be used when addressing this concern.

F. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained.

Particular attention should be given to supply connections other than direct connection to the

Branch (use of power strips).

G. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed.

If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED

prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS

emission problems.

2116-116 Manual Page 8 06/231/10

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

2010 Printed in USA

2116-116 Manual Page 9 06/231/10

Table des matières

Autres manuels Cross Technologies Convertisseur de média

Cross Technologies

Cross Technologies 2015-03A Manuel utilisateur

Cross Technologies

Cross Technologies 2016-25 Manuel utilisateur

Cross Technologies

Cross Technologies 2415 0925 Series Manuel utilisateur

Cross Technologies

Cross Technologies 2015-24 Manuel utilisateur

Cross Technologies

Cross Technologies 4116-31-184 Manuel utilisateur

Cross Technologies

Cross Technologies 2116-21-1014 Manuel utilisateur

Cross Technologies

Cross Technologies 2099-10 Manuel utilisateur

Cross Technologies

Cross Technologies 2016-75-213 Manuel utilisateur

Cross Technologies

Cross Technologies 2017-14 Manuel utilisateur

Cross Technologies

Cross Technologies 2416-x02 Manuel utilisateur

Cross Technologies

Cross Technologies 2117-9395 Manuel utilisateur

Cross Technologies

Cross Technologies 2009-2425-1750 Manuel utilisateur

Cross Technologies

Cross Technologies 2016-95 Manuel utilisateur

Cross Technologies

Cross Technologies 2416 02I Series Manuel utilisateur

Cross Technologies

Cross Technologies 2015-05 Manuel utilisateur

Cross Technologies

Cross Technologies 3116-22-23 Manuel utilisateur

Cross Technologies

Cross Technologies 3115-21-109 Manuel utilisateur

Cross Technologies

Cross Technologies 3116-192 Manuel utilisateur

Cross Technologies

Cross Technologies 2016-8085 Manuel utilisateur

Cross Technologies

Cross Technologies 3116-145-1600 Manuel utilisateur

Cross Technologies

Cross Technologies 2005-02P4 Manuel utilisateur

Cross Technologies

Cross Technologies 2115-275-1845 Manuel utilisateur

Cross Technologies

Cross Technologies 2016-57 Manuel utilisateur

Cross Technologies

Cross Technologies 3016-1520-1200 Manuel utilisateur

Manuels Convertisseur de média populaires d'autres marques

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuel utilisateur

SPROLINK

SPROLINK VA1 Manuel utilisateur

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuel utilisateur

Nikon

Nikon AF-S TC-20E III Manuel utilisateur

Axis

Axis AXIS Q7406 Manuel utilisateur

Omega

Omega TAC80B-J Manuel utilisateur

Zoom

Zoom Thunderbolt TAC-2R Manuel utilisateur

OST

OST iConverter 10/100M Manuel utilisateur

Vertiv

Vertiv Netsure Manuel utilisateur

birddog

birddog MINI Manuel utilisateur

Roland

Roland GI-10 Manuel utilisateur

Wallenstein

Wallenstein WX310 Manuel utilisateur

Pace

Pace MSS 200-1 Manuel utilisateur

Solar Converters

Solar Converters EQ 12/24-50 Manuel utilisateur

CYP

CYP EL-7400V Manuel utilisateur

TIE

TIE MIDI 1i1o Manuel utilisateur

DCS

DCS Vivaldi Upsampler Manuel utilisateur

Westermo

Westermo MCW-211 SERIES Manuel utilisateur
