Cross Technologies 2016-02-1200 Manuel utilisateur

Instruction Manual

Model 2016-02-1200

L-Band / Downconverter

May 2019, Rev. 0

EXECUTE

MODEL 2016

CROSS TECHNOLOGIES INC.

REMOTE POWER

ALARM

DOWNCONVERTER

F = 1975.125

G = 30.0

Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc.,

but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc.

for purposes of operating the equipment.

When ordering parts from Cross Technologies, Inc., be sure to include the equipment model number,

equipment serial number, and a description of the part.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

INSTRUCTION MANUAL

Model 2016-02-1200, L-Band Downconverter

TABLE OF CONTENTS PAGE

Warranty 2

1.0 General 3

1.1 Equipment Description 3

1.2 Technical Characteristics 4

1.3 Monitor & Control Interface 6

1.4 Environmental Use Information 9

2.0 Installation 10

2.1 Mechanical 10

2.2 Rear Panel Inputs & Outputs 11

2.3 Front Panel Controls & Indicators 12

2.4 Operation 13

2.5 Menu Settings 14

WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.

All Cross Technologies, Inc. products are warranted against defective materials and

workmanship for a period of one year after shipment to customer. Cross Technologies,

Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s

option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall

not be liable for any special, indirect, or consequential damages. This warranty does not

cover parts or equipment which have been subject to misuse, negligence, or accident by the

customer during use. All shipping costs for warranty repairs will be prepaid by the

customer. There are not other warranties, express or implied, except as stated herein.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

WEB www.crosstechnologies.com

E-MAIL [email protected]

2016-02-1200 Manual, Rev. 0 Page 2 05/13/19

Model 2016-02-1200 Downconverter

1.0 General

1.1 Equipment Description

The 2016-02-1200 Downconverter converts 950 to 2150 MHz to 1200 MHz in 125 kHz steps with low group

delay and flat frequency response. Synthesized local oscillators (LO) provide frequency selection. Multi-

function switches select the input frequency, gain, and other parameters. Front panel LEDs provide indication

of DC power, PLL alarm or Remote operation. Gain is adjustable manually (MGC) over a 0 to +30 dB range.

The frequency and gain are remotely selectable. Parameter selection and frequency and gain settings appear on

the LCD display. Connectors are Type F female for the RF, and BNC female for the IF and external 10 MHz

reference input and output. External 10 MHz is standard. A 10 MHz output connector contains either the

internal or external 10 MHz reference signal whichever is selected by the user. The 2016-02-1200 is powered

by a 100-240 ±10% VAC, 47-63 Hz power supply, and is contained in a 1 3/4” X 19” X 16” rack mount

chassis.

EXECUTE

MODEL 2016

CROSS TECHNOLOGIES INC.

REMOTE POWER

ALARM

DOWNCONVERTER

F = 1975.125

G = 30.0

FRONT

GND

J10

J18

RF IN

10 MHZ REF 10 MHZ

AND

MONITOR EXT REF

LNB FUSE

F1 CONTROL

IF OUT OUTPUT INPUT

DS8

VDC on RF

J20

5 234 6

789

REAR

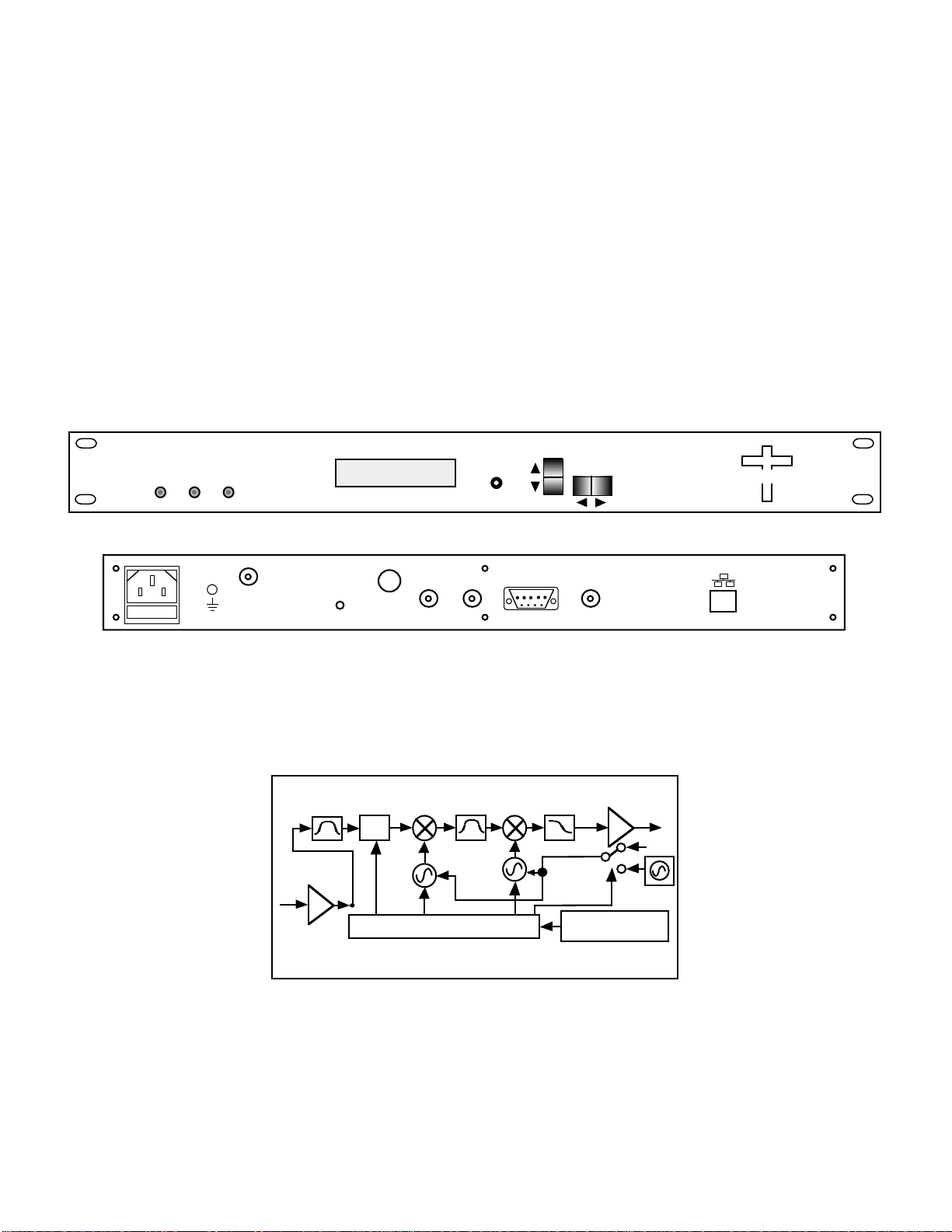

FIGURE 1.1 Model 2016-02-1200 Front and Rear Panels

1200 ±100

MHz OUT

950

2150

MHz

2800 MHz BP

4000

MHz

3750

4950

MHz

900 to 2200

MHz HP/LP 1400 MHz LP

CONTROLLER F=1975.125

G=30

2016-02-1200 Downconverter Block Diagram

VAR

ATT EXT

10 M

INT/EXT

10 M

FIGURE 1.2 Model 2016-02-1200 Downconverter Block Diagram

2016-02-1200 Manual, Rev. 0 Page 3 05/13/19

1.2 Technical Characteristics

Specifications continued on page 5...

2016-02-1200 Manual, Rev. 0 Page 4 05/13/19

Input Characteristics

Out

ut Characteristics

Channel Characteristics

Synthesizer Characteristics

> 45 dB

min.

50 dB t

icalIma

e Re

ection

-20 to -10 dBmOut

ut Level Ran

TABLE 1.0 2016-02-1200 Downconverter S

ecifications**

125 kHzFre

uenc

Ste

±0.01

m max. over tem

(

±0.01

tion H

)

Fre

uenc

Accurac

Non-invertin

Fre

uenc

Sense 10 ns total max.

arabolic + linear + ri

)

Grou

Dela

max.

< -45 dBc in bandS

urious Res

onse

±2.0 dB

950 - 2150 MHz

;

±1.0 dB

200 MHz BWFre

uenc

Res

onse

0.0 to +30.0 dBm

1±1 dB ste

sGain Ran

(

ustable

)

0 dBm

maximum GainOut

ut 1 dB Com

ression

1200 ± 100 MHzFre

uenc

50Ω/ 14 dBIm

edance/Return Loss

-50 to -20 dBmInput Level Ran

e20 dB maximum

ainNoise Fi

ure

Max. 950 to 2150 MHzFre

uenc

75Ω/10 dBIn

ut Im

edance/Return Loss

-100-90-80-70-70 1MHz100kHz10kHz1kHz100 MHz

dBC/Hz

Phase Noise @ Fre

uenc

19 inch

1RU standard chassis

1.75” hi

h x 16.0” dee

Size

Controls

Indicators

Other

BNC

(

female

)

10 MHz Connectors

Direct readout LCD

;

manual or remote selectionGain Selection

3 dBm

± 3 dB

75 ohms10 MHz Level

(

In or Out

)

100-240 ±10% VAC

47- 63 Hz

30 watts maximumPower

RS232C

9600 Baud

;

(

RS485 Ethernet O

tional

)

Remote

Direct readout LCD

;

manual or remote selectionFre

uenc

Selection

DB9 - NO or NC contact closure on AlarmAlarm/Remote Connector

e F

(

female

)

RF Connector

Green LED

;

Red LED

Yellow LEDPower

Alarm

Remote

See TABLE 2.2

TABLE 1.0 2016-02-1200 Downconverter Specifications* continued from page 4

**+10˚C to +40˚C; S

ecifications sub

ect to chan

e without notice. Cross Technolo

ies, Inc., 2019

Available O

tions

Ethernet

;

with Web Browser TCP/IP Telenet®

W28 -

LNB Volta

+24VDC

0.4 am

sL -

Connector O

tions

Ethernet

;

with Web Browser

(

)

W8 -

h Stabilit

(

± 0.01

)

internal referenceH -

W8 + W18 + W28

W828 -

Ethernet

;

with Web Browser & SNMPW18 -

RS-485 Remote InterfaceQ -

2016-02-1200 Manual, Rev. 0 Page 5 05/13/19

1.3 Monitor and Control Interface

A) Remote serial interface

Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit.

(RS-232C, RS-422, or RS-485 - Option-Q)

Female DB-9

PC Com Port Male DB-9

2015/16/17 M&C Port

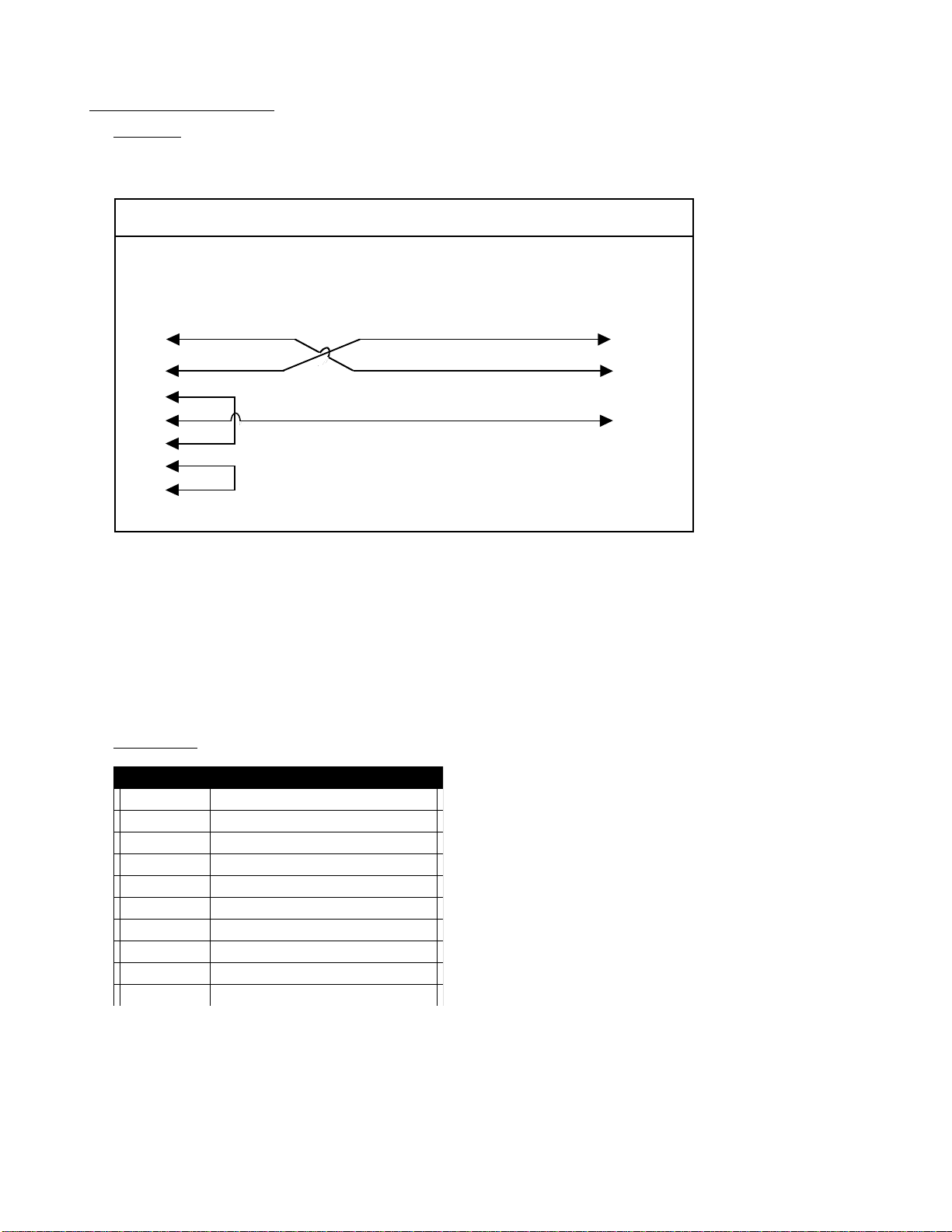

M&C Cable Diagram - Cross Technologies Frequency Converters

RX RX

TX TX

DTR

DSR

RTS

CTS

Connector: Rear panel, DB-9 male

J10 Pinouts

(RS-232C/422/485)

Pinouts (RS-232C/422/485)

Pin Function

1 Rx-

2 Rx+ (RS-232C)

3 Tx+ (RS-232C)

4Tx-

5GND

6 Alarm Relay: Common

7 Alarm Relay: Normally Open

8 Not Used

9 Alarm Relay: Normally Closed

2016-02-1200 Manual, Rev. 0 Page 6 05/13/19

B) Status Requests

Table 1.1 lists the status requests for the 2016-02-1200 and briefly describes them.

*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,

should be used ONLY when RS-485, (OPTION-Q), is selected.

TABLE 1.1 2016-02-1200

Status

2016-02-1200 Status Requests

TABLE 1.1 2016-02-1200 Status Requests

Command Syntax* Description

Command Status {aaS1} Returns {aaS1bbbbbbbccA} where:

• bbbbbbb = Rx frequency

• cc = Rx gain (•ccc if unit has option Z5)

• A = summary alarm; 1=alarmed, 0=normal

10MHz Ref Status {aaS2} Returns {S2ER} where:

• E = 1 - external 10 MHz switched in

• R = 1 - 10 MHz ref inserted on RF input connector

LNB Current {aaS3} Returns {S3eee} where:

(option L only)

• eee = LNB current (000 to 500 = 0 to .500 A)

2016-02-1200 Manual, Rev. 0 Page 7 05/13/19

C) Commands

Table 1.2 lists the commands for the 2016-02-1200 and briefly describes them. After a command is sent the

2016-02-1200 sends a return “>” indicating the command has been received and executed.

General Command Format - The general command format is {aaCND...}, where:

{ = start byte

aa = address (RS-485 only - option -Q)

C = 1 character, either C (command) or S (status)

N = 1 character command or status request

D = 1 character or more of data (depends on command)

} = stop byte

*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,

should be used ONLY when RS-485, (OPTION-Q), is selected.

Table 1.2 2016-02-1200 Commmands

Commands

Table 1.2 2016-02-1200 Commands

Command Syntax* Description

Set Receiver Frequency {aaC2xxxxxxx} where:

• xxxxxxx=7 characters

• Range: 0950000 to 2150000 kHz, in 125 kHz steps

(100 kHz steps if unit has option X1)

Set Receiver Gain {aaC4xx} where:

• xx = 2 characters

• Range: 00 to 30 (0 dB to +30 dB, in 1 dB steps)

example: {C425} sets the gain to 25 dB

xxx = 3 characters if option Z5

Range: 000 to 300 (0 dB to 30.0 dB, in 0.5 dB steps)

example: {C4255} sets the gain to 25.5 dB

Enable 10MHz Ref Insertion {aaC6x} where x =:

• 0 to disable 10MHz insertion on RF input connector

• 1 to enable 10MHz insertion on RF input connector

Enable External 10MHz IN {aaCEx} where x =:

• 0 to disable External 10MHz reference signal

• 1 to enable External 10MHz reference signal

Enable Remote # Just # sign

Disable Remote {aaCR0} {CR and zero}

2016-02-1200 Manual, Rev. 0 Page 8 05/13/19

1.4 Environmental Use Information

A.Rack-Mounting - To mount this equipment in a rack, please refer to the installation instructions

located in the user manual furnished by the manufacturer of your equipment rack.

B. Mechanical loading - Mounting of equipment in a rack should be such that a hazardous condition

does not exist due to uneven weight distribution.

C.Elevated operating ambient temperature - If installed in a closed or multi-unit rack assembly,

the operating ambient temperature of the rack may be greater than room ambient temperature.

Therefore, consideration should be given to Tmra (Maximum Recommended Ambient Temperature).

D. Reduced air flow - Installation of the equipment in a rack should be such that the amount of air flow

required for safe operation of the equipment is not compromised. Additional space between units

may be required.

E. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply

circuit and the effect that overloading of circuits could have on over current protection and supply wiring.

Appropriate consideration of equipment name plate rating should be used, when addressing this concern.

F. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular

attention should be given to supply connections other than direct connection to the Branch

(use of power strips).

G. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed.

If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED

prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS

emission problems.

2016-02-1200 Manual, Rev. 0 Page 9 05/13/19

2.0 Installation

2.1 Mechanical

The 2016-02-1200 consists of one RF/Controller PCB housed in a 1 RU (1 3/4 inch high) by 16 inch deep

chassis. A switching, ±12, +24, +5 VDC power supply provides power for the assemblies. The 2016-02-1200

can be secured to a rack using the 4 holes on the front panel. Figure 2.1 shows how the 2016-02-1200 is

assembled.

POWER

SUPPLY

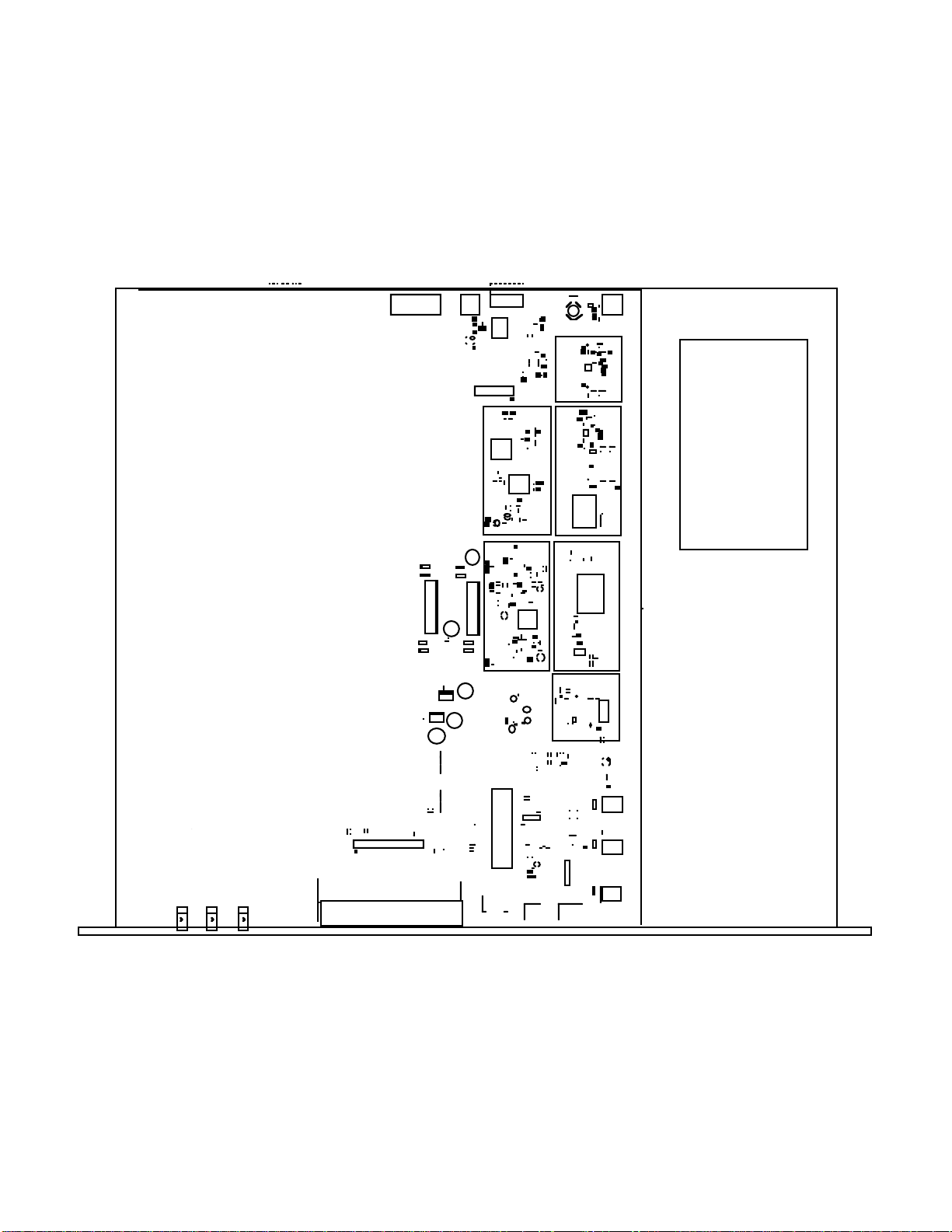

FIGURE 2.1 2016-02-1200 Mechanical Assembly

2016-02-1200 Manual, Rev. 0 Page 10 05/13/19

Autres manuels Cross Technologies Convertisseur de média

Cross Technologies

Cross Technologies 2416-x02 Manuel utilisateur

Cross Technologies

Cross Technologies 2009-2425-1750 Manuel utilisateur

Cross Technologies

Cross Technologies 2016-03A Manuel utilisateur

Cross Technologies

Cross Technologies 2116-182193 Manuel utilisateur

Cross Technologies

Cross Technologies 2117-8485 Manuel utilisateur

Cross Technologies

Cross Technologies 2416 02I Series Manuel utilisateur

Cross Technologies

Cross Technologies 2117-7172 Manuel utilisateur

Cross Technologies

Cross Technologies 2017-1727-140 Manuel utilisateur

Cross Technologies

Cross Technologies 3116-7786-2150 Manuel utilisateur

Cross Technologies

Cross Technologies 2015-03A Manuel utilisateur

Cross Technologies

Cross Technologies 2017-03 Manuel utilisateur

Cross Technologies

Cross Technologies 2016-26 Manuel utilisateur

Cross Technologies

Cross Technologies 2115-275-1845 Manuel utilisateur

Cross Technologies

Cross Technologies 3016-1520-1200 Manuel utilisateur

Cross Technologies

Cross Technologies 2016-25-01 Manuel utilisateur

Cross Technologies

Cross Technologies 2017-0923 370 Series Manuel utilisateur

Cross Technologies

Cross Technologies 2415 0925 Series Manuel utilisateur

Cross Technologies

Cross Technologies 2117 Manuel utilisateur

Cross Technologies

Cross Technologies 2116-300-1600 Manuel utilisateur

Cross Technologies

Cross Technologies 3016-2124 Manuel utilisateur

Cross Technologies

Cross Technologies 2016-12 Manuel utilisateur

Cross Technologies

Cross Technologies 3116-22-23 Manuel utilisateur

Cross Technologies

Cross Technologies 4117-14 Manuel utilisateur

Cross Technologies

Cross Technologies 4115-300 Manuel utilisateur

Manuels Convertisseur de média populaires d'autres marques

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuel utilisateur

SPROLINK

SPROLINK VA1 Manuel utilisateur

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuel utilisateur

Nikon

Nikon AF-S TC-20E III Manuel utilisateur

Axis

Axis AXIS Q7406 Manuel utilisateur

Omega

Omega TAC80B-J Manuel utilisateur

Zoom

Zoom Thunderbolt TAC-2R Manuel utilisateur

OST

OST iConverter 10/100M Manuel utilisateur

Vertiv

Vertiv Netsure Manuel utilisateur

birddog

birddog MINI Manuel utilisateur

Roland

Roland GI-10 Manuel utilisateur

Wallenstein

Wallenstein WX310 Manuel utilisateur

Pace

Pace MSS 200-1 Manuel utilisateur

Solar Converters

Solar Converters EQ 12/24-50 Manuel utilisateur

CYP

CYP EL-7400V Manuel utilisateur

TIE

TIE MIDI 1i1o Manuel utilisateur

DCS

DCS Vivaldi Upsampler Manuel utilisateur

Westermo

Westermo MCW-211 SERIES Manuel utilisateur
