Cross Technologies 3116-T71 Manuel utilisateur

Instruction Manual

Model 3116-T71

Multi-Band, Block Translator

October 2015, Rev. C

EXECUTE

MODEL 3116

CROSS TECHNOLOGIES INC.

B1 5.850 -> 3.400 GHz

G=10 TRANS= 2.050 GHz

MUTEREMOTE POWER ALARM

MULTI-BAND TRANSLATOR

Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc., but may be

reproduced or duplicated without the prior permission of Cross Technologies, Inc. for purposes of operating

the equipment.

When ordering parts from Cross Technologies, Inc., be sure to include the equipment model number,

equipment serial number, and a description of the part.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

INSTRUCTION MANUAL

MODEL 3116-T71 Multi-Band, Block Translator

TABLE OF CONTENTS PAGE

Warranty 2

1.0 General 3

1.1 Equipment Description 3

1.2 Technical Characteristics 4

1.3 Monitor & Control Interface 5

2.0 Installation 7

2.1 Mechanical 7

2.2 Rear Panel Inputs & Outputs 8

2.3 Front Panel Controls & Indicators 9

2.4 Installation/Operation 10

2.5 Ethernet Interface Installation and Operation 11

2.5.1 Methods of Connection 11

2.5.2 Ethernet Configuration 11

2.5.3 Webpage M&C 12

2.5.4 SNMP Configuration 13

2.6 Menu Settings 16

3.0 Environmental Use Information 20

WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.

All Cross Technologies, Inc. products are warranted against defective materials and

workmanship for a period of one year after shipment to customer. Cross Technologies, Inc.’s

obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s option,

replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall not be

liable for any special, indirect, or consequential damages. This warranty does not cover parts

or equipment which have been subject to misuse, negligence, or accident by the customer

during use. All shipping costs for warranty repairs will be prepaid by the customer. There are

not other warranties, express or implied, except as stated herein.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005 FAX (770) 886-7964

Toll Free (888) 900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

3116-T71 Manual, Rev. C Page 2 10/01/2015

MODEL 3116-T71 Multi-Band, Block Translator

1.0 General

1.1 Equipment Description

The 3116-T71 Translator converts one of four input RF bands to one of four output RF bands in seven different

translations. Front panel LEDs provide indication of DC Power, Remote, Mute and PLL Alarm. The RF to RF

gain is +20 dB, maximum. Connectors are SMA female for the RF out, RF in and RF in Monitor and BNC

female for the external reference input and reference output. In AUTO, the 10 MHz reference switches to

internal when the external is below +1 dBm. Gain, band, LO frequency and internal 10 MHz frequency are

controlled by the Ethernet M&C or the Monitor/Control connector. The 3116-T71 is powered by a 100-240

±10% VAC power supply and is in a 1.75” X 19” X 19” rack mount chassis.

EXECUTE

MODEL 3116

CROSS TECHNOLOGIES INC.

B1 5.850 -> 3.400 GHz

G=10 TRANS= 2.050 GHz

MUTEREMOTE POWER ALARM

MULTI-BAND TRANSLATOR

GND

J3J4J1

RF IN

10 MHZ REF 10 MHZ

EXT REF

OUTPUT INPUT

J10

AND

MONITOR

CONTROL

15 234 6789

RF MON

RF OUT

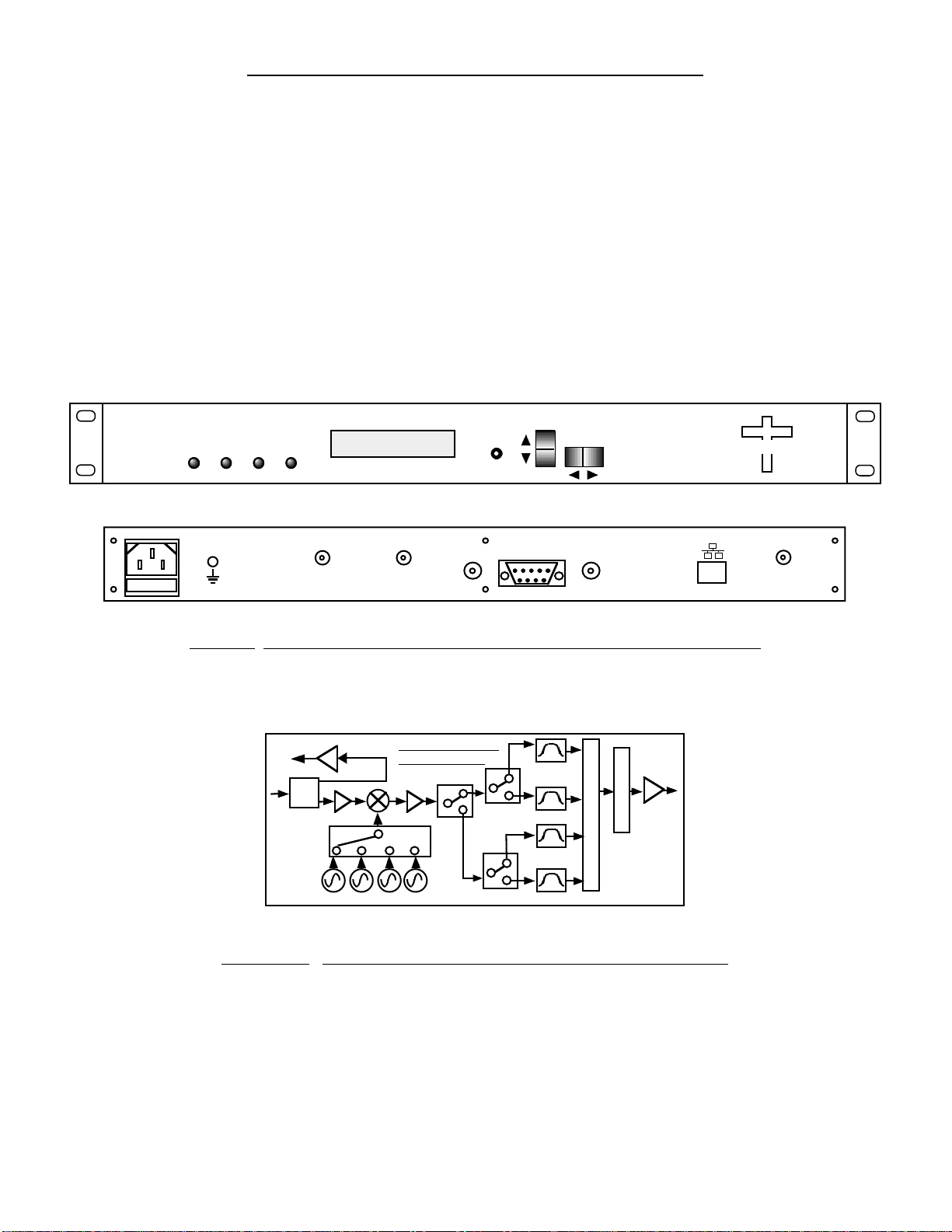

Figure 1 Model 3116-T71 Multi-Band Block Translator, Front & Rear Panels

3116-T71 Transl.

Block Diagram V

SP4T SW

+10

MON 3.4 to 4.5

GHz BP

RF Out

3.4 - 4.5

7.25-7.75

10.7 -11.8

11.7 -12.8

GHz

2.05 -3.05

RF In

5.85-6.95

7.9-8.4

13.75-14.85

17.30-18.40

GHz

5.1 to 5.6

& 6.6 GHz

SPL

1.24-1.80

7.25 to 7.75 GHz BP

10.7 to 11.8

GHz BP

11.7 to 12.8 GHz BP

0.65GHz

FIGURE 1 A Model 3116-T71 Multi-Band, Translator Block Diagram

3116-T71 Manual, Rev. C Page 3 10/01/2015

1.2 Technical Characteristics

TABLE 1.0 3116-T71 Multi-Band, Block Translator*

Input Characteristics

Impedance/Return Loss 50 Ω/12 dB, 14 dB typical

Frequency See Band Chart below

Noise Figure, max. 20 dB at max. gain

Input Level -30 to -10 dBm

Output Characteristics

Impedance/Return Loss 50 Ω/10 dB, 14 dB typical (see Table 2.5.1 for connector options)

Frequency (GHz) See Band Chart below

Output Level Range -60 to 0 dBm

Output 1dB Compression +8 dBm, +10 typical

Channel Characteristics

Gain, maximum +20 dB, ±3 dB

Gain Range; Steps +20 to -40 dB;

Input to Output Isolation, Min. > 45 dBC, (> 60 typical)

Spurious, Inband, @ Level > 40 dBC, except 25 dBC (>30 dBC typical) @ -10 dBm in where

harmonics of LO falls in-band (See Band Chart below).

Spurious, LO, Out of band < -60 dBm

2 tone @ -20 dBm in each > 45 dBC, 50 typical

Frequency Response, band ± 2 dB

Frequency Response, 40 MHz ± 0.5 dB

Frequency Sense Non-inverting

LO Characteristics

LO Frequency Band Specific

Frequency Accuracy ±0.01 ppm max. over temp internal reference; external reference input

110100See Band Chart8070

1M100K10K1K100

dBC/Hz

Phase Noise

(

)

10 MHz Level +5 dBm ± 3 dB; Manual Local/Remote; Auto,

Switches to internal when the external falls below +1 dBm

Controls, Indicators

Gain, Band, 10M Freq. Gain, band select, and internal 10 MHz frequency via

Ethernet M&C or Monitor/Control connector.

PLL Alarm Red LED, External contact closure

Power Green LED

Remote Ethernet and RS232C, 9600 baud (RS485 Optional)

Other

RF In, Mon. Connector SMA (female), 50Ω

RF Out Connector SMA (female), 50Ω

10 MHz Connectors BNC (female), 75Ω; Works with 50Ω

Monitor/Control Connector Ethernet, RJ45; Female; RS232C, DB9, Female

Size 19 inch, 1RU standard chassis, 1.75” high x 19.0” deep

Power 100-240 ±10% VAC, 47 - 63 Hz, 30 watts max.

BAND IN RANGE OUT RANGE LO LO LO STEP PH NOISE

In-Band Fixed Spurs

NO. (GHz) (GHz) (GHz) RANGE (GHz) (MHz) @ 10 kHz

(25dBC @-10 in; 5dBC @ -30 in)

1 5.85-6.95 3.4-4.5 2.45 2.05-3.05 1

85dBC

2.05 to 2.25, Carrier related 20 dBC

2 7.90-8.40 7.25-7.75 0.65 0.65 FIXED

85dBC

None

3 13.75-14.85 10.7-11.8 3.05 2.05-3.05 1

85dBC

2.14 to 2.36; 2.675 to 2.95

4 13.75-14.85 11.7-12.8 2.05 2.05-3.05 1

85dBC

2.05 to 2.1;2.34 to 2.565;2.925 to 3.05

5 13.75-14.85 11.7-12.8 1.5 1.24-1.80 1

85dBC

1.24 to 1.40 ;1.5 to 1.6 ; 1.75 to 1.8

6 17.3-18.4 10.7-11.8 6.6 6.6 FIXED 85 dBC None

7 17.3-18.4 11.7-12.8 5.6 5.1-5.6 5 85 dBC

None

BAND CHART-Frequencies, Translations, Phase Noise, Spurs

* 5 MHz steps; >75 dBC for 1 MHz steps

*+10 to +40 degrees C Operating; -30 to +60 degrees C Non-operating; 95% Relative humidity, non-condensing;

Specifications subject to change without notice.

3116-T71 Manual, Rev. C Page 4 10/01/2015

1.3 Monitor & Control Interface

The following tables summarize the commands and status queries applicable to the

3116-T71 Multi-Band Translator.

*PLEASE NOTE: The two character {aa} prefix, shown in the table below, is present ONLY when RS485 is selected.

Table 2.0 Model 3116-T71 M&C Commands

(NOTE: applies to currently selected band)

-500 ≤xxxxx ≤0 for band 7

xxxxx = 0 for band 6

-260 ≤xxxxx ≤300 for band 5

0 ≤xxxxx ≤1000 for band 4

-1000 ≤xxxxx ≤0 for band 3

xxxxx

for

band

-400 ≤xxxxx ≤600 for band 1

where:

{aaCFxxxxx}

Set

Fre

uenc

Offset

-2000

≤

xxxxx

≤

+2000

where:

{aaCOxxxxx}

Set

Reference

Offset x = 3 for auto-select

x = 2 to select external reference

x = 6 to select band 6: in = (17.3 to 18.4 GHz)

Out

(

10700

11800

MHz

)

x = 5 to select band 5: in = (13.75 to 14.85 GHz)

Out

(

11700

12800

MHz

)

select

internal

reference

where:

{aaCEx}

Set

External

Reference x = 0 to unmute the output

x = 1 to mute the output

where:

{aaCMx}

Set

Mute Range: -40 to +20 in 0.5 dB steps (e.g., +115 = 11.5dB)

xxxx = 4 characters

where:

{

aaCGxxxx

}

Set

Gain

{

aaCBx

}

Set

Fre

uenc

Band x = 1 to select band 1: in = (5.85 to 6.95 GHz)

out

(

3400

4500

MHz

)

x = 7 to select band 7: in = (17.3 to 18.4 GHz)

Out

(

11700

12800

MHz

)

x = 4 to select band 4: in = (13.75 to 14.85 GHz)

out

(

11700

12800

MHz

)

x = 3 to select band 3: in = (13.75 to 14.85 GHz)

out

(

10700

11800

MHz

)

x = 2 to select band 2: in = (7.90 to 8.40 GHz)

out

(

7250

7750

MHz

)

DescriptionSyntaxCommand

Table 2.0: Model 3116-T71 M&C Commands

continued on page 7...

3116-T71 Manual, Rev. C Page 5 10/01/2015

Table 2.0 Model 3116-T71 M&C Commands (continued)

xxxxx is a signed number representing the frequency offset value

Returns {aaSFxxxxx} where:{aaSF}Frequency Offset

xxxxx is a signed number representing the ref. offset value

Returns {aaSOxxxxx} where:{aaSO}Reference Offset

x = 6 to select band 6: in = (17.3 to 18.4 GHz)

Out = (10700 to 11800 MHz)

x = 5 to select band 5: in = (13.75 to 14.85 GHz)

Out = (11700 to 12800 MHz)

yyyy = unit firmware rev.

xxxxxxxx = unit model number

returns {aaSVxxxxxxxxyyyy} where:

{aaSV}

Model and firmware revision

w = 0 if no summary alarm, w = 1 if summary alarm

x = 0 if unit is using internal 10 MHz ref,

x = 1 if unit is using external reference

y = 0 oven warm-up is off

y = 1 oven warm-up is on

z = 0 mute is off

z = 1 mute is on

Returns {aaSAwxyz} where:

{aaSA}Unit Status

x = 3 if in auto-select mode

x = 7 to select band 7: in = (17.3 to 18.4 GHz)

Out = (11700 to 12800 MHz)

x = 4 to select band 4: in = (13.75 to 14.85 GHz)

out = (11700 to 12800 MHz)

x = 3 to select band 3: in = (13.75 to 14.85 GHz)

out = (10700 to 11800 MHz)

x = 2 to select band 2: in = (7.90 to 8.40 GHz)

out = (7250 to 7750 MHz)

x = 1 to select band 1: in = (5.85 to 6.95 GHz)

out = (3400 to 4500 MHz)

Returns {aaSBx} where:{aaSB}Frequency Band

x = 2 if External 10 MHz reference is selected

x = 1 if Internal 10 MHz reference is selected

Returns {aaSEx} where:{aaSE}10 MHz reference

Range: (-40 to +20 in 0.5 dB steps)

xxxx = 4 characters

Returns {aaSGxxxx} where:{aaSG}Gain

DescriptionSyntaxCommand

Table 2.0: Model 3116-T71 M&C Commands (continued)

3116-T71 Manual, Rev. C Page 6 10/01/2015

2.0 Installation

2.1 Mechanical - The 3116-T71 Multi-Band Block Translator consists of a controller board and RF plate

assembly. A switching ± 12, +24, +5 VDC power supply provides power for the assemblies. The 3116-T71

can be secured to a rack using the 4 holes on the front panel. Figure 2.0 shows how the 3116-T71 is assembled.

POWER

SUPPLY

VCO

ASSEMBLY

ASSEMBLYMOTHERBOARD

FRONT PANEL

CONTROLLER

FIGURE 2.0 3116-T71 Mechanical Assembly

3116-T71 Manual, Rev. C Page 7 10/01/2015

2.2 Rear Panel Input / Output Signals - Figure 2.2 shows the input and output connectors on the rear panel.

J5 - RF OUT

3.4 - 4.5 GHz

7.25 - 7.75 GHz

10.7 - 11.8 GHz

11.7 - 12.8 GHz

10.7 - 11.8 GHz

11.7 - 12.8 GHz

SMA female connector.

See Table 2.2 for other options.

J18

10 MHZ REF

OUTPUT

J10

AND

MONITOR

CONTROL

5 4 3 2 1

9 8 7 6

J10 - MONITOR AND CONTROL

DB9 female connector.

See Table 2.1.

J4J3

10 MHZ

EXT REF

INPUT

OUT

J3 - 10 MHz EXT REF INPUT

10 MHz external reference input, +4 ± 3 dBm,

50/75 ohms, BNC female connector

J18 - 10 MHz REF OUTPUT

10 MHz reference output,

+4 ± 3 dBm, 75 ohms, BNC

female connector.

AC - POWER IN

AC input for switching power supply.

100-240 ±10% VAC, 47-60 Hz.

J20

GND

J2 - RF IN

5.85 - 6.95 GHz

7.90 - 8.40 GHz

13.75 - 14.85 GHz

17.30 - 18.40 GHz

SMA female connector.

See Table 2.2 for other options.

J20 - ETHERNET

CONNECTION (option W8)

RJ45 Ethernet Connector

FIGURE 2.2 3116-T71 Rear Panel Inputs and Outputs

TABLE 2.1 JJ10

2.1 J10 Pinouts (RS-232C/422/485*)

Pin Function

1 Rx-

2 Rx+ (RS-232C)

3 Tx+ (RS-232C)

4Tx-

5GND

6 Alarm Relay: Common

7 Alarm Relay: Normally Open

8 Not Used

9 Alarm Relay: Normally Closed

TABLE 2.22 IF/RF

2.2 IF/RF Connector Options

Connector Options

Option IF RF

STD BNC, 50ΩType N, 50Ω

-S BNC, 50ΩSMA, 50Ω

-N BNC, 75ΩType N, 50Ω

*Interface: DB-9 Female

Protocol: RS485, RS422, or RS232C (selectable),

9600 baud rate, no parity, 8 data bits, 1 start bit, 1 stop bit

3116-T71 Manual, Rev. C Page 8 10/01/2015

2.3 Front Panel Controls and Indicators - Figure 2.3 shows the front panel controls and indicators.

S3 - HORIZ. TOGGLE

Horizontal toggle switch that

controls which values are being

adjusted. Does not function in

the normal display mode

EXECUTE

B1 5.850 -> 3.400 GHz

G=10 TRANS = 2.050 GHz

MUTEREMOTE POWER

LCD DISPLAY

Display shows frequency in

MHz and Gain in dB, and is

used to change settings in

Program mode.

S1 - MENU/EXECUTE BUTTON

Press this to get into Program mode

and to execute any changes.

DS6 - POWER LED

Green LED indicates

presence of DC power.

DS1 - REMOTE LED

Yellow LED indicates

remote operation.

S2 - VERT. TOGGLE

Vertical toggle switch that controls

values in the Menu items when in

program mode. Does not function in

the normal display mode

ALARM

DS5 - UP MUTE LED

Red LED indicates

upconverter mute.

DS2 - UP ALARM LED

Red LED indicates

upconverter alarm.

FIGURE 2.3 3116-T71 Front Panel Controls and Indicators

3116-T71 Manual, Rev. C Page 9 10/01/2015

2.4 Installation/Operation

Installing and Operating the 3116-T71 Multi-Band Block Translator:

1. Connect a -30 dBm to -10 dBm signal to RF IN (Figure 2.2).

2. Connect the RF OUTPUT, to the external equipment.

3. Connect 100-240 ±10% VAC, 47 - 63 Hz to AC connector to the front panel.

4. Be sure DS6 (green, DC Power) is on and DS2 (red, Alarm) is off (Figure 2.3).

5. Set the gain so that the output level is always within the range of 0 to -60 dBm (See Table 2.0).

6. Select either INT (for internal 10 MHz ref), or EXT (for external 10 MHz, +2 to +8 dBm reference

that is inserted at J2).

7. AC Fuse - The fuse is a 1A/250V 1.25” x .25” (slow blow) and is inserted in the fuse F1 position.

NOTE: If a fuse continues to open, the power supply is most likely defective.

AC Fuse - 5 amp slow blow (Type T),

5 mm X 20 mm

FUSE DRAWER

SPARE FUSE

INPUT

100-240± 10%VA

47-63 Hz

2A MA

FUSE

TYPE T 5A GDC

250 VOLT

FOR 100 - 240 V~

FIGURE 2.4 Fuse Location and Spare Fuse

3116-T71 Manual, Rev. C Page 10 10/01/2015

Table des matières

Autres manuels Cross Technologies Dictionnaire électronique

Cross Technologies

Cross Technologies 2083 Manuel utilisateur

Cross Technologies

Cross Technologies 2083-914A Manuel utilisateur

Cross Technologies

Cross Technologies 2116-6T4 Manuel utilisateur

Cross Technologies

Cross Technologies 2083-1919-02 Manuel utilisateur

Cross Technologies

Cross Technologies 2083-0312-30036 Manuel utilisateur

Cross Technologies

Cross Technologies 4116-T300 Manuel utilisateur

Cross Technologies

Cross Technologies 2083-714A Manuel utilisateur

Cross Technologies

Cross Technologies 2116-31T21 Manuel utilisateur

Cross Technologies

Cross Technologies 3116 Manuel utilisateur

Cross Technologies

Cross Technologies 4116-T21-310212 Manuel utilisateur

Cross Technologies

Cross Technologies 2083-2215 Manuel utilisateur

Cross Technologies

Cross Technologies 2483-40311 Manuel utilisateur

Cross Technologies

Cross Technologies 2083-21-1422 Manuel utilisateur

Cross Technologies

Cross Technologies 4116-T24 Manuel utilisateur

Cross Technologies

Cross Technologies 2116-84T78 Manuel utilisateur

Cross Technologies

Cross Technologies 2083-0703 Manuel utilisateur

Cross Technologies

Cross Technologies 3116-66T42 Manuel utilisateur

Cross Technologies

Cross Technologies 2083-1721 Manuel utilisateur

Cross Technologies

Cross Technologies 4116-21T23 Manuel utilisateur

Cross Technologies

Cross Technologies 2083-218 Manuel utilisateur

Manuels Dictionnaire électronique populaires d'autres marques

Ectaco

Ectaco SAT-1600 Manuel utilisateur

Sharp

Sharp PW-E310 Manuel utilisateur

Franklin

Franklin BookMan III HBD-1450 Manuel utilisateur

Eaton

Eaton DNP MINT Guide de démarrage rapide

Franklin

Franklin IC-142 Manuel utilisateur

Franklin

Franklin SCD-1890 Manuel utilisateur

Franklin

Franklin SpellingAce SA-98 Manuel utilisateur

Ectaco

Ectaco Language Teacher ECz600T Manuel utilisateur

Franklin

Franklin BOOKMAN DMQ-440 Manuel utilisateur

Besta

Besta cd 739p Manuel d'instructions

LEGRAND

LEGRAND tynetec ZXT360 Manuel utilisateur

HORITA

HORITA RLT-50 Manuel utilisateur

Language Teacher

Language Teacher ES400T Manuel utilisateur

Accent

Accent 800 Manuel utilisateur

SUPREME

SUPREME BTLT200 Manuel utilisateur

Franklin

Franklin SCD-1870 Manuel utilisateur

KMC Controls

KMC Controls KMD-5551E Guide de l'utilisateur

Ectaco

Ectaco SpeechGuard TL-4 Manuel utilisateur
