Crestron DM-NVX-E30 Manuel utilisateur
DM-NVX-E30(C)
DigitalMedia™ 4K60 4:4:4 HDR
Network AV Encoder
Web interface Guide
Crestron Electronics, Inc.
The product warranty can be found at www.crestron.com/warranty.
The specific patents that cover Crestron products are listed at patents.crestron.com.
Certain Crestron products contain open source software. For specific information, please visit www.crestron.com/opensource.
Crestron, the Crestron logo, Crestron Toolbox, and DigitalMedia are either trademarks or registered trademarks of Crestron Electronics, Inc. in
the United States and/or other countries. Dolby and Dolby Atmos are either trademarks or registered trademarks of Dolby Laboratories in the
United States and/or other countries. DTS HD and DTS:X are either trademarks or registered trademarks of DTS, Inc. in the United States and/or
other countries. HDMI is either a trademark or registered trademark of HDMI Licensing LLC in the United States and/or other countries. Other
trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names
or their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in
typography or photography.
This document was created by the Software Tools department at Crestron.
©2018 Crestron Electronics, Inc.
2•DM-NVX-E30(C)
Table of Contents
Introduction.............................................................................................................................................. 4
Easy Configuration Guide.................................................................................................................... 7
Status........................................................................................................................................................ 11
Stream...................................................................................................................................................... 14
HDMI Input............................................................................................................................................. 18
Output....................................................................................................................................................... 22
Network.................................................................................................................................................... 24
Device....................................................................................................................................................... 29
3•DM-NVX-E30(C)
Introduction
The DM-NVX-E30(C) is a compact video encoder designed to function as a transmitter
featuring support for HDR10 and HDCP 2.2.
Web-based Configuration Interface
The web-based configuration interface of the DM-NVX-E30(C) consists of web pages that
allow viewing status information of the DM-NVX-E30(C) and configuration of its network,
and device settings.
Accessing the Web-based Configuration interface of DM-NVX-E30(C)
The web-based configuration interface is accessed from a web browser. The following
table lists various operating systems and the corresponding supported web browsers.
Operating System and Supported Web Browsers
OPERATING SYSTEM SUPPORTED WEB BROWSERS
Windows® operating system
Chrome™ web browser, version 31 and later
Firefox® web browser, version 31 and later
Internet Explorer web browser, version 11 and later
Microsoft Edge web browser
OS X® operating system Safari® web browser, version 6 and later
Chrome™ web browser, version 31 and later
Firefox® web browser, version 31 and later
To access the user interface, do either of the following:
•Open it directly in a web browser
•Open a web browser from within the Crestron Toolbox™ application.
Opening directly in Web Browser
1. Press the Setup button on the DM-NVX-E30(C) to display the IP address on the HDMI
output or use the front panel of the DMF-CI-8 chassis for DM-NVX-E30C
2. Open a compatible web browser.
3. Enter the IP address of the DM-NVX-E30(C)
4. Enter your credentials in the Device Administration dialog (Note that the user
name and password are case sensitive). The default user name is admin, and the
default password is admin.
NOTE: For enhanced security, it is recommended that the default password is
changed.
4•DM-NVX-E30(C)
5. Click Sign In.
Opening a Web Browser from within the Crestron Toolbox™ Application
To access the user interface by opening a web browser within the Crestron Toolbox™
application, do the following:
1. Open the Crestron Toolbox™ application.
2. From the Tools menu, select Device Discovery Tool. You can also access the
Device Discovery Tool by clicking the Device Discovery Tool button in the
toolbar of Crestron Toolbox.
NOTE: The security software running on the computer may send a program alert
that there was an attempt of the Crestron Toolbox application to connect to the
network. Allow the connection, so that the Device Discovery Tool can be used.
The DM-NVX-E30(C) is discovered and is listed in the device list on the left-hand
side of the screen. The associated host name, IP address, and firmware version are
also displayed.
3. In the Device Discovery Tool list, double-click on your DM-NVX-E30(C) device

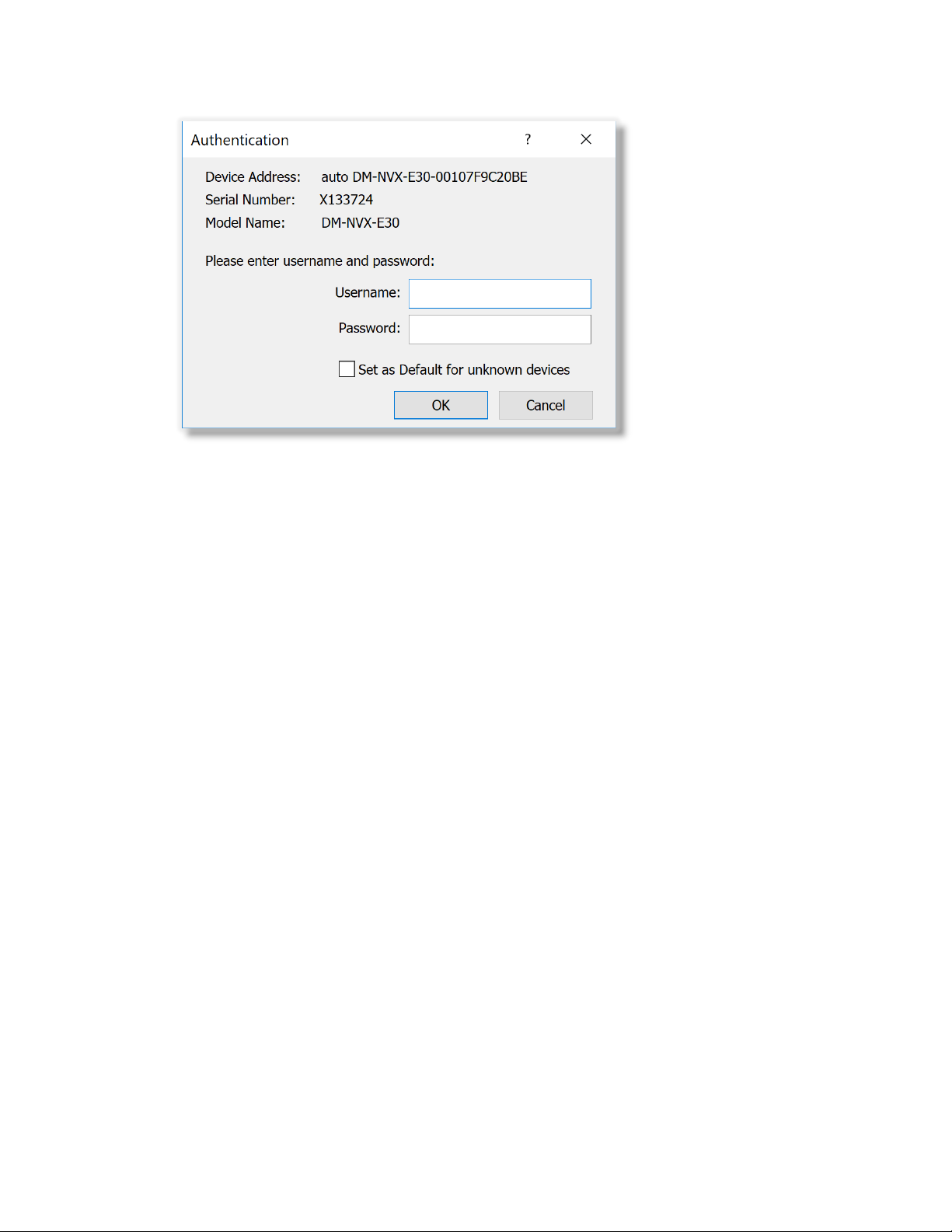

4. Enter your credentials in the Authentication dialog that opens and click 'Log In'
5•DM-NVX-E30(C)
5. Click the Web Configuration button in the Configuration page displayed on the left
hand side of the Device Discovery Tool.
6•DM-NVX-E30(C)
Easy Configuration Guide
How to Log in to DM-NVX-E30(C) using Active Directory credentials
There are two ways to login using Active Directory credentials: by using Active Directory
user, or by using Active Directory Group user.
To log in as Active Directory User:
Pre-requisites: Users are already created on Active Directory server
1. Log in to DM-NVX-E30(C)
2. Navigate to the Device page, click on Authentication Management and select
the Users tab
3. Click on Create User button

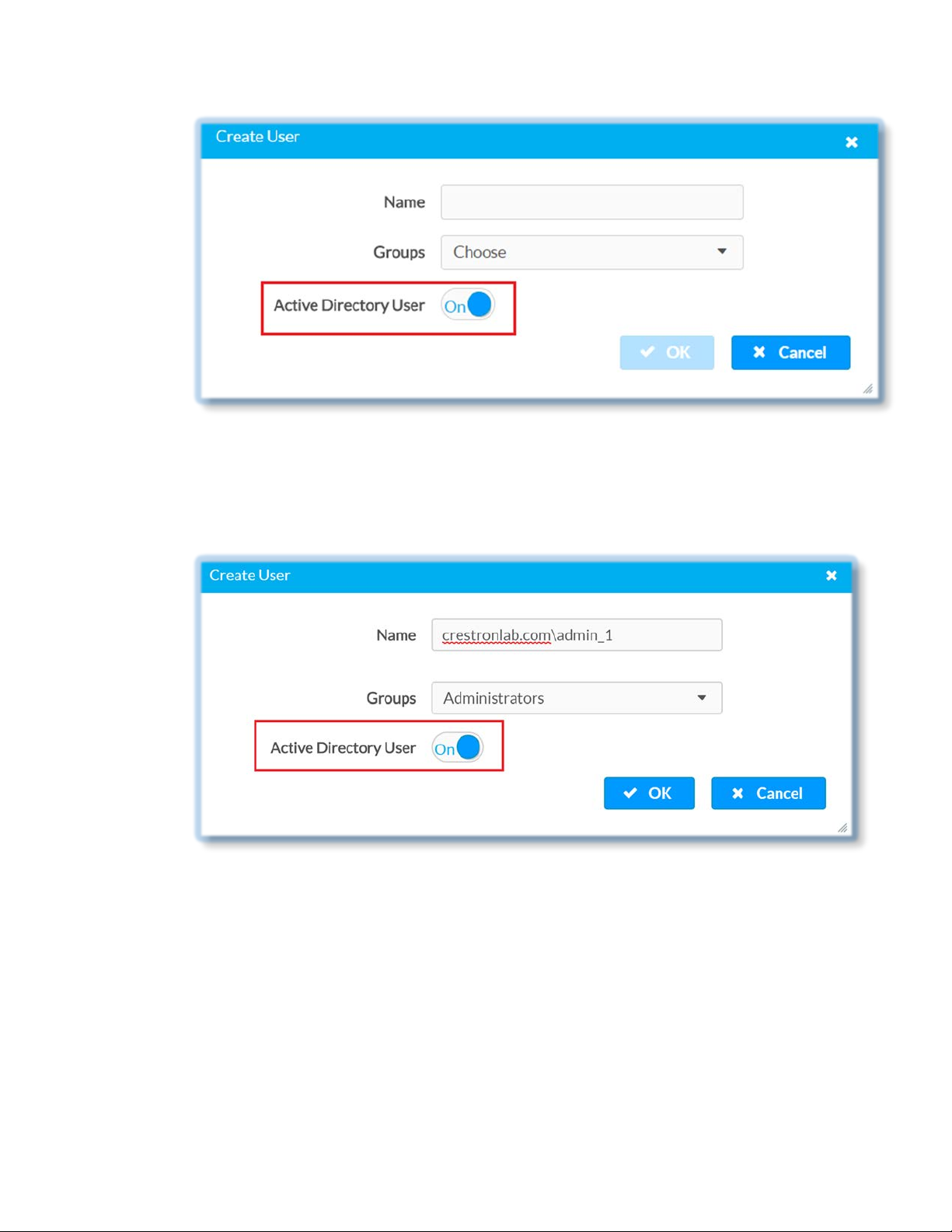

4. In Create User dialog, set the Active Directory User slider for Active
Directory to “ON”
7•DM-NVX-E30(C)
5. Enter the name of the user in the Name text field using the following format
“Domain name\username”, for example “crestronlab.com\admin_1”
6. Select Administrators in the Groups drop-down list, so that the Active Directory
user will have administrator privileges
7. Log in to DM-NVX-E30(C) using Active Directory user credentials i.e
“crestronlab.com\admin_1”
To log in as Active Directory Group User
Pre-requisites:
•Active Directory Users & Active Directory Groups are already created on AD server.
•Active Directory users are assigned to specific Active Directory Groups, for
example: Active Directory Group : Engineering_Group, Active Directory User :
user1
8•DM-NVX-E30(C)
1. Log in to DM-NVX-E30(C)
2. Navigate to the Device page, click on Authentication Management and select
the Groups tab
3. Click on Create Group button
4. In Create Group dialog, set the for Active Directory Group slider to “ON”
5. Enter the name (case sensitive) of the Active Directory group in the Name text
field
6. Select “Administrators” from the Access Level drop-down list so that the Active
Directory group will have administrator privileges
9•DM-NVX-E30(C)
7. Log in to DM-NVX-E30(C) using Active Directory Group User credentials, i.e.
‘crestronlab.com\user1’ .
10 •DM-NVX-E30(C)
