Crestron TST-600-DS Manuel utilisateur

Crestron TST-600-DS

TableTop Docking Station for TST-600

Installation Guide

This document was prepared and written by the Technical Documentation department at:

The specific patents that cover Crestron products are listed at patents.crestron.com.

Crestron and the Crestron logo are trademarks or registered trademarks of Crestron Electronics, Inc. in the United

States and/or other countries. Other trademarks, registered trademarks and trade names may be used in this document

to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary

interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.

Regulatory Compliance

As of the date of manufacture, the TST-600-DS has been tested and found to comply with specifications for

CE marking and standards per EMC and Radiocommunications Compliance Labelling.

Crestron TST-600-DS TableTop Docking Station for TST-600

Installation Guide – DOC. 7433A Contents •i

Contents

TableTop Docking Station for TST-600: TST-600-DS 1

Description................................................................................................................................. 1

Features and Functions ................................................................................................ 1

Specifications ..............................................................................................................2

Physical Description....................................................................................................3

Setup .......................................................................................................................................... 5

Hardware Hookup ....................................................................................................... 5

Recommended Cleaning.............................................................................................. 5

Resources...................................................................................................................................6

Further Inquiries .......................................................................................................... 6

Future Updates ............................................................................................................ 6

Return and Warranty Policies .................................................................................................... 7

Merchandise Returns / Repair Service ........................................................................ 7

Crestron Limited Warranty.......................................................................................... 7

Crestron TST-600-DS TableTop Docking Station for TST-600

Installation Guide – DOC. 7433A TableTop Docking Station for TST-600: TST-600-DS •1

•A low-profile tabletop dock for the TST-600

•Provides a simple battery charging solution

•Affords full featured touch screen operation

•Supports wired Ethernet communications

•Features a lightweight cable for easy placement

•Includes TST-600-IMCW interface module and power pack

•Available in smooth black or white or textured black finishes

TableTop Docking Station for

TST-600: TST-600-DS

Description

The TST-600-DS is the tabletop docking station that is included as standard with the

Crestron®TST-600 Wireless Touch Screen. It is also available separately to provide

a second charging location or to provide a tabletop docking option for the

TST-600-WALL Wall Mount Wireless Touch Screen.

The TST-600-DS features a low-profile design, allowing it to fit easily in a cabinet

or drawer or on a countertop or side table. Placing the touch screen onto the docking

station charges its internal battery while allowing full operation. The docking station

can also provide a wired Ethernet connection for the touch screen while docked.

For easy, versatile placement, the docking station features a single flexible hookup

cable. The 9 foot (2.75 meter) cable extends from the rear of the docking station to a

compact interface module (TST-600-IMCW, included), which may be mounted

conveniently in a wall box or attached to any flat surface or rack rail. The interface

module provides wired connections for power and Ethernet. (Refer to

TST-600-IMCW specifications for additional information).

The optional swivel mount kit (TST-600-SMK, sold separately) allows the docking

station to be affixed to the tabletop, with the ability to rate it up to 330 degrees.

Features and Functions

TableTop Docking Station for TST-600 Crestron TST-600-DS

2•TableTop Docking Station for TST-600: TST-600-DS Installation Guide – DOC. 7433A

Specifications

Specifications for the TST-600-DS are listed in the following table.

NOTE: The TST-600-DS is a passive device requiring no power; a

TST-600-IMCW interface module and power pack are included to provide power

and other connectivity for the TST-600 touch screen. Refer to TST-600 and

TST-600-IMCW specifications for additional power requirements.

TST-600-DS Specifications

SPECIFICATION DETAILS

Environmental

Temperature 32º to 112º F (0º to 45º C)

50º to 104º F (10º to 40º C) while charging

Humidity 10% to 90% RH (non-condensing)

Enclosure Plastic, angled cradle, integral cable assembly

Dimensions

Height 1.82 in (47 mm)

Width 4.90 in (125 mm)

Depth 5.84 in (149 mm)

Weight 8 oz (222 g)

Available Models

TST-600-DS-B-S Tabletop Docking Station for TST-600, Black Smooth

TST-600-DS-B-T Tabletop Docking Station for TST-600, Black Textured

TST-600-DS-W-S Tabletop Docking Station for TST-600, White Smooth

Included Accessories

TST-600-IMCW Interface Module

Power Pack 24 Volt Power Pack, Universal

Available Accessories

CBL-CAT5E Ethernet LAN Cable

TST-600-SMK Swivel Mount Kit

Crestron TST-600-DS TableTop Docking Station for TST-600

Installation Guide – DOC. 7433A TableTop Docking Station for TST-600: TST-600-DS •3

Physical Description

This section provides information on the connections, controls and indicators

available on your TST-600-DS.

TST-600-DS Physical View

TST-600-DS Overall Dimensions (Front and Top Views)

4.90 in

(125 mm)

TST-600-DS Overall Dimensions (Side View)

5.30 in

(135 mm)

1.82 in

(47 mm)

5.84 in

(149 mm)

NOTE: The length of the connecting cable on the TST-600-DS is 9 feet (2.75

meters). The length of the cable has been shortened for illustrative purposes in the

diagram above.

TableTop Docking Station for TST-600 Crestron TST-600-DS

4•TableTop Docking Station for TST-600: TST-600-DS Installation Guide – DOC. 7433A

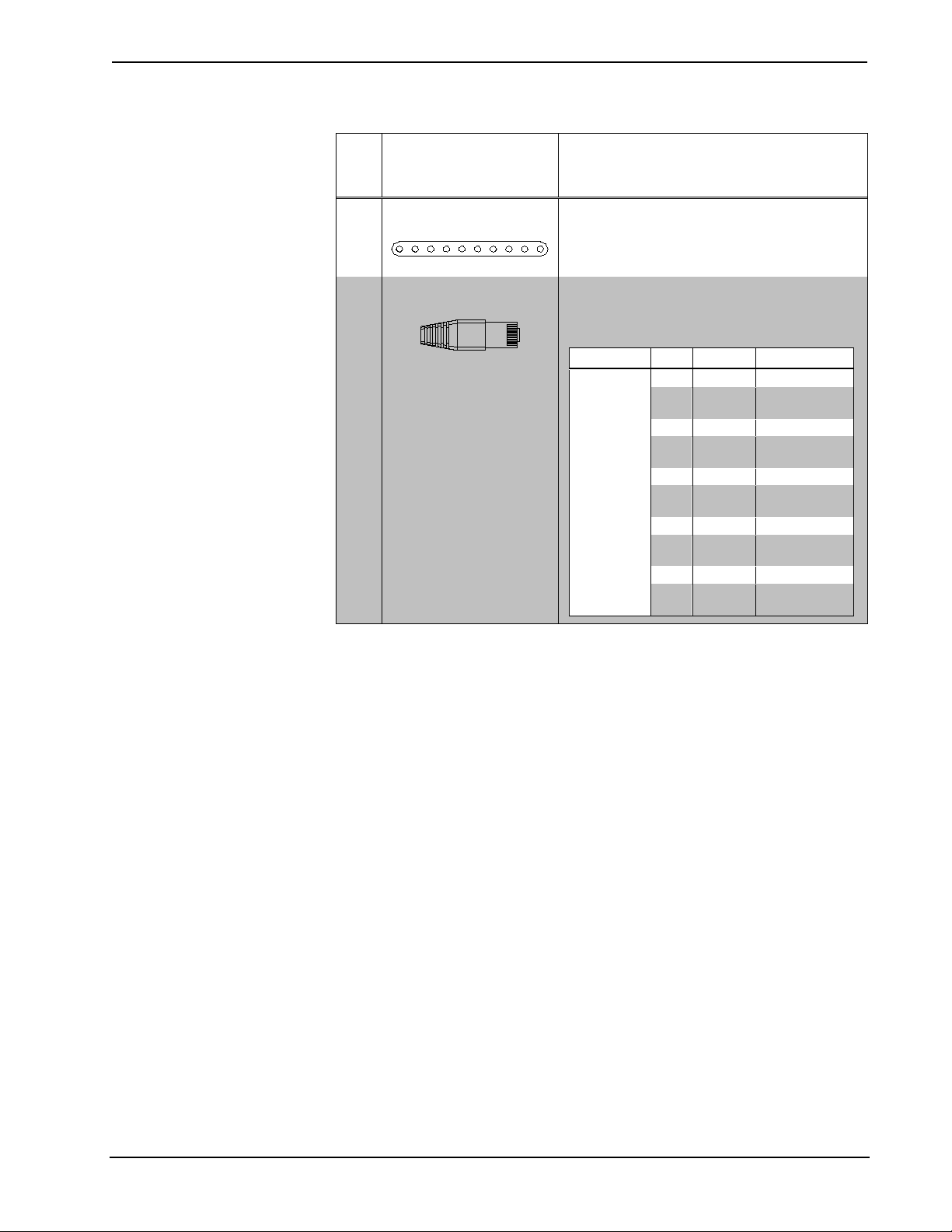

Connectors, Controls & Indicators

# CONNECTORS*,

CONTROLS &

INDICATORS

DESCRIPTION

1 Touch Screen

Connector

(1) 10-pin connector for connecting to touch

screen

2 Interface Module

Connector

(1) Integral 9 foot (2.75 meter) cable with

10-pin RJ-50 male connector;

Connects to TST-600-IMCW Interface

Module (included)

TYPE

COLOR

SIGNALS

10-Position

RJ-50

1 Gray Ground

Orange/

White

Ethernet TX+

Orange

Ethernet TX-

Green/

White

Ethernet RX+

Blue

N/C

Blue/

White

N/C

Green

Ethernet RX-

Brown/

White

N/C

Brown

N/C

10 Gray/

White

Power 24 V

* The interface module connector fixed onto the TST-600-DS is to be connected to the

TST-600-IMCW’s TO PANEL port.

Crestron TST-600-DS TableTop Docking Station for TST-600

Installation Guide – DOC. 7433A TableTop Docking Station for TST-600: TST-600-DS •5

Setup

Hardware Hookup

The only connection to the TST-600-DS is via the fixed cable, which is connected to

the TO PANEL port on the (included) TST-600-IMCW Interface Module.

When connecting the TST-600-DS, consider the following:

•Use Crestron power supplies for Crestron equipment.

•The included cable cannot be extended.

Hardware Connection for the TST-600-DS

To TO PANEL

Connector on

TST-600-IMCW

NOTE: The length of the connecting cable on the TST-600-DS is 9 feet (2.75

meters). The length of the cable has been shortened for illustrative purposes in the

diagram above.

NOTE: The included cable mount ferrite bead, FBTH-2 (2033216) should be placed

on the cable near the connector end.

Recommended Cleaning

The TST-600-DS comes in a soft microfiber bag to protect it during shipping. This

can be used to clean the docking station.

TableTop Docking Station for TST-600 Crestron TST-600-DS

6•TableTop Docking Station for TST-600: TST-600-DS Installation Guide – DOC. 7433A

Resources

Further Inquiries

To locate specific information or resolve questions after reviewing this guide,

contact Crestron's True Blue Support at 1-888-CRESTRON [1-888-273-7876] or

refer to the listing of Crestron worldwide offices on the Crestron Web site

(www.crestron.com/offices) for assistance within a particular geographic region.

To post a question about Crestron products, log onto the Online Help section of the

Crestron Web site (www.crestron.com/onlinehelp). First-time users must establish a

user account to fully benefit from all available features.

Future Updates

As Crestron improves functions, adds new features and extends the capabilities of

the TST-600-DS, additional information may be made available as manual updates.

These updates are solely electronic and serve as intermediary supplements prior to

the release of a complete technical documentation revision.

Check the Crestron Web site periodically for manual update availability and its

relevance. Updates are identified as an “Addendum” in the Download column.
