Crestron UC-M50-T Manuel utilisateur

The UC-M50-T Crestron Flex tabletop conferencing system provides a

medium room video conference solution for use with Microsoft Teams®

Rooms software. It supports single or dual video displays and features a

Crestron Flex tabletop conference device, UC bracket assembly, and an

collaboration camera.

Minimum Requirements:

lA video display (not included) connected to the UC Engine. A second

display is optional.

lA Microsoft Teams Rooms provisioned or Skype® for Business

account (not included)

lAn environment running Microsoft Exchange Server® software (2013

SP1 or later for on-premises installation or Microsoft 365® software

for Cloud) for scheduling and/or Skype for Business 2015 (on-

premises installation or Microsoft 365 software for Cloud) (not

included)

In the Box

Tabletop Conference Device

1 Tabletop Conference Device, Microsoft Teams video

(6510716)

1 Cable, CAT5e, RJ-45 - RJ-45, 12 ft (3.7 m) (2033988)

1 Cable Retention Plate (2047908)

3 Tie Wrap (2047935)

UC Bracket Assembly

1 UC Bracket Assembly with UC Engine and HDMI® content

ingest (UC-BRKT-200-S-T-ASSY,6512689)

2 Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (9.5mm x

12.7mm) (2052565)

1 Key, Anchor (4529654)

2 Screw, 8-AB x 1-1/2 in. (38.1 mm), Pan Head, Combo

(2052567)

4 Tie Wrap (2047935)

Additional Items

1 Collaboration camera (6510482)

1 Camera wall mount kit (6510998)

1 Cable, CAT6a, RJ-45 - RJ-45, 20 ft (6.1 m) (6507640)

1 Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)

1 Cable, DisplayPort™ to HDMI, 6 ft (1.8 m) (6508282)

1 Cable, HDMI, 20 ft (6.1 m) (6503567)

1 Cable, HDMI, 6 ft (1.8 m) (6503565)

1 Cable, USB 2.0, A - Micro-B, 6 ft (1.8 m) (6510947)

1 Cable, USB 3.0, Right angle USB-C® to A, 6 ft (1.8 m)

(6511591)

1 Cable, USB Extension, USB Type A Male-to-Female, 15 ft

(4.6m) (6508260)

1 Power supply (6500187)

UC-M50-T QuickStart

Crestron Flex Tabletop Medium Room Video Conference System for Microsoft Teams® Rooms

Mount Devices

Mount the UC Bracket Assembly

Mount the UC Bracket Assembly to VESA® compliant display devices, a

wall, or other building structure. Anchors and screws are supplied for

installation on walls 3/8 in. (9.5mm) to 3/4 in. (19mm) thickness.

CAUTION: Preinstalled screws may protrude from the back of the

UC Bracket Assembly. Exercise caution when handling the UC

Bracket Assembly to avoid scratching or damaging surfaces.

NOTE: The integrated cable tie wraps are reusable. Avoid damaging

the cable tie wraps.

Mount the Camera

Mount the included camera according to the UC-CAM-WMK Quick Start

(Doc. 8257).

Install the Cable Retention Plate

The included cable retention plate provides tie-down points for cables

that connect to the Crestron® conference device.

Remove the adhesive backing from the cable retention plate and install

the plate on the underside of the conference device as shown in the

following diagram. Ensure the cable retention plate is firmly attached

before securing cables.

CAUTION: When turning over the device, place the device on a soft

surface to avoid damage.

NOTE: If a swivel mount kit (CCS-UCA-SMK) is to be used, use the

cable retention bracket included with the swivel mount kit as

described in the CCS-UCA-SMK DO Guide (Doc. 7882).

UC-M50-T QuickStart

Crestron Flex Tabletop Medium Room Video Conference System for Microsoft Teams® Rooms

Connect

System Overview

When connections are complete, the system appears as shown below. Refer to Make Connections for detailed connection instructions.

UC-M50-T QuickStart

Crestron Flex Tabletop Medium Room Video Conference System for Microsoft Teams® Rooms

Make Connections

1. Make UC Engine connections as shown in the following illustrations. The conference device can communicate with the UC Engine over a direct

connection or a network connection. Select one of the connection types as described below.

lMake a direct connection for simple installation and setup. Only use the direct connect adapter to connect the conference device to the UC

Engine. Do not use the direct connect adapter to connect the UC Engine to the network.

Direct Connection

UC-M50-T QuickStart

Crestron Flex Tabletop Medium Room Video Conference System for Microsoft Teams® Rooms

lMake a network connection if the system is to be managed by the XiO Cloud® service.

NOTE: When a network connection is used, disconnect the direct connect adapter from the UC Engine.

Network Connection

UC-M50-T QuickStart

Crestron Flex Tabletop Medium Room Video Conference System for Microsoft Teams® Rooms

2. Connect displays to the UC Engine.

UC-M50-T QuickStart

Crestron Flex Tabletop Medium Room Video Conference System for Microsoft Teams® Rooms

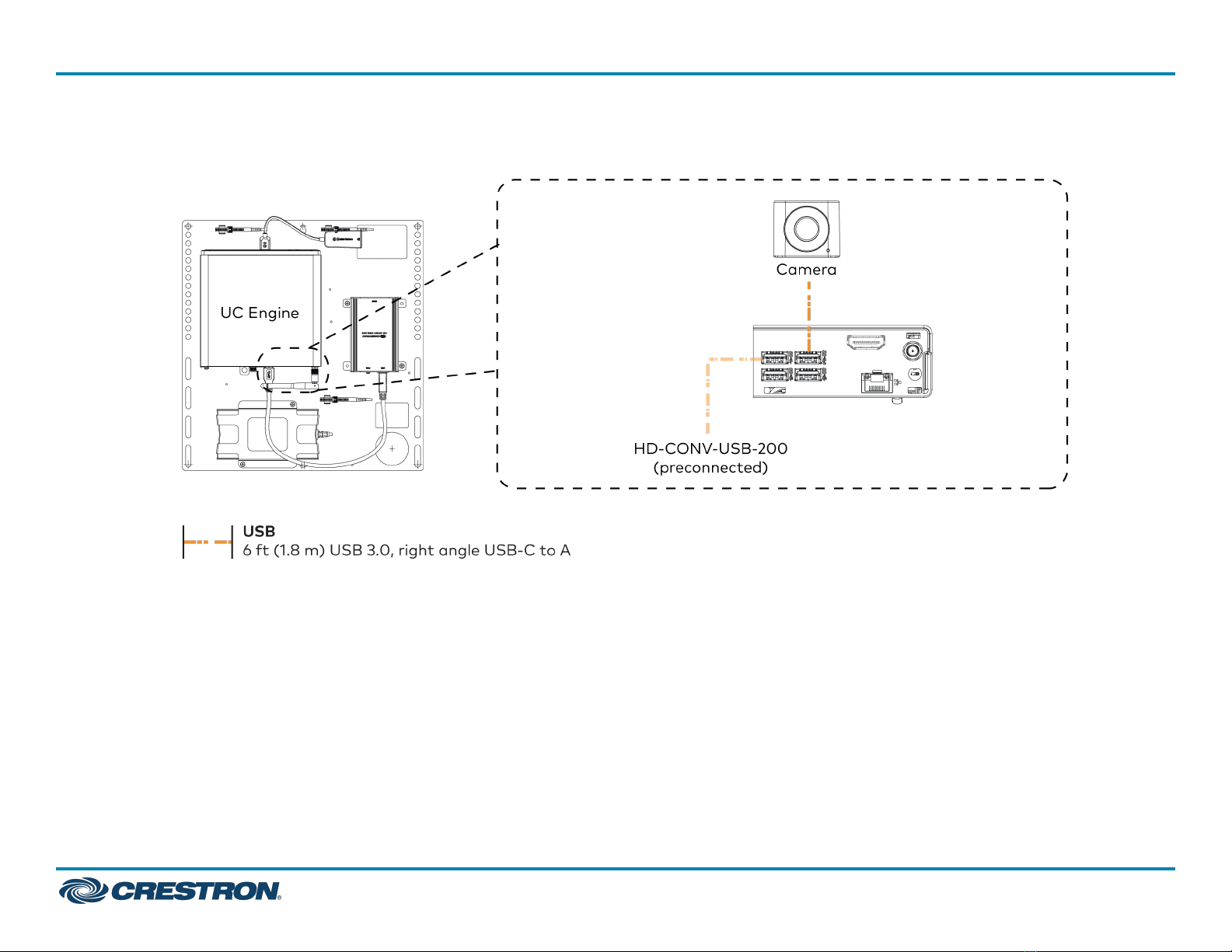

3. Connect the camera to the UC Engine as shown in the image below. Do not connect the camera to any of the other USB ports.

UC-M50-T QuickStart

Crestron Flex Tabletop Medium Room Video Conference System for Microsoft Teams® Rooms

4. Connect a laptop to the content ingest device (HD-CONV-USB-200).

5. Bundle the cables to the bracket assembly with the integrated cable tie wraps. The cable tie wraps are reusable.

UC-M50-T QuickStart

Crestron Flex Tabletop Medium Room Video Conference System for Microsoft Teams® Rooms

Bundle Cables

Bundle the cables together and use a provided tie wrap to secure the

bundle to one of the positions on the cable retention plate at the rear of

the device. Avoid bundling power and data cables together.

Configure

Apply Power

Press the power button on the bottom of the UC Engine and apply

power to all of the other devices in the system. The conference device

will display its IP address.

Configure the Conference Device

NOTE:If a Direct Connection was made between the conference

device and the UC Engine, skip to Configure the System.

1. On a computer, open a web browser to the IP address displayed on

the conference device.

NOTES:

lThe device and computer must be on the same network switch

and VLAN.

lA login with administrative rights for the device is required.

2. Log in to the device and navigate to DEVICE >Applications.

3. Enter the following information in the appropriate fields:

lTeams Video PC Address: Enter the IP address or hostname of the

UC Engine.

NOTE: The hostname is printed on a label affixed to the UC

Engine.

lTeams Video PC Port: By default, port number 49500 is used. If a

different port number has been configured on the UC Engine,

enter that port number instead.

lTeams Video Username: Enter the login username for the UC

Engine. (The default username is “admin”.)

lTeams Video Password: Enter the login password for the UC

Engine. (The default password is “sfb”.)

4. Click Save Changes.

For more information, refer to the CCS-UC-1 Product Manual

(Doc.7844).

Configure the System

Use the conference device and your Microsoft Teams or Skype account

credentials to configure the UC Engine. For detailed information on

deploying Microsoft Teams Rooms, refer to the Microsoft Teams Rooms

documentation.

UC-M50-T QuickStart

Crestron Flex Tabletop Medium Room Video Conference System for Microsoft Teams® Rooms

Visit the Product Page

Scan the QR code to visit the product page.

UC-M50-T

www.crestron.com/model/6511604

Additional Information

Original Instructions

The U.S. English version of this document is the original instructions.

All other languages are a translation of the original instructions.

Crestron product development software is licensed to Crestron dealers and Crestron

Service Providers (CSPs) under a limited nonexclusive, nontransferable Software

Development Tools License Agreement. Crestron product operating system software

is licensed to Crestron dealers, CSPs, and end-users under a separate End-User

License Agreement. Both of these Agreements can be found on the Crestron website

at www.crestron.com/legal/software_license_agreement.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at

www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For specific information,

visit www.crestron.com/opensource.

Crestron, the Crestron logo, and XiO Cloud are either trademarks or registered

trademarks of Crestron Electronics, Inc. in the United States and/or other countries.

HDMI is either a trademark or registered trademark of HDMI Licensing LLC in the

United States and/or other countries. Microsoft 365, Microsoft Exchange Server,

Microsoft Teams, andSkype are either trademarks or registered trademarks of

Microsoft Corporation in the United States and/or other countries. USB-C is either a

trademark or registered trademark of USB Implementers Forum, Inc. in the United

States and/or other countries. DisplayPort and VESA are either trademarks or

registered trademarks of Video Electronics Standards Association in the United

States and/or other countries. Other trademarks, registered trademarks, and trade

names may be used in this document to refer to either the entities claiming the marks

and names or their products. Crestron disclaims any proprietary interest in the marks

and names of others. Crestron is not responsible for errors in typography or

photography.

Doc. 9302A

04/27/22

UC-M50-T QuickStart

Crestron Flex Tabletop Medium Room Video Conference System for Microsoft Teams® Rooms
