Cree LS8 Manuel utilisateur

LS Series

LED Surface Ambient Luminaire with Through-Wiring/Quick-Connects

Includes: LS4 and LS8

INSTALLATION INSTRUCTIONS

1 of 2

LPN00434X0001A0_B

TO INSTALL:

NOTES:

• Available luminaire length are 4' and 8'.

• Suitable for Damp Locations

• Designed for use in 120-277V 60Hz protected circuit

(fuse box, circuit breaker). Supply wire size as per

NEC or governing code(s), 90C rated.

IMPORTANT SAFEGUARDS

When using electrical equipment, basic safety precautions should always be

followed including the following:

READ AND FOLLOW ALL

SAFETY INSTRUCTIONS

1. DANGER- Risk of shock- Disconnect power before installation.

DANGER – Risque de choc – Couper l’alimentation avant

l’installation.

2. This luminaire must be installed in accordance with the NEC or your

local electrical code. If you are not familiar with these codes and

requirements, consult a qualied electrician.

Ce produit doit être installé conformément à NEC ou votre code

électrique local. Si vous n’êtes pas familier avec ces codes et ces

exigences, veuillez contacter un électricien qualié.

SAVE THESE INSTRUCTIONS

FOR FUTURE REFERENCE

Push The Connected

Connectors Inside

Luminaire

LUMINAIRE INSTALLATION

STEP 1:

Attach LS luminaire to mounting surface.

STEP 2:

Attach the connectors from adjoining luminaires

and push the connection into the luminaire. See

Figure 1.

STEP 3:

Push the two adjoining luminaires against each

other as shown in Figure 2.

2 of 2

LPN00434X0001A0_B

www.cree.com/canada

See www.cree.com/canada for warranty and specifications. Cree®is a registered trademark, and the Cree logo is a

trademark of Cree, Inc.

ELECTRICAL CONNECTIONS

STEP 1:

Make the following Electrical Connections:

For 120-277V applications make the following Electrical

Connections:

a. Connect the black luminaire lead to the line supply

lead

b. Connect the white luminaire lead to the neutral supply

lead

c. Connect the green or green/yellow ground lead to the

supply ground lead

d. If Dimming is an option; connect the violet dimming

positive lead to the supply dimming positive lead. If

dimming is not being used, ensure to cap off the violet

lead.

e. If Dimming is an option; connect the grey dimming

negative lead to the supply dimming negative lead. If

dimming is not being used, ensure to cap off the grey

lead.

GREEN

LINE-BLACK

GROUND-GREEN

NEUTRAL-WHITE

(DIMMING OPTIONAL)

DIM (-) GREY

DIM (+) VIOLET VIOLET

GREY

SUPPLY WIRING

LUMINAIRE

NEUTRAL OR HOT 2

LINE OR HOT 1

Joint Aligner

(4) Supplied Screws

Plastic Knockout Covers

STEP 4:

Place the Joint Aligner (LS-RJ) over the two

adjoining luminaires. Line up the mounting holes

on the bracket with those on the luminaire. See

Figure 3. Secure the Joint Aligner by inserting

the (4) supplied screws as Shown in Figure 3.

STEP 5:

Continue Steps 1-4 until all luminaires are

installed.

STEP 6:

On the last luminaire in the row, push the

connector into the luminaire and insert (2) plastic

knockout covers as shown in Figure 4.

STEP 7:

Make wiring connections per “ELECTRICAL

CONNECTION” section, to the first luminaire

in row. Cut off plug and make wire connections

inside luminaire end with dimming wire

compartment. Dimming connections must be

made in the dimming compartment (See Figure

5), line connections made outside compartment.

End Cap Wiring Knockouts

Dimming Wire

Compartment

Autres manuels pour LS8

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Cree Équipement d'éclairage

Cree

Cree FLEX Series Manuel utilisateur

Cree

Cree SmartCast FLEX Series Manuel utilisateur

Cree

Cree XLamp MH Series Manuel utilisateur

Cree

Cree CXB Series Manuel utilisateur

Cree

Cree OSQ Series Manuel utilisateur

Cree

Cree OSQ HO Series Manuel utilisateur

Cree

Cree CR150-650L Manuel utilisateur

Cree

Cree TDS Series Manuel utilisateur

Cree

Cree OSQ Series Manuel utilisateur

Cree

Cree ESSENTIA AE Series Manuel utilisateur

Cree

Cree TRDL6 Series Manuel utilisateur

Cree

Cree XA-NEMA Manuel utilisateur

Cree

Cree ESSENTIA S-CT-FB-25L Manuel utilisateur

Cree

Cree EB14SMK Manuel utilisateur

Cree

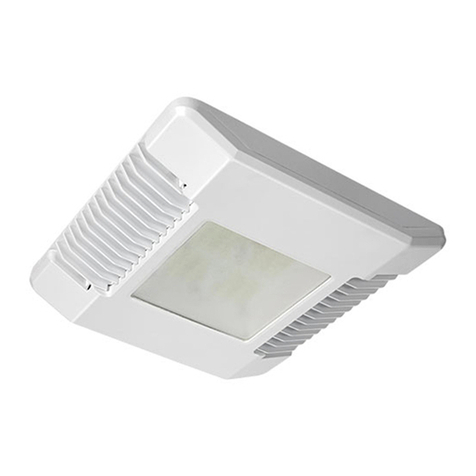

Cree CPY Series Manuel utilisateur
