Craftsman 919.152360 Manuel utilisateur

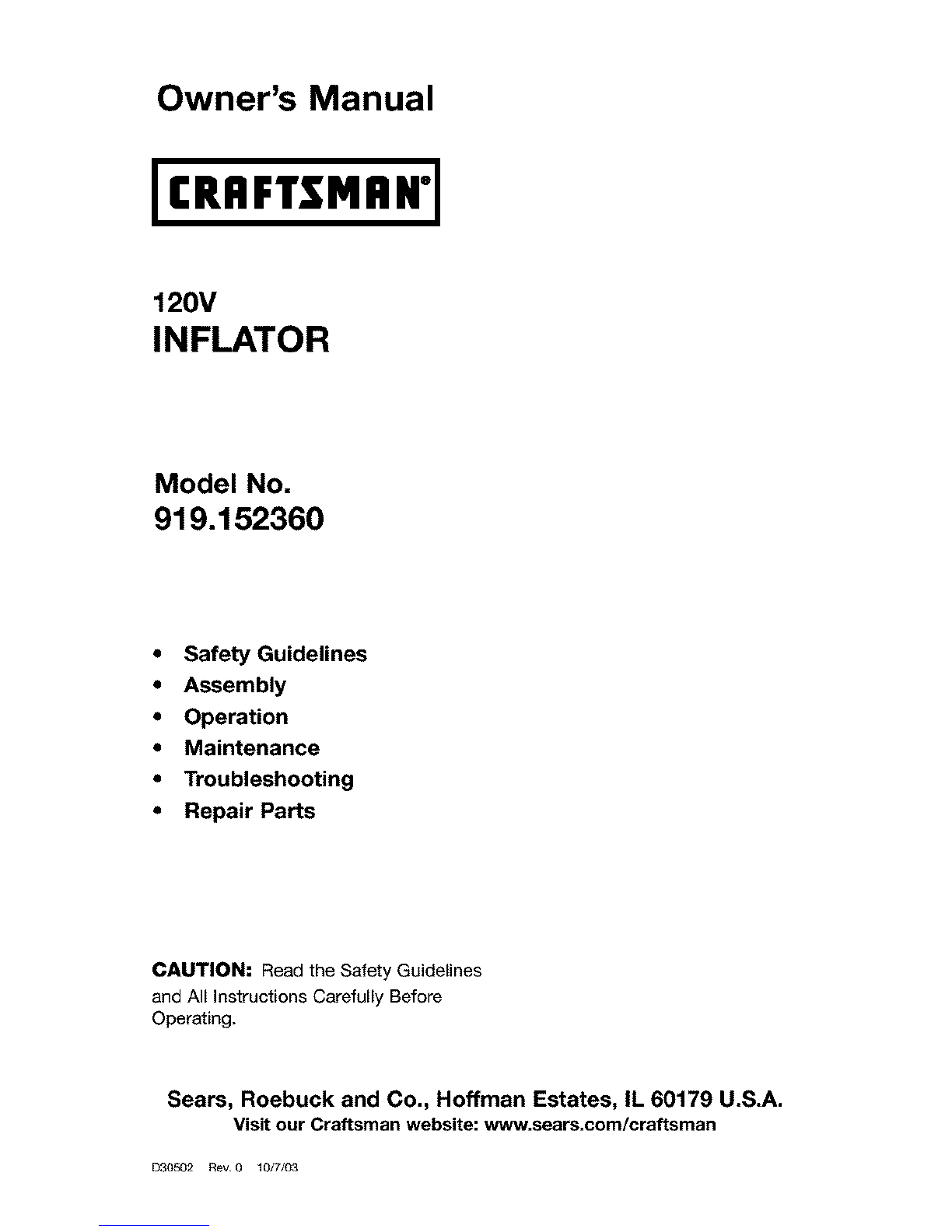

Owner's Manual

iCRHFTSMRN'i

120V

INFLATOR

Model No.

919.152360

•Safety Guidelines

•Assembly

•Operation

•Maintenance

•Troubleshooting

•Repair Parts

CAUTION: Read the Safety Guidelines

and All Instructions Carefully Before

Operating.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website: www.sears.com/craftsman

D30502 Rev. 0 10/7/03

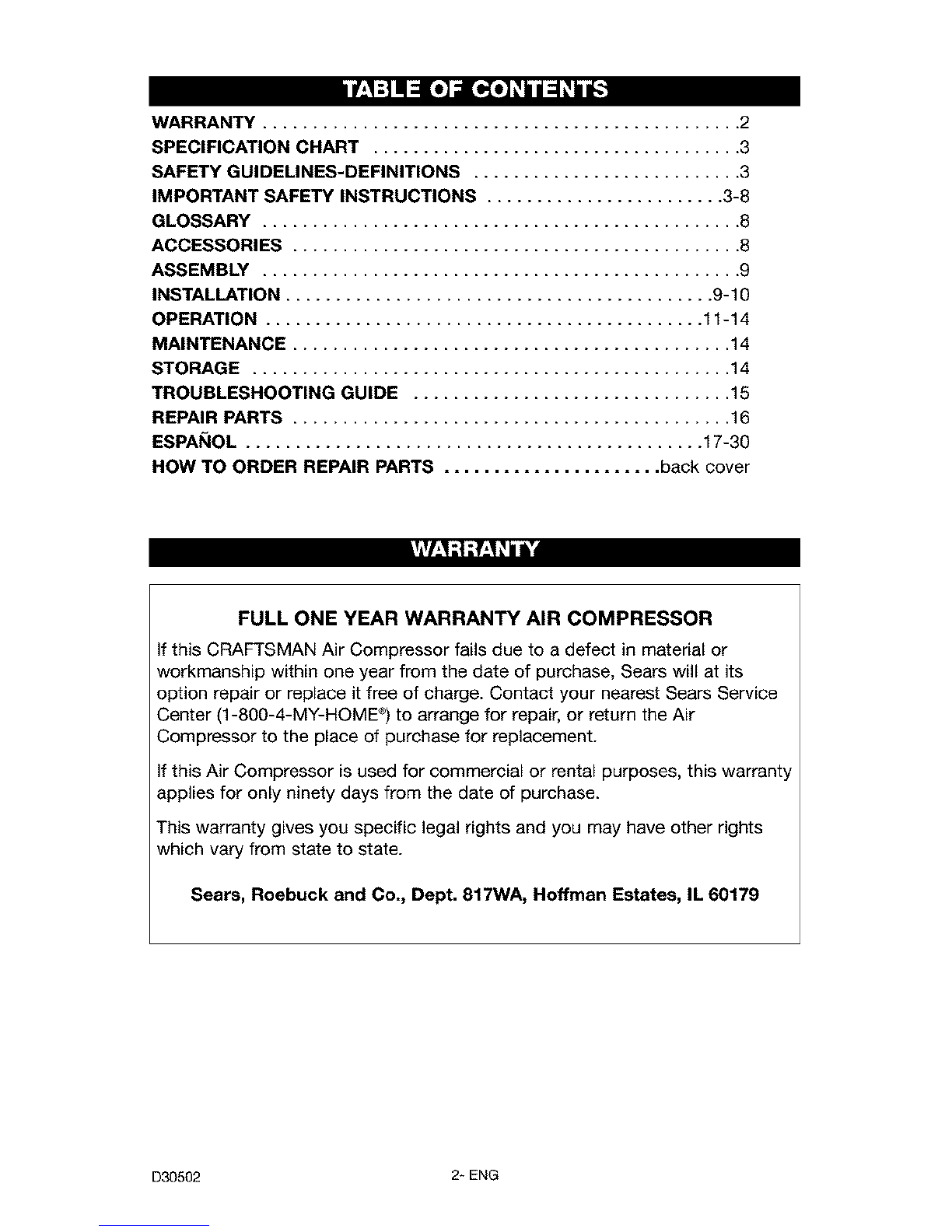

WARRANTY ................................................ 2

SPECIFICATION CHART ..................................... 3

SAFETY GUIDELINES-DEFINITIONS ........................... 3

IMPORTANT SAFETY INSTRUCTIONS ........................ 3-8

GLOSSARY ................................................ 8

ACCESSORIES ............................................. 8

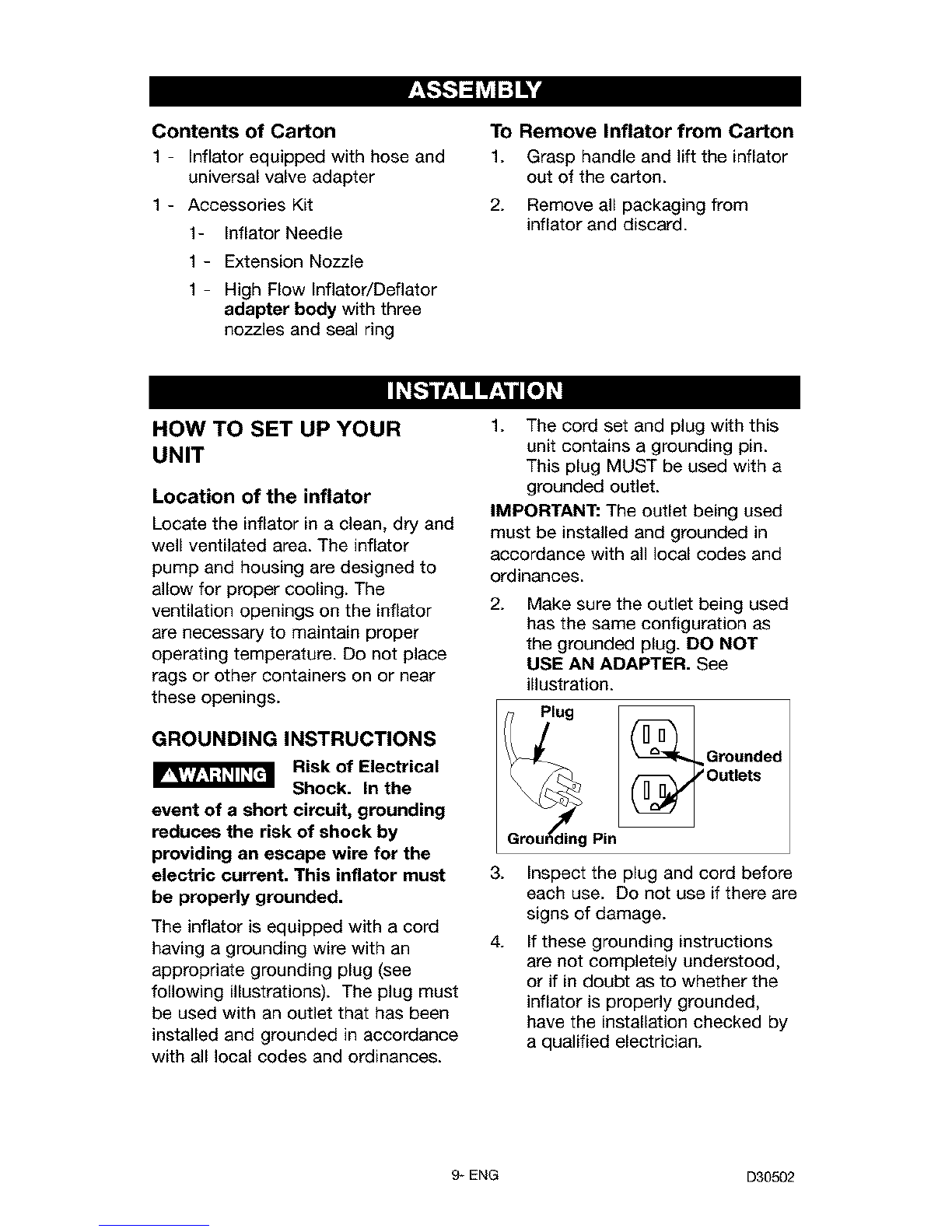

ASSEMBLY ................................................ 9

INSTALLATION ........................................... 9-10

OPERATION ............................................ 11-14

MAINTENANCE ............................................ 14

STORAGE ................................................ 14

TROUBLESHOOTING GUIDE ................................ 15

REPAIR PARTS ............................................ 16

ESPAI_IOL .............................................. 17-30

HOW TO ORDER REPAIR PARTS ...................... back cover

FULL ONE YEAR WARRANTY AIR COMPRESSOR

If this CRAFTSMAN Air Compressor fails due to a defect in material or

workmanship within one year from the date of purchase, Sears will at its

option repair or replace it free of charge. Contact your nearest Sears Service

Center (1-800-4-MY-HOME ®)to arrange for repair, or return the Air

Compressor to the place of purchase for replacement.

If this Air Compressor is used for commercial or rental purposes, this warrant

applies for only ninety days from the date of purchase.

This warranty gives you specific legal rights and you may have other rights

which vary from state to state.

Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179

D30502 2-ENG

-1".,1=let I_1[e_,__lII[o]_I[e_"F__r.tl

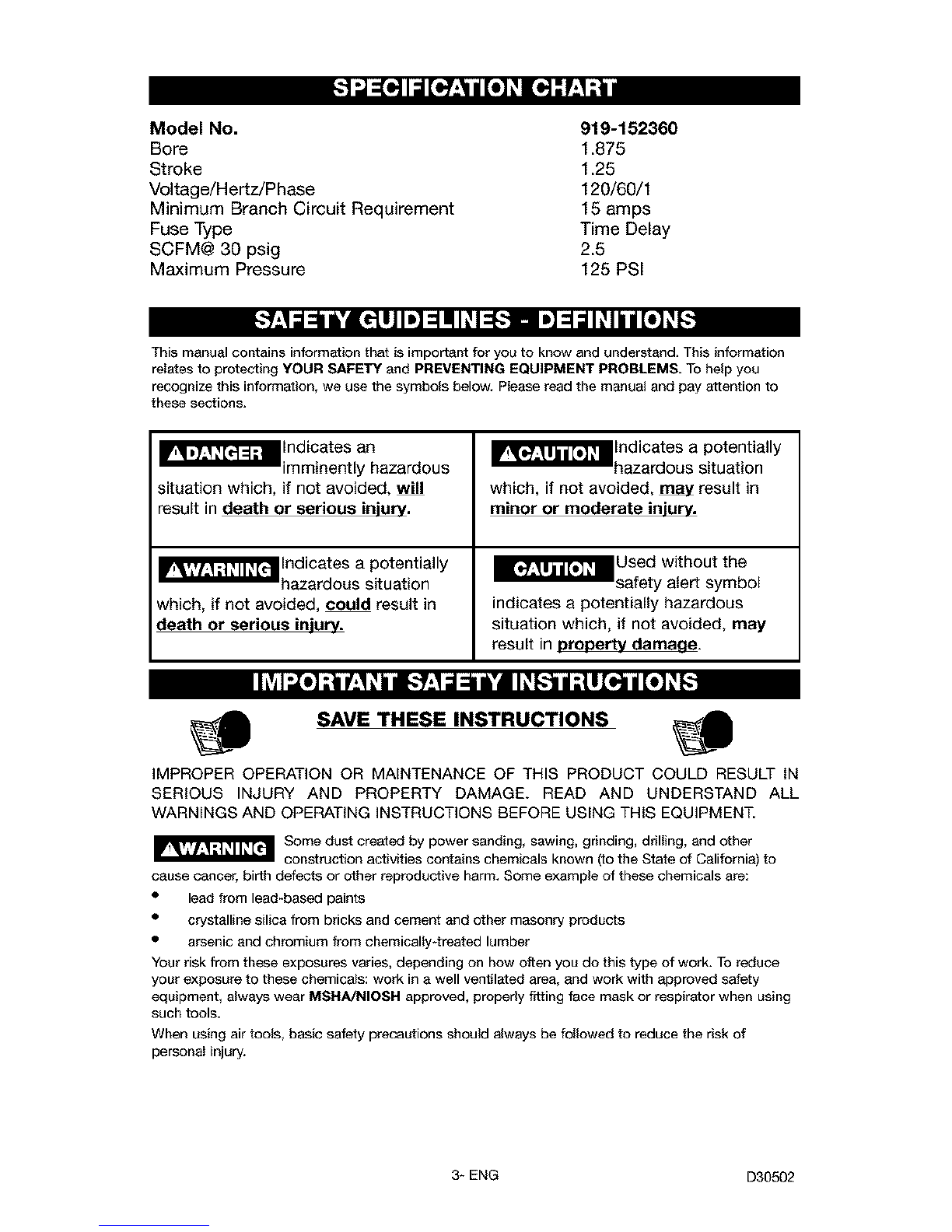

Model No. 919-152360

Bore 1.875

Stroke 1.25

Voltage/Hertz/Phase 120/60/1

Minimum Branch Circuit Requirement 15 amps

Fuse Type Time Delay

SCFM@ 30 psig 2.5

Maximum Pressure 125 PSI

[.'Y:__1_ I_'l_tl] Im]=1III#I=B_- Im]=1_11#1i II[o_]_.I

This manual contains information that is important for you to know and understand. This information

re_ates to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you

recognize this information_ we use the symbols below. Please read the manual and pay attention to

these sections.

_lndicates an

imminently hazardous

situation which, if not avoided, will

result in death or serious injurv.

_'_lndicates a potentially

hazardous situation

which, if not avoided, could result in

death or serious injury.

_T_'_lndicates a potentially

hazardous situation

which, if not avoided, _ result in

minor or moderate injury.

_Used without the

safety alert symbol

indicates a potentially hazardous

situation which, if not avoided, may

result in #rooertv damaae.

Ih_l_o]-'tL+_+hnl£:'/.,_al_S'4_[IP.[-:-]ljt,ttl_o,]njl[o_]P.[-.+

SAVE THESE INSTRUCTIONS

IMPROPER OPERATION OR MAINTENANCE OF THIS PRODUCT COULD RESULTIN

SERIOUS INJURY AND PROPERTY DAMAGE. READ AND UNDERSTAND ALL

WARNINGSAND OPERATINGINSTRUCTIONSBEFOREUSING THIS EQUIPMENT,

Some dust created by power sanding, sawing, grinding, drilling, and other

construction activities contains chemicals known (to the State of California) to

cause cancer, birth defects or other reproductive harm. Some example of these chemicals are:

•lead from lead-based paints

•crystalline silica from bricks and cement and other masonry products

•arsenic and chromium from chemicalty4reated lumber

Your risk from these exposures varies, depending on how often you do this type of work. To reduce

your exposure to these chemicals: work in a well ventilated area, and work with approved safety

equipment, a_ways wear MSHA/NIOSH approved, properly lifting face mask or respirator when using

such tools.

When using air tools, basic safety precautions should e3ways be feIIowed to reduce the risk of

personal injury.

3* ENG D30502

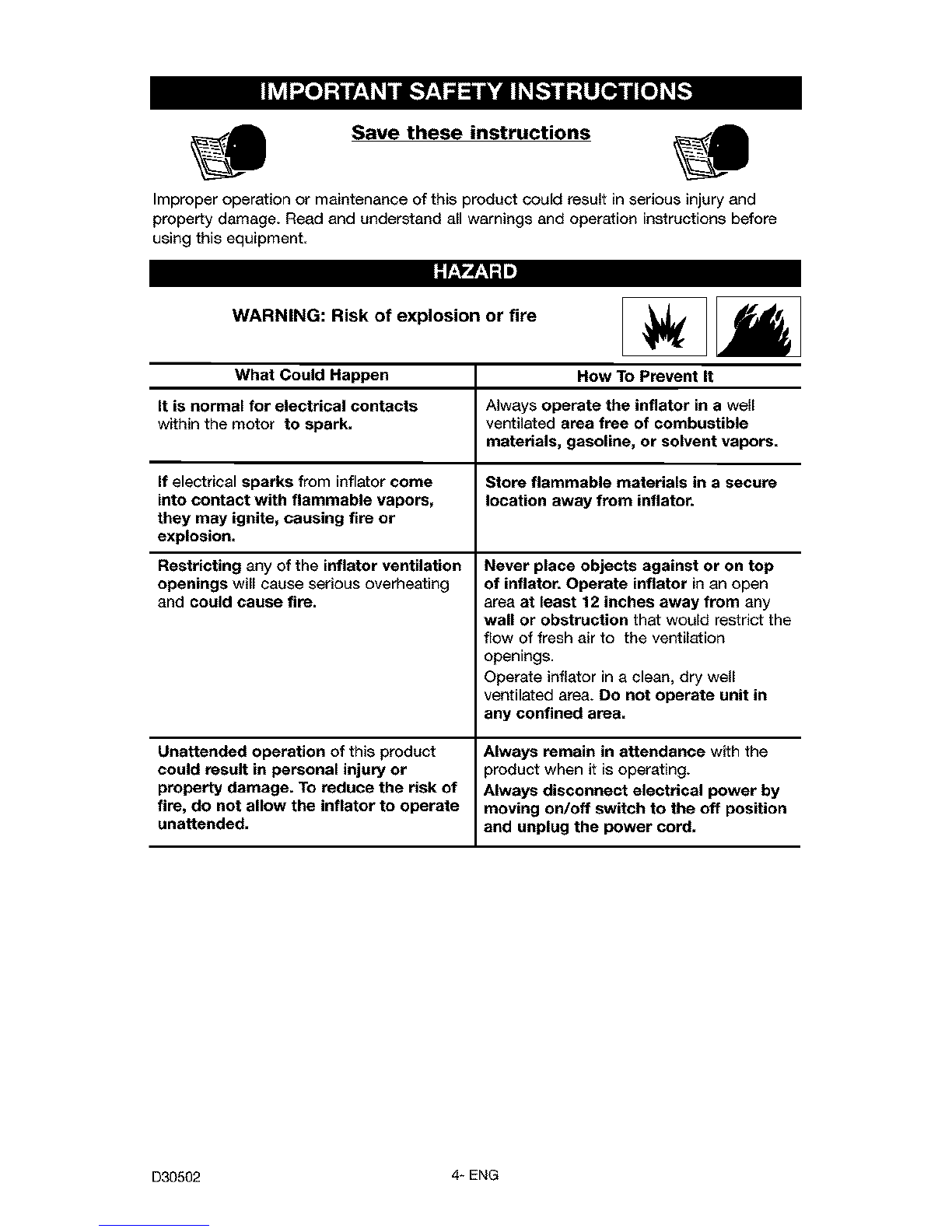

II_ I_o] ;111P'.'q+IInl[,.'9'.,__1_ &'d__JL_[,._)III,_]LI_+']IIT[_o_+]L_,[,._

Save these instructions

Improper operation or maintenance of this product could result in serious injury and

property damage. Read and understand all warnings and operation instructions before

using this equipment.

,l:1"l'J "-In

WARNING: Risk of explosion or fire

What Could Happen How To Prevent It

It is normal for electrical contacts Always operate the inflator in a well

within the motor to spark, ventilated area free of combustible

materials, gasoline, or solvent vapors.

If electrical sparks from inflator come Store flammable materials in a secure

into contact with flammable vapors, location away from inflator.

they may ignite, causing fire or

explosion.

Restricting any of the inflator ventilation

openings will cause serious overheating

and could cause fire.

Unattended operation of this product

could result in personal injury or

property damage. To reduce the risk of

fire, do not allow the inflator to operate

unattended.

Never place objects against or on top

of inflator. Operate inflator in an open

area at least 12 inches away from any

wall or obstruction that would restrict the

flow of fresh air to the ventilation

openings.

Operate inflator in a clean, dry well

ventilated area. Do not operate unit in

any confined area.

Always remain in attendance with the

)roduct when it is operating.

Always disconnect electrical power by

moving on/off switch to the off position

and unplug the power cord.

D30502 4* ENG

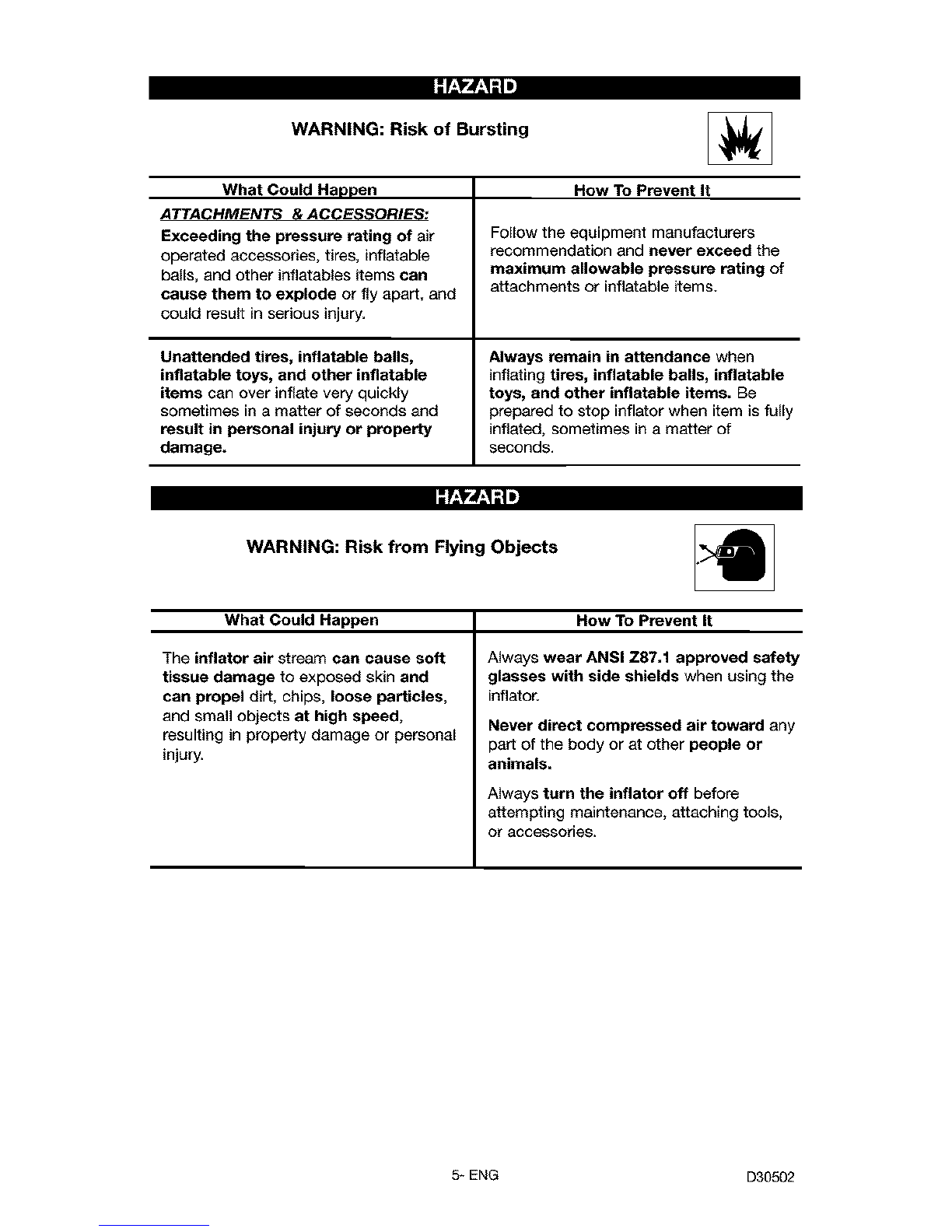

WARNING: Risk of Bursting

What Could Happen

ATTACHMENTS & ACCESSORIES:

Exceeding the pressure rating of air

operated accessories, tires, inflatable

balls, and other inflatables items can

cause them to explode or fly apart, and

could result in serious injury.

How To Prevent It

Follow the equipment manufacturers

recommendation and never exceed the

maximum allowable pressure rating of

attachments or inflatable items.

Unattended tires, inflatable balls, Always remain in attendance when

inflatable toys, and other inflatable inflating tires, inflatable balls, inflatable

items can over inflate very quickly toys, and other inflatable items. Be

sometimes in a matter of seconds and prepared to stop inflator when item is fully

result in personal injury or property inflated, sometimes in e matter of

damage, seconds.

:r:1",J:!;I I

WARNING: Risk from Flying Objects

What Could Happen How To Prevent It

The inflator air stream can cause soft

tissue damage to exposed skin and

can propel dirt, chips, loose particles,

and small objects at high speed,

resulting in property damage or personal

injury.

Always wear ANSI Z87.1 approved safety

glasses with side shields when using the

inflator.

Never direct compressed air toward any

part of the body or at other people or

animals.

Always turn the inflator off before

attempting maintenance, attaching tools,

or accessories.

5* ENG D30502

:r:I"4..I;I _

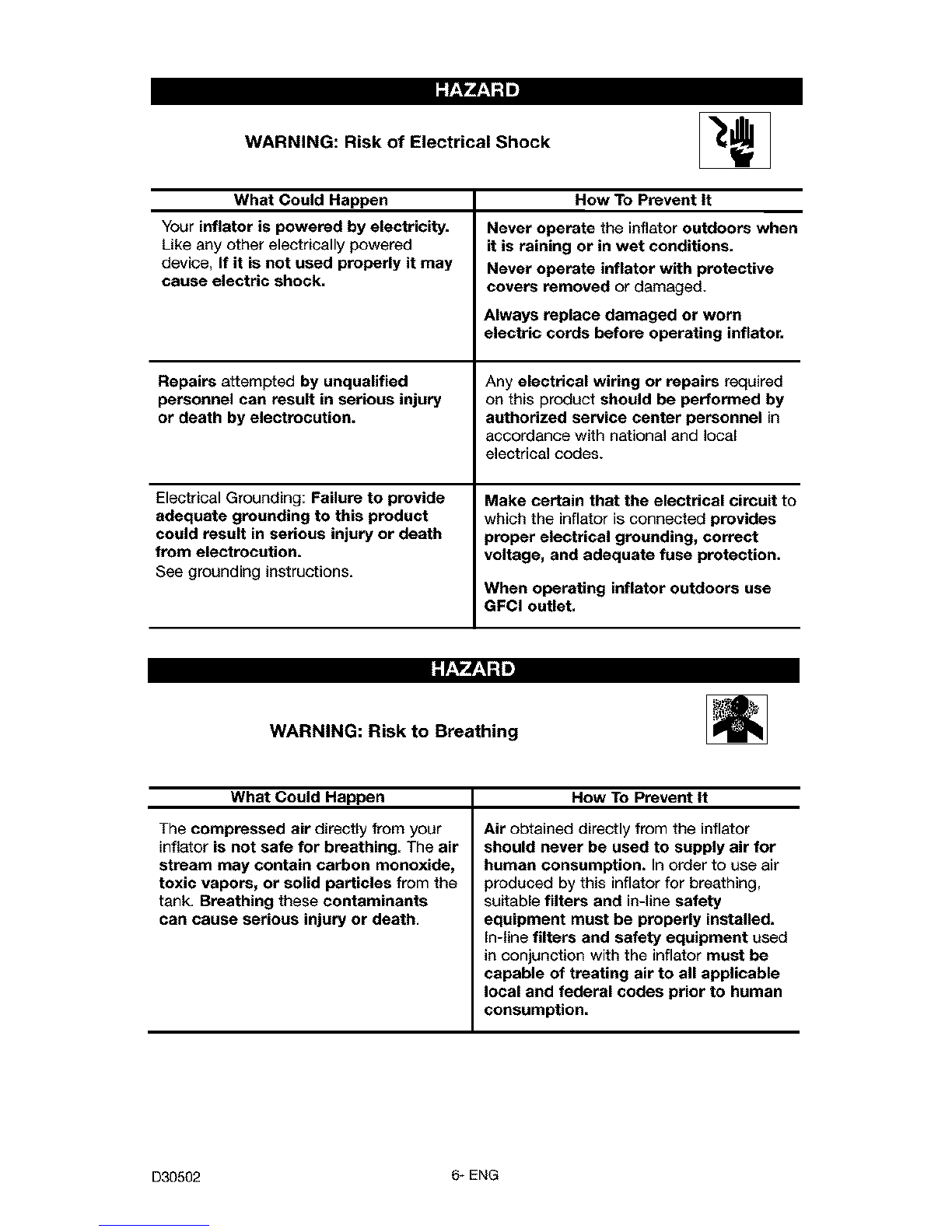

WARNING: Risk of Electrical Shock

What Could Happen How To Prevent It

Your inflator is powered by electricity. Never operate the inflator outdoors when

Like any other electrically powered it is raining or in wet conditions.

device, If it is not used properly it may Never operate inflator with protective

cause electric shock, covers removed or damaged.

Always replace damaged or worn

electric cords before operating inflator.

Repairs attempted by unqualified Any electrical wiring or repairs required

personnel can result in serious injury on this product should be performed by

or death by electrocution, authorized service center personnel in

accordance with national and local

electrical codes.

Electrical Grounding: Failure to provide Make certain that the electrical circuit to

adequate grounding to this product which the inflator is connected provides

could result in serious injury or death proper electrical grounding, correct

from electrocution, voltage, and adequate fuse protection.

See grounding instructions. When operating inflator outdoors use

GFCI outlet.

WARNING: Risk to Breathing

What Could Happen How To Prevent It

The compressed air directly from your

inflator is not safe for breathing The air

stream may contain carbon monoxide,

toxic vapors, or solid particles from the

tank. Breathing these contaminants

can cause serious injury or death.

Air obtained directly from the inflator

should never be used to supply air for

human consumption. In order to use air

produced by this inflator for breathing,

suitable filters and in-line safety

equipment must be properly installed.

in-line filters and safety equipment used

in conjunction with the inflator must be

capable of treating air to all applicable

local and federal codes prior to human

consumption.

D30502 6* ENG

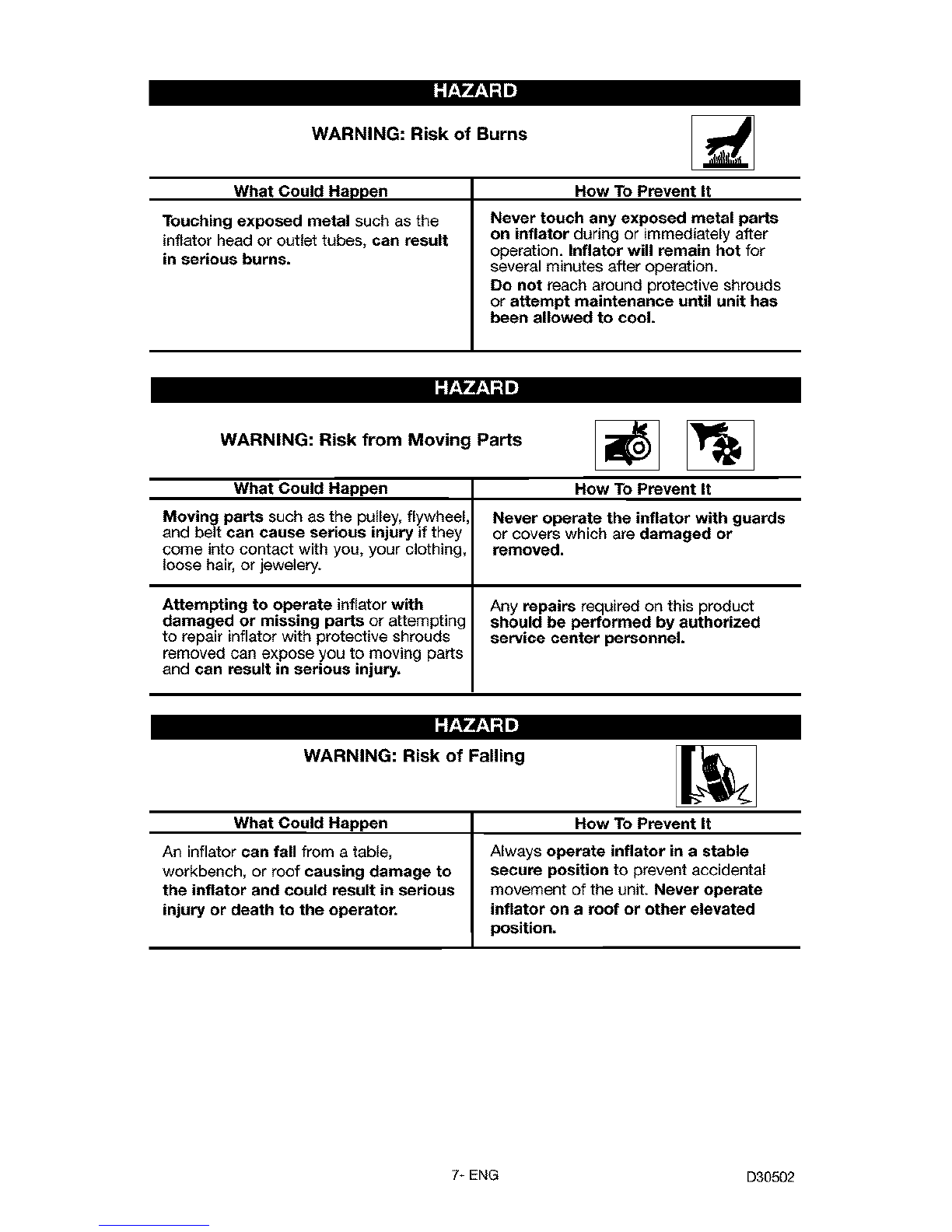

WARNING: Risk of Burns

What Could Happen

Touching exposed metal such as the

inflator head or outlet tubes, can result

in serious burns.

How To Prevent It

Never touch any exposed metal parts

on inflator during or immediately after

operation. Inflator will remain hot for

several minutes after operation.

Do not reach around protective shrouds

or attempt maintenance until unit has

been allowed to cool.

;f.,v,#.,1"1=

WARNING: Risk from Moving Parts _)

What Could Happen How To Prevent It

Moving parts such as the pulley, flywheel, Never operate the inflator with guards

and belt can cause serious injury if they or covers which are damaged or

come into contact with you, your clothing, removed.

loose hair, or jewelery.

Attempting to operate inflator with Any repairs required on this product

damaged or missing parts or attempting should be performed by authorized

to repair inflator with protective shrouds service center personnel.

removed can expose you to moving parts

and can result in serious injury.

;f.,v,#.,1"1=

WARNING: Risk of Falling

What Could Happen How To Prevent It

An inflator can fall from a table, Always operate inflator in a stable

workbench, or roof causing damage to secure position to prevent accidental

the inflator and could result in serious movement of the unit. Never operate

injury or death to the operator, inflator on aroof or other elevated

position.

7÷ ENG D30502

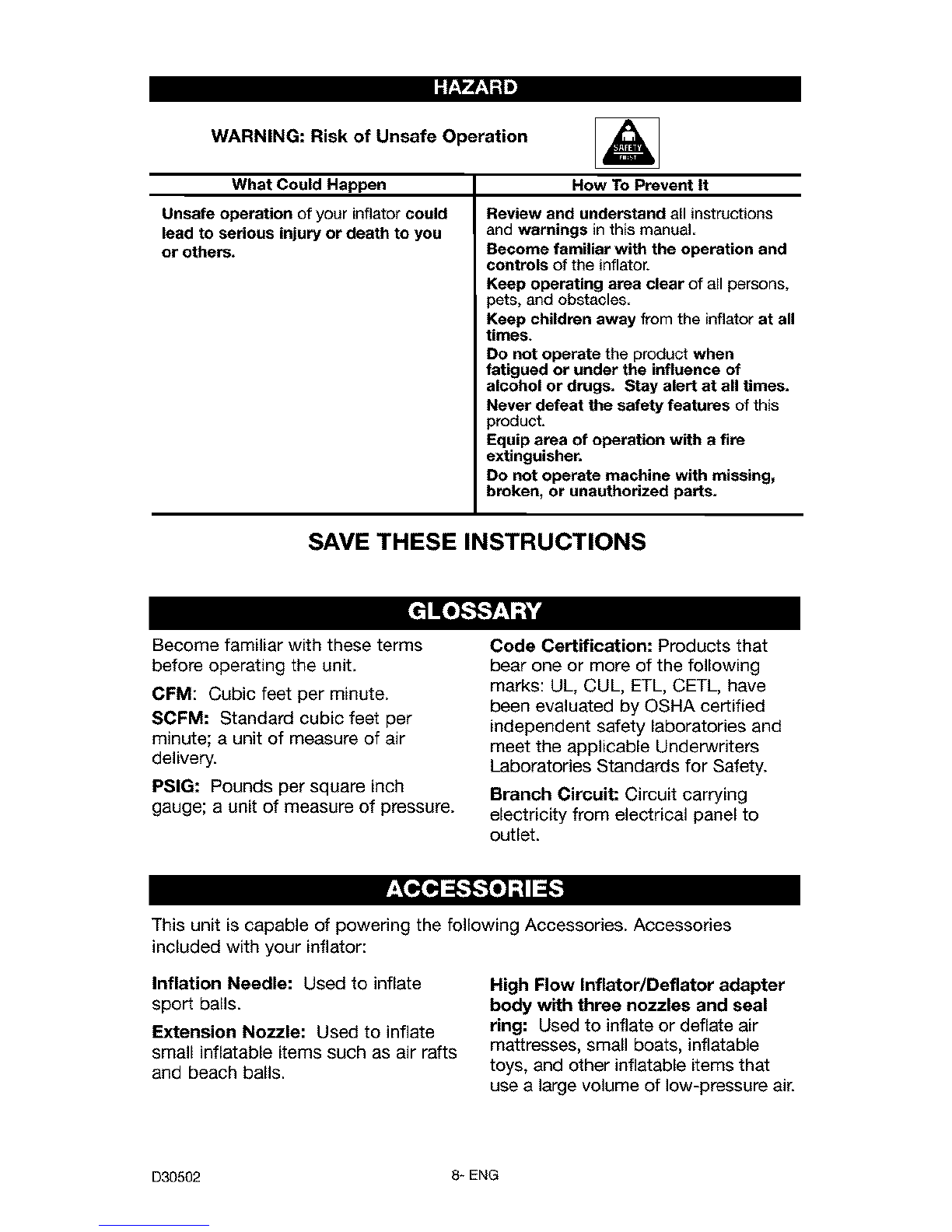

WARNING: Risk of Unsafe Operation

What Could Happen How ToPrevent It

Unsafe operation of your inflator could

lead to serious injury or death to you

or others.

Review and understand all instructions

and warnings in this manual

Become familiar with the operation and

controls of the inflator.

Keep operating area clear of all persons,

pets, and obstacles.

Keep children away from the inflator at all

times.

Do not operate the product when

fatigued or under the influence of

alcohol or drugs. Stay alert at all times.

Never defeat the safety features of this

product.

Equip area of operation with a fire

extinguisher.

Do not operate machine with missing,

broken, or unauthorized parts.

SAVE THESE INSTRUCTIONS

Become familiar with these terms

before operating the unit.

CFM: Cubic feet per minute.

SCFM: Standard cubic feet per

minute; a unit of measure of air

delivery.

PSlG: Pounds per square inch

gauge; a unit of measure of pressure.

Code Certification: Products that

bear one or more of the following

marks: UL, CUL, ETL, CETL, have

been evaluated by OSHA certified

independent safety laboratories and

meet the applicable Underwriters

Laboratories Standards for Safety.

Branch Circuit: Circuit carrying

electricity from electrical panel to

outlet.

This unit is capable of powering the following Accessories. Accessories

included with your inflator:

Inflation Needle: Used to inflate

sport balls.

Extension Nozzle: Used to inflate

small inflatable items such as air rafts

and beach balls.

High Flow Inflator/Deflator adapter

body with three nozzles and seal

ring: Used to inflate or deflate air

mattresses, small boats, inflatable

toys, and other inflatable items that

use a large volume of low-pressure air.

D30502 8* ENG

'_-"_-__h_I:]_'&

Contents of Carton

1-Inflator equipped with hose and

universal valve adapter

1 - Accessories Kit

1- Inflator Needle

1 - Extension Nozzle

1 - High Flow Inflator/Deflator

adapter body with three

nozzles and seal ring

To Remove Inflator from Carton

1. Grasp handle and lift the inflator

out of the carton.

2. Remove all packaging from

inflator and discard.

II__.!n€.4uluP'.,tnd[o]_J

HOW TO SET UP YOUR

UNIT

Location of the inflator

Locate the inflator in a clean, dry and

well ventilated area. The inflator

pump and housing are designed to

allow for proper cooling. The

ventilation openings on the inflator

are necessary to maintain proper

operating temperature. Do not place

rags or other containers on or near

these openings.

GROUNDING INSTRUCTIONS

Risk of Electrical

Shock. In the

event of a short circuit, grounding

reduces the risk of shock by

providing an escape wire for the

electric current. This inflator must

be properly grounded.

The inflator is equipped with a cord

having a grounding wire with an

appropriate grounding plug (see

following illustrations). The plug must

be used with an outlet that has been

installed and grounded in accordance

with all local codes and ordinances.

1. The cord set and plug with this

unit contains a grounding pin.

This plug MUST be used with a

grounded outlet.

IMPORTANT: The outlet being used

must be installed and grounded in

accordance with all local codes and

ordinances.

2. Make sure the outlet being used

has the same configuration as

the grounded plug. DO NOT

USE AN ADAPTER. See

illustration.

Inspect the plug and cord before

each use. Do not use if there are

signs of damage.

If these grounding instructions

are not completely understood,

or if in doubt as to whether the

inflator is properly grounded,

have the installation checked by

a qualified electrician.

9-ENG D30502

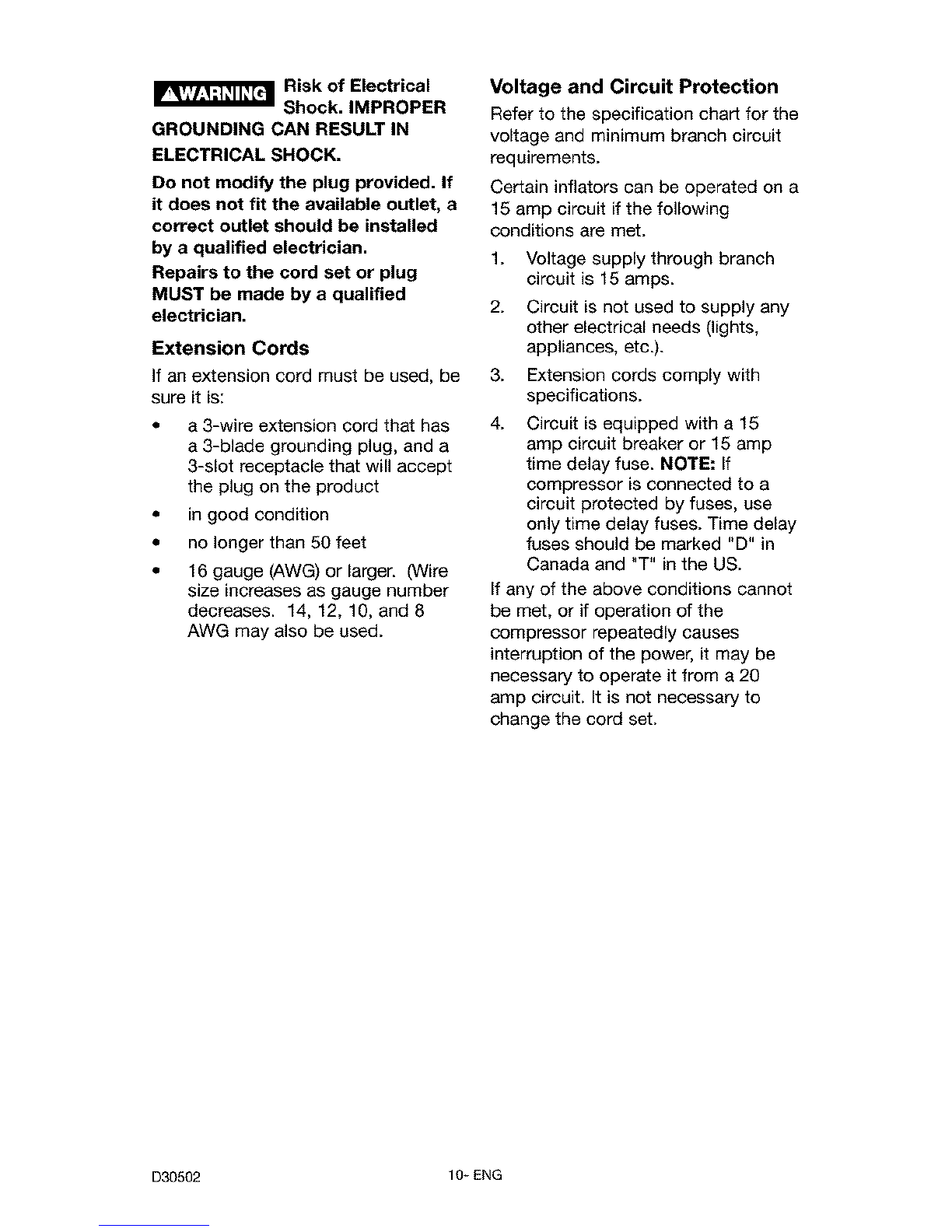

_'_I Risk of Electrical

Shock. IMPROPER

GROUNDING CAN RESULT IN

ELECTRICAL SHOCK.

Do not modify the plug provided. If

it does not fit the available outlet, a

correct outlet should be installed

by a qualified electrician.

Repairs to the cord set or plug

MUST be made by a qualified

electrician.

Extension Cords

If an extension cord must be used, be

sure it is:

a 3-wire extension cord that has

a 3-blade grounding plug, and a

3-slot receptacle that will accept

the plug on the product

*in good condition

no longer than 50 feet

16 gauge (AWG) or larger. ('Wire

size increases as gauge number

decreases. 14, 12, 10, and 8

AWG may also be used.

Voltage and Circuit Protection

Refer to the specification chart for the

voltage and minimum branch circuit

requirements.

Certain inflators can be operated on a

15 amp circuit if the following

conditions are met.

1. Voltage supply through branch

circuit is 15 amps.

2. Circuit is not used to supply any

other electrical needs (lights,

appliances, etc.).

3. Extension cords comply with

specifications.

4. Circuit is equipped with a 15

amp circuit breaker or 15 amp

time delay fuse. NOTE: If

compressor is connected to a

circuit protected by fuses, use

only time delay fuses. Time delay

fuses should be marked "D" in

Canada and "T" in the US.

If any of the above conditions cannot

be met, or if operation of the

compressor repeatedly causes

interruption of the power, it may be

necessary to operate it from a 20

amp circuit. It is not necessary to

change the cord set.

D30502 10_ ENG

Table des matières

Langues :

Autres manuels Craftsman Outils électriques

Craftsman

Craftsman 113.213100 Manuel utilisateur

Craftsman

Craftsman 315.175011 Manuel utilisateur

Craftsman

Craftsman 137.219090 Manuel utilisateur

Craftsman

Craftsman 320.17235 Manuel utilisateur

Craftsman

Craftsman CMCE030 Manuel utilisateur

Craftsman

Craftsman 137.219000 Manuel utilisateur

Craftsman

Craftsman REXON 137.229171 Manuel utilisateur

Craftsman

Craftsman 572.610520 Manuel utilisateur

Craftsman

Craftsman 320.17541 Manuel utilisateur

Craftsman

Craftsman 973.113121 Manuel utilisateur

Craftsman

Craftsman 320.2768 Manuel utilisateur

Craftsman

Craftsman 315.17473 Manuel utilisateur

Craftsman

Craftsman 320.28084 Manuel utilisateur

Craftsman

Craftsman 137.2191 Manuel utilisateur

Craftsman

Craftsman 310.26825 Manuel utilisateur

Craftsman

Craftsman 315.175342 Manuel utilisateur

Craftsman

Craftsman CMPBN18SB Manuel utilisateur

Craftsman

Craftsman 572.61095 Manuel utilisateur

Craftsman

Craftsman 875.50190 Manuel utilisateur

Craftsman

Craftsman 235.185930 Manuel utilisateur

Craftsman

Craftsman 103.23340 Manuel d'utilisation et d'entretien

Craftsman

Craftsman 919.182880 Manuel utilisateur

Craftsman

Craftsman 17125468 Manuel utilisateur

Craftsman

Craftsman 900.277300 Manuel utilisateur

Manuels Outils électriques populaires d'autres marques

AEG

AEG OMNI-JS Manuel utilisateur

SIP

SIP 01533 Manuel utilisateur

Ribimex

Ribimex PRS499 Manuel utilisateur

3M Fiber Optic Connector Crimp Tool Manuel utilisateur

Ryobi

Ryobi P524 Manuel utilisateur

ROJEK

ROJEK FSN 300A Manuel utilisateur

Kemper

Kemper 1740PRO Manuel utilisateur

WABCO

WABCO OptiTire Manuel utilisateur

EINHELL

EINHELL TE-MS 18/210 Li Manuel utilisateur

Orgapack

Orgapack OR-T 85 Guide rapide

TOUGHCUT

TOUGHCUT Diamond 400 Manuel utilisateur

Yaros

Yaros PB-3603 Manuel utilisateur

Fein

Fein BSS 2.0 E Guide de configuration

Baileigh Industrial

Baileigh Industrial SS-2725 Manuel utilisateur

Milwaukee

Milwaukee 2674-20 Manuel utilisateur

Fein

Fein BLs 1.6 Manuel utilisateur

Princess

Princess Electric Multi Sharpener Manuel utilisateur

FOREDOM

FOREDOM K.1050 Manuel
