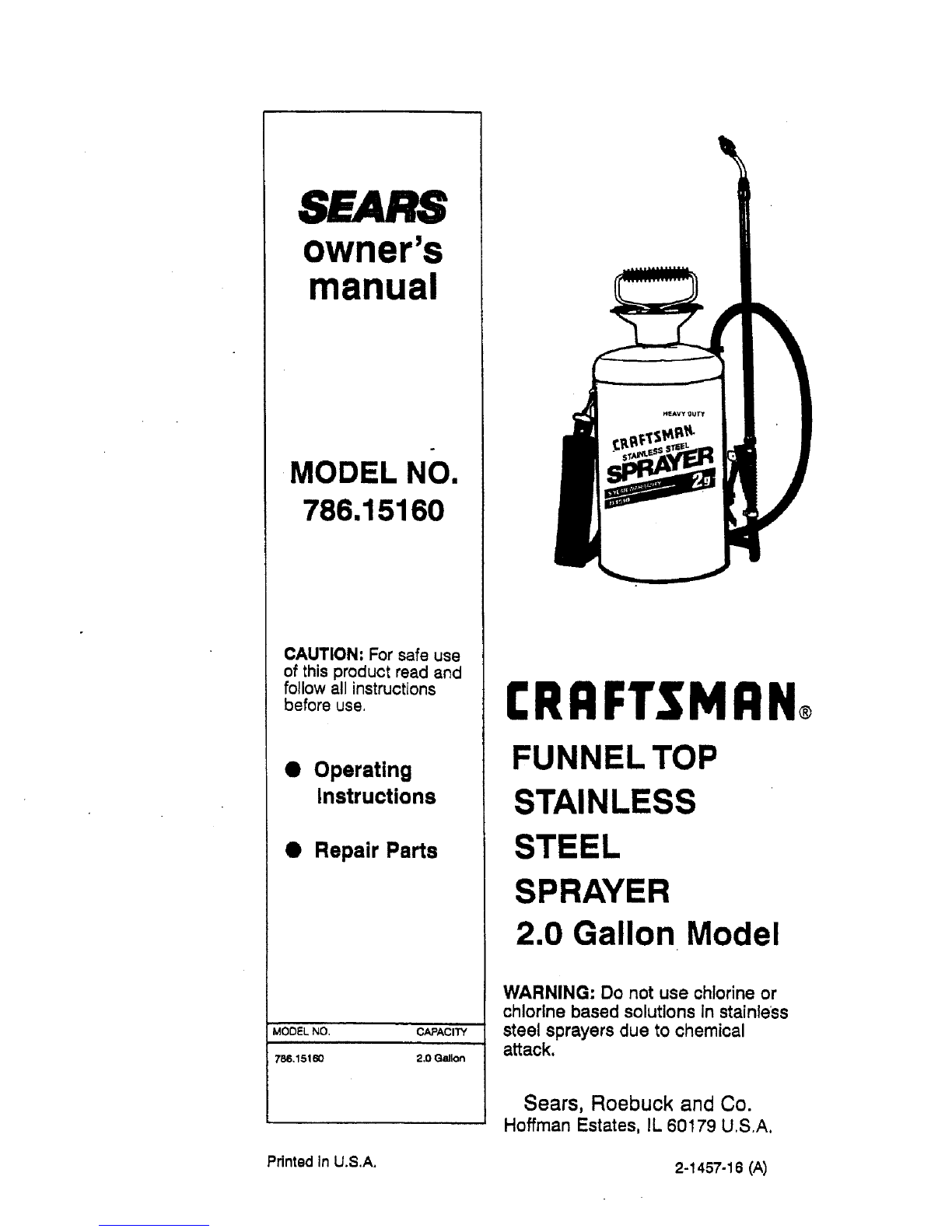

Craftsman 786.15160 Manuel utilisateur

SEARS

owner's

manual

MODEL NO.

786.15160

CAUTION: For safe use

of this product read and

follow all instructions

before use.

•Operating

Instructions

• Repair Parts

MODEL NO, CAPACITY

_86,15160 2,0 Gallon

I:RI:IFTSMRN

FUNNEL TOP

STAINLESS

STEEL

SPRAYER

2.0 Gallon Model

WARNING: Do not use chlorine or

chlorine based solutions in stainless

steel sprayers due to chemical

attack.

Sears, Roebuck and Co.

Hoffman Estates, IL 60179 U,S.A.

Pdnted in U.S.A. 2-1457-16 (A)

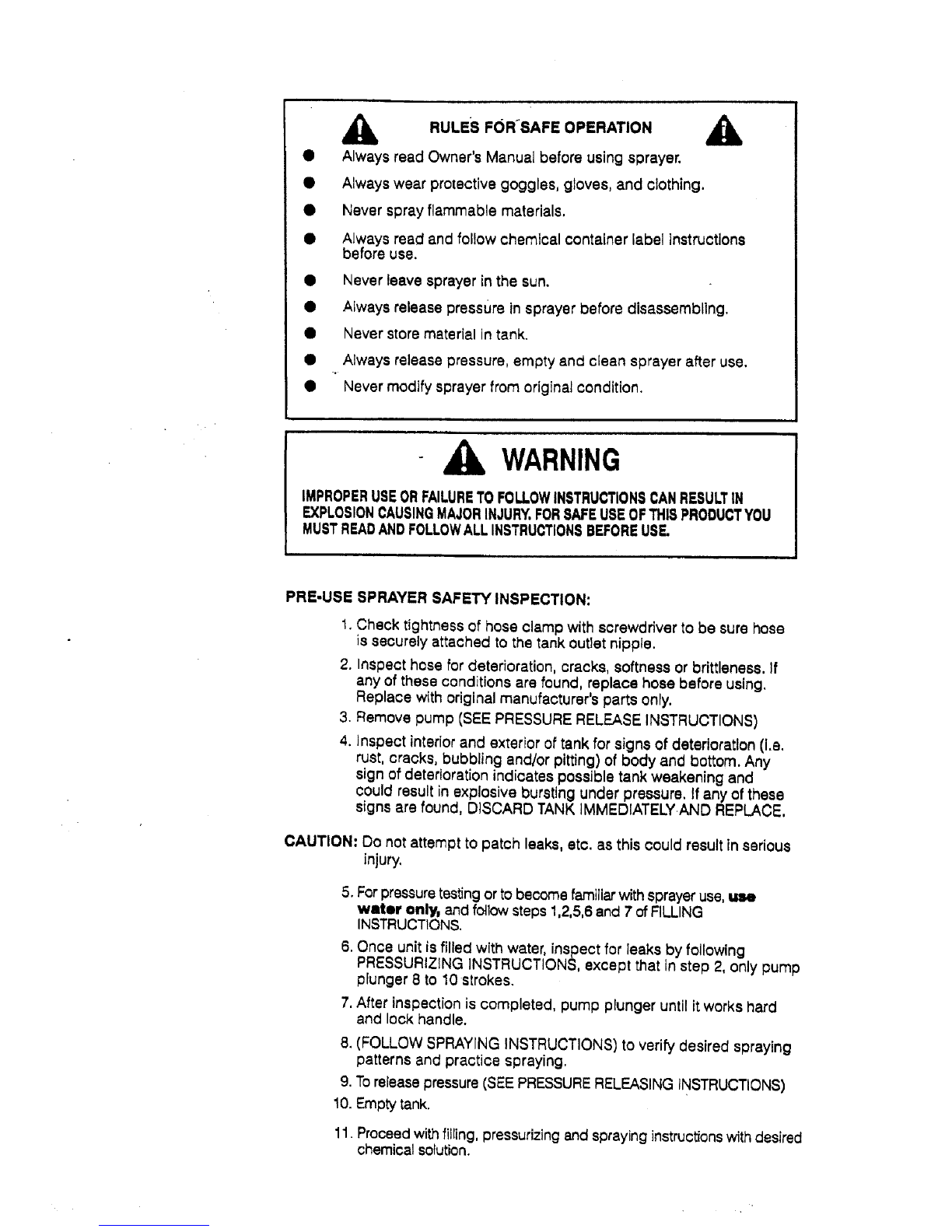

,_ RULES FORSAFE OPERATION _lk

•Always read Owner's Manual before using sprayer.

I Always wear protective goggles, gloves, and clothing.

Q Never spray flammable materials.

• Always read and follow chemical container label instructions

before use.

• Never leave sprayer in the sun.

• Always release pressure in sprayer before disassembling.

• Never store material in tank.

• Always release pressure, empty and clean sprayer after use.

• Never modify sprayer from original condition.

WARNING

IMPROPERUSEORFAILURETOFOLLOWINSTRUCTIONSCANRESULTIN

EXPLOSIONCAUSINGMAJORINJURY.FORSAFEUSEOFTHISPRODUCTYOU

MUSTREADANDFOLLOWALLINSTRUCTIONSBEFOREUSE,

PRE-USE SPRAYER SAFETY INSPECTION:

1.Check tightness of hose clamp with screwdriver to be sure hose

is securely attached to the tank outletnipple.

2. Inspect hose for deterioration, cracks, softness or brittleness, If

any of these conditions are found, replace hose before using.

Replace with original manufacturer's parts only.

3. Remove pump {SEEPRESSURE RELEASE INSTRUCTIONS)

4. }nspect interiorand exterior of tank for signsof deterioration (i,e.

rust, cracks, bubbling and/or pitting) of body and bottom. Any

sign of deterioration indicates possible tank weakening and

could result inexplosive bursting under pressure. If any of these

signs are found, DISCARD TANK IMMEDIATELY.AND REPLACE,

CAUTION: Do not attempt to patch leaks, etc. as this could result in serious

injury,

5. Forpressure testing orto become familiarwith sprayeruse,u=e

water only, and follow steps1,2,5,6and 7 ofFILLING

INSTRUCTIONS.

6. Once unit isfilled with water, inspect for leaks by following

PRESSURIZING INSTRUCTIONS, except that in step 2, only pump

piunger 8 to 10strokes.

7. After inspection is completed, pump p[unger until it works hard

and lock handle.

8. (FOLLOW SPRAYING INSTRUCTIONS) to verify desired spraying

patterns and practice spraying.

9. Torelease pressure (SEE PRESSURERELEASING INSTRUCTIONS)

10. Emptytank.

11.Proceedwith filling, pressurizing and sprayinginstructions with desired

chemical solution.

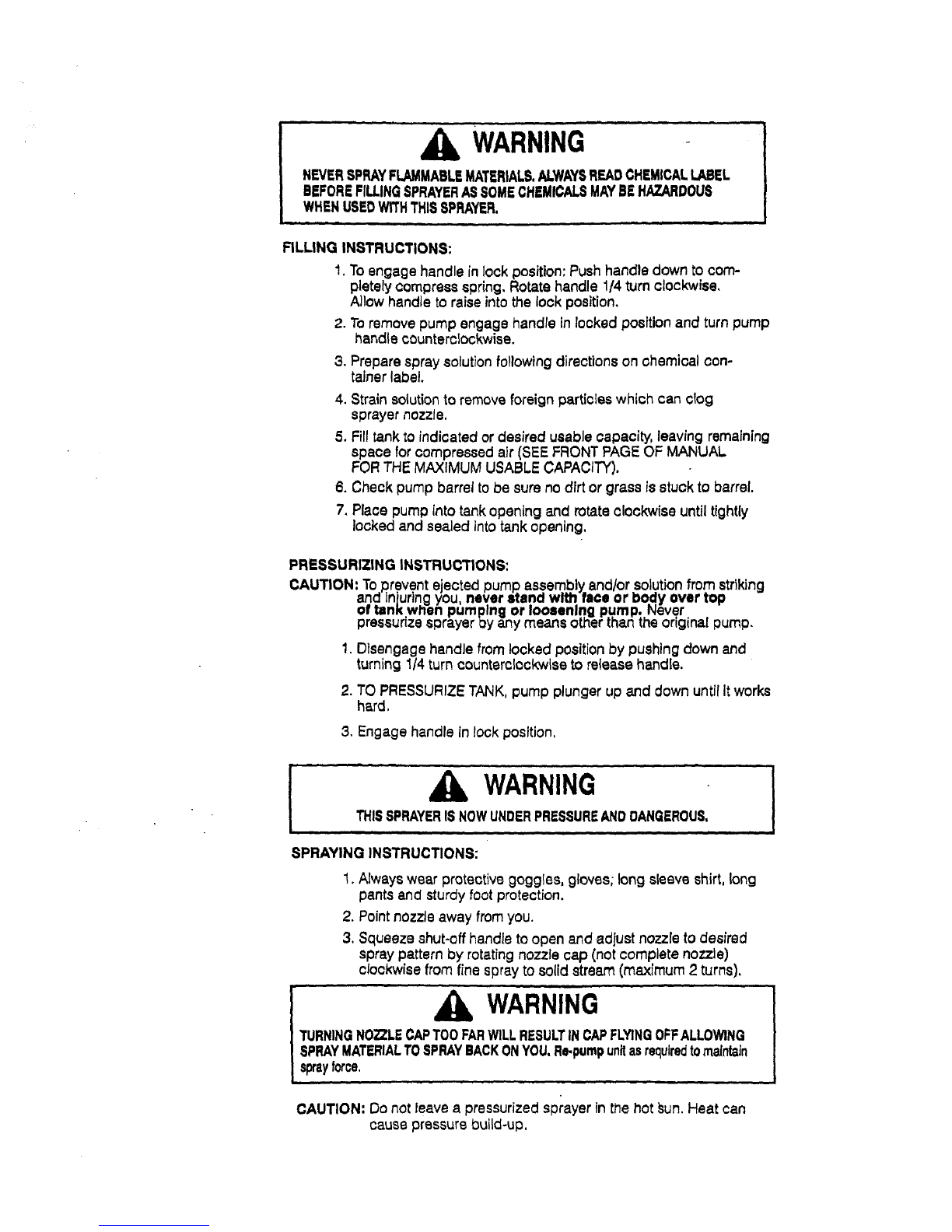

WARNING " I

NEVERSPRAYFLAMMABLEMATERIALS.ALWAYSREADCHEMICALLABEL

BEFOREFILLINGSPRAYERASSOMECHEMICALSMAYBEHAZARDOUS

WHENUSEDWiTHTHISSPRAYER,

FILLING INSTRUCTIONS:

1. To engage handle in lock position: Push handle down to com-

pletely compress spring, Rotate handle 1/4 turn clockwise.

Allow handle to raise into the lock position.

2. Toremove pump engage handte in locked position and turn pump

handle counterclockwise.

3. Prepare spray solutionfollowing directions on chemical con*

tainer label.

4, Strain solutionto remove foreign particles which can clog

sprayer nozzle,

5. Filltank toindicated or desired usable capacity, leaving remaining

space for compressed air (SEE FRONT PAGEOF MANUAL

FOR THE MAXIMUM USABLE CAPACITY).

6. Check pump barrel to be sure no dirt or grass is stuck to barrel.

7. Place pump into tankopening and rotateclockwise until tightly

locked and sealed into tank opening,

PRESSURIZING INSTRUCTIONS:

CAUTION: Toprevent ejected pump assembly and/or solutionfrom striking

ang injurin.gyou, never eta.nowl_ face or body over top

of tank when pumping or lOOSening pump. Never .

pressurize sprayer oy any means other[nan the origir_l pump.

1. Disengage handle from locked position by pushing down and

turning 1/4 turn counterclockwiseto re{ease handle.

2. TO PRESSURIZE TANK,pump plunger up and down untilItworks

hard,

3, Engage handle in lock position,

!i,,, •

WARNING i

THISSPRAYERISNOWUNOERPRESSUREANDDANGEROUS,

SPRAYING INSTRUCTIONS:

1. Nways wear protective goggles, gloves; long sleeve shirt,long

pants and sturdyfoot protection.

2. Pointnozzle away from you.

3. Squeeze shut-off handle to open and adjust nozzle to desired

spray pattern by rotatingnozzle cap (not complete nozzle)

clockwisefrom fine sprayto solid stream (max{mum2 turns).

WARNING

TURNINGNOZZLECAPTOOFARWILLRESULTINCAPFLYINGOFFALLOWING

SPRAYMATERIALTOSPRAYBACKONYOU,Re-pumpunitasrequiredtoma{ntain

sprayforce,

CAUTION: Do not leave a pressurized sprayer in the hot _sun.Heat can

cause pressure build-up,

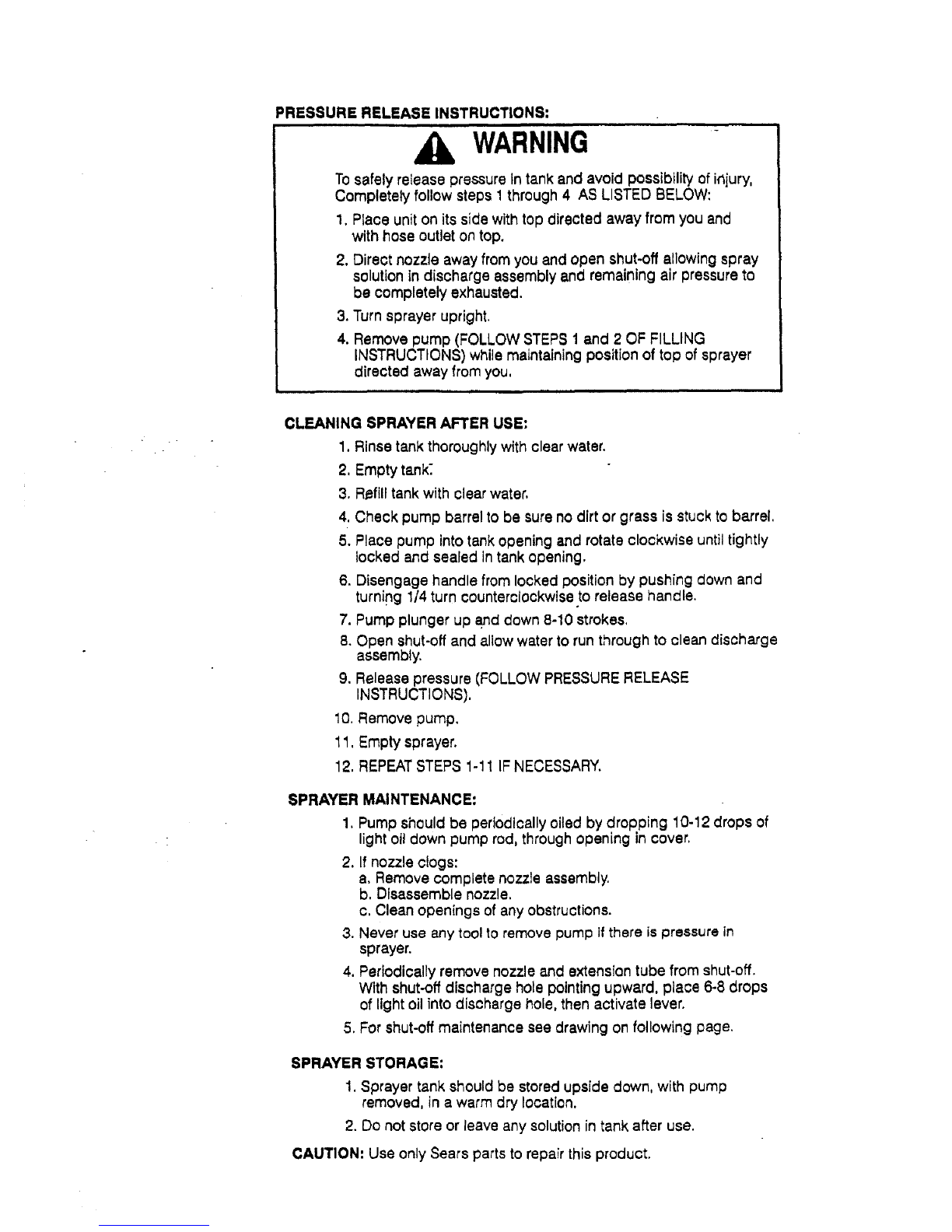

PRESSURE RELEASE INSTRUCTIONS:

WARNING

Tosafely release pressure in tank and avoid possibilityof i_ljury,

Completely follow steps1through 4AS LISTED BELOW:

1, Place uniton itsside with top directed away from you and

with hose outlet on top.

2. Direct nozzle away from you and open shut-offallowingspray

solutionin discharge assembly and remaining air pressure to

be completely exhausted.

3. Turn sprayer upright,

4. Remove pump (FOLLOW STEPS 1and 2 OF FILLING

INSTRUCTIONS) while maintaining position of top of sprayer

directed away from you,

CLEANING SPRAYER AFTER USE:

1. Rinse tank thoroughlywith clear water,

2. Empty tank.

3. Refill tank with clear water.

4. Check pump barrel to be sure no dirt or grass is stuck to barrel,

5. Place pump into tank opening and rotate clockwise until tightly

locked and sealed in tank opening.

6. Disengage handle fromlocked position by pushing clownand

turning 1/4 turn counterclockwiseto release handle.

7. Pump plunger up and down 8-10 strokes,

8. Open shut-oftand allow water to run through to clean discharge

assembly.

9. Release pressure (FOLLOW PRESSURERELEASE

INSTRUCTIONS).

10, Remove pump.

11, Empty sprayer.

12, REPEATSTEPS 1-11 IF NECESSARY.

SPRAYER MAINTENANCE:

1. Pump should be periodically oiled by dropping 10-12 drops of

light oil down pump rod, through opening in cover,

2. If nozzle clogs:

a. Remove complete nozzle assembly,

b. Disassemble nozzle.

c. Clean open{ngs of any obstructions.

3. Never use any too! to remove pump ifthere is pressure in

sprayer.

4. Periodicallyremove nozzle and extension tube from shut-off.

With shut-offdischarge hole pointingupward, place 6-8 drops

of lightoil intodischarge hole, then activate lever.

5. For shut-offmaintenance see drawing on following page,

SPRAYER STORAGE:

1. Sprayer tank shouldbe storedupside down, with pump

removed, in a warm dry location.

2. Do not store or leave any solutionin tank after use,

CAUTION, Use only Sears parts to repair this product.

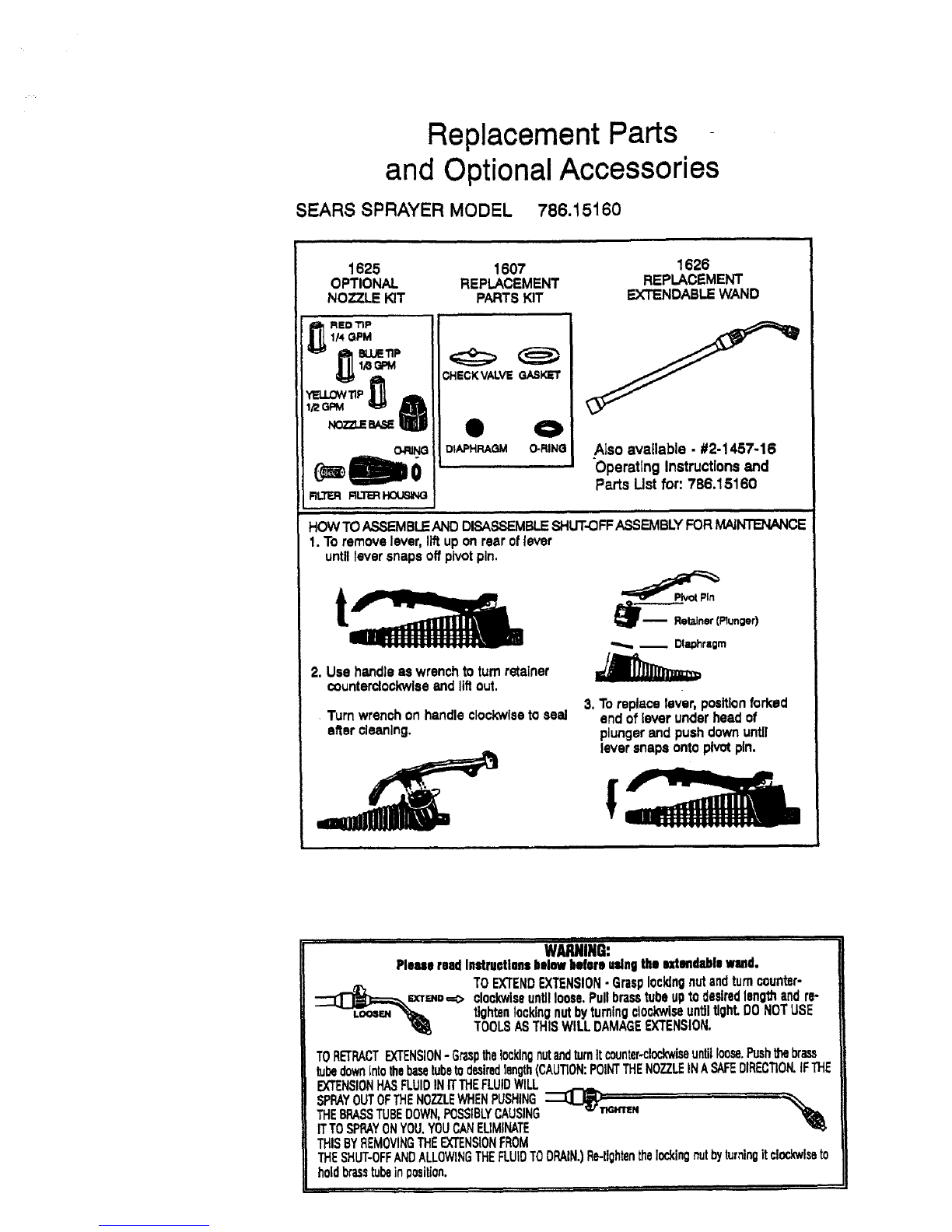

Replacement Parts

and Optional Accessories

SEARS SPRAYER MODEL 786.15160

1625 1607 1626

OPTIONAL REPLACEMENT REPLACEMENT

NOZZLEKIT PARTSKIT EXTENDABLEWAND

O._IG

RL'TER RLT_ HO_

CHECKVALVE

O-RING Also available • #2-1457-16

"Operating Instructionsand

Parts List for: 786.15160

HOWTO ASSEMBLEAND DISASSEMBLESHUT-OFFASSEMBLY FOR MAINTENANCE

1. To remove lever, liftup on rear oflever

untillever snaps off pivot pin.

2. Use handleas wrenchtoturn retainer

counterclockwiseand lift out.

Turnwrenchon handleclockwisetoseal

aftercleaning.

r_ Retainer (Plunger)

_Dlaghr,,gm

3.Toreplacelever, positionforked

end oflever underheadof

plungerand pushdownunUl

leversnapsontopivotpin.

WARNING:

PleasereadInstructionsbelowimforeusingtheextendablewand.

TOEXTENDEXTENSION-Grasplockingnutandturncounter-

L'-__==_r=,, ==c.clockwiseuntilloose.PullbrasstubeuptodesiredIsnglt_andre-

tightenlockingnutbyturningclockwiseuntiltight.DONOTUSE

TOOLSASTHISWILLDAMAGEEXTENSION.

TORETRACTEXTENSION- Gap thelockingnutandturnItcounter.clock'dseuntilloose.Pushthebrass

tubedownintothebasetubetodesiredlength(CAUTION:POINTTHENOZZLEINASAFEDIRECTION.IFTHE

EXTENSIONHASFLUIDINITTHEFLUIDWILL

SPRAYOUTOFTHENOZZLEWHENPUSHING_T_ .... _

THEBRASSTUBEDOWN.POSSIBLYCAUSING .T_.

ITTOSPRAYONYOU.YOUCANELIMINATE

THISBYREMOVINGTHEEXTENSIONFROM

THESHUT-OFFANDALLOWINGTHEFLUIDTODRAIN.)Re-tightenthelockingnutbyturningitclockwiseto

holdbrasstubeinposition.

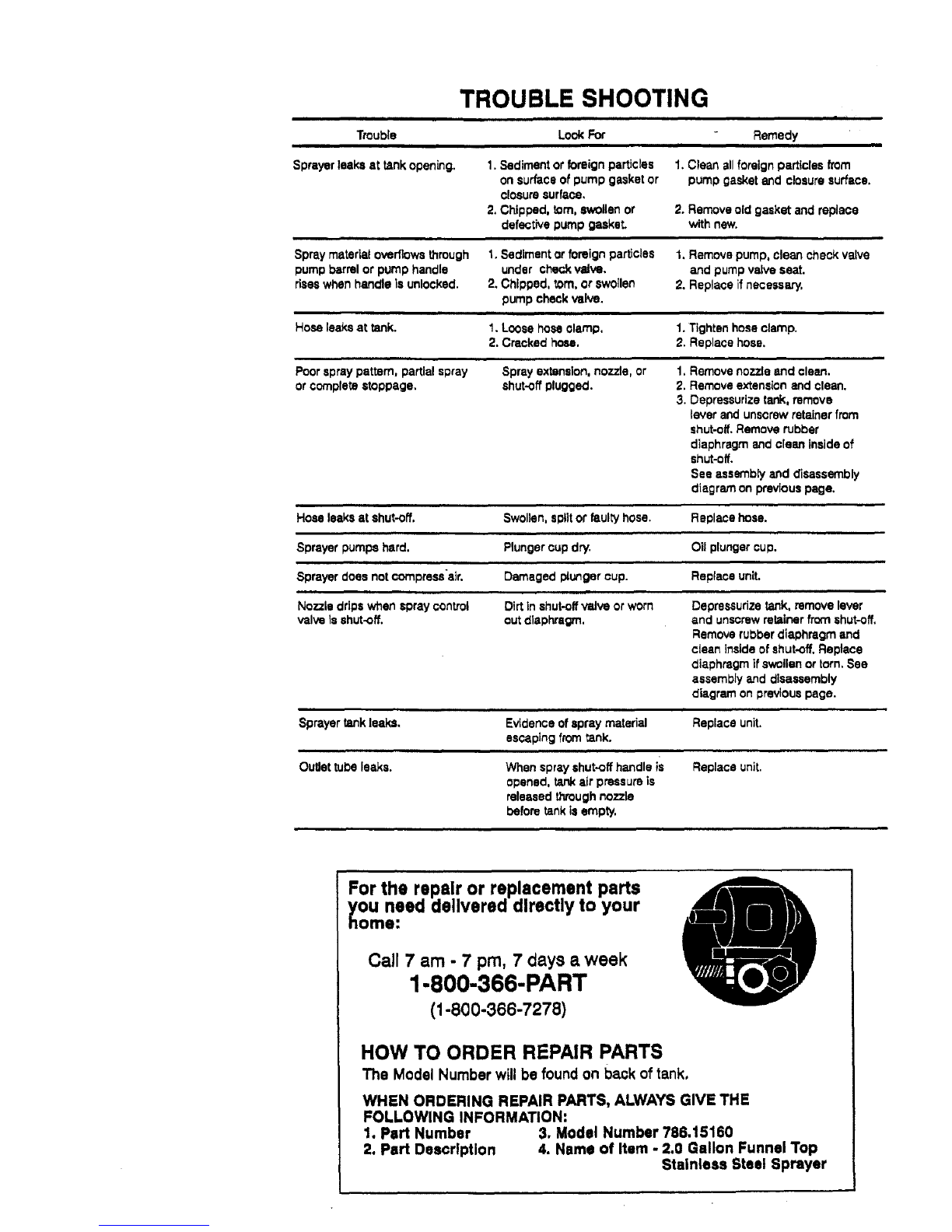

TROUBLE SHOOTING i

Trouble Look For Remedy

iiii

Sprayer leaks at tank opening. 1. Sediment or foreign particles 1. Clean allforeign particles from

on surface of pump gasket or pump gasket and closure surface.

closure surface.

2. Chipped, tom, swollen or 2. Remove old gasket and replace

defective pump gaskeL with new.

Spray material overflows through 1. Sediment or foreign particles 1. Remove pump, clean check valve

pump barrel or pump handle under check valve, and pump valve seat.

rises when handle is unlocked. 2. Chipped. _om. or swollen 2. Replace if necessary.

pump check valve.

,,m

Hose leaks at tank. 1. Loose hose clamp. 1. Tighten hose clamp.

2. Cracked hose. 2. Replace hose.

Poorspray pattern, partial spray Spray extension, nozzle, or 1. Remove nozzle and clean.

or complete stoppage, shut.off pluggecl. 2. Remove extane[on and clean.

3. Deprassurize tank, remove

lever and unscrew retainer from

shut.off. Remove rubber

diaphragm and clean inside of

shut-off.

See assembly and disassembly

diagram on previous page.

Hose leaks at shut-off. Swollen. split or faulty hose. Replace hose.

Sprayer pumps hard. Plunger cup dry. Oil plunger cup.

Sprayer does not compressair. Damaged plunger cup. Replace unit.

Nozzle drips when spray control

valve is shut-off.

Sprayertankleaks.

Dirt In shut.off valve or worn

out diaphragm.

Evidence of spray material

escaping from _ank.

Depressurize tank. remove lever

and unscrew retainer from shut-off.

Remove rubber diaphragm and

clean inside of shut-off. Replace

cliaph_gm if swollen or torn. See

asseml01y and disassembly

diagram on previous page.

Replace unit.

OuUettuDeleaks. Whensprayshut-.offhandleis

opened, tankairpressureis

releasedthroughnozzle

beforetankisempty.

Replace unit.

For the repair or replacement parts

ou need delivered directly to your

_ome:

Call 7 am - 7 pro, 7 days aweek

1-800-366-PART

(1-800-366-7278)

HOW TO ORDER REPAIR PARTS

The Model Number will be found on back of tank.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE

FOLLOWING INFORMATION:

1. Part Number 3. Model Number 756.15160

2. Part Description 4. Name of Item -2.0 Gallon Funnel Top

Stainless Steel Sprayer

Table des matières

Autres manuels Craftsman Pistolet à peinture

Craftsman

Craftsman 24531 - Tow-Behind Sprayer Manuel utilisateur

Craftsman

Craftsman SKID SPRAYER 486.24534 Manuel utilisateur

Craftsman

Craftsman 486.245341 Manuel utilisateur

Craftsman

Craftsman 919/155140 Manuel utilisateur

Craftsman

Craftsman 486.245333 Manuel utilisateur

Craftsman

Craftsman 486.24533 Manuel utilisateur

Craftsman

Craftsman 919.155310 Manuel utilisateur

Craftsman

Craftsman 919.716051 Manuel utilisateur

Craftsman

Craftsman 919.1551 Manuel utilisateur

Craftsman

Craftsman 486.245312 Manuel utilisateur

Craftsman

Craftsman 919.155350 Manuel utilisateur

Craftsman

Craftsman 486.245313 Manuel utilisateur

Craftsman

Craftsman 486.245313 Manuel utilisateur

Craftsman

Craftsman 757.24525 Manuel utilisateur

Craftsman

Craftsman CMXCAFG190682 Manuel utilisateur

Craftsman

Craftsman 486.245315 Manuel utilisateur

Craftsman

Craftsman 919.15519 Manuel utilisateur

Craftsman

Craftsman 486.245332 Manuel utilisateur

Craftsman

Craftsman 919.150020 Manuel utilisateur

Craftsman

Craftsman 919.716171 Manuel utilisateur

Craftsman

Craftsman 919.155190 Manuel utilisateur

Craftsman

Craftsman CMXGZBF7124533 Manuel utilisateur

Craftsman

Craftsman CMXCAFG190643 Manuel utilisateur

Craftsman

Craftsman 919.155310 Manuel utilisateur

Manuels Pistolet à peinture populaires d'autres marques

SNOWJOE

SNOWJOE Sunjoe 24V-GS-LTW-RM Manuel utilisateur

Graco

Graco 246737 Manuel d'utilisation et d'entretien

Binks

Binks SV100 Manuel utilisateur

Fimco

Fimco LG-4-3-1 Manuel utilisateur

AG SPRAY

AG SPRAY FS-ATV-25BL Manuel utilisateur

Nordson

Nordson MicroMax 2 Manuel utilisateur

Bonide

Bonide 051 Manuel d'utilisation

zogics

zogics Z-DAS Manuel utilisateur

KISANKRAFT

KISANKRAFT KK-KBS-165 Manuel utilisateur

Matrix

Matrix SG 650 Manuel utilisateur

Anest Iwata

Anest Iwata SGA-3 Guide de démarrage rapide

paasche

paasche VV Fiche technique

Carlisle

Carlisle DeVilbiss JGA-510 Manuel utilisateur

Gardena

Gardena 11120 Manuel utilisateur

Conrad

Conrad Hobby Airbrush K3 Manuel utilisateur

wiwa

wiwa 14025 R/F Manuel utilisateur

Graco

Graco EM 390 Manuel d'utilisation

DeVilbiss

DeVilbiss LUNA2i Manuel utilisateur
