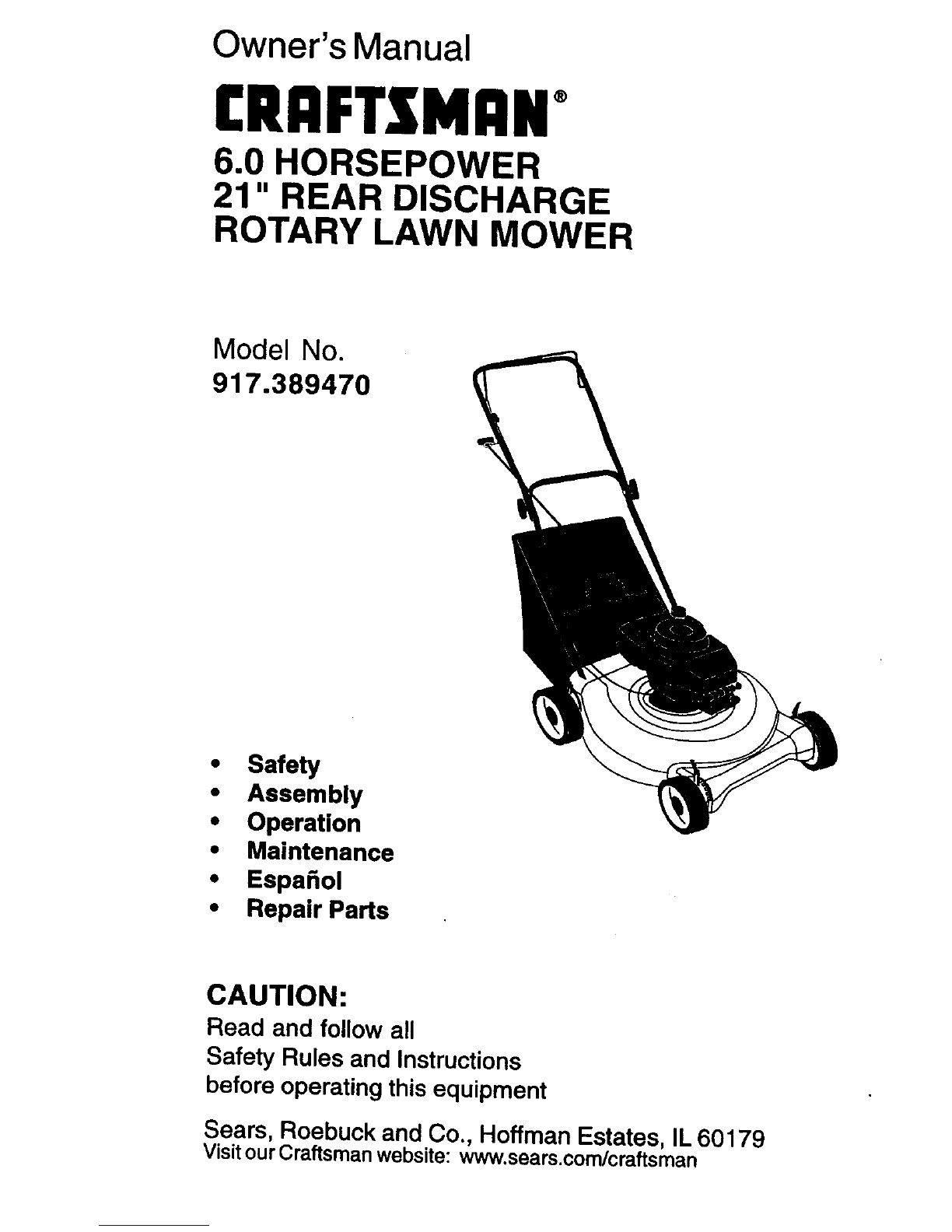

Craftsman 917.389470 Manuel utilisateur

Owner's Manual

CRAFTSMAN+

6.0 HORSEPOWER

21" REAR DISCHARGE

ROTARY LAWN MOWER

Model No.

917.389470

• Safety

•Assembly

• Operation

• Maintenance

• Espa_ol

•Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equipment

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Visit our Craftsman website: www.sears.com/craftsman

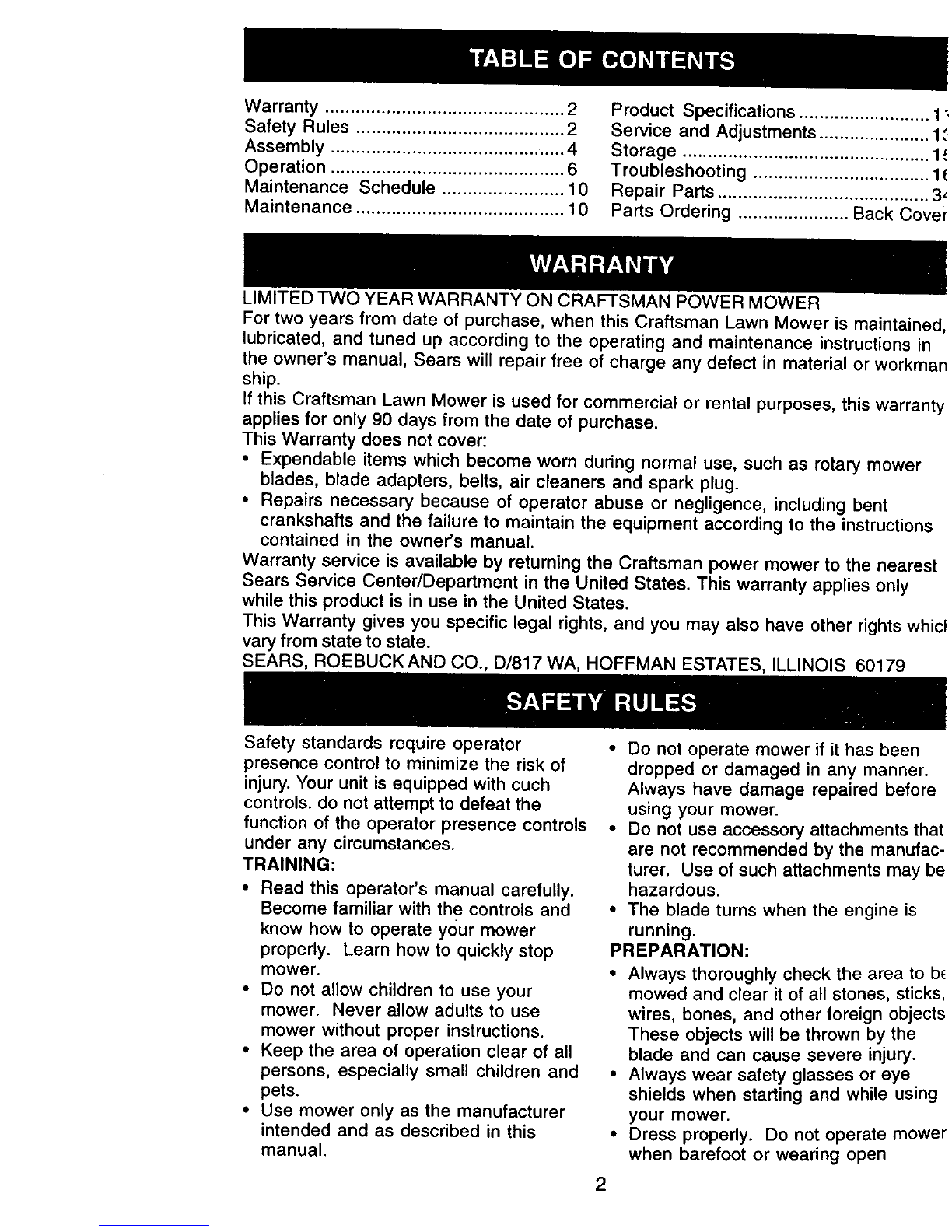

Warranty ............................................... 2

Safety Rules ......................................... 2

Assembly ......................................... ..... 4

Operation .............................................. 6

Maintenance Schedule ........................ 10

Maintenance ......................................... 10

Product Specifications ..........................

Service and Adjustments ......................

Storage .................................................

Troubleshooting ...................................

Repair Parts ..........................................

Parts Ordering ...................... Back Cm

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER

For two years from date of purchase, when this Craftsman Lawn Mower is maintaim

lubricated, and tuned up according to the operating and maintenance instructions i=

the owner's manual, Sears will repair free of charge any defect in material or workrr

ship.

If this Craftsman Lawn Mower is used for commercial or rental purposes, this warrat

applies for only 90 days from the date of purchase.

This Warranty does not cover:

•Expendable items which become worn during normal use, such as rotary mower

blades, blade adapters, belts, air cleaners and spark plug.

•Repairs necessary because of operator abuse or negligence, including bent

crankshafts and the failure to maintain the equipment according to the instruction,,

contained in the owner's manual.

Warranty service is available by returning the Craftsman power mower to the neare,,

Sears Service Center/Department in the United States. This warranty applies only

while this product is in use in the United States.

This Warranty gives you specific legal rights, and you may also have other rights wl"

vary from state to state.

SEARS, ROEBUCKAND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179

Safety standards require operator

presence control to minimize the risk of

injury. Your unit is equipped with cuch

controls, do not attempt to defeat the

function of the operator presence controls

under any circumstances.

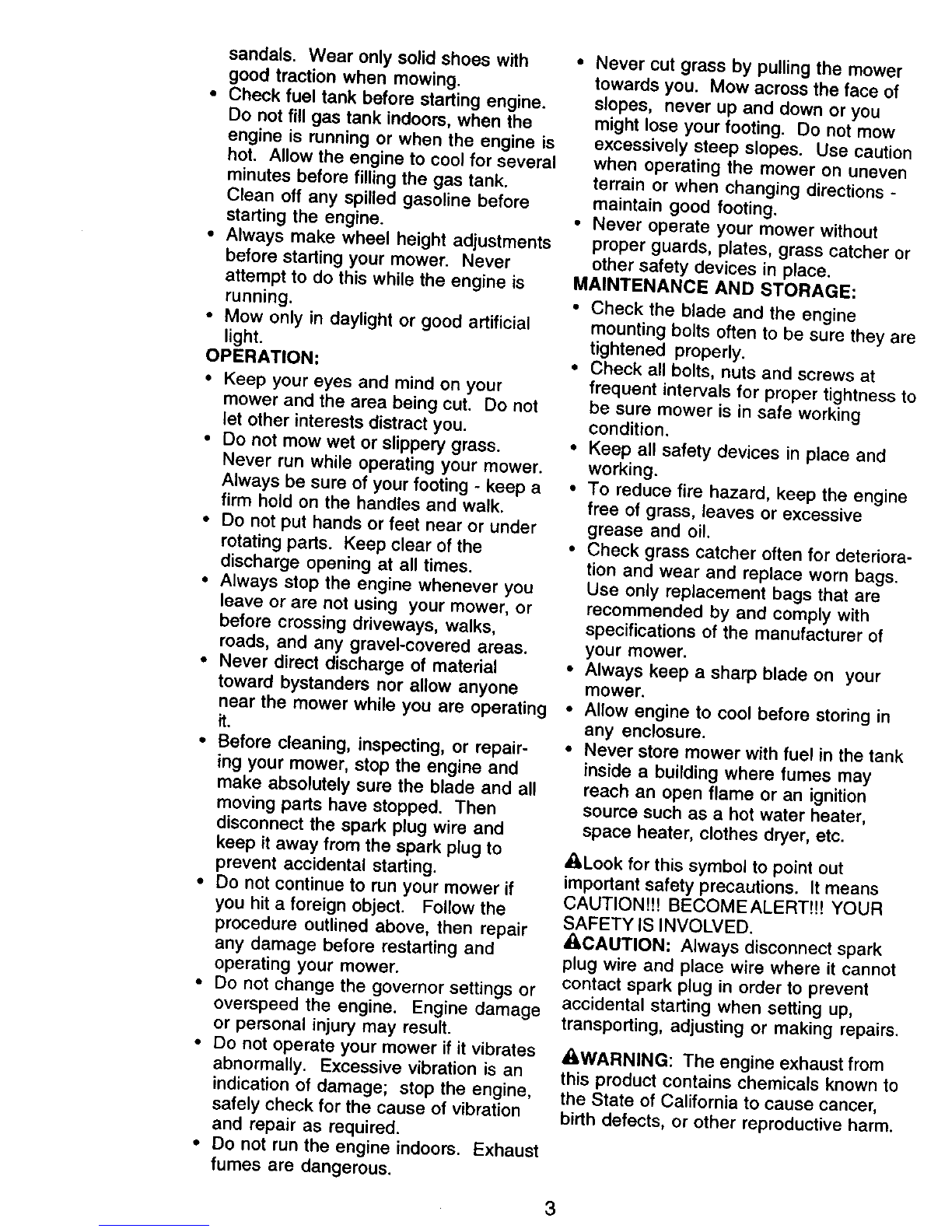

TRAINING:

• Read this operator's manual carefully.

Become familiar with the controls and

know how to operate your mower

properly. Learn how to quickly stop

mower.

• Do not allow children to use your

mower. Never allow adults to use

mower without proper instructions.

•Keep the area of operation clear of all

persons, especially small children and

pets.

•Use mower only as the manufacturer

intended and as described in this

manual.

• Do not operate mower if it has been

dropped or damaged in any manner

Always have damage repaired befor

using your mower.

• Do not use accessory attachments t_

are not recommended by the manufz

turer. Use of such attachments may

hazardous.

• The blade turns when the engine is

running.

PREPARATION:

• Always thoroughly check the area to

mowed and clear it of all stones, stic_

wires, bones, and other foreign obje(

These objects will be thrown by the

blade and can cause severe injury.

• Always wear safety glasses or eye

shields when starting and while usin

your mower.

• Dress properly. Do not operate mow

when barefoot or wearing open

sandals. Wear only solid shoes with

good traction when mowing.

•Check fuel tank before starting engine.

Do not fill gas tank indoors, when the

engine is running or when the engine is

hot. Allow the engine to cool for several

minutes before filling the gas tank.

Clean off any spilled gasoline before

starting the engine.

• Always make wheel height adjustments

before starting your mower. Never

attempt to do this while the engine is

running.

•Mow only in daylight or good artificial

light.

OPERATION:

•Keep your eyes and mind on your

mower and the area being cut. Do not

let other interests distract you.

• Do not mow wet or slippery grass.

Never run while operating your mower.

Always be sure of your footing - keep a

firm hold on the handles and walk.

• Do not put hands or feet near or under

rotating parts. Keep clear of the

discharge opening at all times.

• Always stop the engine whenever you

leave or are not using your mower, or

before crossing driveways, walks,

roads, and any gravel-covered areas.

• Never direct discharge of material

toward bystanders nor allow anyone

near the mower while you are operating

it.

• Before cleaning, inspecting, or repair-

ing your mower, stop the engine and

make absolutely sure the blade and all

moving parts have stopped. Then

disconnect the spark plug wire and

keep it away from the spark plug to

prevent accidental starting.

•Do not continue to run your mower if

you hit a foreign object. Follow the

procedure outlined above, then repair

any damage before restarting and

operating your mower.

•Do not change the governor settings or

overspeed the engine. Engine damage

or personal injury may result.

• Do not operate your mower if it vibrates

abnormally. Excessive vibration is an

indication of damage; stop the engine,

safely check for the cause of vibration

and repair as required.

•Do not run the engine indoors. Exhaust

fumes are dangerous.

• Never cut grass by pulling the mower

towards you. Mow across the face of

slopes, never up and down or you

might lose your footing. Do not mow

excessively steep slopes. Use caution

when operating the mower on uneven

terrain or when changing directions -

maintain good footing.

•Never operate your mower without

proper guards, plates, grass catcher or

other safety devices in place.

MAINTENANCE AND STORAGE:

•Check the blade and the engine

mounting bolts often to be sure they are

tightened properly.

• Check all bolts, nuts and screws at

frequent intervals for proper tightness to

be sure mower is in safe working

condition.

• Keep all safety devices in place and

working.

• To reduce fire hazard, keep the engine

free of grass, leaves or excessive

grease and oil.

• Check grass catcher often for deteriora-

tion and wear and replace worn bags.

Use only replacement bags that are

recommended by and comply with

specifications of the manufacturer of

your mower.

• Always keep a sharp blade on your

mower.

• Allow engine to cool before storing in

any enclosure.

• Never store mower with fuel in the tank

inside a building where fumes may

reach an open flame or an ignition

source such as a hot water heater,

space heater, clothes dryer, etc.

_i, Look for this symbol to point out

important safety precautions, It means

CAUTION!!! BECOMEALERT!!! YOUR

SAFETY IS INVOLVED,

_CAUTION: Always disconnect spark

plug wire and place wire where it cannot

contact spark plug in order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs.

_WARNING: The engine exhaust from

this product contains chemicals known to

the State of California to cause cancer,

birth defects, or other reproductive harm.

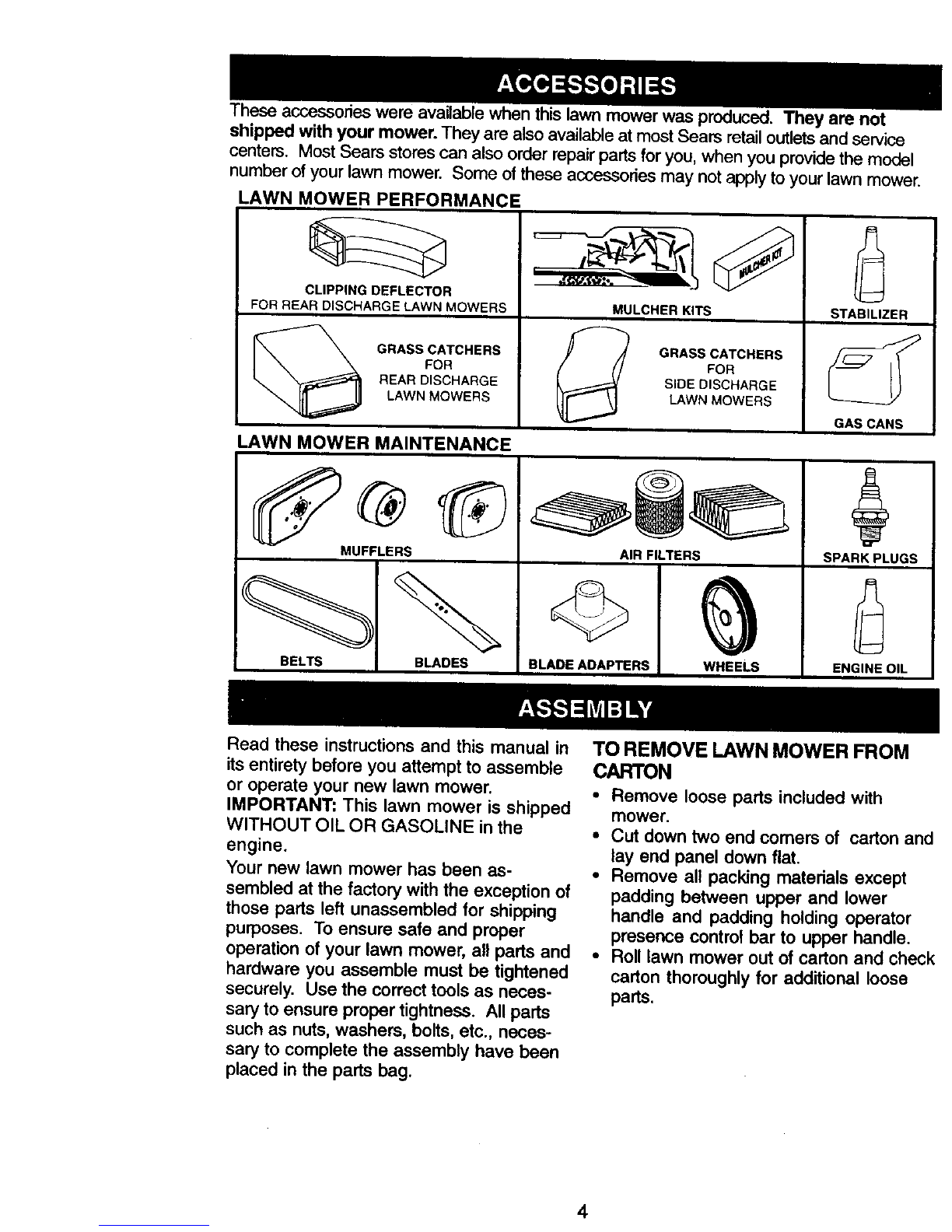

These accessories were available when this lawn mower was produced. They are not

shipped with your mower. They are also available at most Sears retailoutletsand service

centers. Most Sears stores can also order repair parts for you, when you provide the model

number of your lawn mower. Some of these accessories may not applyto your lawn mower.

LAWN MOWER PERFORMANCE

CLIPPING DEFLECTOR

FOR REAR DISCHARGE LAWN MOWERS

GRASS CATCHERS

FOR

REAR DISCHARGE

LAWN MOWERS

MULCHER KITS

GRASS CATCHERS

FOR

SIDE DISCHARGE

LAWN MOWERS

STABILIZER

GAS CANS

LAWN MOWER MAINTENANCE

MUFFLERS

BELTS BLADES BLADE ADAPTERS

AIR FILTERS

WHEELS

SPARK PLUGS

ENGINE OiL

Read these instructions and this manual in

its entirety before you attempt to assemble

or operate your new lawn mower.

IMPORTANT: This lawn mower is shipped

WITHOUT OIL OR GASOLINE in the

engine.

Your new lawn mower has been as-

sembled at the factory with the exception of

those parts left unassembled for shipping

purposes. To ensure safe and proper

operation of your lawn mower, all parts and

hardware you assemble must be tightened

securely. Use the correct tools as neces-

sary to ensure proper tightness. All parts

such as nuts, washers, bolts, etc., neces-

sary to complete the assembly have been

placed in the parts bag.

1"OREMOVE LAWNMOWER FROM

CARTON

•Remove loose parts included with

mower.

• Cut down two end comers of carton an

lay end panel down flat.

•Remove all packing materials except

padding between upper and lower

handle and padding holding operator

presence control bar to upper handle.

•Roll lawn mower out of carton and checl

carton thoroughly for additional loose

parts.

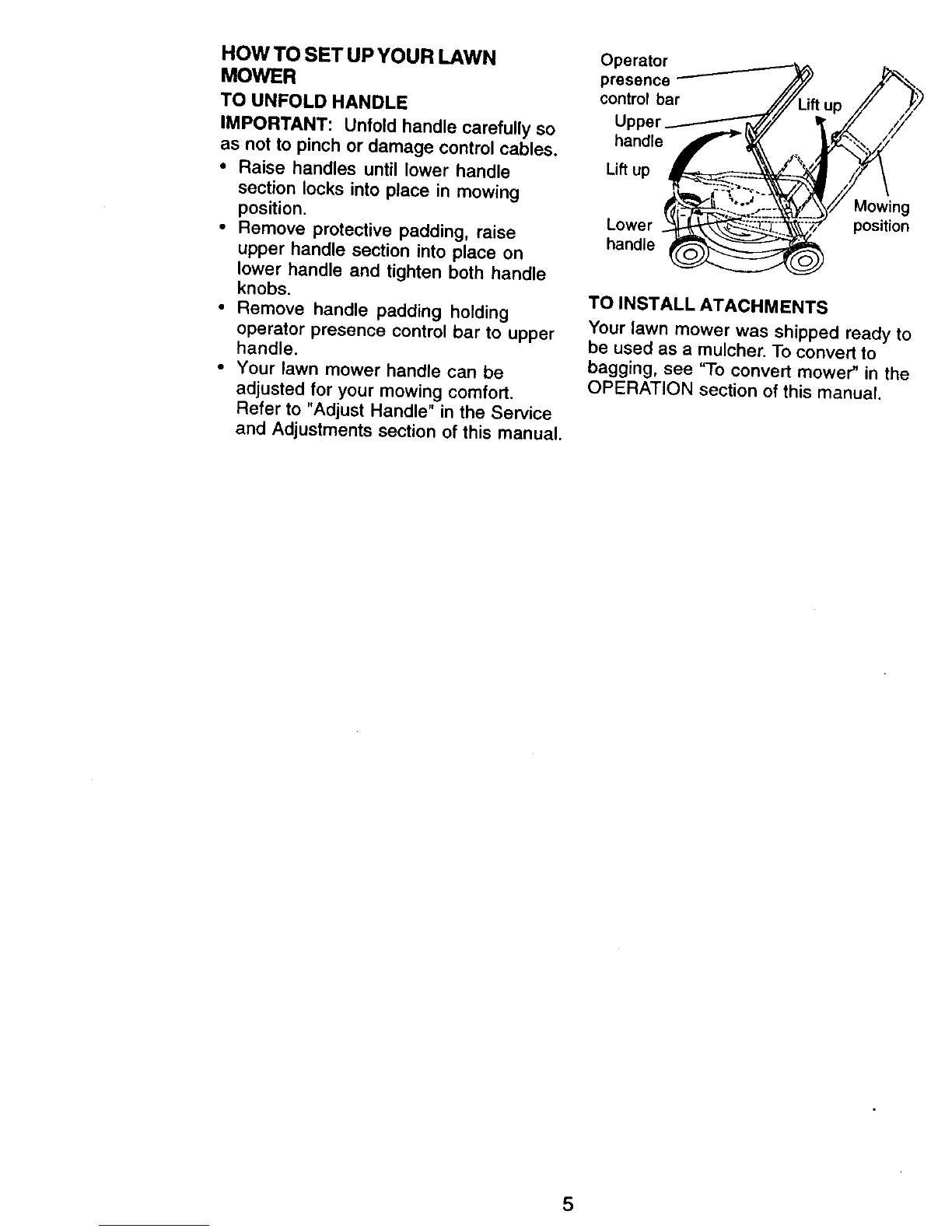

HOW TO SET UP YOUR LAWN

MOWER

TO UNFOLD HANDLE

IMPORTANT: Unfold handle carefully so

as not to pinch or damage control cables,

•Raise handles until lower handle

section locks into place in mowing

position.

•Remove protective padding, raise

upper handle section into place on

tower handte and tighten both handle

knobs.

• Remove handle padding holding

operator presence control bar to upper

handle.

• Your lawn mower handle can be

adjusted for your mowing comfort.

Refer to "Adjust Handle" in the Service

and Adjustments section of this manual.

Operator

presence

control bar

handle

Lift up

Lower

handle

Mowing

position

TO INSTALL ATACHMENTS

Your lawn mower was shipped ready to

be used as a mulcher. To convert to

bagging, see "To convert mower" in the

OPERATION section of this manual.

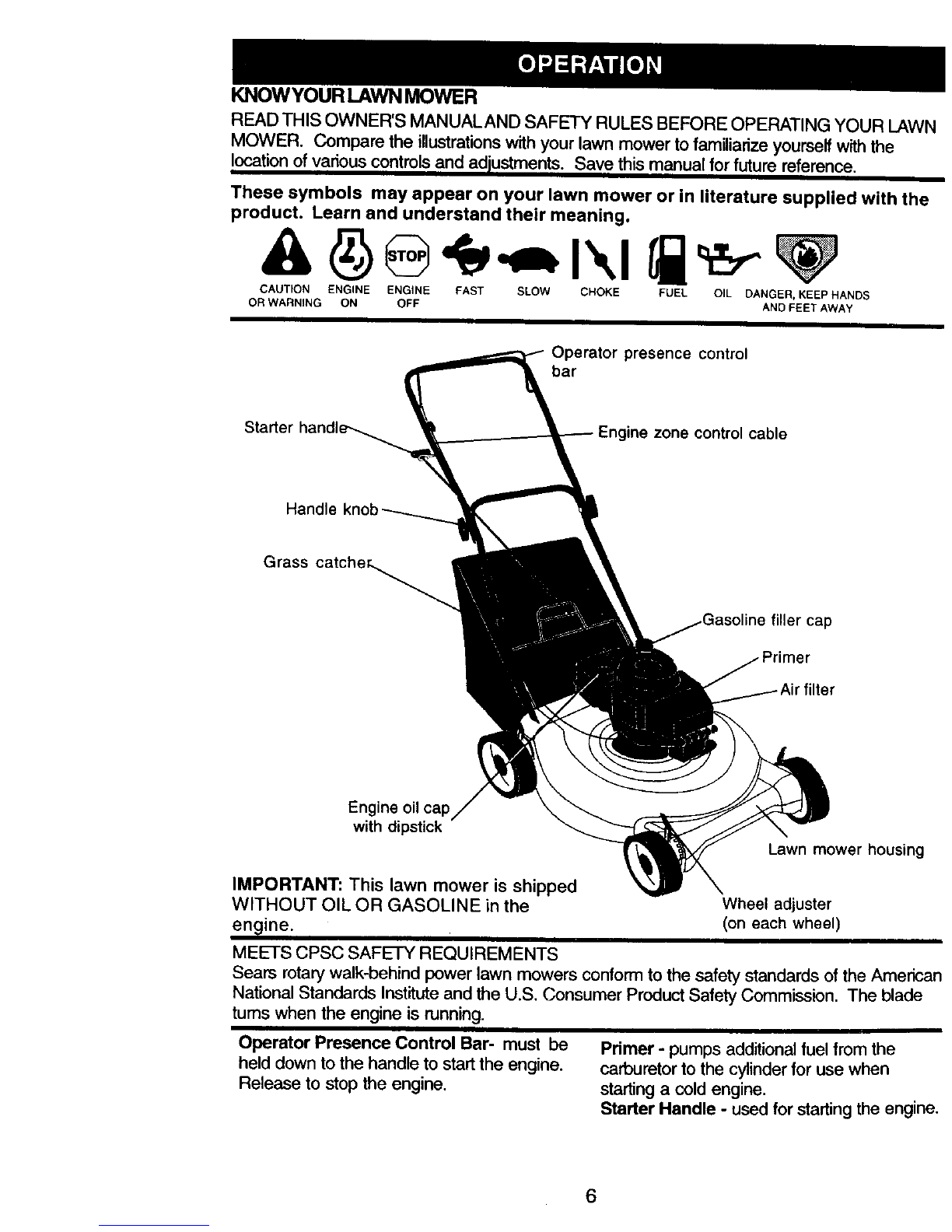

KNOW YOUR LAWN MOWER

READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR LAWI

MOWER. Compare the illustrations with your lawn mower to familiarize yourself with the

location of various controls and adiustments. Save this manual for future reference.

These symbols may appear on your lawn mower or in literature supplied with the

product. Learn and understand their meaning.

CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS

OR WARNING ON OFF AND FEET AWAY

Operator presence control

bar

zone control cable

Handle

G rass

_line filler cap

filter

Engine oil cap

with dipstick Lawn mower housing

IMPORTANT: This lawn mower is shipped

WITHOUT OIL OR GASOLINE in the Wheel adjuster

engine. (on each wheel)

MEETS CPSC SAFETY REQUIREMENTS

Sears rotarywalk-behind power lawn mowers conform to the safety standards of the Americ_

National Standards Institute and the U.S. Consumer Product Safety Commission. The blade

tums when the engine is running.

Operator Presence Control Bar- must be

held down to the handle to start the engine.

Release to stop the engine.

Pdmer - pumps additional fuel from the

carburetor to the cylinder for use when

starting a cold engine.

Starter Handle - used for starting the engin

The operation of any lawn mower

can result in foreign objects thrown

into the eyes, which can result in

severe eye damage. Always wear safety

glasses or eye shields while operating your

lawn mower or performing any adjustments

or repairs. We recommend a wide vision

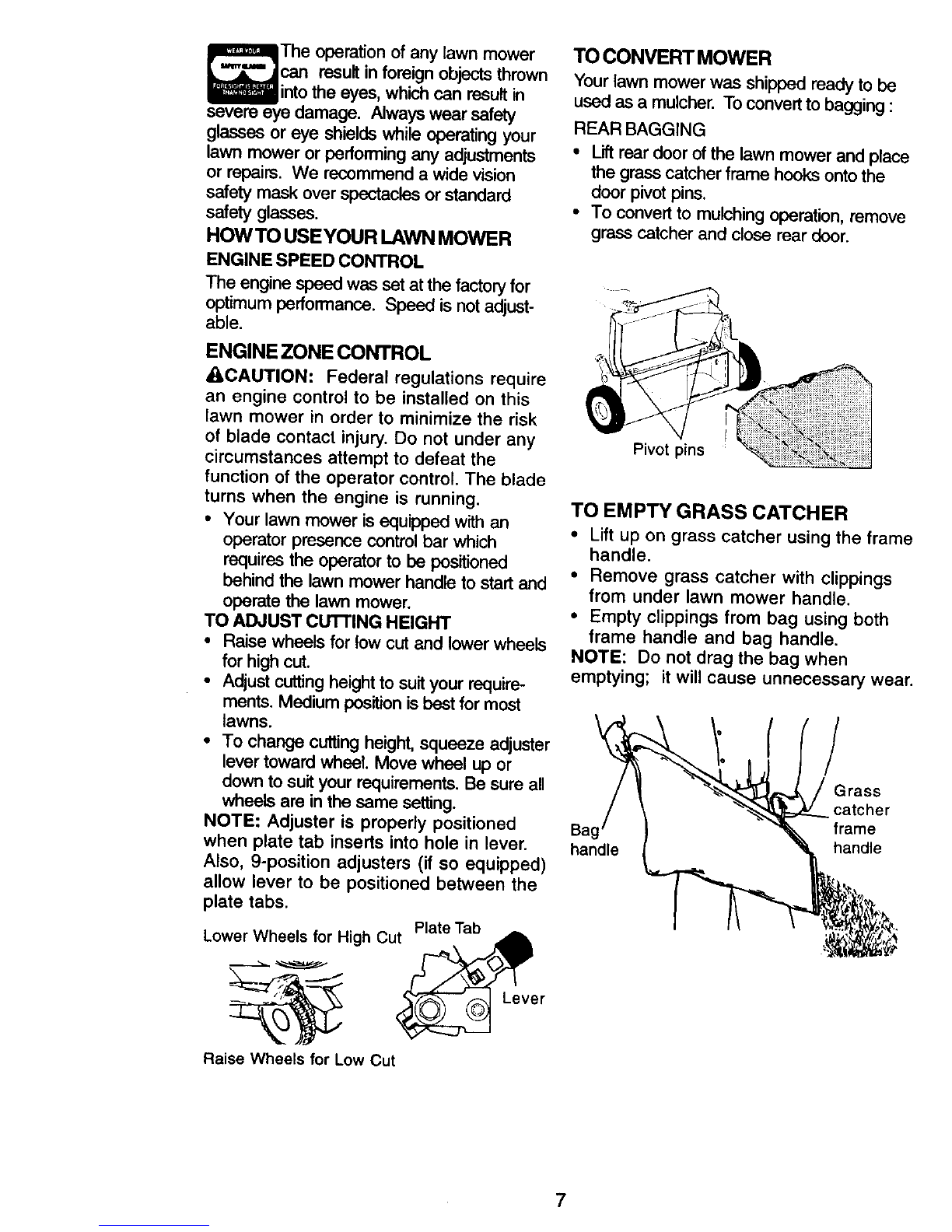

safety mask over spectacles or standard

safety glasses.

HOW TO USE YOUR LAWN MOWER

ENGINE SPEED CONTROL

The engine speed was set at the factory for

optimum performance. Speed is not adjust-

able.

ENGINE ZONE CONTROL

_CAUTION: Federal regulations require

an engine control to be installed on this

lawn mower in order to minimize the risk

of blade contact injury. Do not under any

circumstances attempt to defeat the

function of the operator control. The blade

turns when the engine is running.

•Your lawn mower is equipped with an

operator presence control bar which

requires the operator to be positioned

behind the lawn mower handle to start and

operate the lawn mower.

TO ADJUST CLrI-rlNG HEIGHT

•Raise wheels for low cut and lower wheels

for high cut.

•Adjustcuttingheight to suit your require-

ments, Medium positionis best for most

lawns.

•To change cutting height, squeeze adjuster

lever toward wheel. Move wheel up or

down to suit your requirements. Be sure all

wheels are in the same setting.

NOTE: Adjuster is properly positioned

when plate tab inserts into hole in lever.

Also, 9-position adjusters (if so equipped)

allow lever to be positioned between the

plate tabs.

Lower Wheels for High Cut Pla_Tab i

_Lever

Raise Wheels for Low Cut

TOCONVERT MOWER

Your lawn mower was shipped ready to be

used as a mulcher. To convert to bagging :

REAR BAGGING

• Lift rear door of the lawn mower and place

the grass catcher frame hooks onto the

door pivot pins.

• To convert to mulching operation, remove

grass catcher and close rear door.

Pivot pins

TO EMPTY GRASS CATCHER

•Lift up on grass catcher using the frame

handle.

•Remove grass catcher with clippings

from under lawn mower handle.

• Empty clippings from bag using both

frame handle and bag handle.

NOTE: Do not drag the bag when

emptying; it will cause unnecessary wear.

handle

Grass

catcher

frame

handle

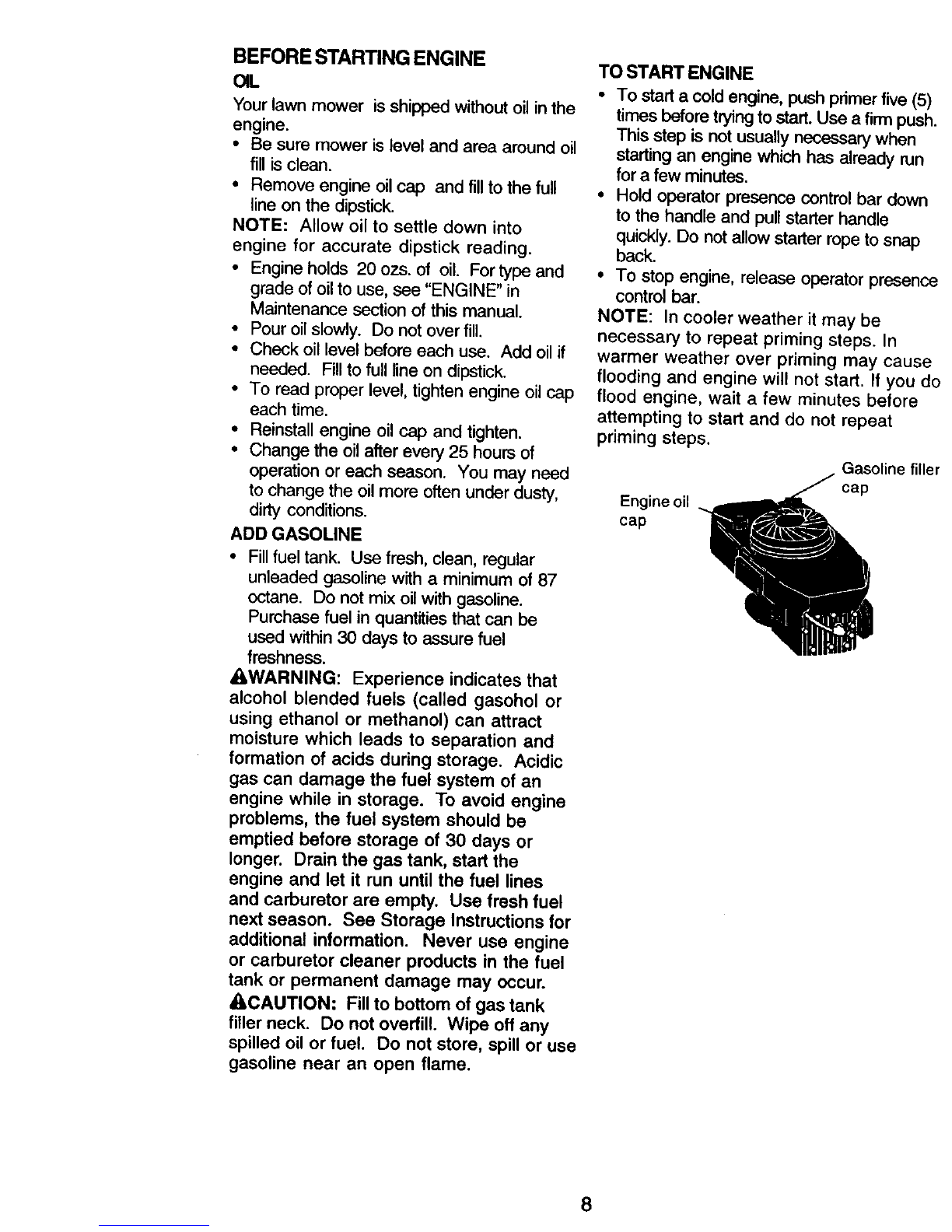

BEFORE STARTINGENGINE

OIL

Your lawn mower is shipped without oil in the

engine.

•Be sure mower is level and area around oil

fill is clean.

•Remove engine oil cap and fill to the full

line on the dipstick.

NOTE: Allow oil to settle down into

engine for accurate dipstick reading.

• Engine holds 20 ozs. of oil. For type and

grade of oil to use, see "ENGINE" in

Maintenance section of this manual.

• Pour oil slowly. Do not over fill.

• Check oil level before each use. Add oil if

needed. Fill to full line on dipstick.

• To read proper level, tighten engine oil cap

each time.

• Reinstall engine oil cap and tighten.

• Change the oil after every 25 hours of

operation or each season. You may need

to change the oil more often under dusty,

dirty conditions.

ADD GASOLINE

• Fill fuel tank. Use fresh, clean, regular

unleaded gasoline with aminimum of 87

octane. Do not mix oil with gasoline.

Purchase fuel in quantities that can be

used within 30 days to assure fuel

freshness.

_kWARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

_,CAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or use

gasoline near an open flame.

TO START ENGINE

• To start a cold engine, push primer five (5'

times before trying to start. Use afirm pust

This step is not usually necessary when

starting an engine which has already run

for a few minutes.

• Hold operator presence control bar down

to the handle and pull starter handle

quickly. Do not allow starter rope to snap

back.

• To stop engine, release operator present

control bar.

NOTE: In cooler weather it may be

necessary to repeat priming steps. In

warmer weather over priming may caus_

flooding and engine will not start. If you (

flood engine, wait a few minutes before

attempting to start and do not repeat

priming steps.

Gasoline fill

cap

Engine oil

cap

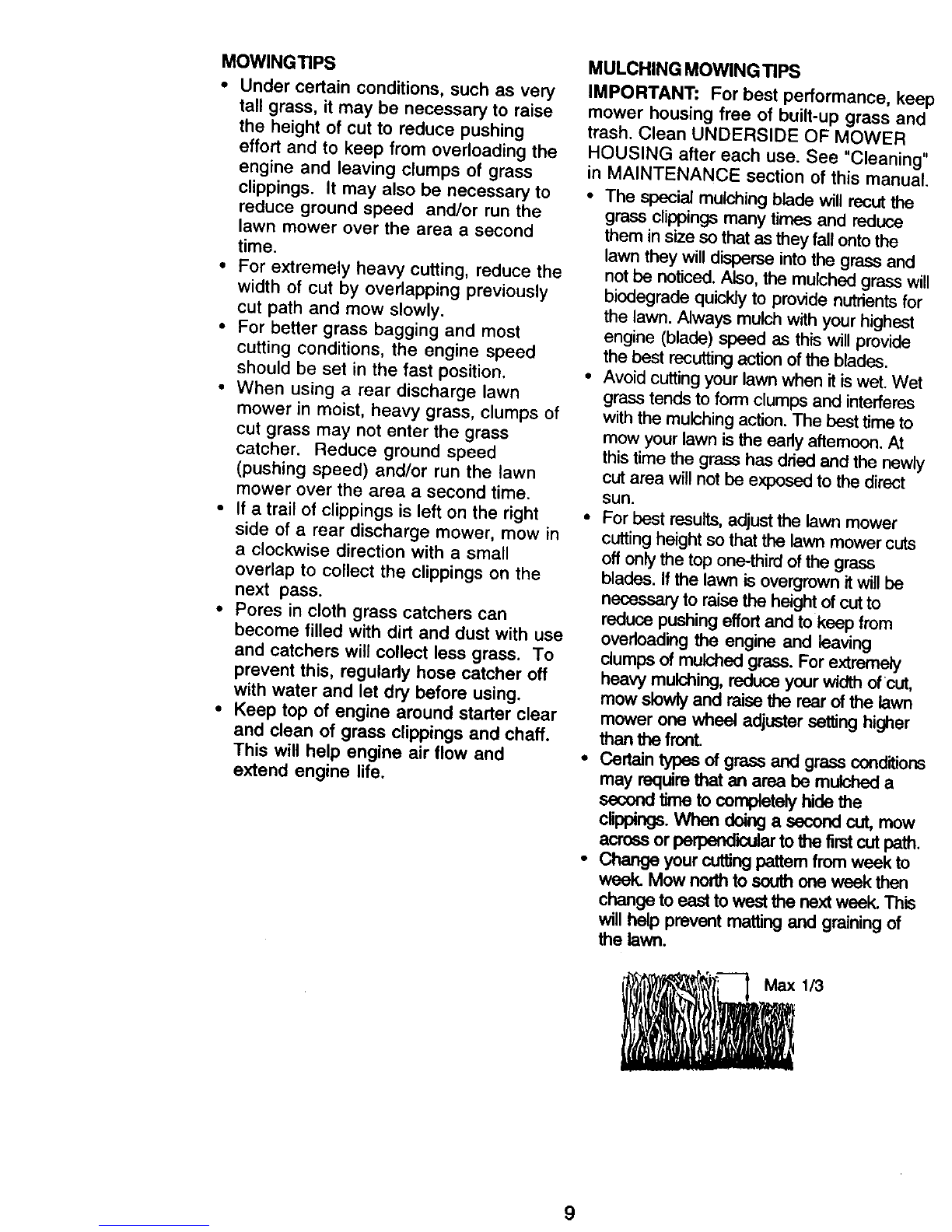

MOWINGTIPS

•Under certain conditions, such as very

tall grass, it may be necessary to raise

the height of cut to reduce pushing

effort and to keep from overloading the

engine and leaving clumps of grass

clippings. It may also be necessary to

reduce ground speed and/or run the

lawn mower over the area a second

time.

•For extremely heavy cutting, reduce the

width of cut by overlapping previously

cut path and mow slowly.

•For better grass bagging and most

cutting conditions, the engine speed

should be set in the fast position.

•When using a rear discharge lawn

mower in moist, heavy grass, clumps of

cut grass may not enter the grass

catcher. Reduce ground speed

(pushing speed) and/or run the lawn

mower over the area a second time.

•If a trail of clippings is left on the right

side of arear discharge mower, mow in

aclockwise direction with a small

overlap to collect the clippings on the

next pass.

• Pores in cloth grass catchers can

become filled with dirt and dust with use

and catchers will collect less grass. To

prevent this, regulady hose catcher off

with water and let dry before using.

• Keep top of engine around starter clear

and clean of grass clippings and chaff.

This will help engine air flow and

extend engine life.

MULCHING MOWINGTIPS

IMPORTANT: For best performance, kee

mower housing free of built-up grass an_

trash. Clean UNDERSIDE OF MOWER

HOUSING after each use. See "Cleaning

in MAINTENANCE section of this manual

•The special mulching blade will recut the

grass clippings many times and reduce

them in size so that as they fall ontothe

lawn they willdisperse into the grass and

not be noticed.Also, the mulched grass w_

biedegrade quickly to provide nutrientsfol

the lawn. Always mulch with your highest

engine (blade) speed as this will provide

the best recuttingaction of the blades.

• Avoid cuttingyour lawn when it iswet. Wet

grass tends to form clumps and interferes

with the mulching action. The best time to

mow your lawn isthe early aftemoon. At

thistime the grass has dned and the newl_

cut area will not be exposed to the direct

sun.

•For best results,adjust the lawn mower

cuttingheight so that the lawn mower cuts

off onlythe top one-thirdof the grass

blades. If the lawn is overgrown itwill be

necessary to raisethe height of cut to

reduce pushing effortand to keep from

overloading the engine and leaving

clumps of mulched grass. For extremely

heavy mulching, reduce your width ofcut,

mow slowly and raise the rear of the lawn

mower one wheel adjuster setting higher

than the front.

•Certain types of grass and grass condition_

may require that an area be mulched a

second time to cornp_etelyhide the

clippings.When doing a second cut, mow

acrossor perpenolcularto the firstcutpath.

•Change your cuttingpattern from week to

week. Mow north to south one week then

change to east to west the next week. This

wilthelp prevent maffing and grainingof

the lawn.

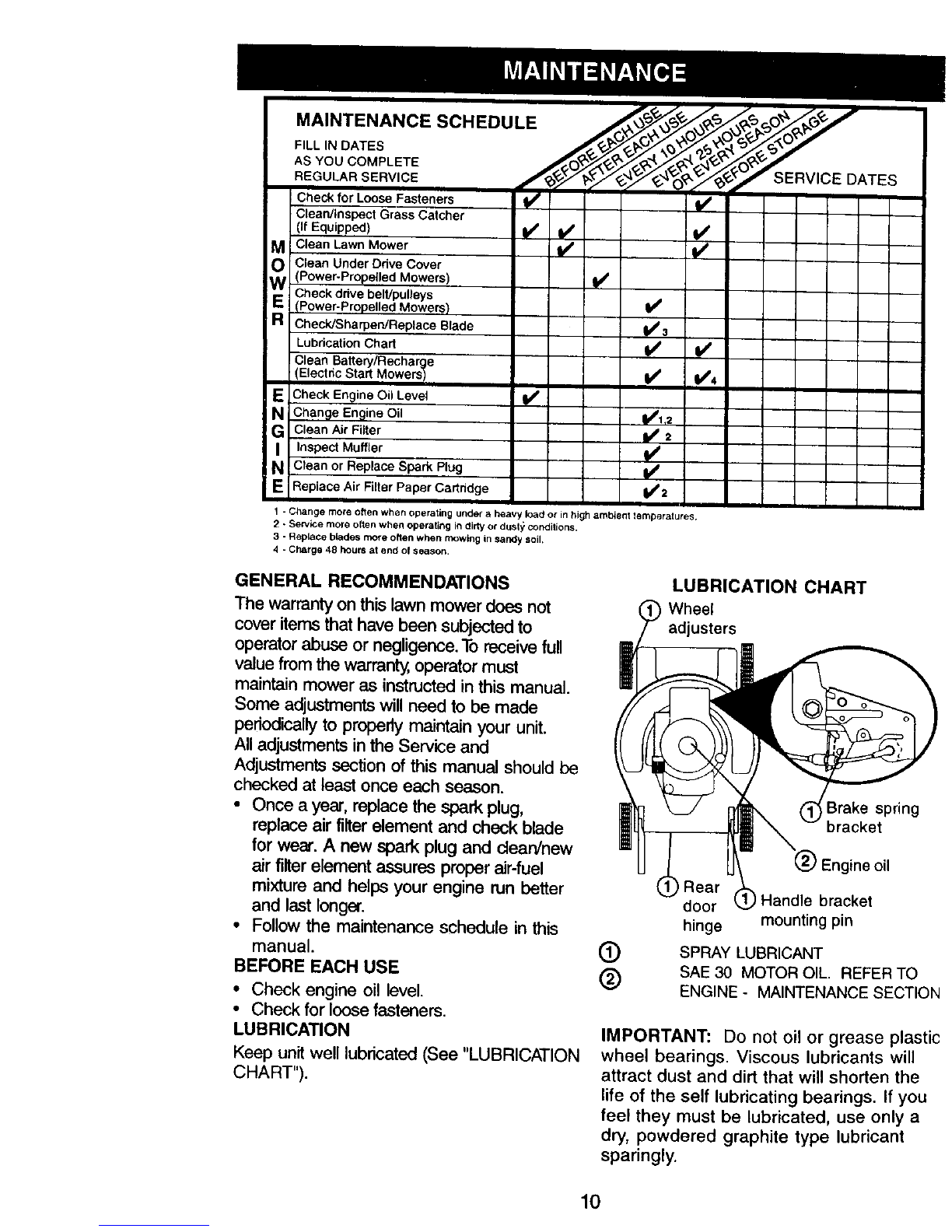

MAINTENANCE SCHEDULE /,,_-/_ ./_,_./_,_._0_/_'_0%/

F,LL,NDATES

Check for Loose Fasteners _ q_'

Clean/Inspect Grass Catcher

(If Equipped)

MClean Lawn Mower

O Clean Under Ddve Cover

(Power-Propelled Mowers)

Check drive belt/pulleys

RE (Power-Propelled Mowe_)

ChecldSha rpeniReplace Blade

Lubrication Chart

Clean Battery/Recharge

(Electnc Start Mowers 1

E Check Engine Oil Level

(_ ChanQe EnQine Oil

Clean Air Filter

I Inspect Muffler

aIClean or Replace Spark Plug

E JReplace Air Filter Paper Cadridge

1 - Change more often when operating under a heavy load or in high ambient temperatures,

g - Service more often when operating in dirty or dusl_ conditions.

*3 -_eplace _des mo_e ofter= _h_n n'_g in $af_:_y soil

4-Charge 48 hours at end of season.

GENERAL RECOMMENDATIONS

The warranty on this lawn mower does not

cover items that have been subjected to

operator abuse or negligence. To receive full

value from the warrant, operator must

maintain mower as instructed in this manual.

Some adjustments will need to be made

periodically to properly maintain your unit.

All adjustments in the Service and

Adjustments section of this manual should be

checked at least once each season.

• Once a year, replace the spark plug,

replace air filter element and check blade

for wear. A new spark plug and clean/new

air filter element assures proper air-fuel

mixture and helps your engine run better

and last longer.

• Follow the maintenance schedule in this

manual.

BEFORE EACH USE

• Check engine oil level.

• Check for loose fasteners.

LUBRICATION

Keep unit well lubricated (See "LUBRICATION

CHART").

LUBRICATION CHART

Wheel

adjusters

3rake spring

bracket

(_ Engine oil

Rear

door ) Handle bracket

hinge mounting pin

SPRAY LUBRICANT

SAE 30 MOTOR OIL. REFER TO

ENGINE - MAINTENANCE SECTIC

IMPORTANT: Do not oil or grease plasl

wheel bearings. Viscous lubricants will

attract dust and dirt that will shorten the

life of the self lubricating bearings. If you

reel they must be lubricated, use only a

dry, powdered graphite type lubricant

sparingly.

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.379582 Manuel utilisateur

Craftsman

Craftsman 917.377783 Manuel utilisateur

Craftsman

Craftsman 917.255160 Manuel utilisateur

Craftsman

Craftsman 917.273201 Manuel utilisateur

Craftsman

Craftsman 917.387256 Manuel utilisateur

Craftsman

Craftsman 917.376735 Manuel utilisateur

Craftsman

Craftsman 917.28947 Manuel utilisateur

Craftsman

Craftsman 917.388481 Manuel utilisateur

Craftsman

Craftsman Remote Controller Manuel utilisateur

Craftsman

Craftsman 917.276012 Manuel utilisateur

Craftsman

Craftsman EZ3 917.270610 Manuel utilisateur

Craftsman

Craftsman EZ 917.270913 Manuel utilisateur

Craftsman

Craftsman 99211 Manuel utilisateur

Craftsman

Craftsman 917.376744 Manuel utilisateur

Craftsman

Craftsman 917.275241 Manuel utilisateur

Craftsman

Craftsman 917.20390 Manuel utilisateur

Craftsman

Craftsman 247.37108 Manuel utilisateur

Craftsman

Craftsman 27710 Manuel utilisateur

Craftsman

Craftsman 917.271631 Manuel utilisateur

Craftsman

Craftsman CMXGMAM823763 Manuel utilisateur

Craftsman

Craftsman 917.388461 Manuel utilisateur

Craftsman

Craftsman 917.28001 Manuel utilisateur

Craftsman

Craftsman 151.30377 Manuel utilisateur

Craftsman

Craftsman 917.370650 Manuel d'utilisation et d'entretien

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
