Craftsman 917.387203 Manuel utilisateur

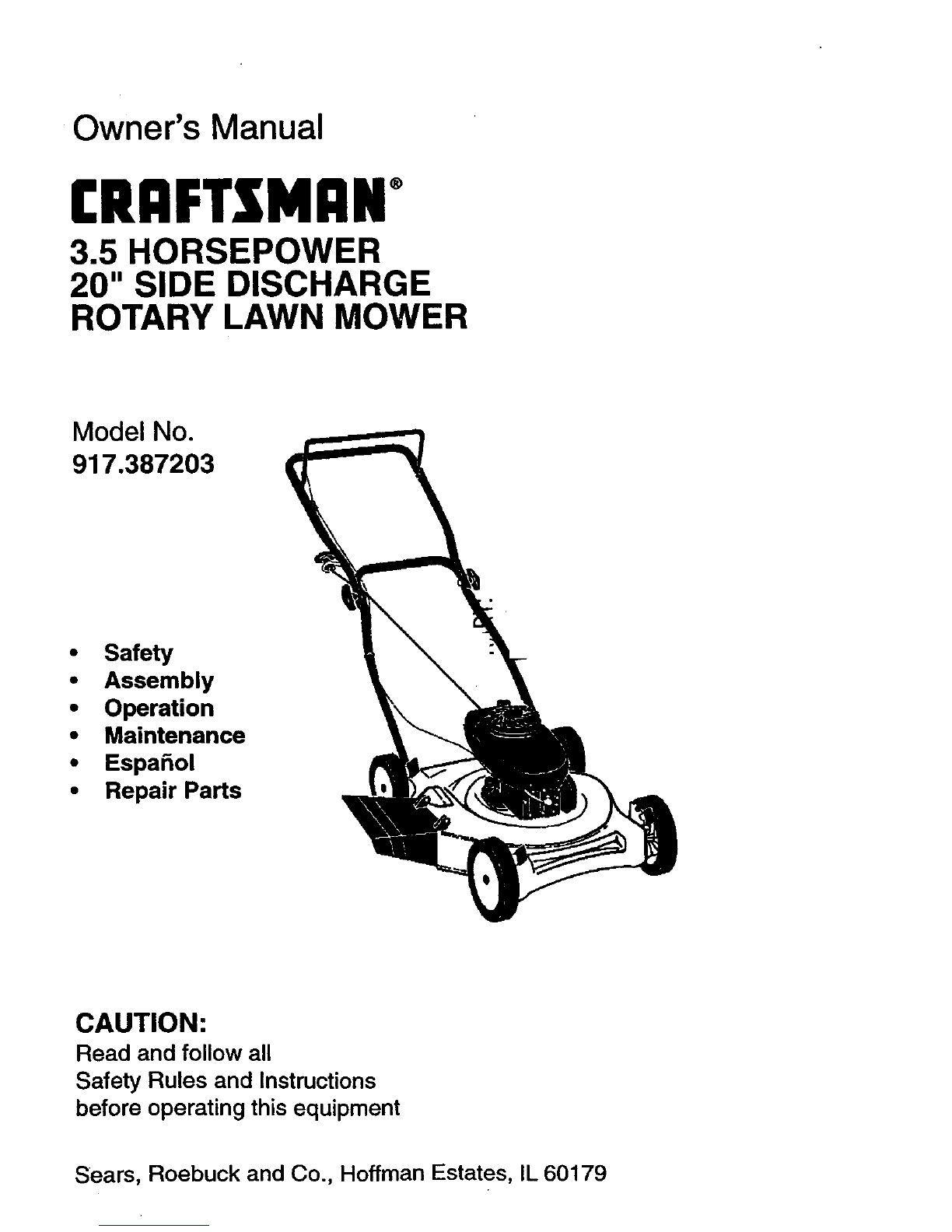

Owner's Manual

[RAFTXMAN°

3.5 HORSEPOWER

20" SIDE DISCHARGE

ROTARY LAWN MOWER

Model No.

917.387203

• Safety

• Assembly

• Operation

• Maintenance

•EspaSol

°Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equipment

Sears, Roebuck and Co., Hoffman Estates, IL 60179

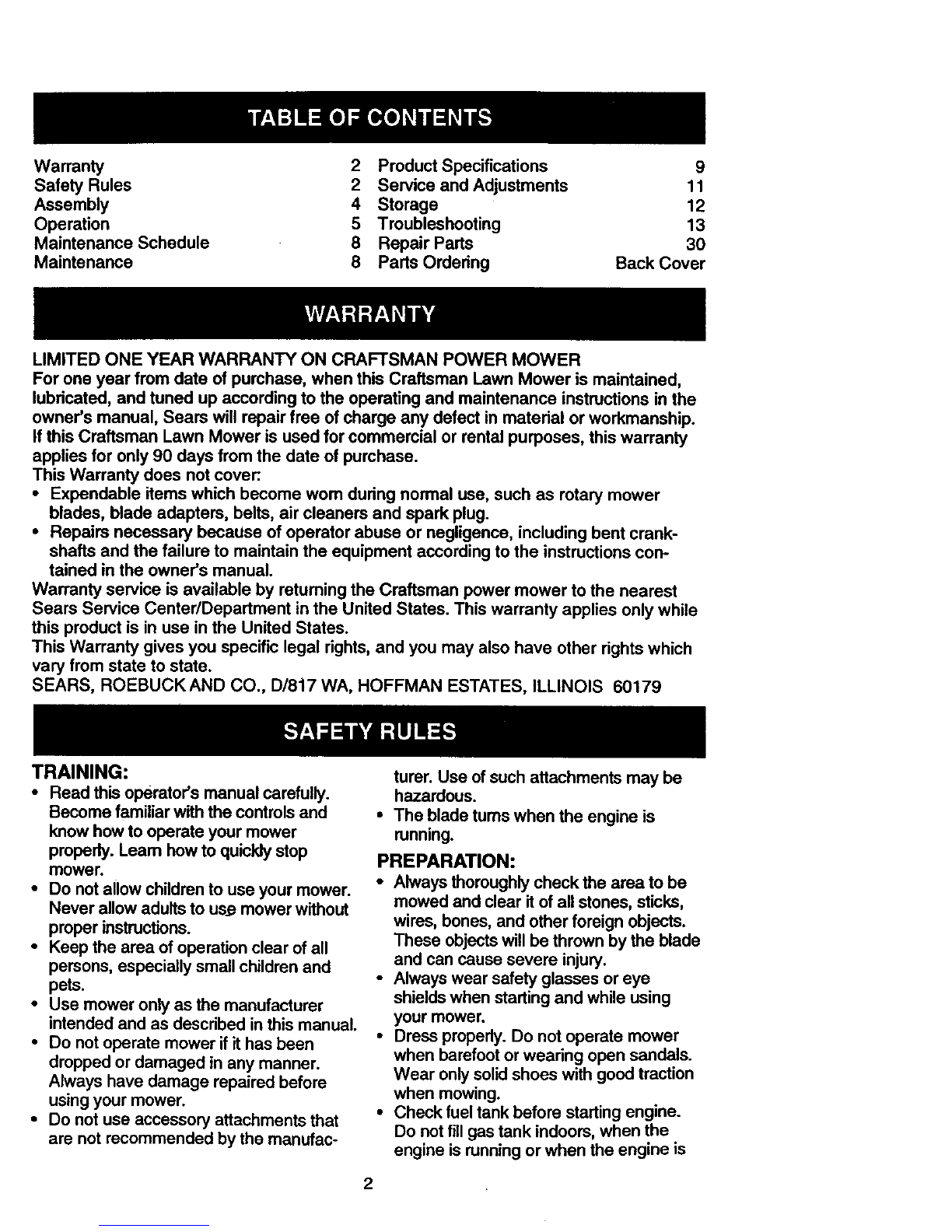

Warranty 2 Product Specifications 9

Safety Rules 2 Service and Adjustments 11

Assembly 4 Storage 12

Operation 5 Troubleshooting 13

Maintenance Schedule 8 Repair Parts 30

Maintenance 8 Parts Ordering Back Cover

LIMITED ONE YEAR WARRANTY ON CRAFTSMAN POWER MOWER

For one year from date of purchase, when this Craftsman Lawn Mower is maintained,

lubricated, and tuned up according to the operating and maintenance instructions in the

owner's manual, Sears will repair free of charge any defect in material or workmanship.

If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty

applies for only 90 days from the date of purchase.

This Warranty does not cover:.

•Expendable items which become wom during normal use, such as rotary mower

blades, blade adapters, belts, air cleaners and spark plug.

•Repairs necessary because of operator abuse or negligence, including bent crank-

shafts and the failure to maintain the equipment according to the instructions con-

tained in the owner's manual.

Warranty service is available by retuming the Craftsman power mower to the nearest

Sears Service Center/Department in the United States. This warranty applies only while

this product is in use in the United States.

This Warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

SEARS, ROEBUCKAND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179

TRAINING:

•Read this operator'smanual carefully.

Become familiarwith the controlsand

know how to operate your mower

properly.Learn how toquicklystop

mower.

•Do notallow childrento use your mower.

Never allow adults to use mower without

proper instructions.

•Keep the area ofoperation clear ofall

persons, especiallysmall childrenand

pets.

•Use mower onlyas the manufacturer

intended and as describedinthis manual.

•Do notoperate mowerifit hasbeen

dropped or damaged in any manner.

Always have damage repairedbefore

usingyour mower.

•Do not use accessory attachments that

are not recommended by the manufac-

turer. Use of such attachments may be

hazardous.

•The blade turns when the engine is

running.

PREPARATION:

• Always thoroughly check the area to be

mowed and clear it of all stones, sticks,

wires, bones, and other foreign objects.

These objects will be thrown by the blade

and can cause severe injury.

•Always wear safety glasses or eye

shields when starting and while using

your mower.

•Dress properly. Do not operate mower

when barefoot or wearing open sandals.

Wear only solid shoes with good traction

when mowing.

•Check fuel tank before starting engine.

Do not fill gas tank indoors, when the

engine is running or when the engine is

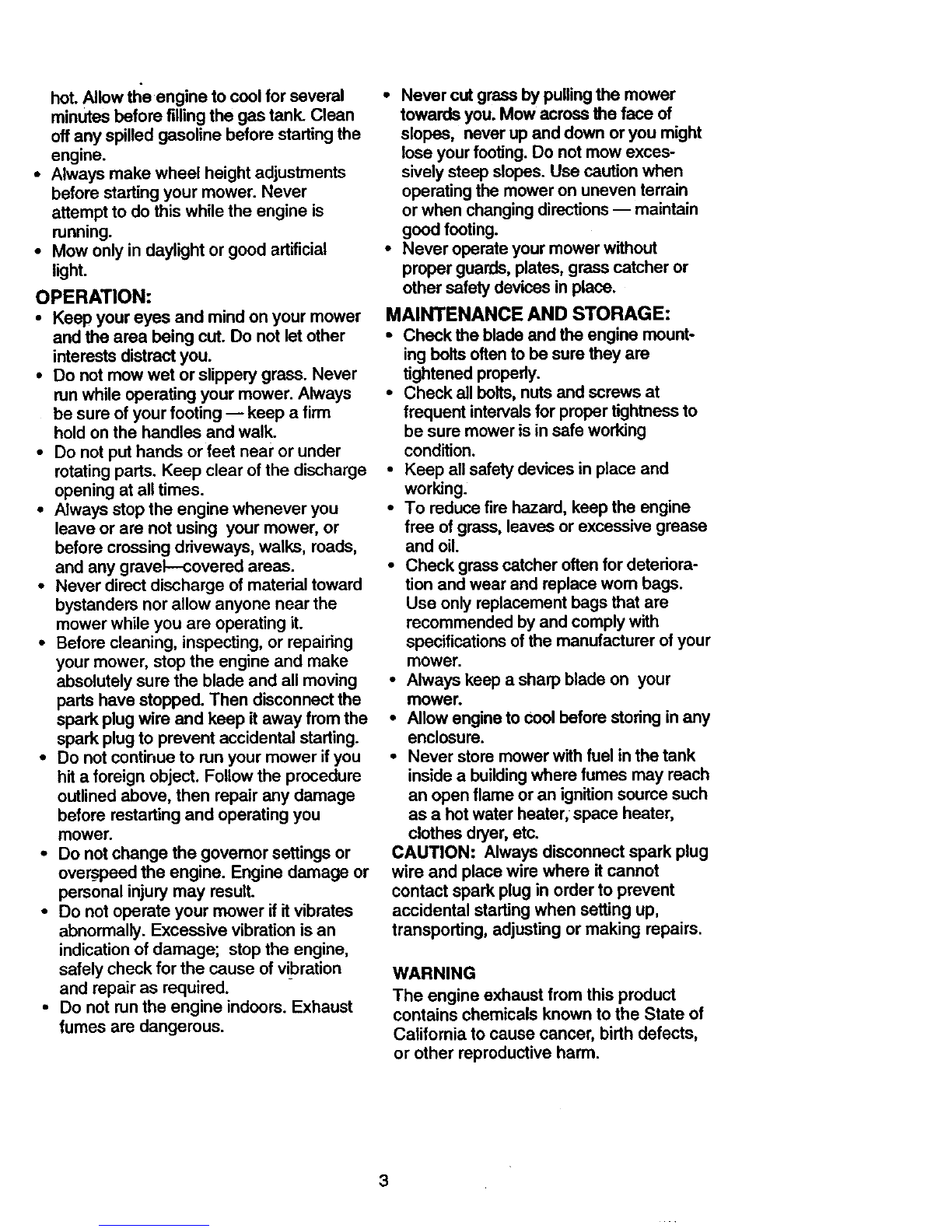

hot.Allowtl_eenginetocoolforseveral

minutesbeforefillingthegastank.Clean

offanyspilledgasolinebefore starting the

engine.

• Always make wheel height adjustments

before starting your mower. Never

attempt to do this while the engine is

running.

•Mow only in daylight or good artificial

light.

OPERATION:

•Keep your eyes and mind on your mower

and the area being cut. Do not let other

interests distract you.

•Do not mow wet or slippery grass. Never

mn while operating your mower. Always

be sure of your footing -- keep afirm

hold on the handles and walk.

•Do not put hands or feet near or under

rotating parts. Keep clear of the discharge

opening at all times.

•Always stop the engine whenever you

leave or are not using your mower, or

before crossing driveways, walks, roads,

and any gravel--covered areas.

•Never direct discharge of material toward

bystanders nor allow anyone near the

mower while you are operating it.

•Before cleaning, inspecting, or repairing

your mower, stop the engine and make

absolutely sure the blade and all moving

pads have stopped. Then disconnect the

spark plug wire and keep it away from the

spark plug to prevent accidental starting.

•Do not continue to run your mower ifyou

hit a foreign object. Follow the procedure

outlined above, then repair any damage

before restarting and operating you

mower.

•Do not change the govemor settings or

ove_peed the engine. Engine damage or

personal injury may result.

•Do not operate your mower if it vibrates

abnormally. Excessive vibration is an

indication of damage; stop the engine,

safely check for the cause of vibration

and repair as required.

•Do not run the engine indoors. Exhaust

fumes are dangerous.

•Never cut grass by pulling the mower

towards you. Mow across the face of

slopes, never up and down or you might

lose your footing. Do not mow exces-

sively steep slopes. Use caution when

operating the mower on uneven terrain

or when changing directions -- maintain

good footing.

•Never operate your mower without

proper guards, plates, grass catcher or

other safety devices in place.

MAINTENANCE AND STORAGE:

•Check the blade and the engine mount-

ing bolts often to be sure they are

tightened properly.

•Check all bolts, nuts and screws at

frequent intervals for proper tightness to

be sure mower is in safe working

condition.

•Keep all safety devices in place and

working.

•To reduce fire hazard, keep the engine

free of grass, leaves or excessive grease

and oil.

•Check grass catcher often for deteriora-

tion and wear and replace worn bags.

Use only replacement bags that are

recommended by and comply with

specifications of the manufacturer of your

mower.

•Always keep a sharp blade on your

mower.

•Allow engine to Cool before storing in any

enclosure.

•Never store mower with fuel in the tank

inside a building where fumes may reach

an open flame or an ignition source such

as a hot water heater, space heater,

clothes dryer, etc.

CAUTION: Always disconnect spark plug

wire and place wire where it cannot

contact spark plug in order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs.

WARNING

The engine exhaust from this product

contains chemicals known to the State of

California to cause cancer, birth defects,

or other reproductive harm.

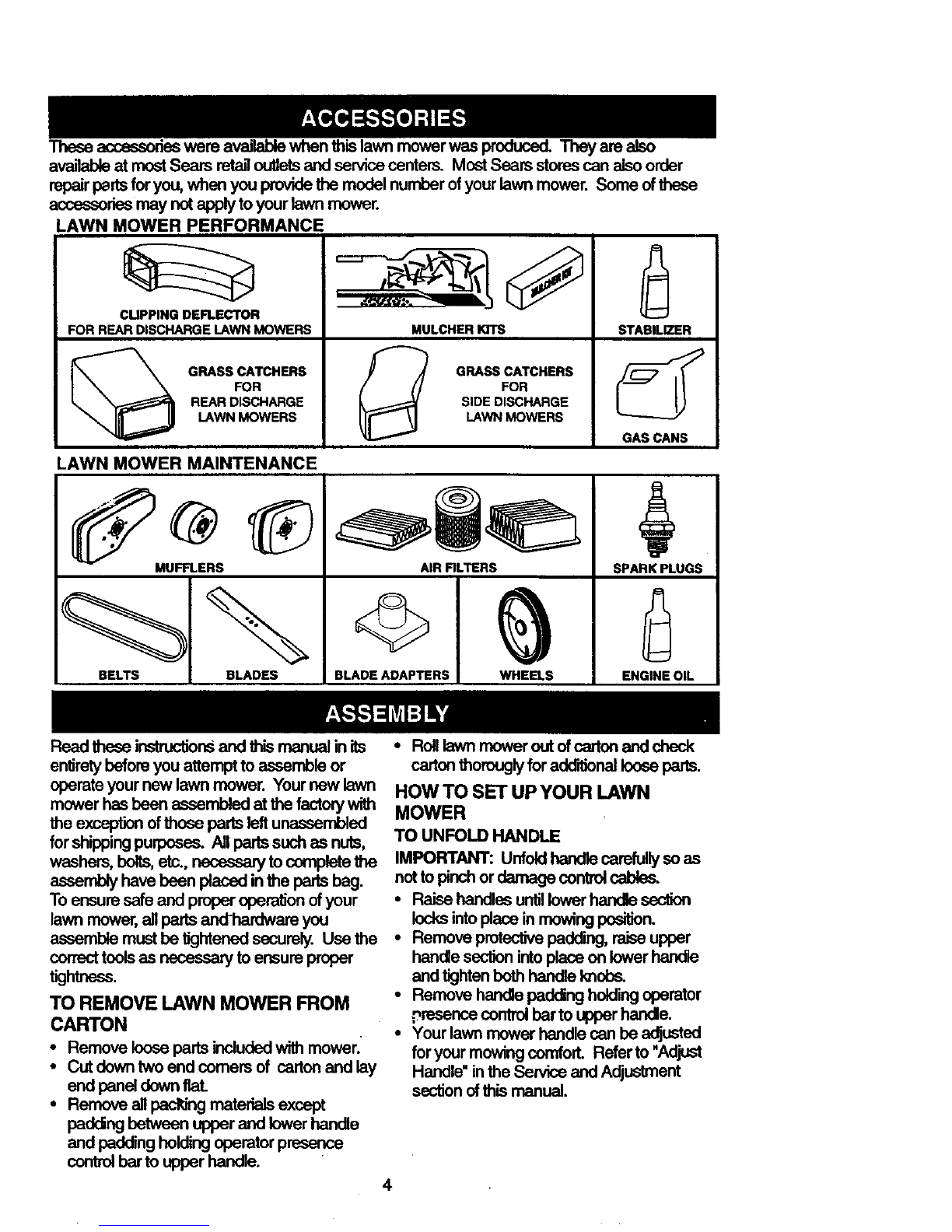

These accasscrlaswere availablewhenthislawn mowerwas produced.Thay are also

availableat mostSears retailoutletsandservicecenters. MostSears storescanalsoorder

repairpertsfor you,whenyouprovidethe modelnumberofyourlawnmower. Someofthese

accessories may not apply to your lawn mower.

LAWN MOWER PERFORMANCE

CUPPING DEFLECTOR

FOR REAR DISCHARGE LAWN MOWERS

GRASS CATCHERS

FOR

REAR DISCHARGE

LAWN MOWERS

MULCHERK]TS

GRASS CATCHERS

FOR

SIDE DISCHARGE

LAWN MOWERS

STABILIZER

GAS CANS

LAWN MOWER MAINTENANCE

MUFFLERS AIR FILTERS SPARK PLUGS

BELTS BLADES BLADE ADAPTERS WHEELS ENGINE OIL

Read these instrudions and this manual in its

entirety before you attempt to assemble or

operate your new lawn mower. Your new lawn

mower has been assembled at the factory with

the exception of those parts left unaseambled

for shipping purposes. All parts such as nuts,

washers, bolts, etc., nesesea_y to complete the

assembly have been placed in the parts beg.

To ensure safe and proper operation ofyour

lawn mower, all parts andhardware you

assemble must be tightened securely. Use the

correct tools as necessary to ensure proper

tightness.

TO REMOVE LAWN MOWER FROM

CARTON

• Remove loose parts included with mower.

•Cut down two end comers of carten and lay

end panel down tlat.

•Remove all pacing mate_als except

padding between upper and lower handle

and padding holding operator presence

control bar to upper handie.

•Rolllewn moweroutofcartonand check

cartonthorougly foradd_ionallooseparts.

HOW TO SET UP YOUR LAWN

MOWER

TO UNFOLD HANDLE

IMPORTANT: Unfold handle carefully so as

not to pinch or damage control cables.

• Raise handles untillower handle section

locks intoplace in mowing position.

•Remove protective padding, raise upper

handle section intoplace on lower handle

and tighten both handle knobs.

•Remove handle padding holding operator

presence control barto upper handle.

•Your lawn mower handle can be adjusted

for your mowing comfort. Referto 'Adjust

Handle" in the Service and Adjustment

section of this manual.

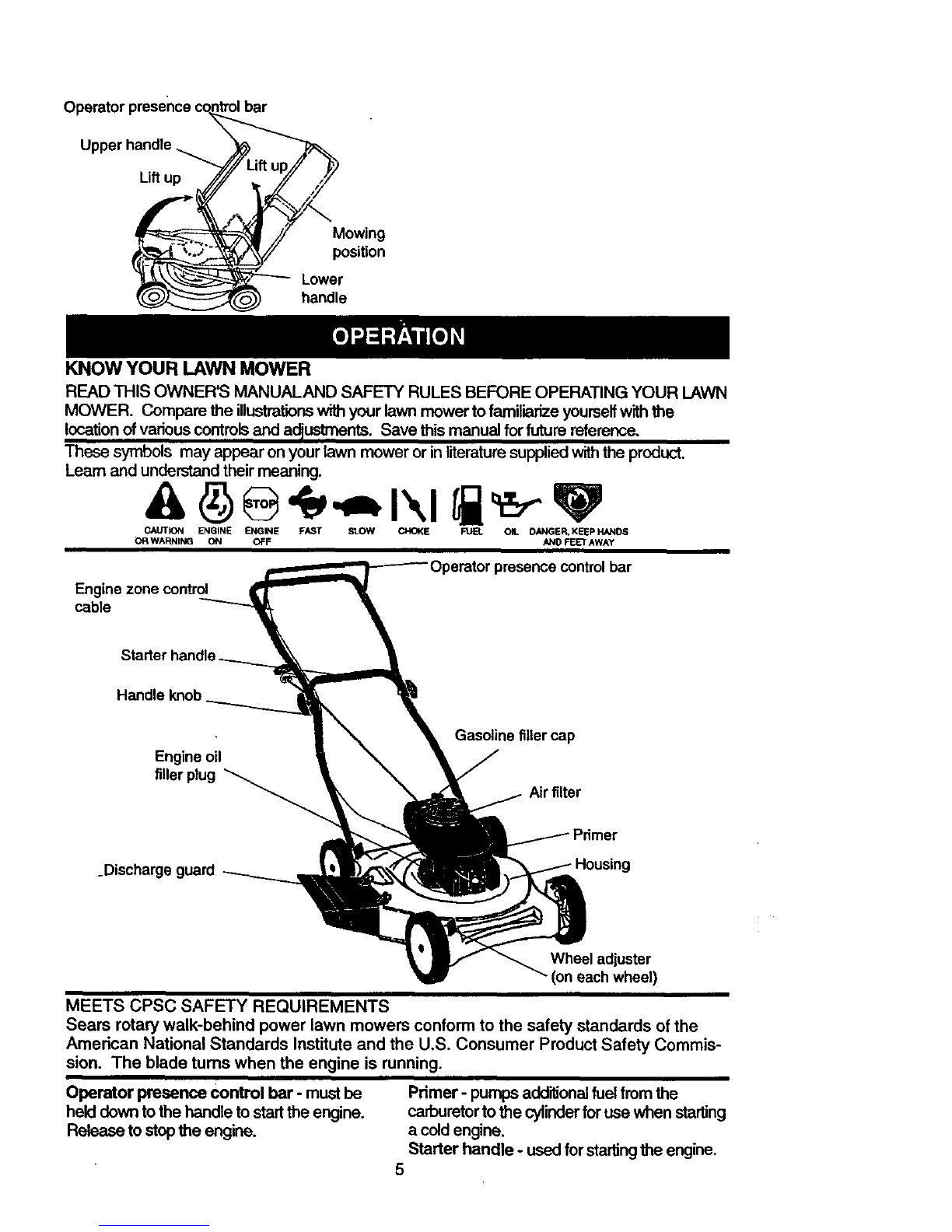

Operatorpresencecontrolbar

Upperhandle'@kifl upS/

handle

KNOW YOUR LAWN MOWER

READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR LAWN

MOWER. Compare the illustrations with your lawn mower to familiarize yourself with the

location of various controls and adjustments. Save this manual for future reference.

These symbols may appear on your lawn mower or in literature supplied with the product.

Learn and understand their meaning.

CAUTION ENGINE ENGINE FAST SLOW Ct'_KE FUEL OIL DANGER, KEEP HANDS

OR WARNING ON OFF ANO FEET AWAY

:_peratorpresence controlbar

Engine zone control

cable

Starter

H_dlek_b

Engine oil

filler plug

Gasoline filler cap

Air filter

_Discharge guard

Wheel adjuster

•(on each wheel)

MEETS CPSC SAFETY REQUIREMENTS

Sears rotary walk-behind power lawn mowers conform to the safety standards of the

American National Standards Institute and the U.S. Consumer Product Safety Commis-

sion. The blade turns when the engine is running.

Operator presence control bar- must be

held down to the handle to start the engine.

Release to stop the engine.

Primer - pumps additionalfuel from the

carburetor tothe cylinder for use when starting

a cold engine.

Starter handle - used for starling the engine.

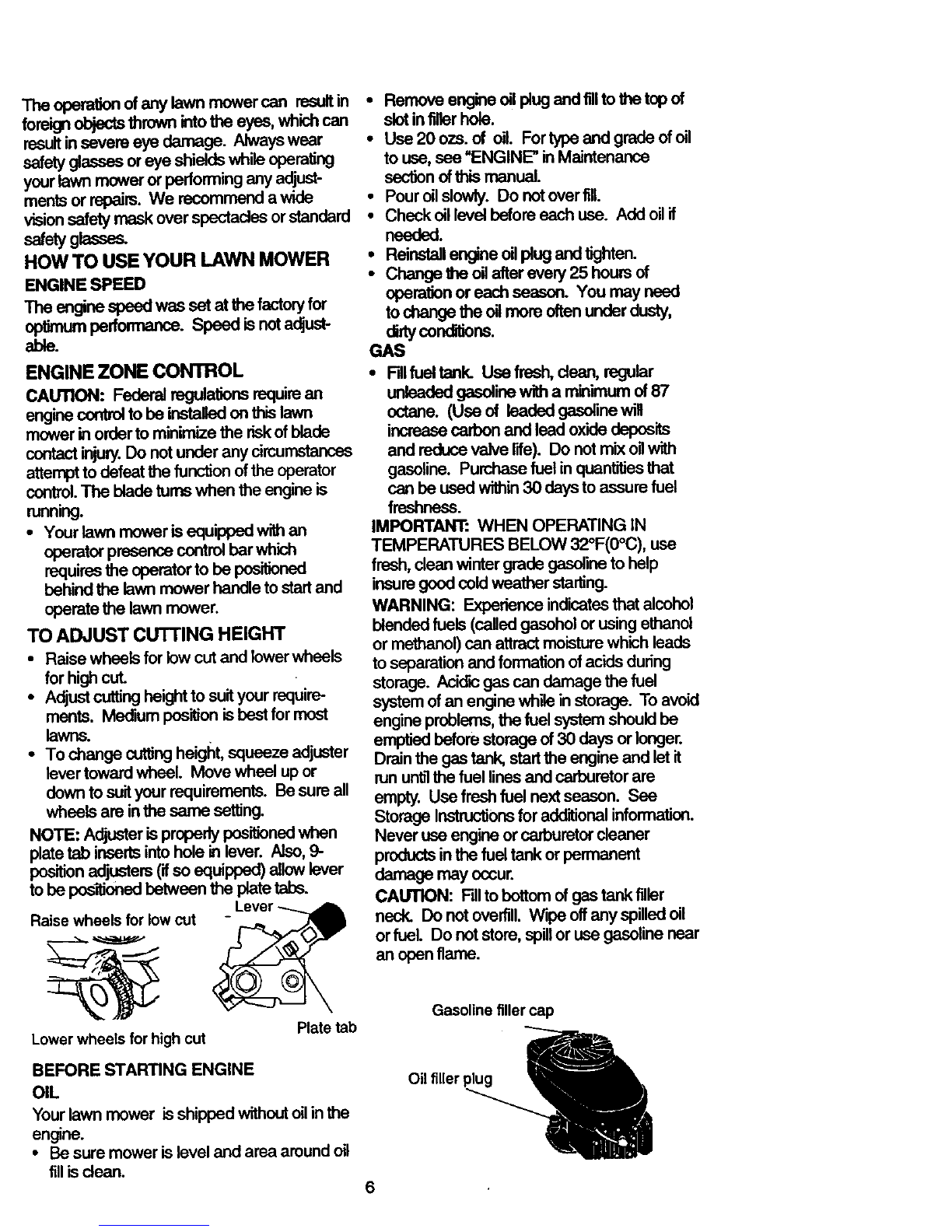

The operationof anylawn mowercan resultin

foreign objectsthrown intothe eyes, whichcan

resultinsevere eye damage. Always wear

safety glassesoreye shields while operating

your lawn mowerorperformingany adjust-

meritsorrepairs. We recommend awide

visionsafety mask overspectacles orstandard

safetyglasses.

HOW TO USE YOUR LAWN MOWER

ENGINE SPEED

The engine speed was set at the factory for

optimum performance. Speed is not adjust-

able.

ENGINE ZONE CONTROL

CAUTION: Federalregulationsrequirean

enginesentroltobe inst_ed on thislawn

mowerinorderto minimizethe riskofblade

contactinjury.Donotunderany circumstances

attempttodefeat the function of the operator

control.The bladeturnswhen theengineis

running.

• Yourlawn mowerisequ'_l:_:lwithan

operatorpresencecontrolbarwhich

requiresthe operetorto be positioned

behindthe lawn mowerhandleto startand

operatethe lawnmower.

TO ADJUST CUTTING HEIGHT

•Raise wheels for low cut and lower wheels

for high cut.

•Adjust cutting height to suit your require-

ments. Medium position is best for most

lawns.

•To change cutting height, squeeze adjuster

lever toward wheel. Move wheel up or

down to suit your requirements. Be sure all

wheels are in the same setting.

NOTE: Adjuster is properly positioned when

plate tab inserts intohole in lever. Also, 9-

position adjusters (ifso equipped) allow lever

tobepositionedbetweentheplatetabs.

Raise wheels for low cut

Lowerwheels for high cut Plate tab

BEFORE STARTING ENGINE

OIL

Your lawn mower is shipped without oil in the

engine.

• Be sure mower is level and area around oil

fillis dean.

•Rernove engineoilp/ugandflutothe topof

slotinfiller hole.

•Use 20 ozs.of oil. Fortypeand gradeofoil

touse,see =ENGINE"inMaintenance

sectionofthis manual.

•Pouroil slowly. Do notoverfill

• Check oil levelbeforeeach use. Add oilif

needed.

•Reinsta_engineoilplugandtighten.

•Changethe oilafterevery25 hoursof

eperation or each seeson. You moyneed

tochangethe oilmoreoftenunderdusty,

dirtyconditions.

GAS

•Fillfuel tank. Use fresh, dean, regular

unleaded gasoline with a minimum of 87

octane. (Useof leaded gasolinewil

increase carbon and lead oxide deposits

and reduce valve rife). Do not mix onwith

gasoline. Purchase fuel in quantities that

can be used within 30 days to assure fuel

freshness.

IMPORTANT: WHEN OPERATING IN

TEMPERATURES BELOW 32°F(0°C), use

fresh, clean winter grade gasoline to help

insure good cold weather starting.

WARNING: Experience indicates that alcohol

b/ended fueis (called gesohoi or using ethanol

or methanol) can attract moisture which leads

to separation and formation of acids during

storage. Acicfic gas can damage the fuel

system of an engine while in storage. To avoid

engine problems, the fuel system should be

emptied before storage of 30 days or longer.

Drain the gas tank, startthe engine and let it

run untilthe fuel lines and carburetor are

empty. Use fresh fuel next season. See

Storage Instructionsfor additional information.

Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

CAUTION: Fillto bottom of gas tank filler

neck. DOnot overfill. Wipe offany spilled oil

or fuel. Do net store, spill or use gasoline near

an open flame.

Gasoline filler cap

Oil filler plug

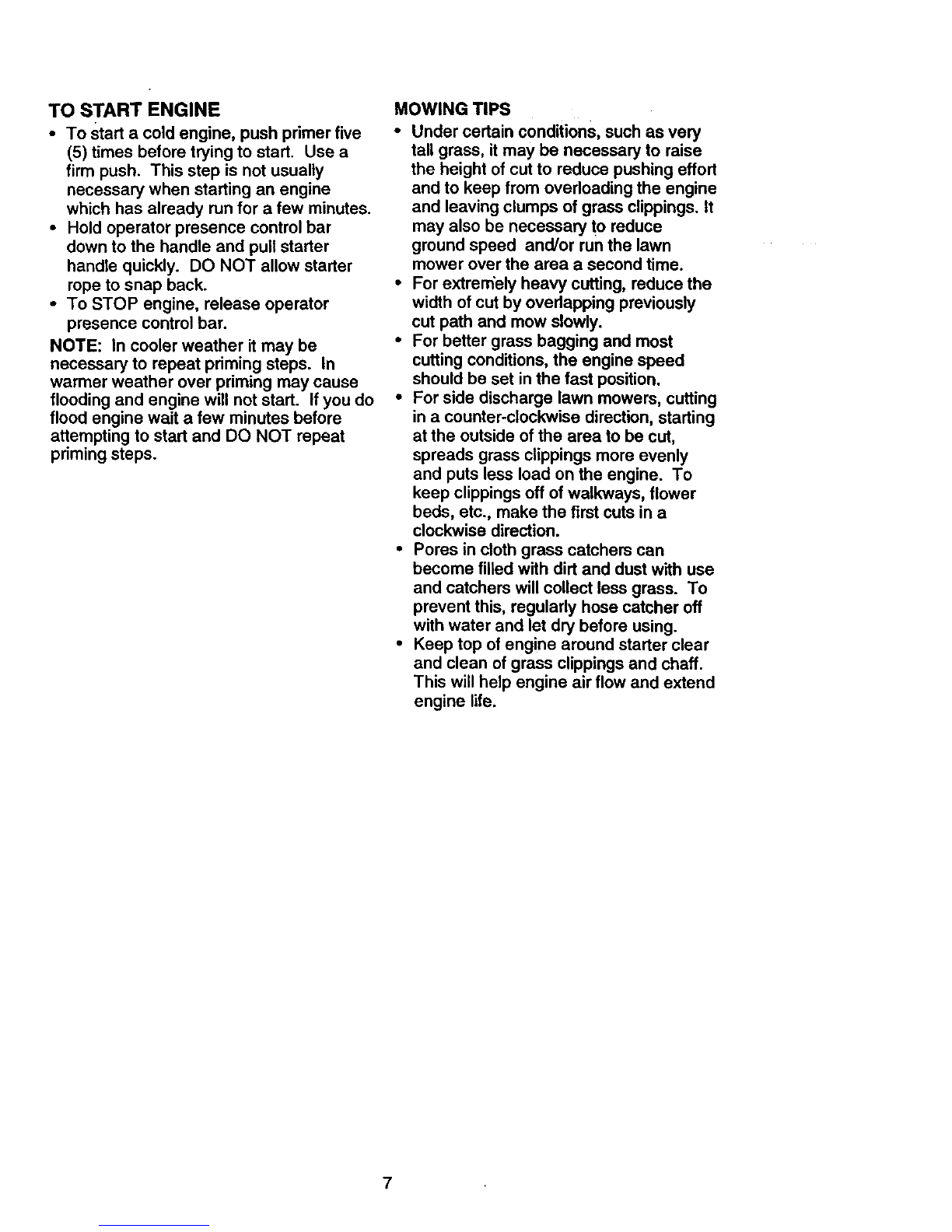

TO START ENGINE

•To start a cold engine, push primer five

(5) times before trying to start. Use a

firm push. This step is not usually

necessary when starting an engine

which has already run for afew minutes.

•Hold operator presence control bar

down to the handle and pull starter

handle quickly. DO NOT allow starter

rope to snap back.

•To STOP engine, release operator

presence control bar.

NOTE: In cooler weather it may be

necessary to repeat priming steps. In

warmer weather over priming may cause

flooding and engine will not start. If you do

flood engine wait a few minutes before

attempting to start and DO NOT repeat

priming steps.

MOWING TIPS

•Under certain conditions, such as very

tall grass, it may be necessary to raise

the height of cut to reduce pushing effort

and to keep from overloading the engine

and leaving clumps of grass clippings. It

may also be necessary t° reduce

ground speed and/or run the lawn

mower over the area a second time.

•For extremely heavy cutting, reduce the

width of cut by overlapping previously

cut path and mow slowly.

•For better grass bagging and most

cutting conditions, the engine speed

should be set in the fast position.

•For side discharge lawn mowers, cutting

in a counter-clockwise direction, starting

at the outside of the area to be cut,

spreads grass clippings more evenly

and puts less load on the engine. To

keep clippings off of walkways, flower

beds, etc., make the first cuts in a

clockwise direction.

•Pores in cloth grass catchers can

become filled with dirt and dust with use

and catchers will collect less grass. To

prevent this, regularly hose catcher off

with water and let dry before using.

•Keep top of engine around starter clear

and clean of grass clippings and chaff.

This will help engine air flow and extend

engine life.

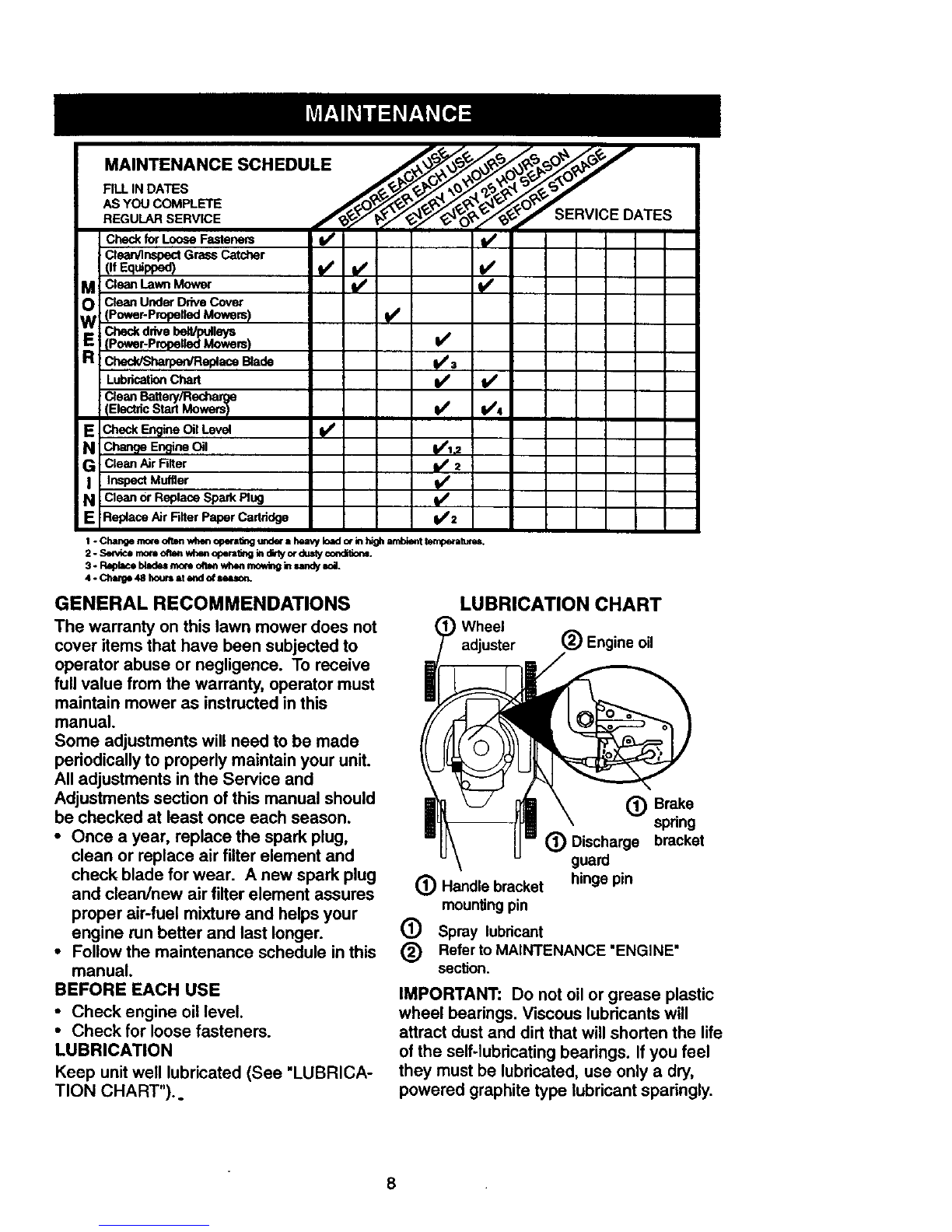

s .v,c DA"rES

i_/im

Chec_ for Loose Fasteners Is/ I I_

Clean/Inspect Grass Catcher

M CleanLawnMower

O Clean Under Drive Cover

(Power-PropelledMowem) q/

Ched_ drive belt/pulleys

S (Power-Propelled Mowers) I/

CheddShame_tReplaceBlade _1_,3

Lubrication Chad V'

CleanBattery/Recharge

IB o Mow1V'

ECheckEngineOilLevel

N ChangeEngineOil !,/1,2

GClean Air Filter Ii/ 2

I Inspect Muffler _/

Naean orReplaceSparkPlug v

E ReplaceAirFilterPaperCartridge I/2

t - Changemoreoftenwhenopera,rigunderaheavyloadorinhighambie_tempera_

2- S_,_e mo_o_m wh*moperaingindktyordustyconditions.

3. Replacebladumorno_n whenmowinginm_'y mL

4. Cl_ge 48 hoursate_l ot uu0n.

GENERALRECOMMENDATIONS

The warranty on this lawn mower does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator must

maintain mower as instructed in this

manual.

Some adjustments will need to be made

periodically to properly maintain your unit.

All adjustments in the Service and

Adjustments section of this manual should

be checked at least once each season.

•Once a year, replace the spark plug,

clean or replace air filter element and

check blade for wear. A new spark plug

and clean/new air filter element assures

proper air-fuel mixture and helps your

engine run better and last longer.

•Follow the maintenance schedule in this

manual.

BEFORE EACH USE

• Check engine oil level.

• Check for loose fasteners.

LUBRICATION

Keep unit well lubricated (See "LUBRICA-

TION CHART").

LUBRICATION CHART

Wheel

adjuster (_ Engine oil

(_ Brake

spring

(_ Discharge bracket

guard

(_ Handle bracket hinge pin

mountingpin

(_ Spray lubricant

(_ Refer to MAINTENANCE"ENGiNE"

section.

IMPORTANT: Do not oil or grease plastic

wheel bearings. Viscous lubricants will

attract dust and dirt that will shorten the life

of the self-lubricating bearings. If you feel

they must be lubricated, use only a dry,

powered graphite type lubricant sparingly.

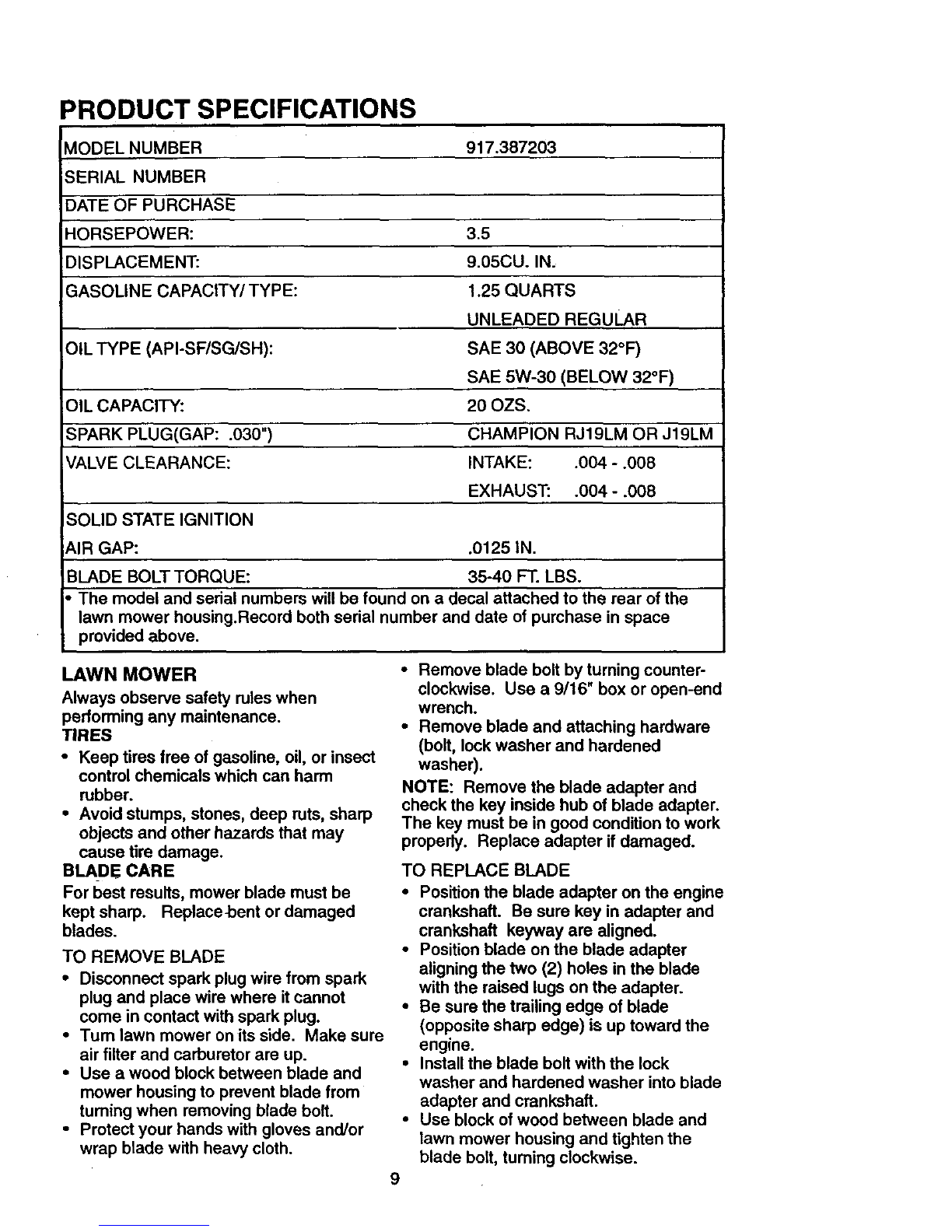

PRODUCT SPECIFICATIONS

MODEL NUMBER 917.387203

SERIAL NUMBER

DATE OF PURCHASE

HORSEPOWER: 3.5

DISPLACEMENT: 9.05CU. IN.

GASOLINE CAPACITY/TYPE: 1.25 QUARTS

UNLEADED REGULAR

OIL TYPE (API-SF/SG/SH): SAE 30 (ABOVE 32°F)

SAE 5W-30 (BELOW 32°F)

OIL CAPACITY: 20 OZS.

SPARK PLUG(GAP: .030") CHAMPION RJ19LM OR J19LM

VALVE CLEARANCE: INTAKE: .004 - .008

EXHAUST: .004 - .008

SOLID STATE IGNITION

AIR GAP: .0125 IN.

BLADE BOLT TORQUE: 35-40 FT. LBS.

The model and serial numbers will be found on a decal attached to the roar of the

lawn mower housing.Record both serial number and date of purchase in space

provided above.

LAWN MOWER

Always observe safety rules when

performing any maintenance.

TIRES

•Keep tiros free of gasoline, oil, or insect

control chemicals which can harm

rubber.

•Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

BLADE CARE

For best results, mower blade must be

kept sharp. Replace-bent or damaged

blades.

TO REMOVE BLADE

• Disconnect spark plug wire from spark

plug and place wire where it cannot

come in contact with spark plug.

•Tum lawn mower on its side. Make sure

air filter and carburetor are up.

•Use a wood block between blade and

mower housing to prevent blade from

tuming when removing blade bolt.

•Protect your hands with gloves and/or

wrap blade with heavy cloth.

• Remove blade bolt by turning counter-

clockwise. Use a 9/16" box or open-end

wrench.

• Remove blade and attaching hardware

(bolt, lock washer and hardened

washer).

NOTE: Remove the blade adapter and

check the key inside hub of blade adapter.

The key must be in good condition to work

properly. Replace adapter if damaged.

TO REPLACE BLADE

• Position the blade adapter on the engine

crankshaft. Be sure key in adapter and

crankshaft keyway are aligned.

•Position blade on the blade adapter

aligning the two (2) holes in the blade

with the raised lugs on the adapter.

•Be sure the trailing edge of blade

(opposite sharp edge) is up toward the

engine.

•Install the blade bolt with the lock

washer and hardened washer into blade

adapter and crankshaft.

•Use block of wood between blade and

lawn mower housing and tighten the

blade bolt, tuming clockwise.

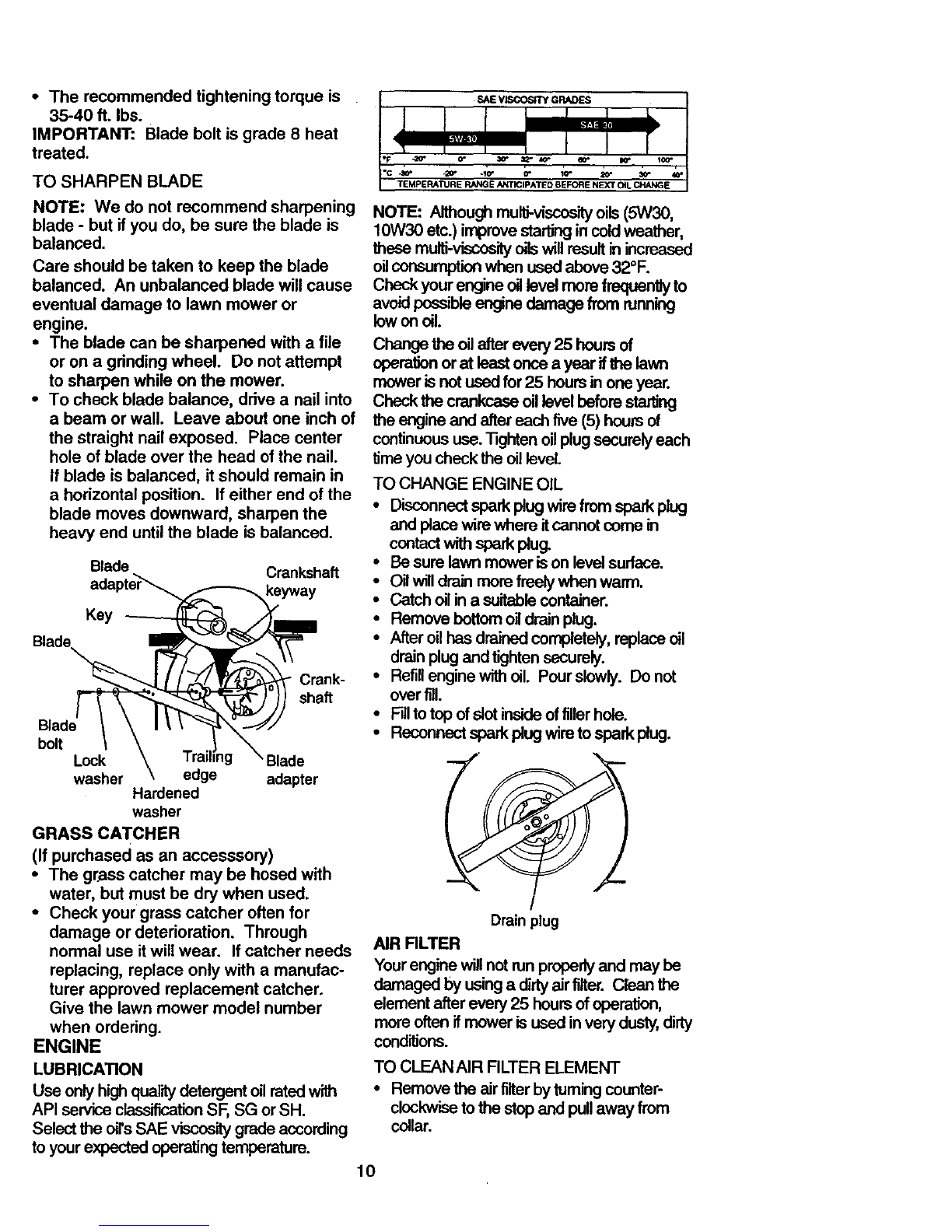

•The recommended tightening torque is

35-40 ft. Ibs.

IMPORTANT: Blade bolt is grade 8 heat

treated.

TO SHARPEN BLADE

NOTE: We do not recommend sharpening

blade -but if you do, be sure the blade is

balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

eventual damage to lawn mower or

engine.

•The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

•To check blade balance, drive a nail into

a beam or wall. Leave about one inch of

the straight nail exposed. Place center

hole of blade over the head of the nail.

If blade is balanced, it should remain in

a horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

Blade Crankshaft

adapter'P'-_ keyway

Key

Crank-

shaft

bolt Lock Blade

washer edge adapter

Hardened

washer

GRASS CATCHER

(If purchased as an accesssory)

• The grass catcher may be hosed with

water, but must be dry when used.

•Check your grass catcher often for

damage or deterioration. Through

normal use it will wear. If catcher needs

replacing, replace only with a manufac-

turer approved replacement catcher.

Give the lawn mower model number

when ordering.

ENGINE

LUBRICATION

Use only high quality detergent oil rated with

API service classification SF, SG or SH.

Select the oirs SAE viscosity grade according

to your expected operating temperature.

SAE VISGOS_TY GRADES

-26* ._o- 6- lO- 20- 30-

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

NOTE: Althoughmulti-viscosityoils(5W30,

10W30 etc.)improvestarlingincoldweather,

thesemulti-viscosityoilswillresultinincreased

oilconsumptionwhen usedabove32°F.

Checkyourengineoillevelmorefrequentlyto

avoidpossibleenginedamagefrom running

lowonoil.

Change ff=eoil after every 25 hours of

operatlen or at least once a year ifthe lawn

mower isnot used for 25 hours in one year.

Check the crankcase oillevel before starting

the engine and after each five (5) hours of

continuous use 13ghten oilplug securely each

time you check the oillevel.

TO CHANGE ENGINE OIL

•Disconnect spark plug wire from spark plug

and place wire where itcannot come in

contact with spark plug.

•Be sure lawn mower ison level surface.

• Oil willdrain more freely when warm.

•Catch oil in a suitable container.

•Remove bottom oildrain plug.

•After oil has drained completely, replace oil

drain plug and tighten securely.

•Refill engine with oil. Pour slowly. Do not

over fill.

•Fillto top of slot inside of fillerhole.

• Reconnect spark plug wire to spark plug.

Drain plug

NR RLTER

Your engine will not run property and may be

damaged by using a dirty air filter. Clean the

element after every 25 hours of operation,

more often if mower is used in very dusty,dirty

conditions.

TO CLEAN AIR FILTER ELEMENT

• Remove the air filterby tuming counter-

clockwise to the stop and pull away from

collar.

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.376690 Manuel utilisateur

Craftsman

Craftsman 917.374354 Manuel utilisateur

Craftsman

Craftsman 917.204040 Manuel utilisateur

Craftsman

Craftsman 917.377891 Manuel utilisateur

Craftsman

Craftsman 917.371750 Manuel utilisateur

Craftsman

Craftsman 944.604860 Manuel utilisateur

Craftsman

Craftsman 917.375013 Manuel utilisateur

Craftsman

Craftsman 917.374802 Manuel utilisateur

Craftsman

Craftsman 917.388115 Manuel utilisateur

Craftsman

Craftsman 917.255575 Manuel utilisateur

Craftsman

Craftsman 917.379120 Manuel utilisateur

Craftsman

Craftsman 917.378470 Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

Craftsman

Craftsman 917.288341 Manuel utilisateur

Craftsman

Craftsman EZ3 917.273080 Manuel utilisateur

Craftsman

Craftsman 917.379100 Manuel utilisateur

Craftsman

Craftsman EZ 917.270722 Manuel utilisateur

Craftsman

Craftsman 917.272351 Manuel utilisateur

Craftsman

Craftsman 917.370562 Manuel utilisateur

Craftsman

Craftsman 917.271070 Manuel utilisateur

Craftsman

Craftsman 917.388220 Manuel utilisateur

Craftsman

Craftsman 247.38814 Manuel utilisateur

Craftsman

Craftsman 917.376631 Manuel utilisateur

Craftsman

Craftsman 917.388382 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
