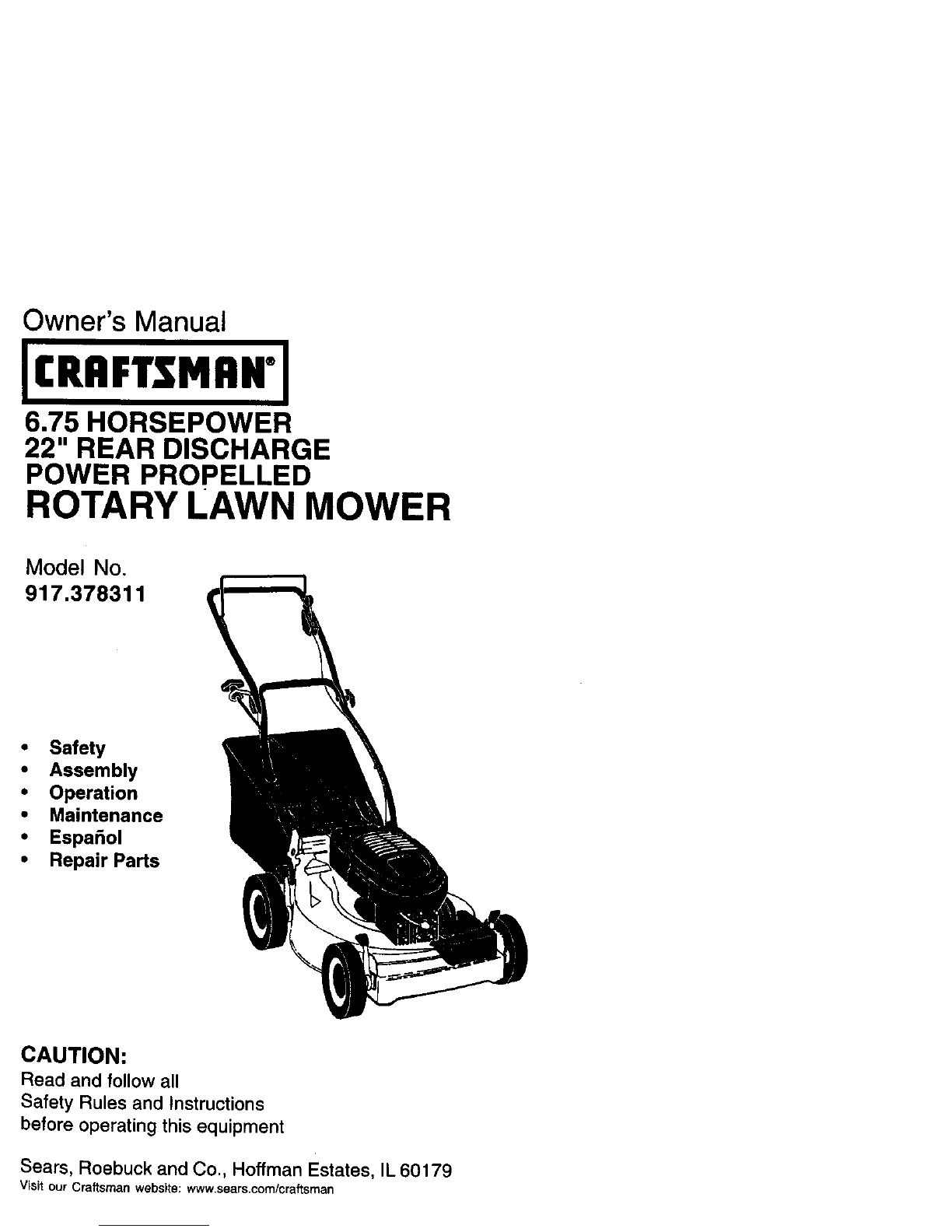

Owner's Manual

ICRAFT..TMAN"I

6.75 HORSEPOWER

22" REAR DISCHARGE

POWER PROPELLED

ROTARY LAWN MOWER

Model No,

917,378311

•Safety

•Assembly

•Operation

•Maintenance

•EspaSol

•Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equipment

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Visit our Craftsman website: www.sears.com/craftsman

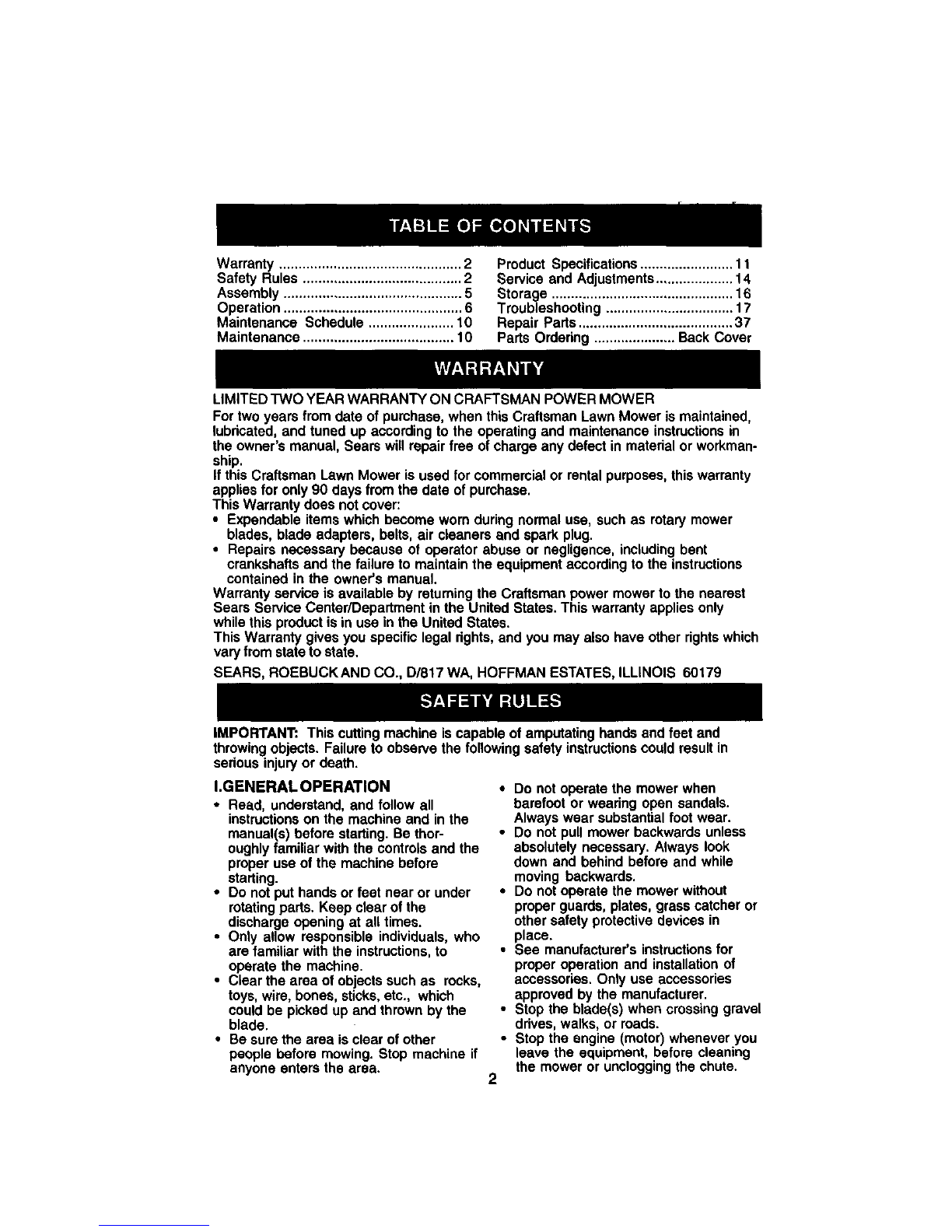

Warranty............................................... 2

Safety Rules......................................... 2

Assembly.............................................. 5

Operation.............................................. 6

Maintenance Schedule...................... 10

Maintenance.......................................10

ProductSpecifications........................1t

Service and Adjustments....................14

Storage ...............................................16

Troubleshooting.................................17

Repair Parts........................................37

PartsOrdering.....................BackCover

LIMITEDTWO YEARWARRANTYON CRAFTSMAN POWERMOWER

Fortwoyearsfrom date ofpurchasa,when thisCraftsmanLawnMowerismaintained,

lubdcated,and tunedup accordingto theoperatingand maintenanceinstructionsin

the owner'smanual,Searswillrepairfree ofchargeany defectin materialor workman-

ship.

IfthisCraftsmanLawnMoweris usedforcommemialor rentalpurposes,thiswarranty

appliesfor only90 daysfrom thedate ofpurchase.

ThisWarrantydoes notcover:

• Expendableitemswhichbecomewornduringnormaluse, suchas rotarymower

blades, bladeadapters,belts, air cleanersand spark plug.

•Repairsnecessarybecauseof operatorabuse or negligence,includingbent

crankshaftsand the failure to maintainthe equipmentaccordingtothe instructions

containedin the owner'smanual.

Warrantyserviceisavailableby returningthe Craftsmanpowermowerto the nearest

SearsServiceCenter/Departmentin the UnitedStates.Thiswarrantyappliesonly

whilethisproductisin usein theUnitedStates.

This Warrantygivesyou specificlegaldghts,and youmay also haveotherrightswhich

varyfrom statetostate.

SEARS,ROEBUCKAND CO., D/817 WA,HOFFMAN ESTATES,ILLINOIS 60179

IMPORTANT: Thiscuttingmachineiscapableofamputatinghandsand feet and

throwingobjects.Failureto observethefollowing safetyinstructionscould resultin

sedousinjuryor death.

I.GENERAL OPERATION

•Read, understand, end follow all

instructions on the machine and in the

manual(s) before starting. Be thor-

oughly familiar with the controls and the

proper use of the machine before

starting.

•Do not put hands or feet near or under

rotating parts. Keep clear of the

discharge opening at all times.

• Only allow responsible individuals, who

are familiar with the instructions, to

operate the machine.

• Clear the area of objects such as rocks,

toys, wire, bones, sticks, etc., which

could be picked up and thrown by the

blade.

•Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area. 2

•Do notoperatethe mowerwhen

barefootor wearingopensandals.

Alwayswear substantialfoot wear.

•Do notpull mowerbackwardsunless

absolutelynecessary.Alwayslook

downand behind beforeand while

movingbackwards.

•Do notoperatethemowerwithout

properguards,plates,grasscatcheror

othersafetyprotectivedevicesin

place.

•See manufacturer'sinstructionsfor

properoperationand installationof

accessories.Only use accessories

approved by the manufacturer.

•Stopthe blade(s)whencrossinggravel

drives,walks,or roads.

•Stopthe engine (motor)wheneveryou

leave the equipment,beforecleaning

the moweror uncloggingthechute.

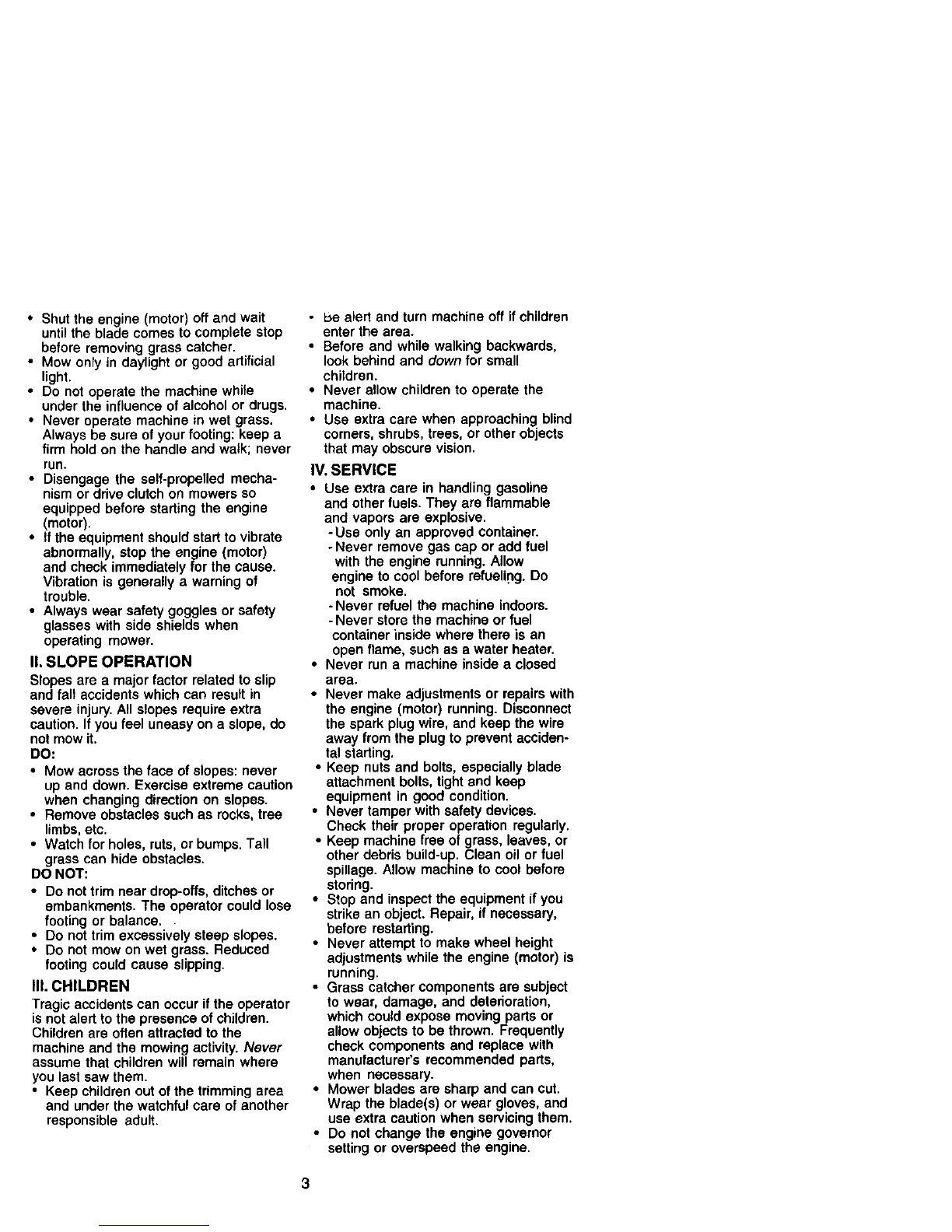

• Shut the engine (motor) off and wait

until the blade comes to complete stop

before removing grass catcher.

•Mow only in daylight or good artificial

light.

•Do not operate the machine while

under the influence of alcohol or drugs.

• Never operate machine in wet grass.

Always be sure of your footing: keep a

firm hold on the handle and walk; never

run.

• Disengage the self-propelled mocha-

nism or drive clutch on mowers so

equipped before starting the engine

(motor).

• If the equipment should start to vibrate

abnormally, stop the engine (motor)

and check immediately for the cause.

Vibration is generally a warning of

trouble.

•Always wear safety goggles or safety

glasses with side shields when

operating mower.

I1.SLOPE OPERATION

Slopes are a major factor related to slip

and fall accidents which can result in

severe injury.All slopes require extra

caution. If you feel uneasy on a slope, do

not mow it.

DO:

•Mow across the face of slopes: never

up and down. Exercise extreme caution

when changing direction on slopes.

•Remove obstacles such as rocks, tree

limbs, etc.

•Watch for holes, ruts, or bumps. Tall

grass can hide obstacles.

DO NOT:

•Do not trim near drep-offs, ditches or

embankments. The operator could lose

footing or balance.

•Do not trim excessively steep slopes.

•Do not mow on wet grass. Reduced

footing could cause slipping.

II1. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

•Keep children out of the trimming area

and under the watchful care of another

responsible adult.

•be aled and turn machine off if children

enter the area.

•Before and while walking backwards,

look behind and down for small

children.

• Never allow children to operate the

machine.

•Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

•Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refuelirtg. Do

not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

•Never run a machine inside a closed

area.

•Never make adjustments or repairs with

the engine (motor) running. Disconnect

the spark plug wire, and keep the wire

away from the plug to prevent acciden-

tal starting.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

•Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

•Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never attempt to make wheel height

adjustments while the engine (motor) is

running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

•Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

•Do not change the engine governor

setting or overspeed the engine.

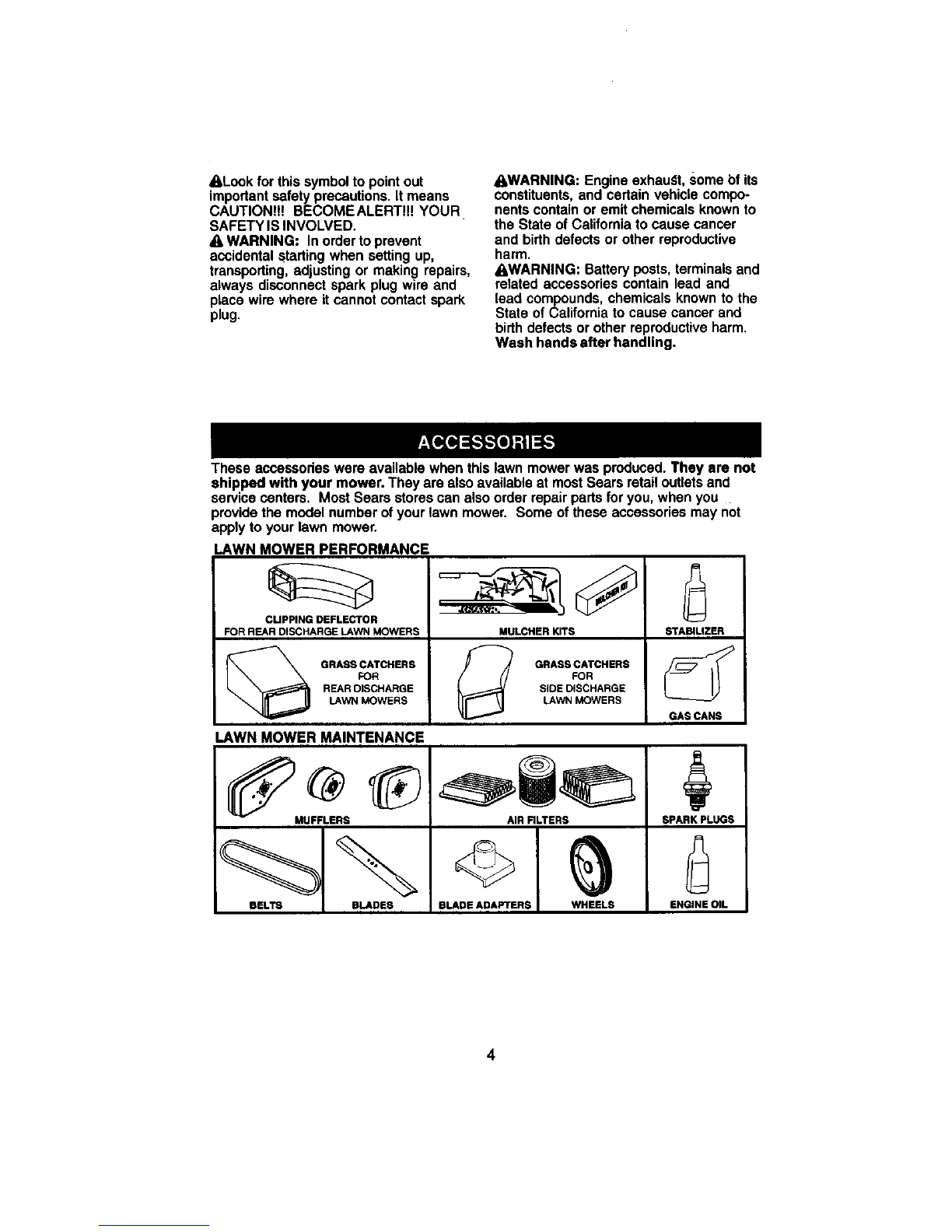

_Look for this symbol to point out

important safety precautions, it means

CAUTION!tf BECOMEALERTl!! YOUR

SAFETY IS INVOLVED.

_WARNING: In order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

_WARNING: Engine exhaust, some bf its

constituents, and certain vehicle compo-

nents contain or emit chemicals known to

the State of California to cause cancer

and birth defects or other reproductive

harm.

AWARNING: Battery posts, terminals and

related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

These accessories were available when this lawn mower was produced. They are not

shipped with your mower. They are also available at most Sears retail outlets and

service centers. Most Sears stores can also order repair parts for you, when you

provide the model number of your lawn mower. Some of these accessories may not

apply to your lawn mower.

LAWN MOWER PERFORMANCE

CUPPING DEFLECTOR

FOR REAR DISCHARGE LAWN MOWERS

GRASC CATCHERS

FOR

REAR DISCHARGE

LAWN MOWERS

MULCHER KITS

GRASS CATCHERS

FOR

ISiDE DISCHARGE

LAWN MOWERS

STABlUZER

GAS CANS

LAWN MOWER MAINTENANCE

MUFFLERS

BELTS BLADES

AIR FILTERS

BLADE ADAPTERS WHEELS

SPARK PLUGS

ENGINE OIL

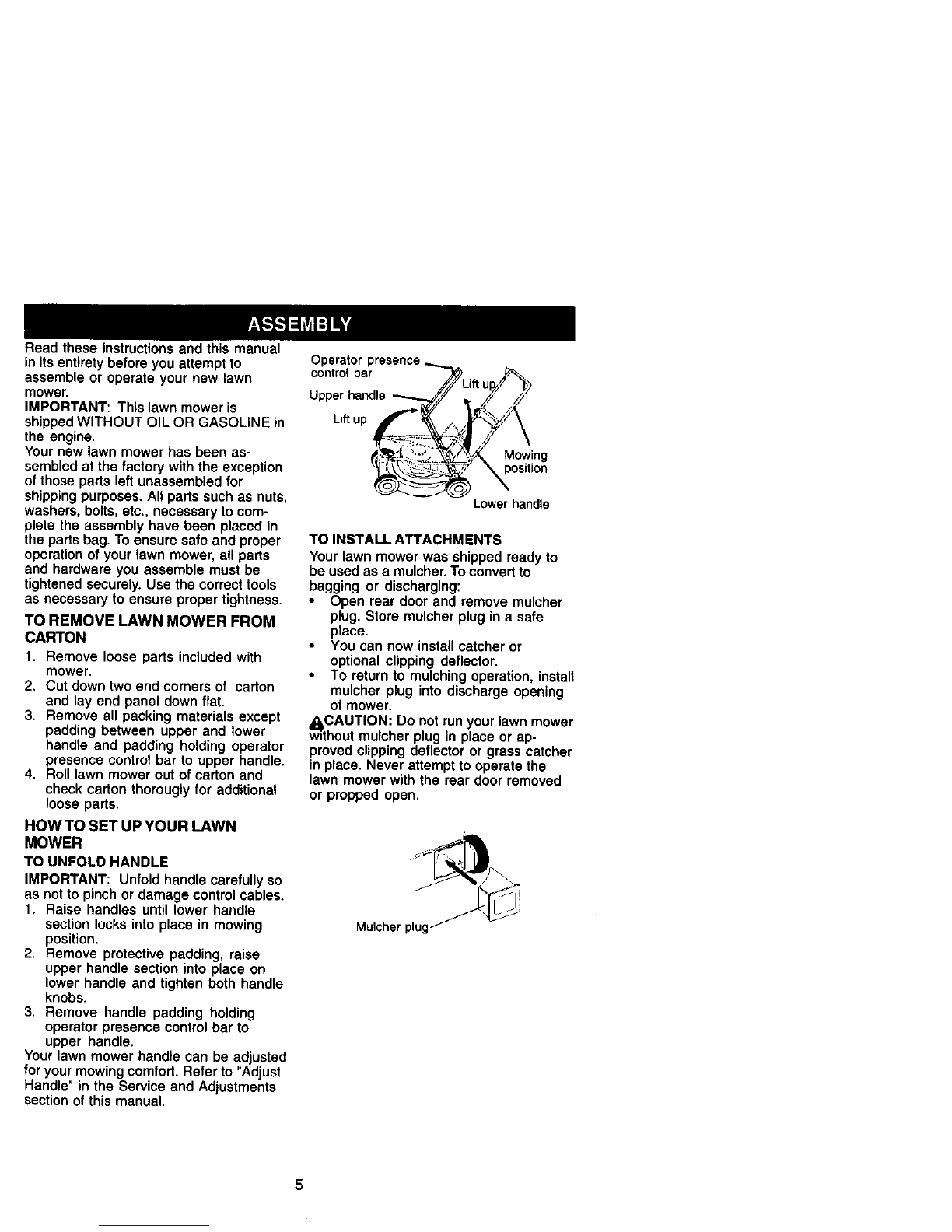

Read these instructions and this manual

in its entirety before you attempt to

assemble or operate your new lawn

mower.

IMPORTANT: This lawn mower is

shipped WITHOUT OIL OR GASOLINE in

the engine.

Your new lawn mower has been as-

sembled at the factory with the exception

of those parts left unassembled for

shipping purposes. All parts such as nuts,

washers, bolts, etc., necessary to com-

plete the assembly have been placed in

the parts bag. To ensure safe and proper

operation of your lawn mower, all parts

and hardware you assemble must be

tightened securely. Use the correct tools

as necessary to ensure proper tightness.

TO REMOVE LAWN MOWER FROM

CARTON

1. Remove loose parts included with

mower.

2. Cut down two end corners of carton

and lay end panel down flat.

3. Remove all packing materials except

padding between upper and lower

handle and padding holding operator

presence control bar to upper handle.

4. Roll lawn mower out of carton and

check carton thorougiy for additional

loose pads.

HOWTO SET UPYOUR LAWN

MOWER

TO UNFOLD HANDLE

IMPORTANT: Unfold handle carefully so

as not to pinch or damage control cables.

1. Raise handles until lower handle

section locks into place in mowing

position.

2. Remove protective padding, raise

upper handle section into place on

lower handle and tighten both handle

knobs.

3. Remove handle padding holding

operator presence control bar to

upper handle.

Your lawn mower handle can be adjusted

for your mowing comfod. Refer to "Adjust

Handle" in the Service and Adjustments

section of this manual.

Operator I

control bar

Upper handle

Lift up

Mowing

Lower handle

TO INSTALL ATTACHMENTS

Your lawn mower was shipped ready to

be used as a mulcher. To convert to

bagging or discharging:

Open rear door and remove mulcher

plug, Store mulcher plug in a safe

place.

You can now install catcher or

optional clipping deflector.

• To return to mulching operation, instalt

mulcher plug into discharge opening

of mower.

w_=tCAUTION:Do not run your lawn mower

hout mulcher plug in place or ap-

proved clipping deflector or grass catcher

in place. Never attempt to operate the

lawn mower with the rear door removed

or propped open.

Mulcher

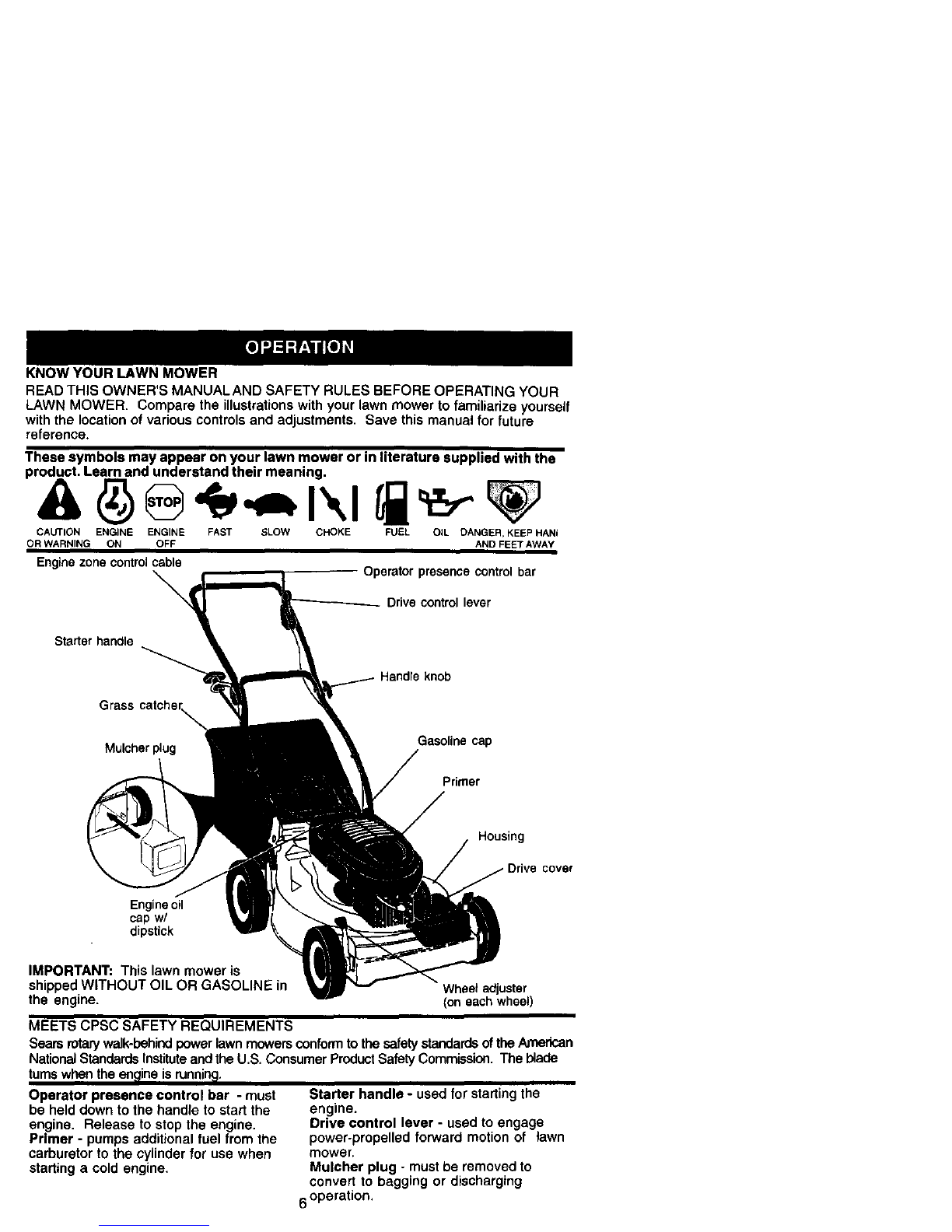

KNOW YOUR LAWN MOWER

READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR

LAWN MOWER. Compare the illustrations with your lawn mower to familiarize yourself

with the location of various controls and adjustments. Save this manual for future

reference.

These symbols may appear on your lawn mower or in literature supplied with the

produot. Learn and understand their meaning,

CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANI

OR WARNING ON OFF AND FEET AWAY

Enginezone controlcable

\Operator presence control bar

Drive control lever

Starter handle

Grass catche

Mulcherplug Gasoline cap

Primer

Housing

COVet

Engine oil

cap w/

dipstick

IMPORTANT: This lawn mower is

shipped WITHOUT OIL OR GASOLINE in Wheet adjuster

the engine. (on each wheel)

MEETS CPSC SAFETY REQUIREMENTS

Sears rotarywalk-behind powerlawn mowers conformto the safetystandards ofthe American

NationalStandards Instituteand the U.S. Consumer ProductSafety Commission. The blade

turnswhen the engine isrunninc_.

Operator presence control bar - must

be held down to the handle to start the

engine. Release to stop the engine.

Primer -pumps additional fuel from the

carburetor to the cylinder for use when

starting a cold engine.

Starter handle -used for starting the

engine.

Drive control lever -used to engage

power-propelled forward motion of lawn

mower.

Muleher plug -must be removed to

converttobegging ordischarging

6 operation.

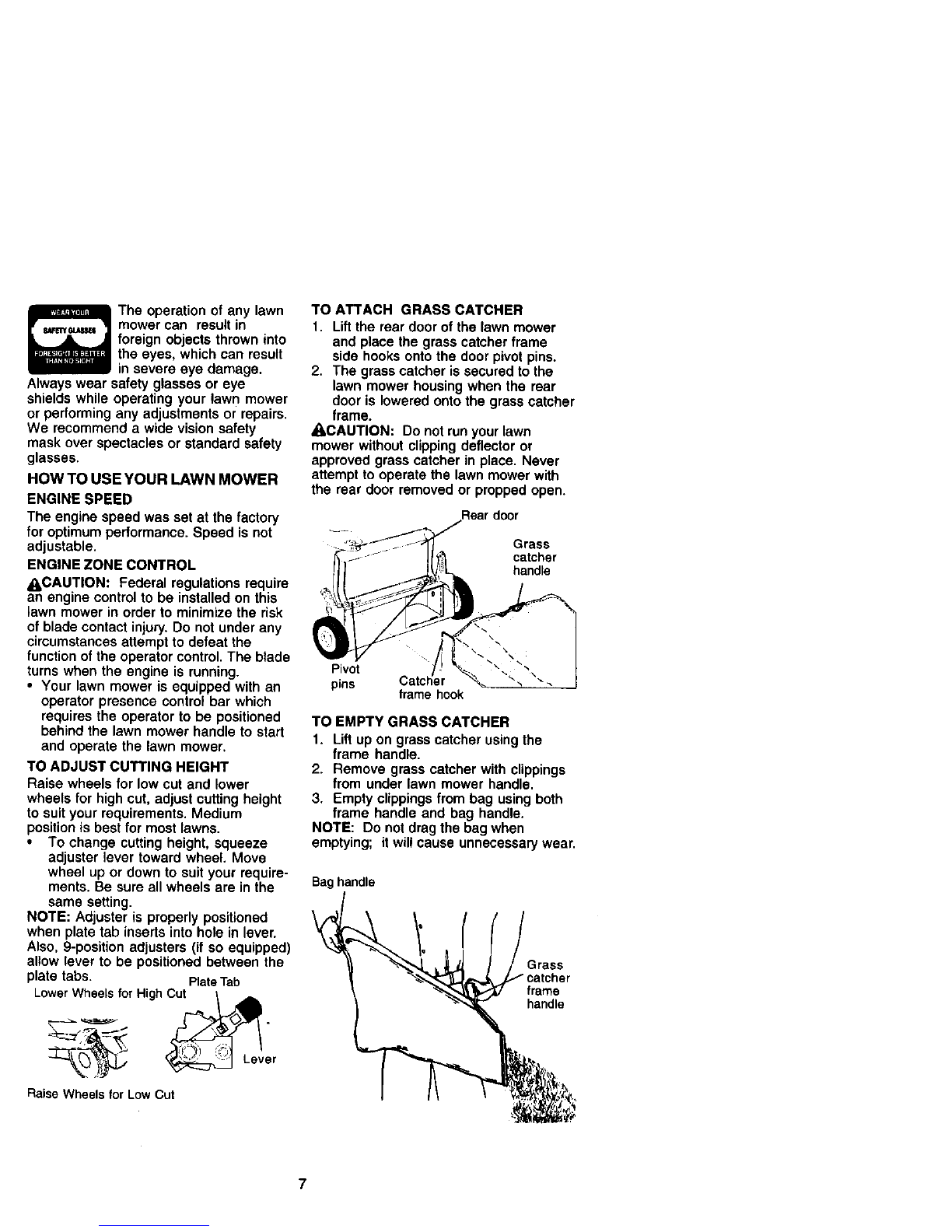

The operation of any lawn

mower can result in

foreign objects thrown into

the eyes, which can result

in severe eye damage.

Always wear safety glasses or eye

shields while operating your lawn mower

or performing any adjustments or repairs,

We recommend a wide vision safety

mask over spectacles or standard safety

glasses,

HOW TO USE YOUR LAWN MOWER

ENGINE SPEED

The engine speed was set at the factory

for optimum performance. Speed is not

adjustable.

ENGINE ZONE CONTROL

_CAUTION: Federal regulations require

an engine control to be installed on this

lawn mower in order to minimize the risk

of blade contact injury. Do not under any

circumstances attempt to defeat the

function of the operator control, The blade

turns when the engine is running.

•Your lawn mower is equipped with an

operator presence control bar which

requires the operator to be positioned

behind the lawn mower handle to start

and operate the lawn mower,

TO ADJUST CUTTING HEIGHT

Raise wheels for low cut and lower

wheels for high cut, adjust cutting height

to suit your requirements. Medium

position is best for most lawns,

•To change cutting height, squeeze

adjuster lever toward wheel. Move

wheel up or down to suit your require-

ments. Be sure all wheels are in the

same setting,

NOTE: Adjuster is properly positioned

when plate tab inserts into hole in lever.

Also, g-position adjusters (if so equipped)

allow lever to be positioned between the

plate tabs. PlateTab

LowerWheelsfor HighCutr'-_LA_.J_IIF

., ar

Raise Wheels for Low Cut

TO ATTACH GRASS CATCHER

1. Lift the rear door of the lawn mower

and place the grass catcher frame

side hooks onto the door pivot pins,

2, The grass catcher is secured to the

lawn mower housing when the rear

door is lowered onto the grass catcher

frame.

_CAUTION: Do not run your lawn

mower without clipping deflector or

approved grass catcher in place. Never

attempt to operate the lawn mower with

the rear door removed or propped open.

Grass

catcher

handle

Pivot _, ... \ .

pins frame hook

TO EMPTY GRASS CATCHER

1. Lift up on grass catcher using the

frame handle,

2. Remove grass catcher with clippings

from under lawn mower handle,

3. Empty clippings from bag using both

frame handle and bag handle.

NOTE: Do not drag the bag when

emptying; it will cause unnecessary wear.

Bag handle (Grass

frame

handle

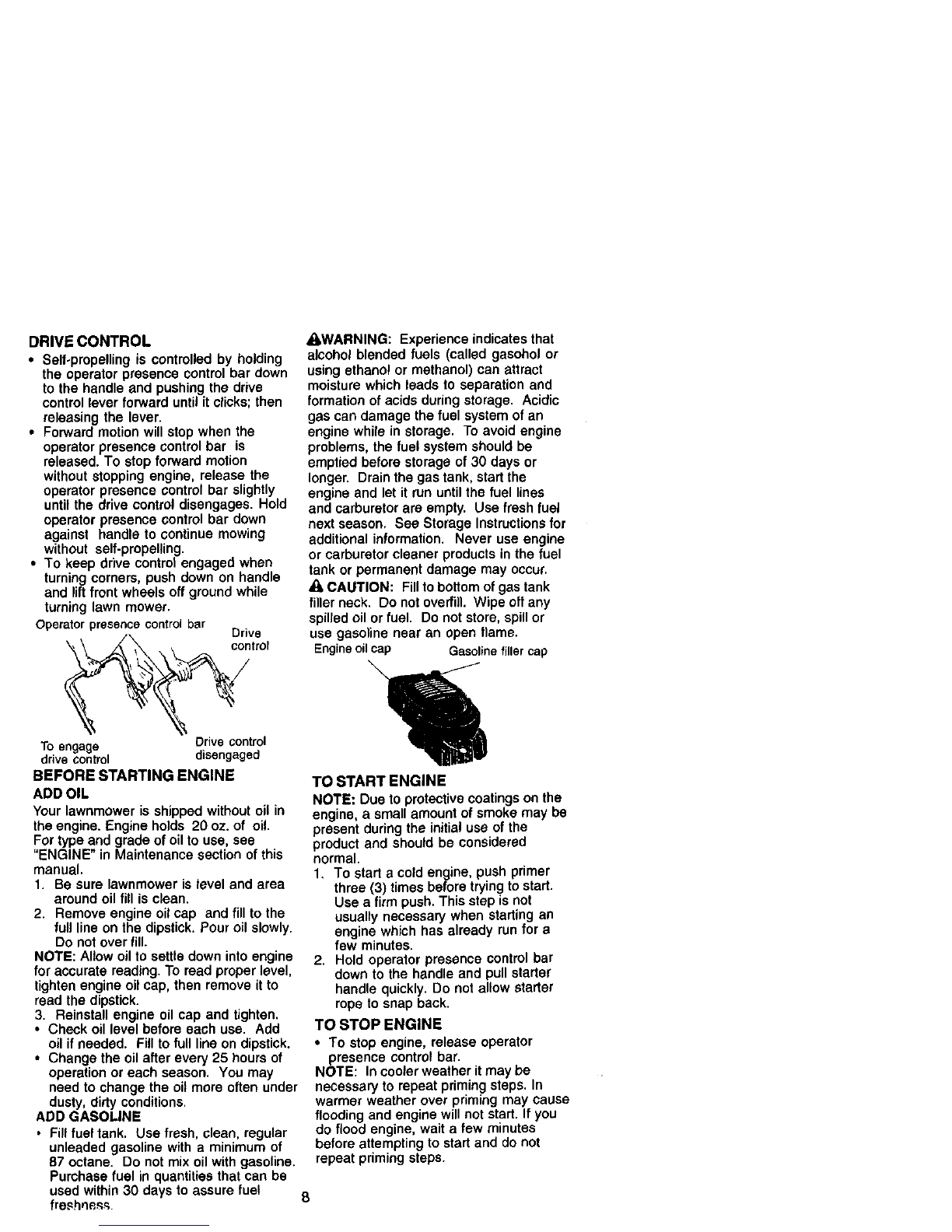

DRIVECONTROL

•Self-propelling is controlled by holding

the operator presence control bar down

to the handle and pushing the drive

control lever forward until it clicks; then

releasing the lever.

•Forward motion will stop when the

operator presence control bar is

released. To stop forward motion

without stopping engine, release the

operator presence control bar slightly

until the drive control disengages. Hold

operator presence control bar down

against handle to continue mowing

without self-propelling.

•To keep drive control engaged when

turning corners, push down on handle

and liftfront wheels off ground while

turning lawn mower.

Operatorpresence controlbar Drive

, _ control

To engage Drive control

drivecontrol disengaged

BEFORE STARTING ENGINE

ADD OIL

Your lawnmower is shipped without oil in

the engine. Engine holds 20 oz. of oil.

For type and grade of oil to use, see

"ENGINE" in Maintenance section of this

manual.

1. Be sure lawnmower is level and area

around oil fill is clean.

2. Remove engine oil cap and fill to the

full line on the dipstick. Pour oil slowly.

Do not over fill.

NOTE: Allow oil to settle down into engine

for accurate reading. To road proper level,

tighten engine oil cap, then remove it to

read the dipstick.

3. Reinstall engine oil cap and tighten.

•Check oil level before each use. Add

oil if needed. Fill to full line on dipstick.

•Change the oil after every 25 hours of

operation or each season. You may

need to change the oil more often under

dusty, dirty conditions.

ADD GASOLINE

• Fill fuel tank Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane Do not mix oil with gasoline

Purchase fuel in quantities that can be

used within 30 days to assure fuet

freshne_

_WARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season, See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

CAUTION: Fillto bottom of gas tank

filler neck. Do not overfill. Wipe eft any

spilled oil or fuel. Do not store, spill or

use gasoline near an open flame.

Engineoil cap Gasolinefillercap

TO START ENGINE

NOTE: Due to protective coatings on the

engine, a small amount of smoke may be

present during the initial use of the

product and should be considered

normal.

1. To start a cold engine, push primer

three (3) times before trying to start.

Use a firm push. This step is not

usually necessary when starting an

engine which has already run for a

few minutes.

2. Hold operator presence control bar

down to the handle and pull starter

handle quickly. Do not allow starter

rope to snap back.

TO STOP ENGINE

•To stop engine, release operator

presence control bar.

NOTE: In cooler weather it may be

necessary to repeat priming steps. In

warmer weather over priming may cause

flooding and engine will not start. If you

do flood engine, wait a few minutes

before attempting to start and do not

repeat priming steps.

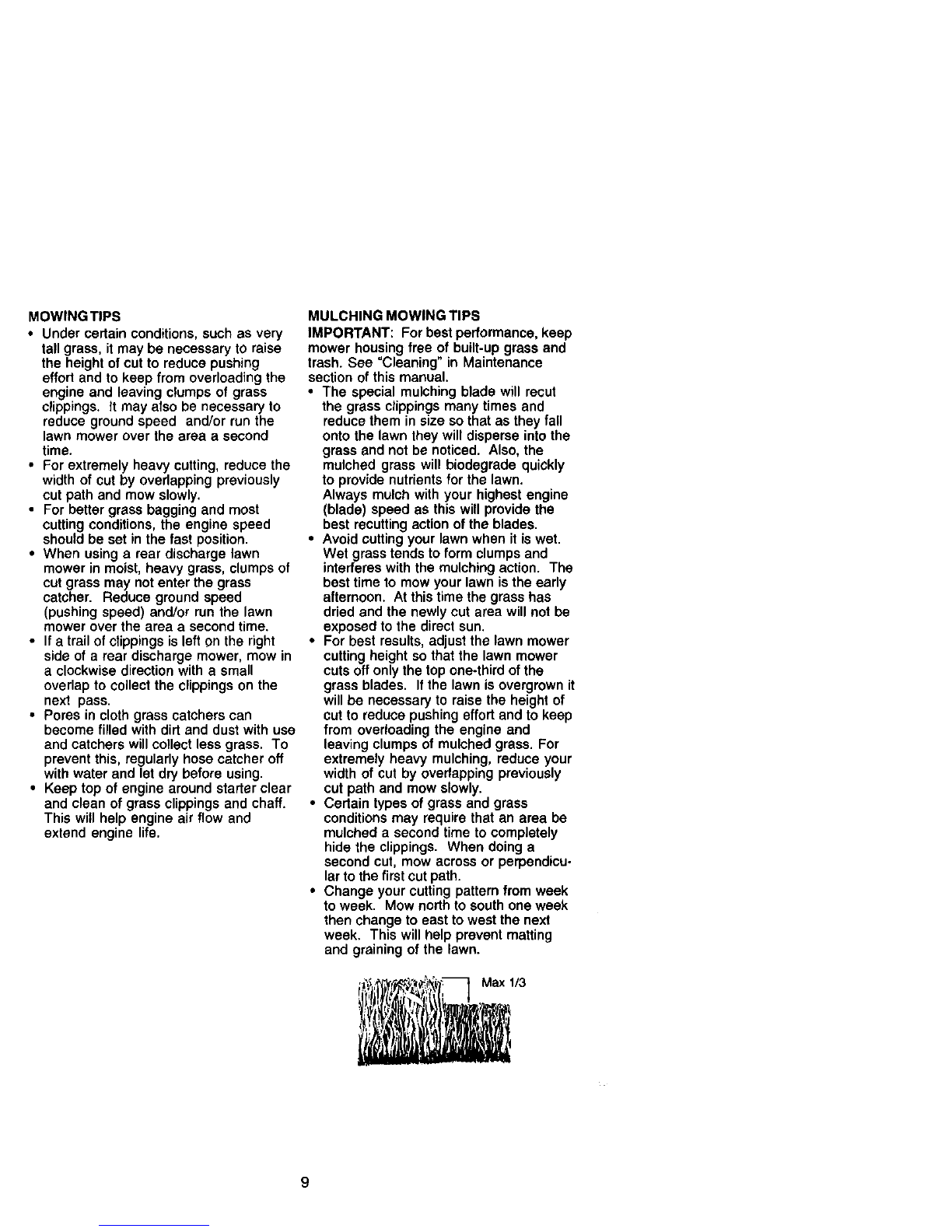

MOWING TIPS

• Under certain conditions, such as very

tall grass, it may be necessary to raise

the height of cut to reduce pushing

effort and to keep from overloading the

engine and leaving clumps of grass

clippings. _tmay also be necessary to

reduce ground speed and/or run the

lawn mower ever the area asecond

time.

• For extremely heavy cutting, reduce the

width of cut by overlapping previously

cut path and mow slowly.

• For better grass bagging and most

cutting conditions, the engine speed

should be set in the fast position.

• When using arear discharge lawn

mower in moist, heavy grass, clumps of

cut grass may not enter the grass

catcher. Reduce ground speed

(pushing speed) and/or run the lawn

mower over the area a second time.

•If a trail of clippings is left on the right

side of a rear discharge mower, mow in

a clockwise direction with a small

overlap to collect the clippings on the

next pass.

• Pores in cloth grass catchers can

become filled with dirt and dust with use

and catchers will collect less grass. To

prevent this, regularly hose catcher off

with water and let dry before using.

• Keep top of engine around starter clear

and clean of grass clippings and chaff.

This will help engine air flow and

extend engine life.

MULCHING MOWING TIPS

IMPORTANT: For best performance, keep

mower housing free of built-up grass and

trash. See "Cleaning" in Maintenance

section of this manual.

•The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into the

grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn.

Always mulch with your highest engine

(blade) speed as this will provide the

best recutting action of the blades.

•Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action. The

best time to mow your lawn is the early

afternoon. At this time the grass has

dried and the newly cut area will not be

exposed to the direct sun.

• For best results, adjust the lawn mower

cutting height so that the lawn mower

cuts off only the top one-third of the

grass blades. If the lawn is overgrown it

will be necessary to raise the height of

cut to reduce pushing effort and to keep

from overloading the engine and

leaving clumps of mulched grass. For

extremely heavy mulching, reduce your

width of cut by overlapping previously

cut path and mow slowly.

• Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a

second cut, mow across or perpendicu-

lar to the first cut path.

•Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting

and graining of the lawn.

Max 1/3

.A,.TENA.CESC. OULE

As COMPLETE

nEGUS.SE.VlOE SERWCEOATES

ICheck for Loose Fasteners ; _ _/

Clean/Inspect Grass Catcher

(11Equipped) ¥o t/ if

MClean Lawn Mower _ M/

Clean Under Drive Cover

(Power-Propelled Mowers)

Check drive belt/pulleys

E(Power-Propelled Mowers) If

Check/Sharpen/Replace Blade bS $

Lubrication Chart V_

Clean Battery/Recha_rQe

Electric Start Mowers'_ II/ I/4

ECheck EnQine Oil Level t/

NChange Engine Oil _I,2

G Clean Air Filter It/ 2

Inspect Muffler

NClean or Replace Spark Plug v'

E Replace Air Filter Paper Cartridge 1_2

1 - Change more o/ten when operating under a heavy load or In high an=blenttemperalu_s.

2 - Ser_ce more O/lee when odPe_ng indidy or ckJstyCOediliC*_S

3- Replace blades moreo_en when mowing in sandy sc_l.

4 - Cha_e 48 hours at end of season.

GENERAL RECOMMENDATIONS

The warranty on this lawn mower does

not cover items that have been subjected

to operator abuse or negligence. To

receive full value from the warranty,

operator must maintain mower as

instructed in this manual.

Some adjustments will need to be made

periodically to properly maintain your

unit,

All adjustments in the Service and

Adjustments section of this manual

should be checked at least once each

season.

• Once a year, replace the spark plug,

clean or replace air filter element and

check blade for wear. A new spark

plug and clean/new air filter element

assures proper air-fuel mixture and

helps your engine run better and last

longer.

•Follow the maintenance schedule in

this manual.

BEFORE EACH USE

1. Check engine oil level.

2. Check forloosefasteners.

LUBRICATION

Keep unit well lubricated (See "LUBRI-

CATION CHART").

LUBRICATION CHART

_) Wheel adjuster Engineoil

(_) Brake spring bracket

Handle bracket

mounting pin

(_) Rear door hinge

(_) Refer to maintenance "Engine" section.

_) Spray lubricant

IMPORTANT: Do not oil or grease

plastic wheel bearings, viscous lubri-

cants will attract dust and dirtthat will

shorten the life of the self-lubricating

bearings, if you feel they must be

lubricated, use only a dry, powdered

10graphite type lubricant sparingly.

Table des matières

Autres manuels Craftsman Tondeuse à gazon

Craftsman

Craftsman 917.271654 Manuel utilisateur

Craftsman

Craftsman 917.27582 Manuel utilisateur

Craftsman

Craftsman 917.388280 Manuel utilisateur

Craftsman

Craftsman 917.28001 Manuel utilisateur

Craftsman

Craftsman 247.203720 Manuel utilisateur

Craftsman

Craftsman 917.271643 Manuel utilisateur

Craftsman

Craftsman 917.275682 Manuel utilisateur

Craftsman

Craftsman 917.255915 Manuel utilisateur

Craftsman

Craftsman 917.289362 Manuel utilisateur

Craftsman

Craftsman 917.388610 Manuel utilisateur

Craftsman

Craftsman 247.37110 Manuel utilisateur

Craftsman

Craftsman 917.273393 Manuel utilisateur

Craftsman

Craftsman 917.255930 Manuel utilisateur

Craftsman

Craftsman 247.887760 Manuel utilisateur

Craftsman

Craftsman 917.27624 Manuel utilisateur

Craftsman

Craftsman 917.374821 Manuel utilisateur

Craftsman

Craftsman 917.374910 Manuel utilisateur

Craftsman

Craftsman 917.271131 Manuel utilisateur

Craftsman

Craftsman 917.28947 Manuel utilisateur

Craftsman

Craftsman 917.271553 Manuel utilisateur

Craftsman

Craftsman 917.252551 Manuel utilisateur

Craftsman

Craftsman 2One 917.372471 Manuel utilisateur

Craftsman

Craftsman 917.376221 Manuel utilisateur

Craftsman

Craftsman EZ3 917.258870 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
